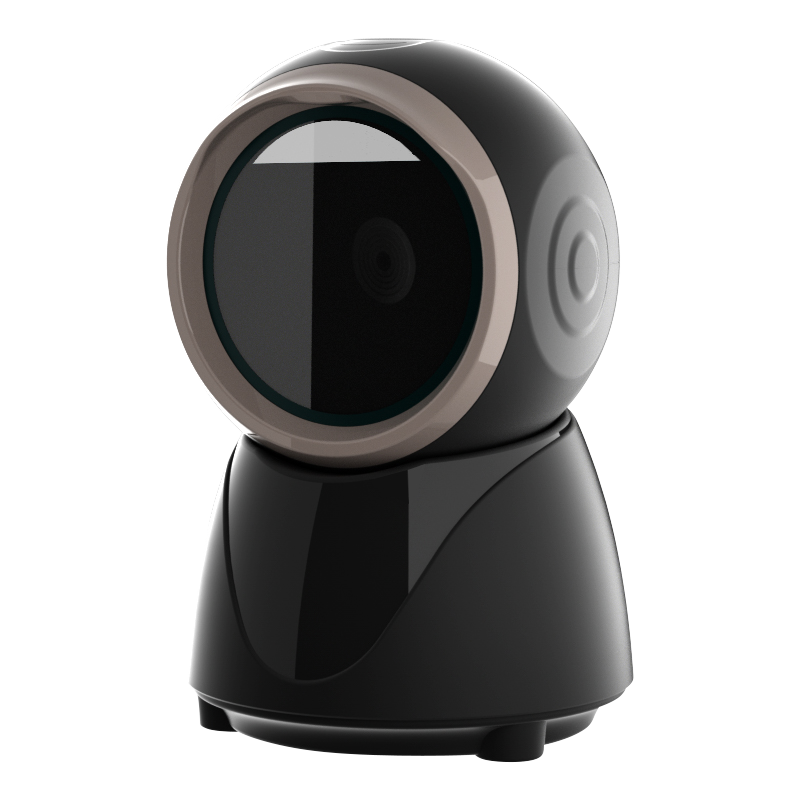

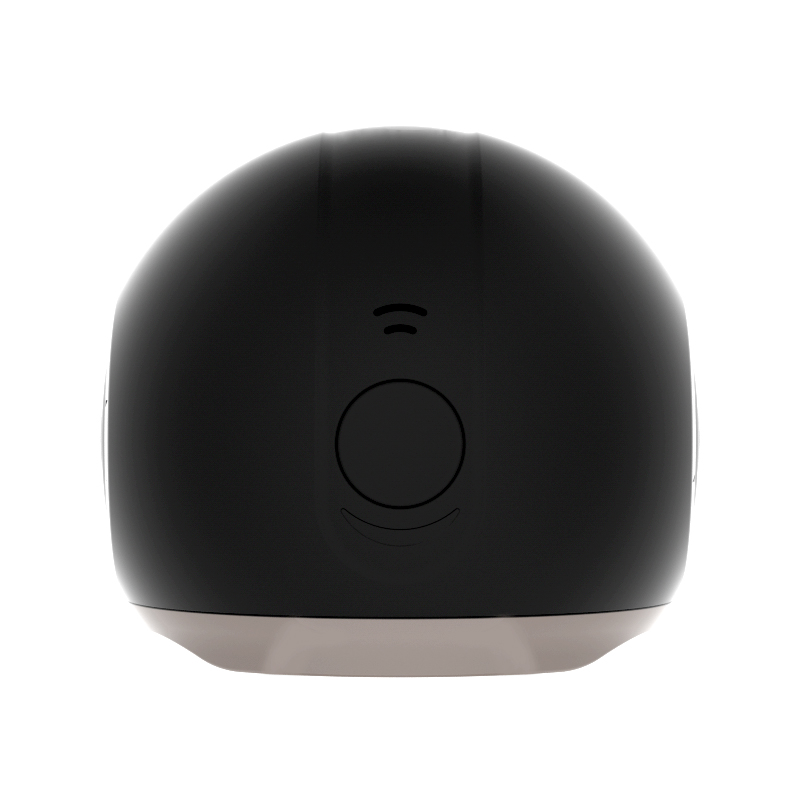

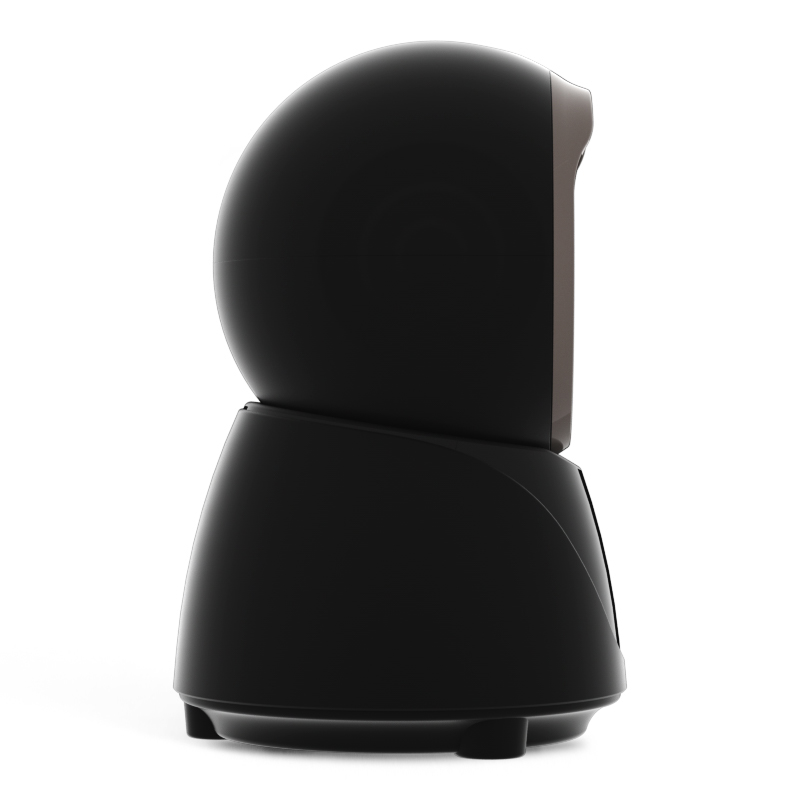

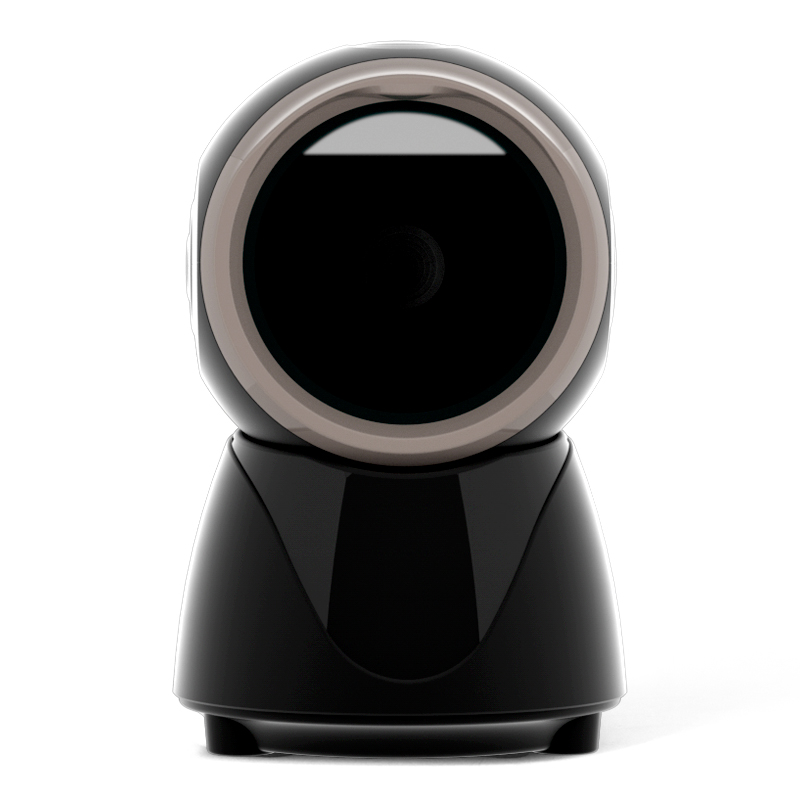

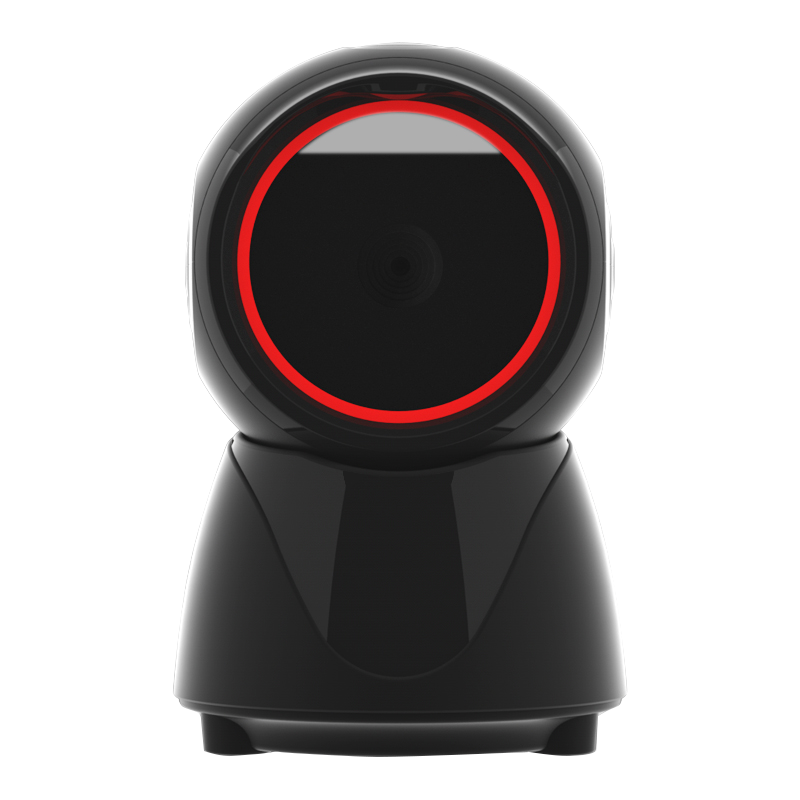

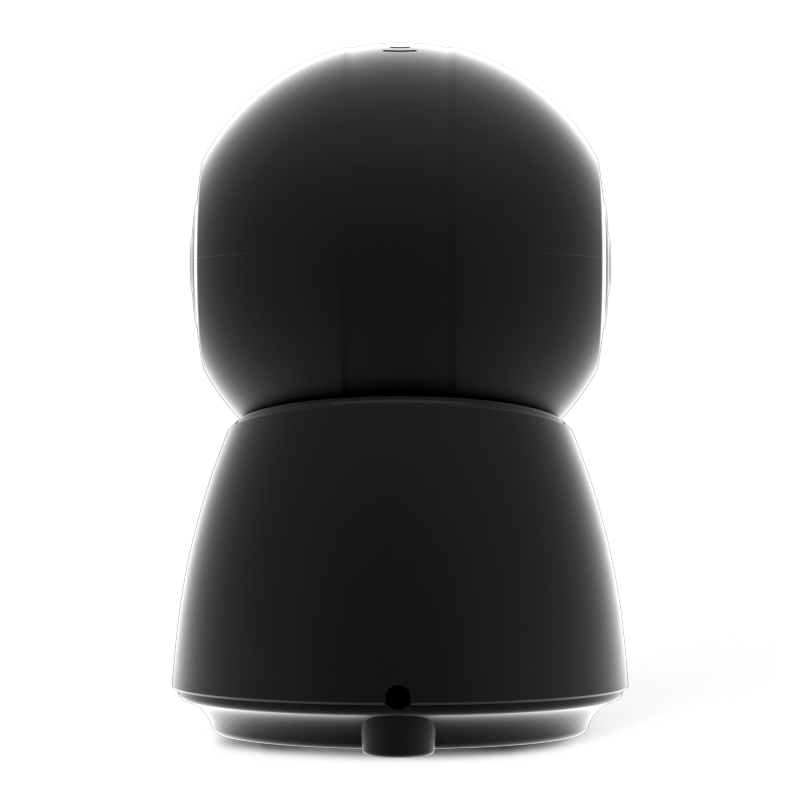

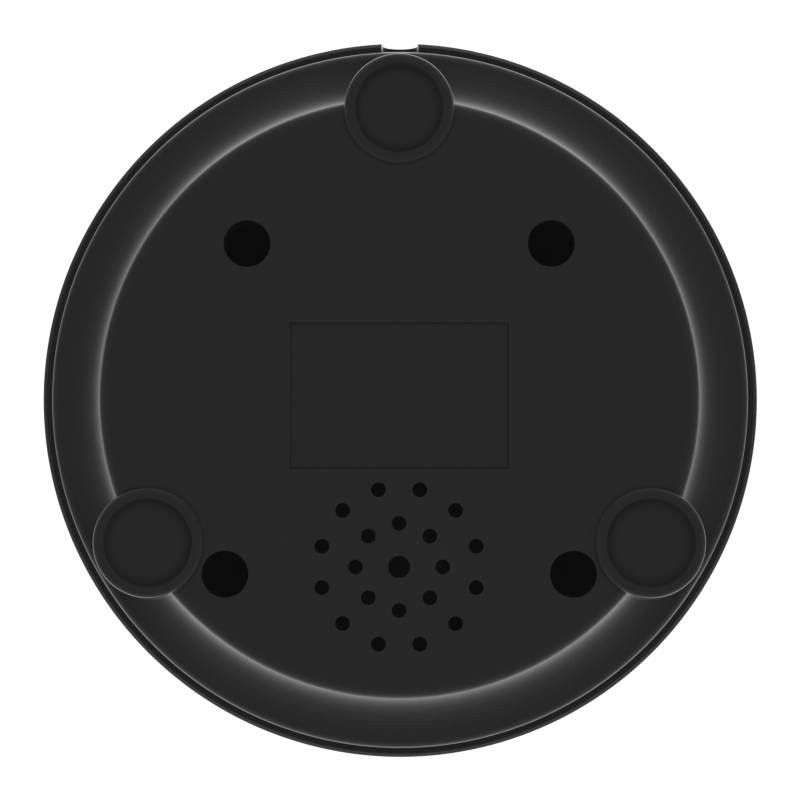

IBC-X9 high-speed 2D scanning omni-directional barcode scanner

Features:

• Equipped with a new 500,000global exposure scan engine
• Larger scanning window for easier reading
• Adjustable angle, flexible and easy to use
• Frequently used function buttons, easier to set up
• 5 styles of prompt sound, soft and bright LEDindicator
• Rich interface, strong compatibility, support a variety of systems and cash registers



IBC-X9 technical parameters

Physical parameters
Scan mode	Auto-sensing/continuous scanning
Communication interface	USB-HID keyboard, USB-COM virtual serial port, RS232 serial port
Interface type	USB TYPE-B
Prompt mode	Buzzer, LED light
How it is set up	Press the key to set and manually scan the setting code in turn
Housing material	ABS+PC
Cable standard	Straight line 1.35m
Exterior dimensions	153mm×100mm×100mm(products) 170mm×115mm×115mm(packaging)
Weight	Net weight 326g; Gross weight 336g
Performance parameters
Scan type	CMOS global exposure
Resolution	800*600
Light source	617nm red LED
Scan angle	± 60°, ±54°, 360° (left and right, front and back, turn).
Scan rate	120 fps
Field of view	48° (H) x 30° (V)
Printing contrast	Minimum 20%.
Decoding kind	1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile screen reading
Minimum resolution	1D:3mil; 2D:5mil
Electrical parameters
Input voltage	DC 5V±10%
Current	Working: 240 mAh; Standby: 190 mAh
Environment parameters
Temperature	0°C-50°C (working); -20°C~+70°C (storage).
Humidity	5%-95% non-condensing
