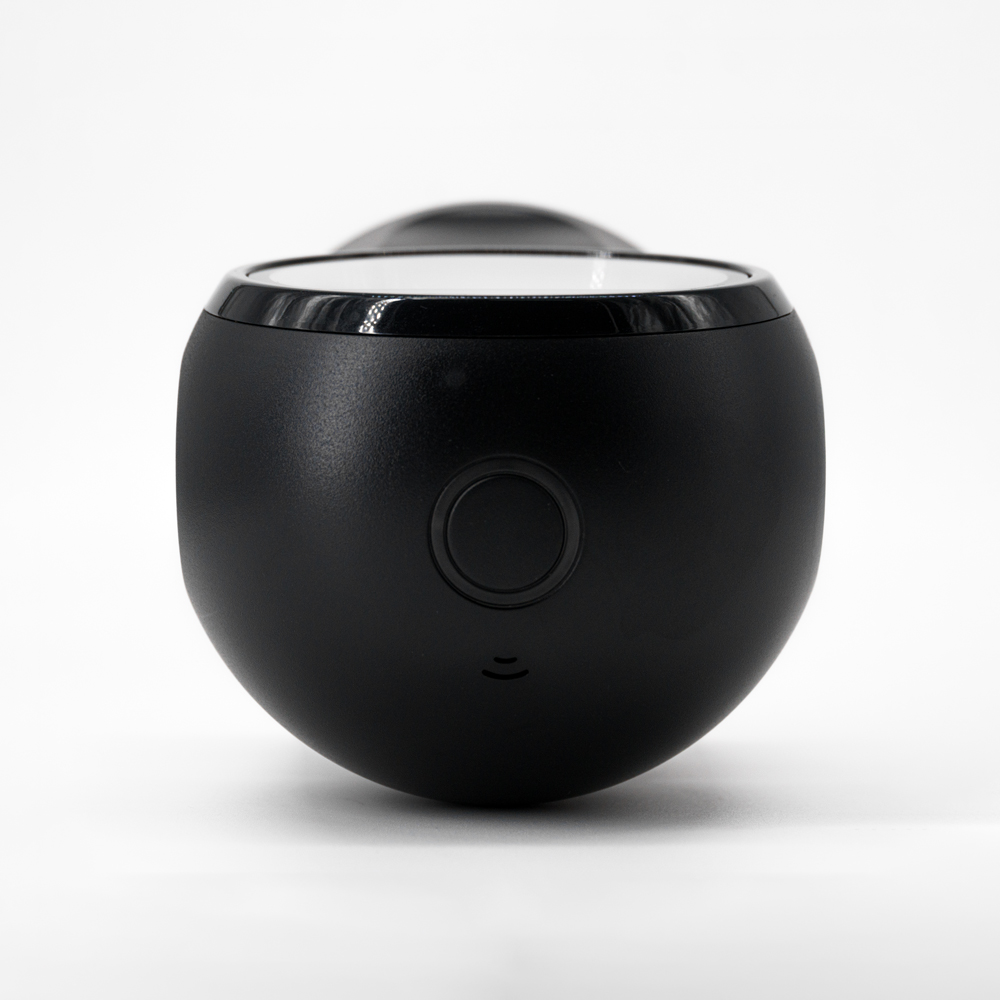

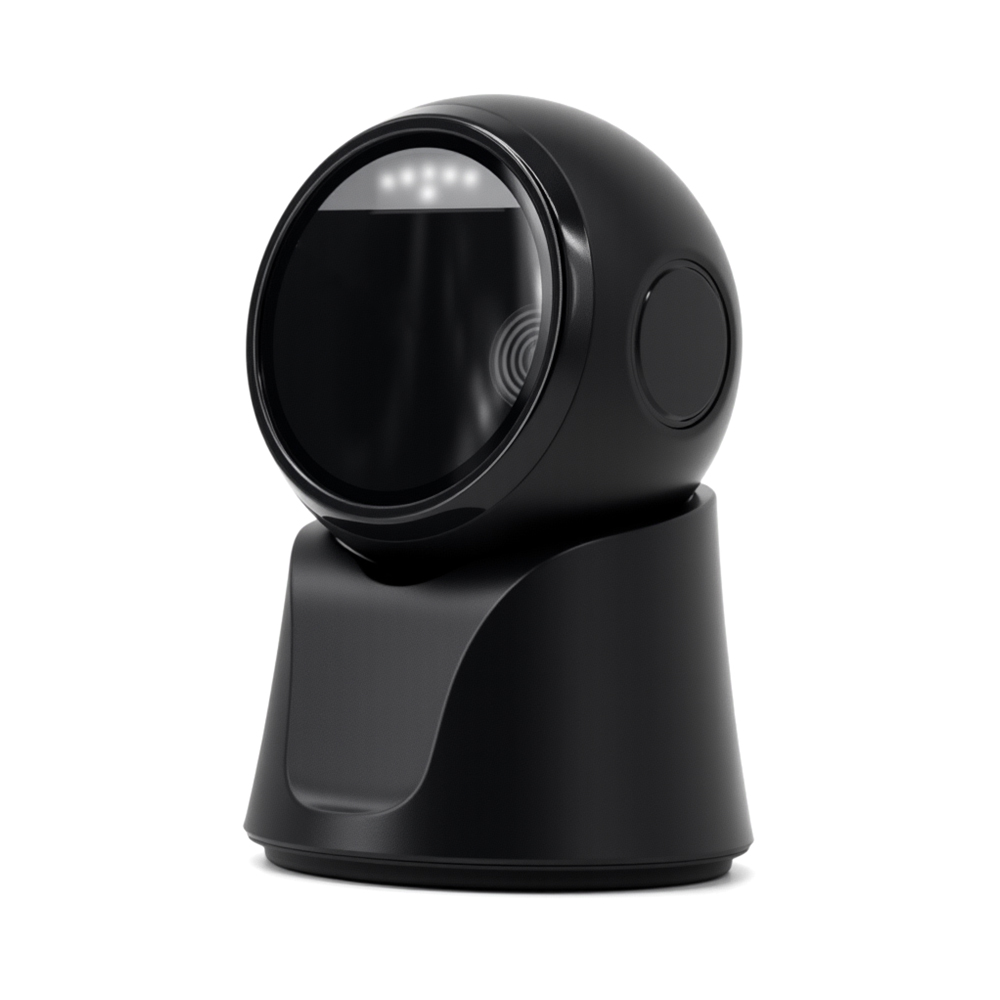

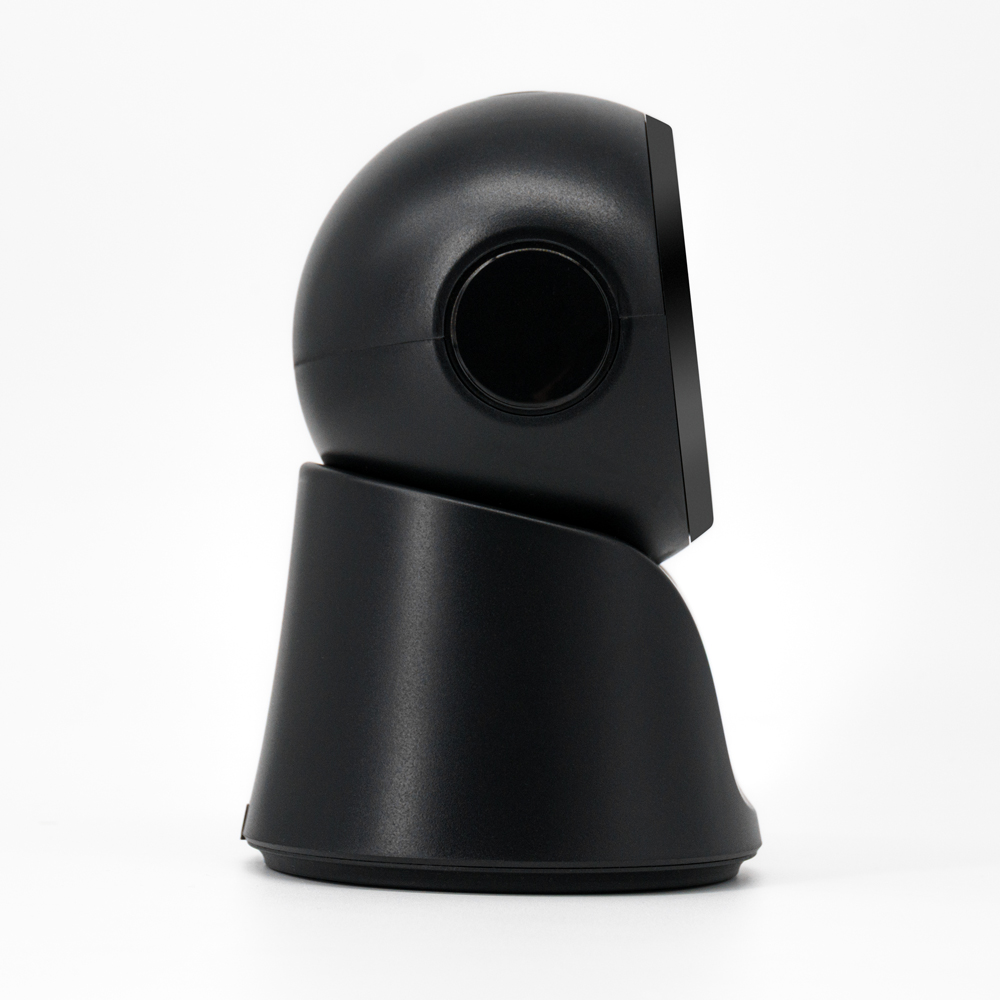

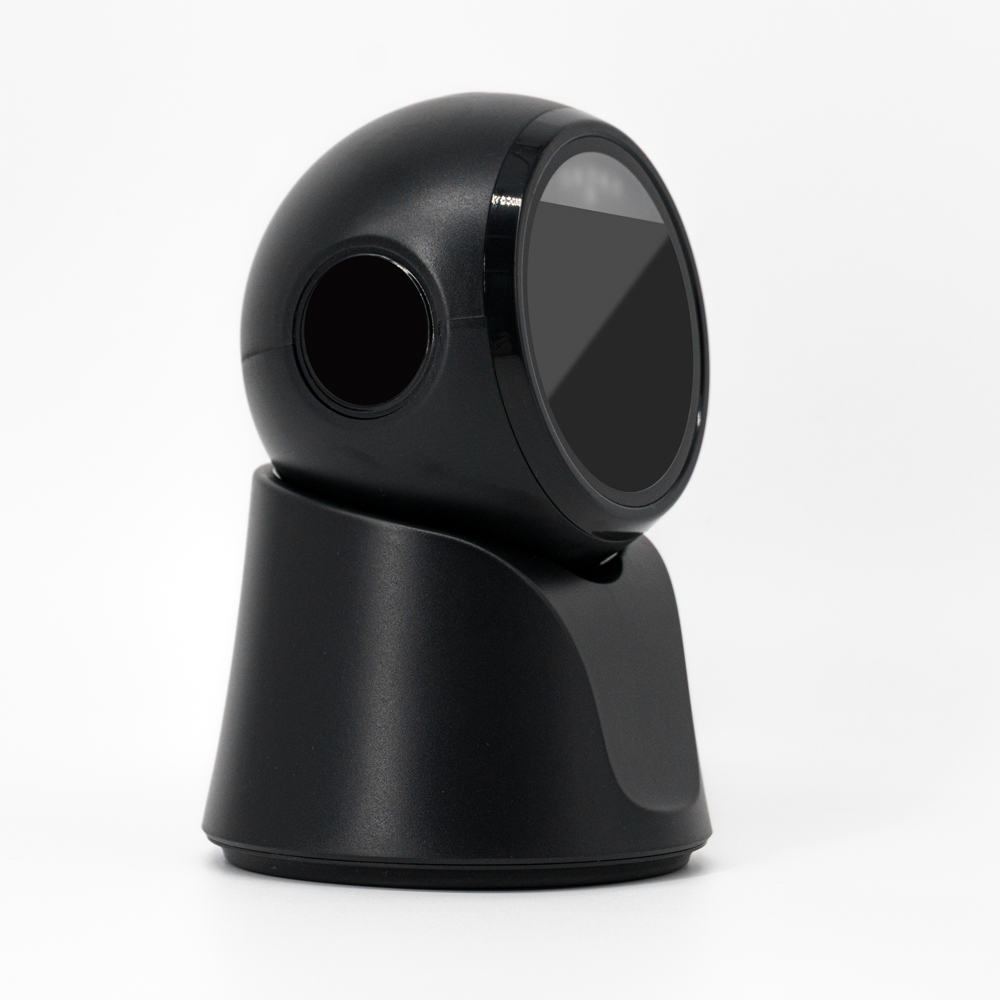

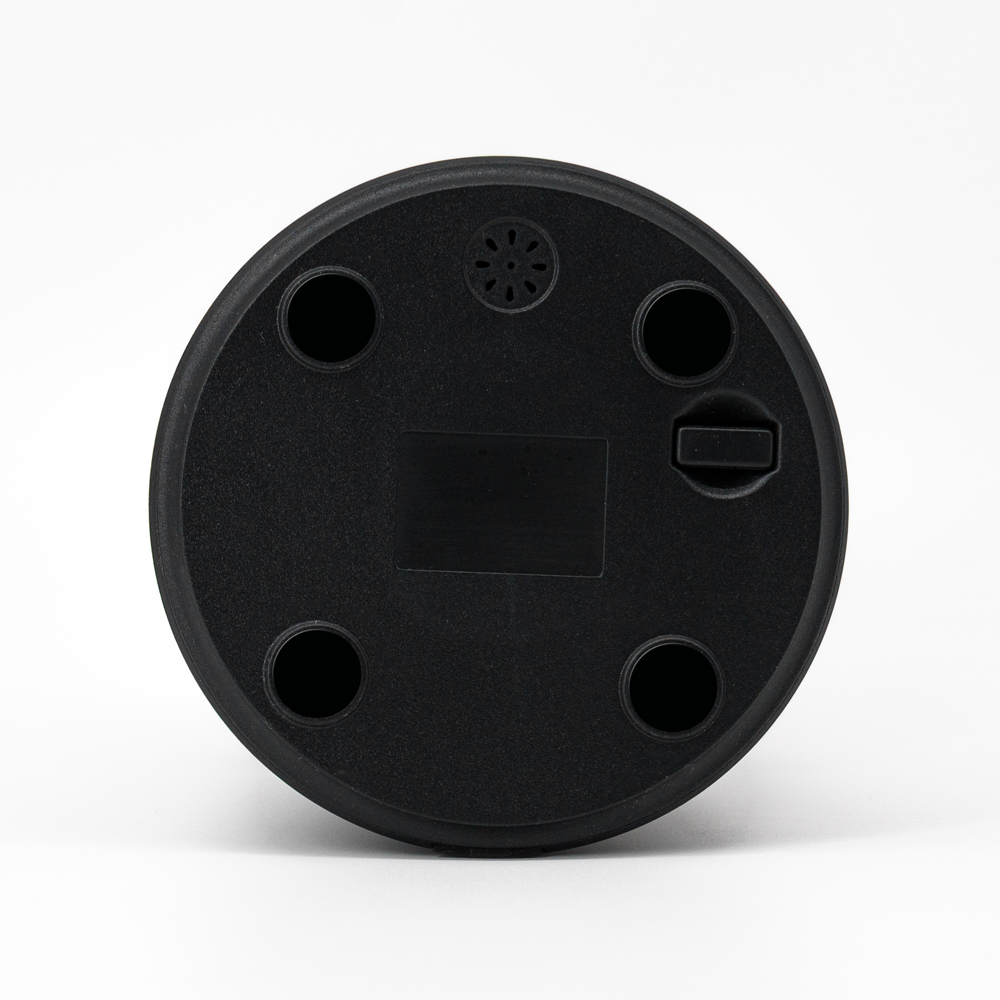

IBC-X13W high-speed 2D scanning omni-directional barcode scanner

Features:

• Equipped with a new 500,000 global exposure scanning engine
• Larger scanning window for easier reading
• Adjustable angle for flexibility and ease of use
• Wireless transmission function, wireless charging is also optional
• Rich interfaces, strong compatibility, support a variety of systems and cash registers



IBC-X13W technical parameters

Physical parameters
Scan mode	Automatic sensing
Communication interface	USB-HID keyboard，USB-COM Virtual serial port
Communication distance	Wireless 2.4G: 0-80m (open environment);  Bluetooth: 0-20m (open environment).

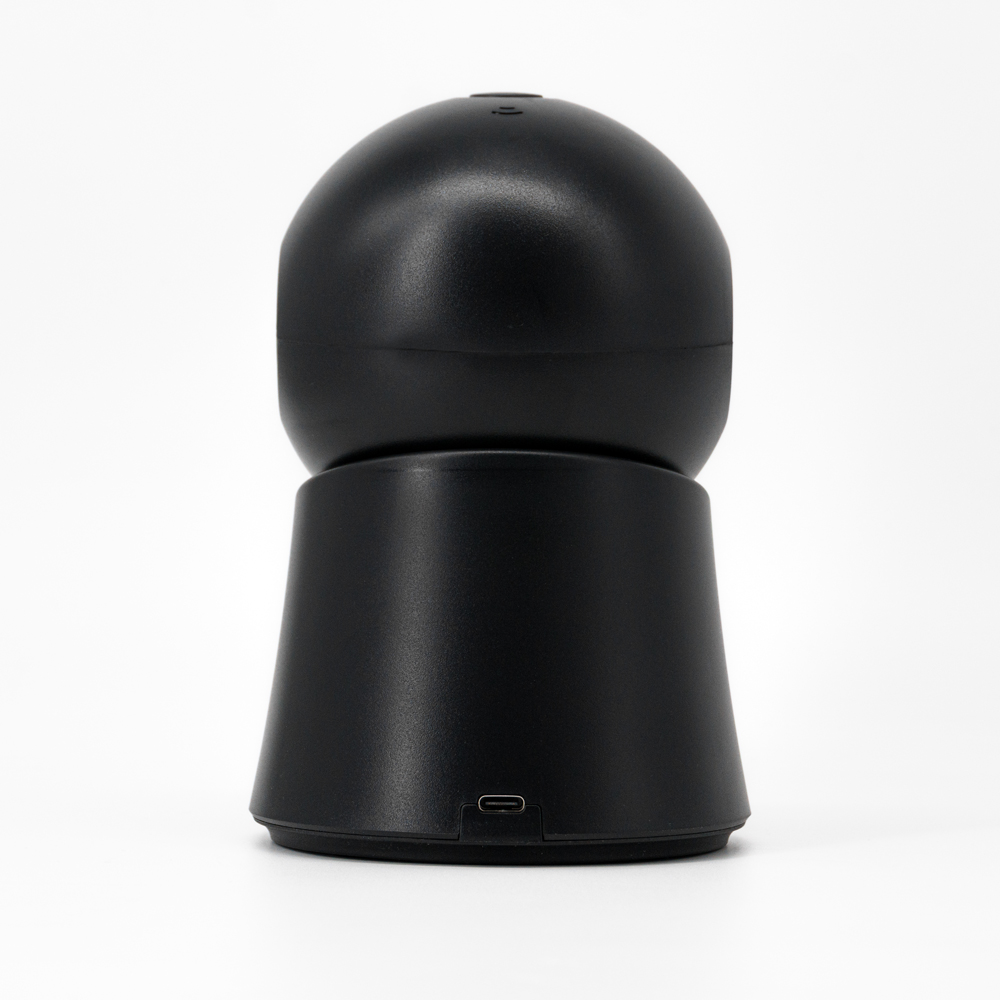

Interface type	USB TYPE-C
Prompt method	Buzzer, LED light
How to set it up	Scan the setting code manually in turn
Housing material	ABS+PC
Cable standard	Straight line 1.5m
Appearance dimensions	156mm×103.5mm×103.5mm(product); 170mm×115mm×115mm (Outer Packaging)
weight	Net weight 266g; Gross weight 420g
Performance parameters
Scan type	CMOS global exposure
Discrimination rate	800×600
light source	617nm red LED
Internal storage	512k
Scan angle	± 60°, ±54°, 360° (left and right, forward and backward, rotation).
Scan rate	120 frames per second
Field of view	48° (H) x 30° (V)
Printing contrast	Minimum 20%
Decoding types	1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code，Support mobile phone screen code reading
Minimum resolution	1D 5mil 2D 7mil
depth of field	QR(20k) QR payment code (mobile code) Data Matrix（10mil） PDF 417(7mil)	0~230mm 0~290mm 0~45mm 0~130mm	EAN-13(13mil) Code 39(8mil) Code 128(7mil)	0~270mm 0~180mm 0~140mm
Electrical parameters
Input voltage	DC 5V±10%
current	Operation: 240 mAh; Standby: 190 mAh
battery	2000mAh
Charging time	4 hours
Battery life	72 hours (standby), 6-7 hours (working: scanning every 5 seconds).
Environmental parameters
Temperature	0°C-50°C (working); -10°C~+60°C (storage).
Humidity	5%-95% non-condensation
