IBC-9001 2D CMOS Automatic Scanning Desktop Barcode Scanner for Supermarket

Product Description

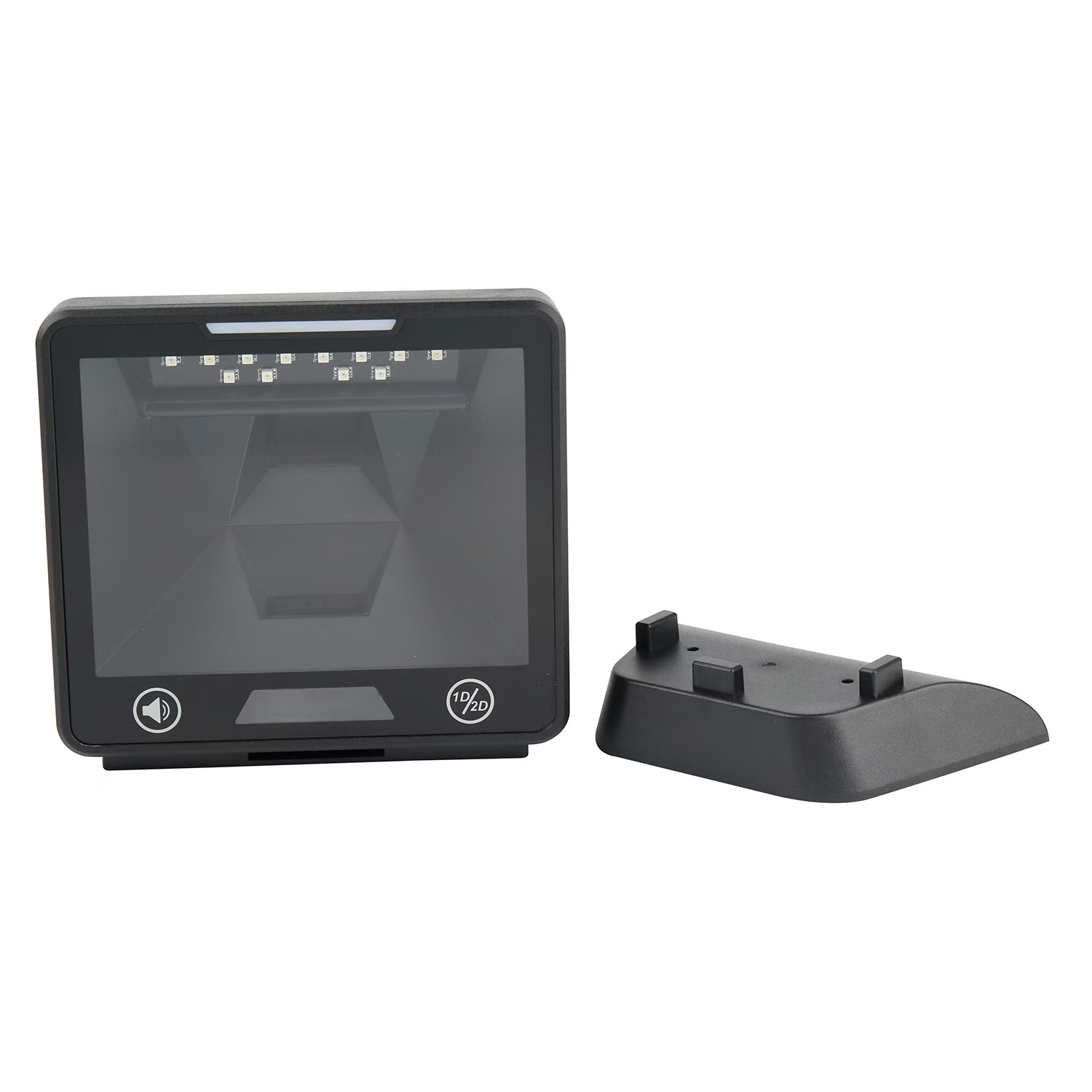

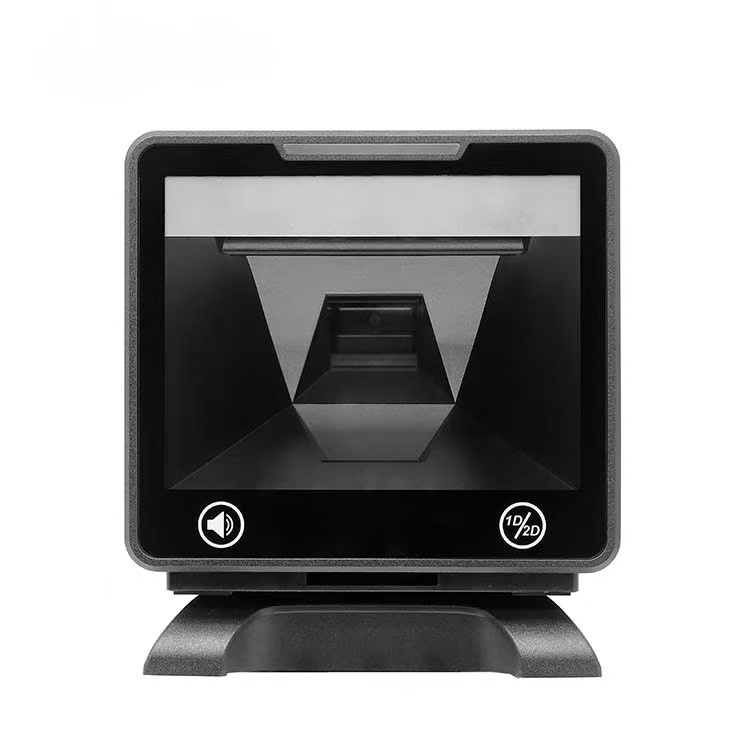

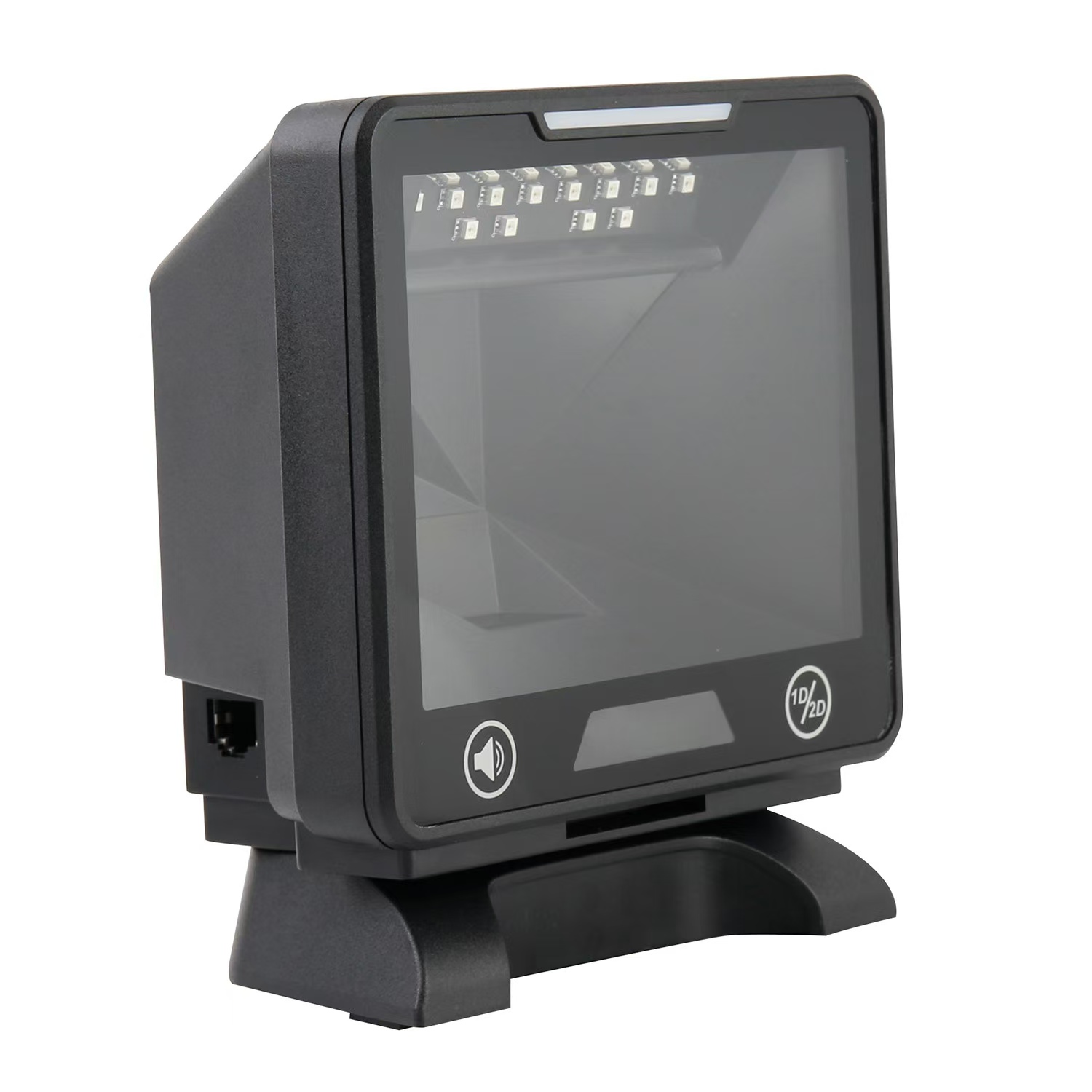

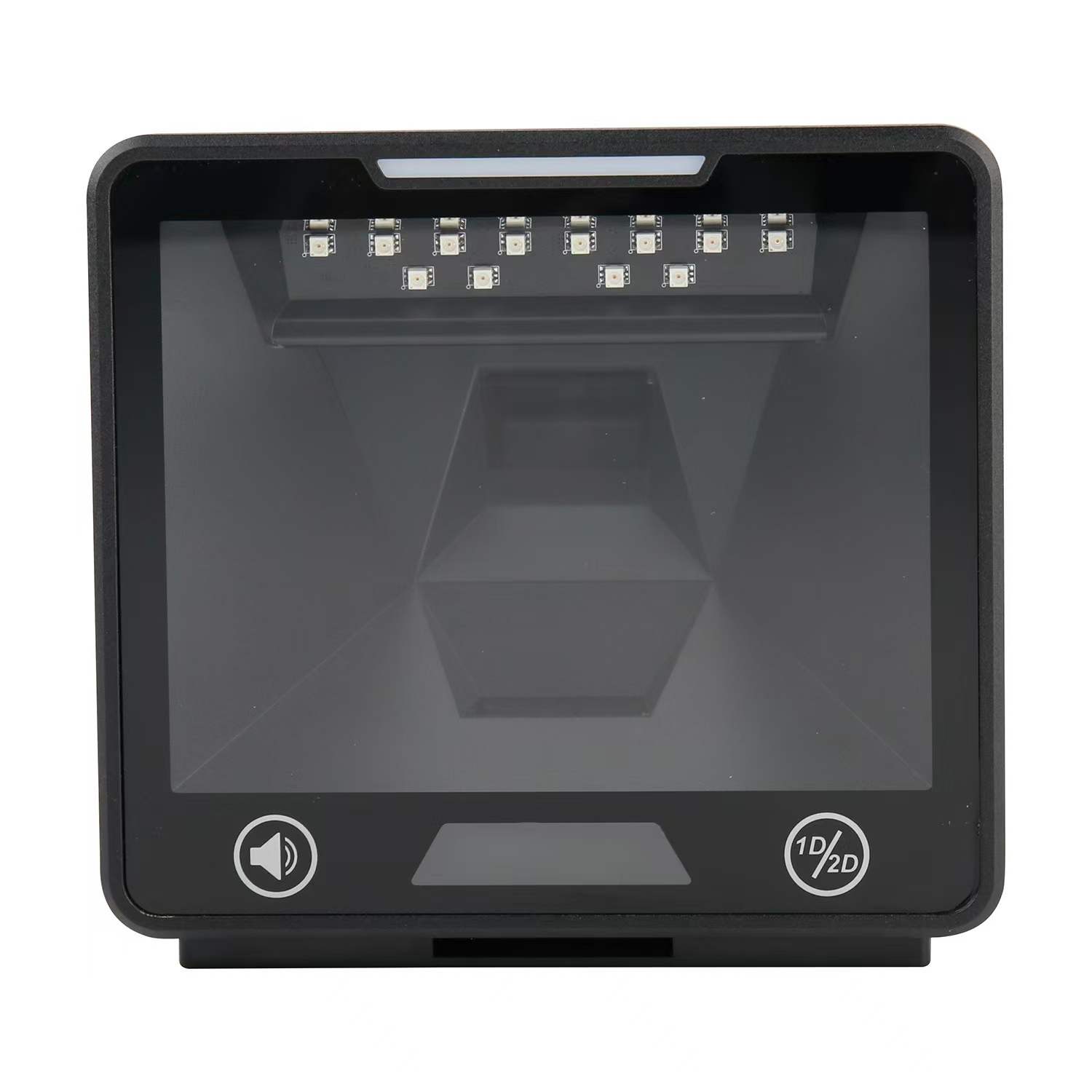

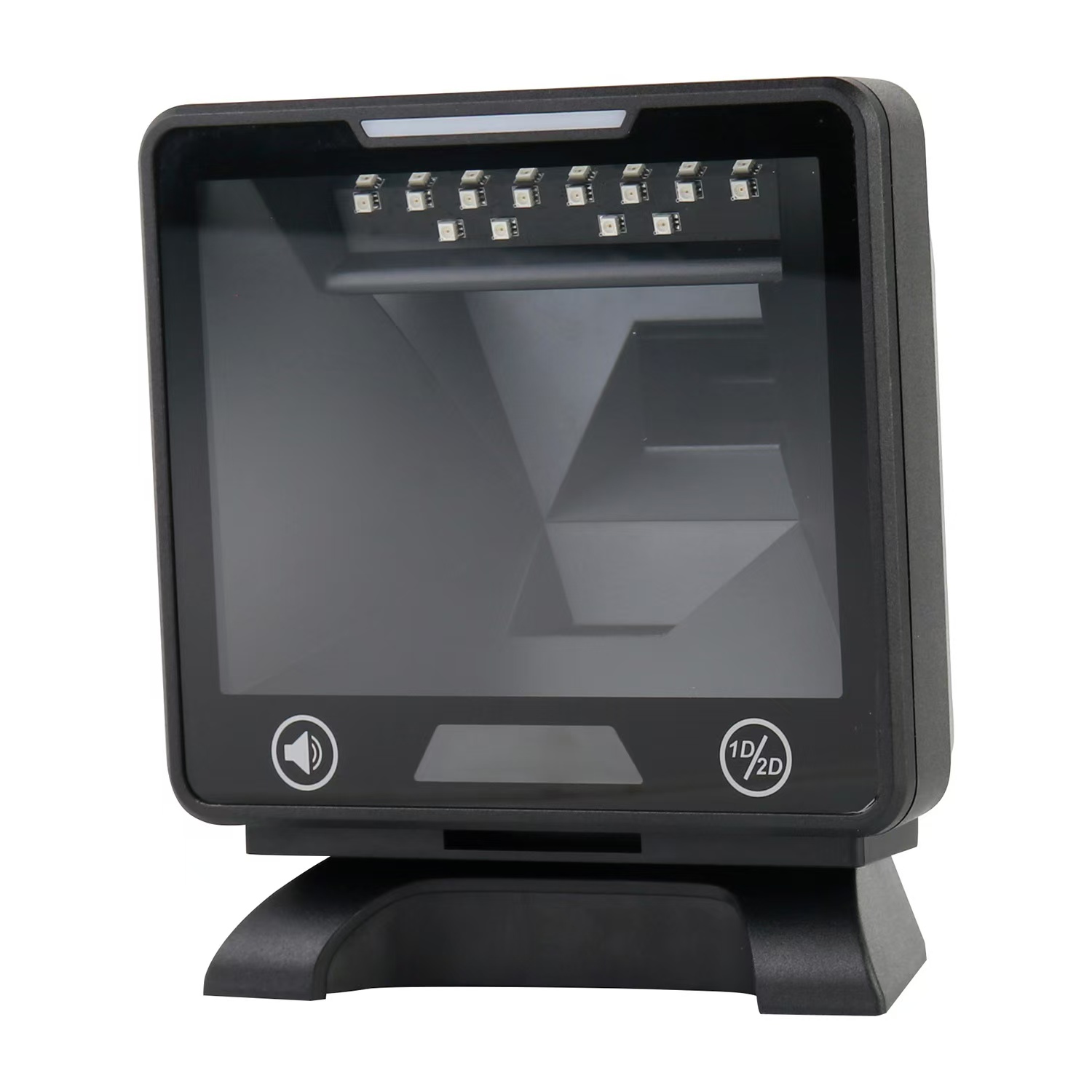

IBC-9001 is a desktop CMOS barcode scanner with stylish appearance and exquisite workmanship. Equipped with patented advanced decoding algorithm, combined with a new decoding chip and a megapixel camera, as well as a 2M/S motion tolerance and a large reading window, it can easily handle various high-speed scanning operations.

And in different application scenarios, it also has excellent performance capabilities. The embedded shell design can be easily connected to the cashier counter. The clear scanning prompt sound and LED indication enable it to have accurate prompts even in noisy environments.





Product technical parameters

Performance Parameter
Light Source	LED Red light (Osram from Germany)
CPU	1.2G Dual-core
Image sensor	1280*1024, 1.3 Million pixels Global Shutter
Resolution(maximum)	0.102mm / 4mils
Print contrast ratio(minimum)	≥20%
Motion tolerance	2M/sec
Reading Angle	Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±65°
Decoding Capability	1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.
Reading Indicators	LED light&Buzzer(adjustable tone and volume）
Typical depth of Field	Precision Barcode Depth of Field 5mil    CODE128 0mm—90mm 5mil    EAN-13 0mm—90mm 13.34mil    EAN-13 0mm—280mm 10mil QR     0mm—110mm 10mil PDF417 0mm—260mm 20mil QR     0mm—200mm 20mil DM 5mm—110mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)
Electrical Parameter
Current	Working current（Standard): < 430 mA  Standby current（Standard): < 220 mA
Input Voltage	5 VDC (+/- 10%)
Environmental Parameter
ESD protection	Touch 8 kV; Air 15kV
Temperature	Operation: -10 to 50 °C Storage/Transport: -20 to 65 °C
Humidity(non-condensing)	5 - 95%
Ambient light	0 -100,000 lux
Interfaces
Interfaces	RS-232; USB HID; USB COM; HID POS available as per customer’s needs
