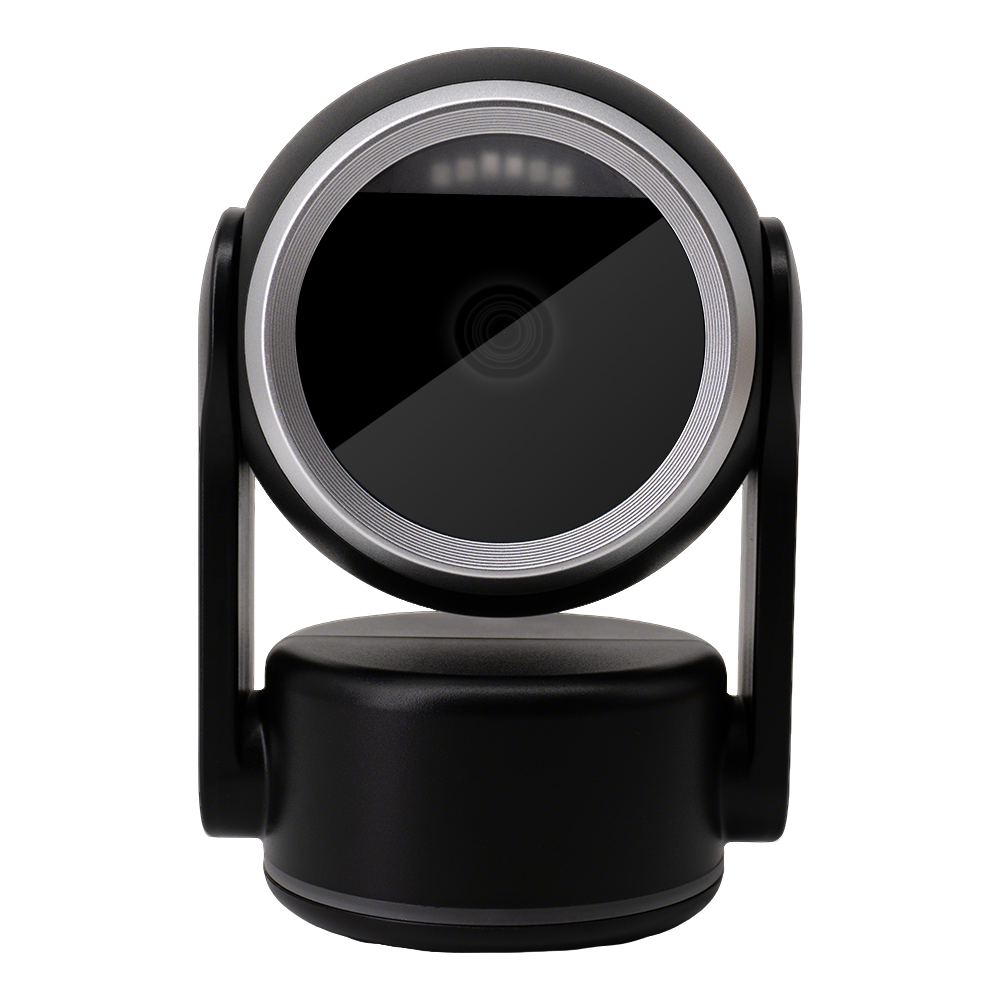

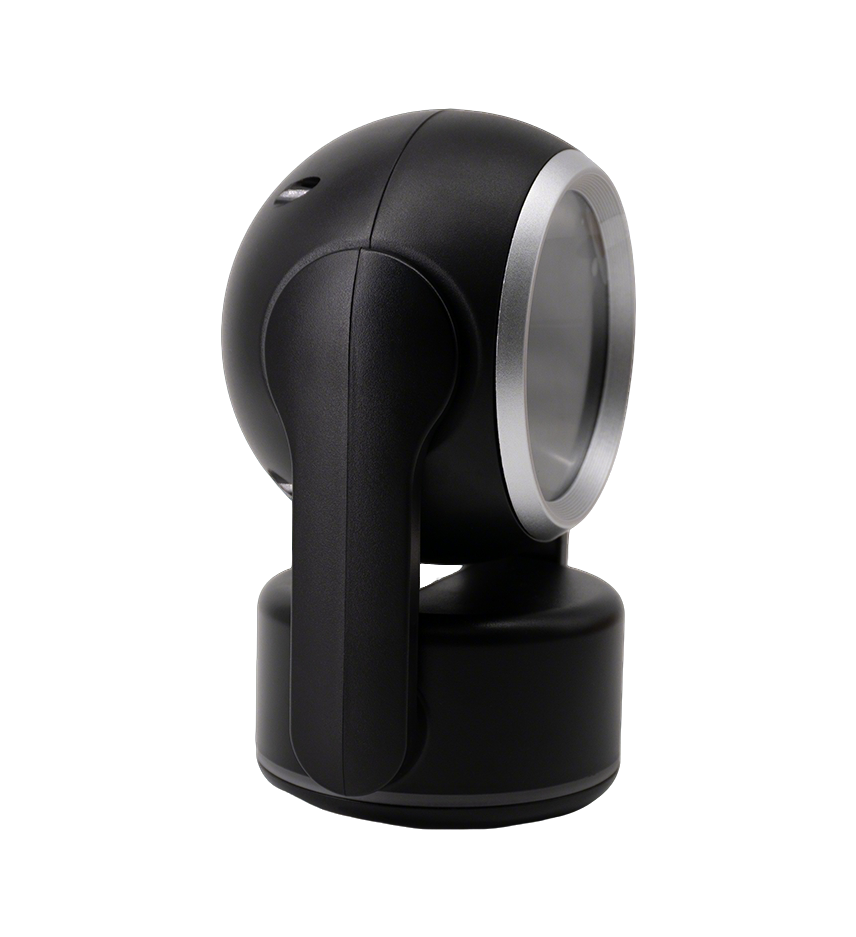

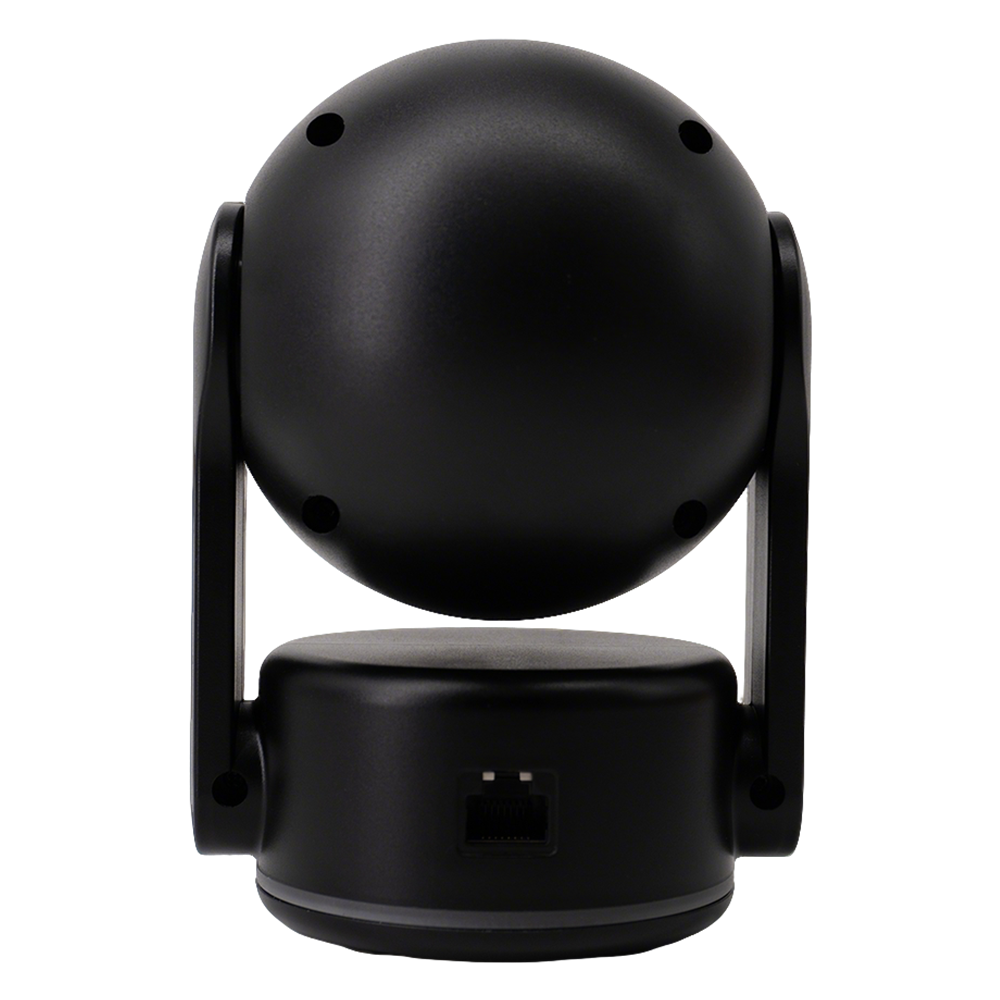

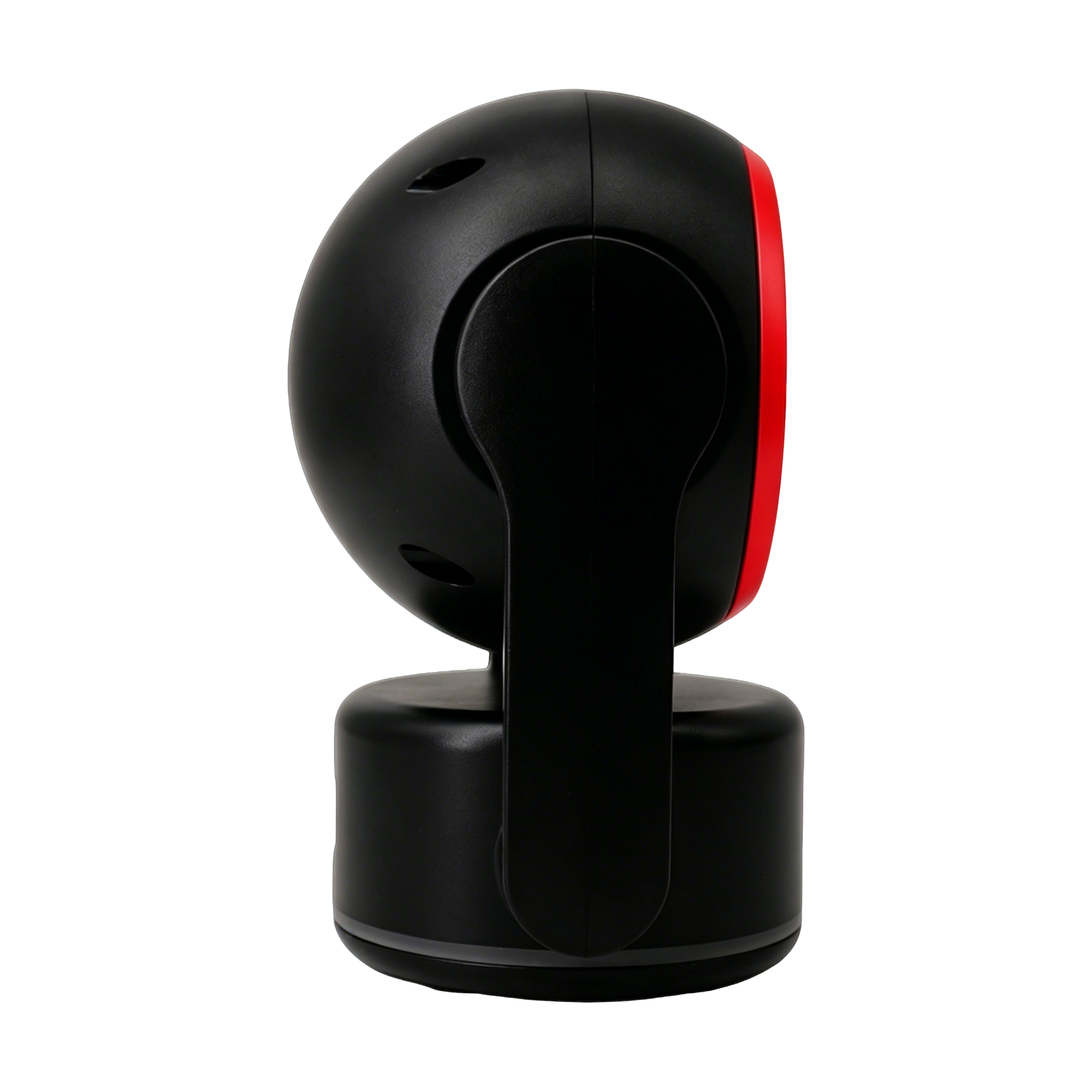

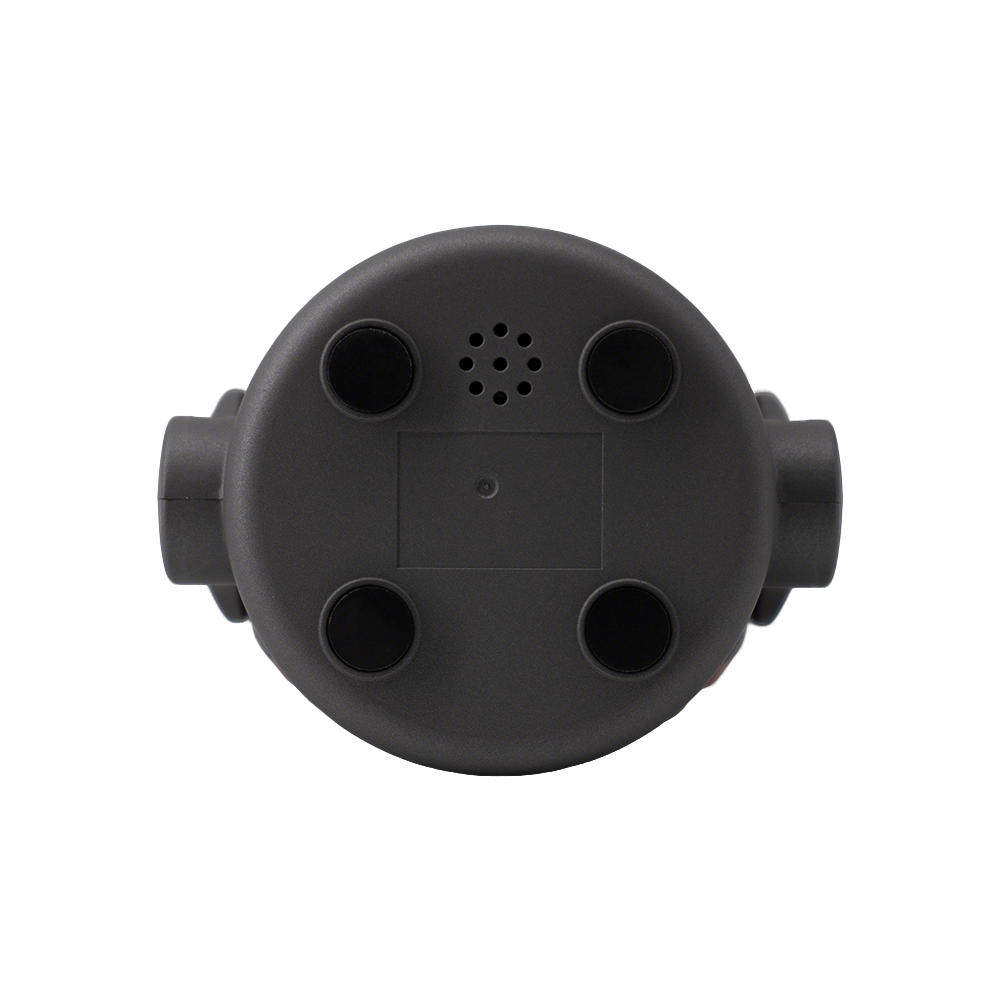

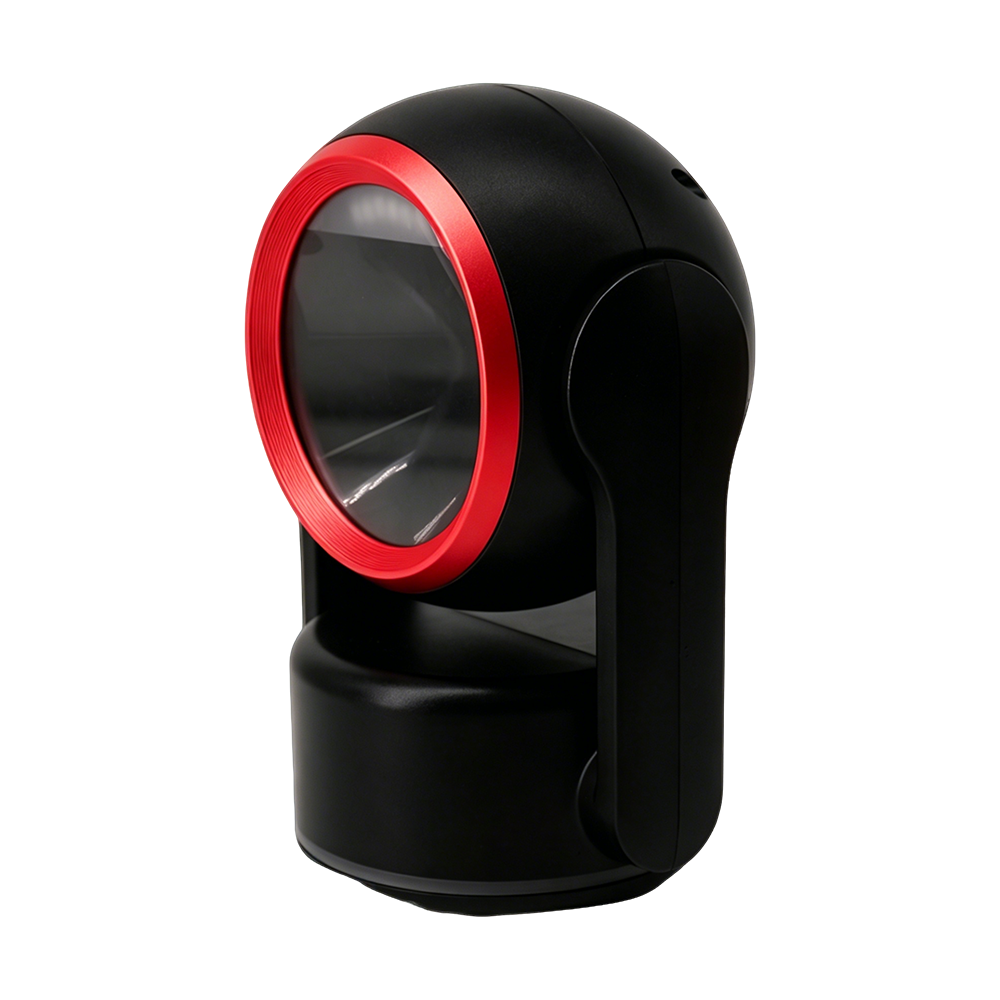

IBC-X32 2D CMOS Desktop Barcode Scanner

Features:

• Equipped with a brand-new 500,000 global exposure scanning engine
• Larger scanning window makes reading easier
• Adjustable angle, flexible and easy to use
• Common function buttons make setup simpler
• Soft and bright LED indicators
• Rich interfaces, strong compatibility, supporting multiple systems and cash registers



IBC-X32 technical parameters

Physical parameters
Scan mode	Automatic sensing / continuous scanning
Communication interface	USB-HID keyboard, USB-COM virtual serial port, RS232 serial port (optional).
Interface type	USB TYPE-B
Tips and methods	Buzzers, LED lights
Setup method	Manually scan the setup code one by one
Shell material	ABS+PC
Cable standards	Straight line 1.35m
Appearance dimensions	150mm×105mm×90mm
Weight
Performance parameters
Scanning type	CMOS full exposure
Resolution rate	800×600
Light source	617nm red LED beam
Scanning angle	± 50°, ± 50°, 360° (left-right, forward-backward, rotation).
Scanning speed	120 frames per second
Field of view	42° (H) x 32° (V)
Print contrast	Minimum 20%
Decoding types	1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, MaxiCode, Aztec Code，Supports scanning codes with the phone screen
Minimum resolution	1D code 3mil ;2D code 5mil
Depth of field	QR (20mil) QR Payment Code (Mobile Code) Data Matrix (10mil) PDF 417 (7mil)	0~250mm 0~320mm 0- 45mm 0- 140mm	EAN-1（13mil）      Code 39（8mil） Code 12（7mil）	0~270mm 0- 200mm 0~140mm
Electrical parameters
Input voltage	DC 5V±10%
Electric current	Operation: 350 mAh; Standby: 150mAh
Environmental parameters
Temperature	-20°C to 50°C (operation); -40°C~+70°C (storage).
Humidity	5%-95% non-condensing
