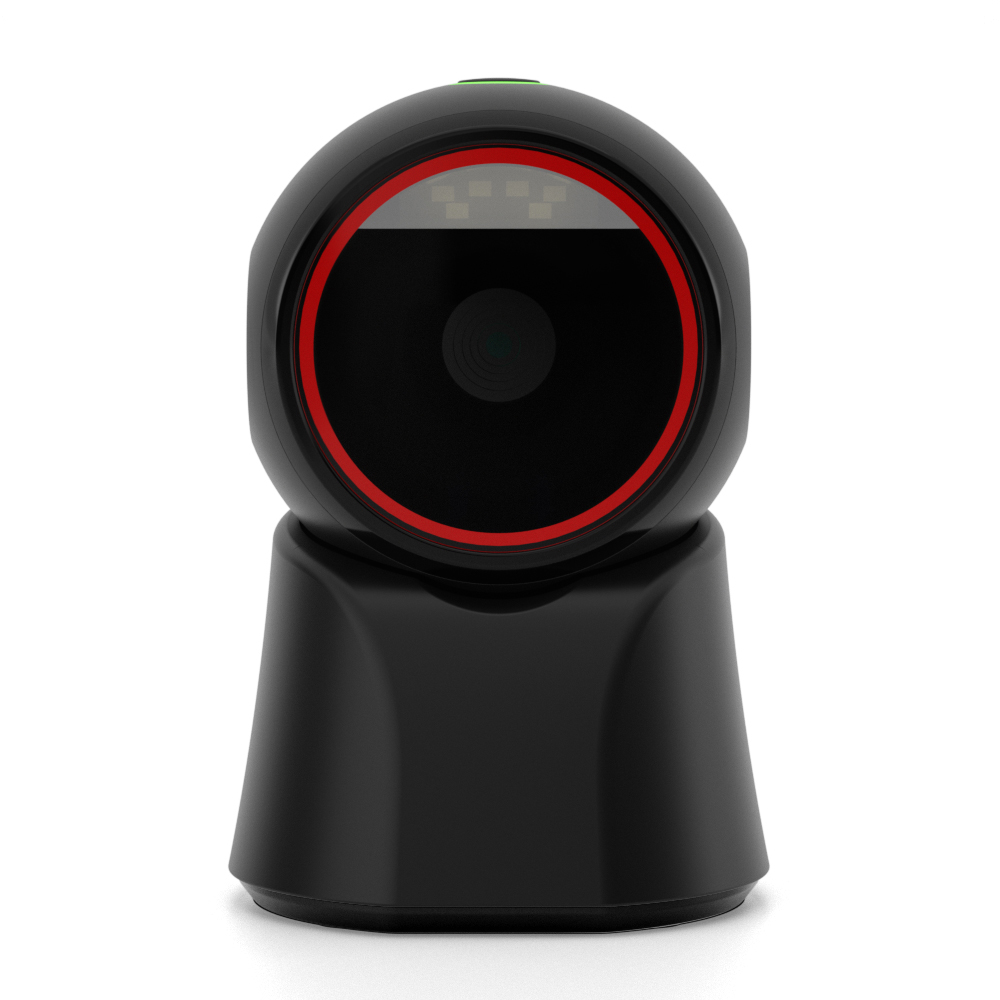

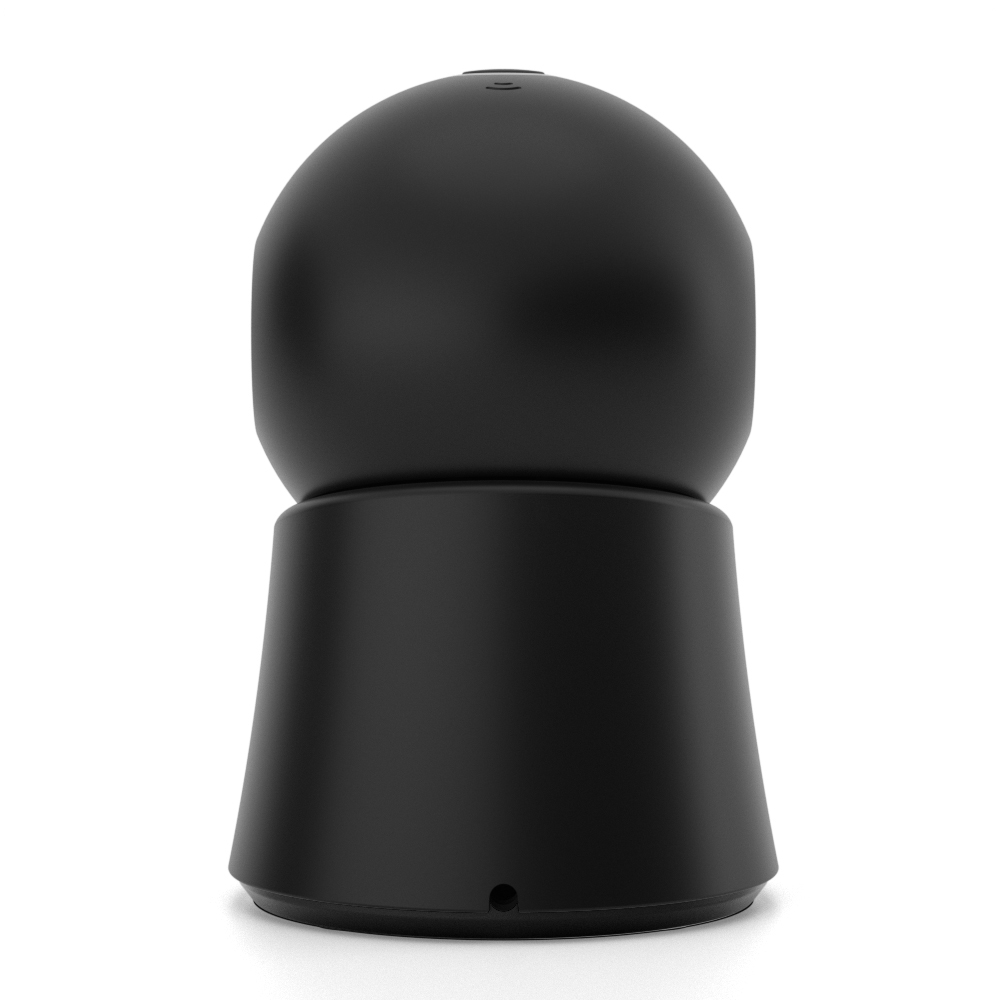

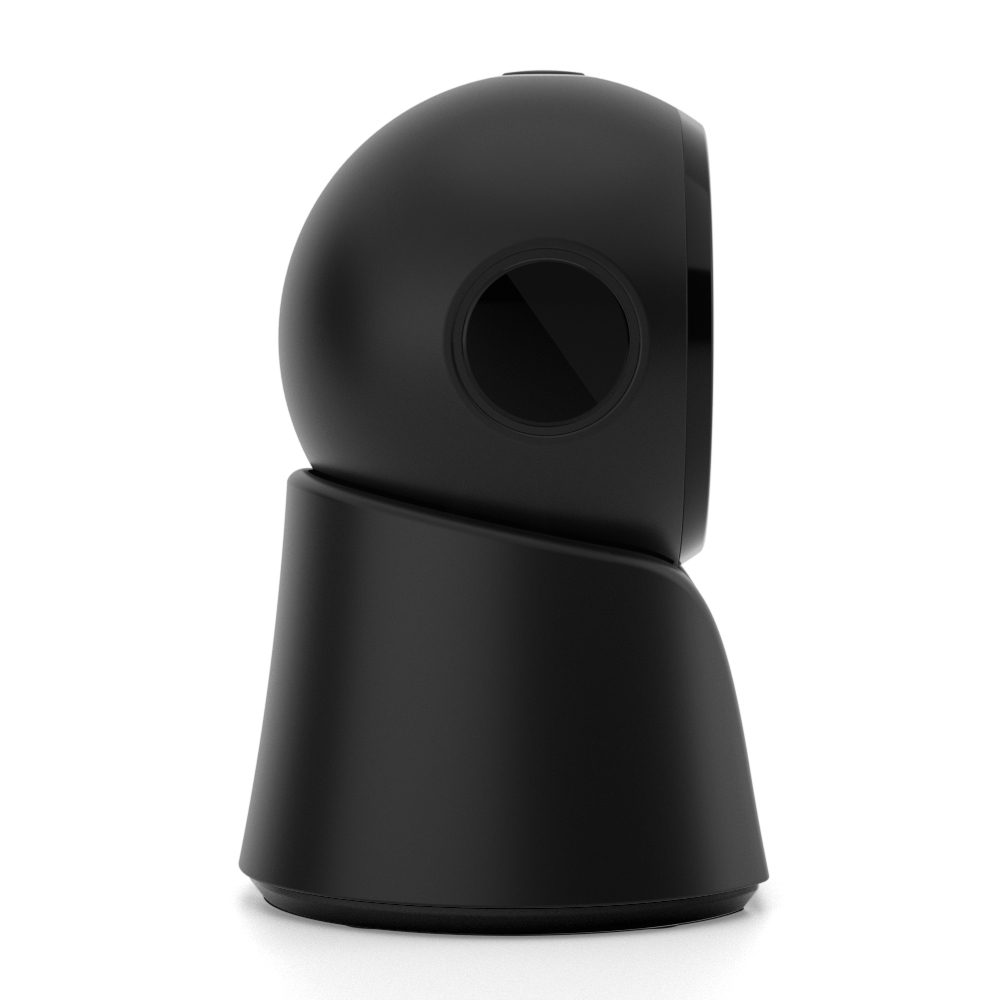

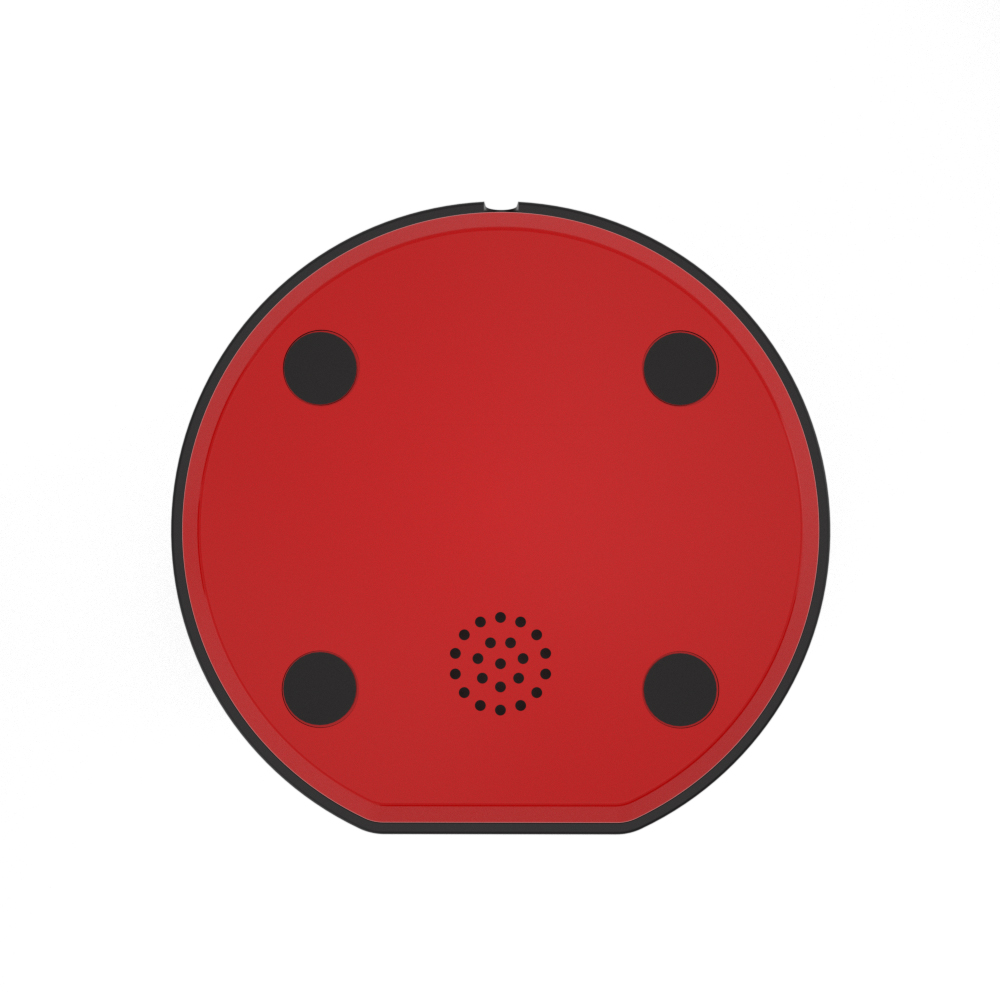

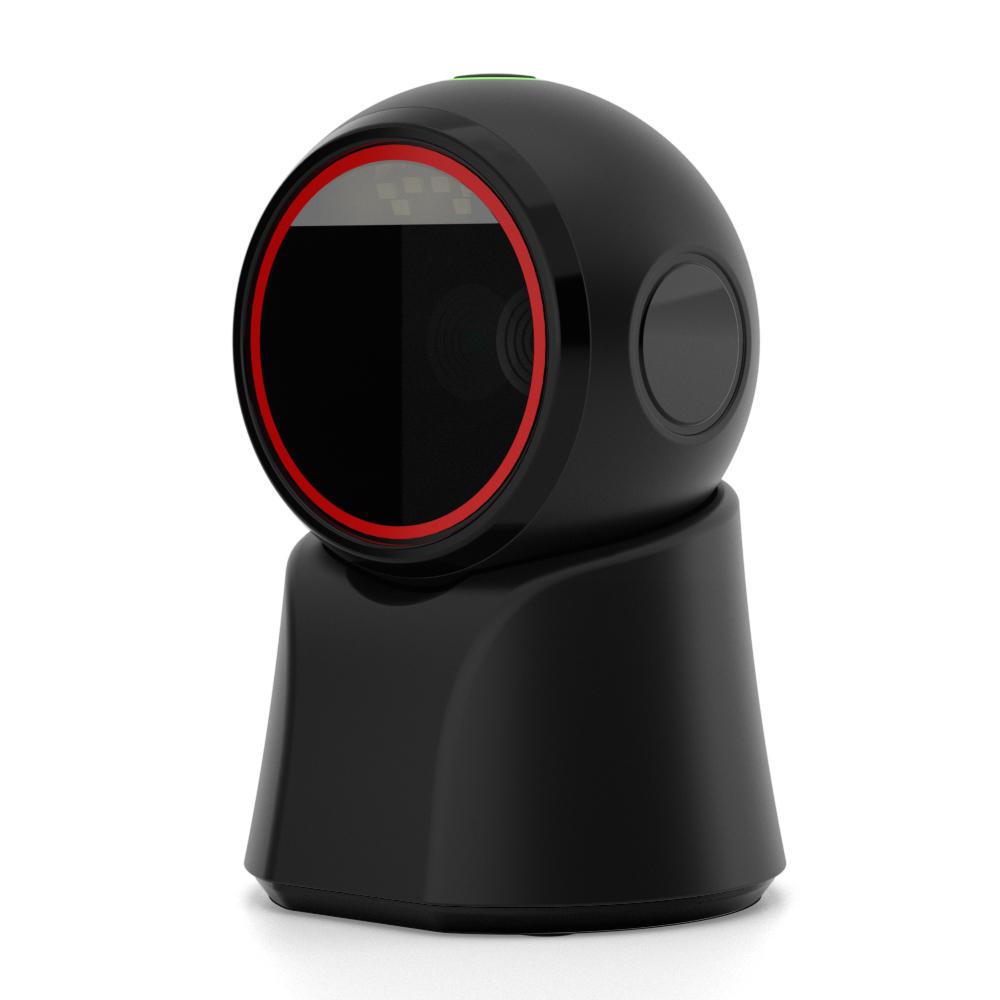

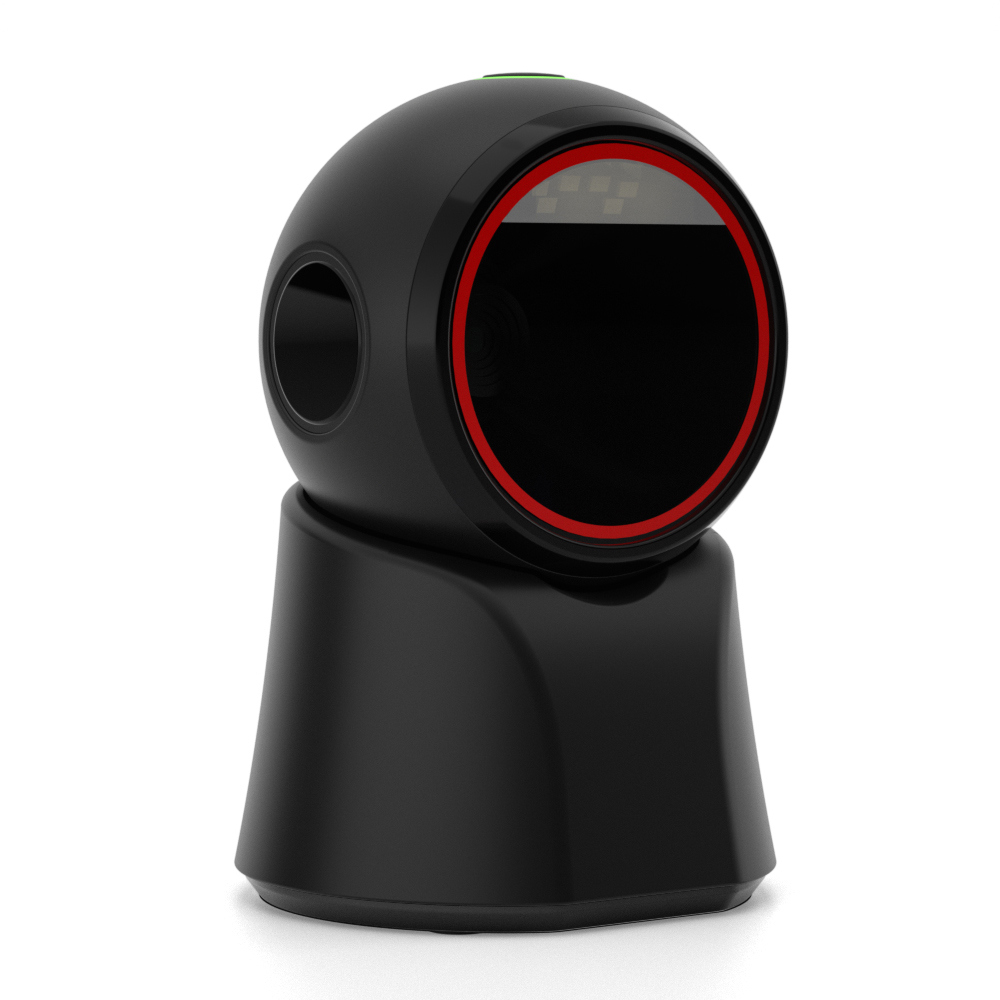

IBC-X15 high-speed 2D QR code scanning platform

Features:

• It is equipped with a new 500,000 global exposure scan engine
• Larger scanning window for easier reading
• Adjustable angle, flexible and easy to use

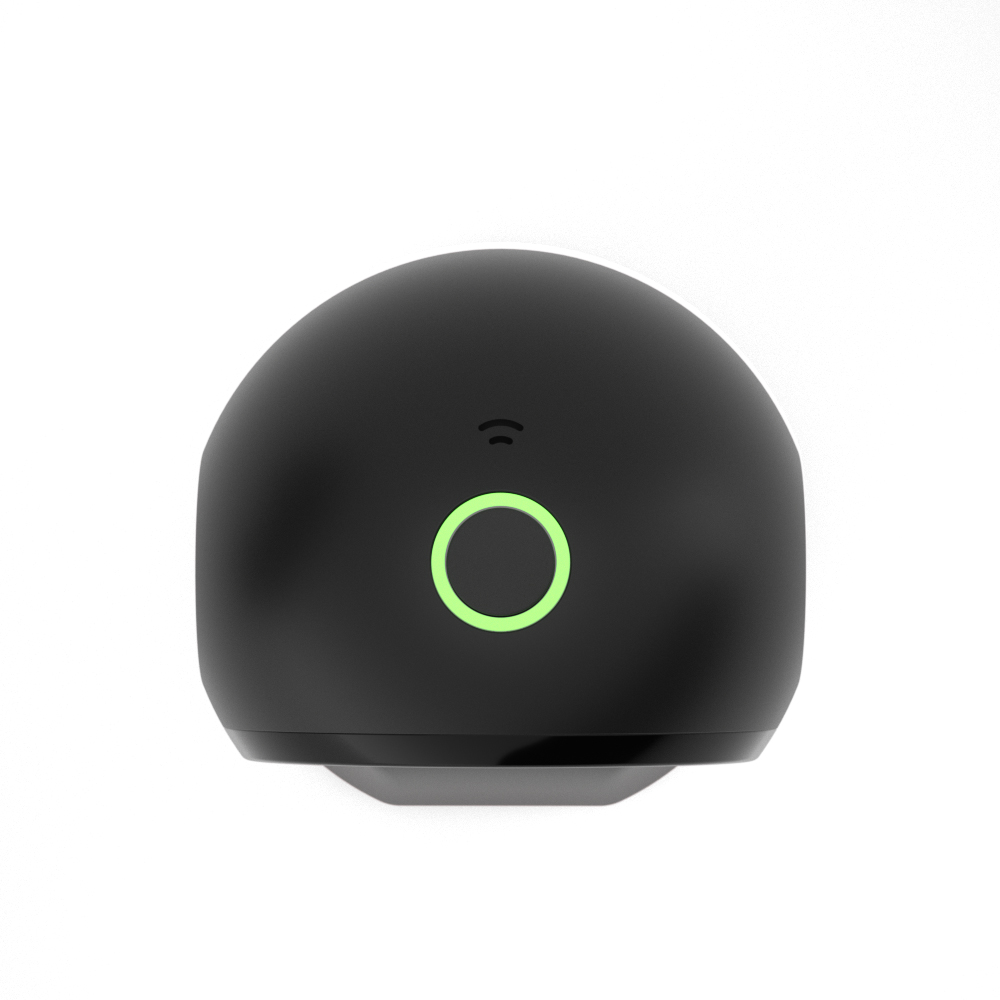

• Commonly used function buttons, easier to set
• 5 styles of beeps, soft and bright LED indicators
• Rich interfaces, strong compatibility, support a variety of systems and cash registers



IBC-X15 technical parameters

Physical parameters
Scanning Mode	Auto-sensing/Continuous scanning
Communication	USB-HID keyboard, USB-COM virtual COM port, RS232 serial port (optional)
Interface Type	USB TYPE-B
Alert Methods	Buzzer + LED indicators
Configuration	Button configuration + manual setup via scan codes
Housing Material	ABS+PC
Cable	Straight 1.35m cable
Exterior dimensions	156×104×100mm (Unit), 170×115×115mm (Package)
Weight	Net: 256g; Gross: 266g
Performance parameters
Scanning Type	CMOS global exposure
Resolution	800×600 pixels

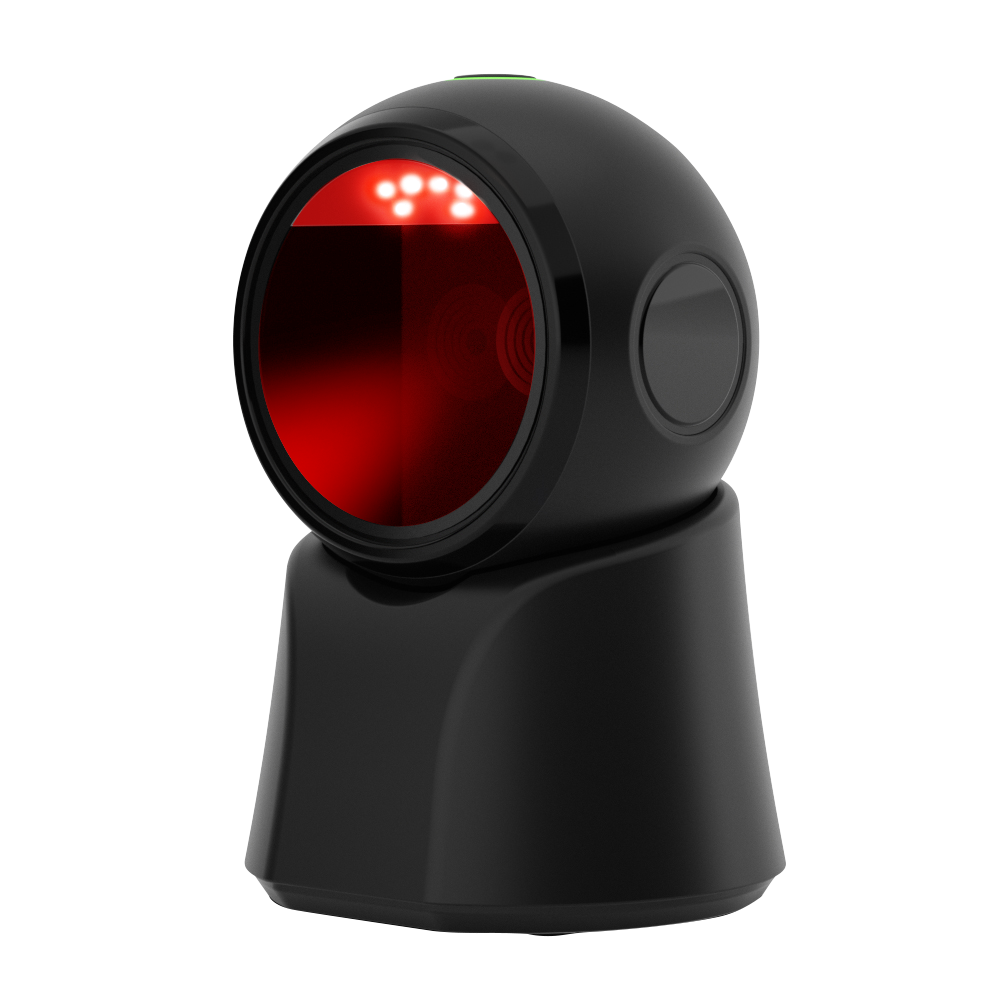

Light Source	617nm red LED
Scanning Angles	±60°(L/R), ±54°(F/B), 360° rotation
Frame Rate	120 fps
FOV	48°(H) × 30°(V)
Minimum PCS	20%
Decode the kind	1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Plessey 2D: QR Code, Data Matrix (DM), PDF417, Micro QRCode, Aztec Code,etc.
Minimum resolution	1D 5mil 2D 7mil
depth of field	QR (20mil)          Mobile Payment QR Data Matrix (10mil) PDF 417 (7mil)	0~230mm 0~290mm 0- 45mm 0- 130mm	EAN-13 (13mil) Code 39 (8mil) Code 128 (7mil)	0~270mm 0- 180mm 0~140mm
Electrical parameters
Input voltage	DC 5V±10%
Current	Operating: 240 mAh; Standby: 190 mAh
Environmental parameters
Temperature	0°C-50°C (working); -20°C~+70°C (storage).
Humidity	5%-95% non-condensing
