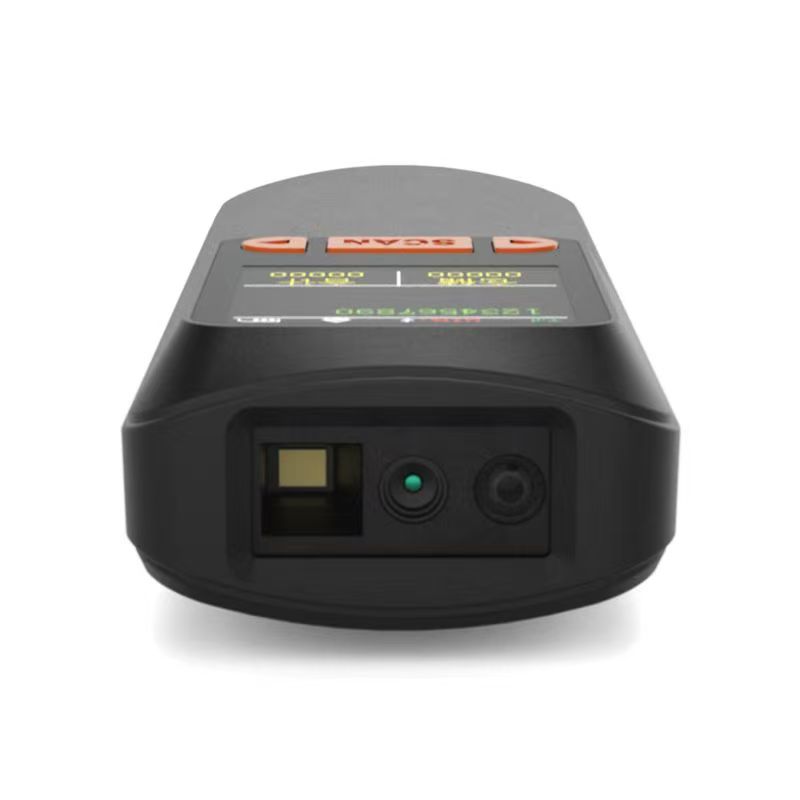

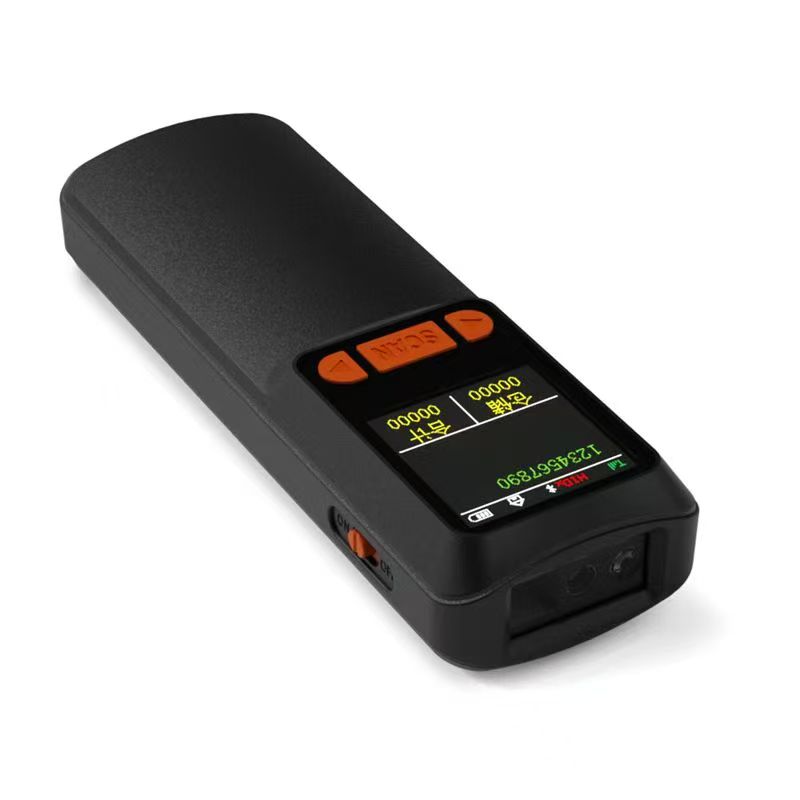

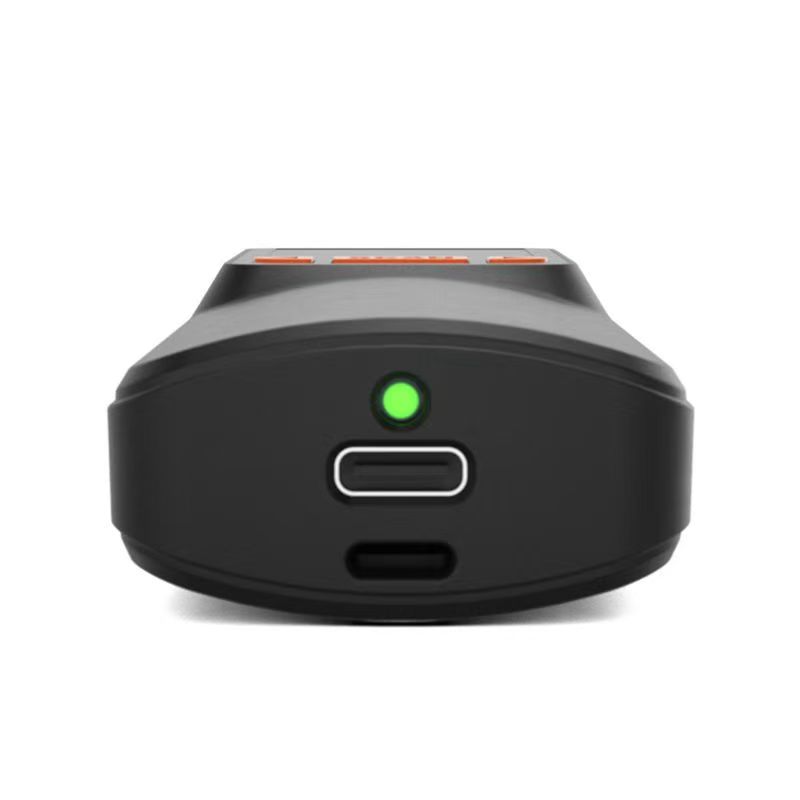

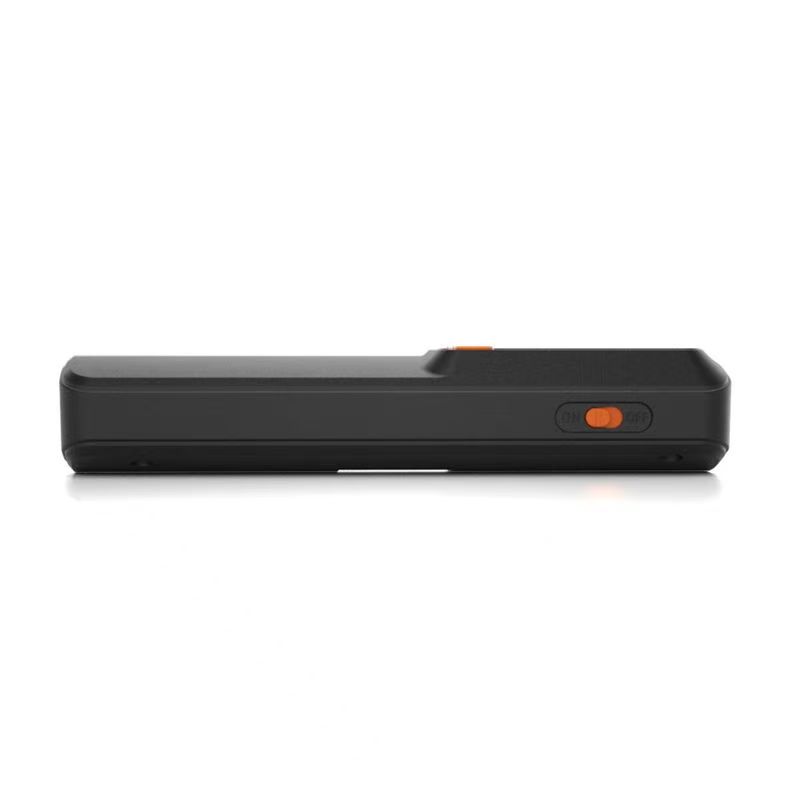

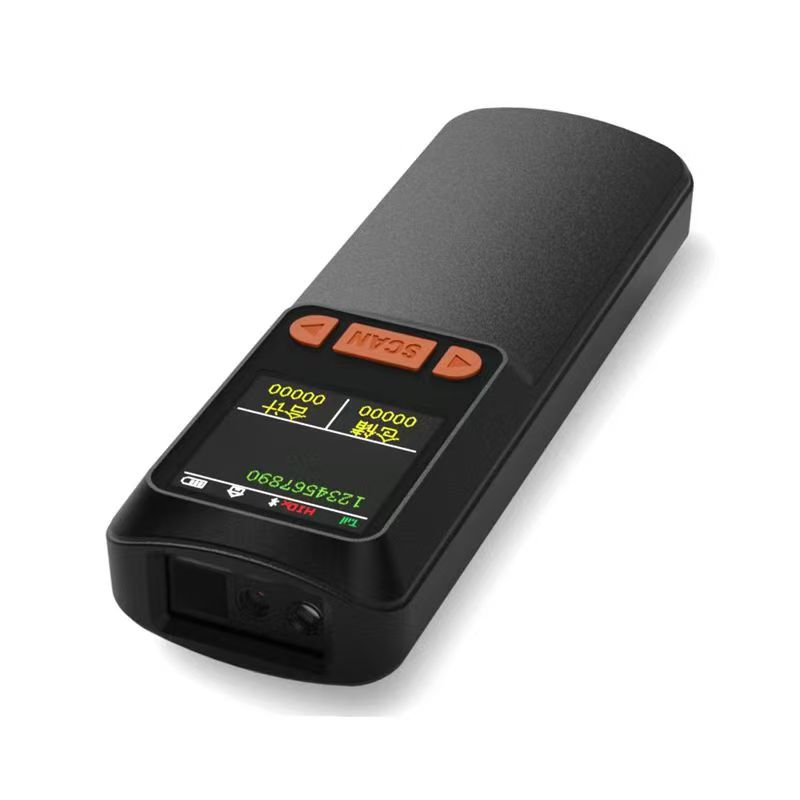

IBC-W9 Warehouse Inventory Portable Blurtooth 2D Barcode Scanner with Screen

Product features

• High-speed decoding, responsive
• LED color LED screen
• Equipped with vibration feedback prompts
• Built-in storage function, support inventory mode
• The text menu setting guide is clear and clear, and you can say goodbye to the cumbersome scanning code settings
• Small and delicate, easy to carry

Physical parameters
Scan mode	Push-button trigger/autosensing/continuous scanning
Communication interface	USB-HID keyboard/USB-COM virtual serial port
Wireless communication distance	Wireless 2.4G: 0-80m (open environment), Bluetooth: 0-20m (open environment).
Prompt way	Buzzer, LED light, display, vibration motor
How it's set up	Menu settings
Housing material	ABS+PC
Cable standards	USB straight line 1m
Exterior dimensions	119mm× 41mm× 22.5mm (barcode scanner), 150mm× 100mm× 35mm (packaged).
Weight	75.6g（Net weight）；135.6g（Gross weight）
Performance parameters
Internal storage	512K (36,000 ordinary commodity codes stored).
screen	1.44-inch TFT LCD screen (128× RGB×128).
Sensors	300,000 global CMOS
Resolution	640*480
Light source	White LED
Scan angle	± 60°, ±60°, 360° (elevation, declination, rotation).
Scan rate	120 frames/sec
Field of view	48° (H) x 30° (V)
Print contrast	15% minimum
Decode the kind	1D : EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey，etc 2D : QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, support mobile phone screen code reading
Minimum resolution	1D code 5MIL; QR code 7MIL
Depth of field	QR (20mil) Data Matrix (10mil) PDF 417 (7mil)	10~130mm 20~100mm 25~105mm	EAN-13 (13mil) Code 39 (8mil) Code 128 (7mil)	30~175mm 25~145mm 25~110mm
Electrical parameters
Input voltage	DC 5V±10%
Current	Operating: 350 mA, Standby: 130 mA
Battery	2000mAh lithium-ion battery
Charging time	Approximately 4 hours
Battery life	10 days (standby), 72 hours (operating: scanning every 5 seconds)
Environmental parameters
Temperature	0°C-50°C(Working); -40°C~+60°C(Storage).
Humidity	5%-95% non-condensing
Ambient brightness	Max.5,000 Lux(fluorescence)
Seismic resistance	It can withstand a 1.5m drop in the air
