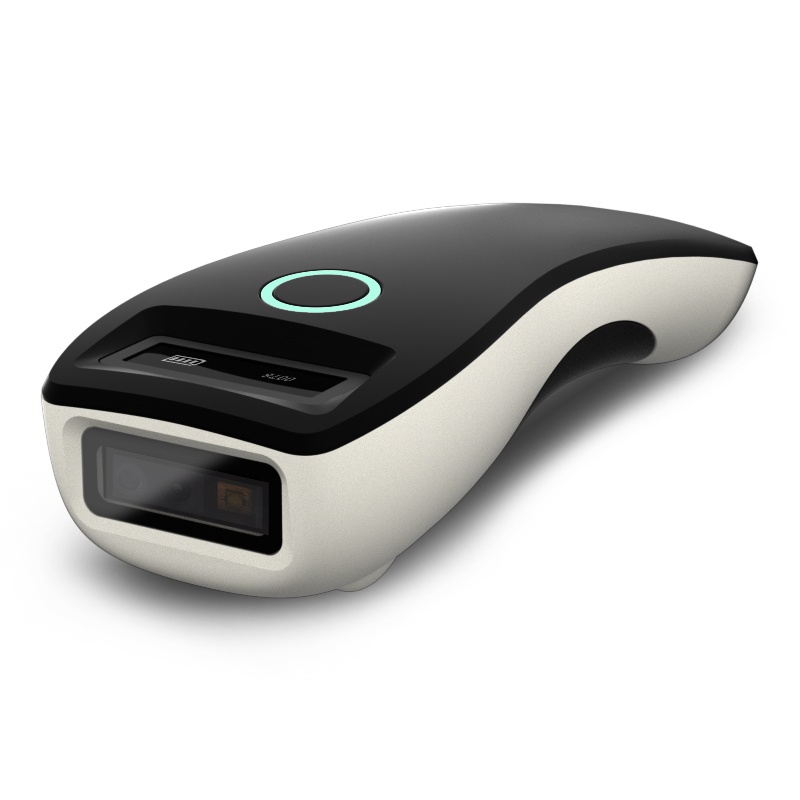

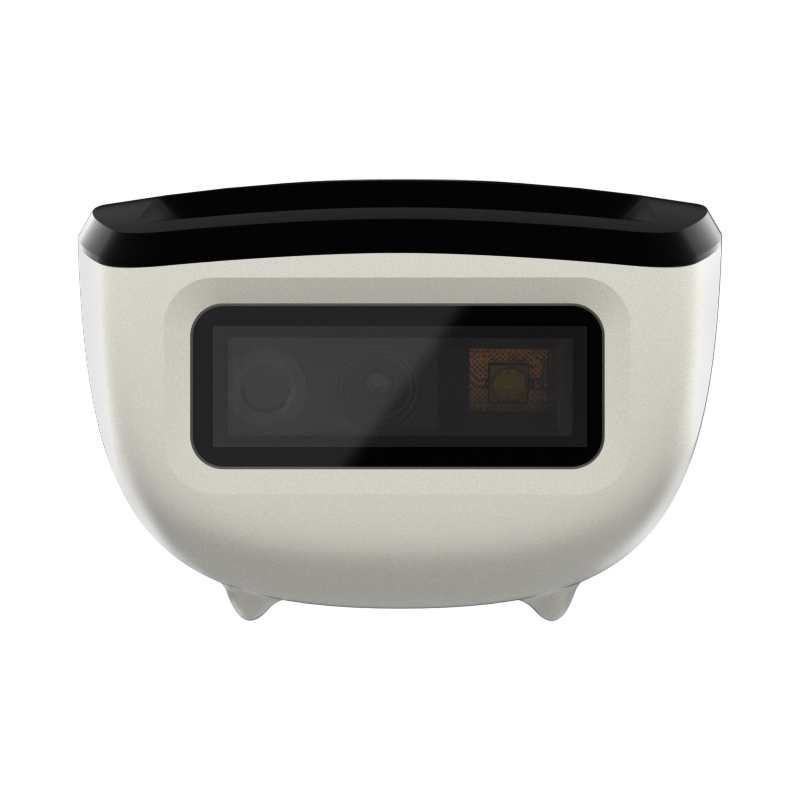

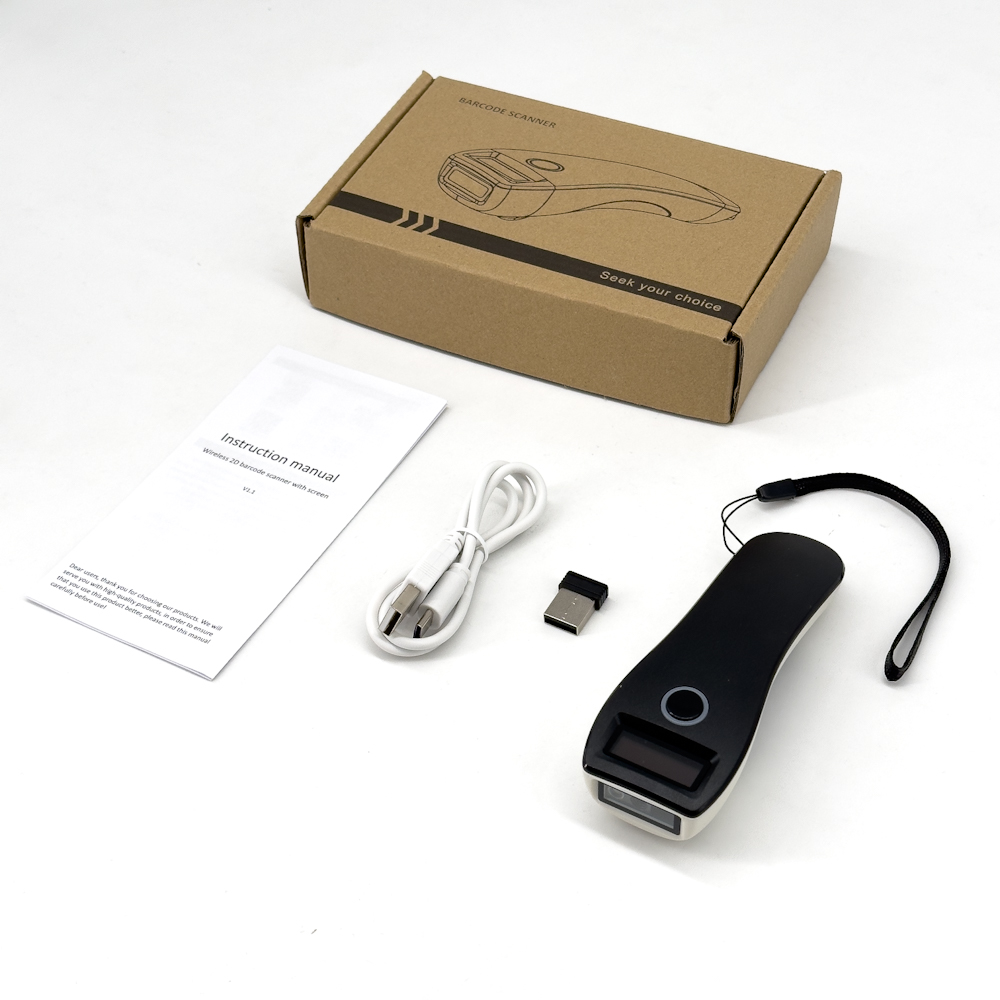

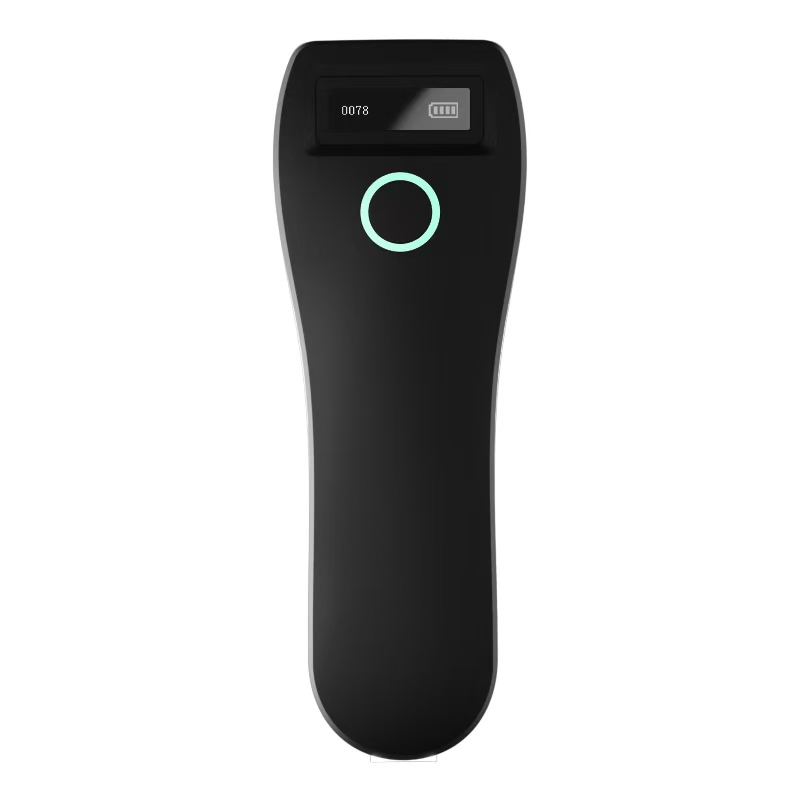

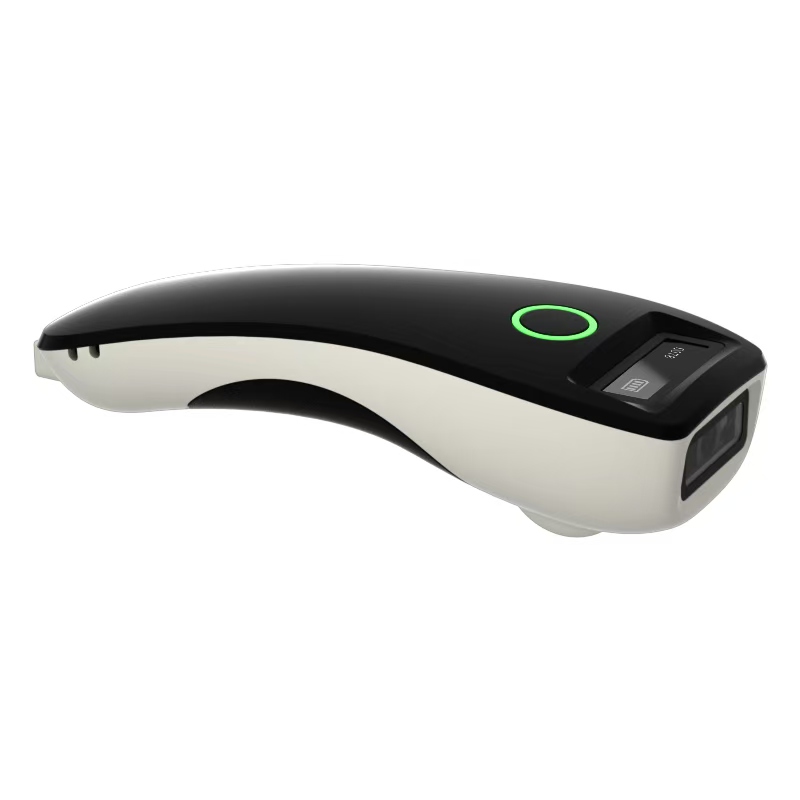

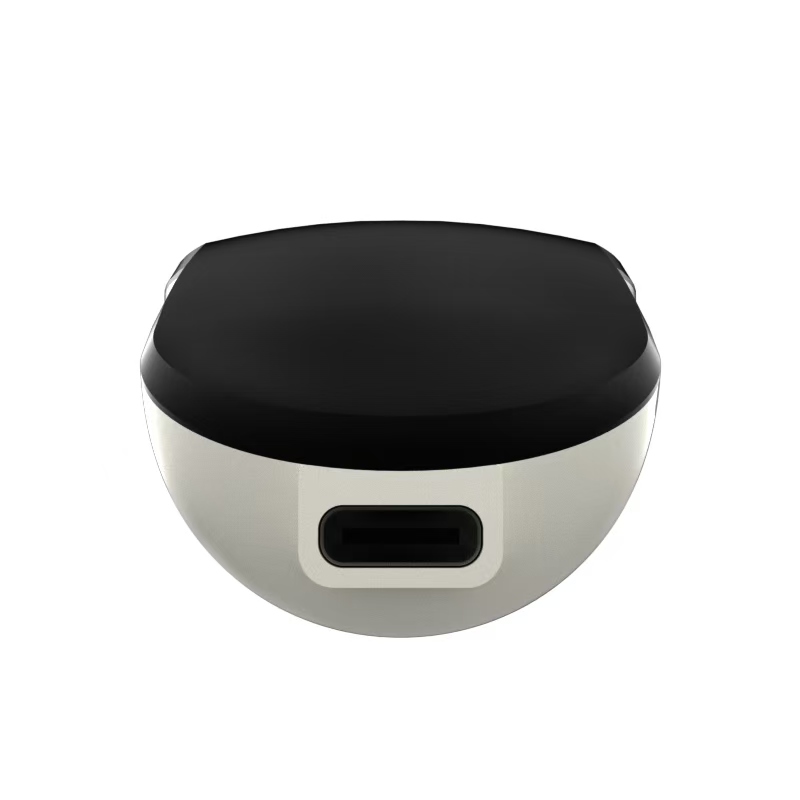

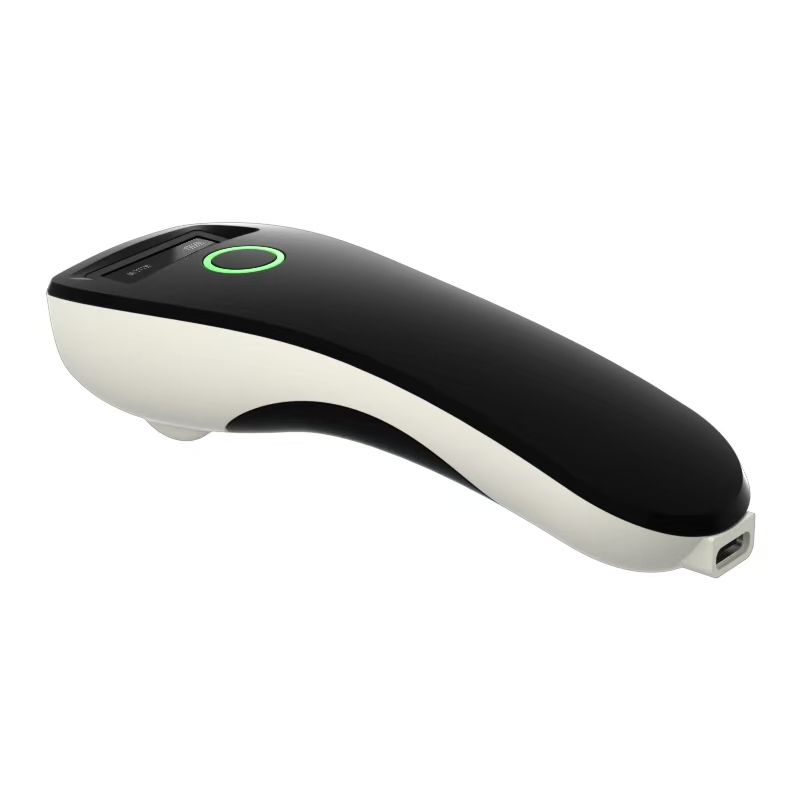

IBC-W6 Portable 2D QR Code Wireless Bluetooth Barcode Scanner for Warehouse Inventory

IBC-W6 Portable 2D QR Code Wireless Bluetooth Barcode Scanner for Warehouse Inventory

Item #: IBC-W6
SKUIBC-W6
Stockinstock
CategoriesPortable mini barcode scanner
Customization

Product Description

Product features

  • High-speeddecoding and
  • OLED
  • Equippedwith vibration feedback
  • Built-instorage function, support inventory
  • Supportremote online
  • Small and delicate, easy to carry.



Physical parameters
Scan mode Key trigger/ autosensing/ continuous scanning
Communication interface USB-HID /USB-COM
Wireless communication distance Wireless 2.4G: 0-80m (open environment) Bluetooth: 0-20m (open environment)
Prompt mode Buzzer, display, vibration motor
How it is set up Manually scan the setup codes one after the other
Housing material ABS+PC
Cable standard USB Straight Line 1m
Exterior dimensions 122mm×42mm×30.5mm (barcode scanner)
Weight 60g (net weight)
Performance parameters
Internal storage 900K
Sensors 300,000 CMOS
Resolution 640*480
Light source White LED
Scan angle ±60°, ±60°,360° (Elevation angle, declination angle, corner of rotation)
Scan rate 120 fps
Field of view 48° (H) x 30° (V)
Printing contrast Min. 15%




Decoding kind

 1D: EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128,

Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1

Databar(RSS), Code 39, Code 11, MSI-Plessey,etc

2D: QR Code,Data Matrix,PDF417,Micro QR, Aztec,etc,Support

mobile phone screen code reading
Minimum resolution 1D 3MIL;2D 5MIL


Depth of field

 QR (20mil)

Data Matrix(10mil)

PDF 417 (7mil)

 10~130mm

20~100mm

25~105mm

 EAN-13 (13mil)

Code 39 (8mil)

Code 128 (7mil)

 30~175mm

25~145mm

25~110mm
Electrical parameters
Input voltage DC 5V±10%
Current Working: 350 mAh; Standby: 130 mAh
Battery 950mAh lithium-ion battery
Charging time About 2 hours
Battery life 72 hours (standby), 6-7 hours (working: scan every 5 seconds)
Environment parameters
Temperature 0°C-50°C (working); -40°C~+60°C (storage).
Humidity 5%-95% non-condensing
Ambient brightness Max.5,000 Lux (fluorescence)
Seismic resistance It can withstand a drop in the air of 1.5m
