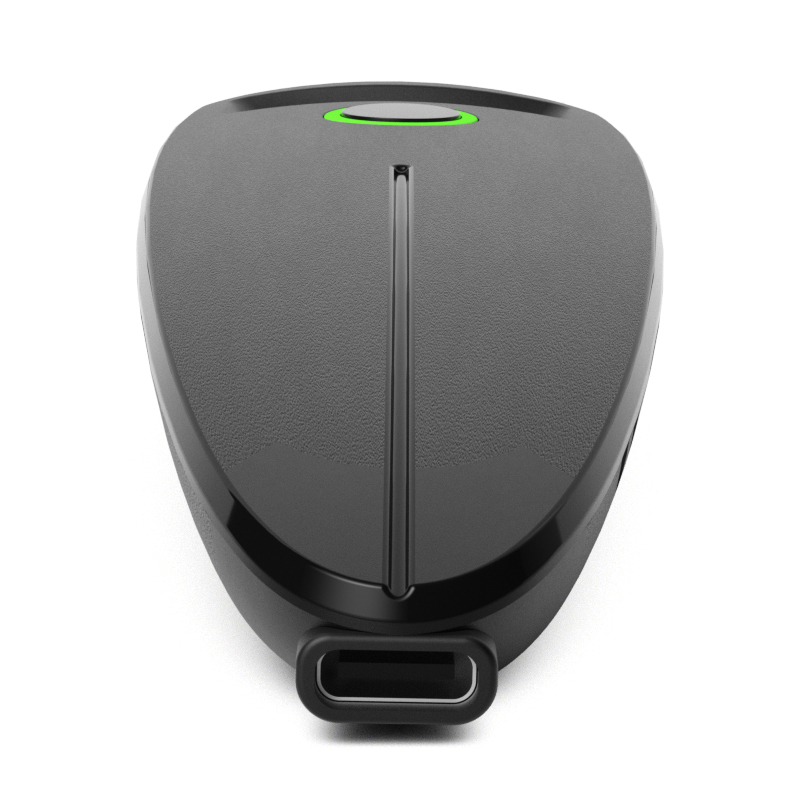

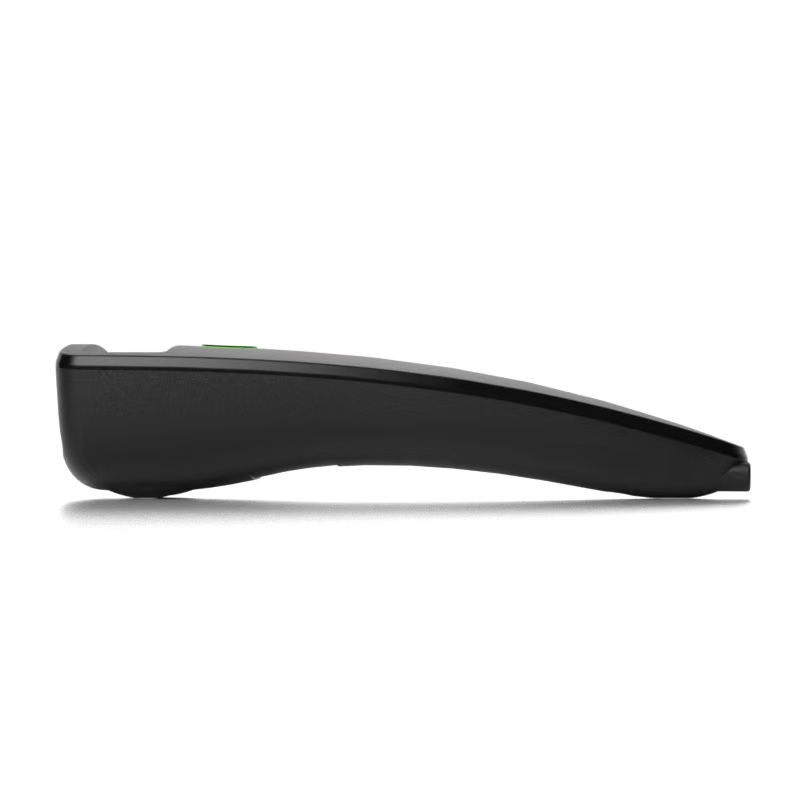

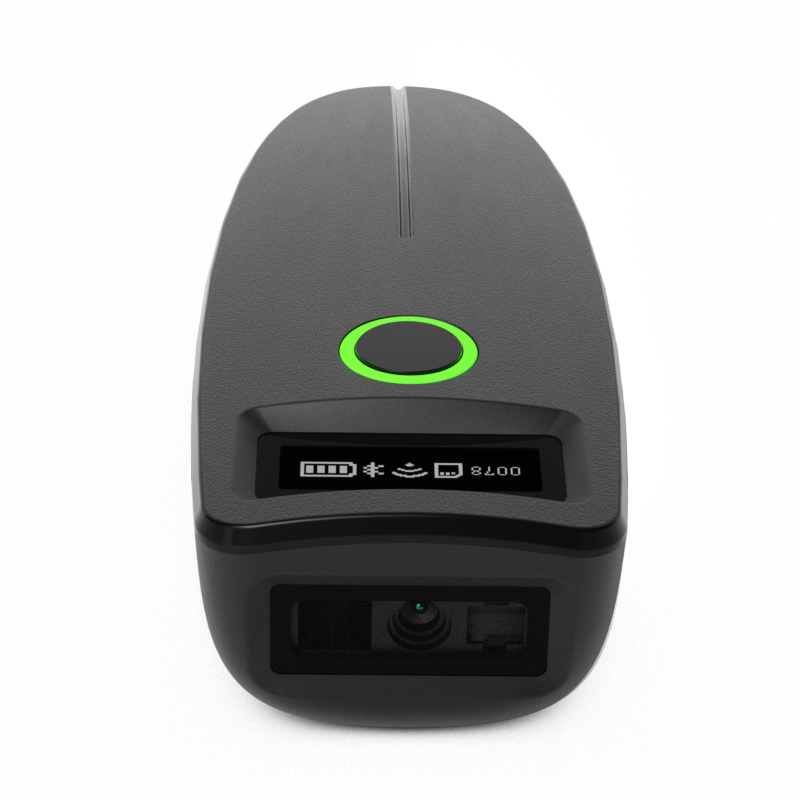

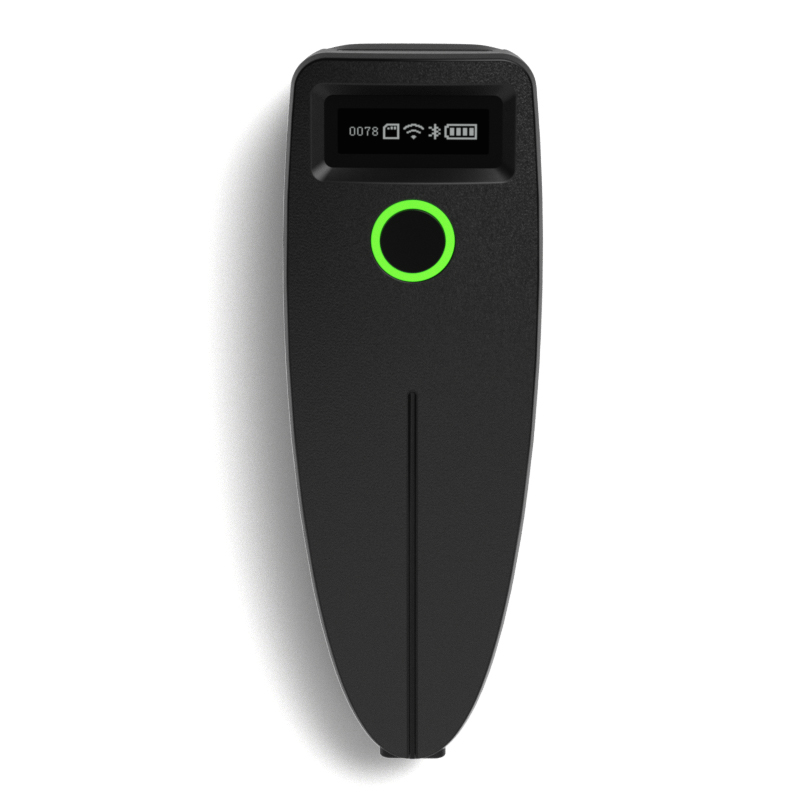

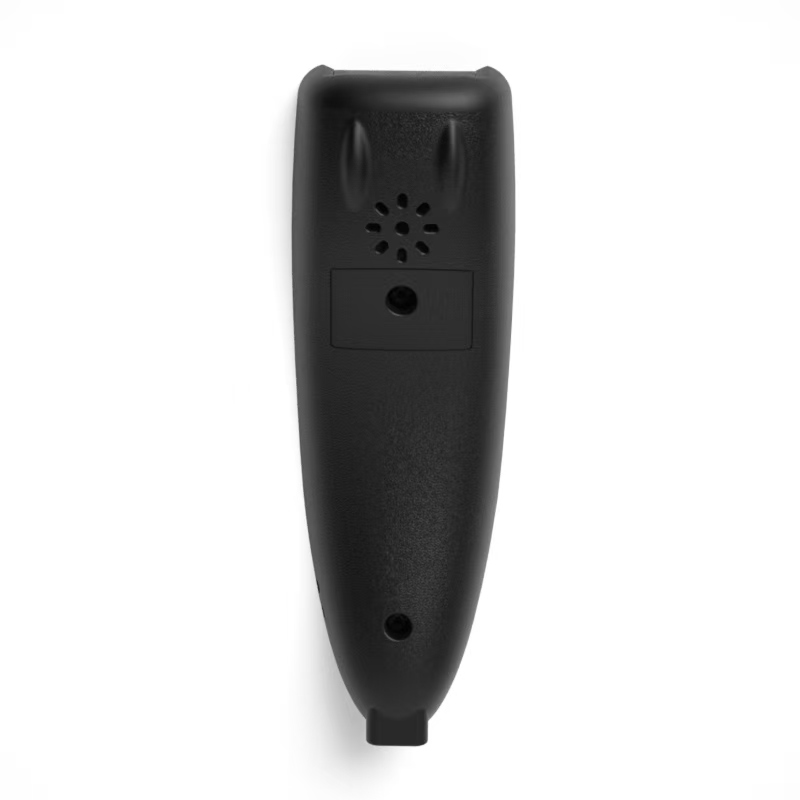

IBC-W7 Warehouse Inventory Portable 2D Wireless Scanner with Screen

IBC-W7 Warehouse Inventory Portable 2D Wireless Scanner with Screen

Item #: IBC-W7
SKUIBC-W7
Stockinstock
CategoriesPortable mini barcode scanner
Customization

Product Description

Product features

  • High-speeddecoding and
  • OLED
  • Equippedwith vibration feedback
  • Built-instorage function, support inventory
  • Supportremote online
  • Small and delicate, easy to carry.



Physical parameters
Scan mode Push-button trigger/autosensing/continuous scanning
Communication interface USB-HID keyboard/USB-COM virtual serial port
Wireless communication distance Wireless 2.4G: 0-80m (open environment), Bluetooth: 0-20m (open environment).
Prompt way Buzzer, display, vibration motor
How it's set up Manually scan the setting code one after the other
Housing material ABS+PC
Cable standards USB straight line 1m
Exterior dimensions 122mm× 42mm× 30.5mm (scanners), 150 mm× 100 mm× 35 mm

(packaged).


Weight 60g (net weight) and 120g (gross).
Performance parameters
Internal storage 900K
Sensors 300,000 CMOS
Resolution 640*480
Light source White LED
Scan angle ± 60°, ±60°, 360° (elevation, declination, rotation).
Scan rate 30 frames/sec
Field of view 48° (H) x 30° (V)
Print contrast 15% minimum




Decode the kind

 1D:EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93,

Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39,

Code 11, MSI-Plessey，etc

2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, support mobile

phone screen code reading
Minimum resolution 1D code 5MIL; QR code 7MIL


Depth of field

 QR（7mil）

Data Matrix（10mil）

PDF 417（7mil）

 70~115mm

50~110mm

55~140mm

 EAN-13（13.3mil）  7

Code 39（8.3mil） 6

Code 128（8.3mil） 7

 0~310mm

5~205mm

5~235mm
Electrical parameters
Input voltage DC 5V±10%
Current Operating: 350 mA, Standby: 130 mA
Battery 1100mAh lithium-ion battery
Charging time About 2 hours
Battery life 5 days (standby), 12 hours (operating: scanning every 5 seconds)
Environmental parameters
Temperature 0°C-50°C(Working); -40°C~+60°C(Storage).
Humidity 5%-95% non-condensing
Ambient brightness Max.5,000 Lux (fluorescent)
Seismic resistance It can withstand a 1.5m drop in the air
