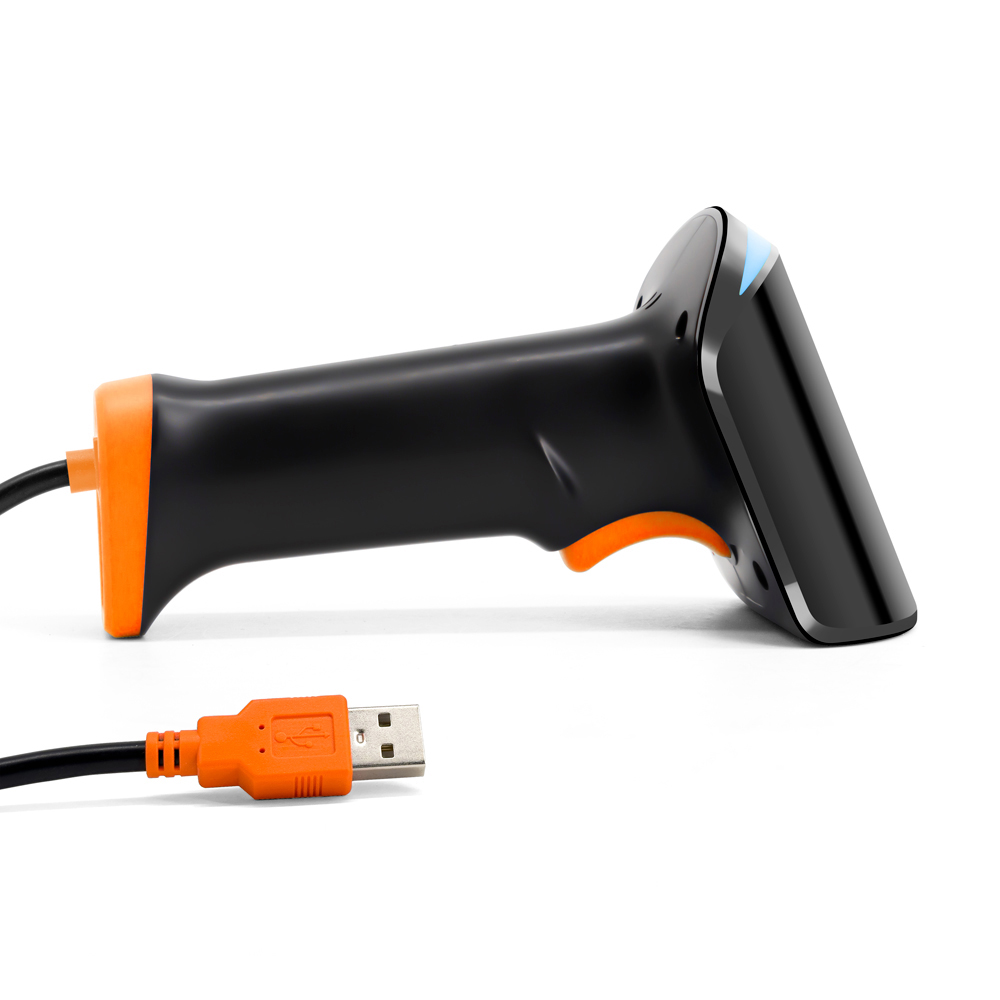

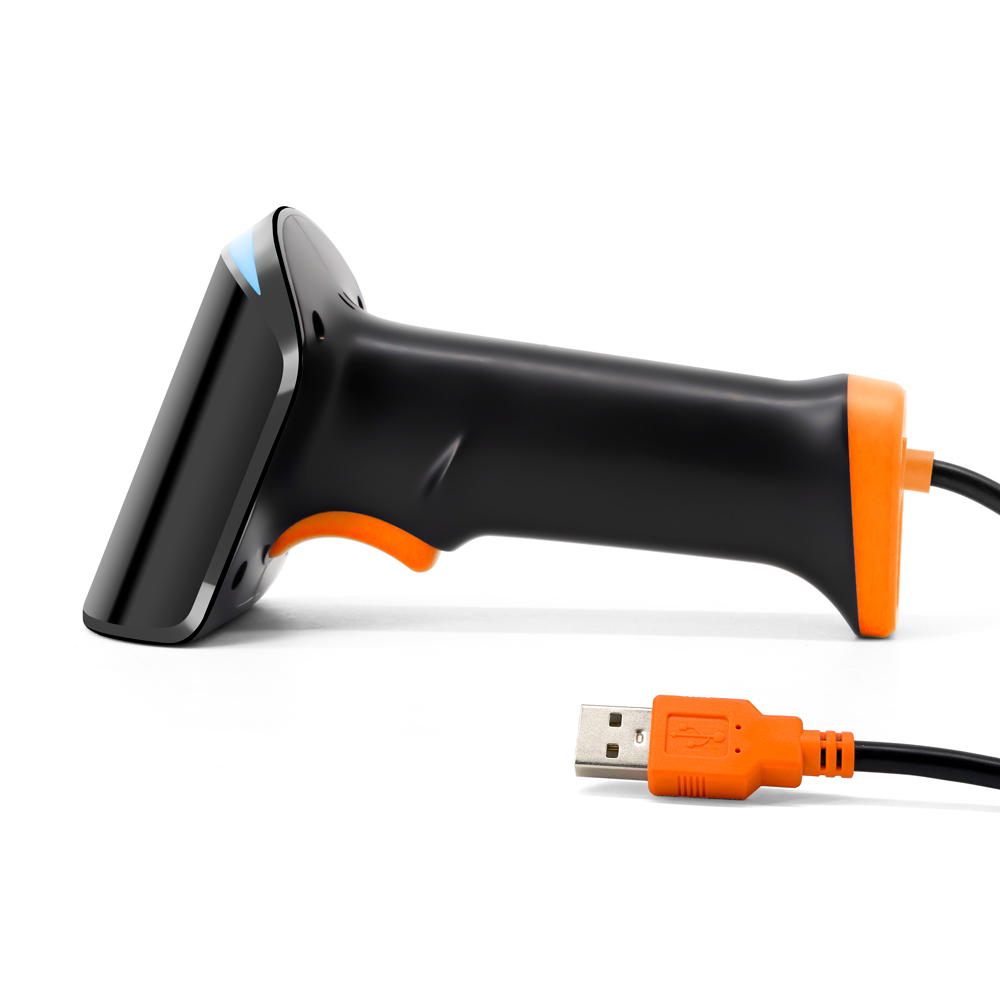

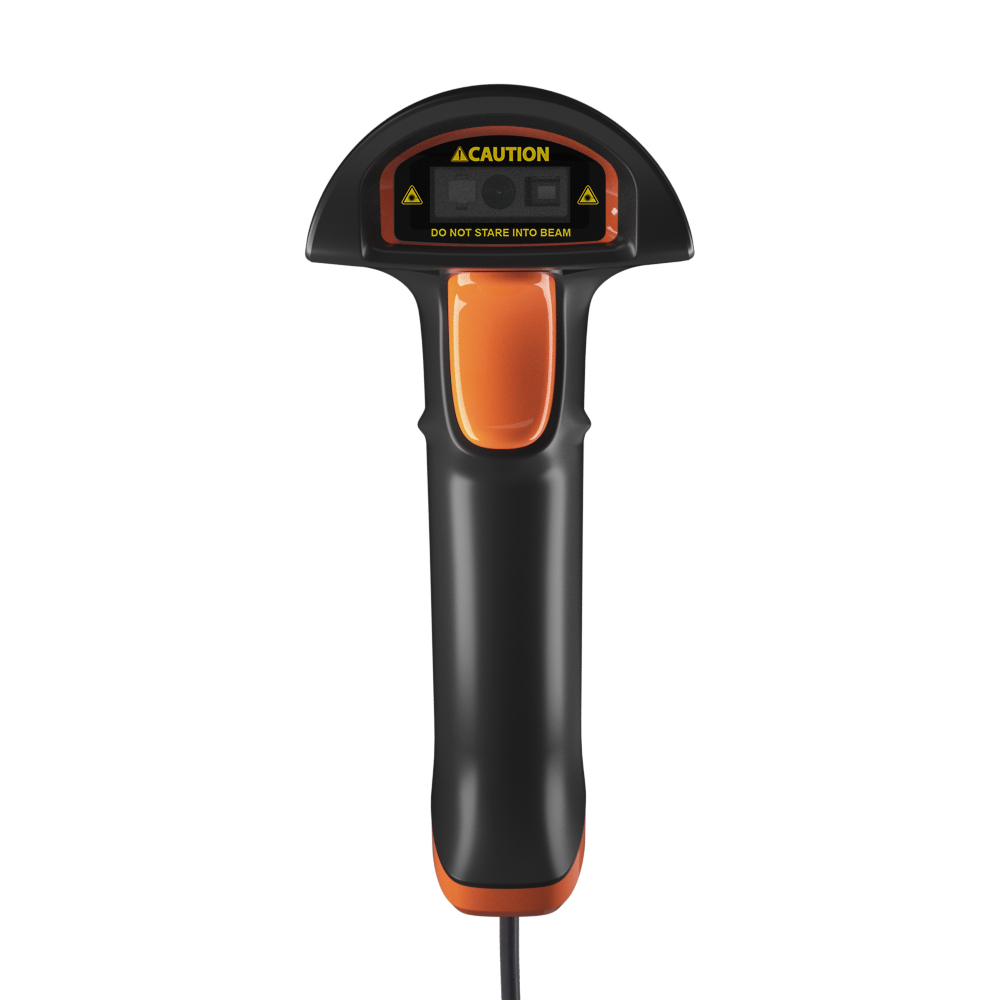

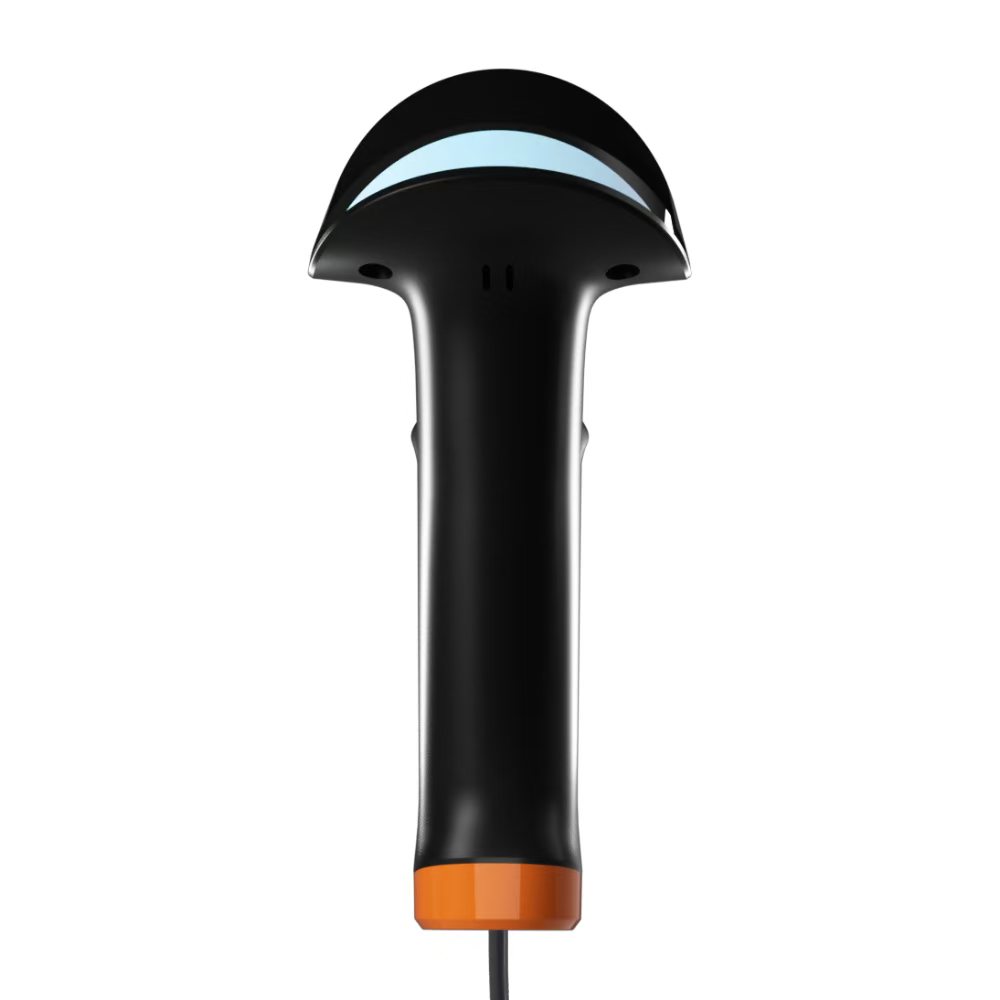

IBC-W2 handheld imaging 2D barcode scanner

Product features

• High-speed decoding and responsiveness
• Strong versatility: provides USB, USB-COM and other interfaces
• Equipped with vibration feedback prompt
• Compact, lightweight, ergonomic and comfortable to handle
• Support remote online upgrade
• Excellent durability: Dustproof and waterproof IP54and can withstand drops to concrete at a height of 1.5 meters



Product specifications - IBC-W2 / IBC-W2

Physical parameters
Scan mode	Key trigger/auto-sensing/continuous scanning
Communication interface	USB-HID keyboard/USB-COM virtual serial port/RS232 serial port (optional).

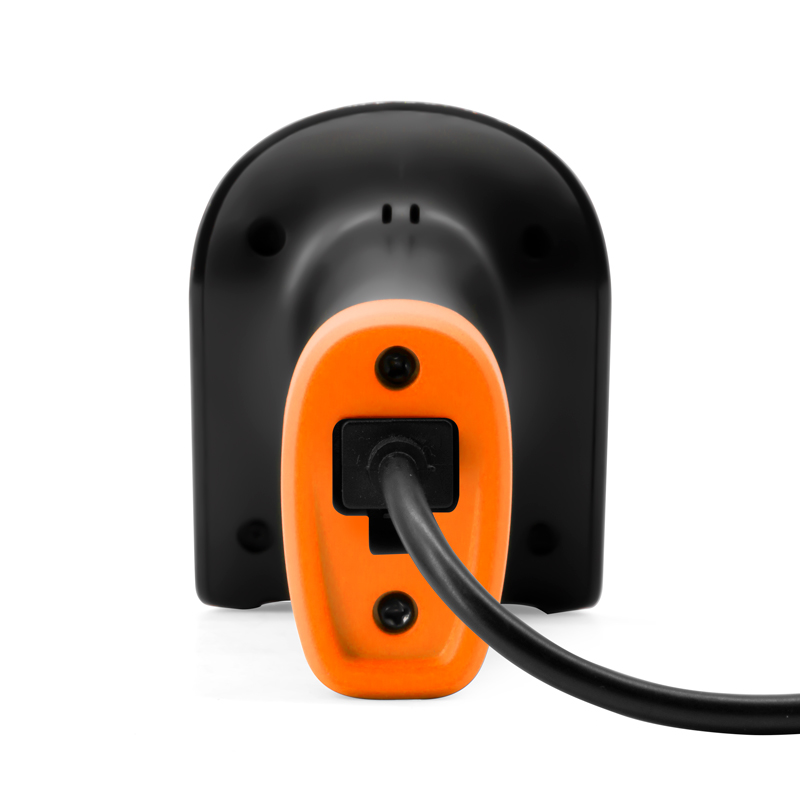

Interface type	USB TYPE-B
Prompt mode	Buzzer, LED light, vibration motor
How it is set up	Manually scan the setup codes one after the other
Housing material	ABS+PC
Cable standard	Straight line 1.6m

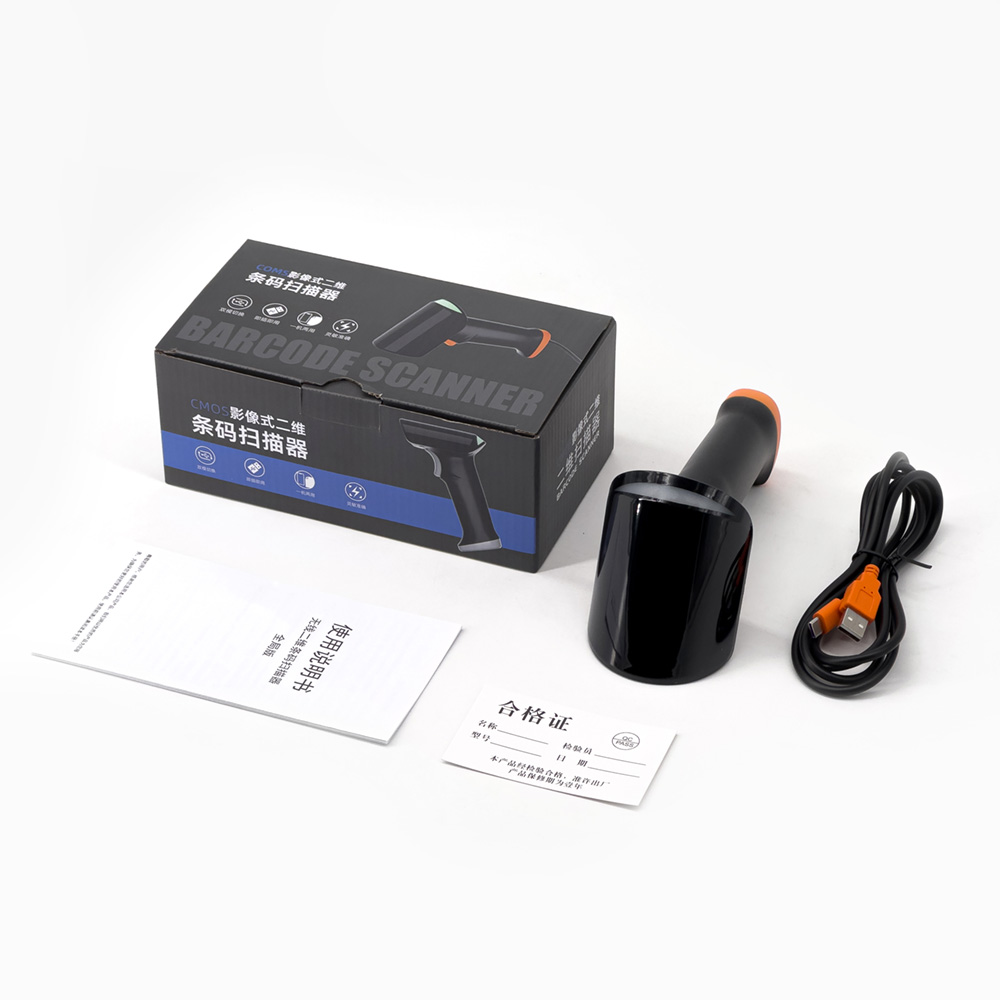

Exterior dimensions	157mm×70mm×112mm(products);195mm×105 mm×80mm(packaging)
Weight	132.8g (net weight); 260g (with packaging accessories).
Performance parameters
Sensors	300,000 All StationsC MOS
Resolution	640*480
Light source	White LED
Scan angle	± 60°, ±60°, 360° (elevation, declination, rotation).
Scan rate	120 fps
Field of view	48° (H) x 30° (V)
Printing contrast	Minimum 15%.
Decoding kind	1D:EAN- 13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar，Code 128，Code93，ITF- 14，ITF-6，Interleaved 2 of 5， Industrial 2 of 5，Matrix 2 of 5，GS1 Databar(RSS)，Code 39，Code 11，MSI-Plessey，etc 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc., support mobile screen reading
Minimum resolution	1D code 3MIL; QR code 5MIL
Depth of field	QR (15mil)                   30~210mm QR payment code (mobile code) 80~550mm Data Matrix(10mil)           30- 140mm PDF 417(6.7mil)              50- 120mm	EAN-13 (13mil)     50~280mm Code 39 (8mil)      30- 190mm Code 128 (15mil)    80~320mm
Electrical parameters
Input voltage	DC 5V±10%
Current	Working: 350 mAh; Standby: 130 mAh
Environment parameters
Temperature	0°C-50°C (working); -40°C~+60°C (storage).
Humidity	5%-95% non-condensing
Ambient brightness	Max.5,000 Lux (fluorescence)
Seismic resistance	It can withstand a drop in the air of 1.5m
