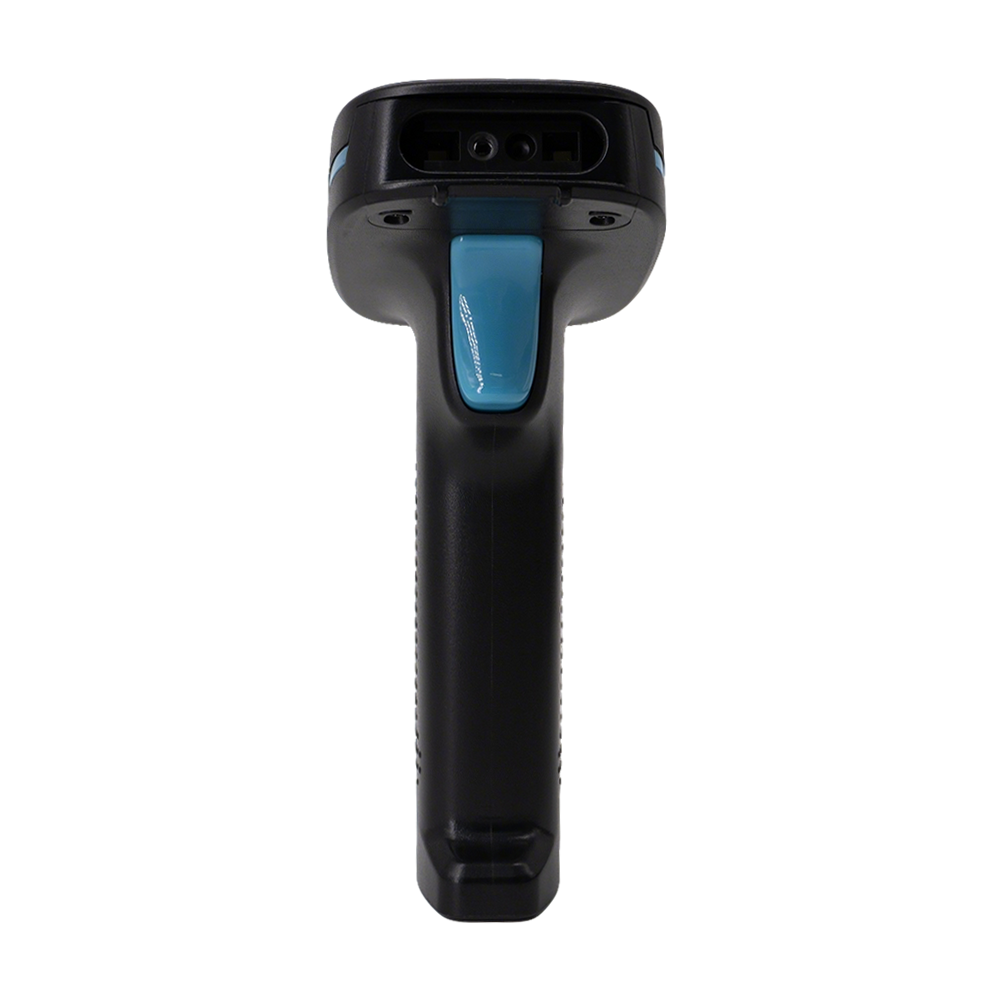

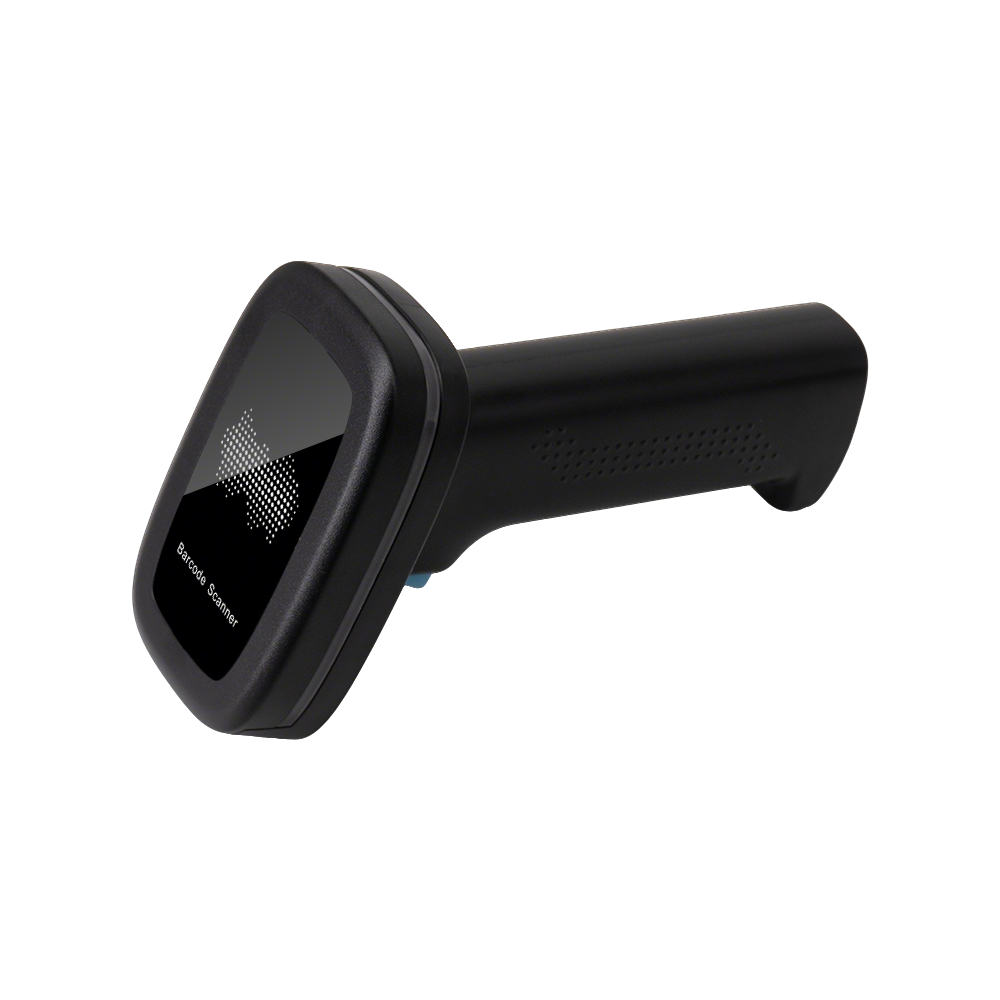

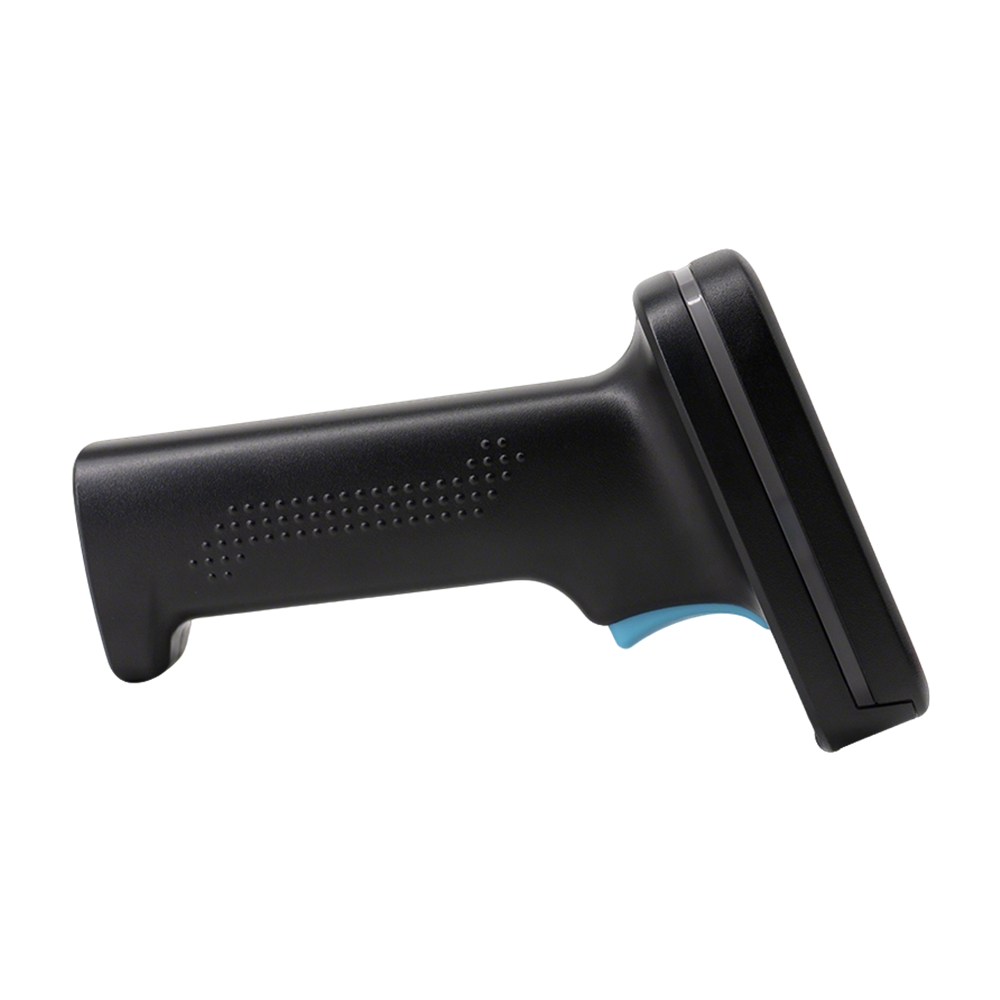

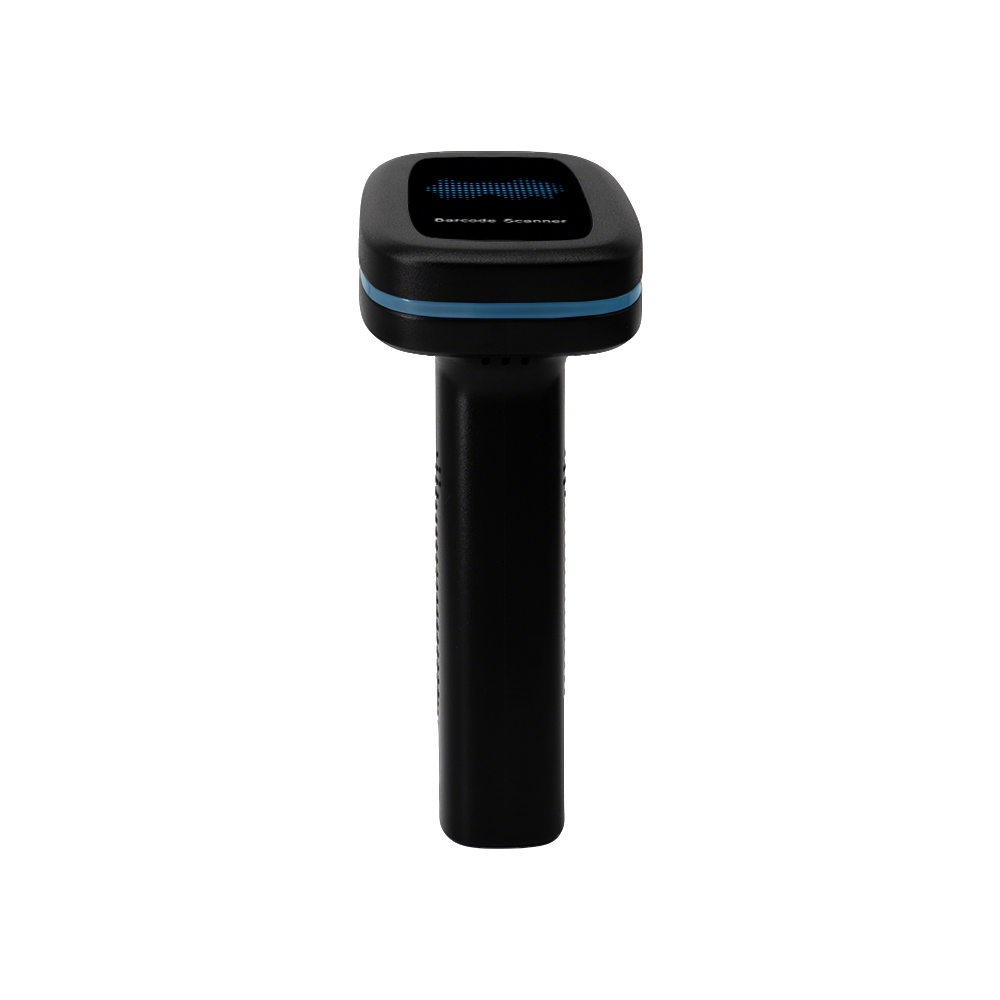

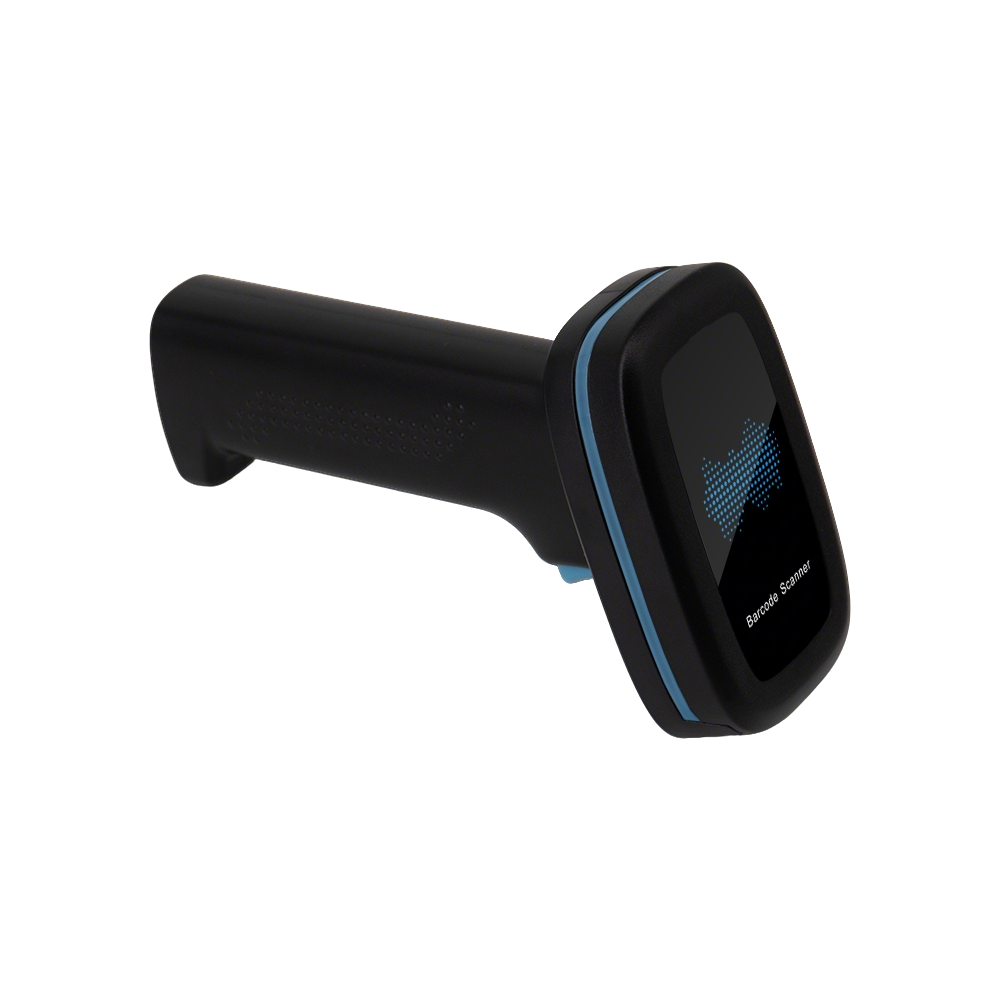

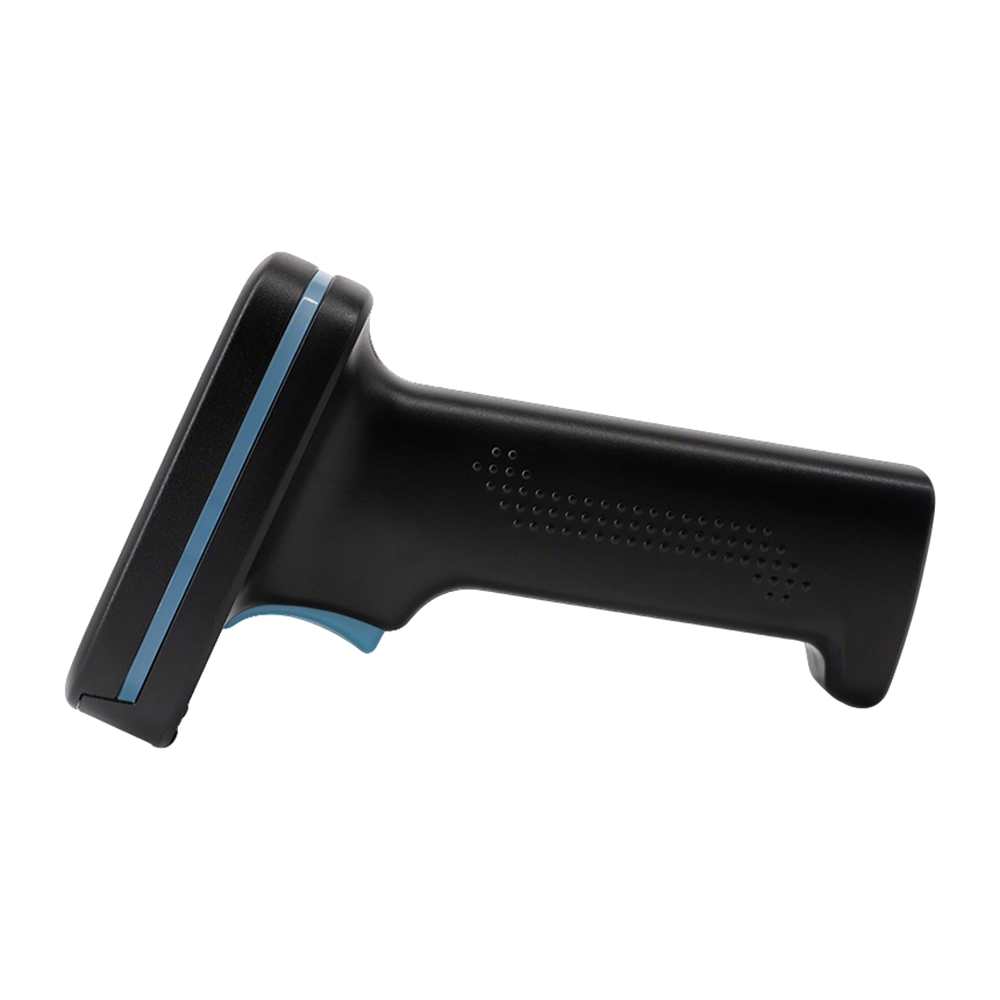

IBC-U68/ IBC-U68W commercial high-speed 2D barcode scanner Wired/ Wireless

Product features:

• High-speed decoding and responsiveness
• Strong versatility: USB, USB-COM and other interfaces are provided
• Compact, lightweight, ergonomically designed and comfortable to the touch
• Support remote online upgrades

Excellent durability: IP54 dustproof and waterproof rating, while withstanding the impact of a 1.5-meter drop to the concrete floor

Global version Technical parameters: IBC-U68; IBC-U68W
Physical parameters
Scan mode	Key trigger/auto-sensing/continuous scanning
Communication interface	USB-HID Keyboard/USB-COM Virtual serial port
Wireless communication distance	Wireless 2.4G: 0-80m (open environment).
Prompt method	Buzzer, LED light
How to set it up	Scan the setting code manually in turn
Housing material	ABS+PC
Cable standard	USB straight line 1m
Appearance dimensions	152mm×94mm×61mm (product);
weight	155g
Performance parameters
Internal storage	512K
Sensors	500,000 global CMOS
Discrimination rate	800*600
light source	White LED
Scan angle	± 60°, ± 60°, 360° (elevation, declination, turning angle).
Scan rate	120 frames per second
Field of view	48° (H) x 30° (V)
Printing contrast	Minimum 15%
Decoding types	1D:EAN- 13，EAN-8，UPC-A，UPC-E，ISSN，ISBN，CodaBar，Code 128，Code93，ITF- 14，ITF-6，Interleaved 2 of 5， Industrial 2 of 5，Matrix 2 of 5，GS1 Databar(RSS)，Code 39，Code 11，MSI-Plessey，etc 2D: QR Code，Data Matrix，PDF417，Micro QR， Aztec，etc，Supports scanning codes with the phone screen
Minimum resolution	1D code 3MIL; QR code 5MIL
depth of view	QR (7k) QR payment code (mobile code) Data Matrix (10mil) PDF 417 (6.7k) EAN-13 (13.3k) Code 39 (8.3mil)	30~110mm 40~500mm 20- 150mm 20- 150mm 30~300mm 40~235mm
Electrical parameters
Input voltage	DC 5V±10%
current	Working: 350 mAh; Standby: 130 mAh
battery	2000mAh lithium-ion battery
Charging time	4 hours
Battery life	72 hours (standby), 6~7 hours (working: scanning every 5 seconds)
Environmental parameters
Temperature	0°C-50°C (working); -40°C~+60°C (storage).
Humidity	5%-95% non-condensation
Ambient brightness	Max.5,000 Lux (fluorescent)
Seismic resistance	It can withstand a drop from the air up to 1.5m
