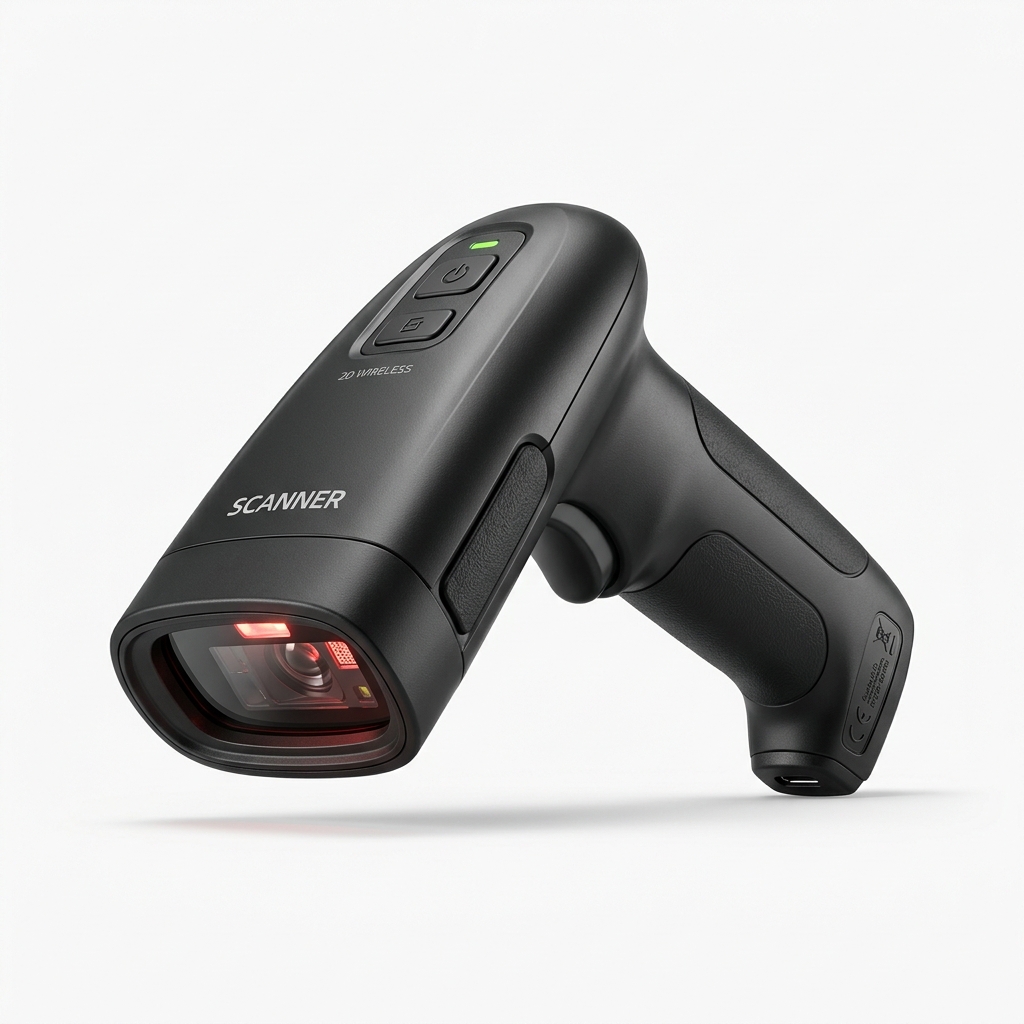

IBC-1680W 2D Wireless Handheld Scanner
Item #: IBC-1680WBrandIbocode
ModelIBC-1680W
Scan Engine2D CMOS Imager (640 x 480 px)
Dimensions160 x 97 x 64 mm
Weight188 g
Wireless2.4G (Bluetooth optional), up to 100m
Battery3.7V / 2500mAh rechargeable
Drop Rating1.5m (5 ft)
InterfacesUSB / RS232 / 2.4G / Bluetooth
CustomizedLogo, Color, Firmware, Packaging
ShippingAir / Sea / Express (EXW/FOB)

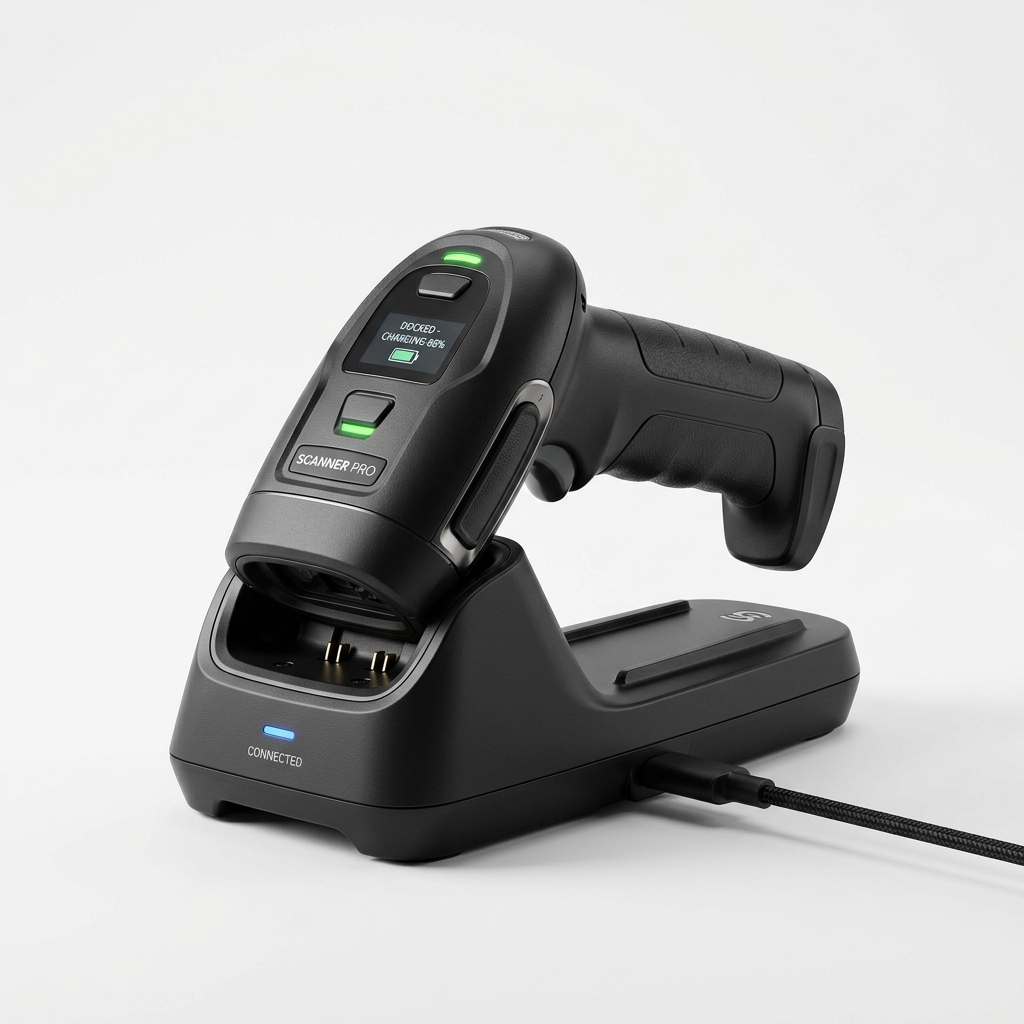

AccessoriesUSB Cable, Cradle, User Manual
Product Description

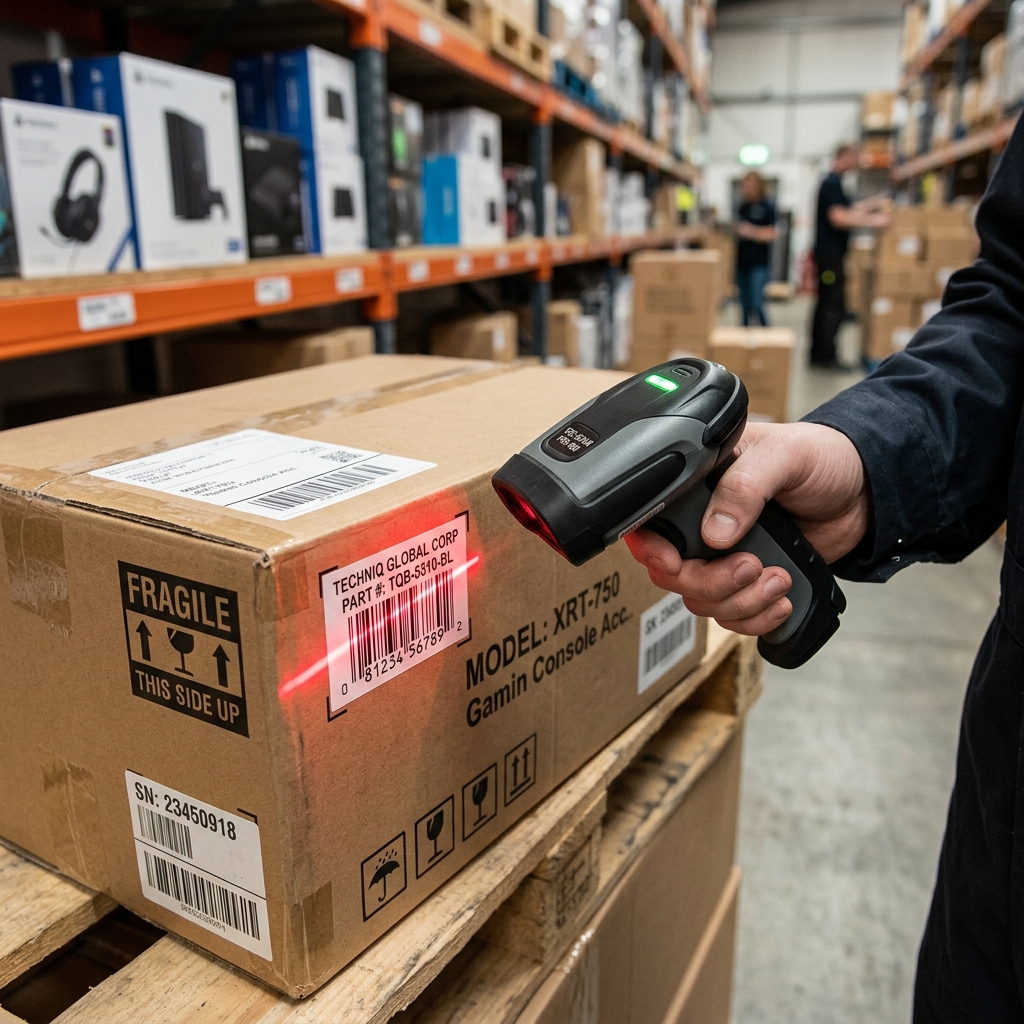

The IBC-1680W is a handheld wireless 2D barcode scanner built for retail, warehouse, and industrial data capture. Its 640x480 CMOS imager reads all common 1D and 2D barcodes - including QR, DataMatrix, PDF417, and mobile payment codes on phone screens. With a 100m open-field wireless range, a 2500mAh battery, and a 1.5m drop rating, it keeps scanning through long shifts. We support full OEM customization including logo, housing color, firmware, and packaging.
Key Features
- Reads 1D & 2D barcodes plus mobile screen / payment codes
- 2.4G wireless with optional Bluetooth, up to 100m range
- 640 x 480 imager with 20% minimum print contrast
- 2500mAh battery with offline storage of 20,000 barcodes
- 1.5m drop resistance and 100,000 Lux ambient light immunity
- 100% aging tested before shipment
OEM Support
- Logo and housing color customization
- Firmware, beep tones, and data-format editing
- Packaging design, inserts, and multi-language manuals
- Compliance planning (CE, RoHS, FCC)
- Private-label branding and barcode labeling
