Wireless Wearable Ring Barcode Scanner Finger Reader Bluetooth Mini Qr Code Reader 1d 2d Barcode Scanner With TFT Screen For Inventory
Product Description:
IBC-RS30 is a ring wearable barcode scanner. The top is equipped with a color TFT display screen, which integrates various settings menus. Users can configure various functions of the scanner through the menu. At the same time, this scanner is equipped with 500mA lithium battery and 16M memory, which can collect data in the field for a long time and save it to the scanner.
Product Features:
• Directly wear on your fingers, ease to install and remove.
• With TFT color screen and Synchronize internet time.
• Bluetooth turns on automatically, need n’t extra set.
• Only 42 weight, more portable to taking.
• 3-in-1 Connection Ways.

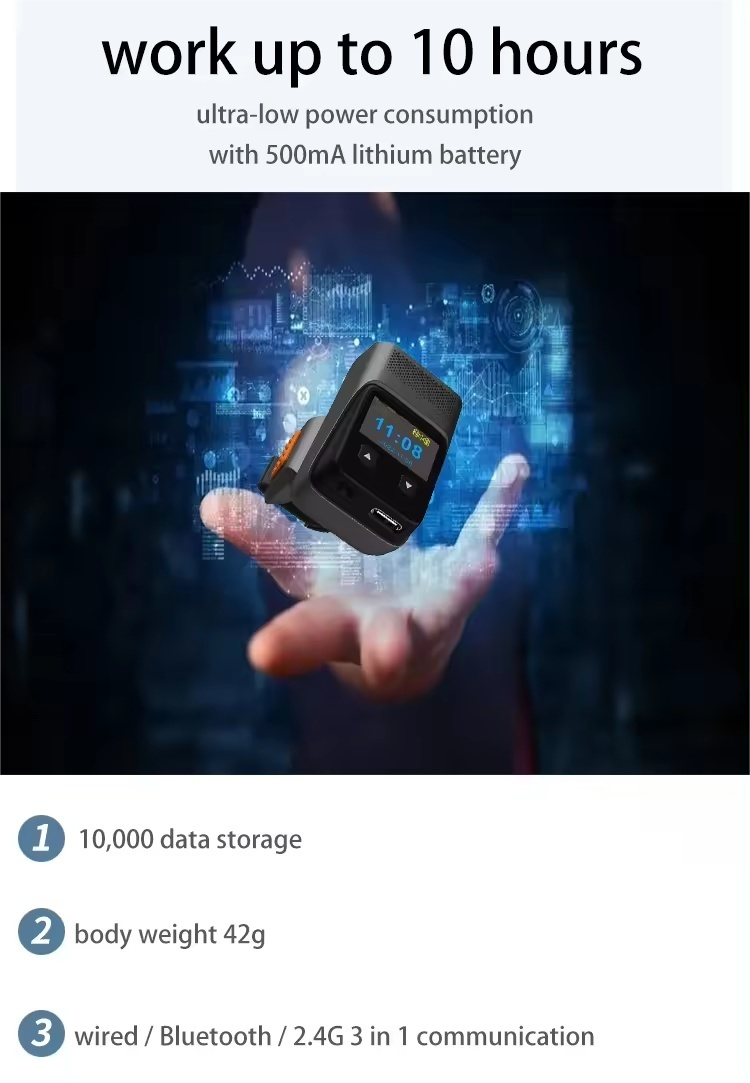

• Built-in 500mAh battery, can continue work for you up to 10 hours but only need 2 hours to charge.
• Support scan most of 1D 2D barcode, and support screen scanning.
• It have 16M flash memory.
• Comfortable and convenient to use.
Product Advantages:

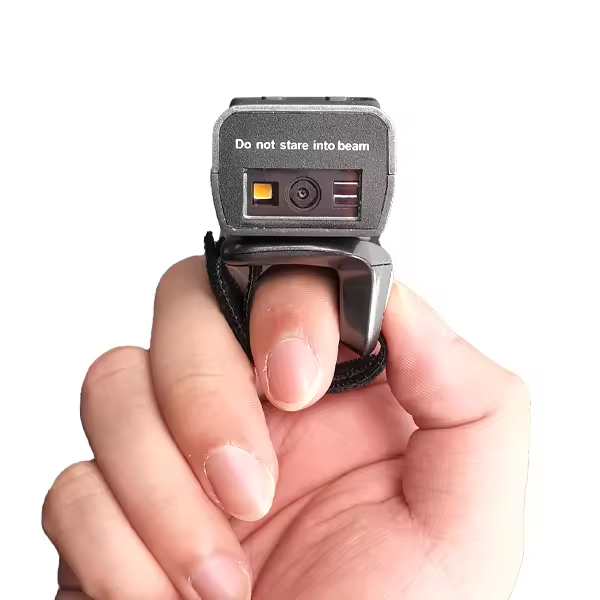

• Mini Ring Bluetooth Barcode Scanner:
Two Ways to Use: You can use it as a Ring barcode
scanner to fixed on the fingers, or you can use it alone
as a normal Bluetooth barcode scanner.
• Strong 1 D&2D Barcodes Decoding Ability:
Such as EAN, UPC, Code 39, Code 128, UCC/ EAN 128, Coda bar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25,
Standard 25, Plessey, Matrix 2 of 5. all 2D barcodes.
• 3-in-1 Connection Ways:
This Bluetooth barcode scanner support 2.4G wireless, Bluetooth wireless and USB wired 3 connection modes, you can choose the most convenient way according to your needs. Compatible with Windows, macOS, Linux, Android and IOS operating system.
• Powerful Battery System:
Lithium battery, can work continuously for 15 Hours under normal condition after fully charged, standby time up to 3 months, and charging takes only 1.5 hours.
• Free Rotation design:
Damping free rotation design; Rotation angle exceeds 330 degrees.
Product Specification:
| Model | IBC-RS30 |
| Item | Poratable 2D Wearable Ring Barcode Scanner |
| Performance Characteristics | |
| Optical System | High performance imaging CMOS |
| Print Contrast | 20% minium reflective difference |
| Aimming | Red LED, Green LED |
| Minimum Resolution | 3mil (Code39, PCS 0 .9) |
| Reading Range | 13mil EAN13 more than 15cm |
| Scan Rate | 600 times, S |
| Battery | 3 .7v Li Battery, 450mA |
| Processor, Memory | ARM 32, 16M Flash 1GHZ |
| Interface | USB HID, USB COM |
| Support OS | Microsoft Windows XP, 7 .0, 8 .0, 10, Mobile6, Wince, Android, IOS. (without driver) |
| Scan Mode | Trig Mode/ Comman Mode/ Continue Mode/ Auto Sensor Mode |
| Wireless Bluetooth | Bluetooth, 2 .4g; Bluetooth Class 4 .2 |
| Physical Characteristics | |
| Dimensions | L*W* H (80mm*28mm* 18mm) |
| Screen Size | L*W (25mm* 16mm) TFT |
| Weight | 35g (with battery) |
| Color | Silver gray |
| Indication | Beep, Screen, Vibration |
| Voltage | Input DC 5V 500mA |
| Operating Current | Standby Current: 20mA; Working Current: 160mA |
| Radio Range | Bluetooth: 30 meters; 2 .4G: 80 meters |
| Supported Symbologies | |
| 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, IATA, code32, Codabar, NW-7, Plessey, MSI Plessey, RSS, China Post 2D: QR code, Data Matrix, PDF417, Aztec code . Maxi Code, Micro QR, Micro PDF417, HanXing Code |
|
| User Environment | |
| Drop Specifications | 2 meters fall into concrete for several times |
| Environmental Sealing | IP42 |
| Operating Temperature | -10 ° C to 50 . ° C |
| Storage Temperature | -10 ° C to 50 . ° C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Ambient Litht Immunity | 0~80000 lux |
| ESD Protection | Functional after 15KV discharge |
| Accessories | |
| Cables | Usb cable (type c) |
| Others | Manual, Usb receiver |

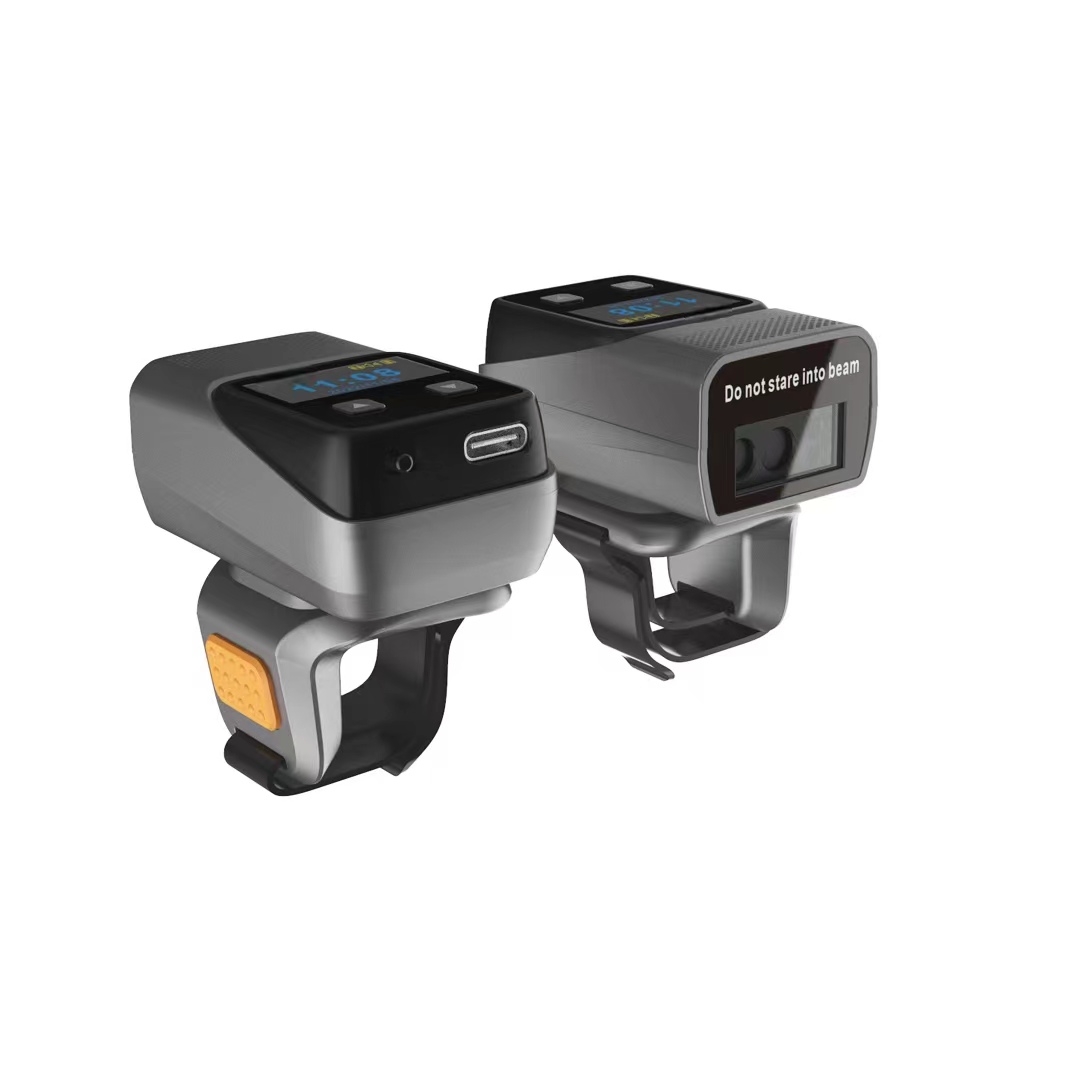

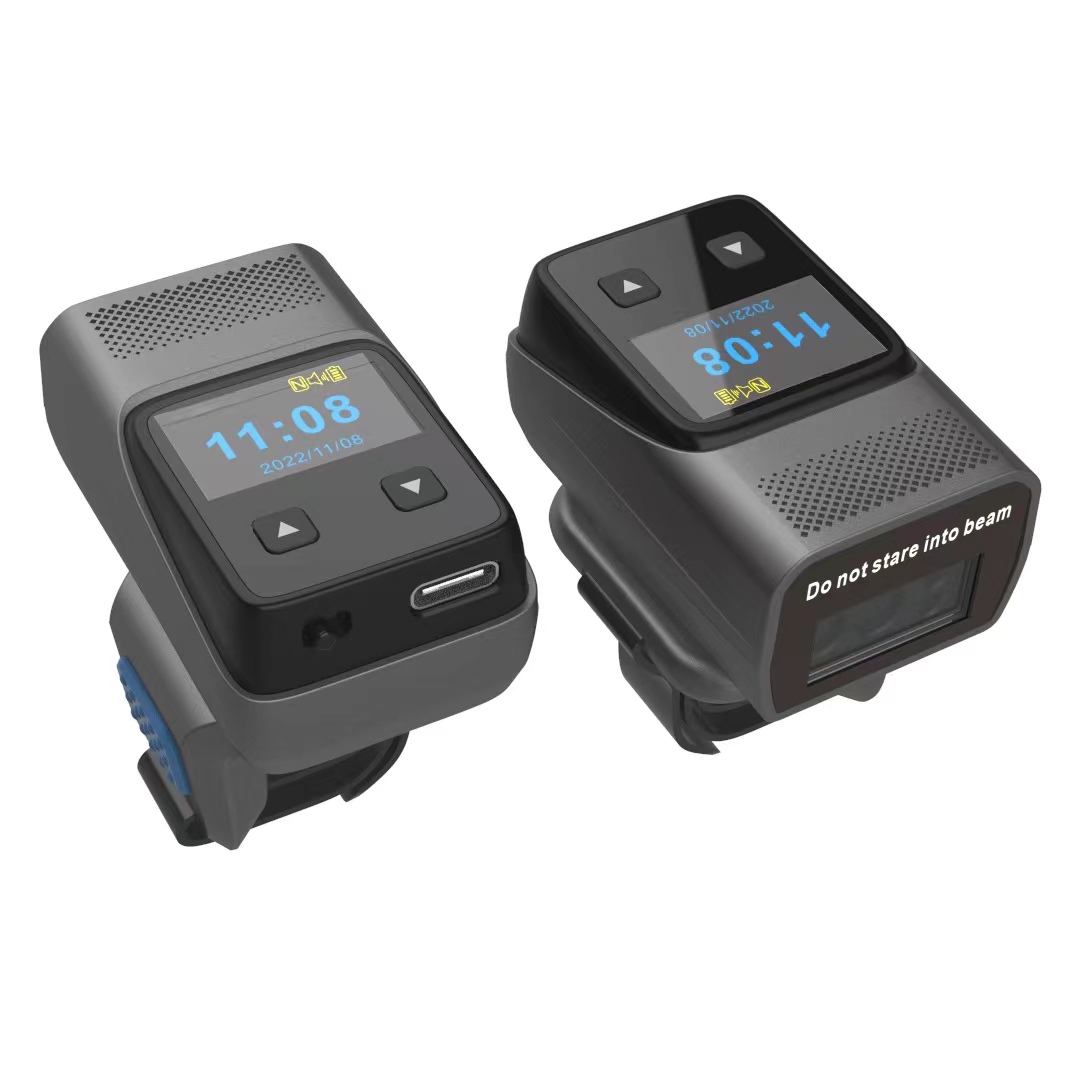

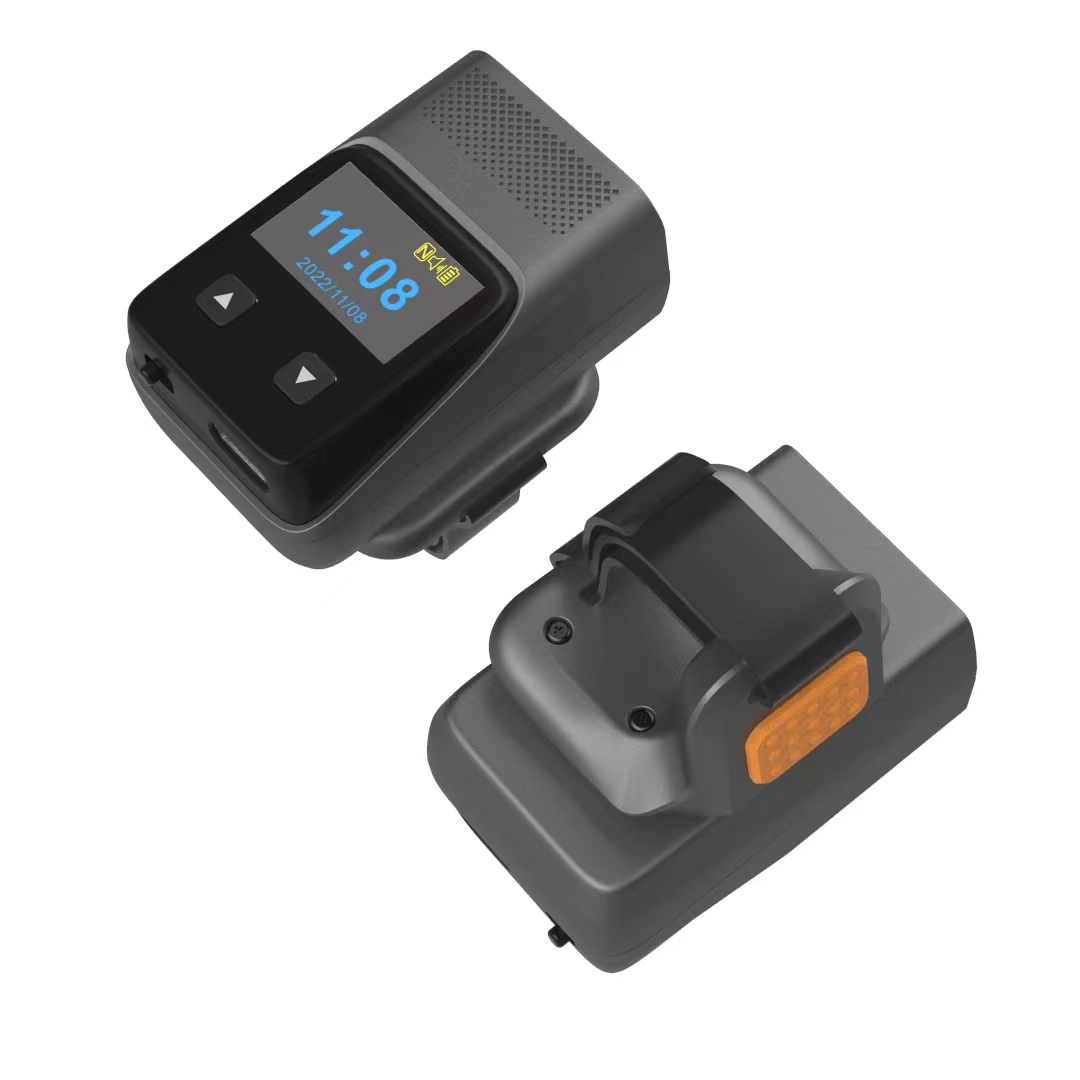

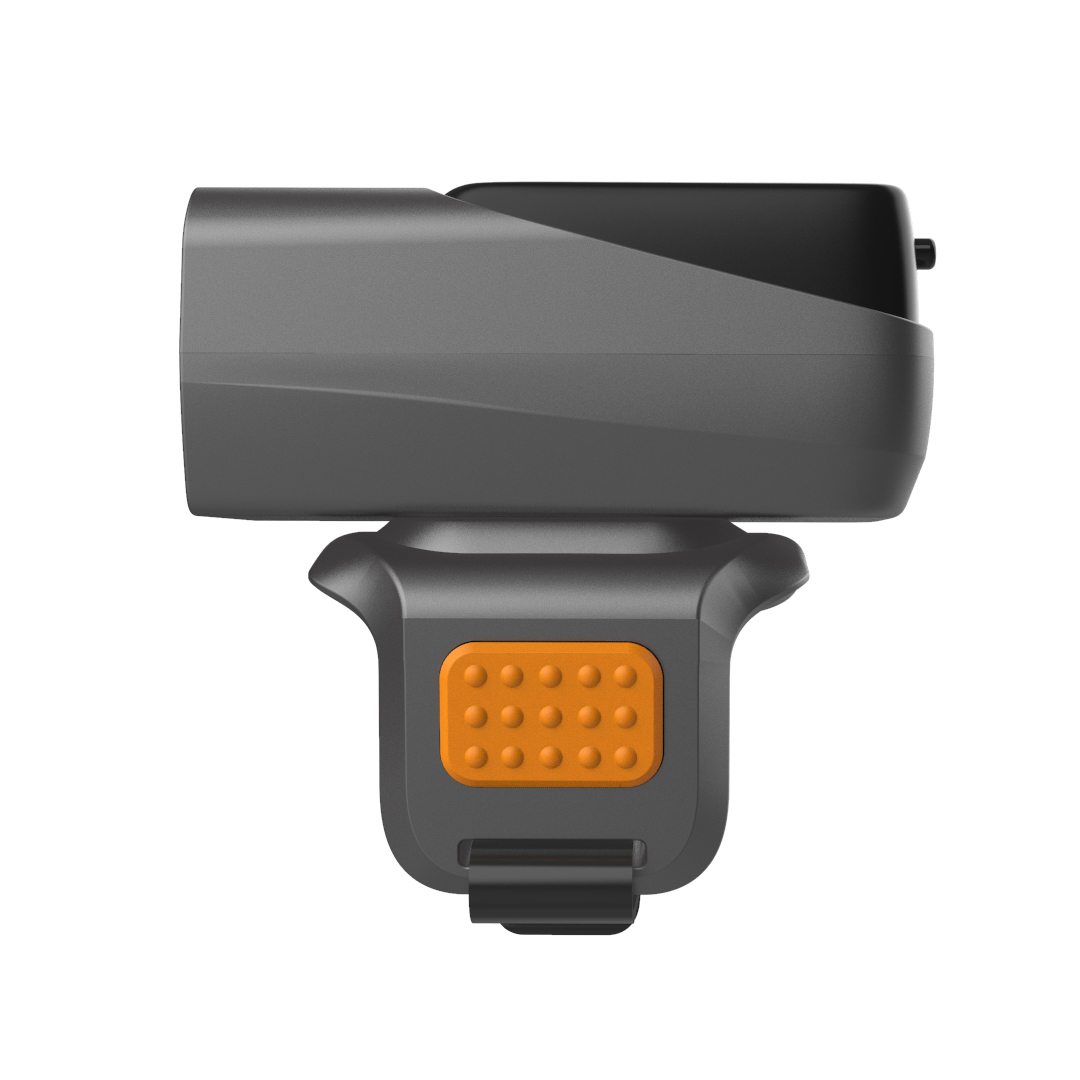

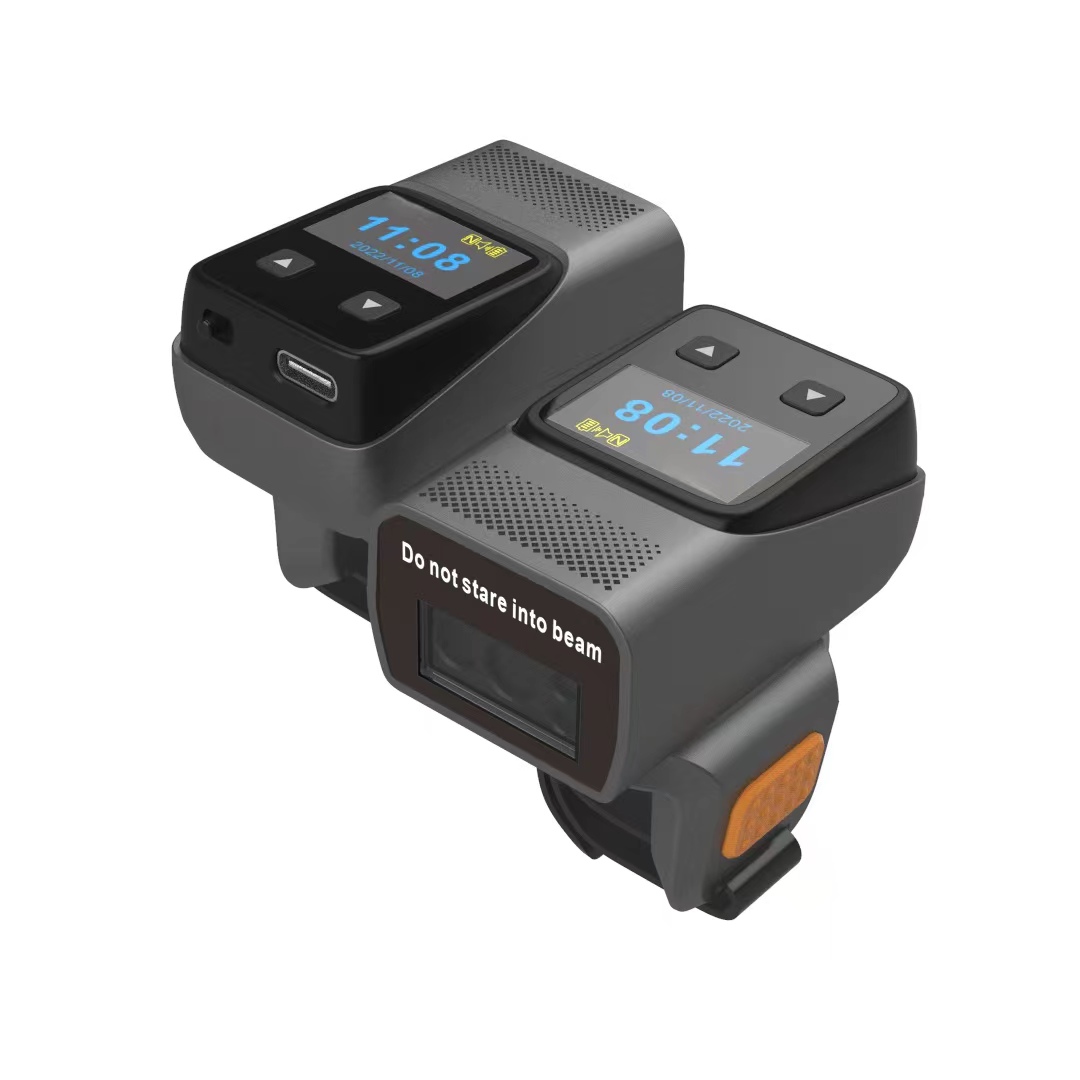

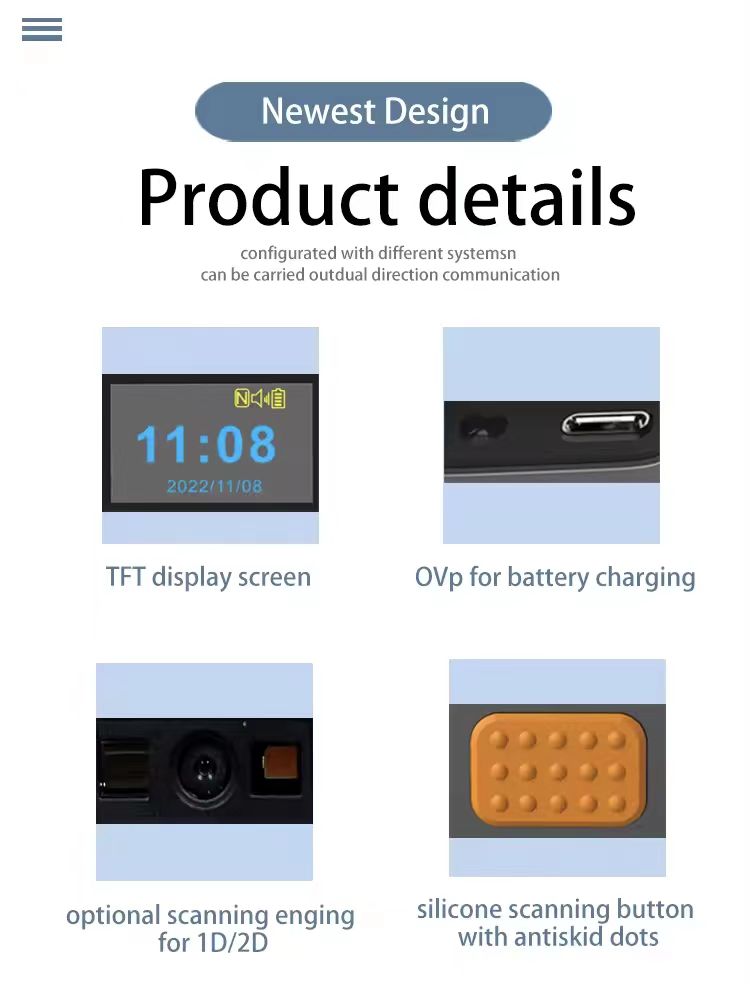

Product Pictures:
