Wired QR Code Reader 1D 2D CMOS Barcode Scanner Wireless Barcode Reader With 2.4G Receiver
Product Description:
IBC-1400 series CMOS barcode scanner is good performance on reading 1D and 2D barcodes. The barcode scanner supports decode most of 1D 2D QR barcodes on labels, paper and screen. With super scanning and decoding ability, it can read incomplete and fuzzy codes. With Excellent Error-Correcting Performance, it can scan the decodes for damaged lncomplete Barcode, fuzzy barcode, twsited wrinkled barcode, reflective barcode, colorful and long barcode etc. It supports the multinational language keyboard. It is widely used in Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Product Features:
* Adopts Wired & wireless 2.4G & wireless bluetooth three modes optional.

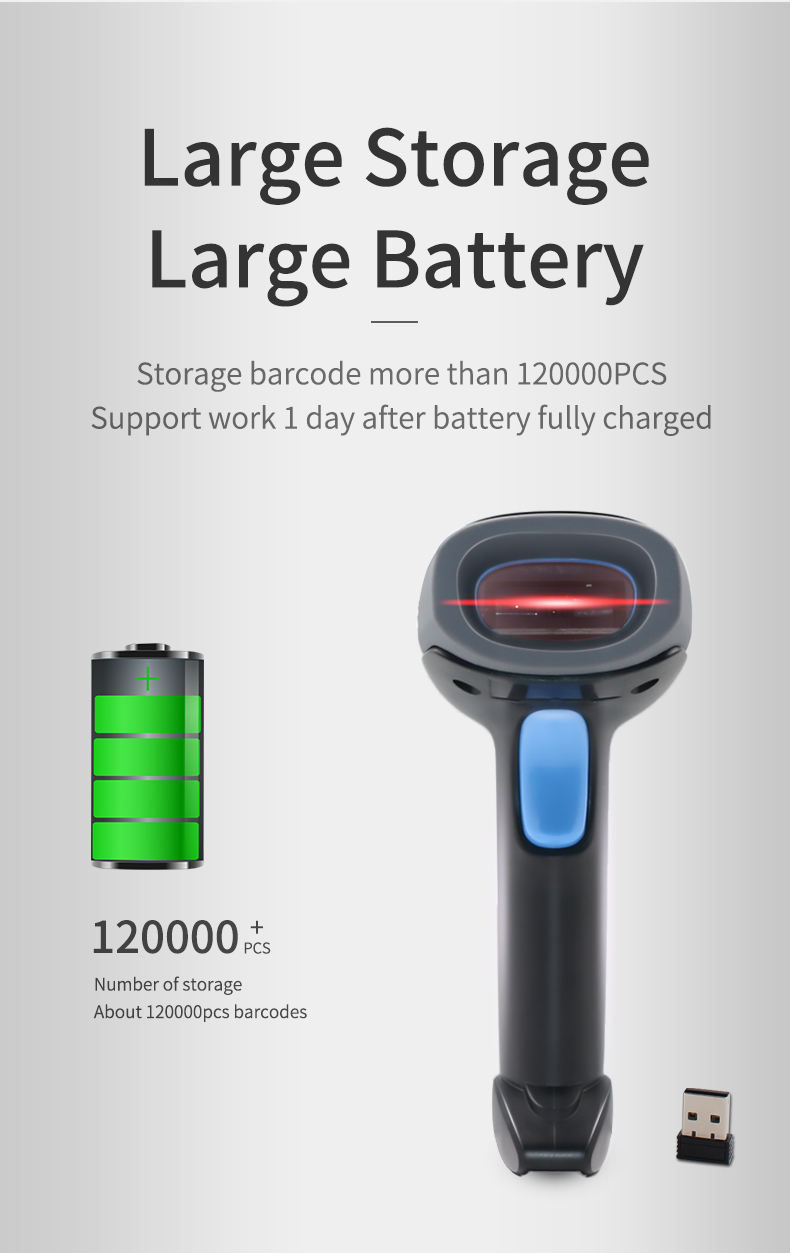

* Large capacity battery, 1800MAH Li-ion battery.

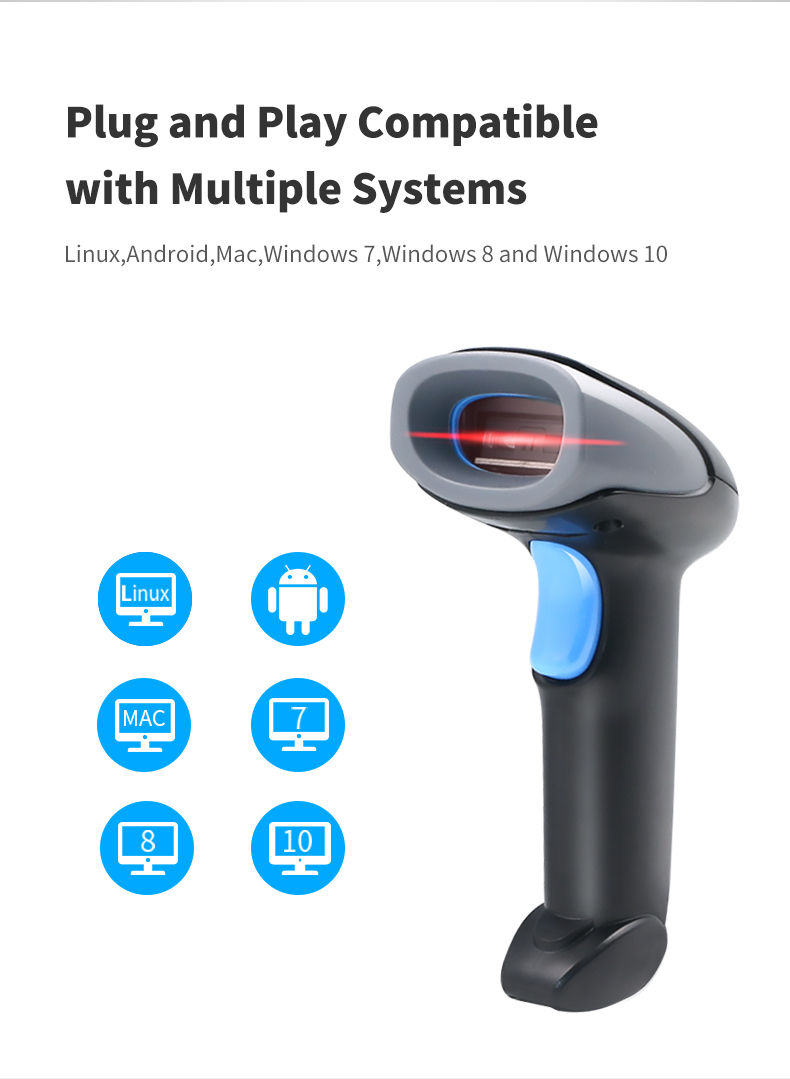

* Plug and play, not need install any procedure.
* Support Multinational keyboard languages
* Supports Handheld/Continuous/Auto-Induction, 3modes for option.
* With advanced CMOS sensor, Global shutter exposure, easily decode most of 1D 2D QR barcodes on labels, paper and screen more accurate.
* Application fields: Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Product Specification:
| Product Name | 2D Wireless Bar Code Scanner |
| Model | IBC-1400R/ IBC-1400RB |
| Performance | |
| Image Sensor | CMOS 640*480 |
| Illumination LED | White LED |
| Aimer | Red LED |

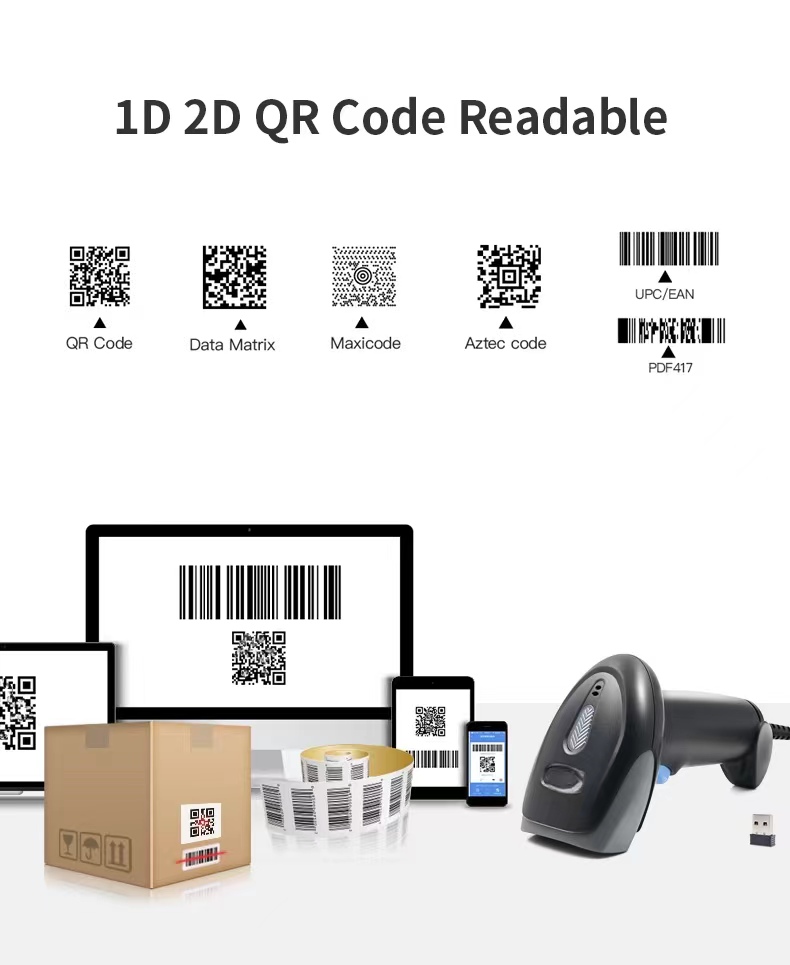

| Symbologies | 1D: Airline 2 of 5, Codaba, Codablock A, Code 128, Code 11, Code 32, Code 39, Code93, EAN/UPC, EAN-8, Convert EAN-8 to EAN-13, EAN-13, Full SACII Code39, GS1DataBar Expanded, GS1DataBar Limited, GS1DataBar Omnidirectional, HongKong 2 of 5 (China post), Interleaved 2 of 5, RSS-14, RSS-LIMITED, RSS-EXPANDED, Straight 2 of 5 Industrial, Telepen, Trioptic Code, UPC-A, UPC-E, UPCE, Codablock F, Pharmacode, MSI, Matrix 2 of 5 2D: Composite, Data Matrix Code, HANXIN, Maxicode, MicroPDF417, Micro QR code, PDF417, QR Code, Aztec Code, DOT_CODE |
| Min Decode Resolution | Code 39 5mil |
| Decode Range | 6.6mil code39: 4cm~8cm |
| UPC-13 mil: 3cm~22cm | |
| 20 mil code39: 7cm~33cm | |
| 20 mil QR Code: 3cm~18cm | |

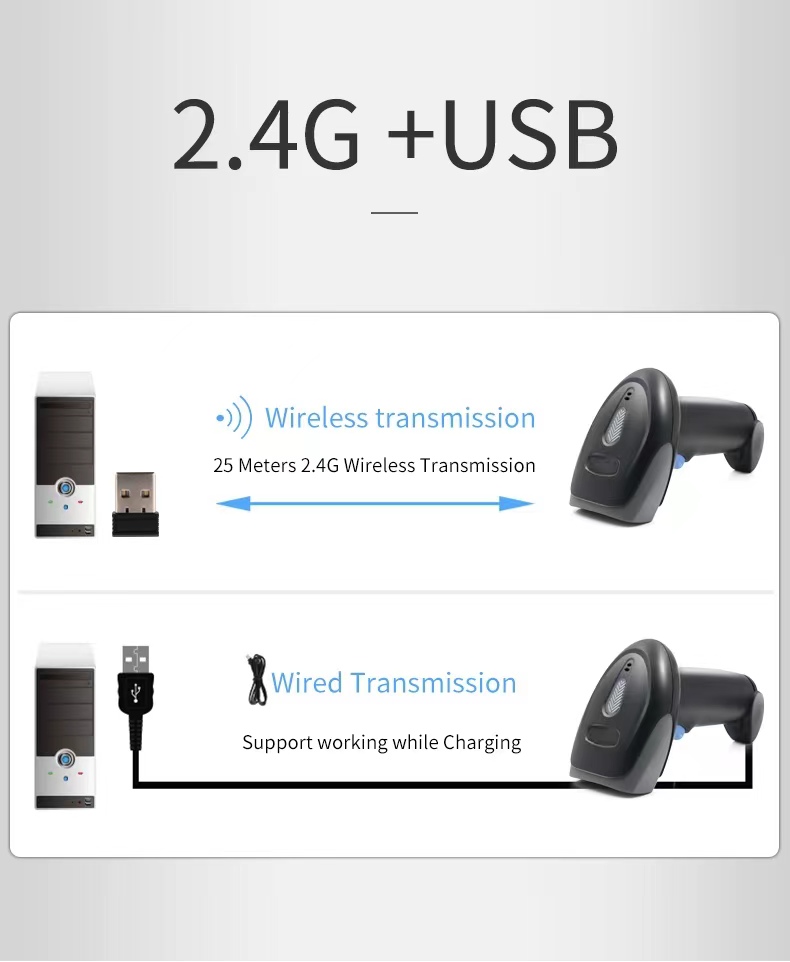

| Transmission mode | Wired, wireless 2.4GHZ, Bluetooth (optional) |
| Wireless transmission distance | 60m |
| Battery capacity | 1800MAH |
| Minimum Print Contrast | ≥25% |
| Scan Angle | Roll ±360°，Pitch ±60°，Skew ±70° |
| FOV | Horizontal 40° , Vertical 34° |
| Electronical | |
| Interface | USB port (free drive), USB virtual serial port (installation driver) |
| Dimension(mm) | 165mm* 86mm*66mm |
| Voltage | 5V |
| Max Power | 73mA/0.365W |
| Current@5 VDC | Operating: 57mA/0.288W |
| Standby: 37mA/0.185W | |
| Working time | 3 to 7days |
| Environmental | |
| Operating: | -20-55℃ |
| Storage: | -20-60℃ |
| Humidity | 5-95% Non-condensing |
| Embient Light | 0-70000LUX |
| Accessories: | |
| USB | RS-232 Cable and Power Supply |

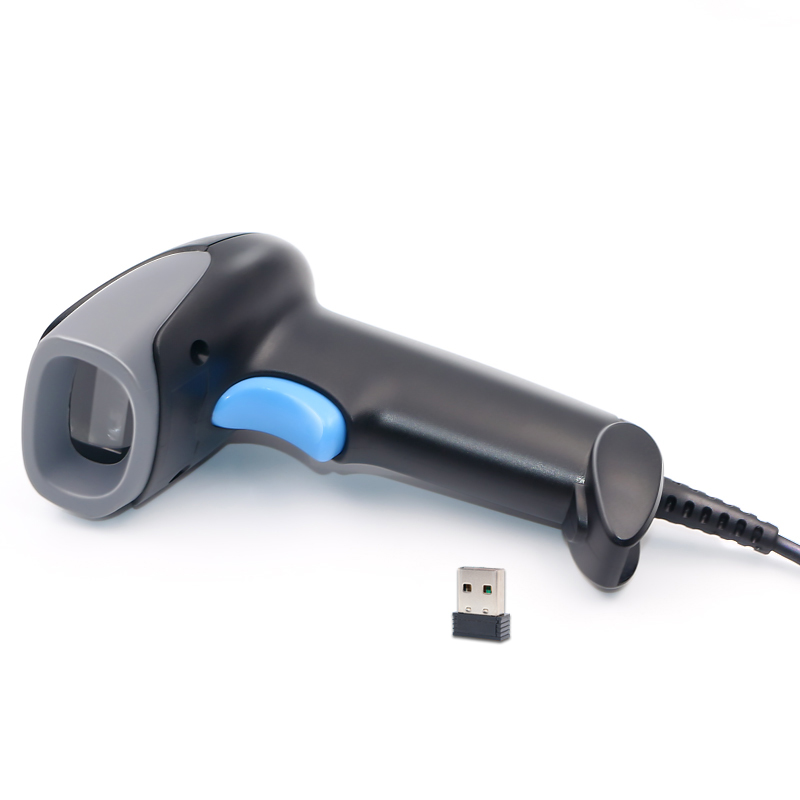

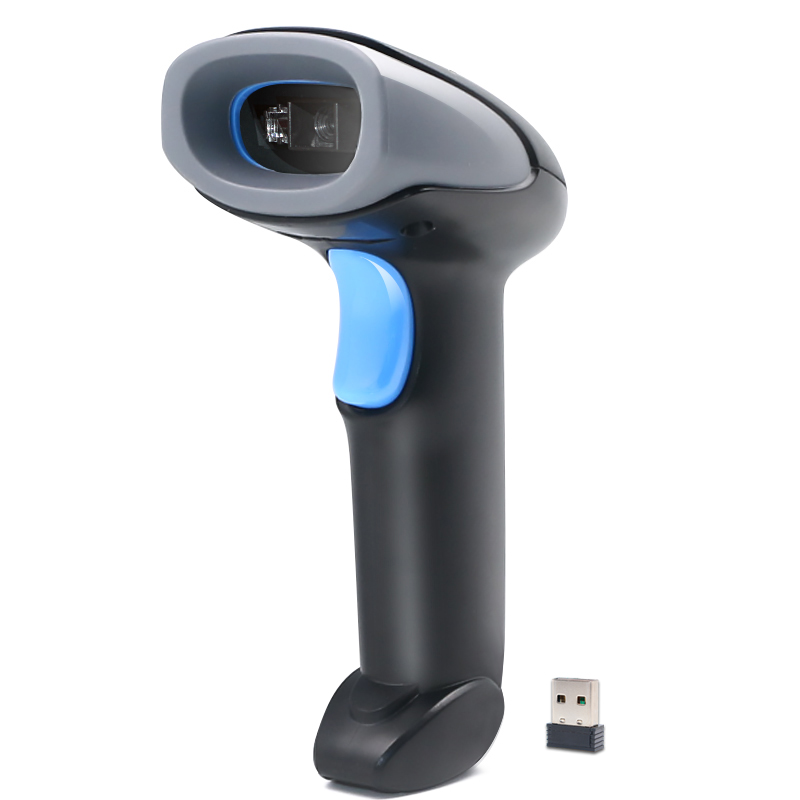

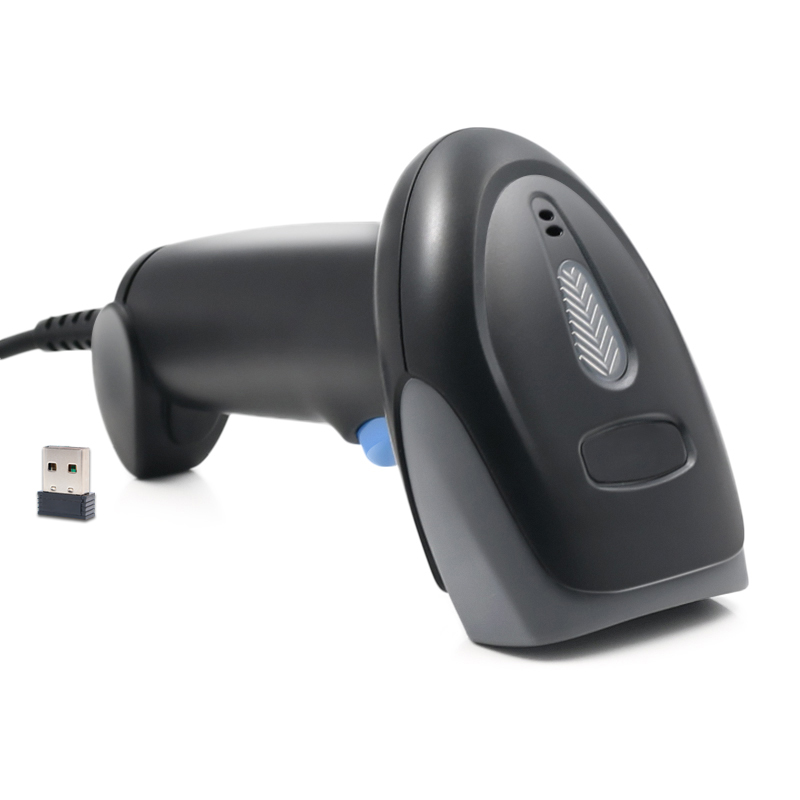

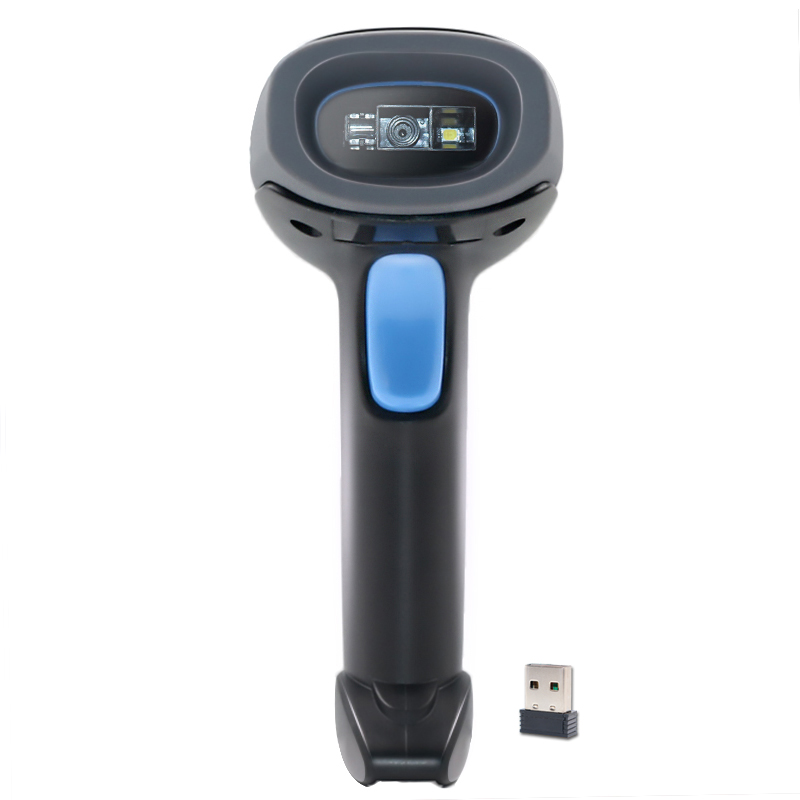

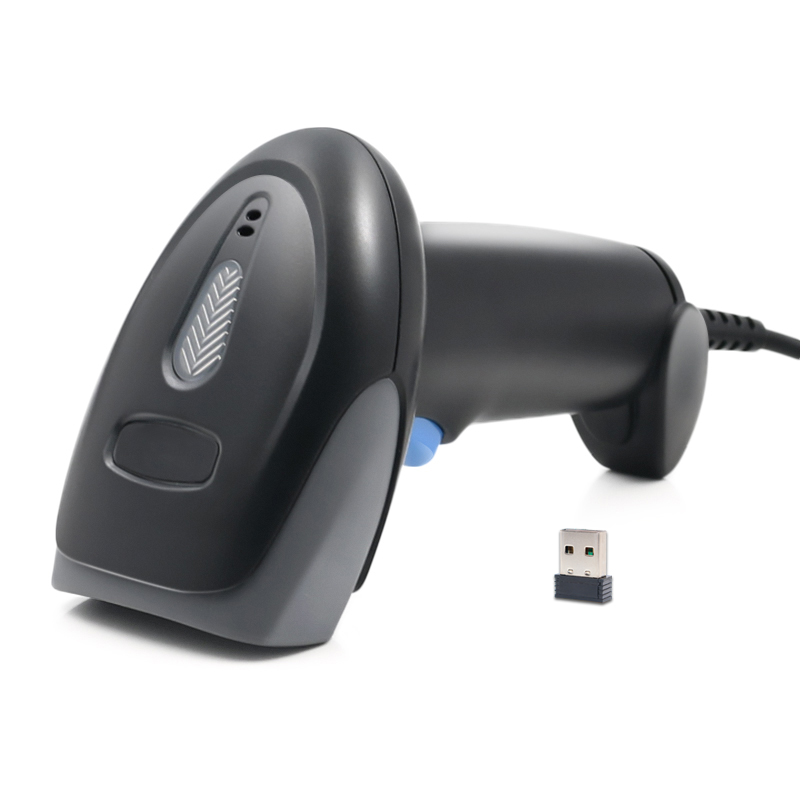

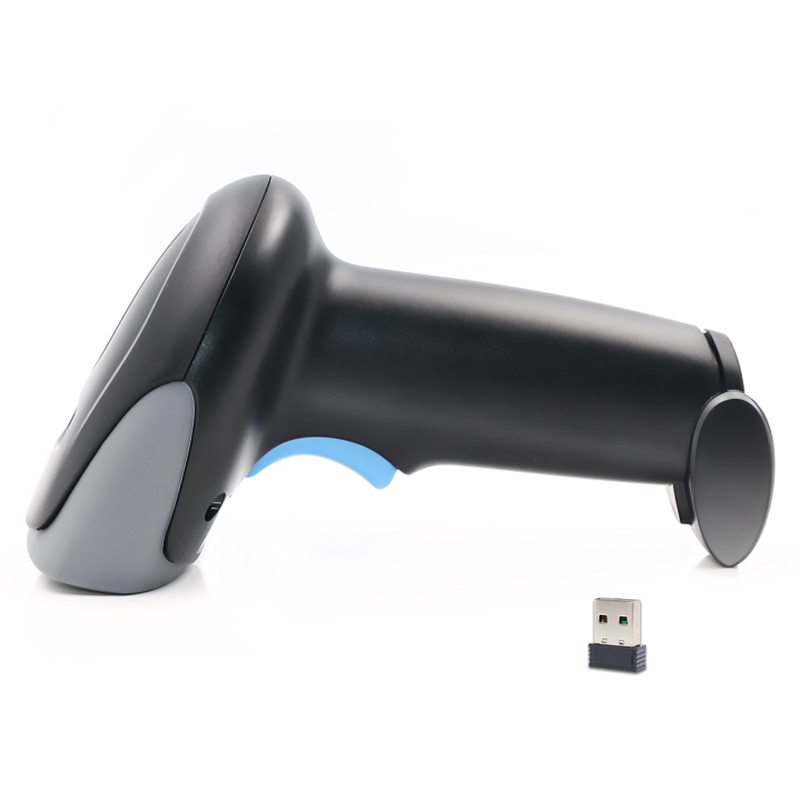

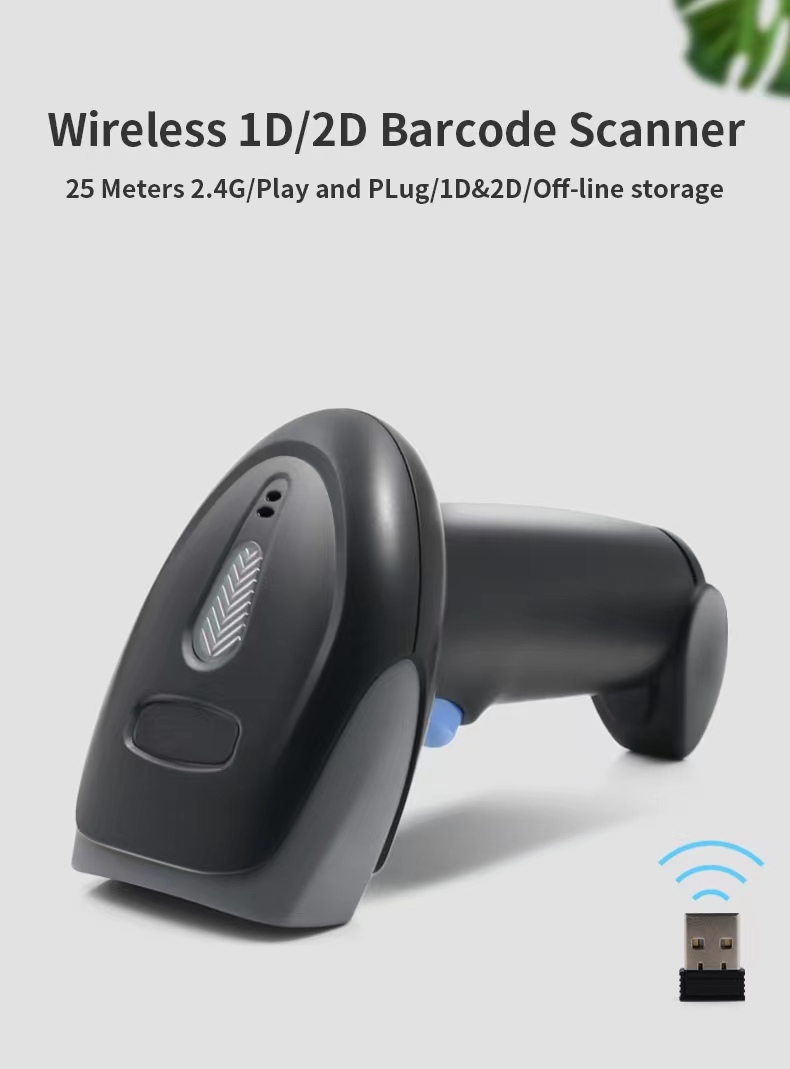

Product Pictures:
