Wired POS Bar Code Scanner USB CMOS QR Code Reader Handheld Barcode Scanner 1D 2D
Product Description:
IBC-5100, it is handheld wired 2D QR Code Reader. It can scan various 1D and 2D codes. It supports mobile payment goods scanning. This handheld barcode scanner can be easy to operated, plug and play. It is with excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, etc; it is more convenient to scan the QR code to check out.
Product Features:
● Strong Decoding Ability, VARIATY OF BARCODE DECODING.
● Much more smoothly to read the screen barcode either 1D and 2D. Support Alipay and Wechat.
● Ultra fast decoding system.
● Widely used in the areas of retail, hospital, logistics, and manufacture.
Product Specification:
| Product Name | 2D Wired Barcode Scanner |
| Model | IBC-5100 |
| Performance | |
| Image Sensor | CMOS 640*480 |
| Illumination LED | White LED |
| Aimer | Red LED |
| Symbologies | 1D: Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN -8, EAN -13, MSI, ISSN, ISBN, GS1 DataBar 2D: PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix |
| Min Decode Resolution | ≥5mil |
| Decode Range | EAN-13 (13mil): 35mm~ 190mm（Bar Code Size: 17mm*31mm） |
| PDF417 (6mil): 20mm~70mm（Bar Code Size: 14mm*7mm） | |
| Code39 (4.7mil): 25mm~60mm（Bar Code Size: 6mm*21mm） | |
| Data Matrix (10mil): 20mm~75mm（Bar Code Size: 5mm*5mm） | |
| QR Code (15mil): 20mm~90mm（Bar Code Size: 10mm*10mm） | |
| Minimum Print Contrast | ≥20% |
| Scan Angle | Skew±70°，Pitch±70°，Roll 360° |
| FOV | 52.1°(D) ，43.1°(H) |
| Electronical | |
| Interface | USB, RS-232 |

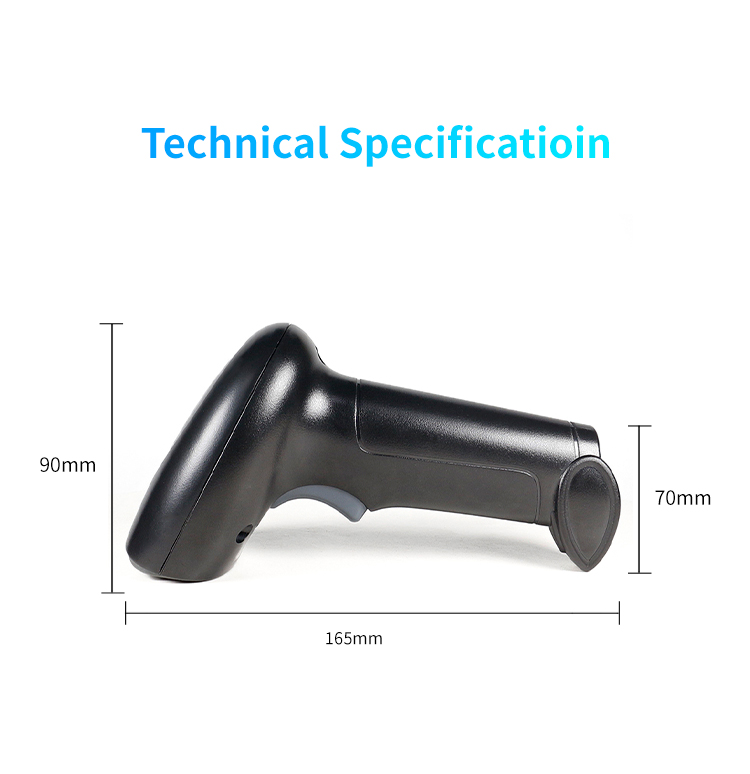

| Dimension(mm) | 165(W)×70 (D)×90(H)(Max) |
| Voltage | 5 VDC±5% |
| Power Consumption | 950mW(Typical) |
| Current@5 VDC | Operating: 190mA(RMS Typical)，220mA(RMS Max) |
| Standby: 70mA | |
| Sleep: 17mA | |
| Environmental | |
| Operating | -10℃~+60℃ |
| Storage | -40℃~+70℃ |
| Humidity | 5%~95%（Non-Condensing） |
| Embient Light | 0~100,000LUX |
| Accessories | |
| Cables | USB Cable |
| RS-232 Cable and Power Supply |

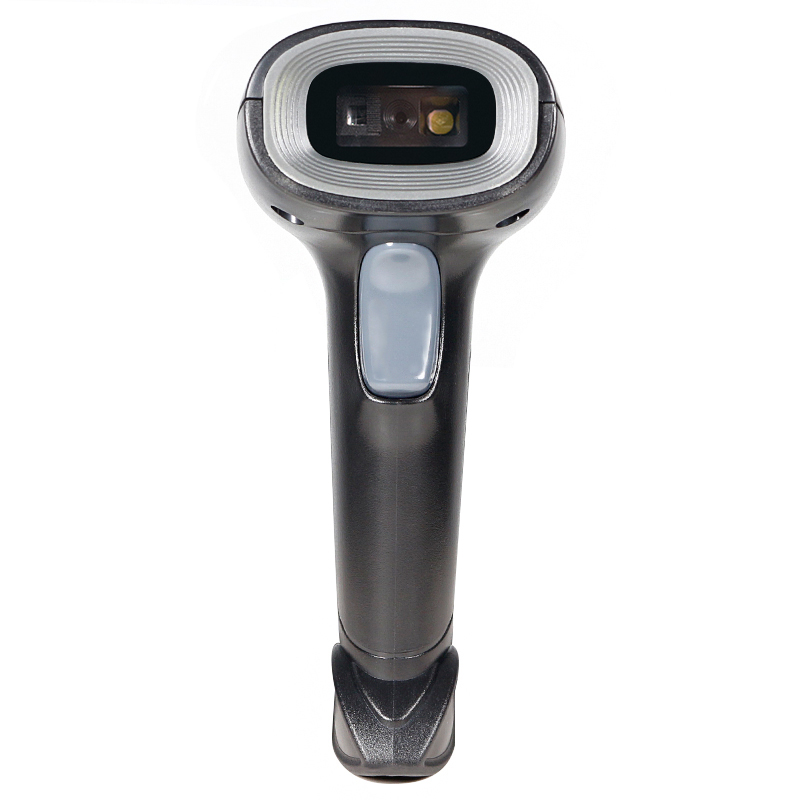

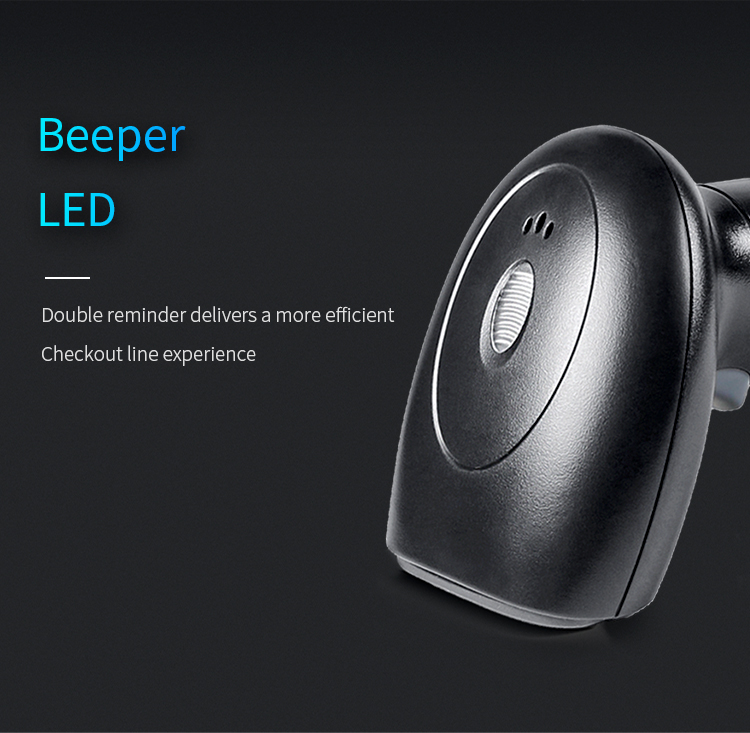

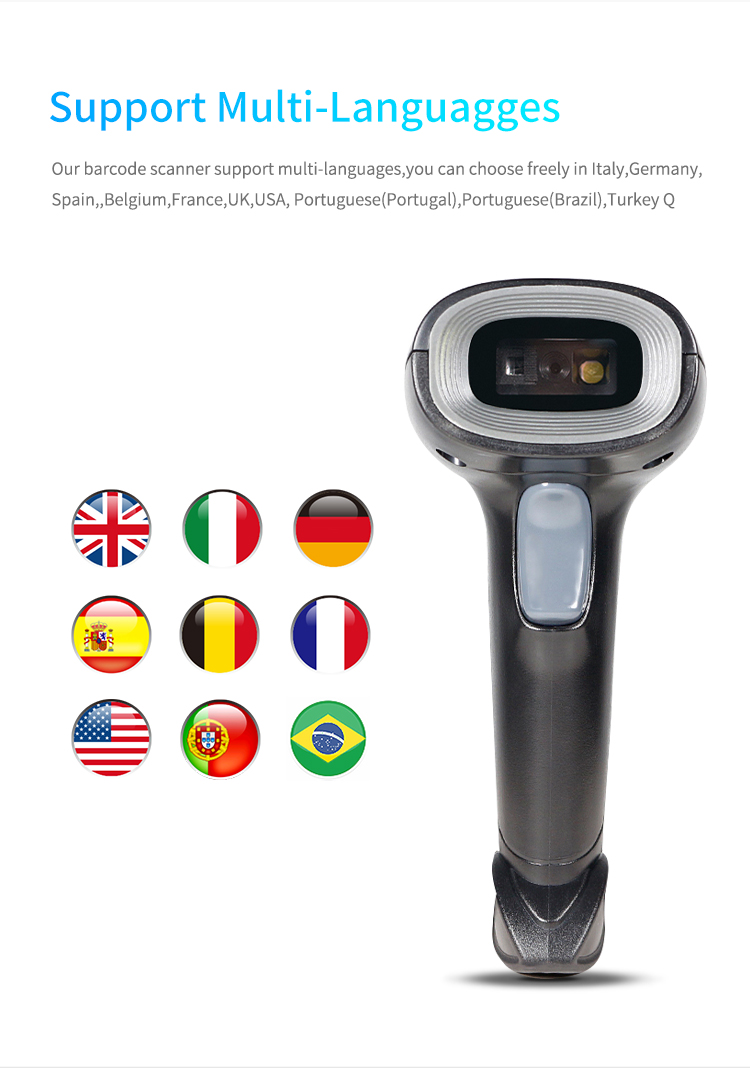

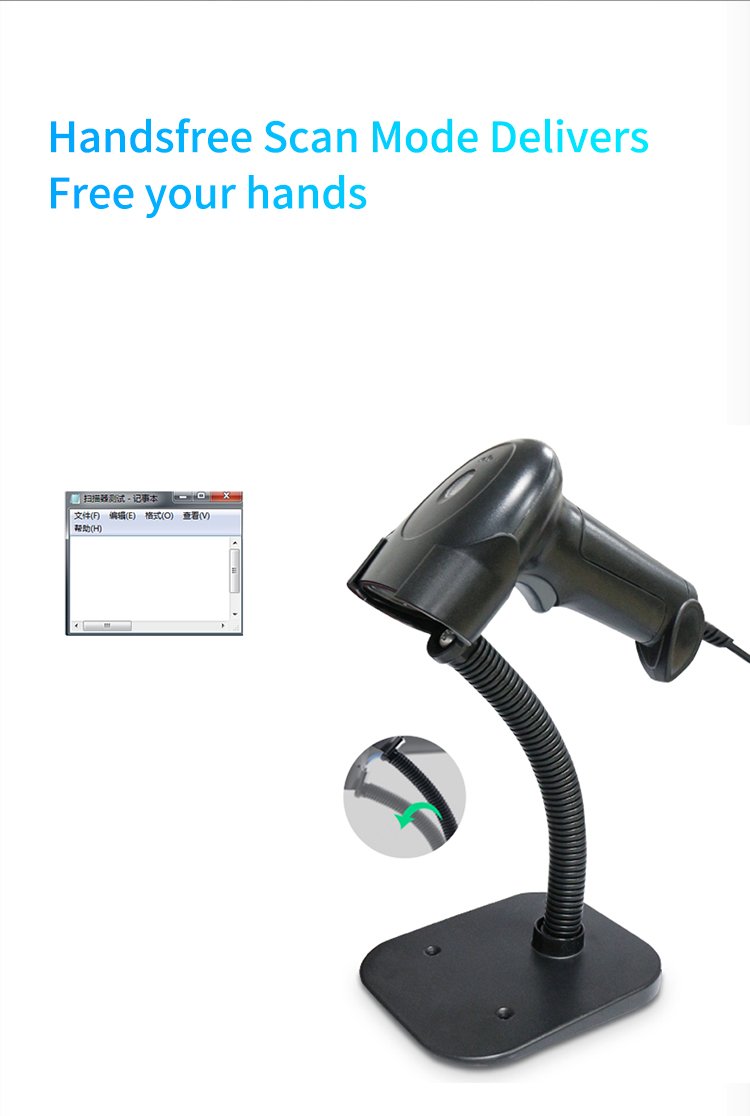

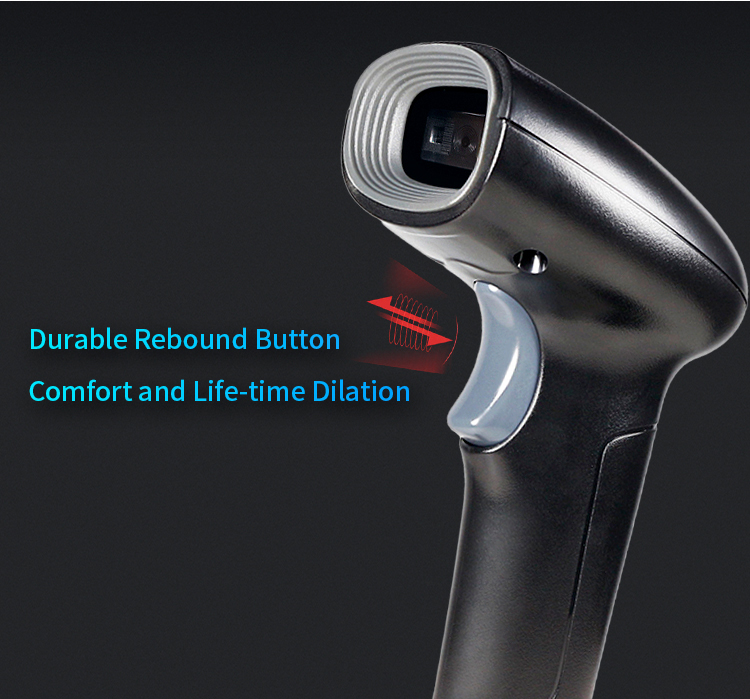

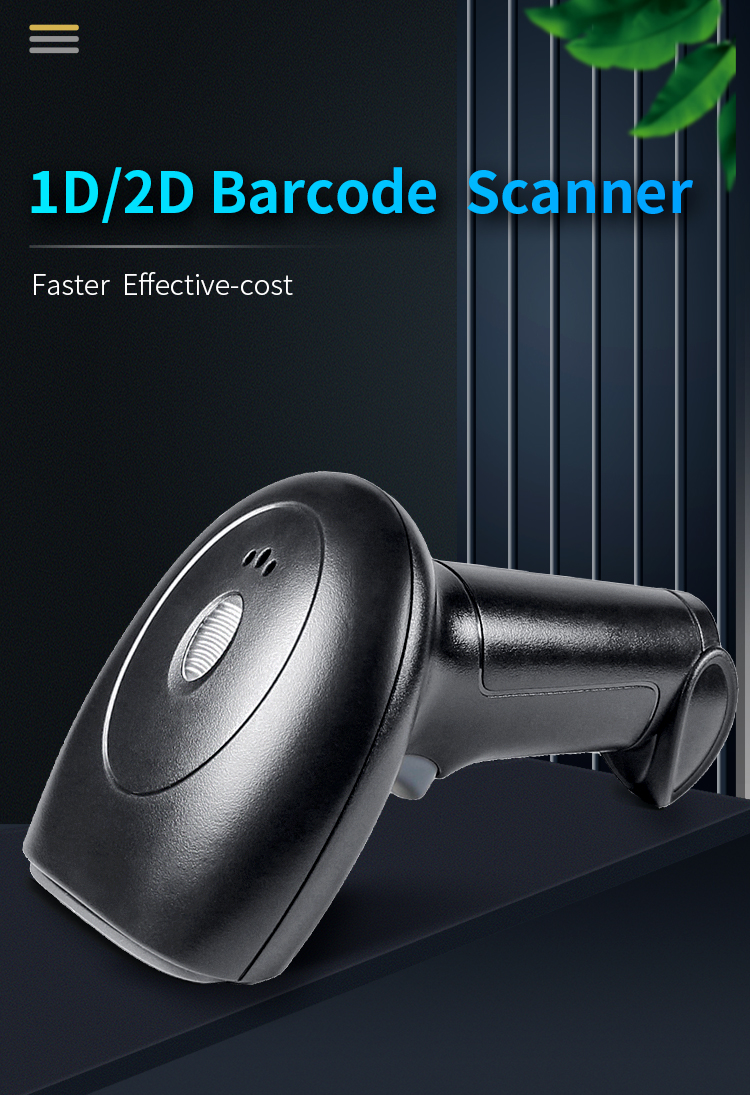

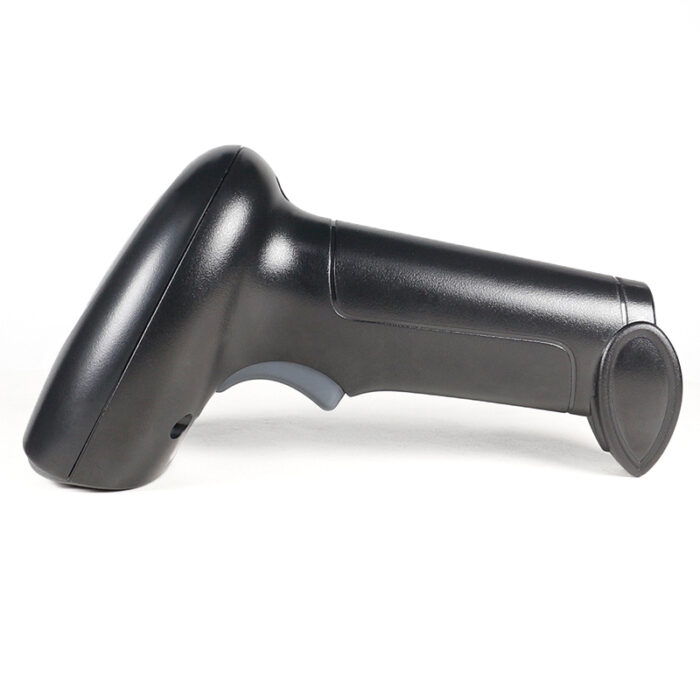

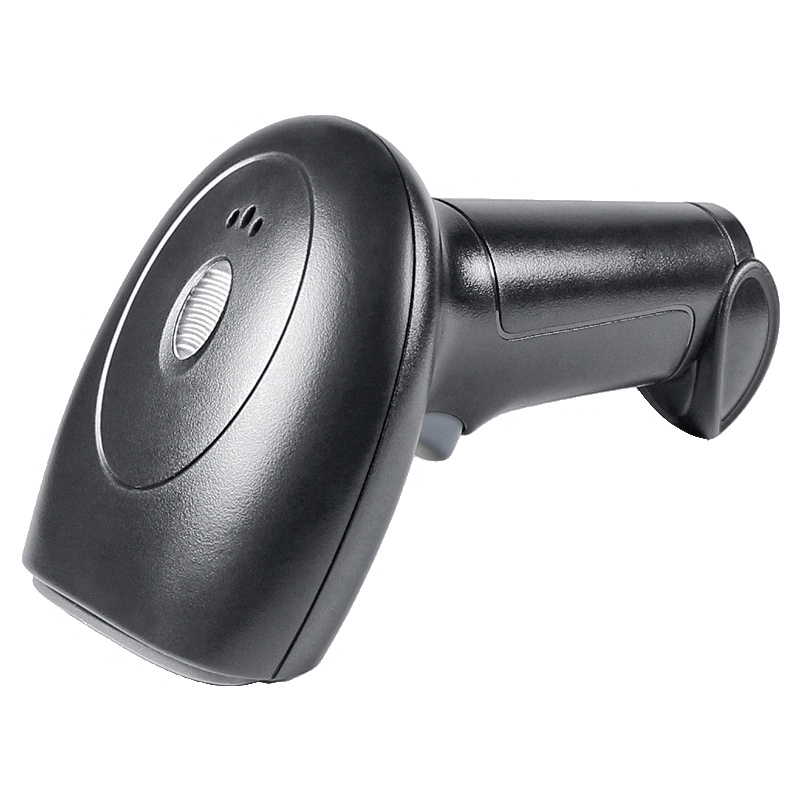

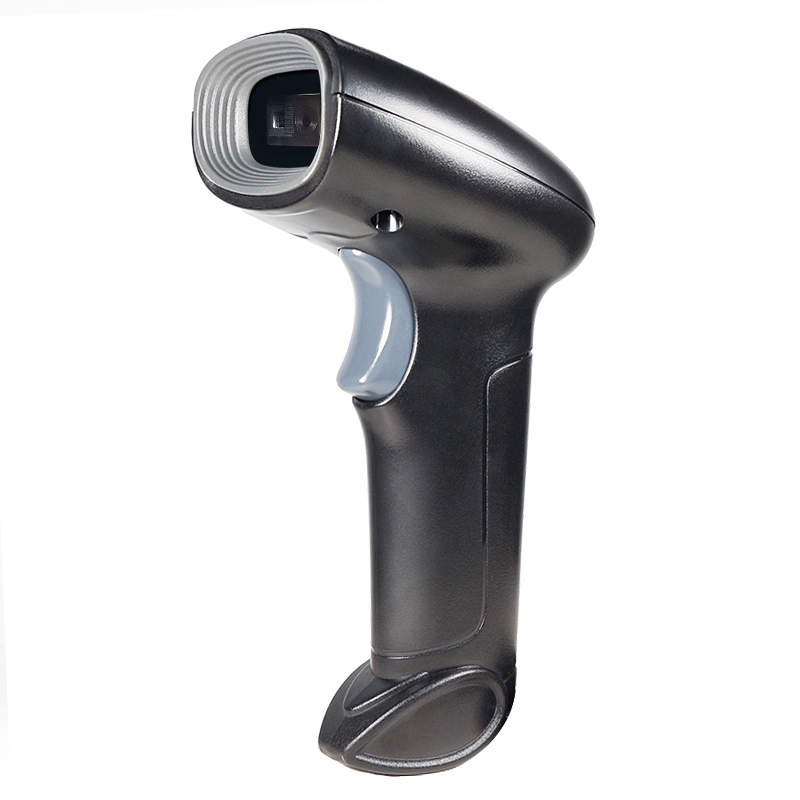

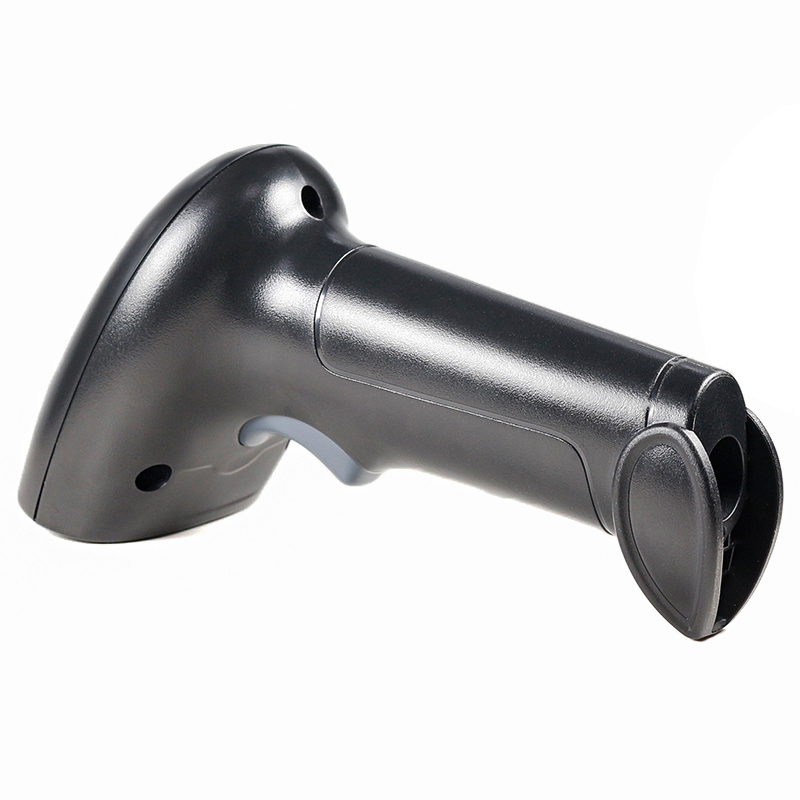

Product Pictures:
