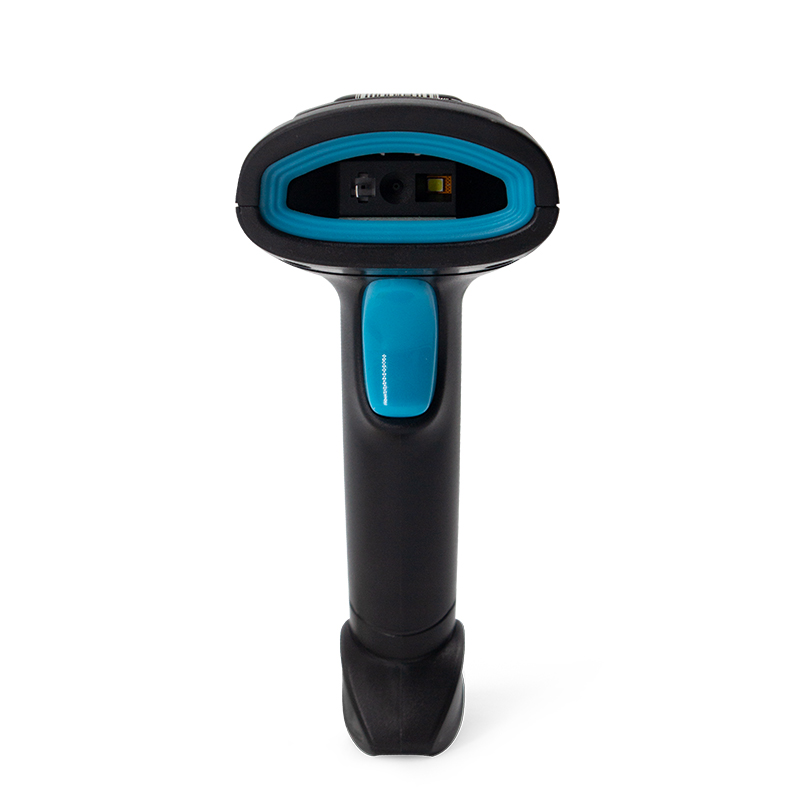

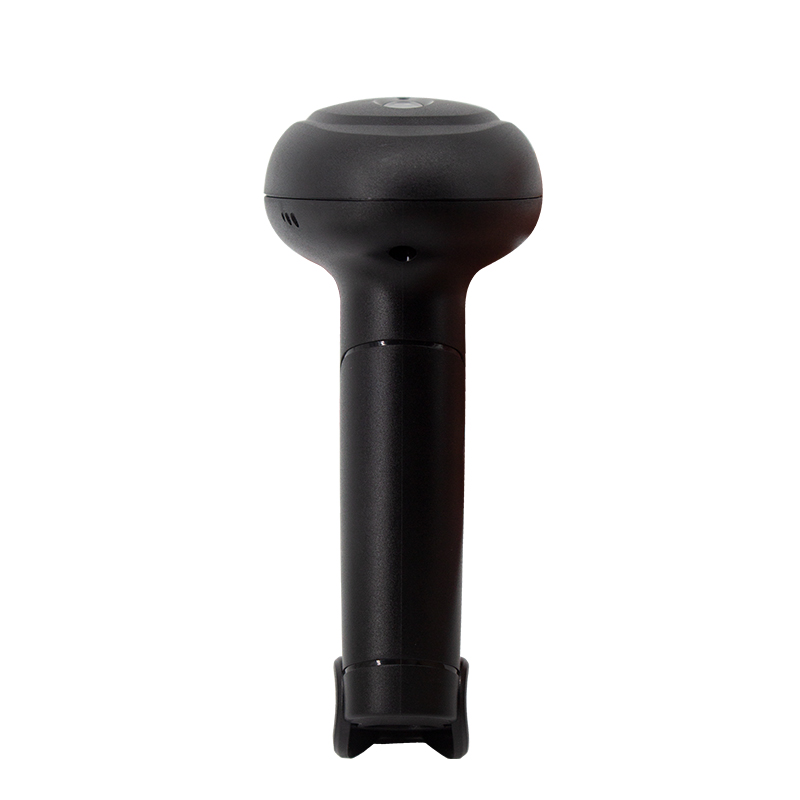

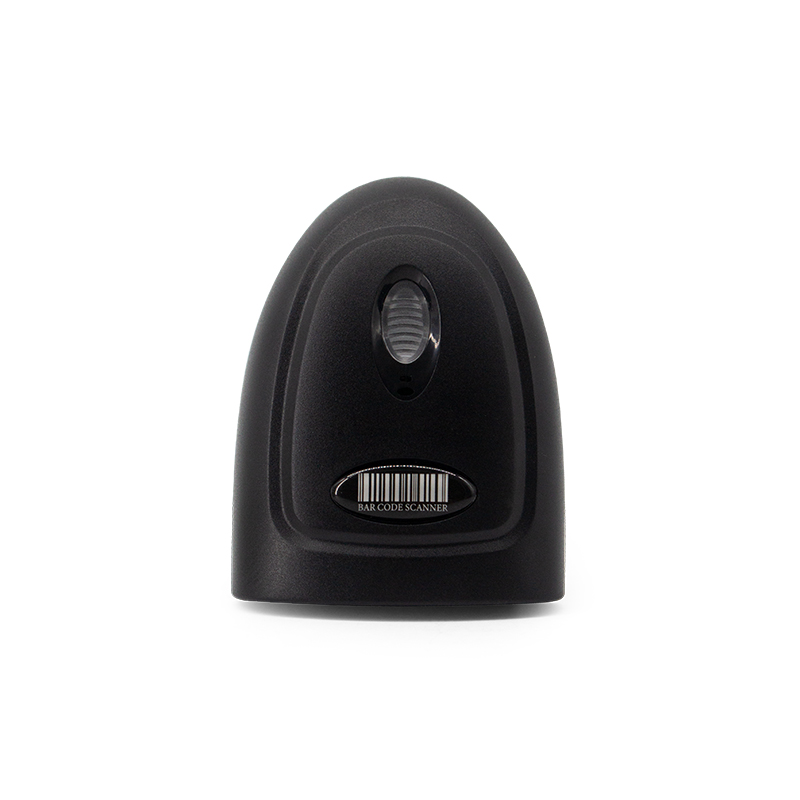

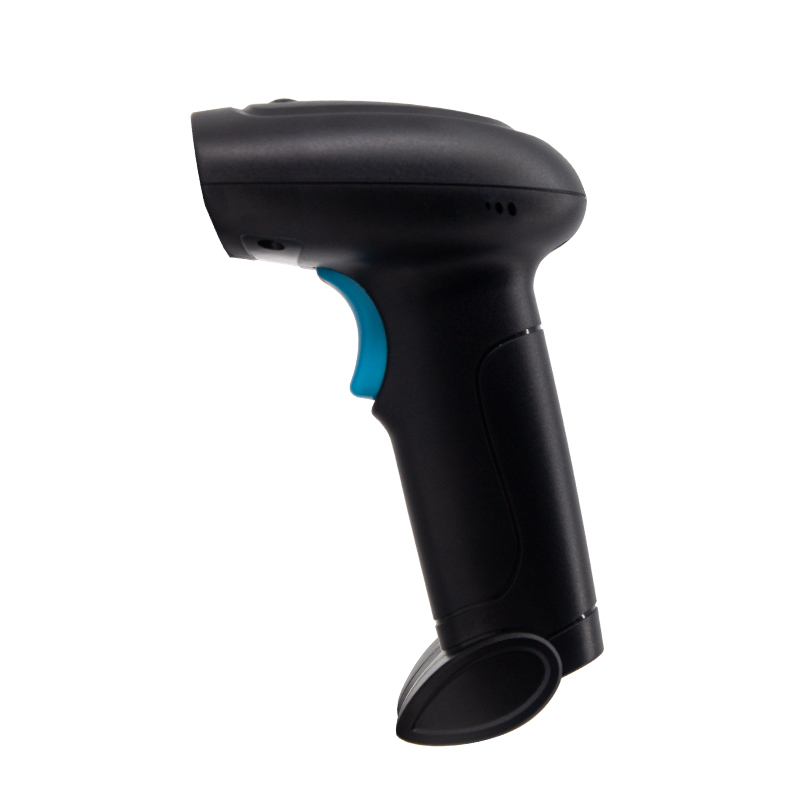

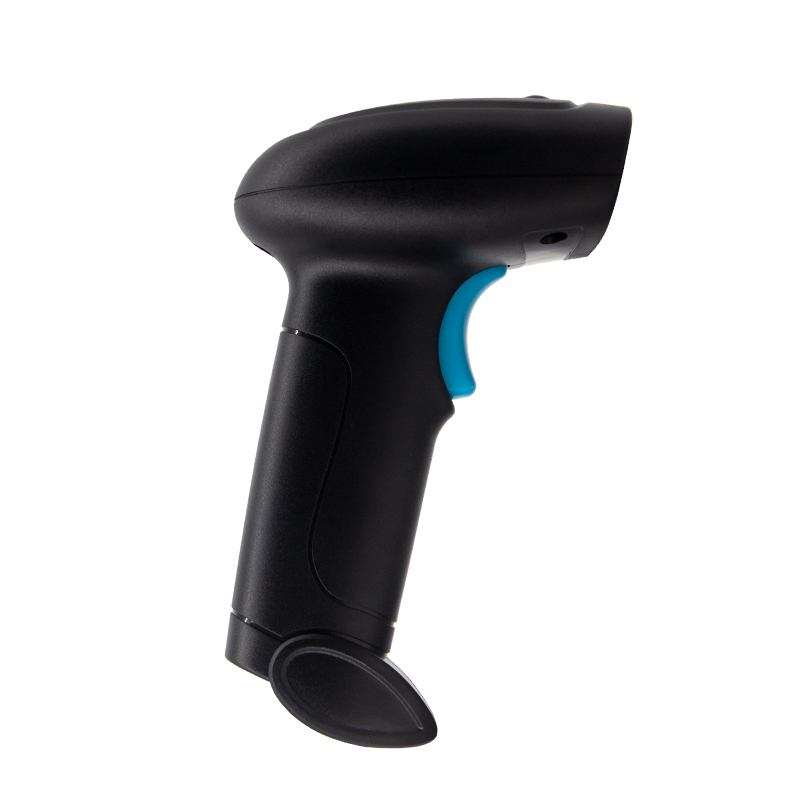

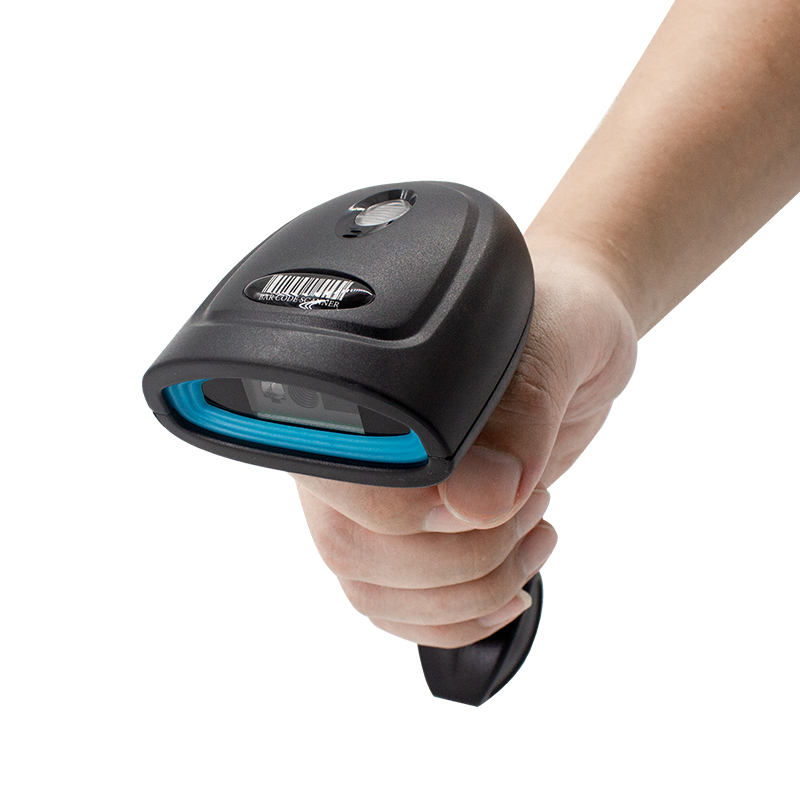

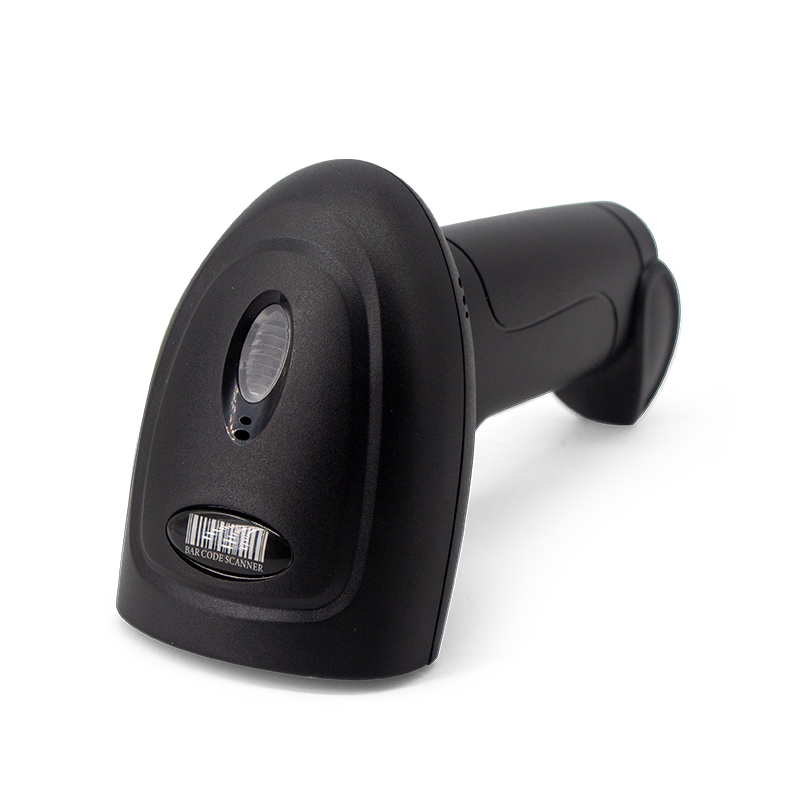

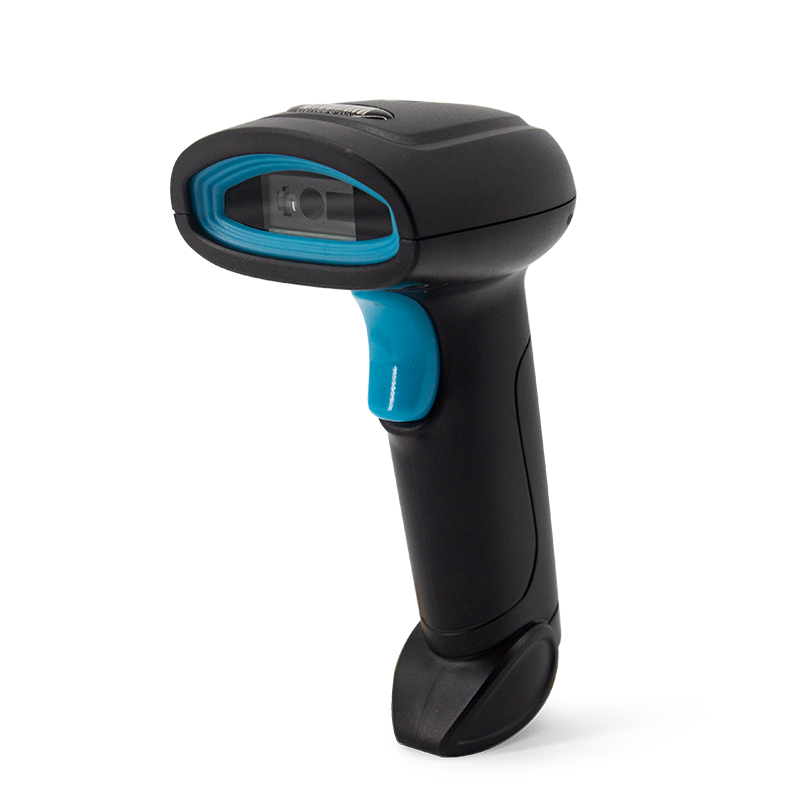

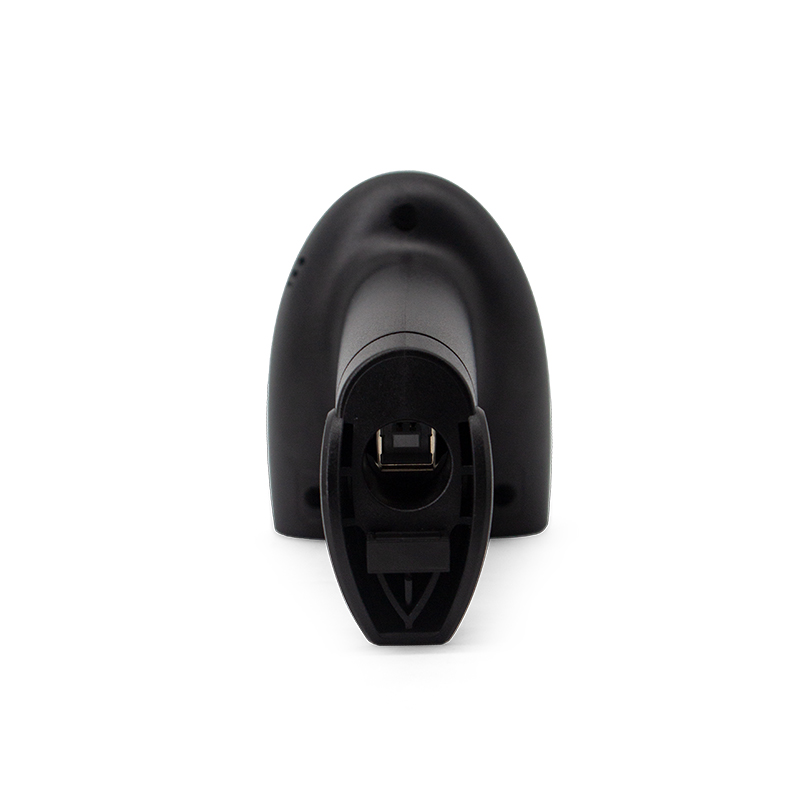

Reliable Barcode Reader QR Code Reader USB Wired Wireless Bluetooth Handheld Barcode Scanner 1D 2D Code Reader
Product Description:
IBC-6800 series CMOS barcode scanner is universal handheld image 2D barcode scanner, using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Equipped with auxiliary lighting, can be used in different lighting environments, can also be used at night, the applicability is strong. Read barcodes in any direction at 360degrees, faster and more efficient.
Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage.
Product Features:
• Versatile: Interfaces such as PS2, RS232, USB, USB-COM, etc. are available.
• The reading distance can be up to 20cm highand the information in the barcode can be read quickly.
• Compact, lightweight, ergonomically designed and comfortable to feel.
• Excellent durability: Dust-resistant and water-resistant IP54, while withstanding 1.5-meter drops to the cement floor, ensuring reliable operational performance in the event of liquid splashes, drops and collisions in everyday use.
• Safe and reliable design: CE Electrical Safety, EMC Electromagnetic Compatibility, RoHS, CLASS 1 Laser Safety Level, Light Safety, etc.
Product Specification:
1D 2D Wired Handheld Barcode Scanner IBC-6800:
| Parameters Sheet | |
| Model No. | IBC-6800 |
| Product Name | 1D 2D Wired Handheld Barcode Scanner |
| The input voltage | DC 5V ± 0.25V |
| Power. | 1.75W (working);0.65W (standby). |
| Current. | 130-350 mA |
| Resolution. | 640 × 480 pixels |
| Scan angle | ± 60°, ± 60°, ± 360° (Deflect, tilt, rotate) |
| The type of decoding | 1D: |
| EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite | |
| 2D: | |
| QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K | |
| How to prompt | Buzzer, LED |
| The system interface | RS-232 serial port; USB keyboard; USB virtual serial port |
| How it was triggered | Manual. |
| Appearance size | Long × width× height: 160mm × 66mm × 90mm |
| Weight. | 178g (without cable). |
| Cable standard | Straight line,1.6 meters |
| The type of interface | One-in-one line |
| Shell material | PC+ABS |
| Temperature | 0°C ~ 50°C (working); -40°C ~ 60°C (storage) |
| Humidity | 5% to 95% (no condensation). |
| How to set it up | Manual (scan to set barcodes in turn) |
| Resolution | 3.5mil (high density series),1mil s 0.0254mm |
| Read depth of view | 3.5mil: Code128(9 characters). 15mm—35mm |
| 5mil: Code39(20 characters). 33mm—77mm | |
| 13mil: UPC (12 characters). 17mm—150mm | |
| 20mil: Code39 (5 characters). 55mm—195mm | |
| 6.7mil:PDF417(20 characters). 25mm—90mm | |
| 10mil:DM (20 characters). 15mm—115mm | |
| 20mil: QR (20 characters). 9mm—175mm | |
| Level of security | EMC Electromagnetic Compatibility: EN55022, EN55024 |
| Electrical safety: EN60950-1 | |
| Waterproof and dust-proof seal rating: IP54 | |
| Seismic capacity:5 or more times 1.5 meters of height fell to the cement floor | |

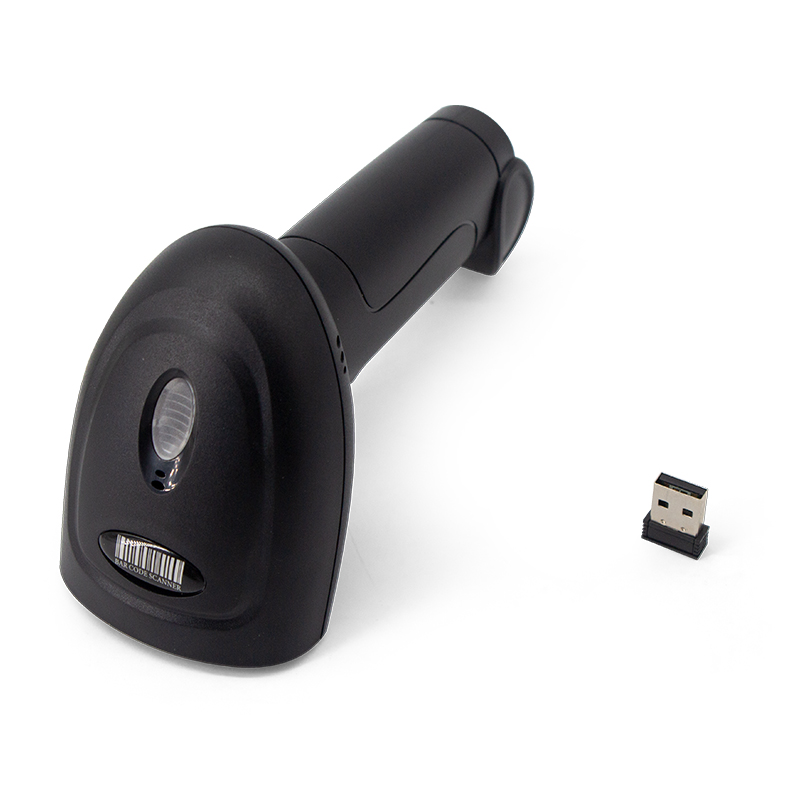

1D 2D Wireless Handheld Barcode Scanner IBC-6800R:
| Parameters Sheet | |
| Model No. | IBC-6800R |
| Product Name | 1D 2D Wireless 2.4G Handheld Barcode Scanner |
| The input voltage | DC 5V ± 0.25V |
| Power. | 1.75W (working);0.65W (standby). |
| Current. | 130-350 mA |
| Resolution. | 640 × 480 pixels |
| Scan angle | ± 60°, ± 60°, ± 360° (Deflect, tilt, rotate) |
| Battery capacity | 2000mA |
| Wireless distance | 50-80 m |
| Wireless storage | 5000-20000 |
| Wireless standby | 30 days |
| Wireless continuous work | 72 hours |
| The type of decoding | 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite |
| 2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K | |
| How to prompt | Buzzer, LED |
| The system interface | USB keyboard; USB virtual serial port |
| How it was triggered | Manual. |
| Appearance size | 90mmL×66mmW×160mmH |
| Weight. | 178g (without cable). |
| Cable standard | Straight line,1m |
| The type of interface | Printer USB |
| Shell material | PC+ABS |
| Temperature | 0 ~ 50 °C (working); -40°C ~ 60°C (storage) |
| Humidity | 5% to 95% (no condensation). |
| How to set it up | Manual (scan to set barcodes in turn) |
| Resolution | 3.5mil (high density series),1mil s 0.0254mm |
| Read depth of view | 3.5mil: Code128(9 characters). 15mm— 35mm |
| 5mil: Code39(20 characters). 33mm— 77mm | |
| 13mil: UPC (12 characters). 17mm—150mm | |
| 20mil: Code39(5 characters). 55mm—195mm | |
| 6.7 mil:PDF417(20 characters). 25mm— 90mm | |
| 10mil: DM (20 characters). 15mm-115mm | |
| 20mil: QR (20 characters). 9mm—175mm | |
| Level of security | EMC Electromagnetic Compatibility: EN55022, EN55024 |
| Electrical safety: EN60950-1 | |
| Waterproof and dust-proof seal rating: IP54 | |
| Seismic capacity: Impact of 5 or more 1.5 m drops to the cement floor | |
1D 2D Wireless Bluetooth Handheld Barcode Scanner IBC-6800RB:
| Parameters Sheet | |
| Model No. | IBC-6800RB |
| Product Name | 1D 2D Wireless Bluetooth Handheld Barcode Scanner |
| The input voltage | DC 5V ± 0.25V |
| Power. | 1.75W (working);0.65W (standby). |
| Current. | 130-350 mA |
| Resolution. | 640 × 480 pixels |
| Scan angle | ± 60°, ± 60°, ± 360° (Deflect, tilt, rotate) |
| Battery capacity | 2000mA |
| Bluetooth distance | 10m |
| Wireless distance | 50-80 m |
| Wireless storage | 5000-20000 |
| Wireless standby | 30 days |
| Wireless continuous work | 72 hours |
| The type of decoding | 1D: UPC-A, UPC-E1, UPC-E0, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar (formerly RSS) variants |
| 2D: PDF417, MicroPDF417, QR code, DataMatrix | |
| How to prompt | Buzzer, LED |
| The system interface | USB keyboard; USB virtual serial port |
| How it was triggered | Manual. |
| Appearance size | 90mmL×66mmW×160mmH |
| Weight. | 178g (without cable). |
| Cable standard | Straight line,1m |
| The type of interface | Printer USB |
| Shell material | PC+ABS |
| Temperature | 0 ~ 50 °C (working); -40°C ~ 60°C (storage) |
| Humidity | 5% to 95% (no condensation). |
| How to set it up | Manual (scan to set barcodes in turn) |
| Resolution | 3.5mil (high density series),1mil s 0.0254mm |
| Read depth of view | 3.5mil: Code128(9 characters). 15mm— 35mm |
| 5mil: Code39(20 characters). 33mm— 77mm | |
| 13mil: UPC (12 characters). 17mm—150mm | |
| 20mil: Code39(5 characters). 55mm—195mm | |
| 6.7 mil:PDF417(20 characters). 25mm— 90mm | |
| 10mil: DM (20 characters). 15mm-115mm | |
| 20mil: QR (20 characters). 9mm—175mm | |
| Level of security | EMC Electromagnetic Compatibility: EN55022, EN55024 |
| Electrical safety: EN60950-1 | |
| Waterproof and dust-proof seal rating: IP54 | |
| Seismic capacity: Impact of 5 or more 1.5 m drops to the cement floor | |
