Portable Wireless Bluetooth 1D 2D Bar Code Scanner QR Barcode Reader for Inventory/ Warehouse

Product Description:

IBC-20, it is portable1D 2D Wireless 2.4G + Bluetooth Handheld Barcode Scanner. It is mini size, light and portable. Using advanced CMOS image recognition technology, intelligent image recognition system, it can easily read barcodes on paper, screens and other media. With excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, express, logistic, etc.

Product Features:

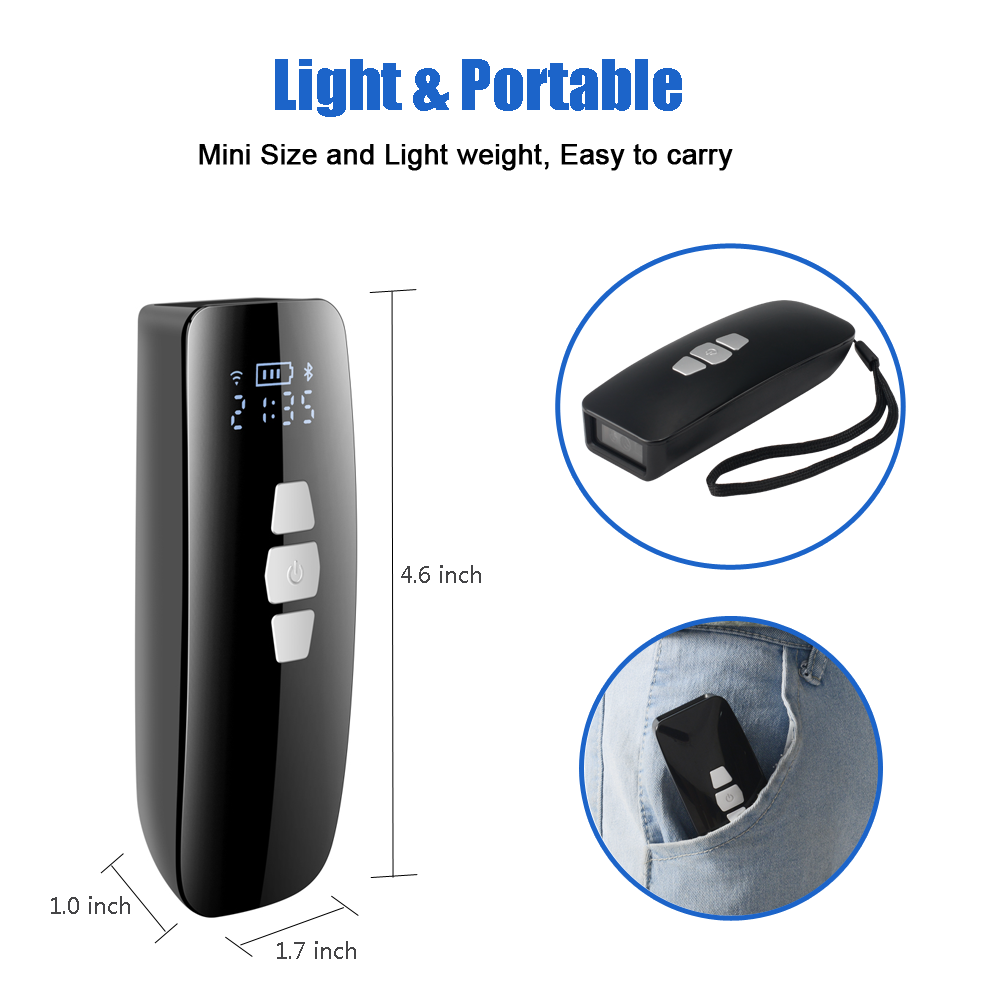

*   Mini size, light and portable.

*   50m viewing distance wireless transmission.

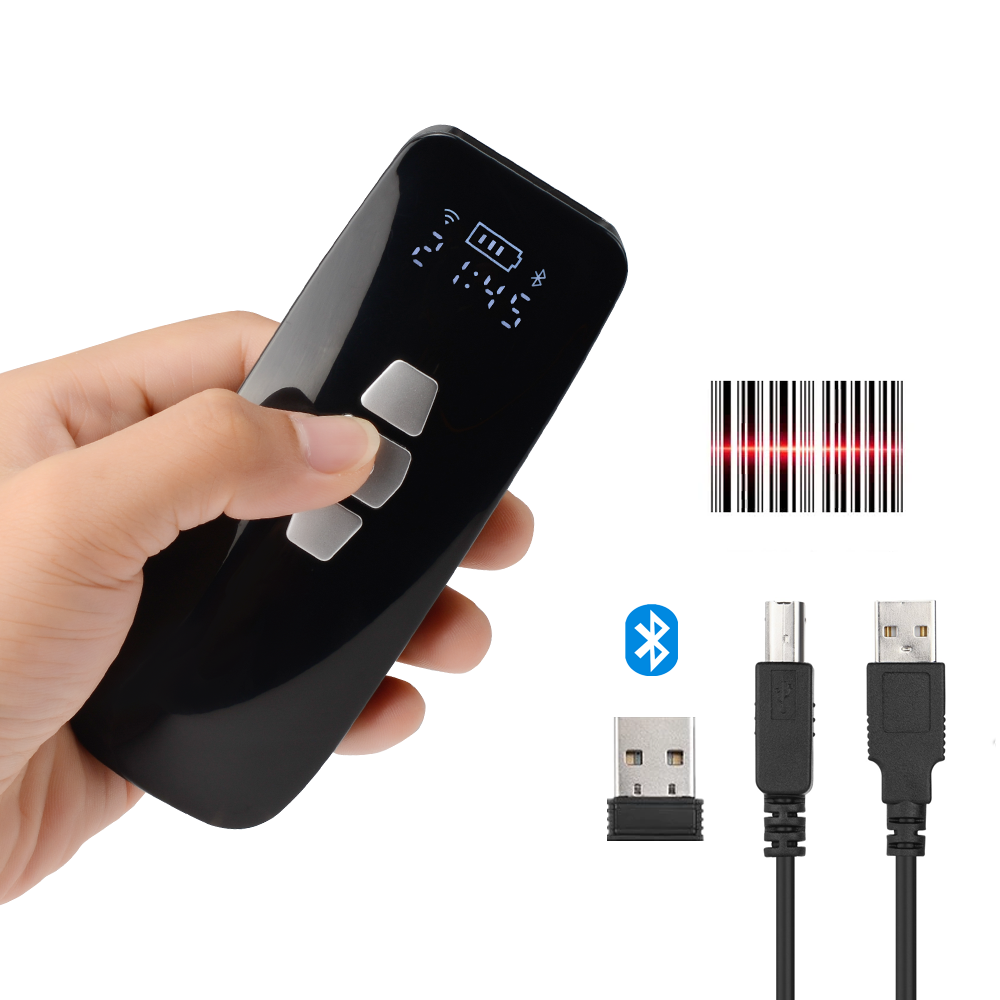

*   Bluetooth/2.4G/Wired Mode, 3modes for option.

*   Support HID/SPP/BLE mode and can switch.

*   Supports instant upload mode and storage mode.

*   Excellent decoding ability, fast to scan 1D and 2D barcodes on paper/screen.

*   Can store 100,000 barcode in offline storage mode, very convenient to use.

*   Built-in 1500mAh Battery, it can support 18 hours Continuous scanning and 2 months standby after 4hours full charge.

*   Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.

*   Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.

*   Can be customized according to customer demand.

Product Specification:

Product Name 2D Portable Bluetooth Barcode Scanner
Model IBC-20
Working current: 3.5 V ± 10%x100mA Light source: 617LED
Sensor: 640*480 CMOS lumination:     6500K LEDs
CPU: ARM 32-bit Cortex Decoding speed : 500/sec
Depth of Filed : 30-600mm Indication: Buzzer & LED
Decoding accuracy: ≥4mil
Trigger Mode: Button, Continuous, Auto-Induction
Printing Contract  : ≥25%
Scanning angle: Angle of rotation±360°,   inclination± 65°,   declination ± 60°
Anti-interference: 0- 100000Lux Max
Decode Capability:
1D: UPC-A, UPC-E, EAN-8, EAN- 13, Code 128,   Code 39, Code 93,  Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5(IATA),  Coda bar(NW-7), MSI Plessey, ISBM, ISSN, China post etc.
2D:    QR Code,  Data Matrix, PDF417, Aztec code, Maxicode, etc.
Button life  : 8000, 000 times LED life:   100000 hours
Drop test  : 2m Transmission: Bluetooth & 2.4G &USB-Wire
Working temperature: -20℃ to 50℃ Relative humidity: 5%-95%
Wireless type: Bluetooth/2.4G Wireless Transmission distance: 50m/100m
Battery: 3.7V-1500mAh Charging power: 5V-400mA
Working mode:   Instant upload mode, Storage mode,  Not lost mode
Storage:   16M=100000 barcodes
Working time: Full load≈ 18hours, Normal use ≈3 to 10days

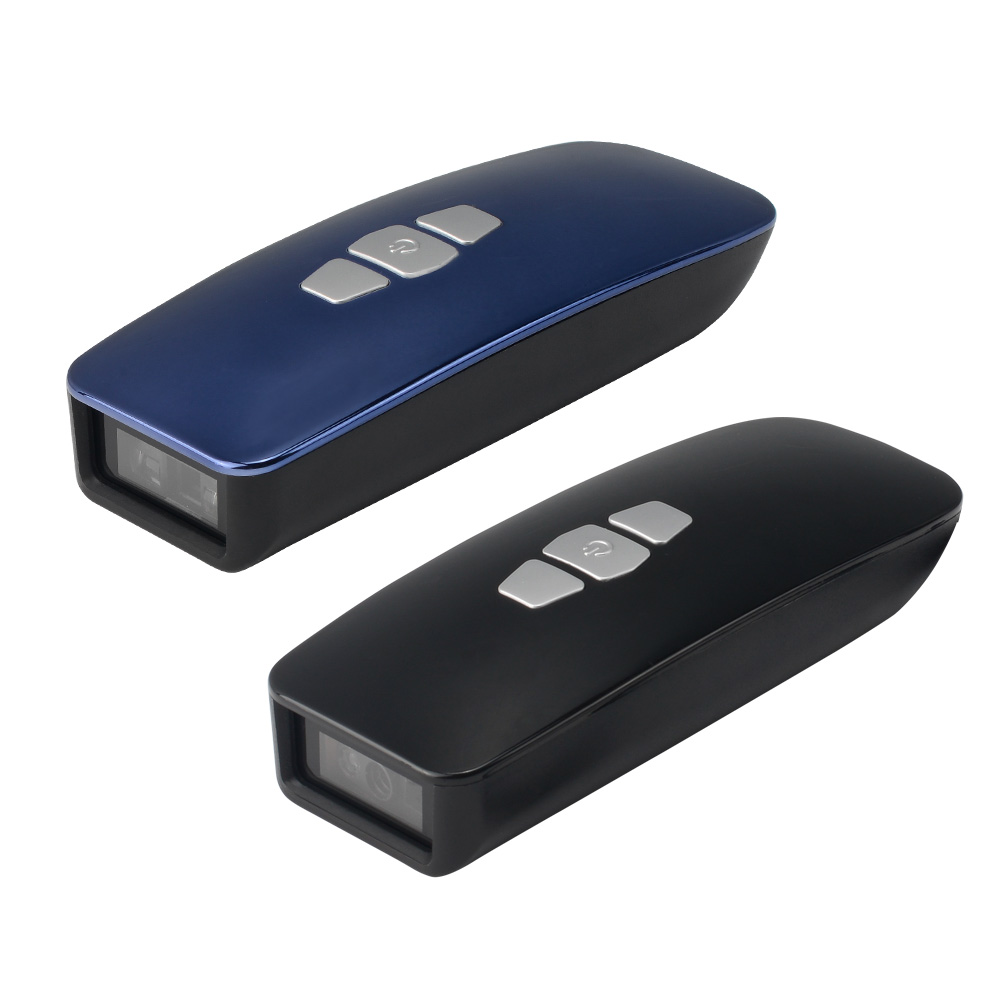

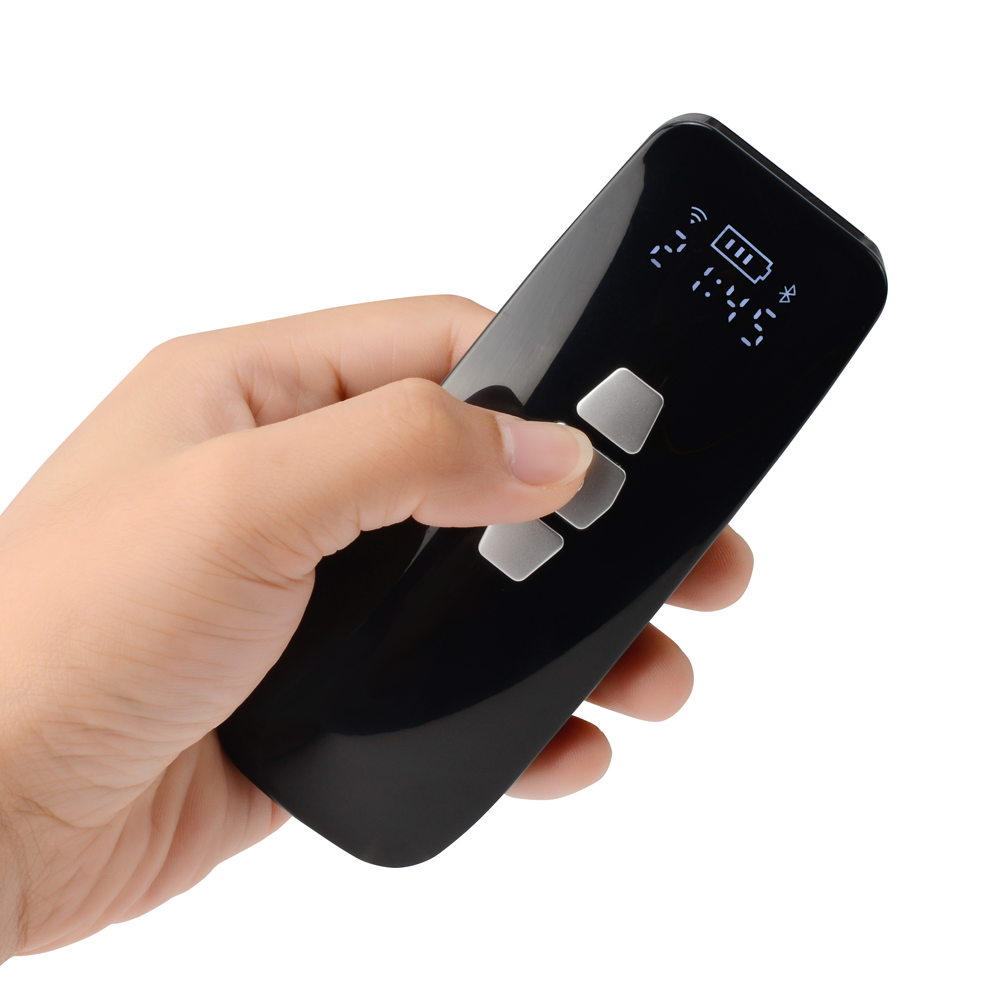

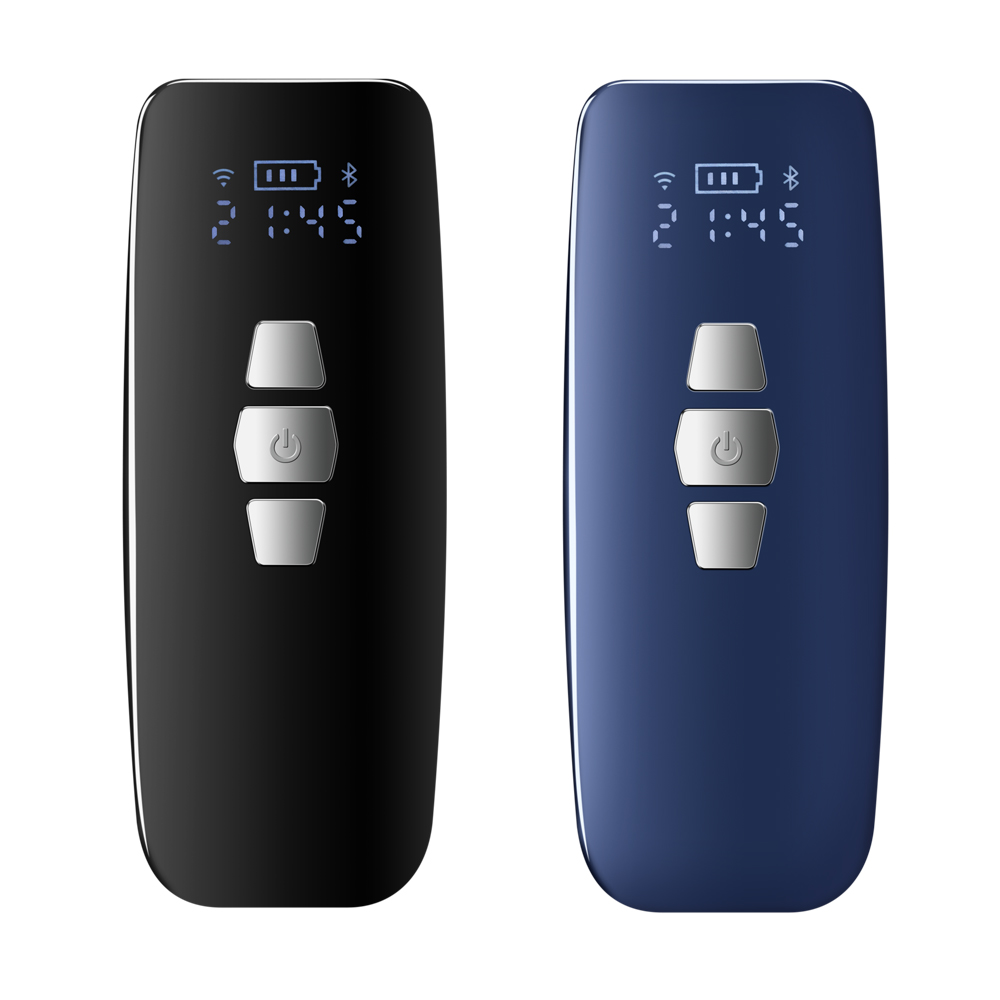

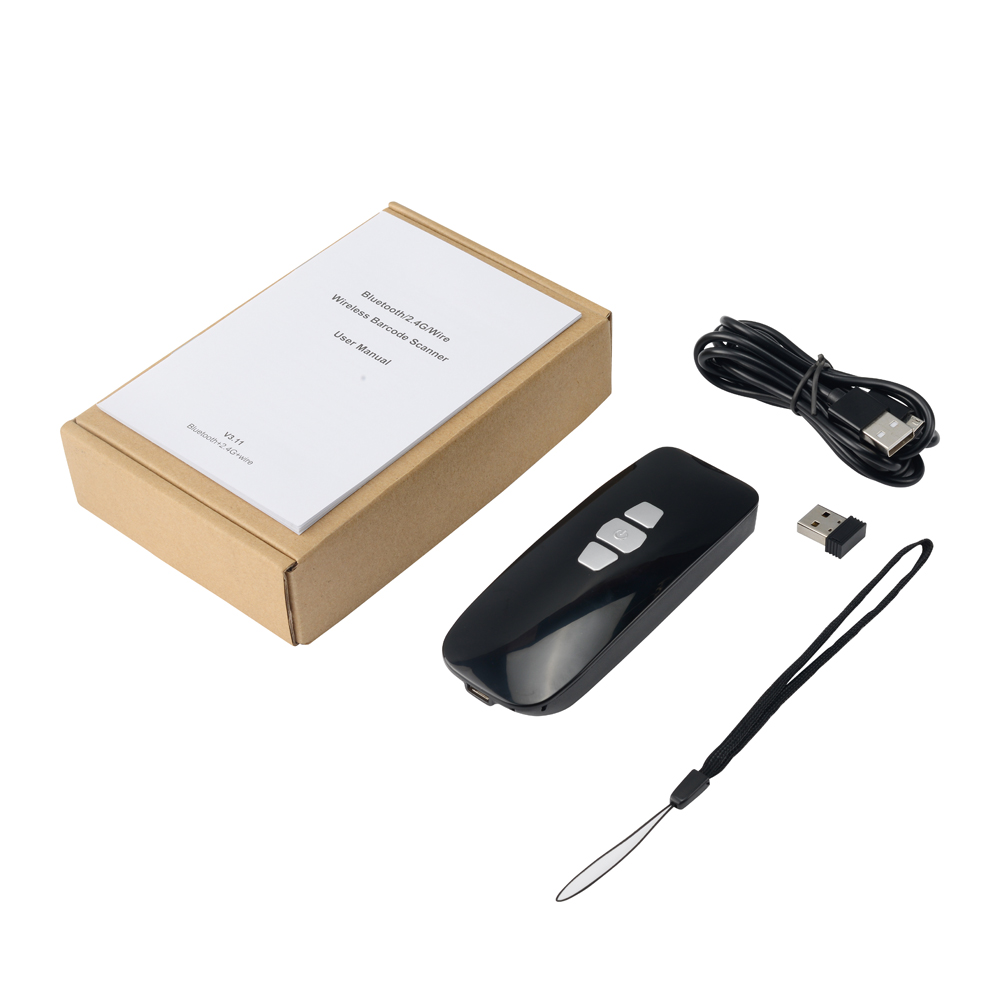

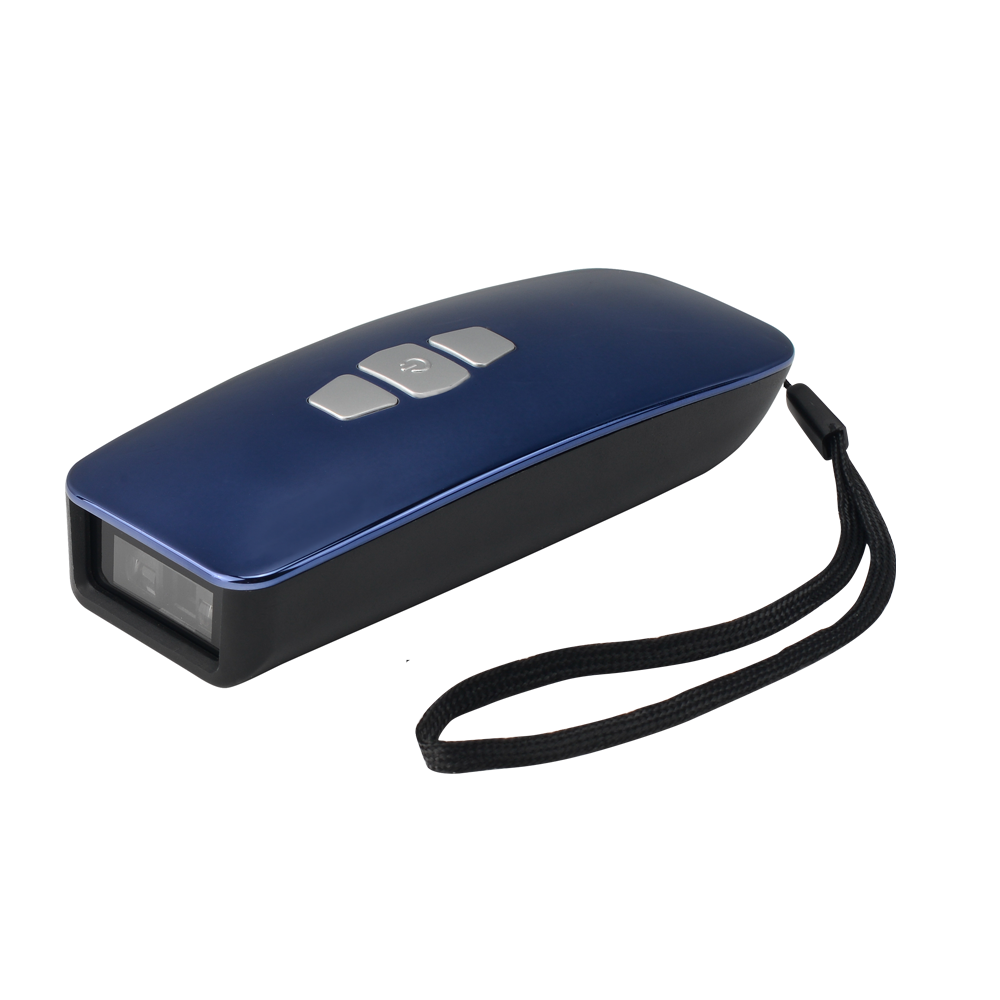

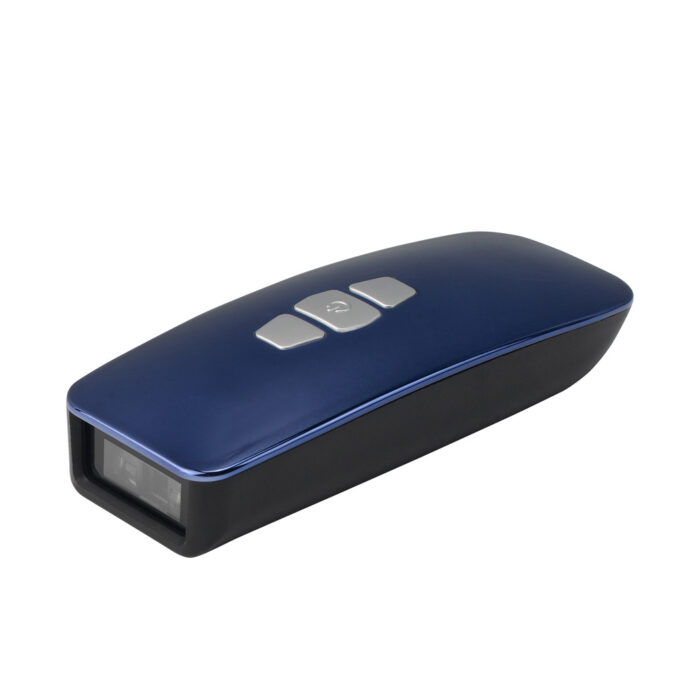

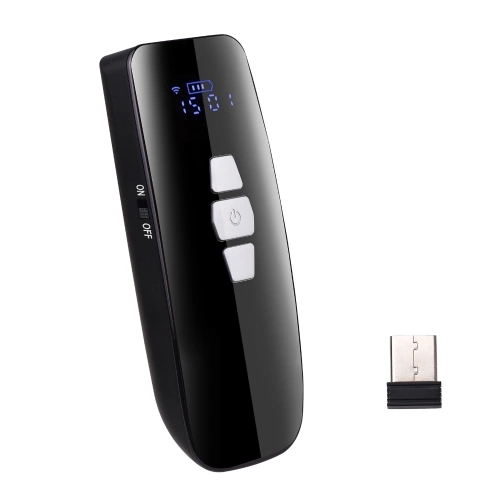

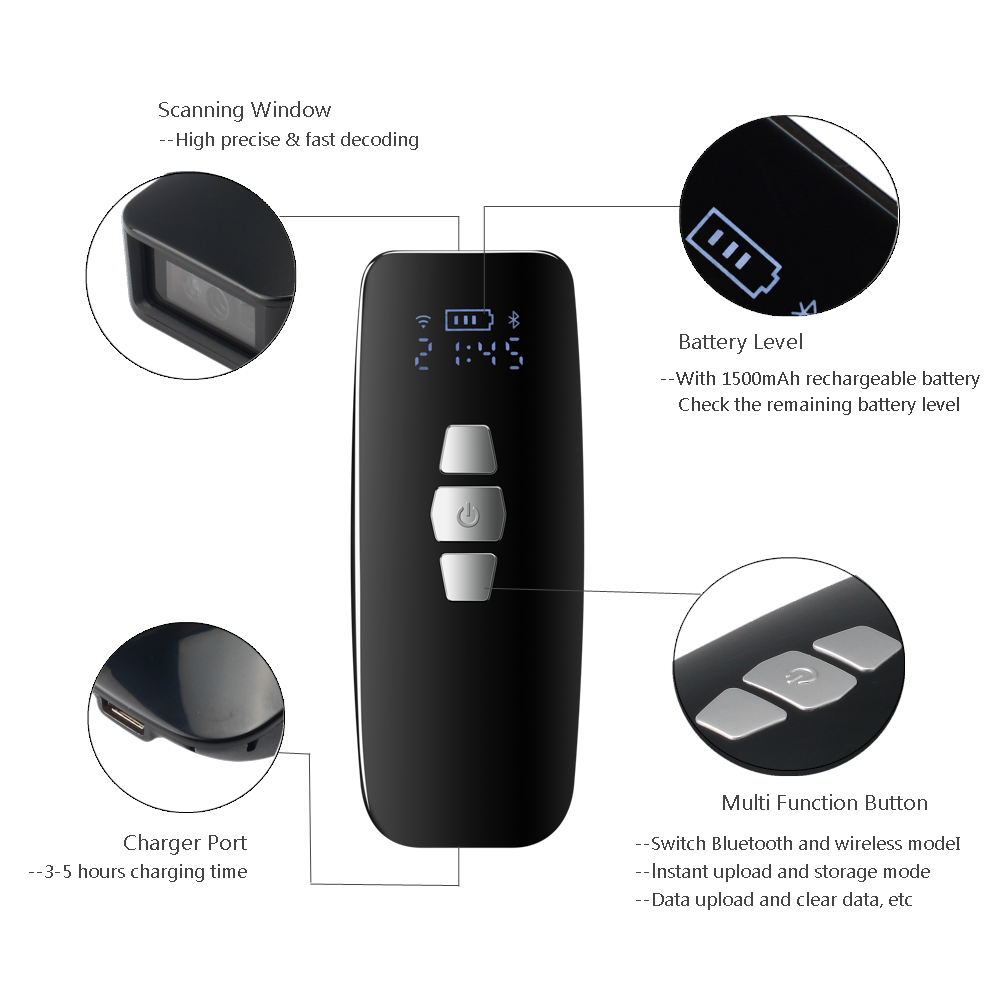

Product Pictures:
