Pocket Barcode Scanner Bluetooth Portable Mini Wireless 2.4G 1D 2D Qr Code Barcode Reader
Pocket Barcode Scanner Bluetooth Portable Mini Wireless 2.4G 1D 2D Qr Code Barcode Reader
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
Pocket Barcode Scanner Bluetooth Portable Mini Wireless 2.4G 1D 2D Qr Code Barcode Reader
Product Description:

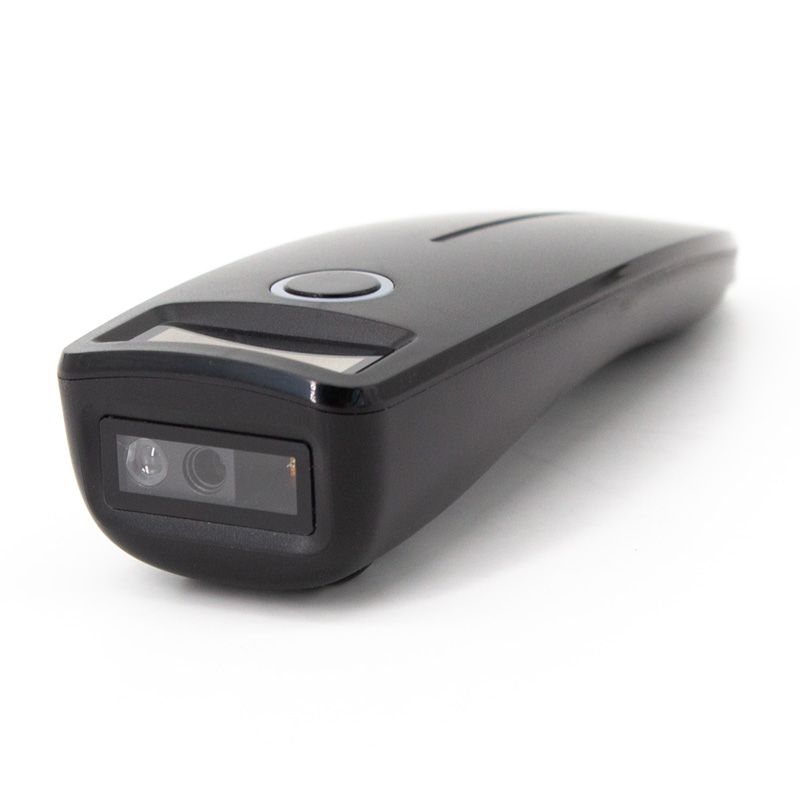

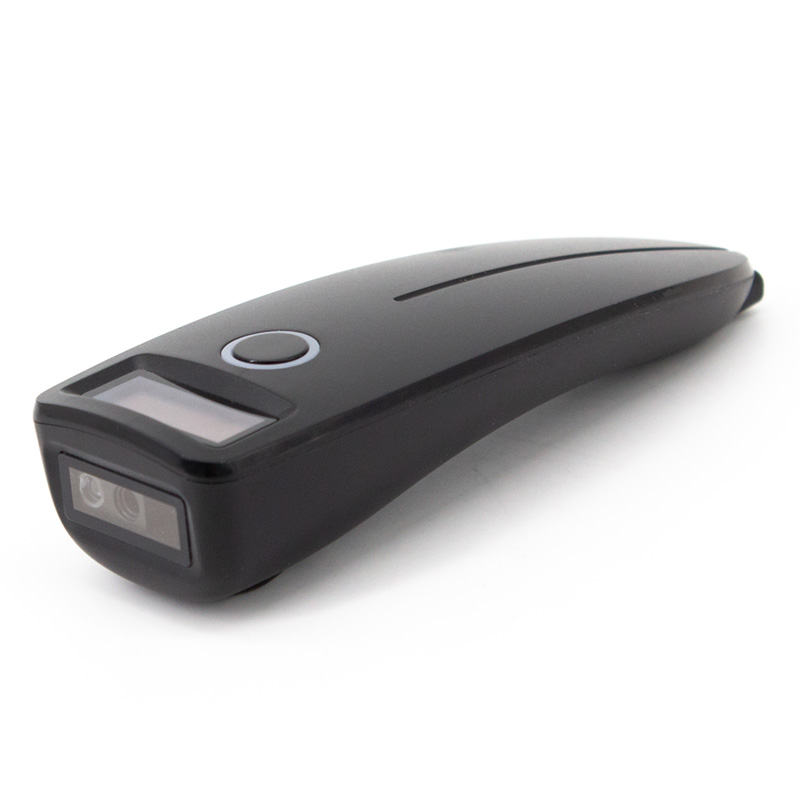

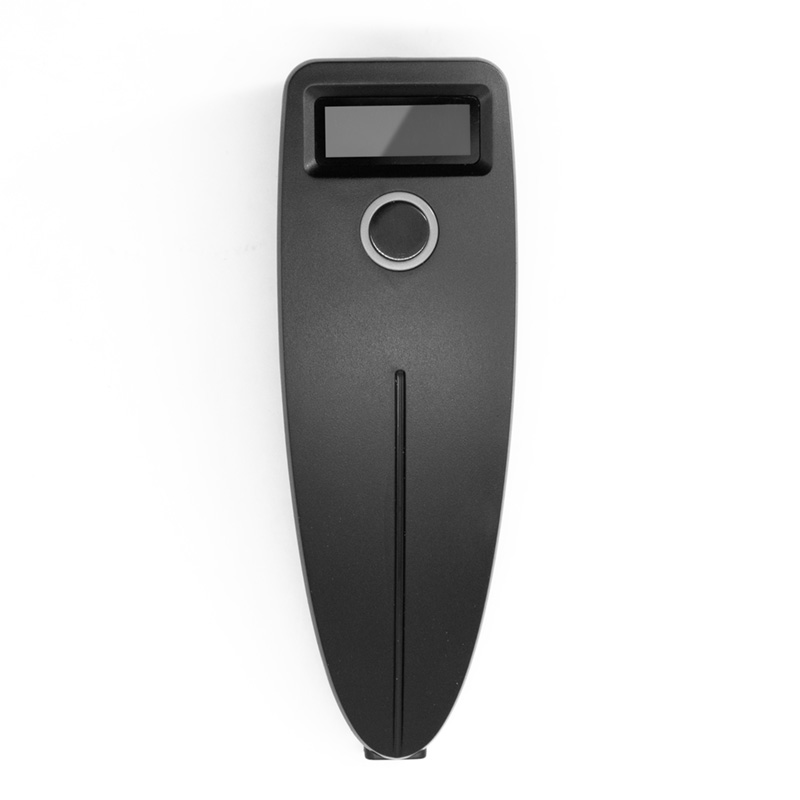

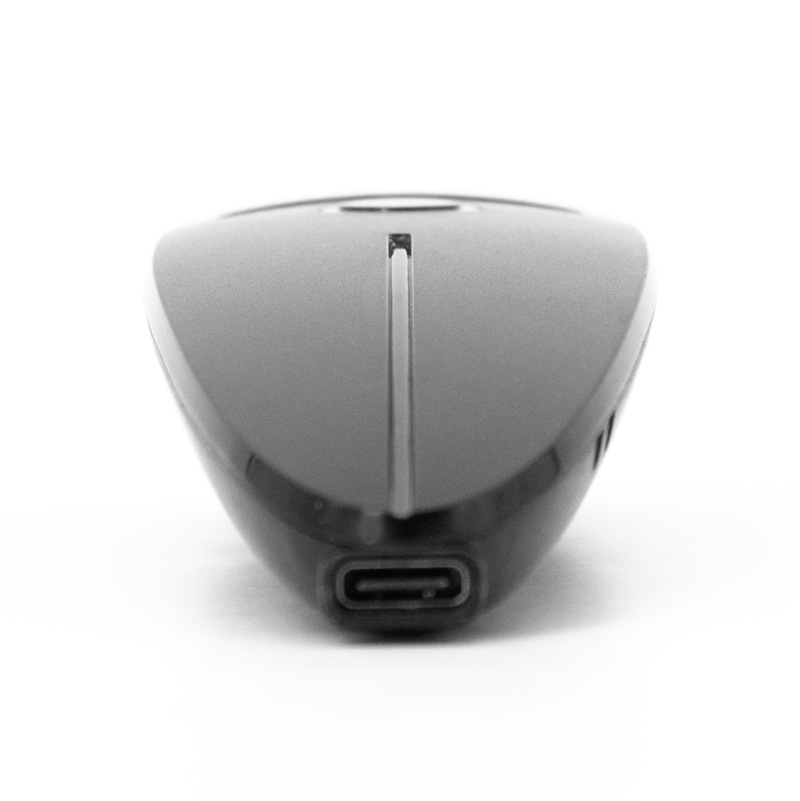

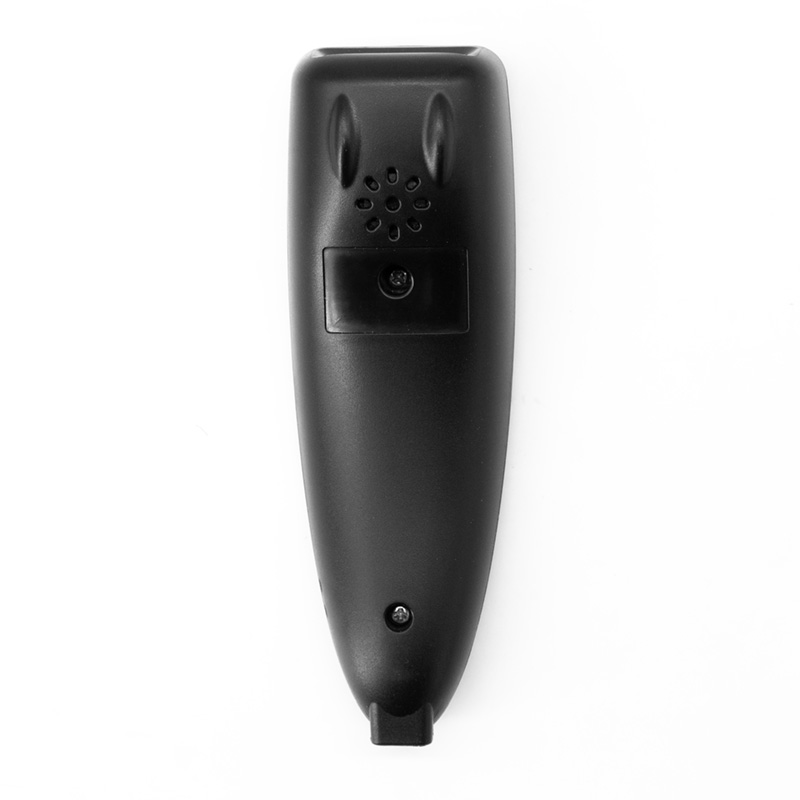

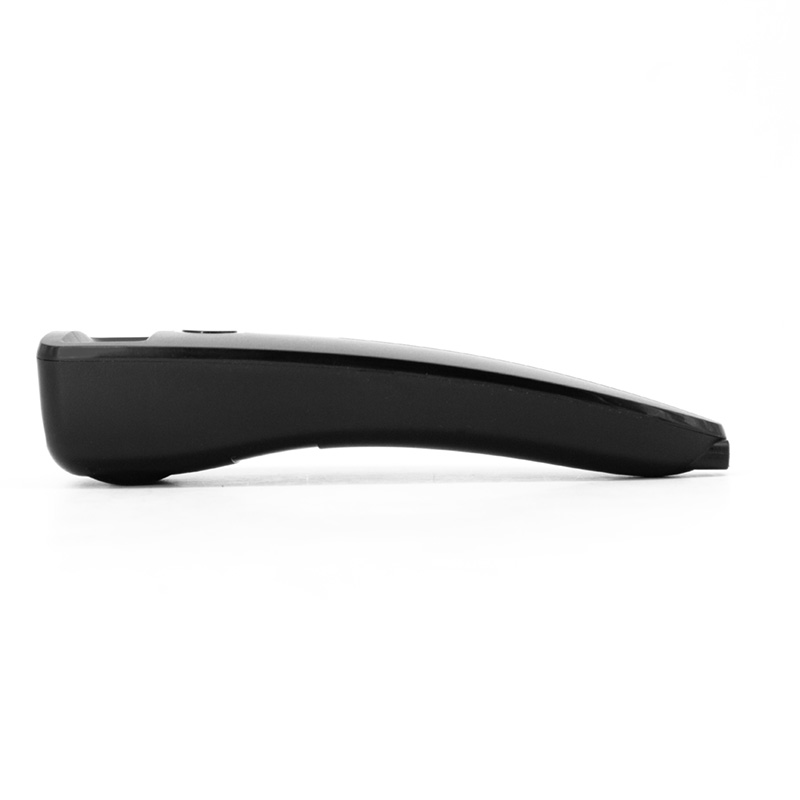

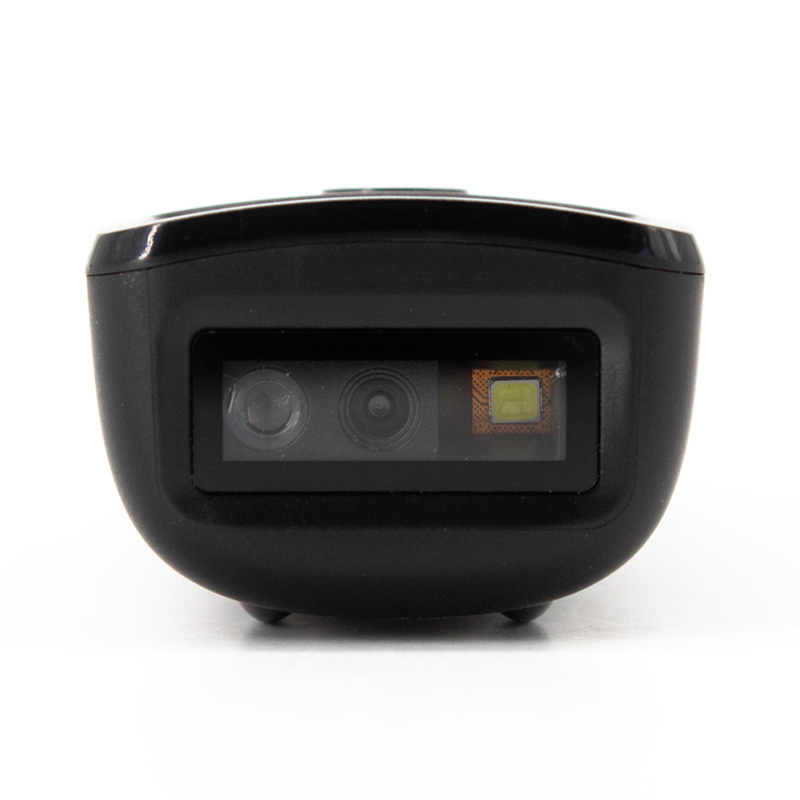

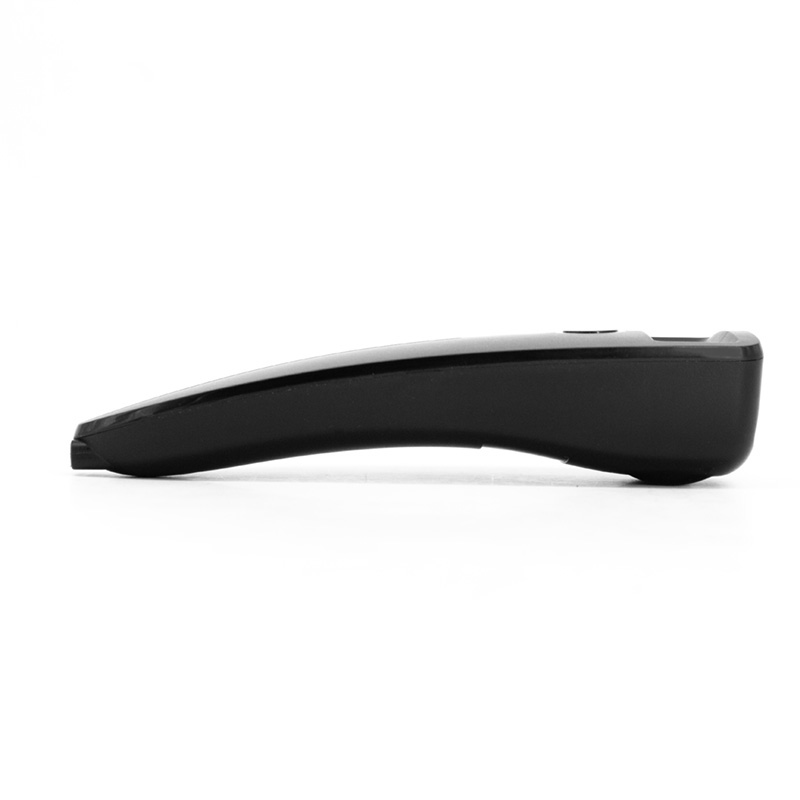

IBC-27, it is portable1D 2D Wireless 2.4G + Bluetooth Handheld Barcode Scanner. It is mini size, light and portable. Using advanced CMOS image recognition technology, intelligent image recognition system, it can easily read barcodes on paper, screens and other media. With excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, express, logistic, etc.
Product Features:
• High-speed decoding, responsive
• Versatile: Provides interfaces such as USB, USB-COM, etc.
• Bluetooth connectivity is supported and communication distances can be up to 10m.
• Support remote online upgrade
• Built-in storage function, support inventory mode
• OLED display
• Small and delicate, easy to carry
• Equipped with vibration feedback prompts
Product Specification:
| Parameters Sheet | |
| Model No. | IBC-27 |
| Product Name | 1D 2D Wireless Bluetooth Handheld Barcode Scanner With Charging Base |
| Physical parameters | |
| Scan mode | Push-button trigger/autosensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment), Bluetooth: 0-20m (open environment). |
| Prompt way | Buzzer, display, vibration motor |
| How it’s set up | Manually scan the setting code one after the other |
| Housing material | ABS+PC |
| Cable standards | USB straight line 1m |
| Exterior dimensions | 122mm× 42mm× 30.5mm (scanners), 150 mm× 100 mm× 35 mm (packaged). |
| Weight | 60g (net weight) and 120g (gross). |
| Performance parameters | |
| Internal storage | 900K |
| Sensors | 300,000 CMOS |
| Resolution | 640*480 |
| Light source | White LED |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 30 frames/sec |
| Field of view | 48° (H) x 30° (V) |
| Print contrast | 15% minimum |
| Decode the kind | 1D:EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey，etc |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, support mobile phone screen code reading | |
| Minimum resolution | 1D code 5MIL; QR code 7MIL |
| Depth of field | QR (7mil): 70~115mm |
| Data Matrix (10mil): 50~110mm | |
| PDF 417 (7mil): 55~140mm | |
| EAN-13 (13.3mil): 70~310mm | |
| Code 39 (8.3mil): 65~205mm | |
| Code 128 (8.3mil): 75~235mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Operating: 350 mA, Standby: 130 mA |
| Battery | 1100mAh lithium-ion battery |
| Charging time | About 2 hours |
| Battery life | 5 days (standby), 12 hours (operating: scanning every 5 seconds) |
| Environmental parameters | |
| Temperature | 0°C-50°C(Working); -40°C~+60°C(Storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand a 1.5m drop in the air |
