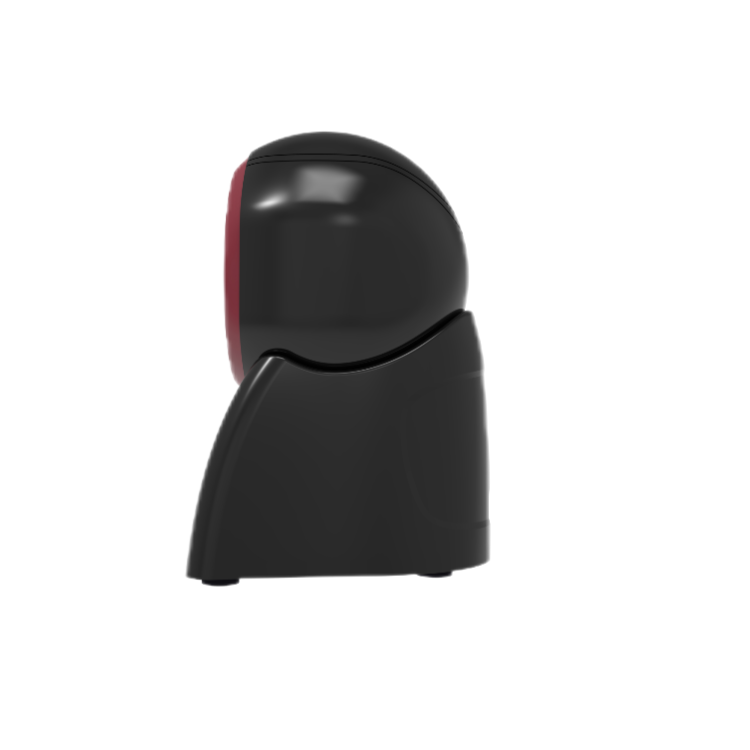

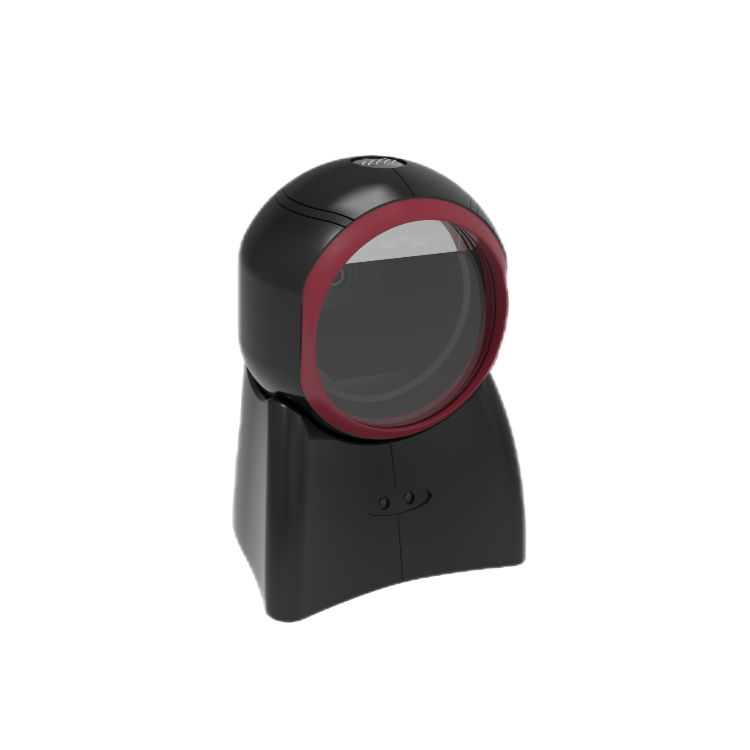

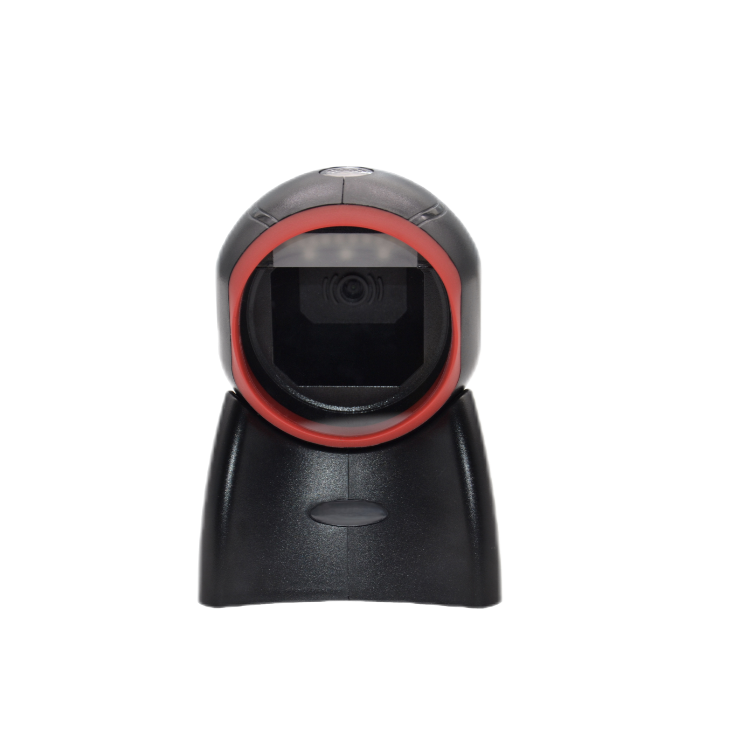

Platform QR Code Reader Hands-Free Obit Omni-directional 1D 2D Desktop Barcode Scanner For Retail Store

Product Description:

IBC-8160 is CMOS 2d desktop barcode scanner with advanced digital imaging, which provides class-leading performance and reliability. It smoothly reads all bar codes, whether displayed on cell phones or printed. It is stable, adaptive illumination for user comfort. Solid-state electronics for silent operation and superior reliability. It support multi-language keyboard, support special characters. It is the best choice for Hypermarket to improve work efficiency.

Product Features:

• Screen decoding: can directly decode barcodes on mobile phones and computer screens
• Paper decoding: uses fast decoding algorithm to accurately decode various barcodes at high speed
• Decoding capability: can scan both mobile phones and paper (light does not flicker)
• Other functions: supports direct transmission of Chinese under Linux

Product Specification:

Product Name: Platform Barcode Reader
Model Name: IBC-8160
Physical Characteristics
Dimensions: 96.7mm x 104mm x 145mm
Weight: 297.5g
Voltage: 5V
Starting Current: 193mA
Stand-by Current: 125mA
Work Current: 300mA
Performance Characteristics
Image  (Pixels) :  640 pixels  (H) x 480 pixels  (V)
Light Source:   Red color LED
Field of View:  39°  (H) X29°  (V)
Roll / Pitch / Yaw: 360°, ±65° , ±65°
Print Contrast: 20% minimum reflective difference
Interfaces Supported : USB
Resolution: ≥4mil
Symbology Decode Capability
1D: Coda bar, Code 39, Code 32 Pharmaceutical  (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5 ，Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post.
2D: Code block A, Code block F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.
User Environment
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 70°C
Humidity: 5% to 95% relative hum idity,non-condensing
Shock Specifications: Designed to withstand 1.2m (5’) drops
Ambient Light Immunity: 0-100,000 Lux.
Decode Ranges
Code39 (5mil) : 0-9cm
Code39 (13mil) : 0-17.5cm
UPC-A (13mil) : 1-17cm
Alipay payment code  (QR 3*3) : 1-32cm
Performance may be impacted by bar code quality and environmental conditions
