Platform Barcode Reader Desktop Barcode Scanner USB Wired 1D 2D Scanning QR Code Reader For Supermarket
Product Test Video:
Product Description:

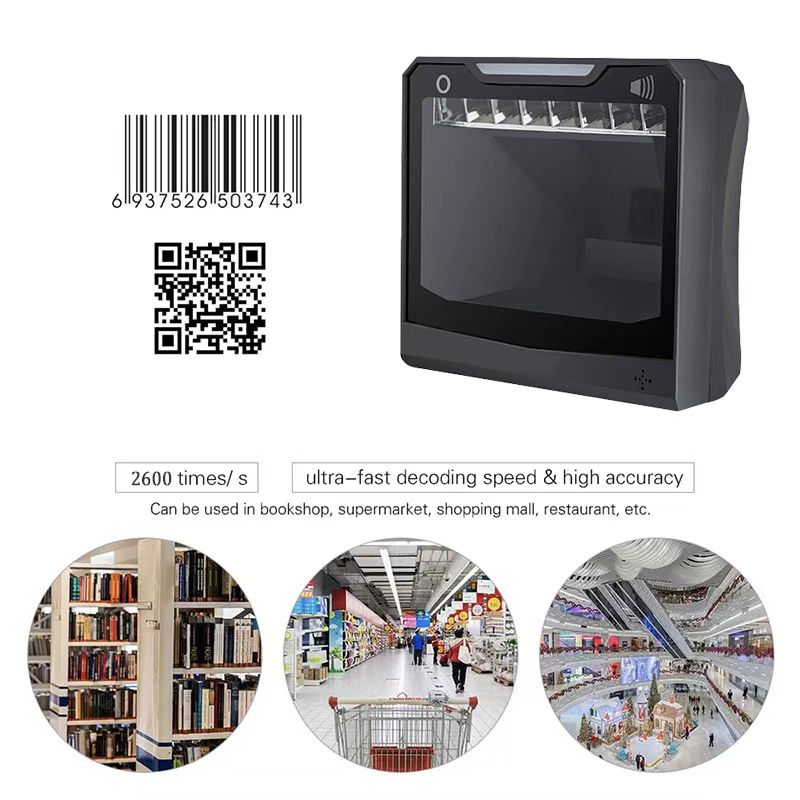

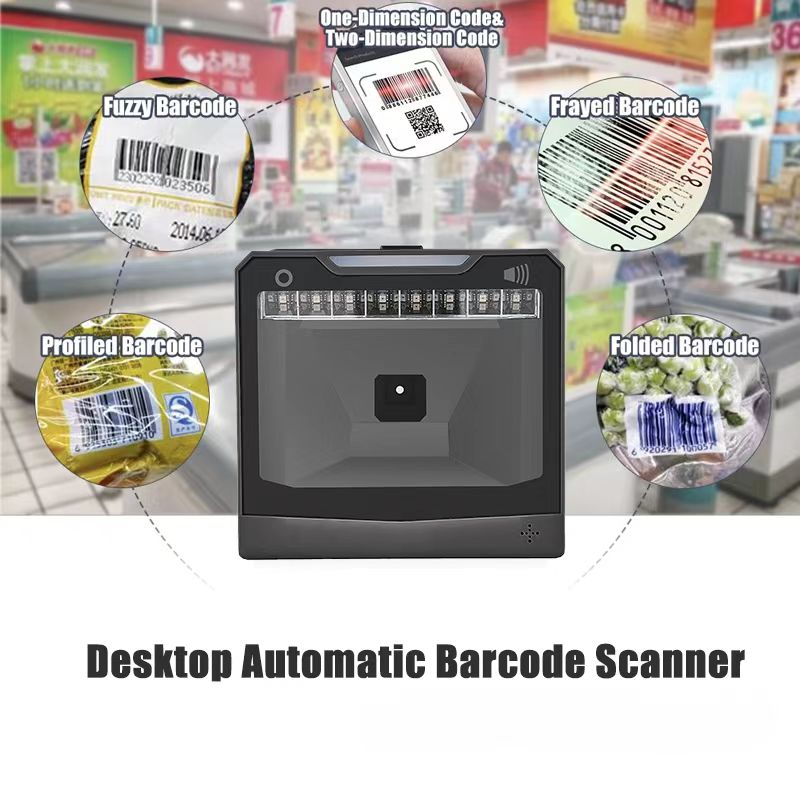

IBC-9930 CMOS desktop barcode scanner, with Powerful scanning function. It is high performance and large scan window Presentation barcode scanner,it is most fix on top of check out counter or desktop. Our desktop 2D barcode scanner can directly place on the desk, no need to hold the scanner, release your hands, improving your efficiency. It is Excellent at decoding colorful, distorted, poor printed, fuzzy barcodes. Auto-Sensing Scan, when the barcode is close, it will be automaticallyscanned by induction, without manual operation. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.
Product Features:

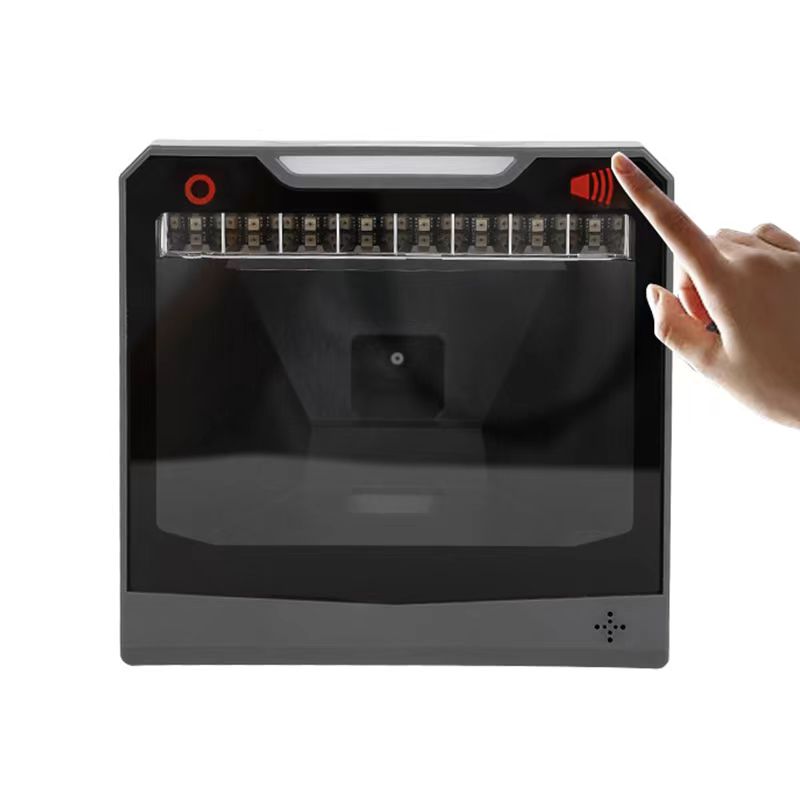

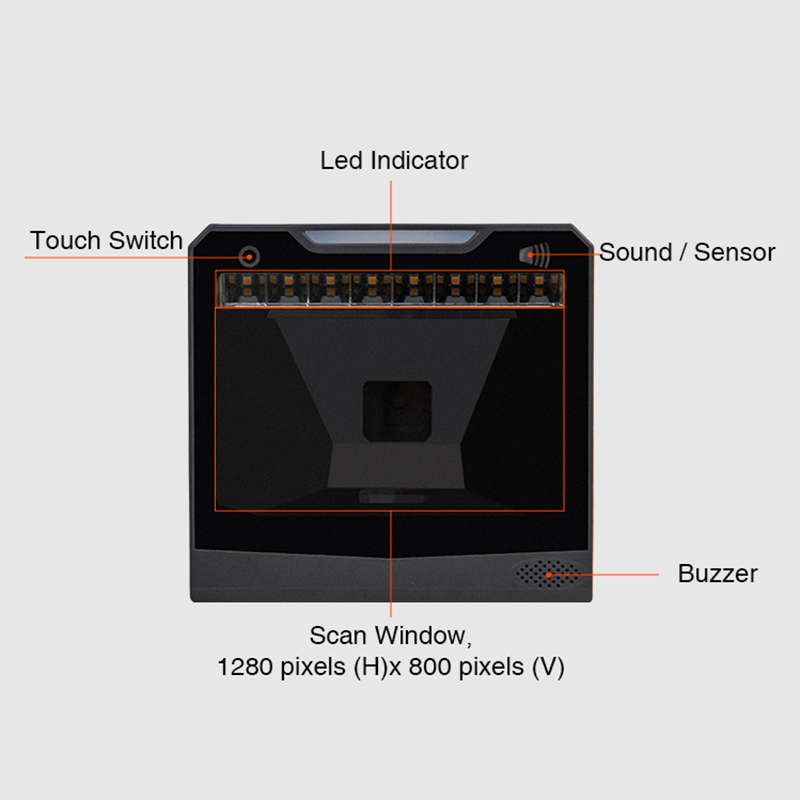

• New touch screen mode makes mode switching smoother

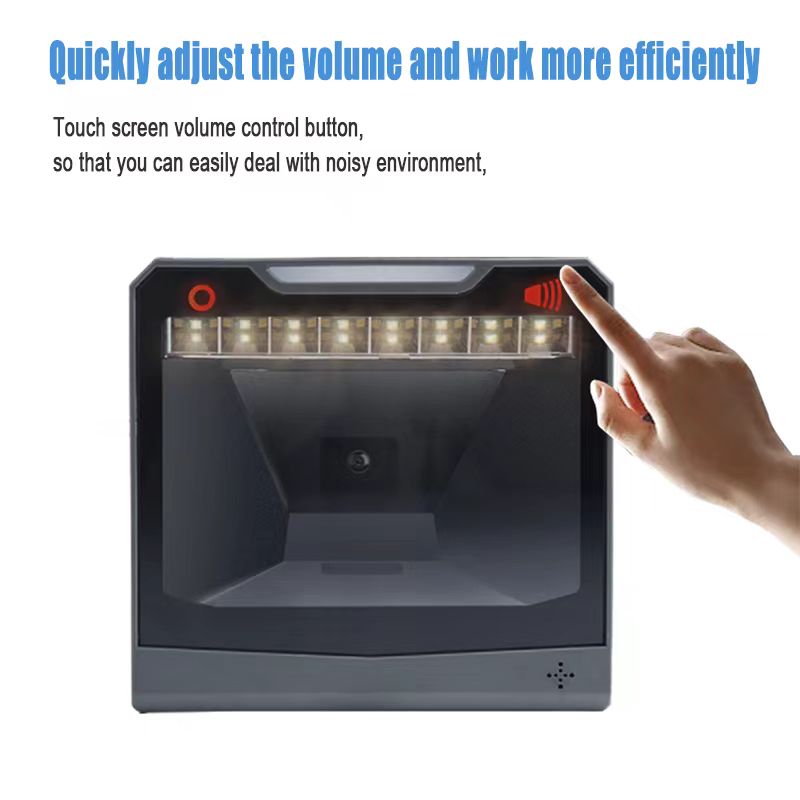

• The sound volume can be adjusted

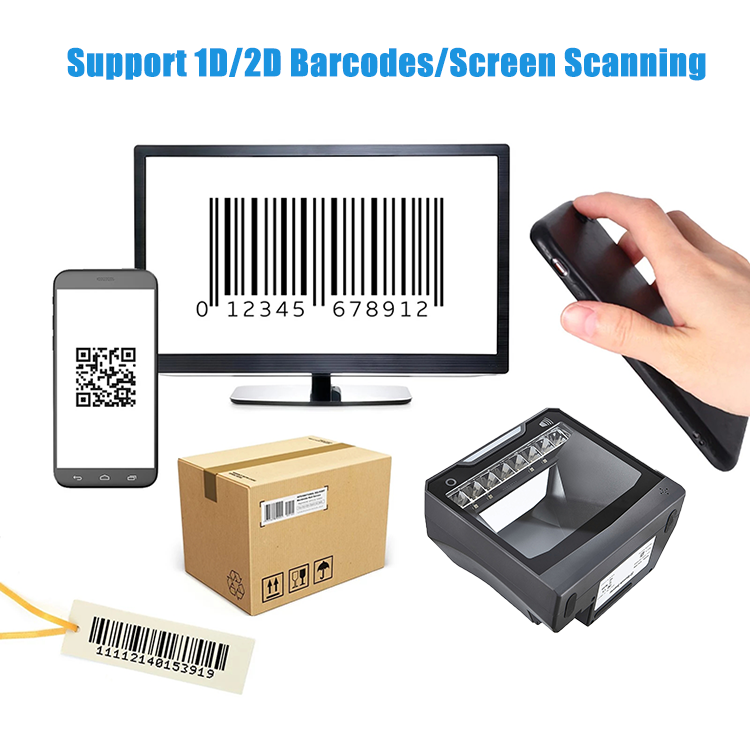

• Suitable for various new retail industries, smoothly switching between paper barcodes and mobile phone barcodes.
• Big scanning window, scanning range is large.
• Excellent decoding ability with new decoding chip for various of 1D & 2D barcode
• Scanning WeChat/Alipay barcodes with professional technology
• Decoding accuracy 4mil, able to read high-density QR codes.
Product Specification:
| Product Name: Platform Barcode Reader |
| Model: IBC-9930 |
| Physical Characteristics |

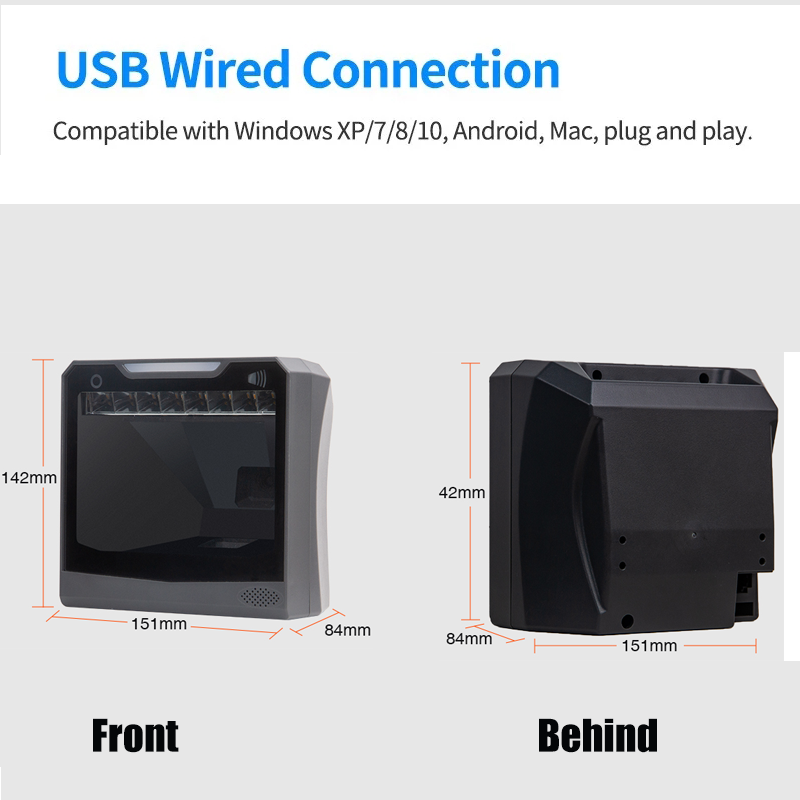

| Dimensions： 151mm x 142mm x84mm |
| Weight： 437g |
| Voltage： 5V |
| Starting Current： 470mA |
| Work Current： 456mA |
| Stand-by Current： 220mA |
| Performance Characteristics |

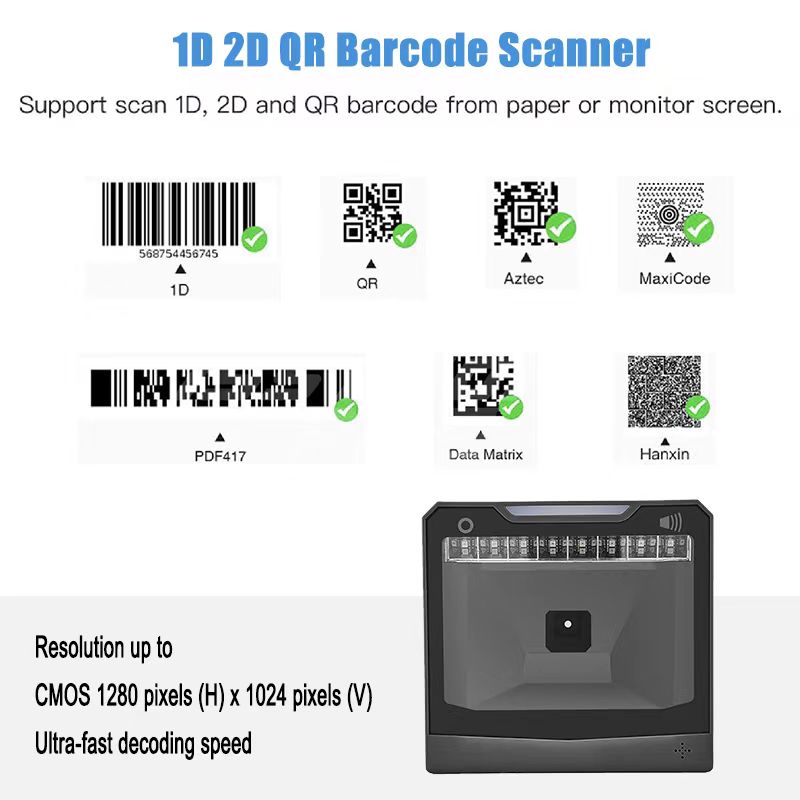

| Image (Pixels)：1280 pixels (H)x 1024 pixels (V) |
| Light Source：Warm Yellow LED |
| Field of View： 44°(H) , 34°(V) |

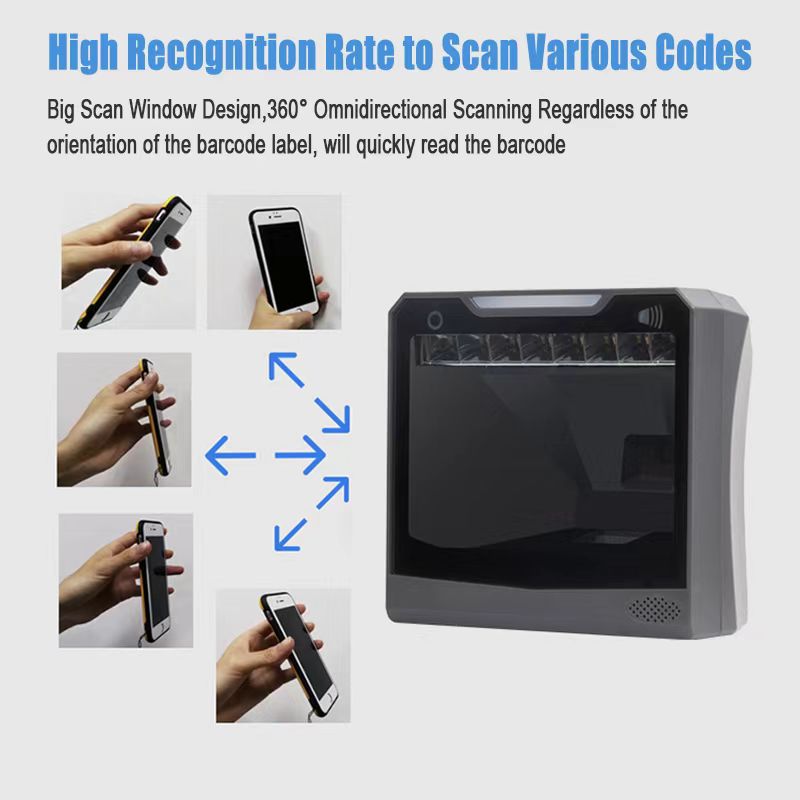

| Roll / Pitch / Yaw：360°, ±65° , ±65° |
| Print Contrast：20% minimum reflective difference |
| Interfaces Supported：USB |
| Motion Tolerances：2.5m/s |

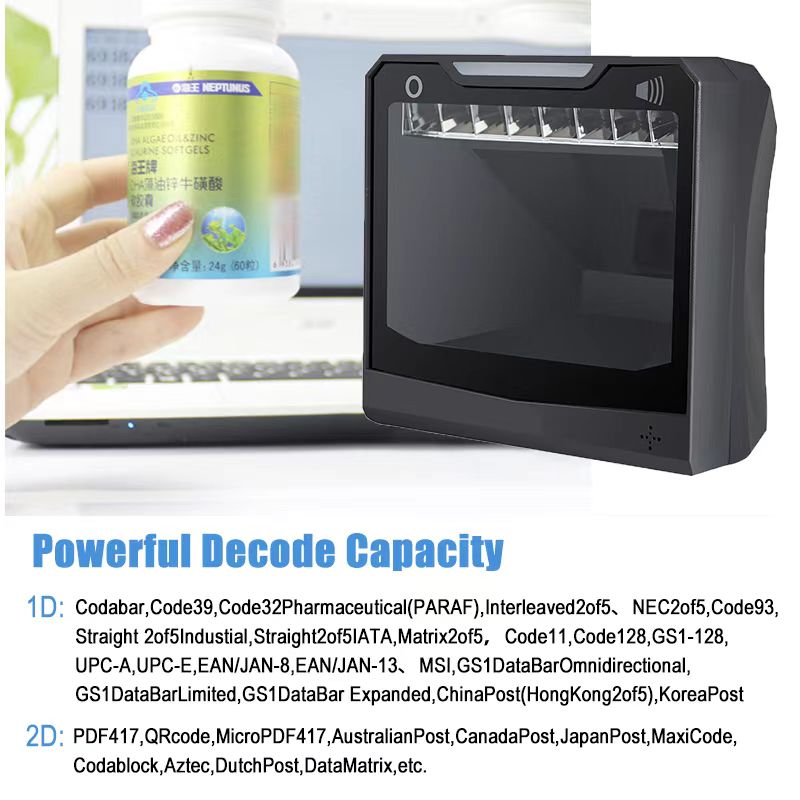

| Symbology Decode Capability |
| 1D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code 128、GS1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post. 2D: Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、MaxiCode、Aztec、HANXIN. |
| User Environment |
| Operating Temperature： -20°C to 60°C |
| Storage Temperature： -30°C to 70°C |
| Humidity： 5% to 95% relative hum idity,non-condensing |
| Shock Specifications： 8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes (Can withstand 70cm tipover test) |
| Ambient Light Immunity： 0-100,000 Lux. |
| Decode Ranges |
| Code39(4mil)： 0mm-70mm |
| Code39(5mil)： 0mm-100mm |
| Code39(13mil)： 0mm-240mm |
| Performance may be impacted by bar code quality and environmental conditions |

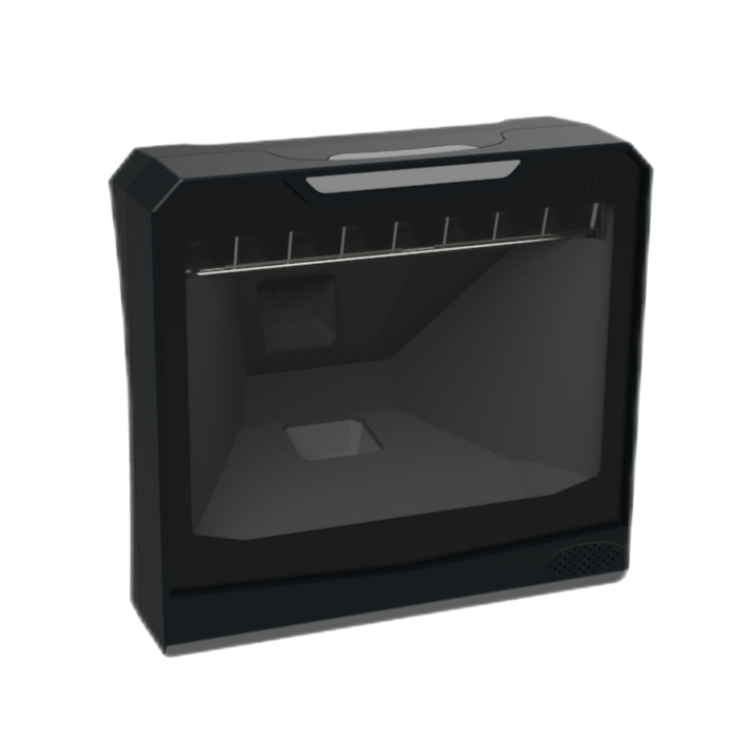

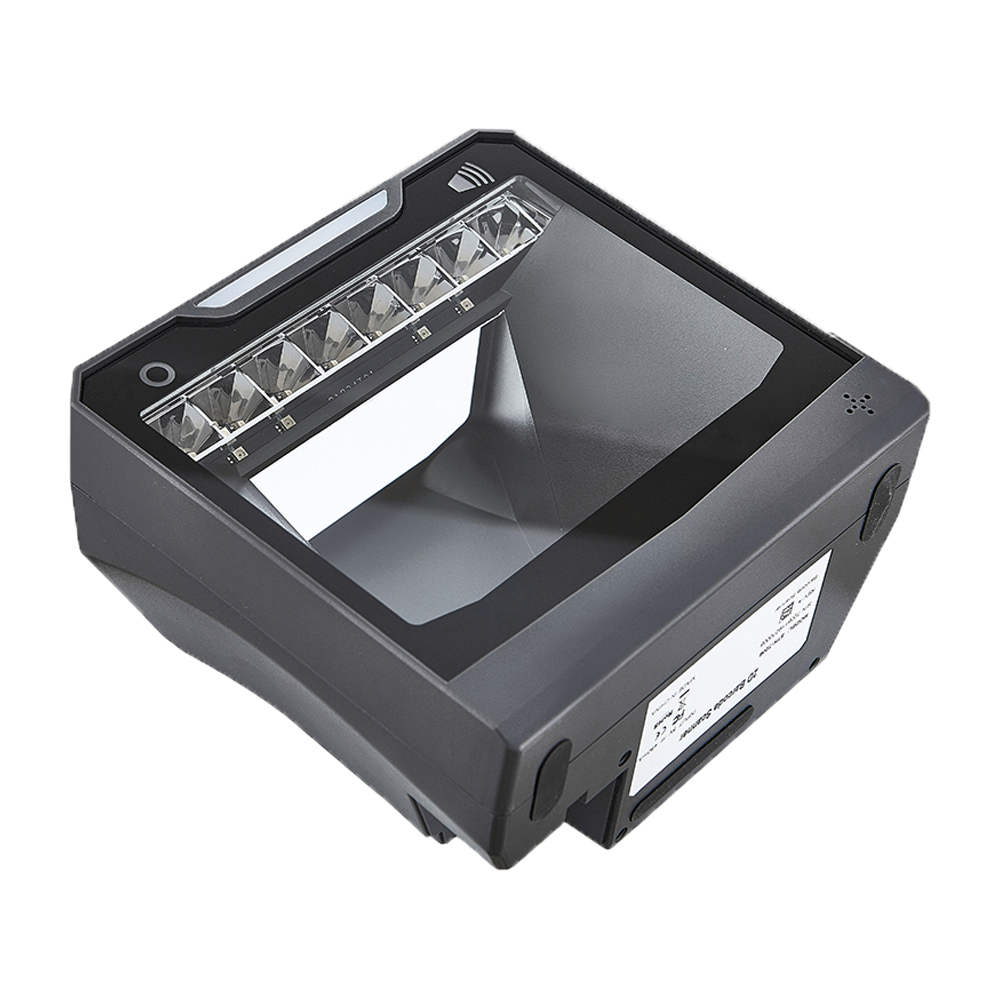

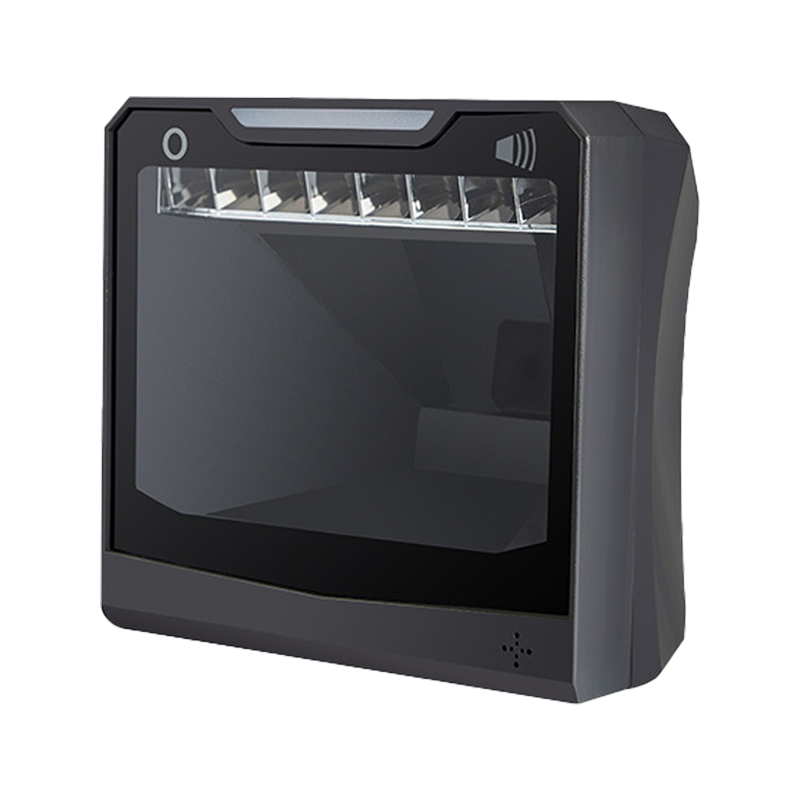

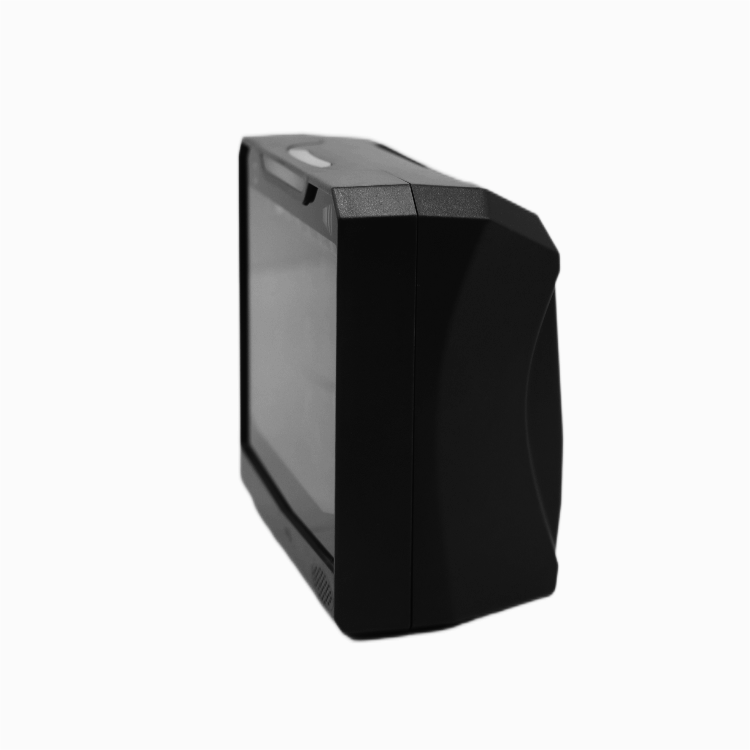

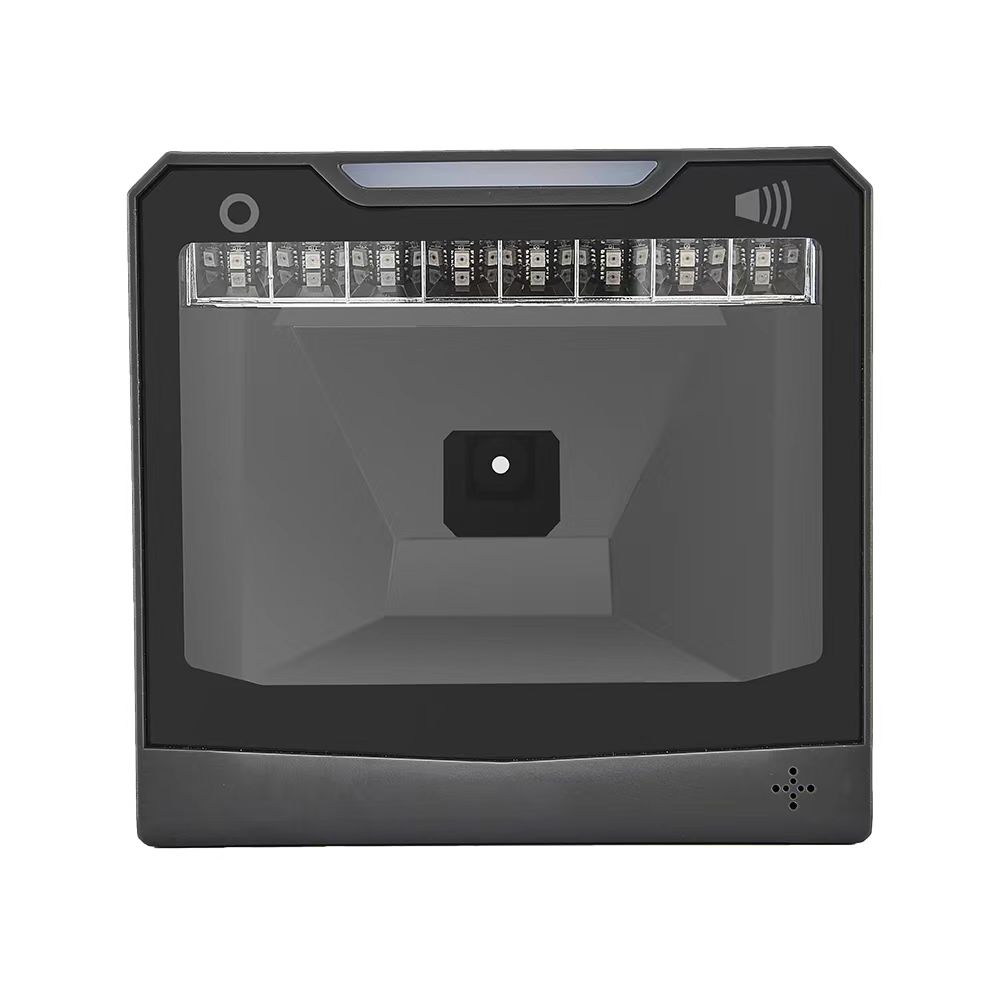

Product Pictures:
