Mini Portable QR Bar Code Wired/ Bluetooth/ Wireless 2.4G 2D 1D Barcode Scanner With Color LCD Screen
Product Description:
IBC-25, it is portable1D 2D Wireless 2.4G + Bluetooth Handheld Barcode Scanner. It is mini size, light and portable. Using advanced CMOS image recognition technology, intelligent image recognition system, it can easily read barcodes on paper, screens and other media. With excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, express, logistic, etc. It can synchronize the internet time, and only takes 1 second to synchronize with the internet time, 3-in-1 (wireless 2.4g/ Bluetooth/ USB Wired); Scanning Work with Windows, Android, iOS, Tablets or Computers. It can command trig byBluetooth; Support BLE, SPP, HID Keyboard.
Product Features:
• Super light only 45g, and mini size
• One-fourth the size of a mobile phone, easy to carry
• Especially for shop, bookstore, library, warehouse, supermarket.
• 3-in-1 Connection Ways
• Powerful Battery System,it can work over 10 hours
• Multiple Configuration Options
• It have 16M flash memory
• Synchonize Internet time
• Add time for Prefix or Suffix
• With Color LCD Screen (TFT Screen)
• File Menu for setting
Product Advantages:
• Portable Mini barcode Scanner with color screen
Super light only 45g/ 1.59oz, and mini size. One-fourth the size of a mobile phone, easy to carry. When you do not need to use it, just put it in your pocket. Especially for shop, bookstore, library, warehouse, supermarket.
• Strong 1 D&2D Barcodes Decoding Ability
1D barcode scanner support scan most of 1D barcodes, such as EAN, UPC, Code 39, Code 128, UCC/ EAN 128, Coda bar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5. all 2D barcodes
• 3-in-1 Connection Ways
This Bluetooth barcode scanner support 2.4G wireless, Bluetooth wireless and USB wired 3 connection modes, you can choose the most convenient way according to your needs. Compatible with Windows, macOS, Linux, Android and IOS operating system.
• Powerful Battery System
Our barcode scanner built-in500mAh rechargeable lithium battery, can work continuously for 8 Hours under normal condition after fully charged, standby time up to 720 hours, and charging takes only 1 hours.
• Multiple Configuration Options by file menu on screen
This wireless barcode scanner support instant upload and storage mode two types upload modes, hide front and back characters, add prefix or suffix, set sleep time, set sound and vibration, etc useful function. You can set these functions according to your needs.
Product Specification:
Model | IBC-25 |
Item | Poratable Wireless Bluetooth Mini 2D Barcode Scanner |
Performance Characteristics | |
Optical System | High performance imaging CMOS ( 1024 x980 pix) |
Optical System | High performance imaging CMOS(1024x980pix) |
Print Contrast | 20% minium reflective difference |
Aimming | Red LED, Green LED |
Minimum Resolution | 3mil (Code39, PCS 0.9) |
Reading Range | 13mil EAN13 more than 15cm |
Scan Rate | 600 times, S |
Battery | 3.7v Li Battery, 500mA |
Processor, Memory | ARM 32 , 16M Flash 1GHZ |
Interface | USB HID , USB COM |
Support OS | Microsoft Windows XP, 7.0, 8.0, 10, Mobile6, Wince, Android, IOS. (without driver) |
Scan Mode | Trig Mode/ Comman Mode/ Continue Mode/ Auto Sensor Mode |
Wireless Bluetooth | Wifi, Bluetooth, 2.4g, Bluetooth Class 4.2 |
Physical Characteristics | |
Dimensions | L*W* H (65mm*34mm* 18.5mm) |
Screen Size | L*W (25mm* 16mm) TFT |
Weight | 45g (with battery) |
Color | Black, Slivery, golden |
Indication | Beep, Screen, Vibration |
Voltage | Input DC 5V 500mA |
Operating Current | Standby Current:20mA; Working Current:160mA |
Radio Range | Bluetooth: 30 meters; 2.4G:80 meters |
Supported Symbologies | |
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, IATA, code32, Codabar, NW-7, Plessey, MSI Plessey, RSS, China Post 2D: QR code, Data Matrix, PDF417, Aztec code, Maxi Code, Micro QR, Micro PDF417, HanXing Code |
|
User Environment | |
Drop Specifications | 2 meters fall into concrete for several times |
Environmental Sealing | IP42 |
Operating Temperature | -10 ° C to 50. ° C |
Storage Temperature | -10 ° C to 50. ° C |
Humidity | 5% to 95% relative humidity, non-condensing |
Ambient Litht Immunity | 0~80000 lux |
ESD Protection | Functional after 15KV discharge |
Accessories | |
Cables | Usb cable (type c) |
Others | Manual, Usb receiver |

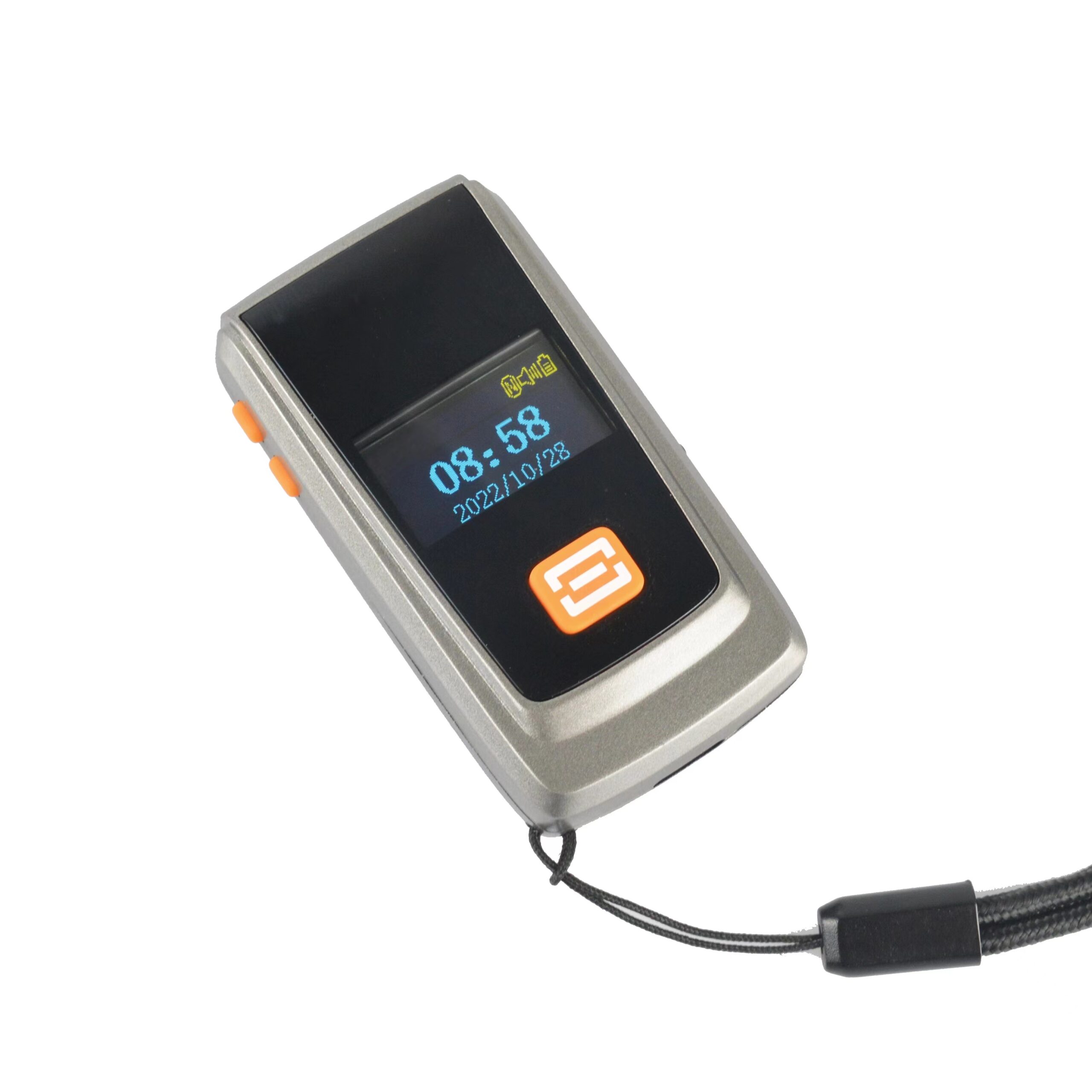

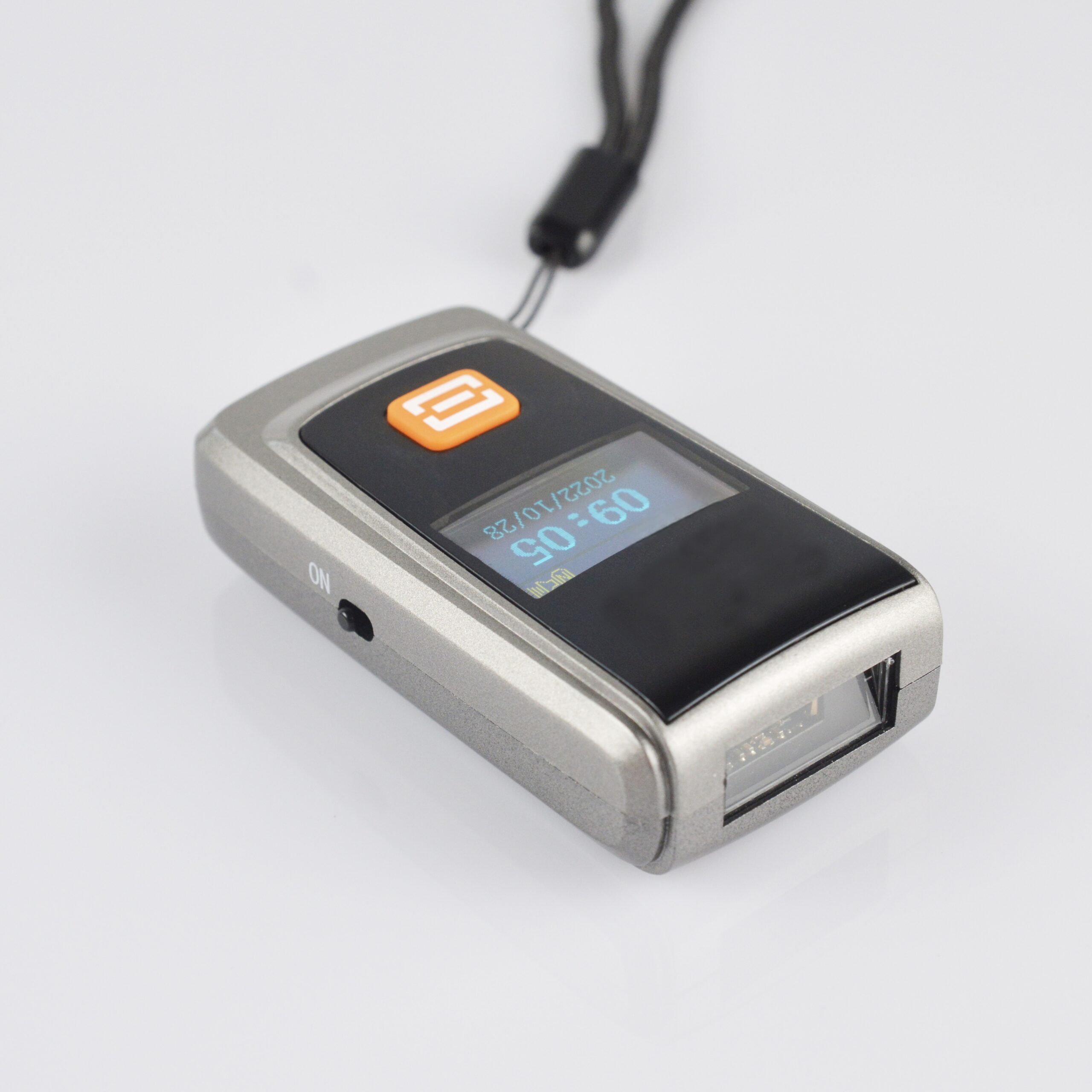

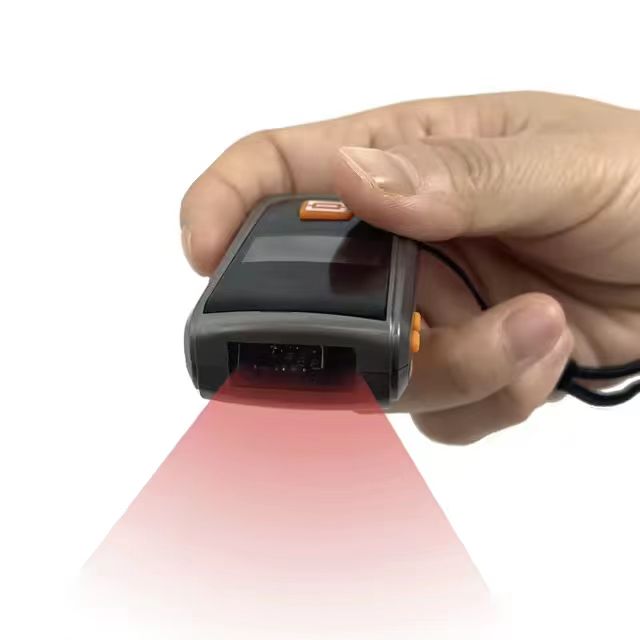

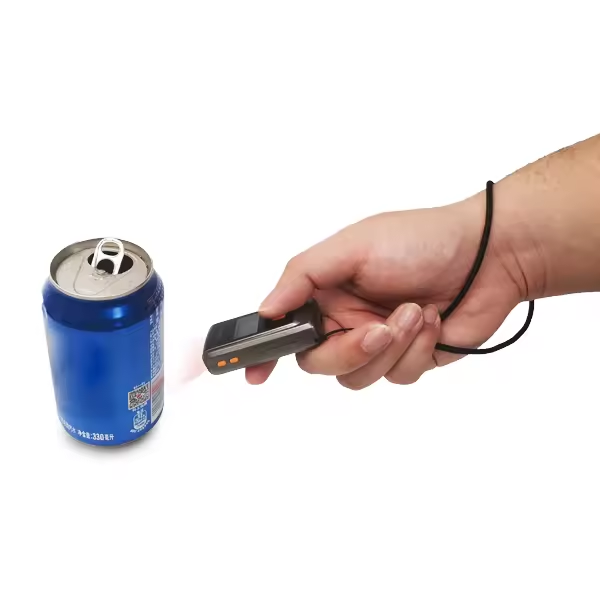

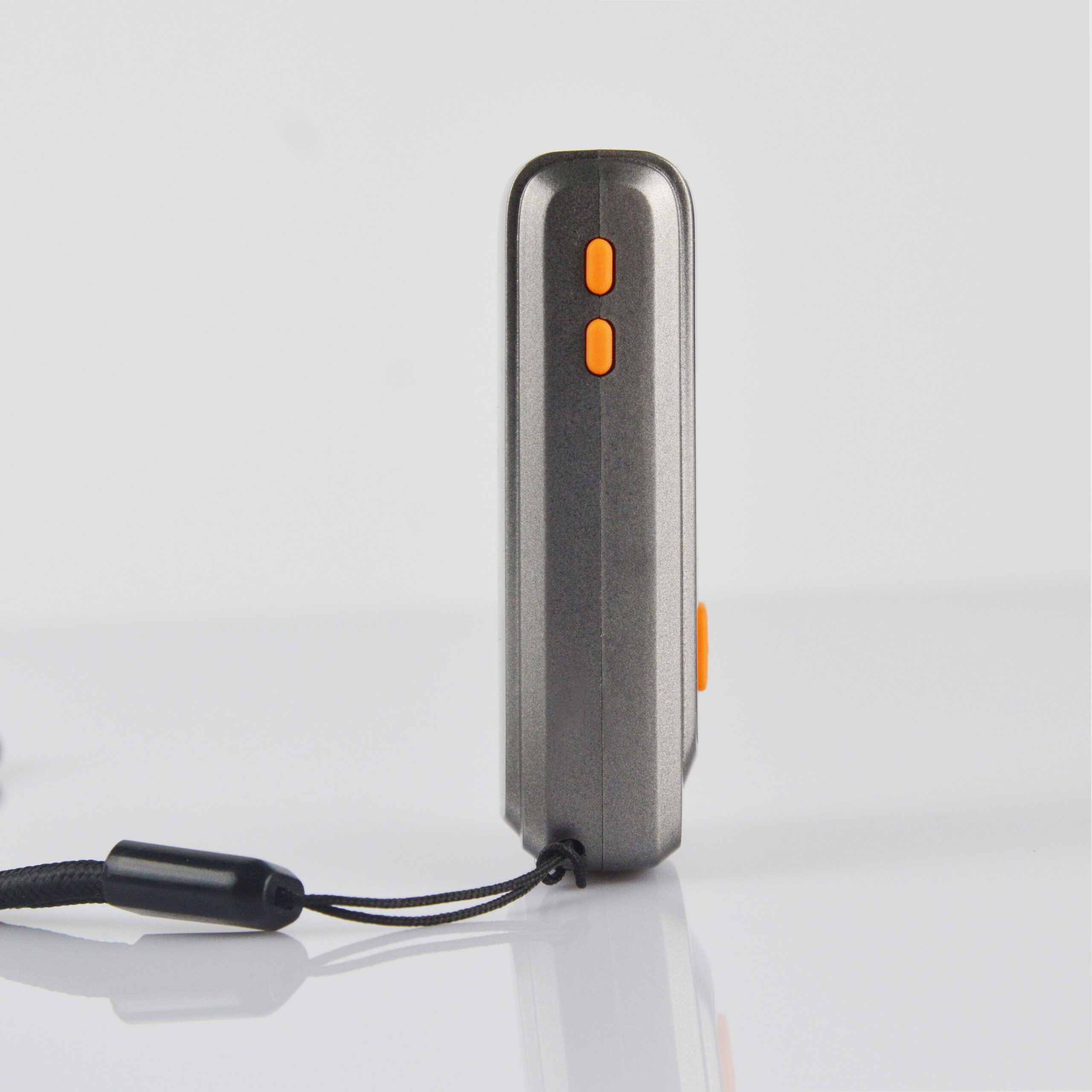

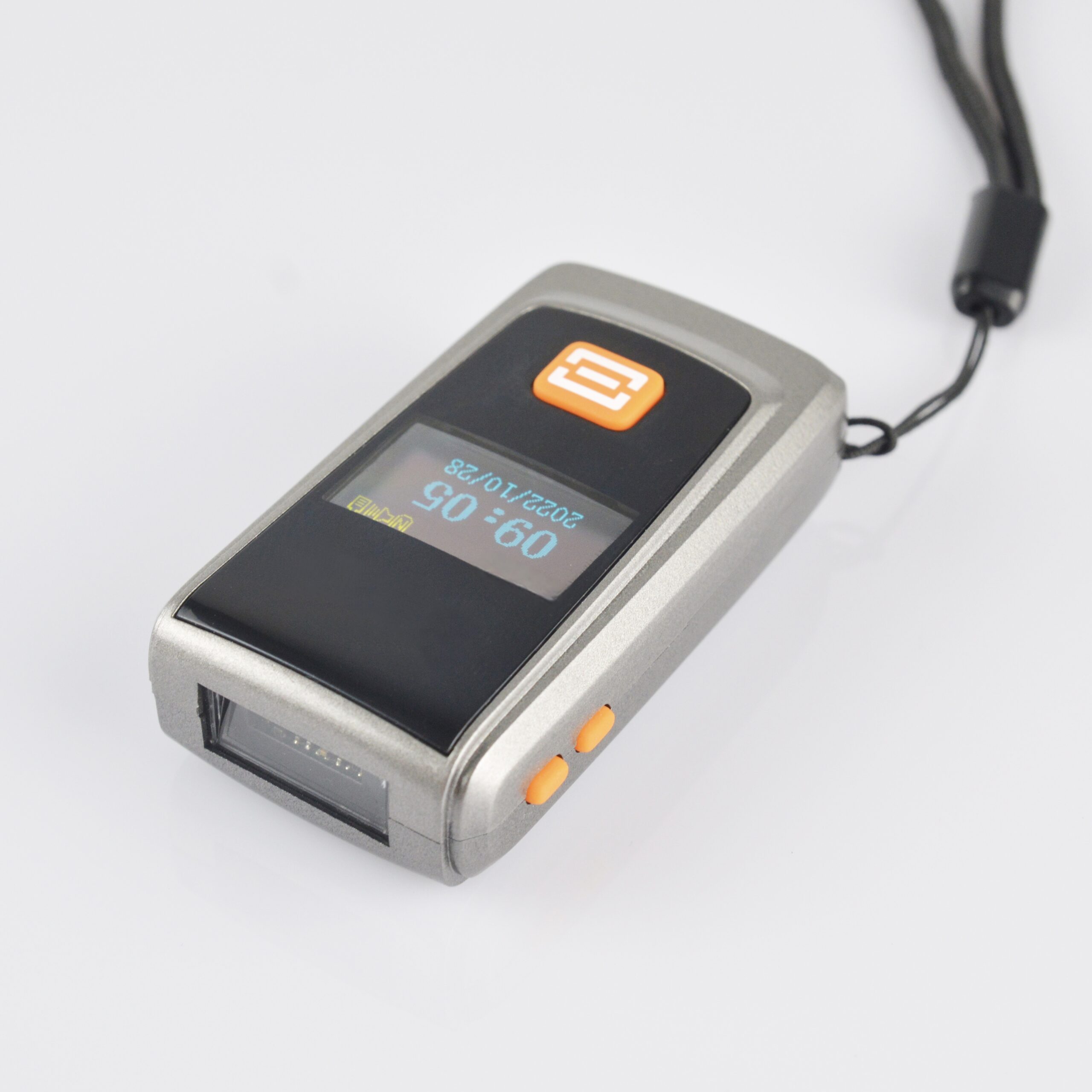

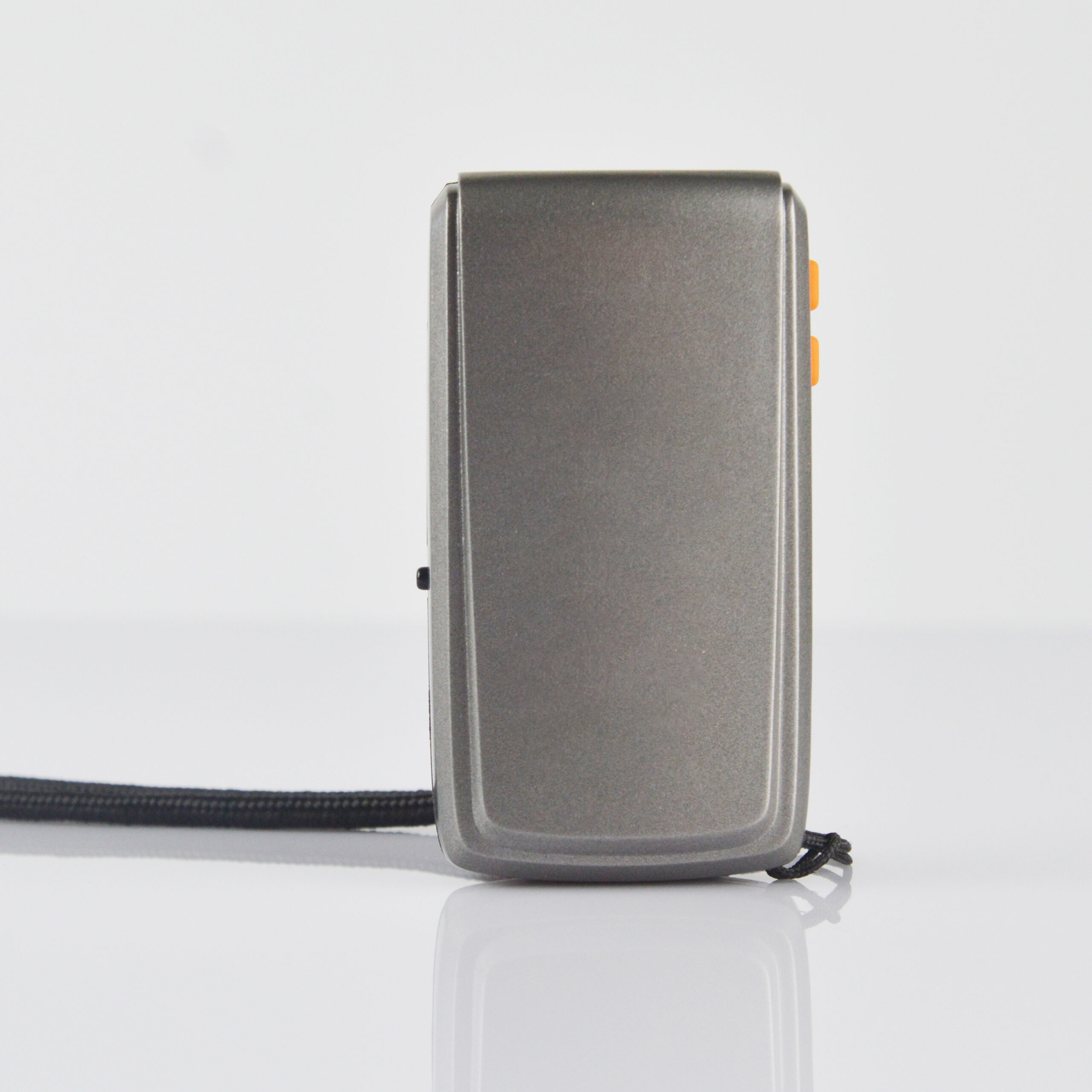

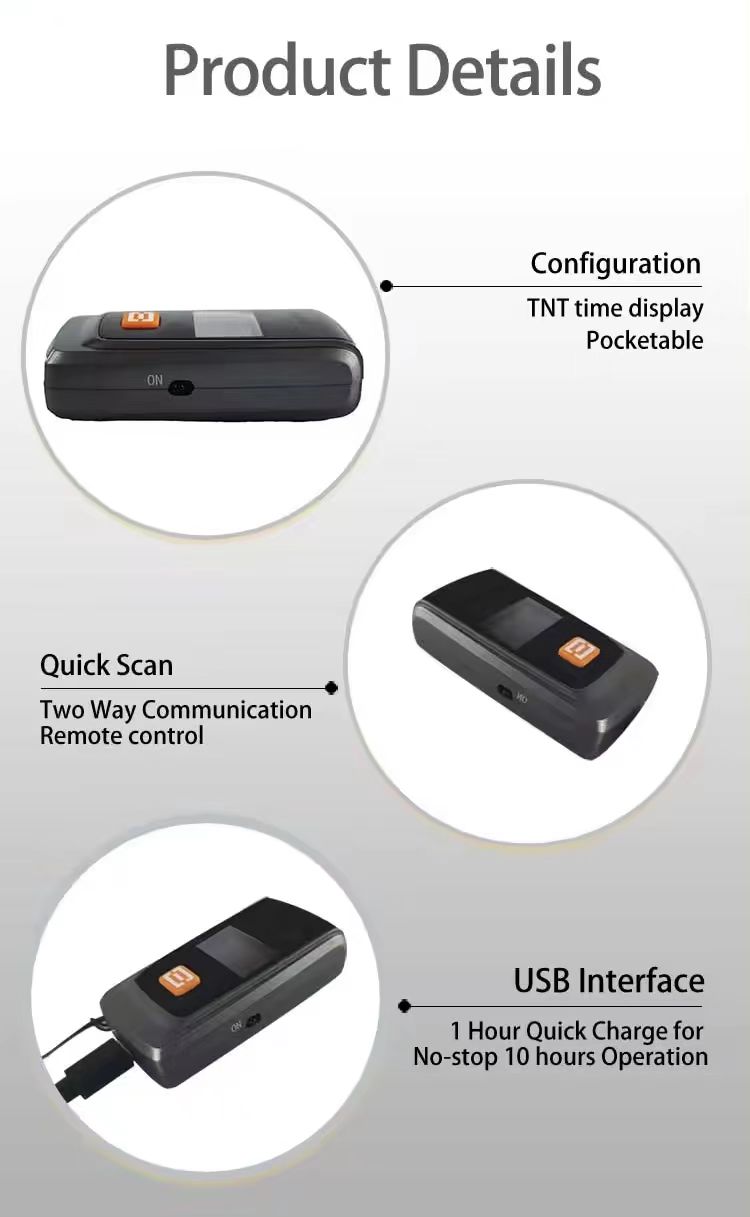

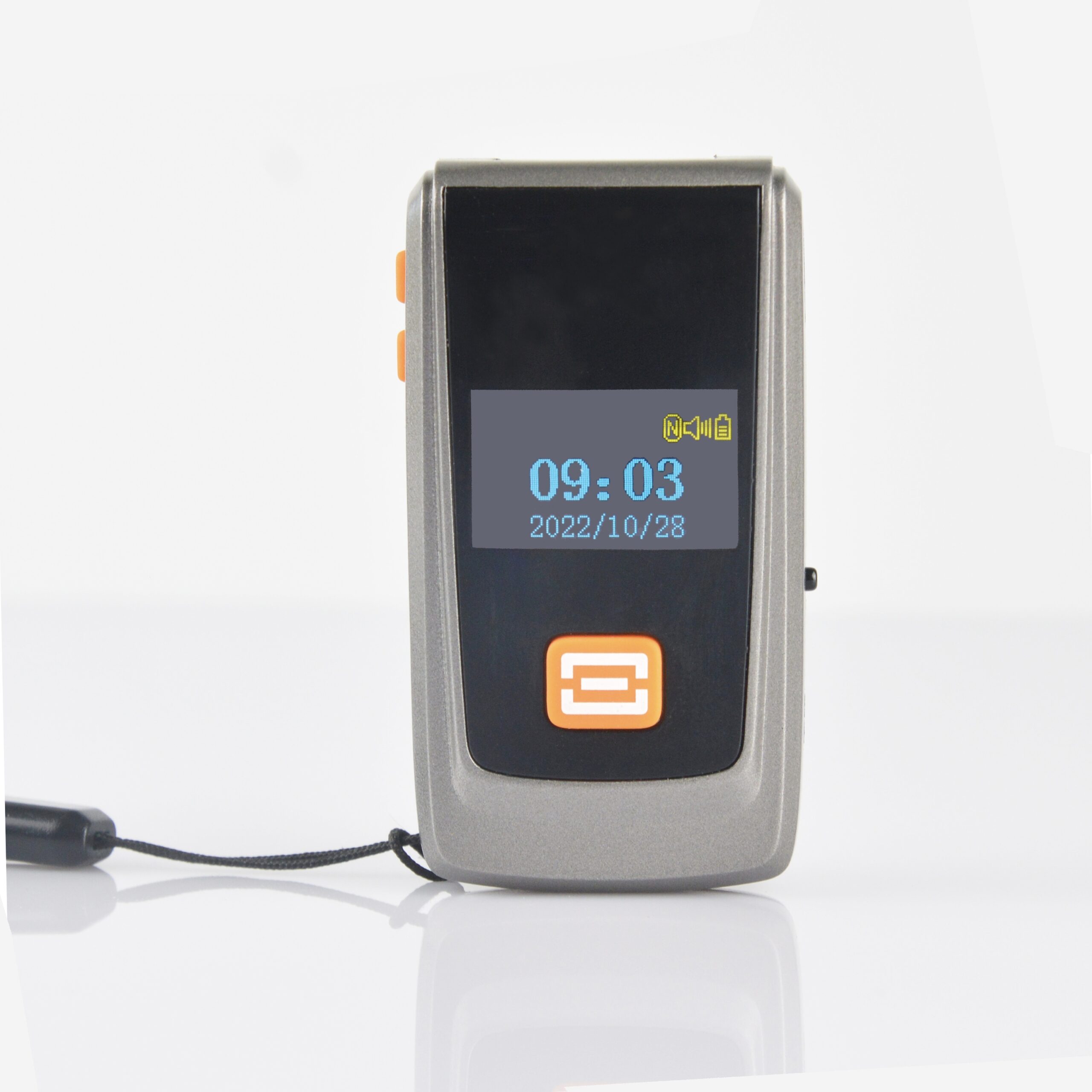

Product Pictures:
