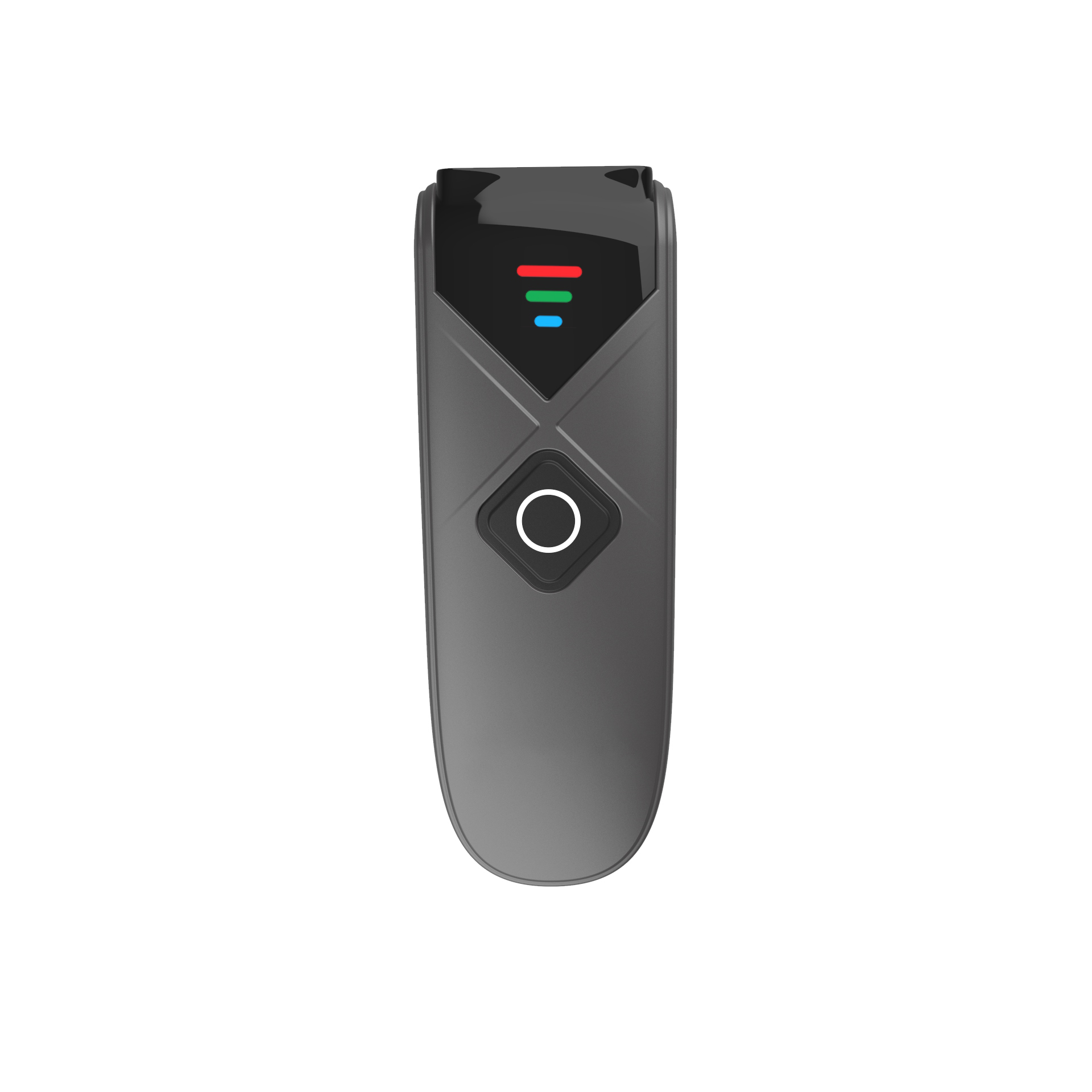

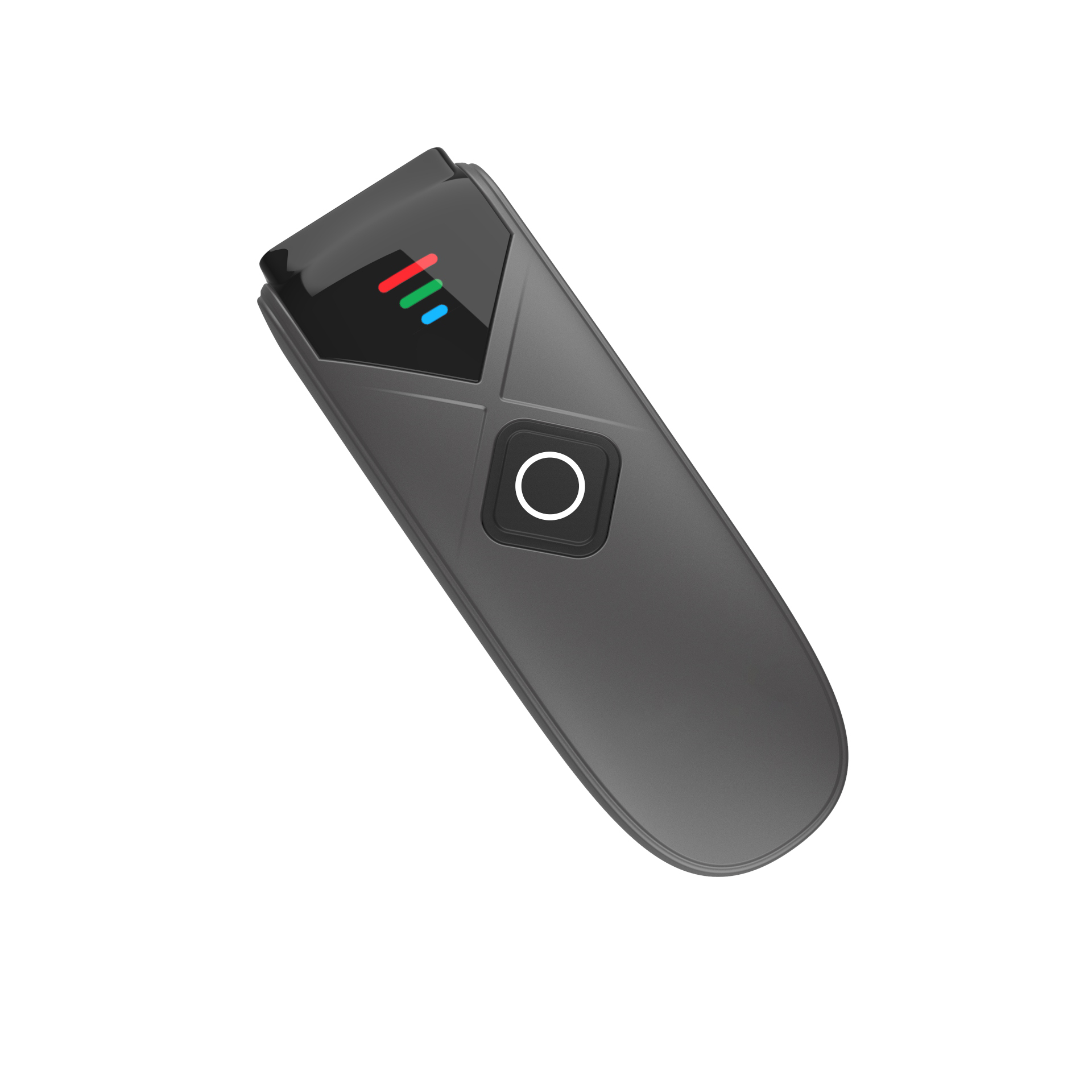

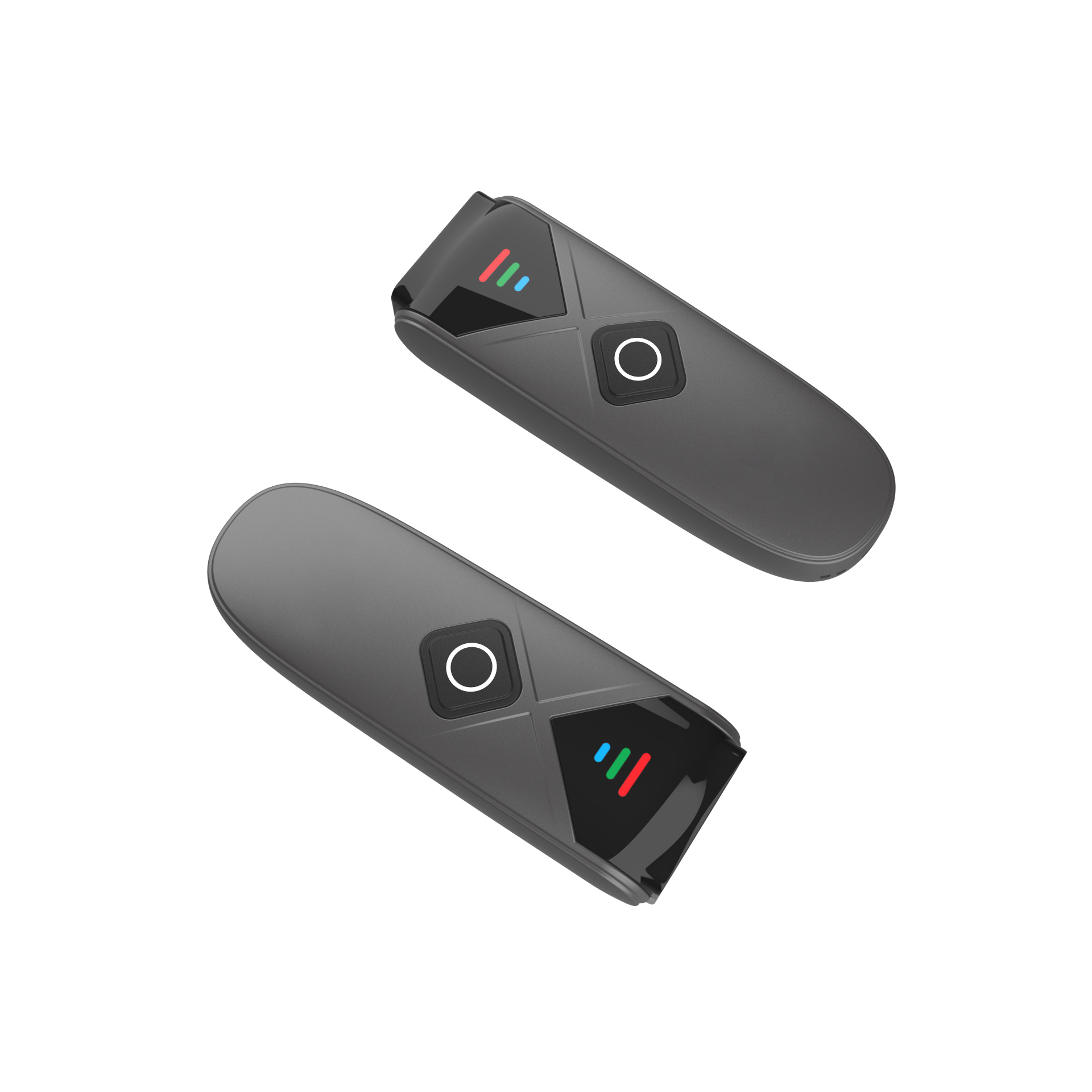

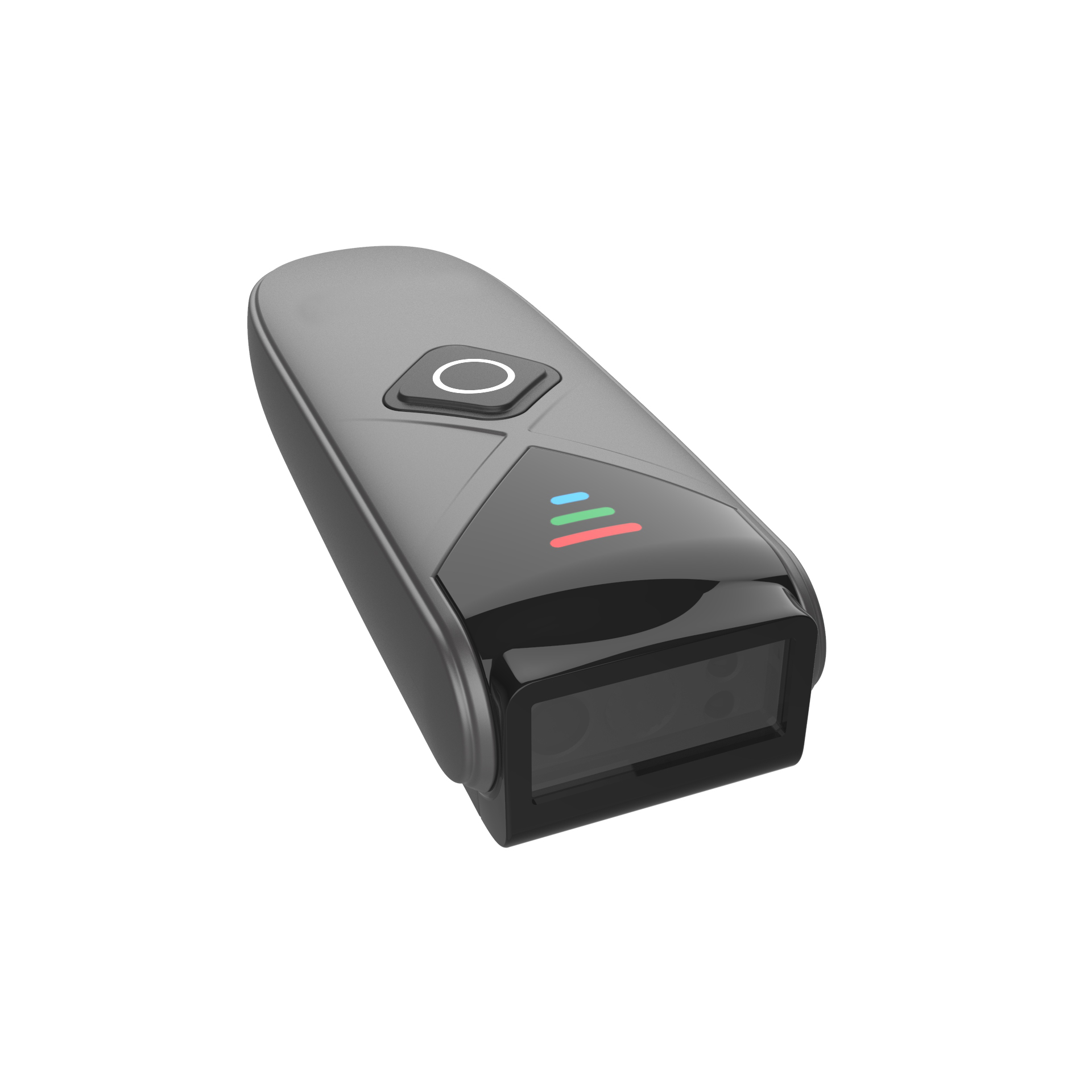

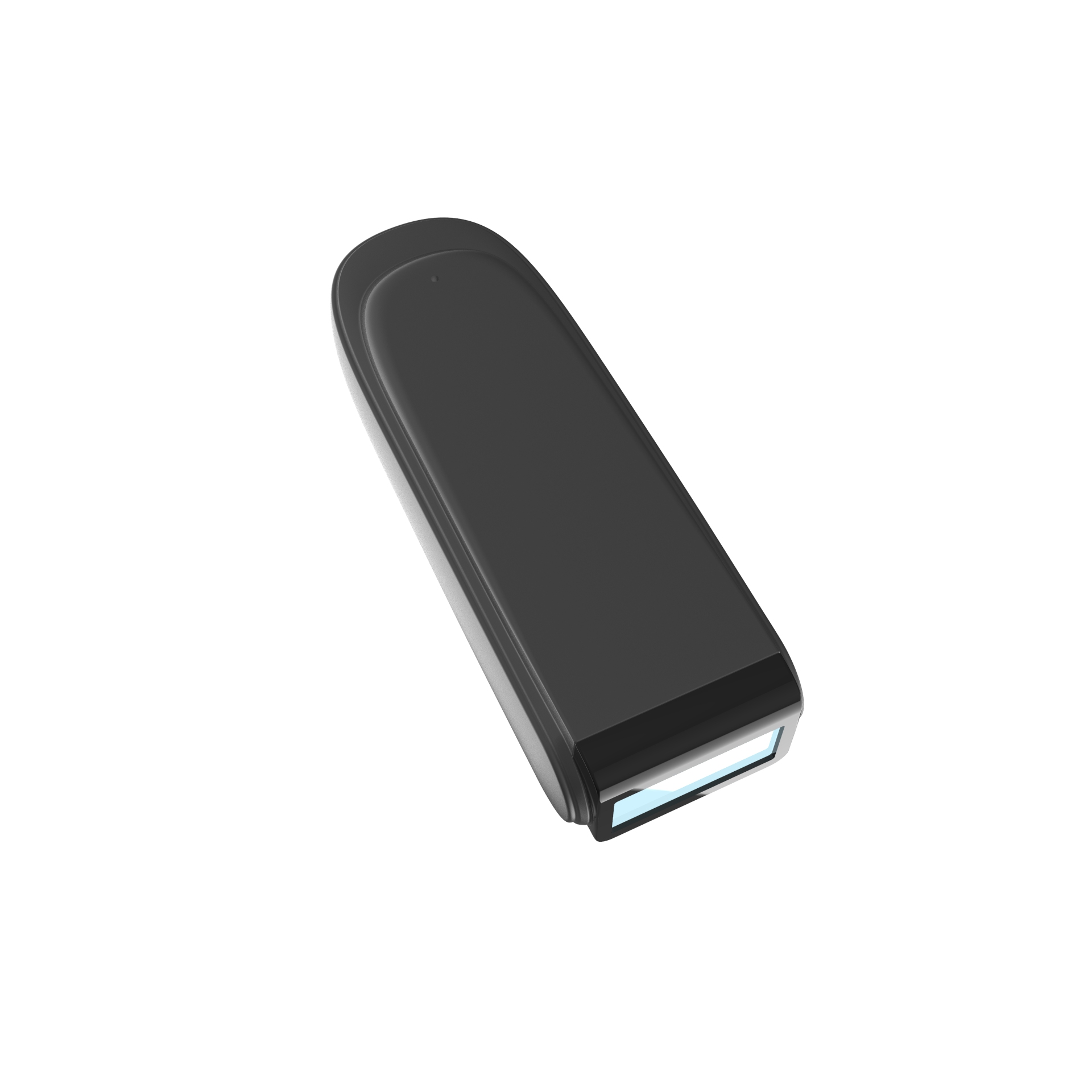

Mini HandHeld Portable Wireless/ Wired/ Bluetooth/ 2.4G Barcode Scanner With High Performance Engine
Product Description:
IBC-21, it is portable1D 2D Wireless 2.4G + Bluetooth Handheld Barcode Scanner. It is mini size, light and portable. Using advanced CMOS image recognition technology, intelligent image recognition system, it can easily read barcodes on paper, screens and other media. With excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, express, logistic, etc.
Product Features:
• 3-in-1 ( /2.4g/ Bluetooth / USB Wired)
• Super light only 35g, and mini size
• High Speed Scan
• Especially for Logistics inventory
• 3-in-1 Connection Ways
• Powerful Battery System, it can work over 10 hours
• Multiple Configuration Options
• It has 16M flash memory
• With High Performance 2D Engine
• Quick Configuration
• It can command trig by Commmand
• Bluetooth Support BLE, SPP, HID Mode
• Scanning Work with Windows, Android, iOS, Tablets or Computers
Product Advantages:
• Portable Mini barcode Scanner with 2D/ 1D Scan Engine
Super light only 35g, and mini size. Mini handheld design, easy to carry. When you do not need to use it, just put it in your pocket or table. Especially for shop, bookstore, library, warehouse,supermarket, Logistics Inventory.
• Strong 1 D&2D Barcodes Decoding Ability
1D barcode scanner support scan most of 1D barcodes,such as EAN, UPC,Code 39, Code 128, UCC/EAN 128, Coda bar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 and all 2D barcodes.
• 3-in-1 Connection Ways
This Bluetooth barcode scanner supports 2.4G wireless, Bluetooth wireless and USB wired 3 connection modes, you can choose the most convenient way according to your needs. Compatible with Windows, macOS, Linux, Android and IOS operating system.
• Powerful Battery System
Our barcode scanner built-in 450mAh rechargeable lithium battery, can work continuously for 10 Hours under normal condition after fully charged, standby time
up to 720 hours, and charging takes only 1.5 hours.
• Multiple Configuration Options by file menu on screen
This wireless barcode scanner support instant upload and storage mode two types upload modes, hide front and back characters, add prefix or suffix, set sleep time, set sound and vibration, etc useful function. You can set these functions according to your needs.
Product Specification:
Model | IBC-21 |
Item | Poratable Wireless Bluetooth Mini 2D Barcode Scanner |
Performance Characteristics | |
Optical System | High performance imaging CMOS (752 x640)/ Laser |
Print Contrast | 20% minium reflective difference |
Aimming | Green LED or Red LED/ 1 D Laser |
Minimum Resolution | 4mil (Code39, PCS 0 .9) |
Reading Range | 13mil EAN13 more than 15cm |
Scan Rate | 400 times/ s 1 D laser: 200times/ s |
Battery | 3 .7v Li Battery, 500mA |
Processor/ Memory | ARM 32 / 16M Flash |
Screen | TFT Color screen |
Interface | USB HID Keyboard/ USB COM |
Support OS | Microsoft Windows XP/ 7 .0/ 8 .0/ 10, Mobile6/ Wince, Android, IOS. Linux (without driver) |
Scan Mode | Trig Mode/ Comman Mode/ Continue Mode/ Auto Sensor Mode |
Bluetooth | Bluetooth Class 4 .2 |
Physical Characteristics | |
Dimensions | L*W* H (52mm*48mm*32mm) |
Weight | 42g (with battery) |
Color | silver gray |
Indication | Beep, LED, Vibration |
Voltage | Input DC 5V |
Operating Current | Standby Current:20uA; Working Current:160mA |
Radio Range | Bluetooth: 30 meters; 2.4G:80 meters |
Supported Symbologies | |
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, IATA, code32, Codabar, NW-7, Plessey, MSI Plessey, RSS, China Post 2D: QR code, Data Matrix, PDF417, Aztec code and Maxi Code |
|
User Environment | |
Drop Specifications | 2 meters fall into concrete for several times |
Environmental Sealing | IP42 |
Operating Temperature | -10 ° C to 50 . ° C |
Storage Temperature | -10 ° C to 50 . ° C |
Humidity | 5% to 95% relative humidity, non-condensing |
Ambient Litht Immunity | 0~80000 lux |
ESD Protection | Functional after 15KV discharge |
Accessories | |
Cables | Usb cable (type c) |
Others | Manual, Usb receiver |
