Long Distance 2.4G Wireless Bluetooth 1D 2D QR Code Cordless Handheld Barcode Scanner With Charging Base

Long Distance 2.4G Wireless Bluetooth 1D 2D QR Code Cordless Handheld Barcode Scanner With Charging Base

We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!

*Get A Free Quote With No Obligation

Long Distance 2.4G Wireless Bluetooth 1D 2D QR Code Cordless Handheld Barcode Scanner With Charging Base

Testing Video:

Product Description:

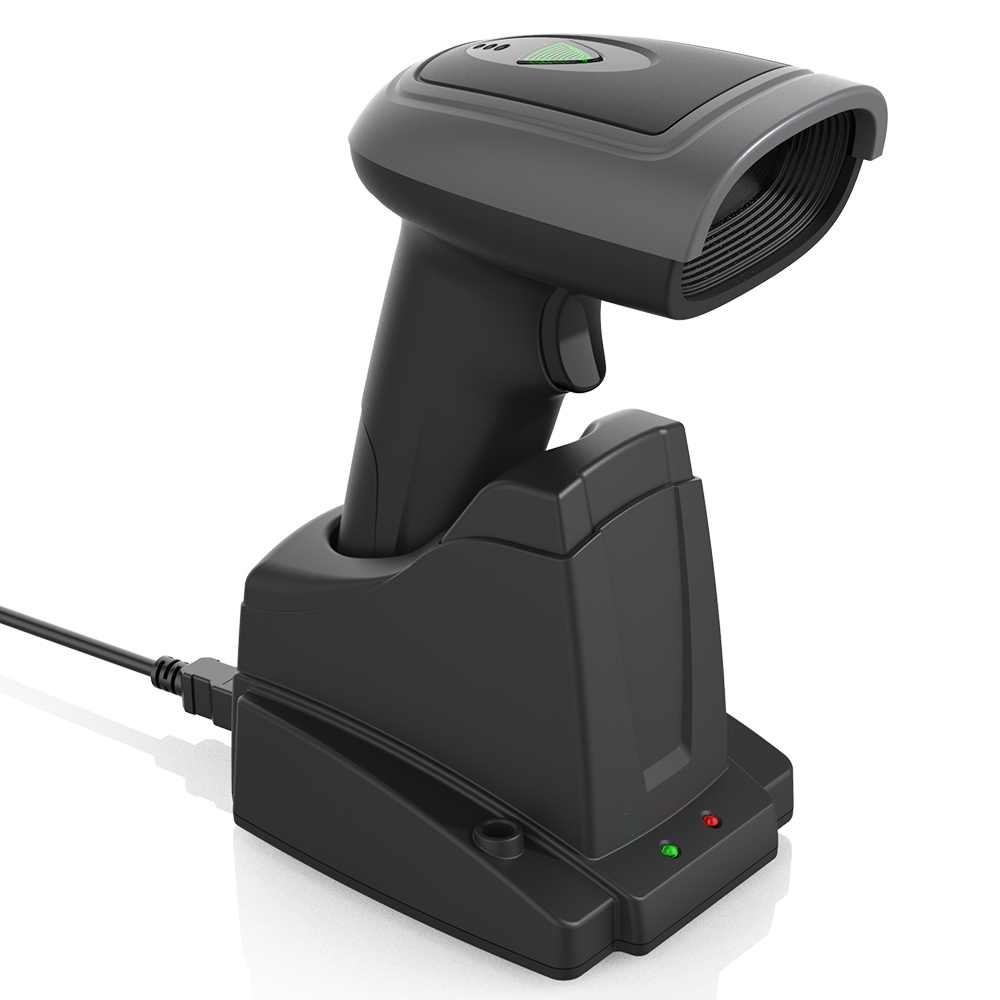

IBC-4200BT, is usb wired + cordless 2.4G + bluetooth barcode scanner with Charging Base for retail and commercial as well as warehouse inventory application. With high Resolution CMOS Sensor, Identifying multiple code systems and easily scan various abnormal barcodes. It can read barcdoes from product labels, cards, tickets and phone quickly, whatever 1d or 2d barcodes. This Bluetooth qr barcode scanner allows for absolutely freedom when operating. It is widely used for retail and commercial as well as logistics application.

Product Features:

• Long-distance wireless fast transmission

• Wired and Wireless Model is optional

• Excellent Decoding Ability

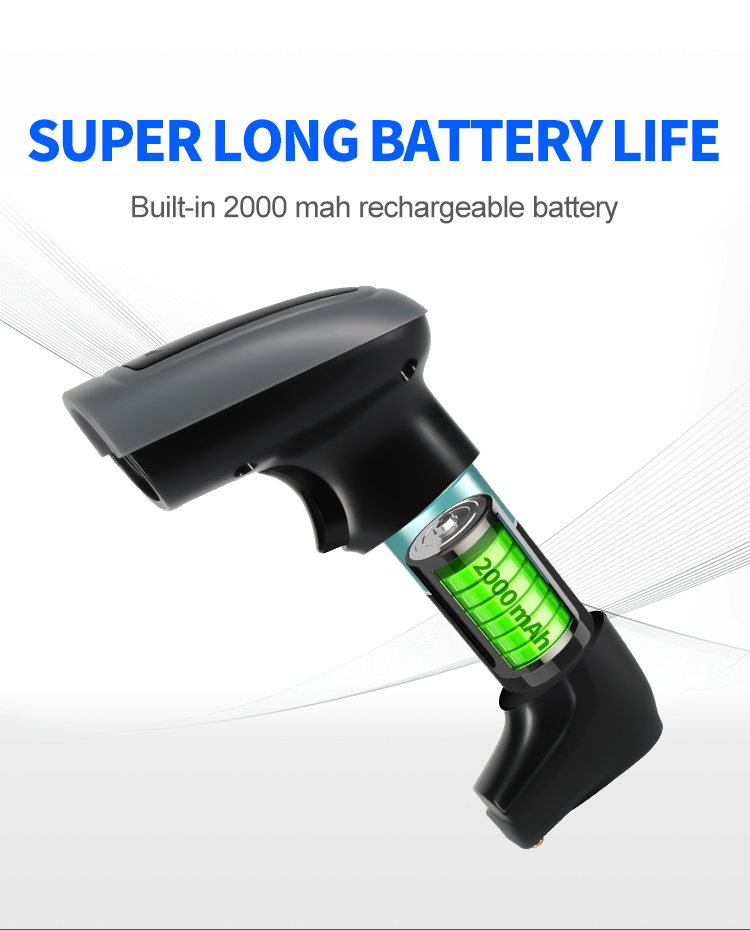

• Large capacity battery, long battery life

• 2 kinds of wireless solution :2.4Ghz and Bluetooth

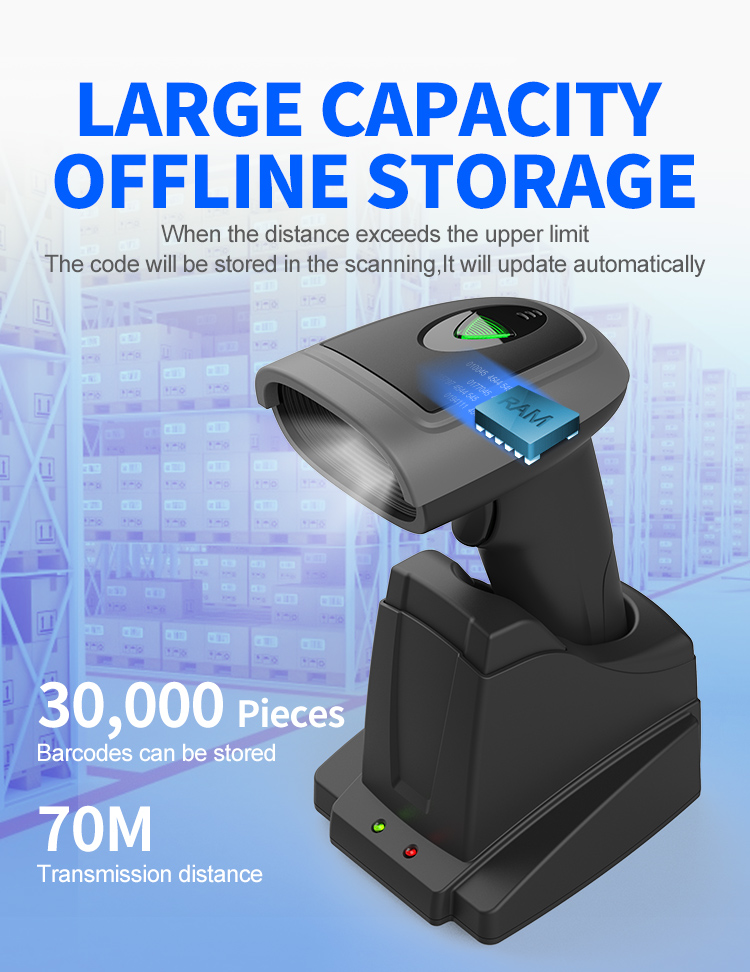

• Instant upload mode & Storage mode

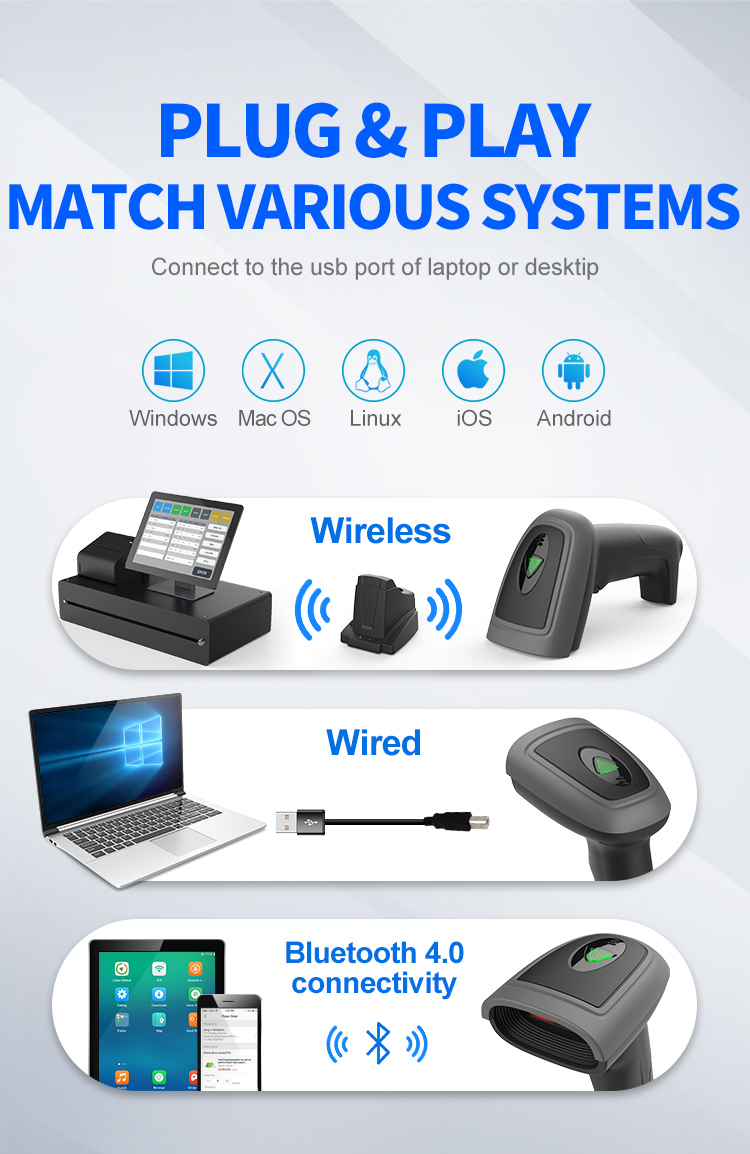

• Compatible with multiple systems, Windows/IOS/Android/Linux, etc

Product Specification:

Technical Parameter
Model IBC-4200BT
Item 1D 2D Wireless 2.4G + Bluetooth Handheld Barcode Scanner
Physical Parameter
Material ABS+PVC+PC

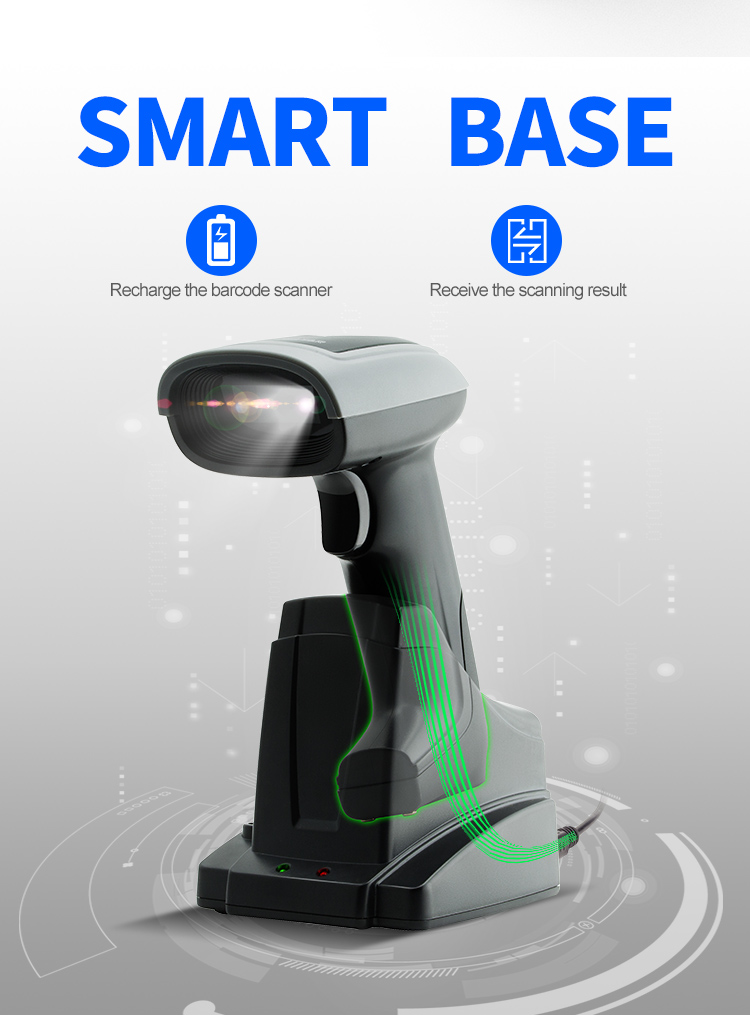

Power Supply Cradle Charging DC 5V ±5% ;  3.7V 2000mA lithium battery
Power Consumption 0.37W(Working);  0.16W(Standby);  0.71W(Max)
Weight 200g±5g (Scanner) + 140g±5g (Cdadle)(Without cable)

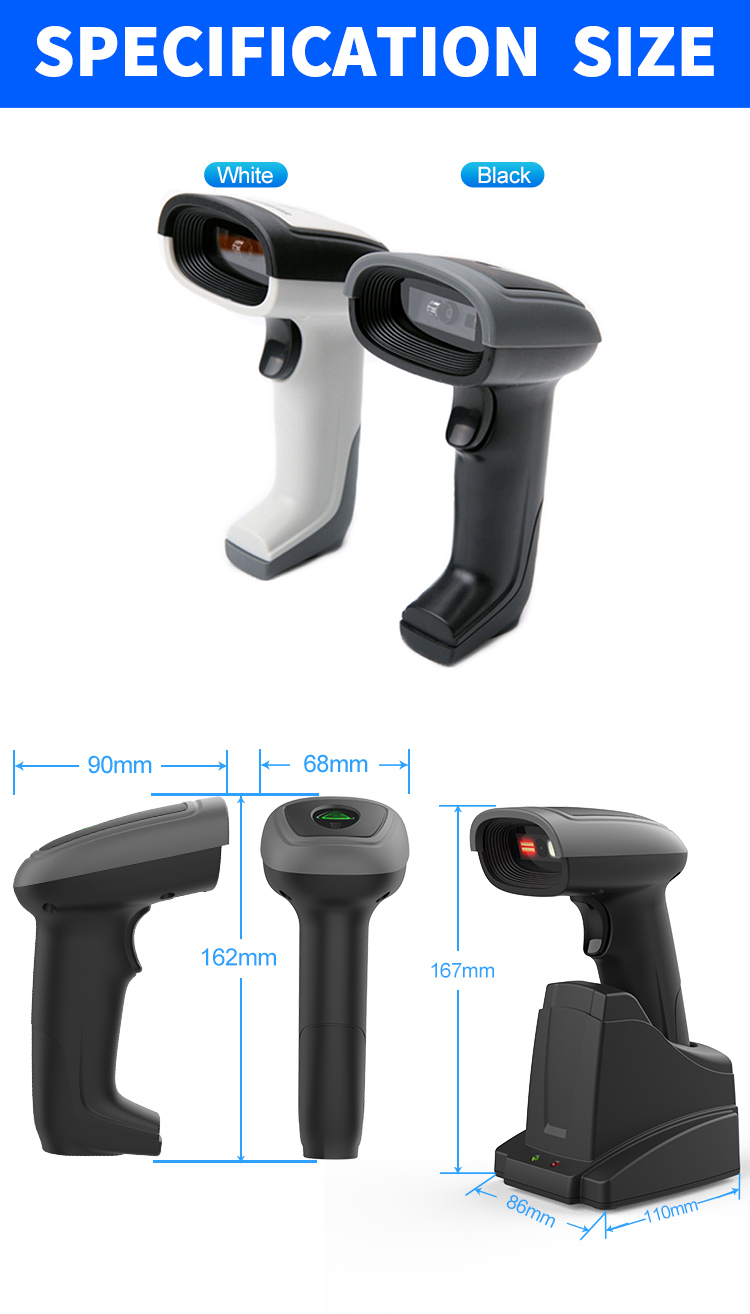

Scanner Size L*W*H: 164.5 * 68.0 * 91.0(unit/mm)
Cradle Size L*W*H:  110.0 * 86.0 * 96.0(unit/mm)
Color Grey
Button Lifespan >100, 000
Performance Paremeter
Interface USB Wired / 2.4G Wireless & 4.2 Bluetooth
System Supported Linux, Android, Windows XP、7、8、10, MAC
Language Suported English, German, French, Spanish, Italian, Spanish (Latin America), Finnish, Belgian, Danish,  Czech, Japanese, Hungarian, Norwegian, Russian, Polish, Portuguese, Portuguese(Brazil), Slovak, Swedish, Turkish F, Turkish Q, (Support International Keyboard Language)(Language can be customized)
Sensor Pixel 640*480 CMOS
Light Source Red LED AIMING + White LED LIGHTING
Processor 32-bit ARM MCU
Sotrage 512KB
Motion Tolerance Code128:  60cm/sec
QR:  65cm/sec
Resolution ≥4mil
Transmission Distance 2.4G≤100m Open Area; Bluetooth≤10m Open Area
Bit Error Rate 1/5, 000, 000
Reading Mode Image
Trigger Mode Manual Triger
Promot Mode Buzzwe,  Indicator(LED)
Printing Contrast 25%
Charging Time appr.6h
Woring Time appr.24h
Scanning Angel Roll 360°, Pitch ± 55°, Yew ± 55°
Decoding Capability 1D ◎Interleaved 2 of 5  ◎ITF-6  ◎ITF-14  ◎ISB-128  ◎Code 11  ◎UCC/EAN-128  ◎GS1 Databar ◎Industrial 2 of 5  ◎Code 128  ◎EAN-13  ◎EAN-8  ◎Code 39  ◎UPC-A  ◎UPC-E  ◎Codabar  ◎Standard 2 of 5  ◎Plessey  ◎MSI-Plessey  ◎Code 93  ◎GS1 composite code  ◎Matrix 2 of 5  ◎Code 32
2D ◎PDF417      ◎Data Matrix      ◎QR Code         ◎HanXin
◎AZTEC       ◎Maxicode         ◎Micro QR        ◎Micro PDF417
Scanning Depth EAN-13  50mm-200mm (13mil)
Code39 40mm-90mm (5mil 10 byte)
QR Code  25mm-240mm (20mil 16 byte)
Data Marix 50mm-90mm (10mil 20 byte)
PDF 417  30mm-130mm (6.67mil 7 byte)
Environment Parameter
IP Grade IP52
Operating Temp. 0 to 60℃ / 32 to 122℉
Storafe Temp. 0 to 60℃ / 32 to 122℉
Operating Humidity 20% to 85%(No Condensation)
Storage Humidity 20% to 85%(No Condensation)
ESD Protection 15KV Air Discharge
Shock Resistance Withstands multiple times 1.5m drops to concrete
Illumination 0→100000Lux

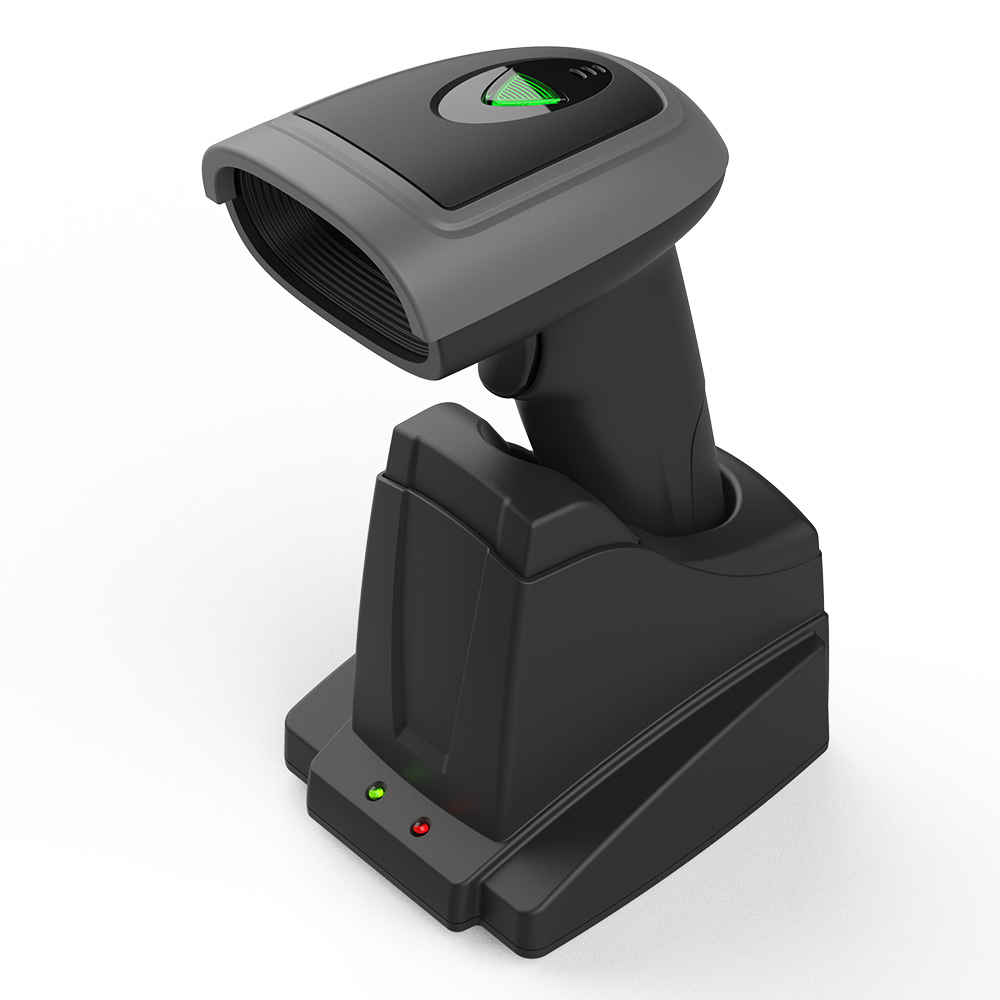

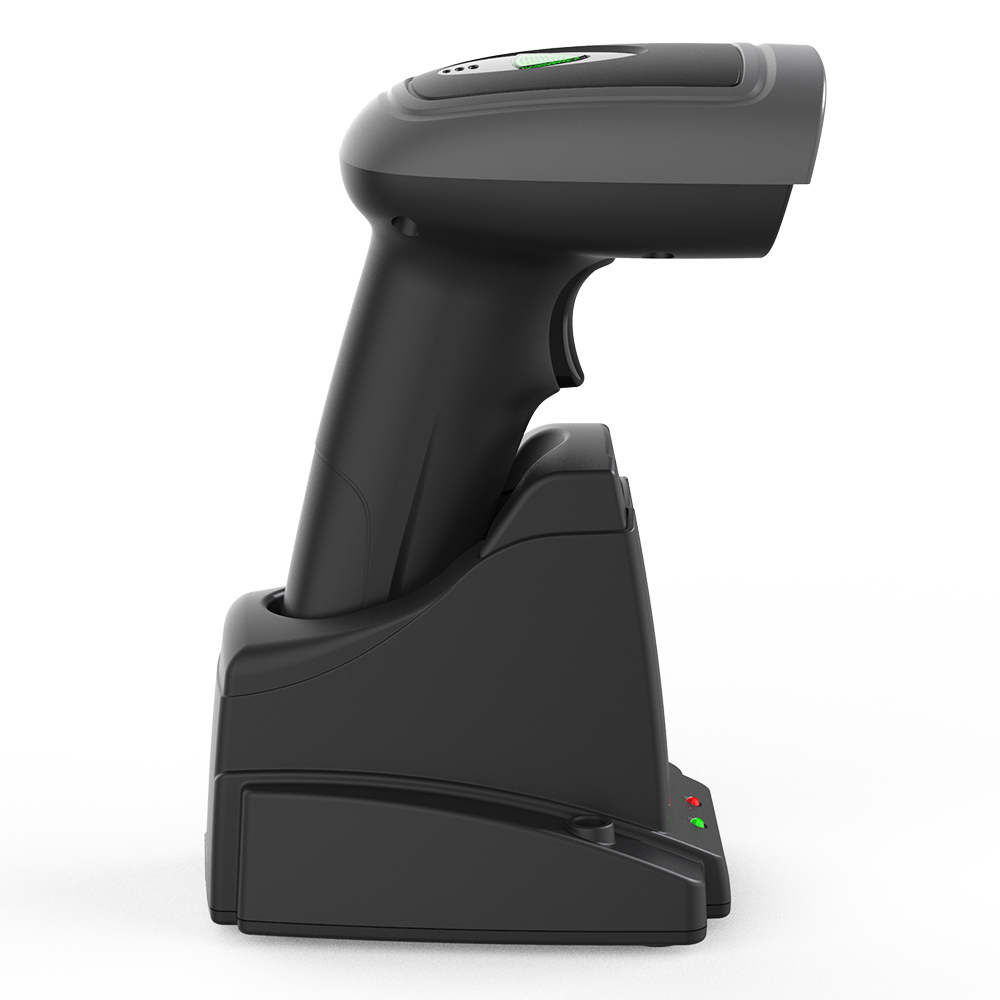

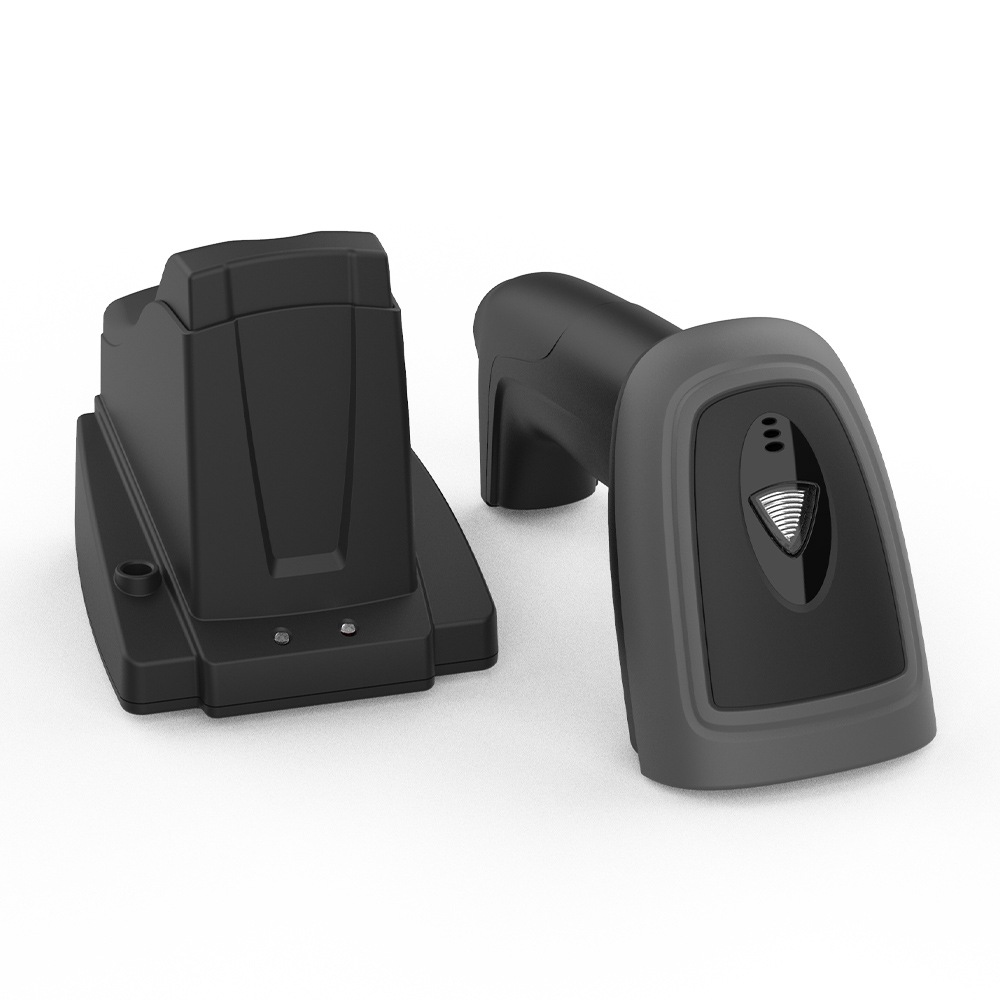

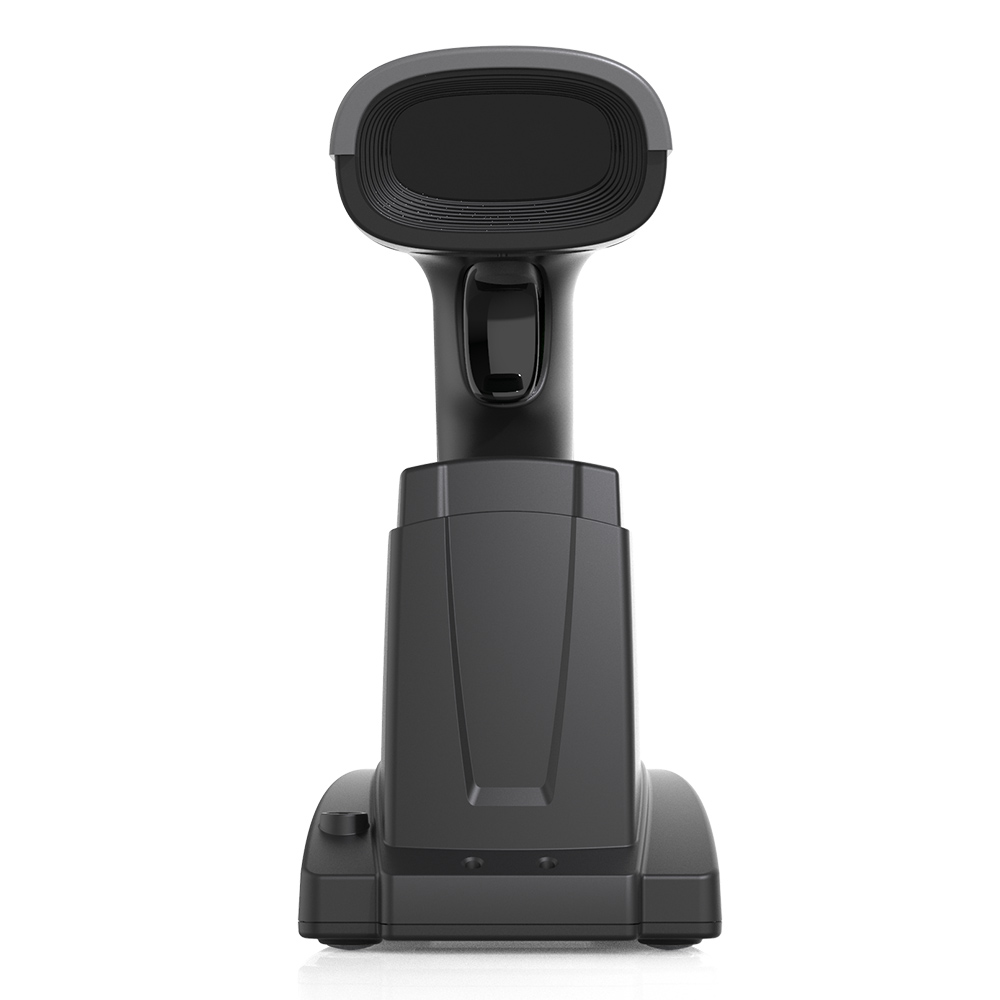

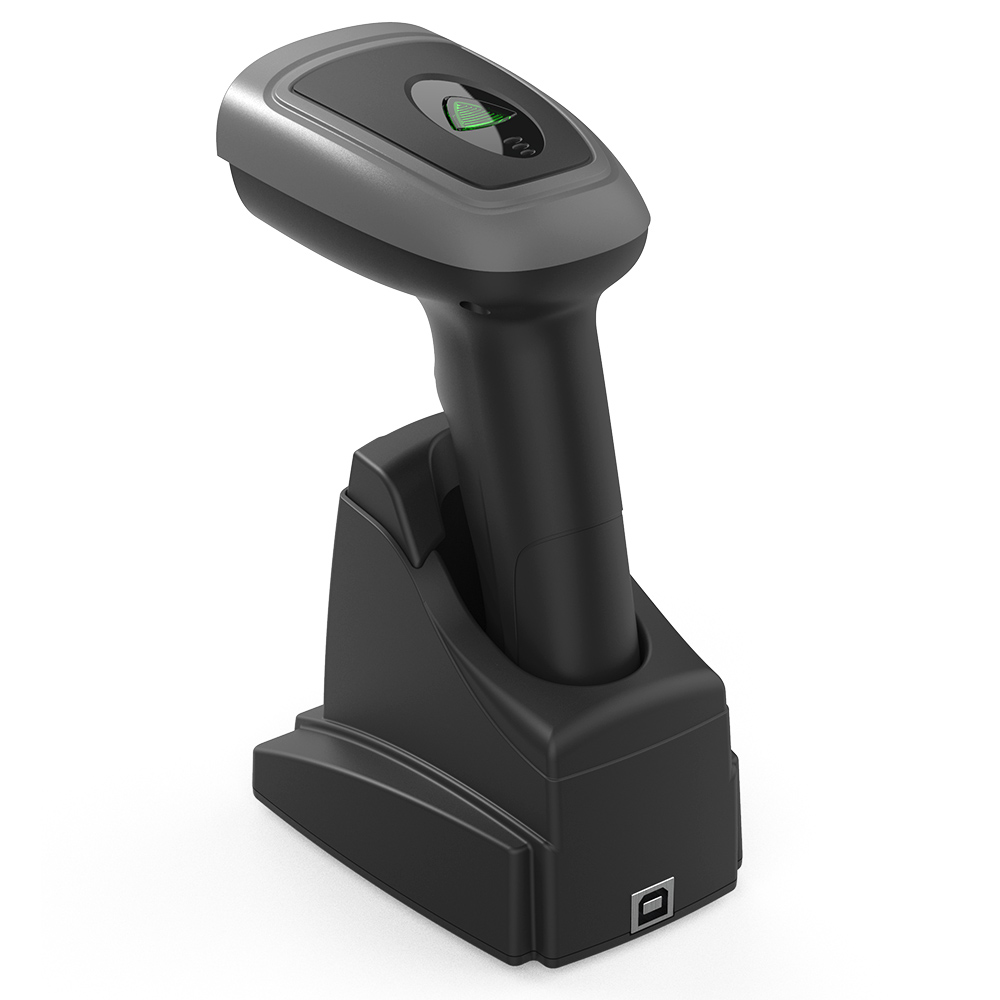

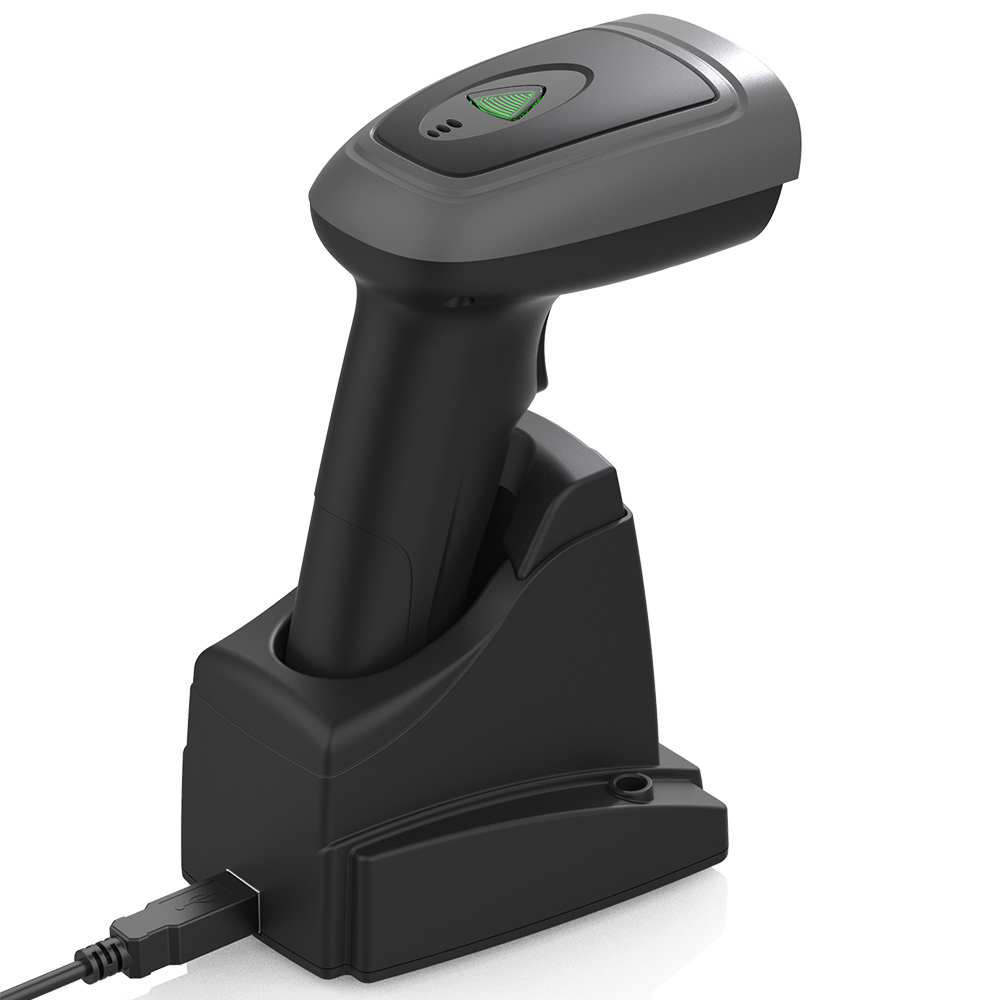

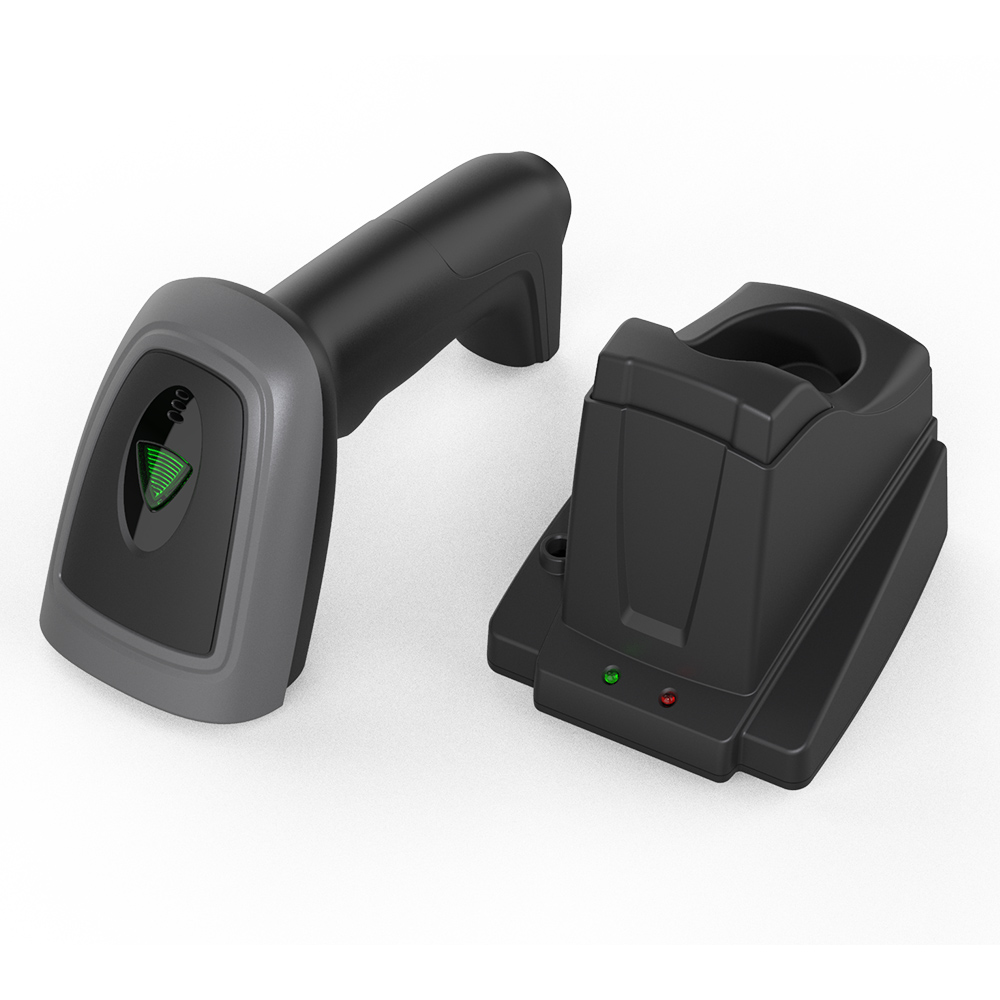

Product Pictures:
