Light-weight Wireless Mini Portable Bluetooth QR Bar Code Reader 1D 2D Barcode Scanner

Product Description:

IBC-23, it is portable1D 2D Wireless 2.4G + Bluetooth Handheld Barcode Scanner. It is mini size, light and portable. Using advanced CMOS image recognition technology, intelligent image recognition system, it can easily read barcodes on paper, screens and other media. With excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, express, logistic, etc.

Product Features:

• 3-in-1 2.4G Wireless & Bluetooth & USB Wired;
• Mini portable Bluetooth Barcode Scanner;
• Scanning Work with Windows, Android, iOS, Tablets or Computers;
• It can command trig by Bluetooth;
• Support BLE,SPP, HID Keyboard;
• Super light only 32g/ 1.13oz, and mini size;
• One-fourth the size of a mobile phone, easy to carry;
• Especially for shop, bookstore, library, warehouse, supermarket;
• 3-in-1 Connection Ways;
• Powerful Battery System,it can work over 10 hours;
• Multiple Configuration Options;
• It have 16M flash memory.

Product Advantages:

• Portable Mini barcode Scanner
Super light only 32g/ 1 . 13oz, and mini size . One-fourth the size of a mobile phone, easy to carry. When you do not need to use it, just put it in your pocket. Especially for shop, bookstore, library, warehouse, supermarket.

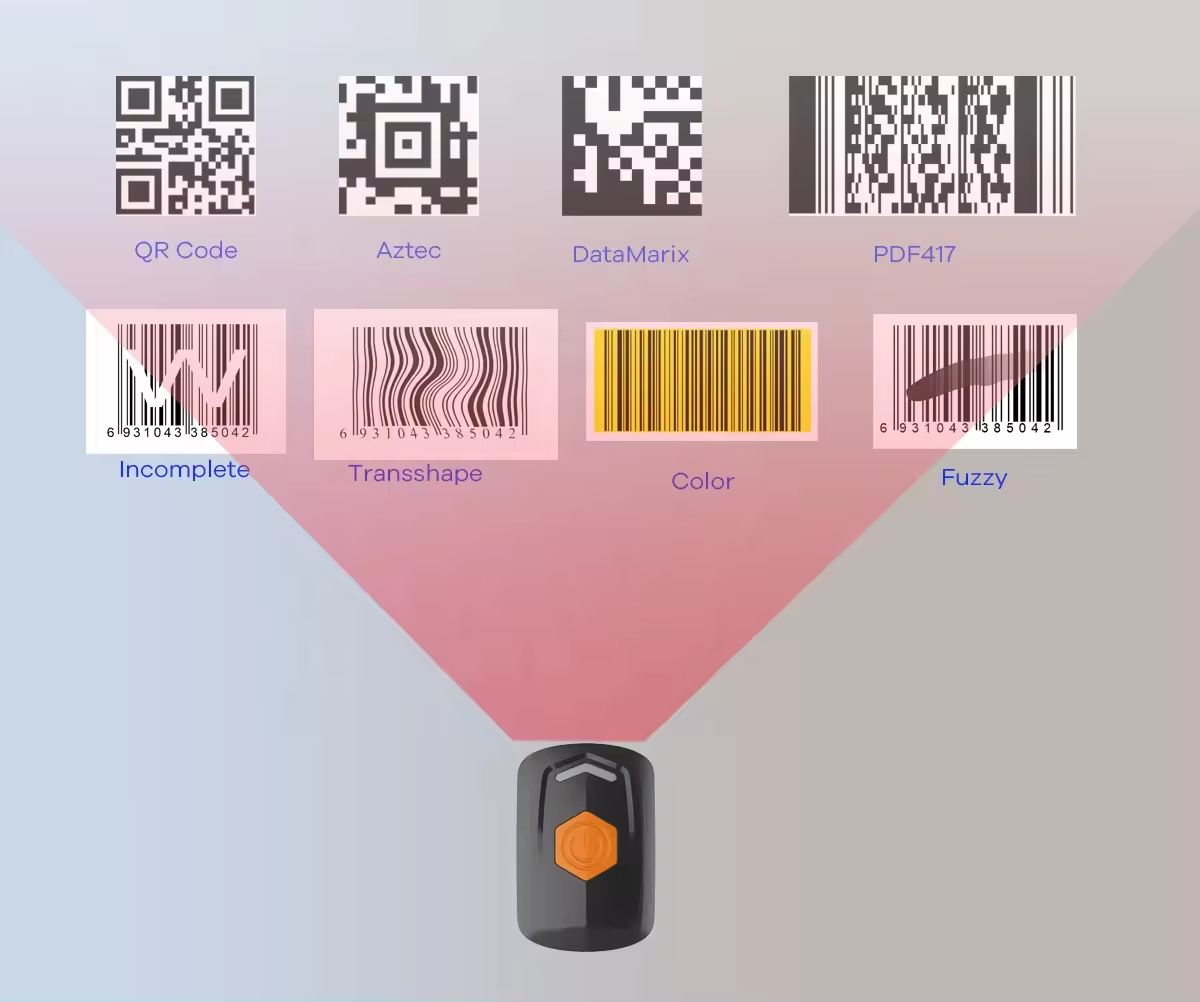

• Strong 1 D&2D Barcodes Decoding Ability
1D barcode scanner support scan most of 1D barcodes, such as EAN, UPC, Code 39, Code 128, UCC/ EAN 128, Coda bar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN,
MSI-Plessey, GS1 Data bar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 . all 2D b arcoes
• 3-in-1 Connection Ways

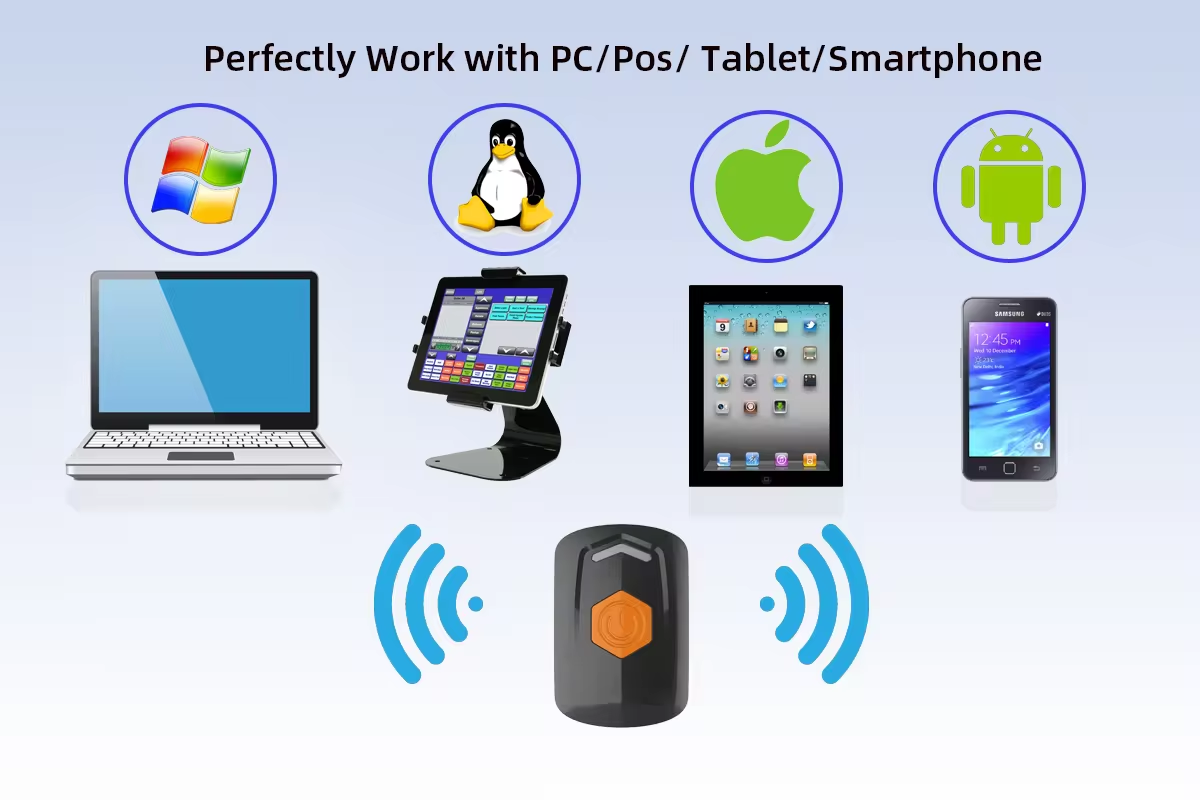

This Bluetooth barcode scanner support 2.4G wireless, Bluetooth wireless and USB wired 3 connection modes, you can choose the most convenient way according to your needs . Compatible with Windows, macOS, Linux, Android and IOS operating system .
• Powerful Battery System
Our barcode scanner built-in 450mAh rechargeable lithium battery, can work continuously for 8 Hours under normal condition after fully charged, standby time up to 720 hours, and charging takes only 4 hours.
• Multiple Configuration Options
This wireless barcode scanner support instant upload and storage mode two types upload modes, hide front and back characters, add prefix or suffix, set sleep time, set sound and vibration, etc useful function . You can set these functions according to your needs .

Product Specification:

Model IBC-23
Item Poratable Wireless Bluetooth Mini 2D Barcode Scanner
Performance Characteristics
Optical System High performance imaging CMOS (640 x480)
Print Contrast 20% minium reflective difference
Aimming Green LED
Minimum Resolution 4mil (Code39, PCS 0 .9)
Reading Range 13mil EAN13 more than 15cm
Scan Rate 300 times/ S
Battery 3 .7v Li Battery, 450mA
Processor/ Memory ARM 32 / 16M Flash
Interface USB HID Keyboard/ USB COM
Support OS Microsoft Windows XP/ 7 .0/ 8 .0/ 10, Mobile6/ Wince, Android, IOS.  (without driver)
Scan Mode Trig Mode/ Comman Mode/ Continue Mode/ Auto Sensor Mode
Bluetooth Bluetooth Class 4 .2
Physical Characteristics
Dimensions L*W* H (99mm*46mm*21mm)
Weight 33g (with battery)
Color Black
Indication Beep/ LED/ Vibration
Voltage Input DC 5V
Operating Current Standby Current: 20mA; Working Current: 80mA
Radio Range Bluetooth: 30 meters; 2 .4G: 80 meters
Supported Symbologies
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, IATA, code32, Codabar, NW-7, Plessey, MSI Plessey, RSS, China Post
2D: QR code, Data Matrix, PDF417, Aztec code and Maxi Code
User Environment
Drop Specifications 2 meters fall into concrete for several times
Environmental Sealing IP42
Operating Temperature -10 ° C  to 50 . ° C
Storage Temperature -10 ° C  to 50 . ° C
Humidity 5% to 95% relative humidity, non-condensing
Ambient Litht Immunity 0~80000 lux
ESD Protection Functional after 15KV discharge
Accessories
Cables Usb cable (type c)
Others Manual, Usb receiver

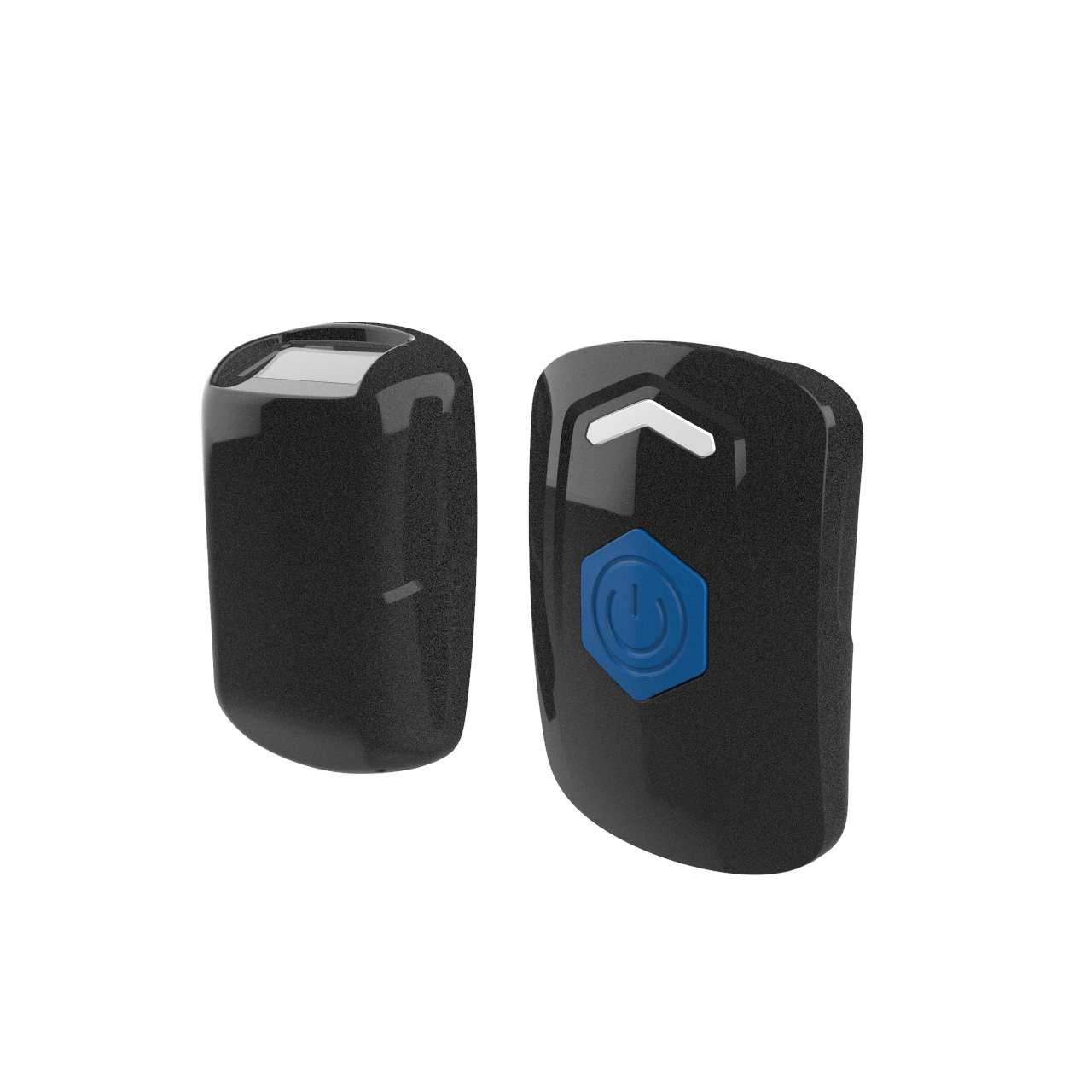

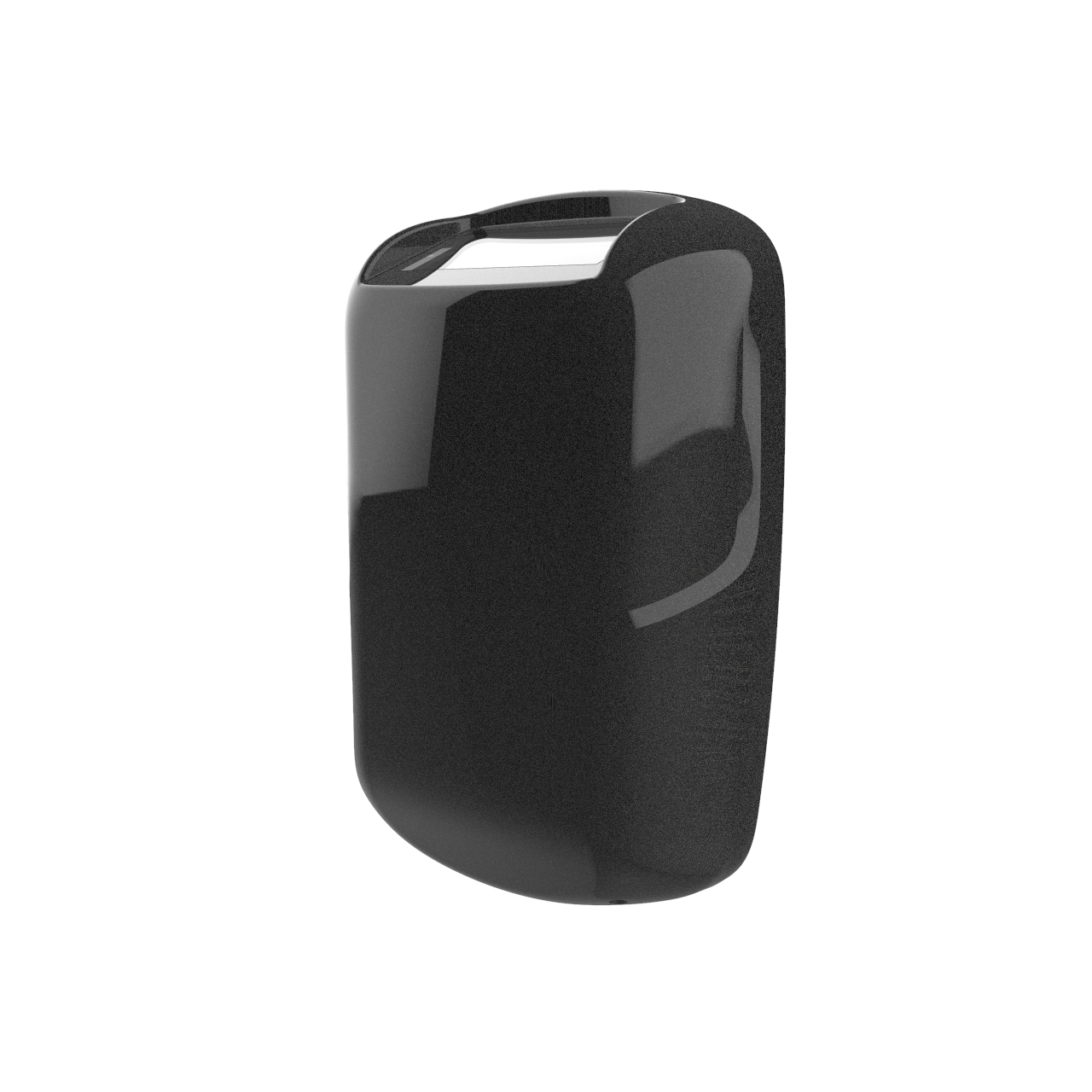

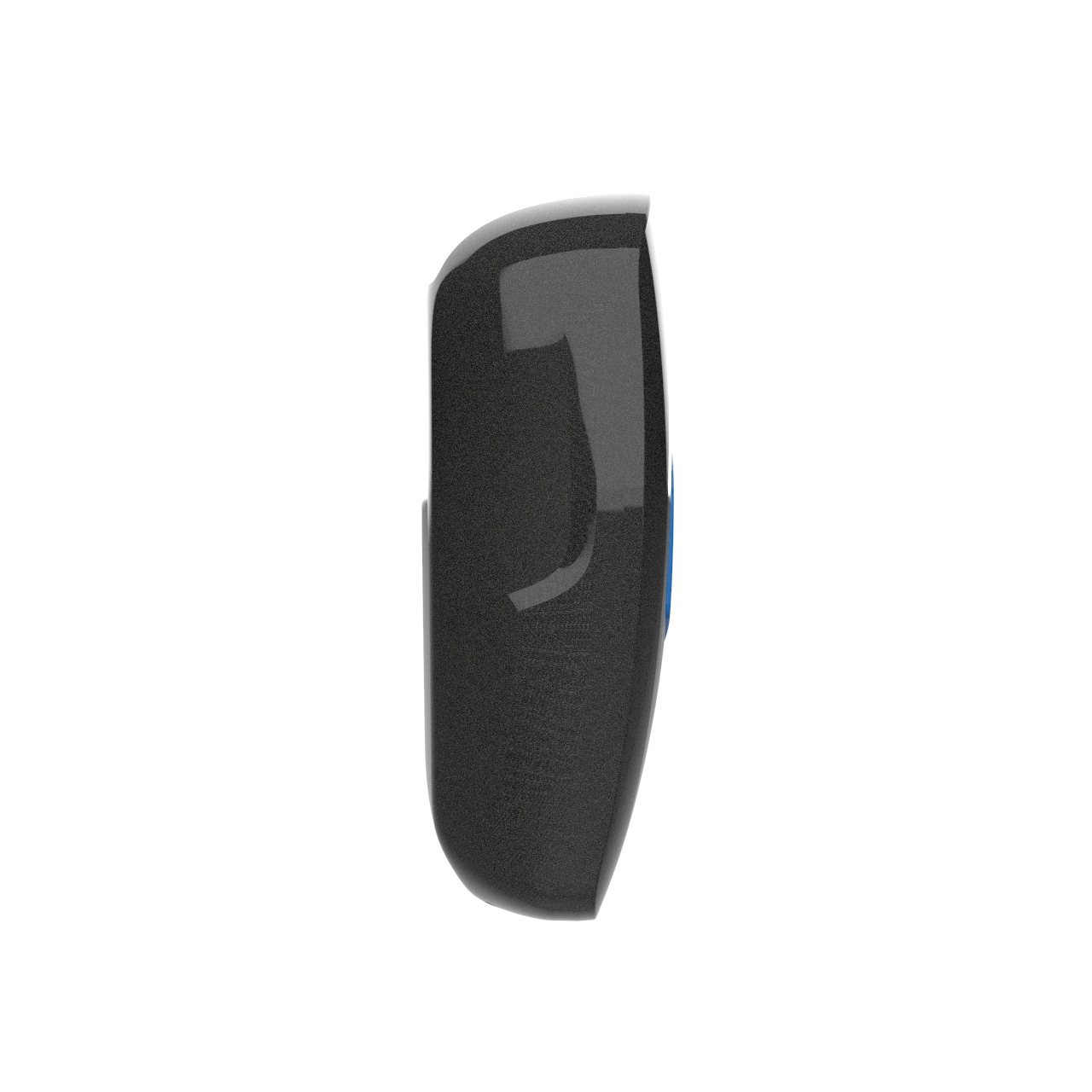

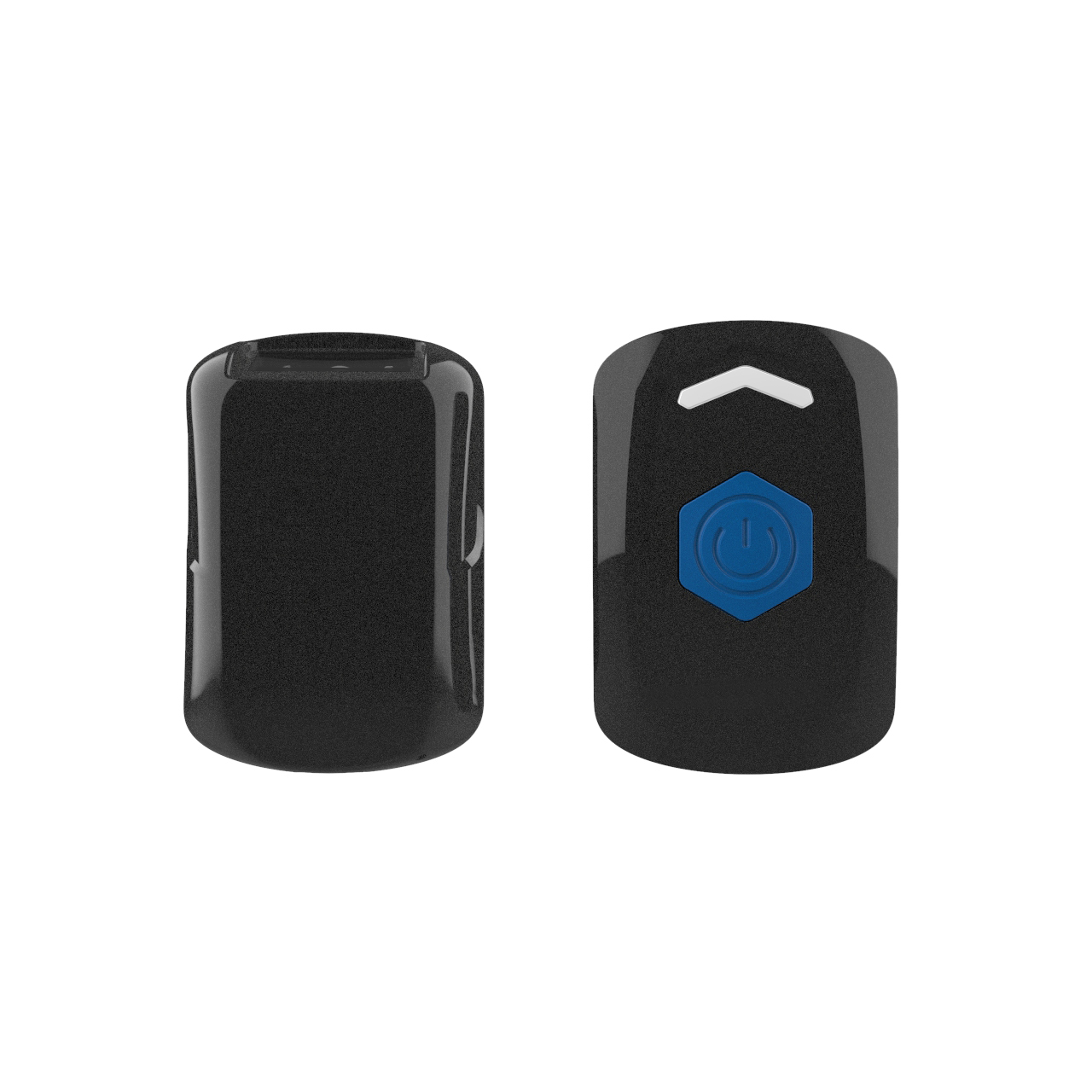

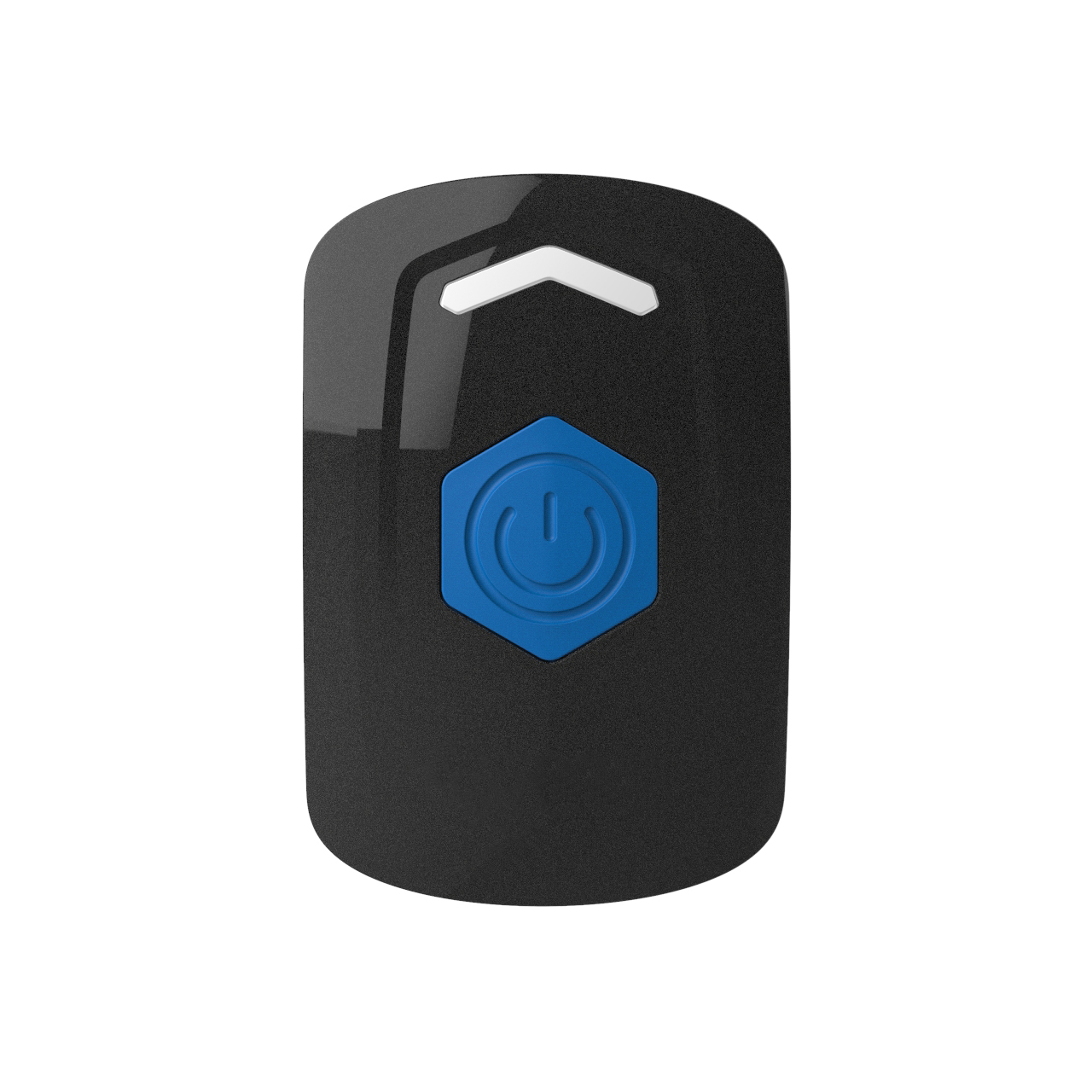

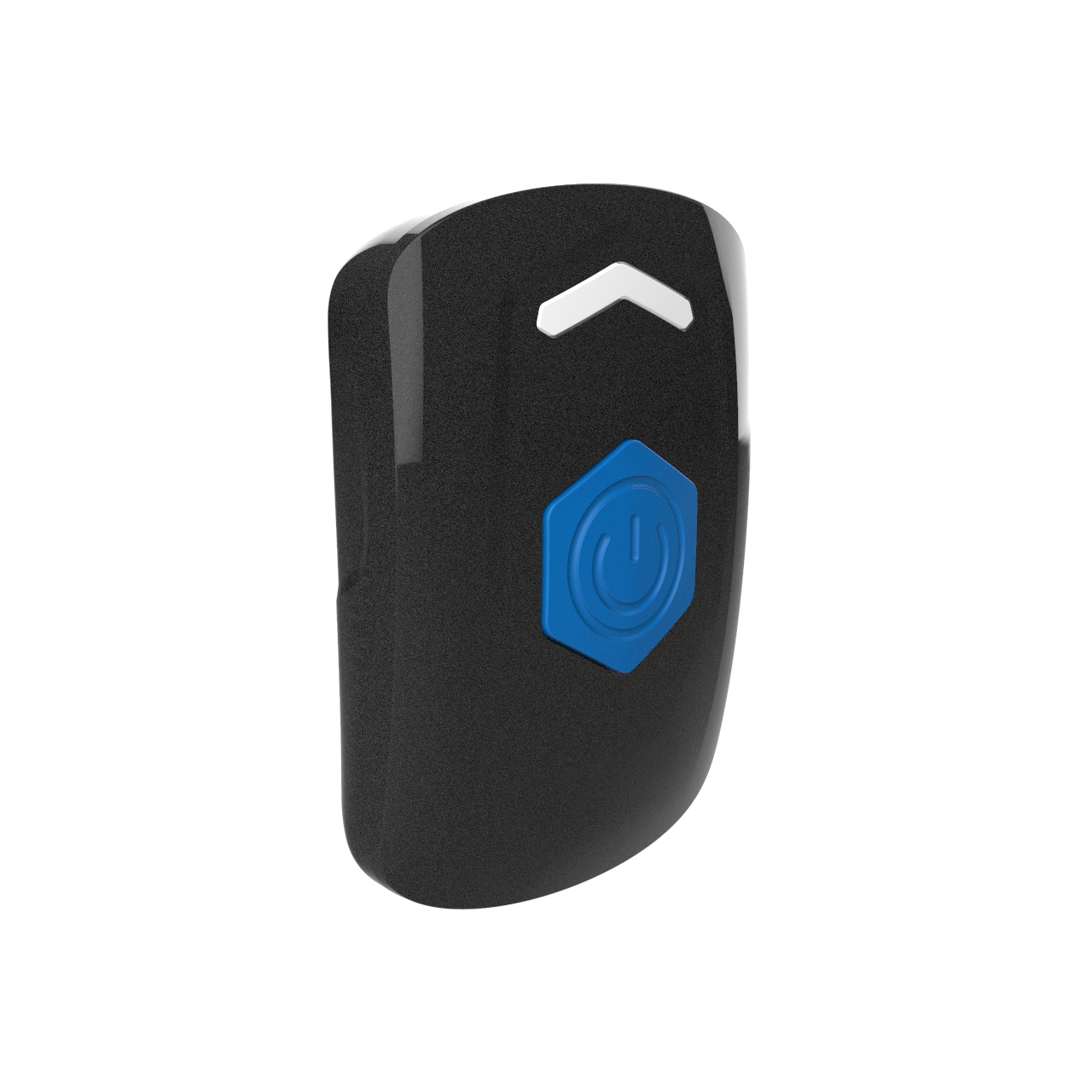

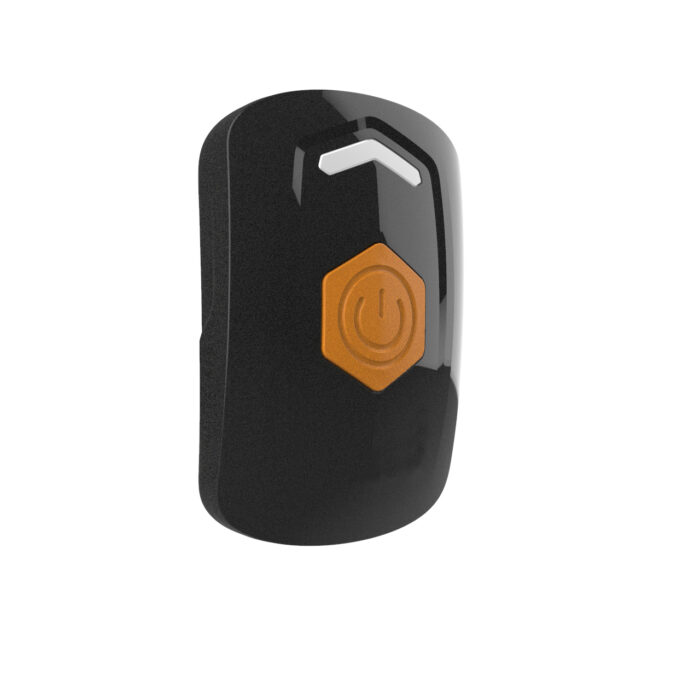

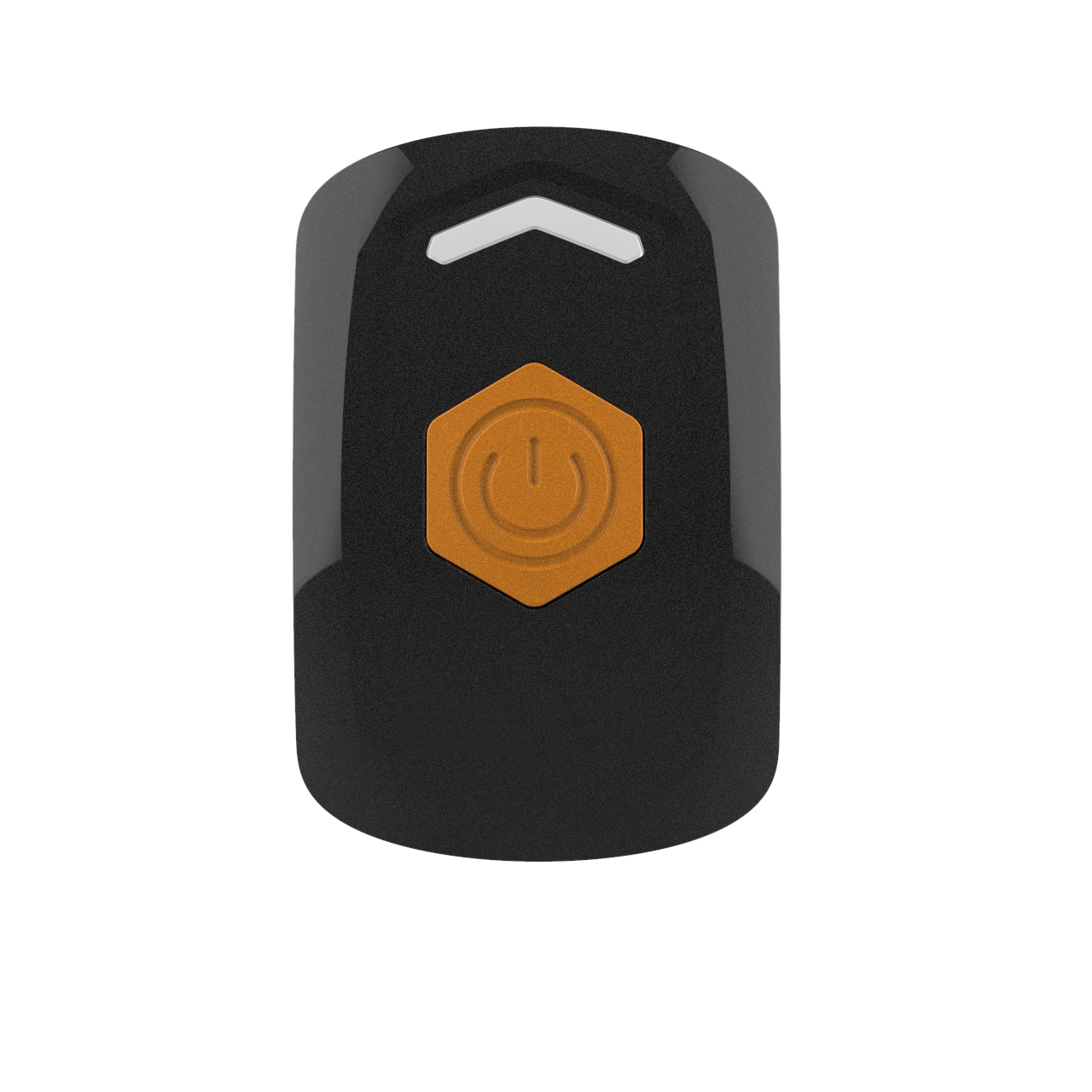

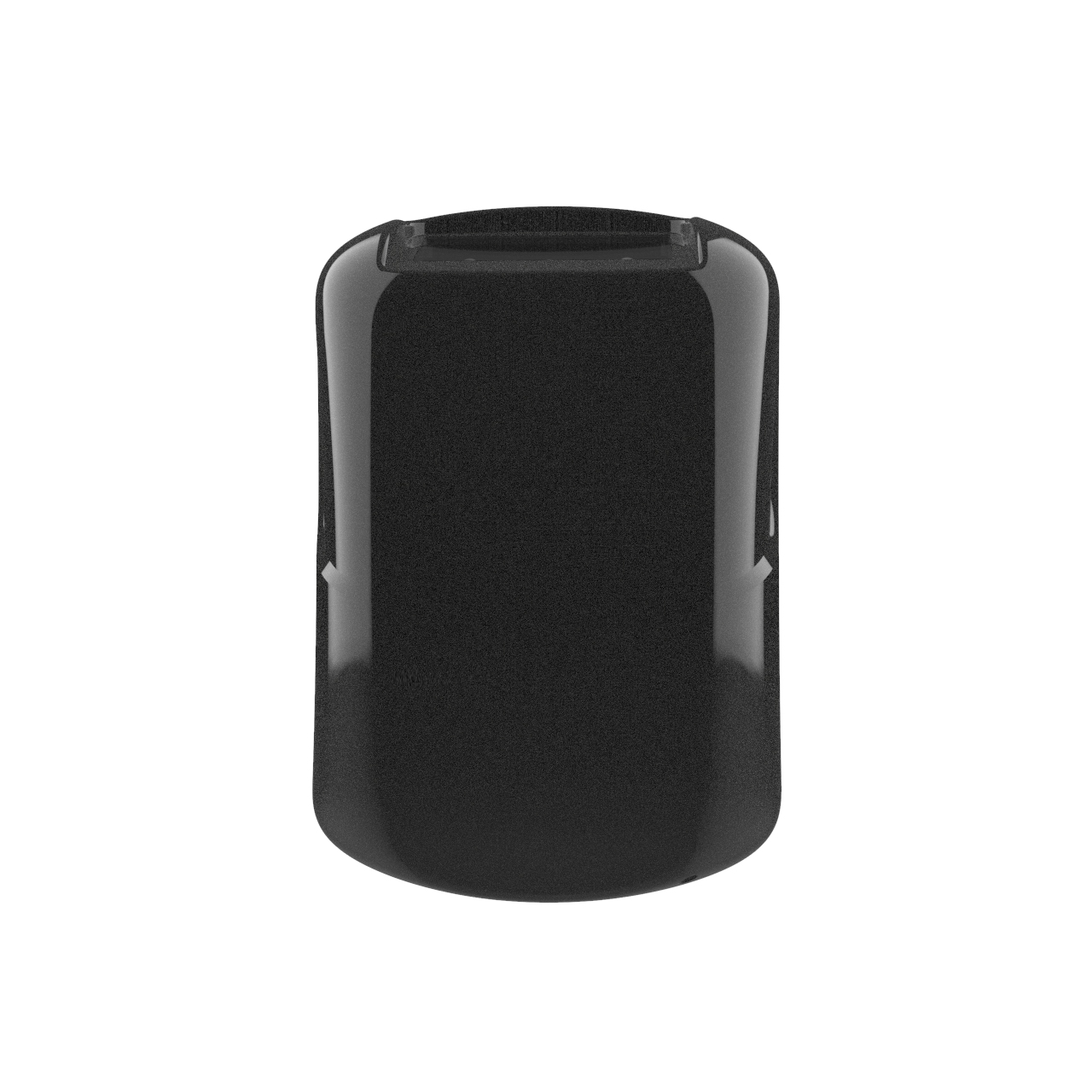

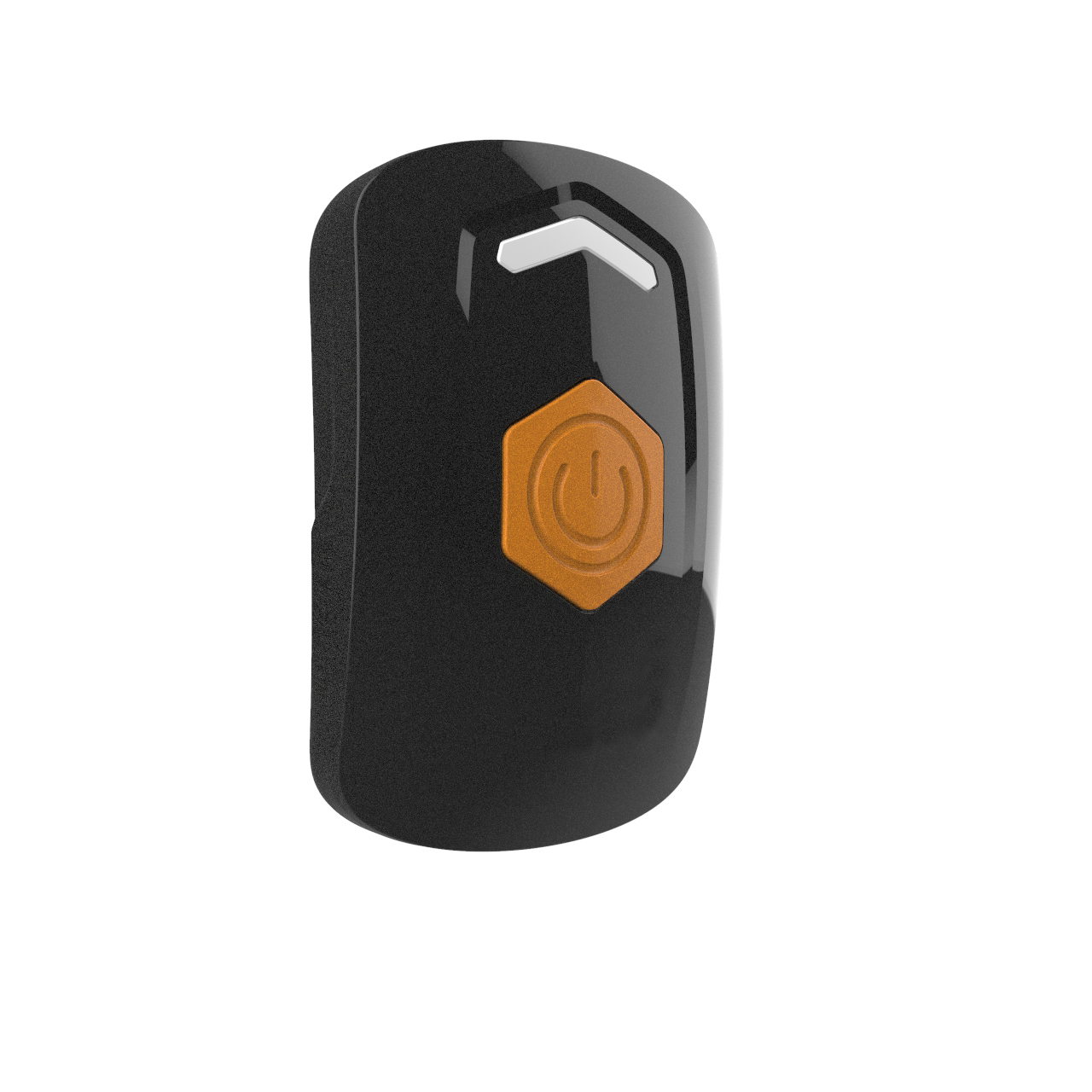

Product Pictures:
