Inventory Handheld Wireless Barcode Scanner 2D CMOS Qr Code Barcode Reader With Charging Base

Product Description:

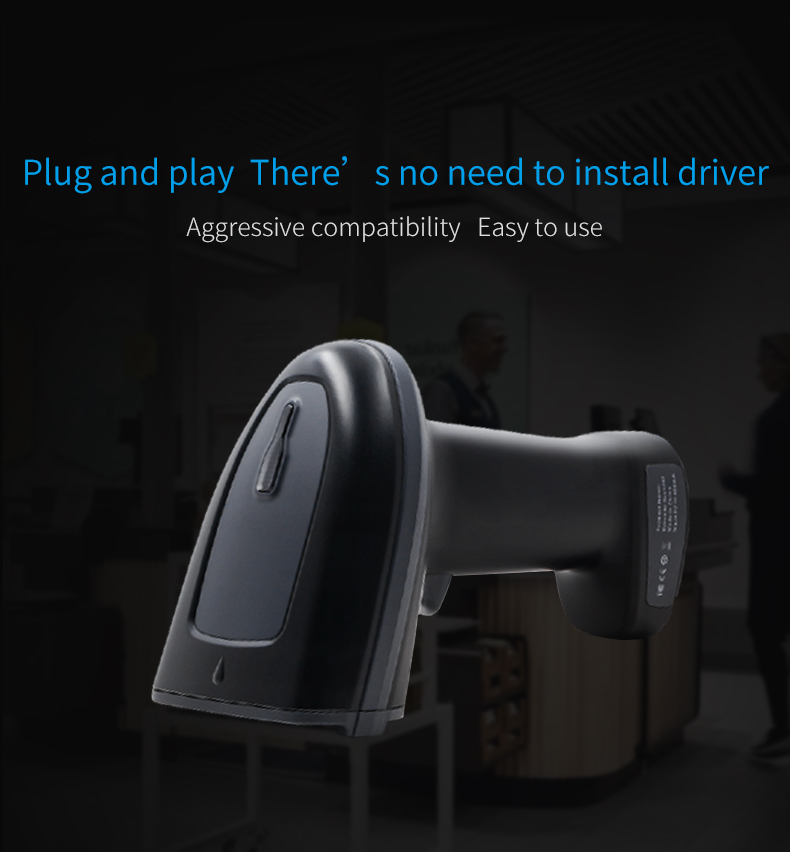

IBC-1600RT (IBC-1600BT), it is high quality handheld wired and wireless 2D QR Code Reader.  It can scan various 1D and 2D codes. It supports mobile payment goods scanning. This handheld barcode scanner can be easy to operated, plug and play. It is with excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, etc; it is more convenient to scan the QR code to check out.

Product Features:

● Wireless distance: long-distance wireless communication technology is used to achieve mobile scanning within a range of 100m (open space).
● Lithium-ion battery: high-density 2000mAh lithium-ion battery is used, and a full charge supports 5 hours of continuous work.
● Unique decoding technology: using the world’s top decoding algorithm, various one-dimensional and two-dimensional barcodes can be quickly and accurately interpreted.

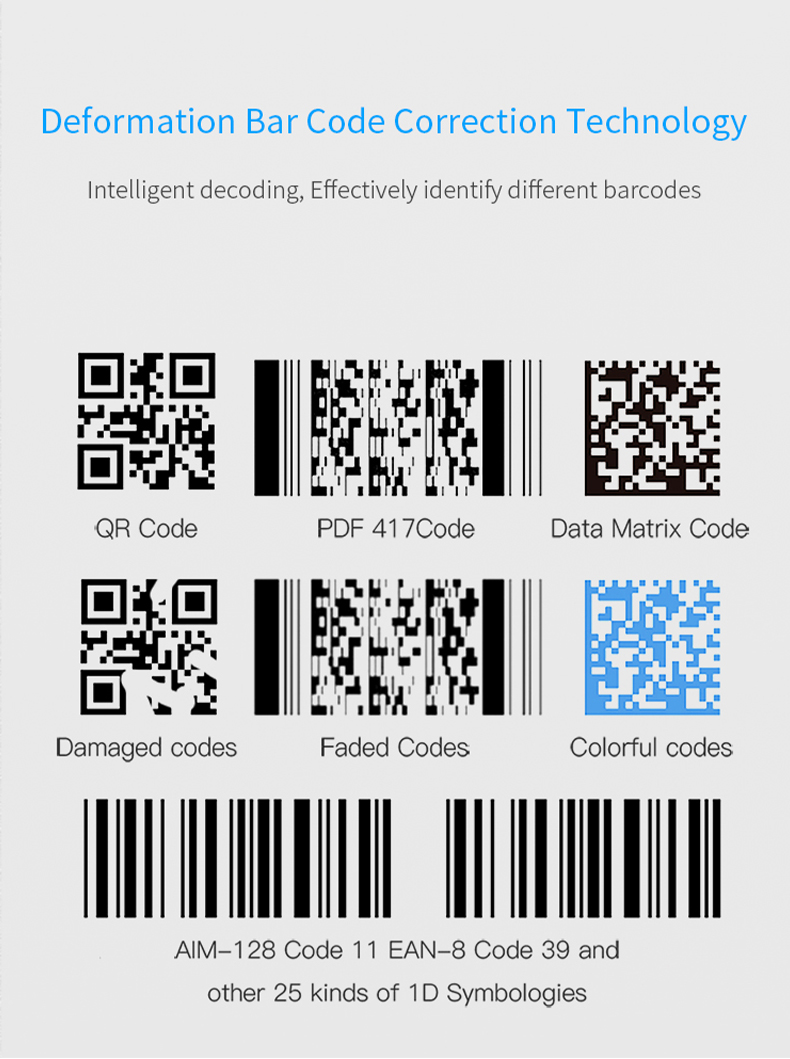

● High-performance scanning technology: supports scanning of various high-density, damaged and deformed barcodes.

Product Specification:

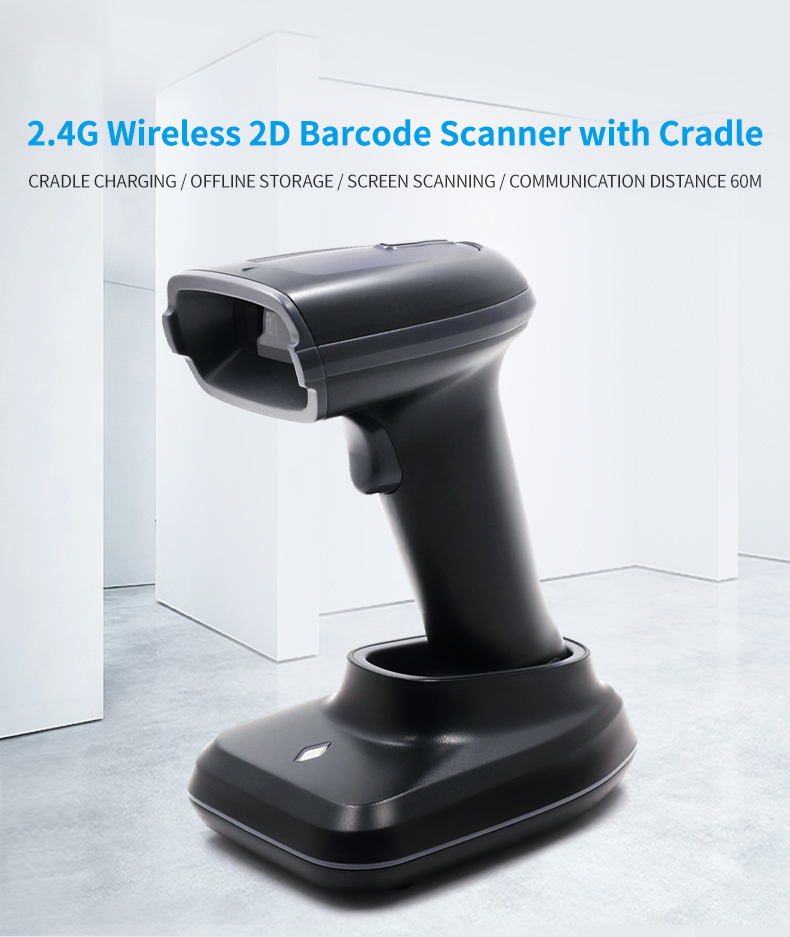

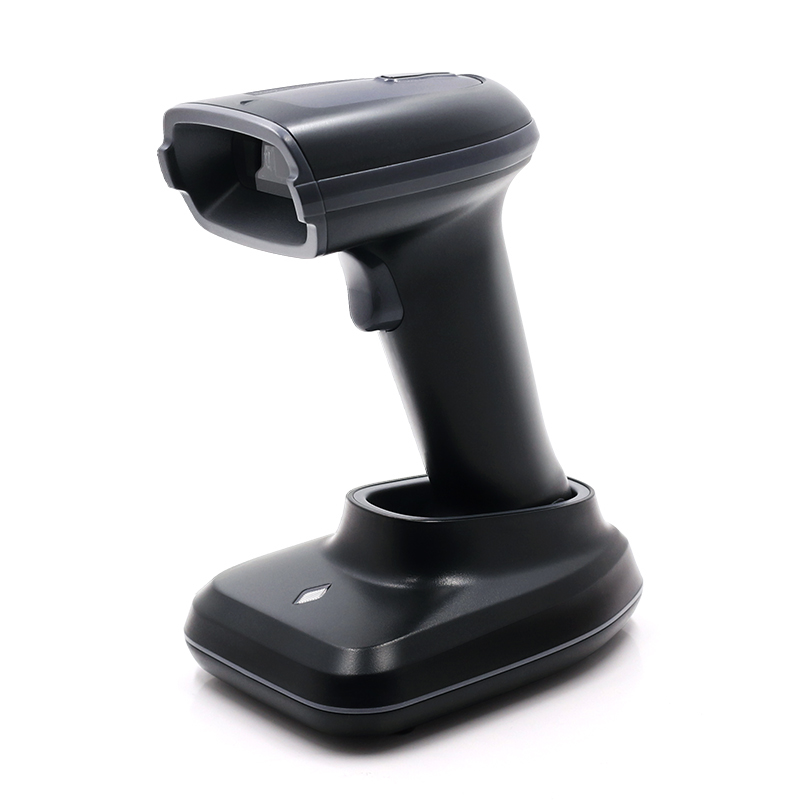

Product Name 2D Wireless Barcode Scanner With Charging Base
Model IBC-1600RT, IBC-1600BT
Performance
Image Sensor 640*480 CMOS
Illumination White LED
Aimer Red 650nm
Symbologies 1D:  Airline 2 of 5, Codabar, Code 128, Code 11, Code 32, Code 39, Code93, Composite, EAN-8, EAN-13, UPC-A, UPC-E, Full ASCII Code39, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Limited, Matrix 2 of 5, Hong Kong 2 of 5 (China post), Interleaved 2 of 5, Telepen, MSI, Pharma code, Straight 2 of 5 Industrial, Trioptic Code
2D:  Aztec Code, AU Postal Code, Data Matrix Code, HANXIN, Codablock A, Codablock F, DOT_Code, ENG Postal Code, PDF417, MicroPDF417, JP Postal Code, KIX Postal Code, Maxicode, QR Code, Micro QR Code, PLANET Code, POSTNET Code, Royal Infomail Code, UPU Postal Code
Resolution ≥5mil

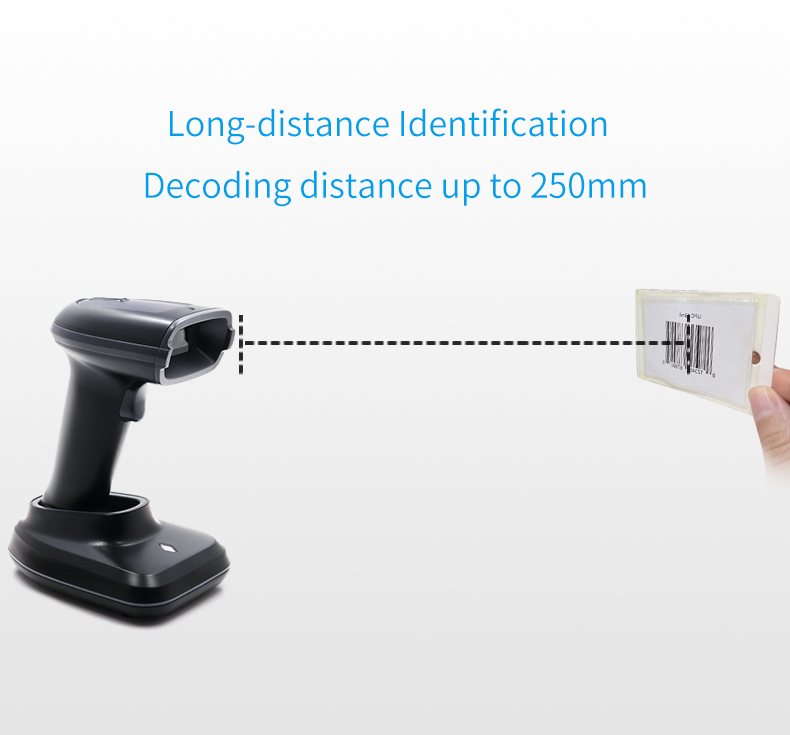

Typical Decode Range EAN-13  (13mil):  30mm~ 250mm (Size: 32mm*25mm)
PDF417  (6mil):  30mm~120mm (Size: 17mm*12mm)
Code39  (5mil):  30mm~90mm (Size: 25mm*10mm)
Data Matrix (10mil):  25mm~110mm (Size: 6mm*6mm)
QR Code  (15mil):  25mm~150mm (Size: 8mm*8mm)
Min Print Contract ≥20%
Scan Angle Skew±60°, Pitch ±60°, Roll 360°
FOV Horizontal 45.86°, Vertical 35.21°
Electronic
Interface USB

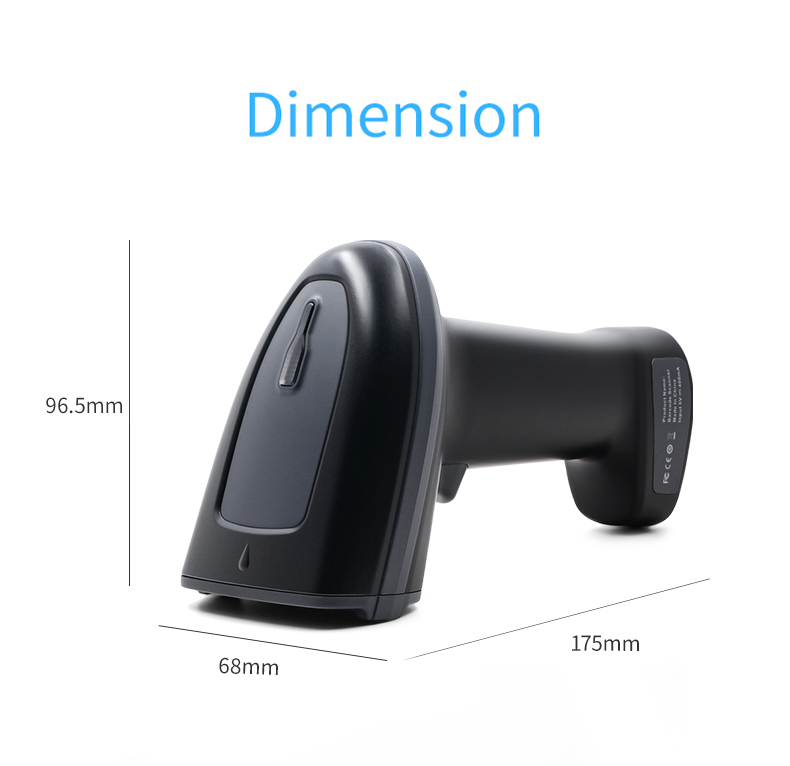

Dimension (mm) 68 (W)×96.5  (D)×175 (H)
Net Weight About 200g

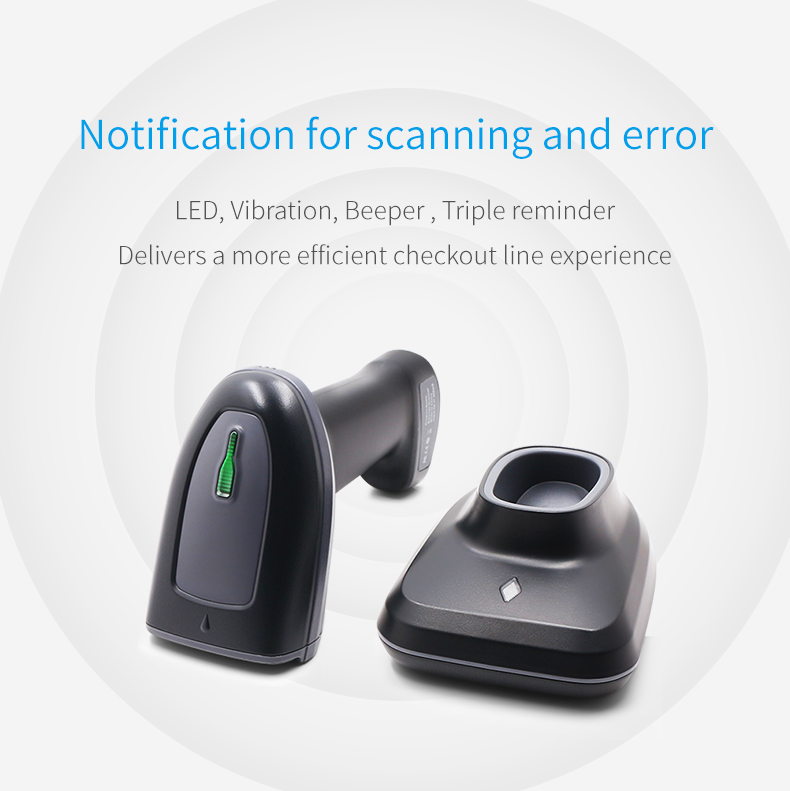

Tips Buzzer, LED indication, vibrator
Operating Voltage 5 VDC±5%
Wireless

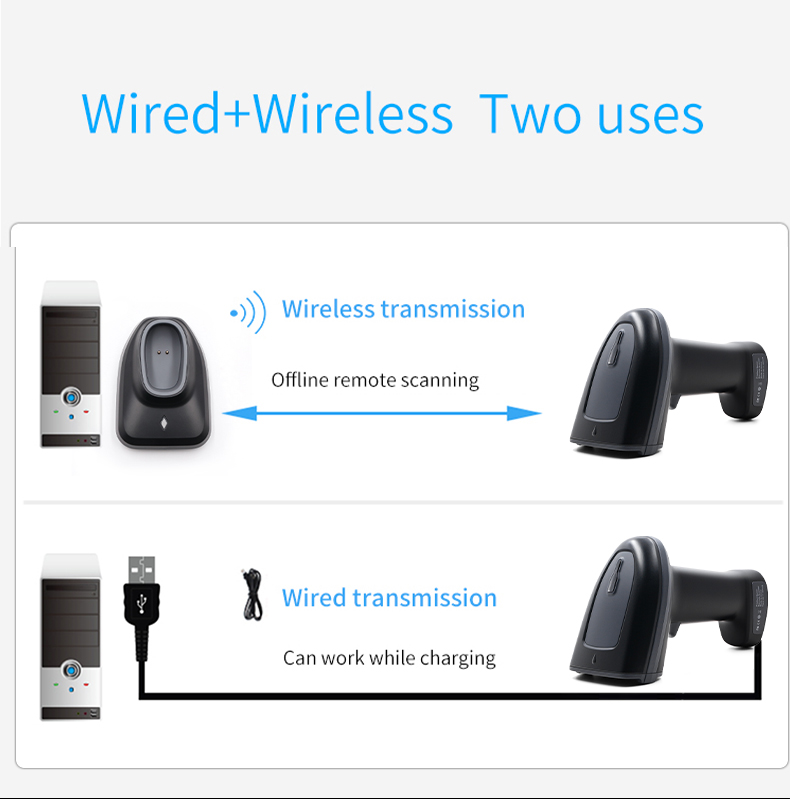

Communication mode Synchronous upload mode/manual batch upload mode
Wireless standard 2.4G

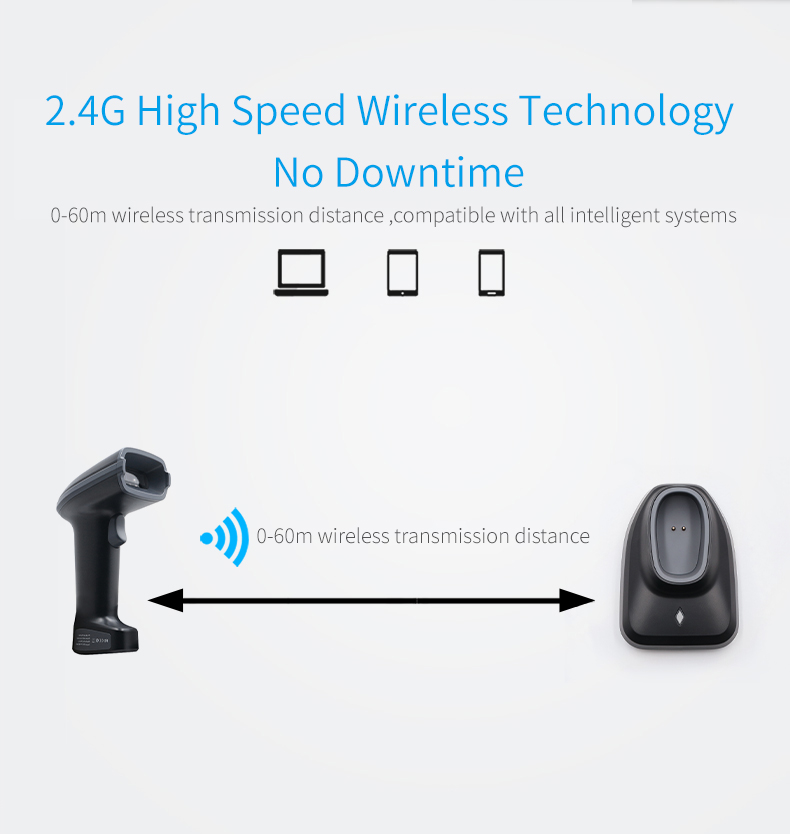

Transmission distance ≥60 M (2.4G)
Storage capacity ≥15000 PCS (20 Byte Code128
Battery capacity 2000 mAh
Battery charging time ≤4.5 hours
Continuous working time ≥13 hours  (10 S/Time 2.4G
Environmental
Operating Temperature -10℃~+60℃
Storage Temperature -20℃~+70℃
Operating Humidity 5%~95%
Embient Light 0~100, 000LUX
Accessories
USB USB cable
Regular receiver Support 2.4G wireless transmission product option
Size: 14.2 (W)×18.4  (D)×6 (H)

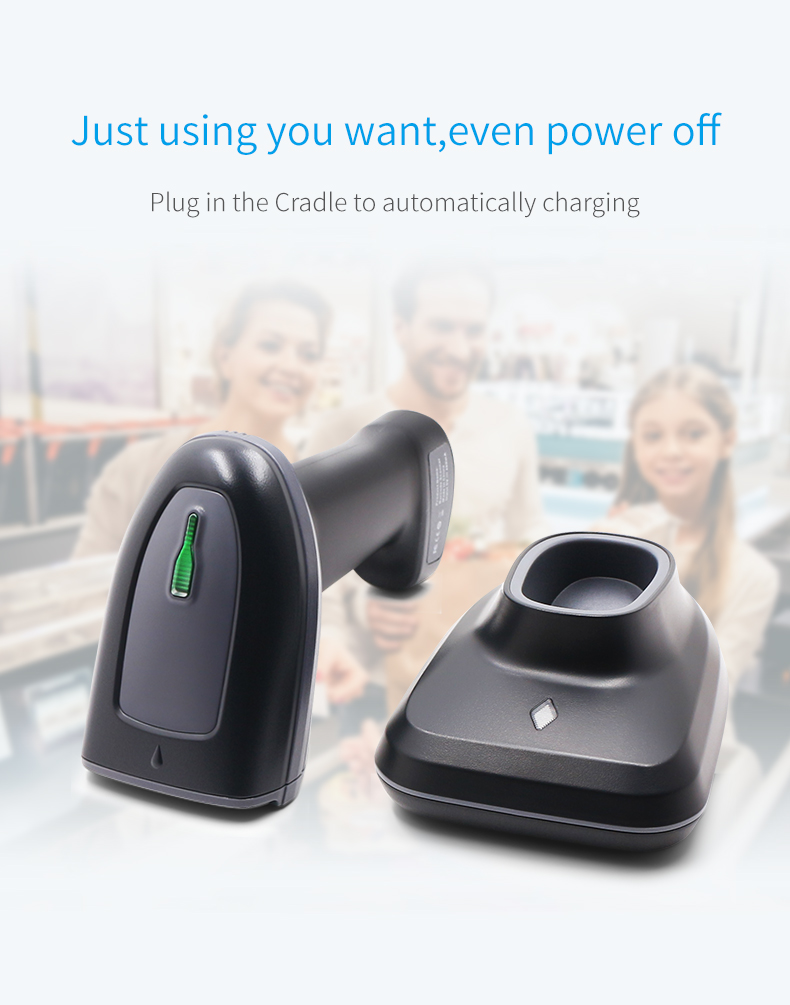

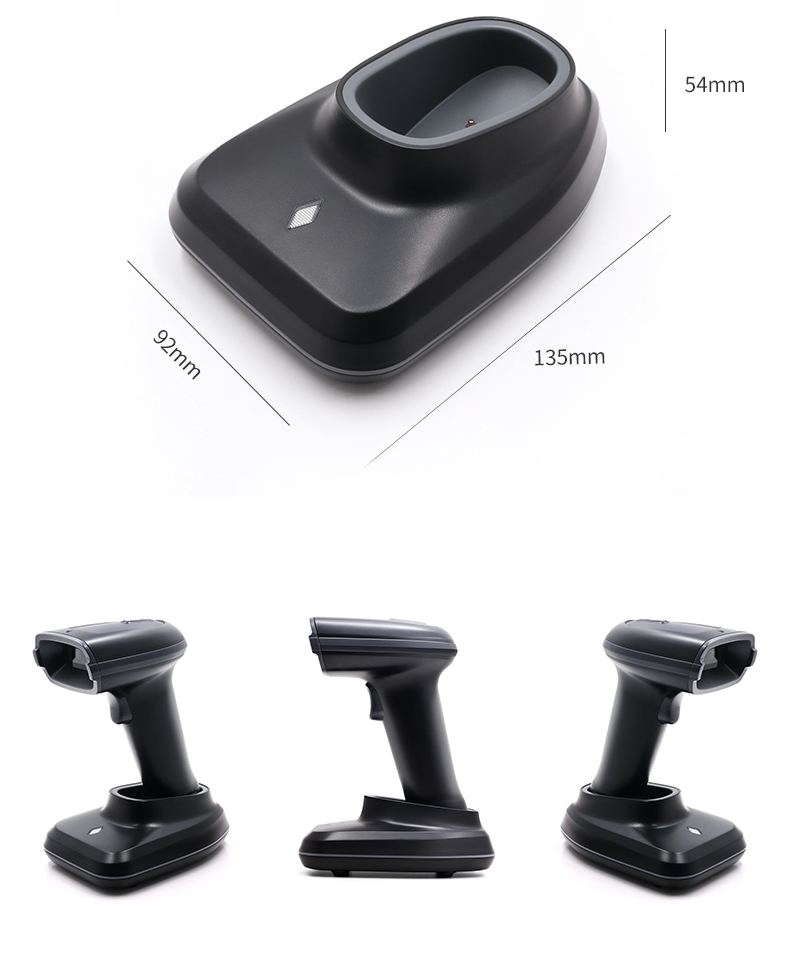

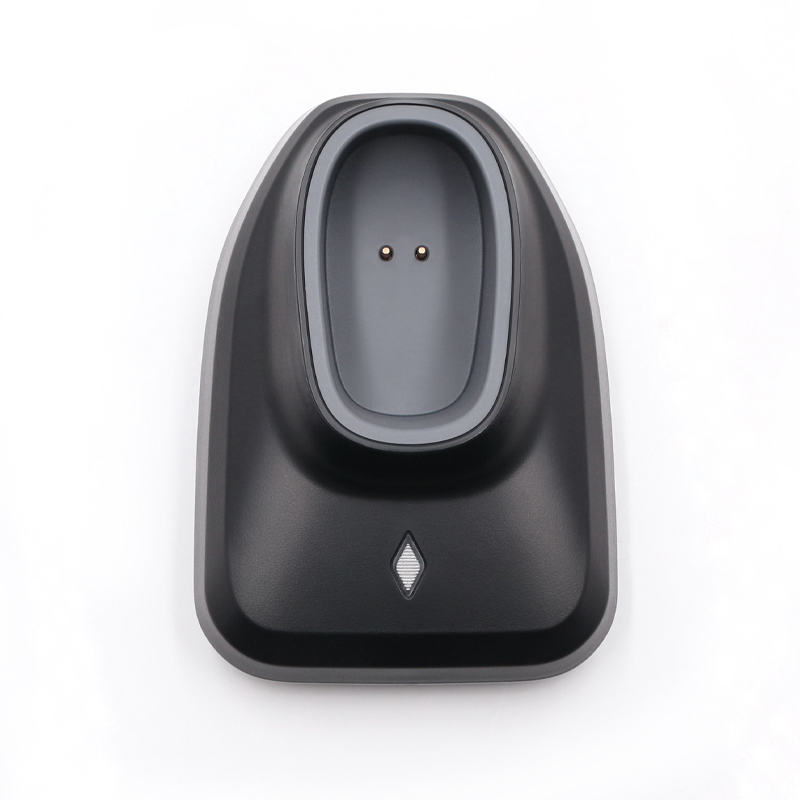

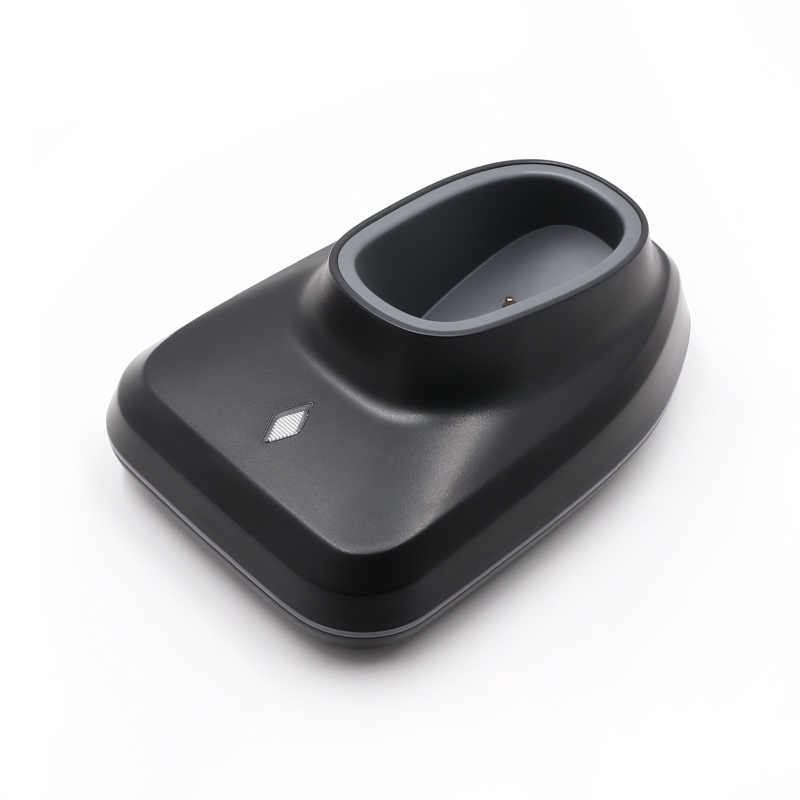

Wireless charging cradle Support 2.4G wireless transmission product option
92 (W)×135  (D)×54 (H)   Net weight: 230g

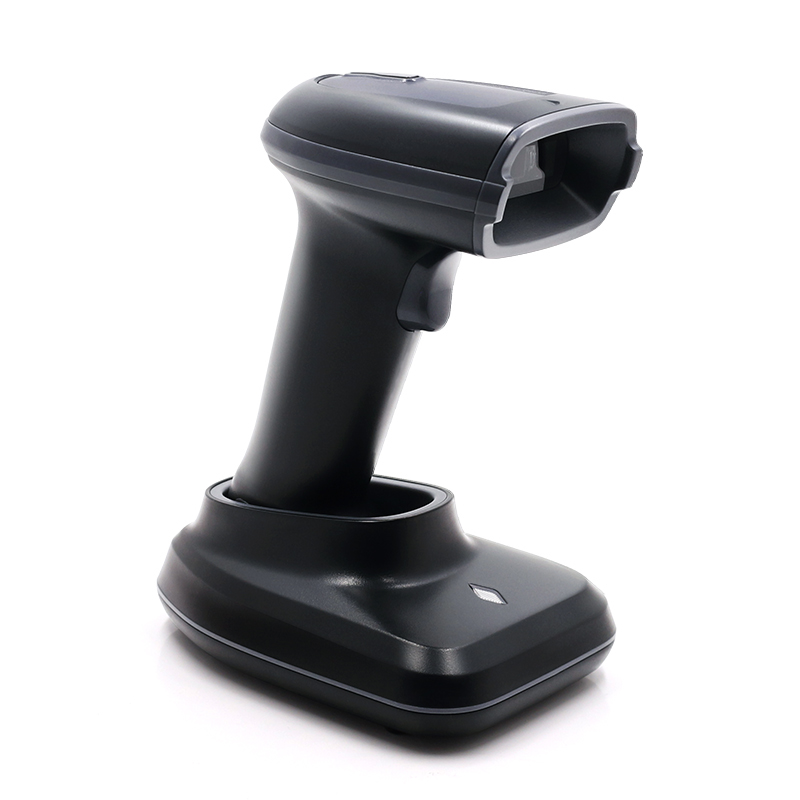

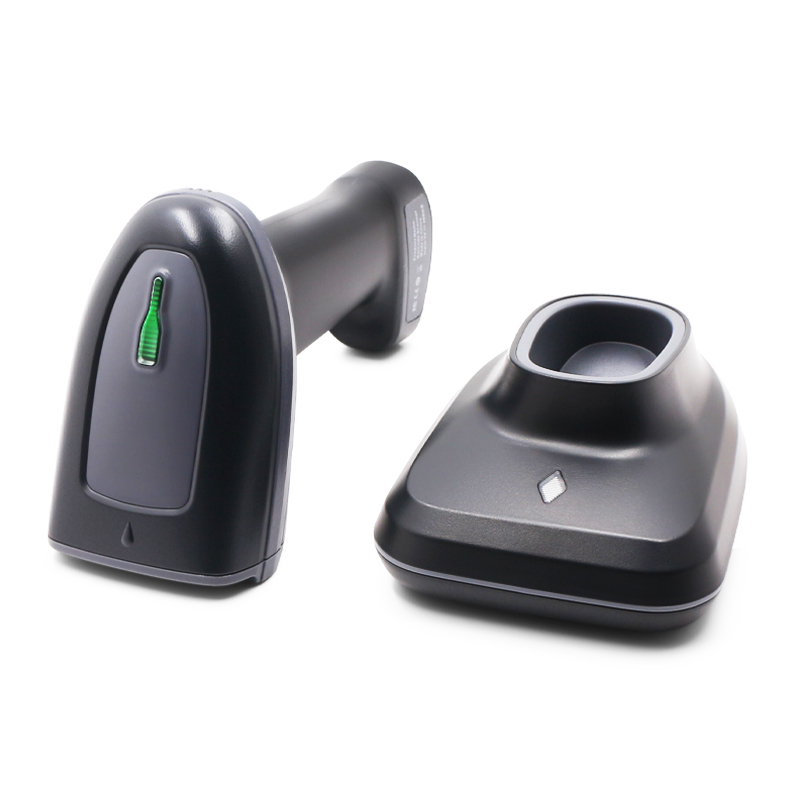

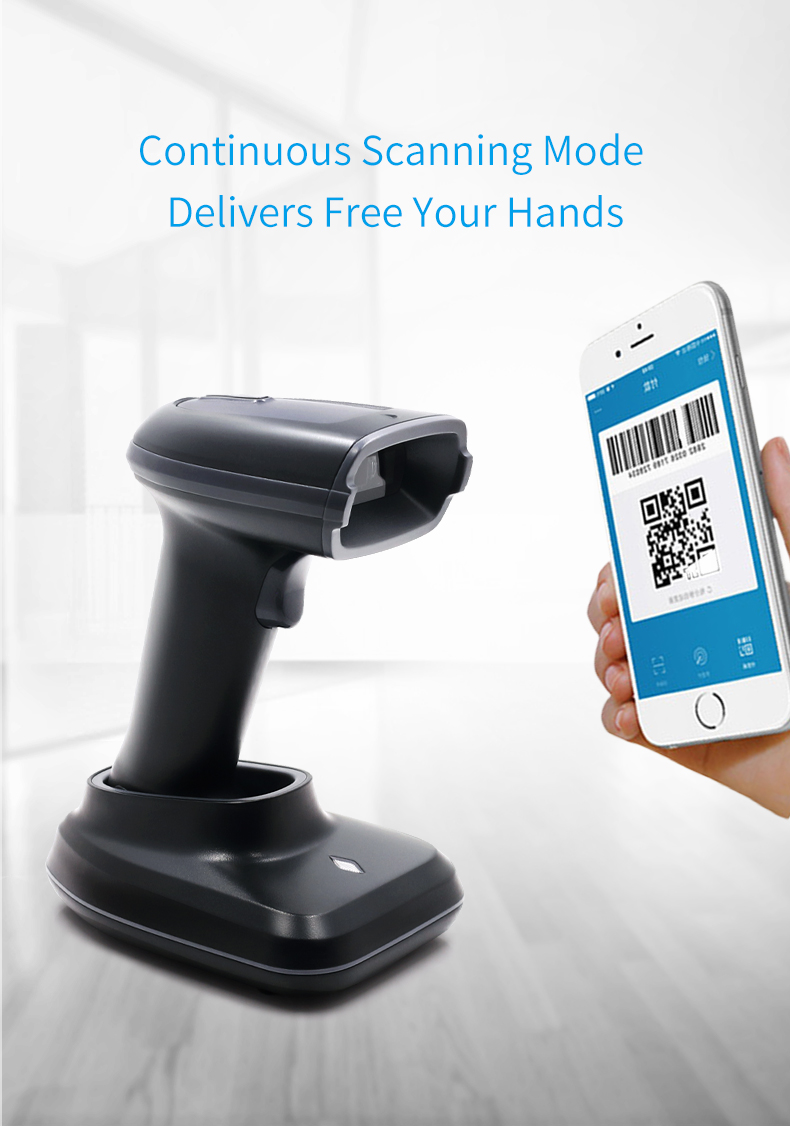

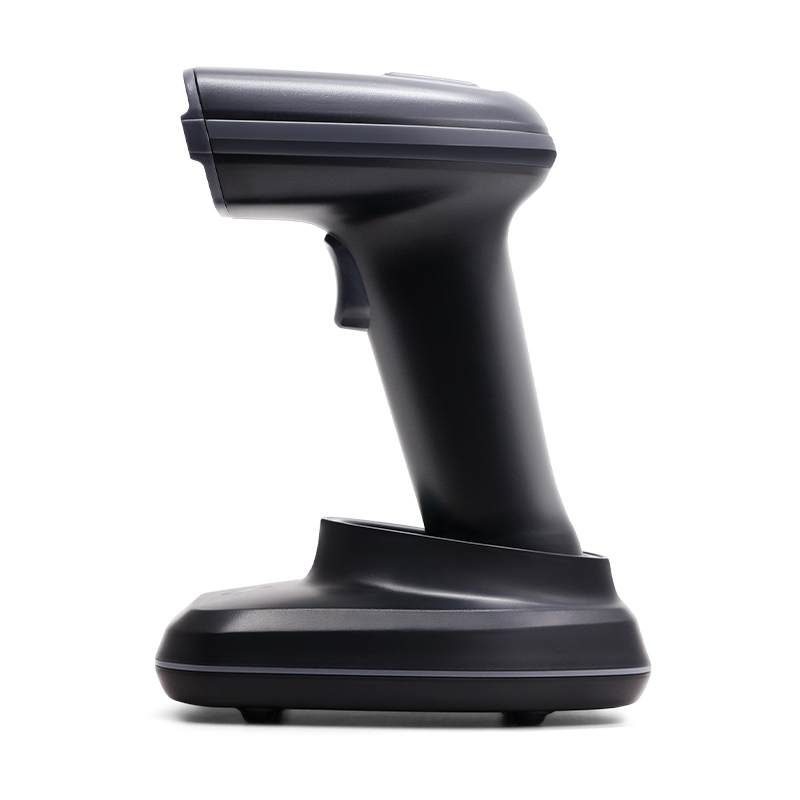

Product Pictures:
