Industrial QR Code 1D 2D CMOS Barcode Scanner Wired Wireless Barcode Reader 2.4G Receiver
Industrial QR Code 1D 2D CMOS Barcode Scanner Wired Wireless Barcode Reader 2.4G Receiver
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
Industrial QR Code 1D 2D CMOS Barcode Scanner Wired Wireless Barcode Reader 2.4G Receiver
Product Description:
IBC-1200 series CMOS barcode scanner is good performance on reading 1D and 2D barcodes. The barcode scanner supports decode most of 1D 2D QR barcodes on labels, paper and screen. With super scanning and decoding ability, it can read incomplete and fuzzy codes. With Excellent Error-Correcting Performance, it can scan the decodes for damaged lncomplete Barcode, fuzzy barcode, twsited wrinkled barcode, reflective barcode, colorful and long barcode etc. It supports the multinational language keyboard. It is widely used in Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Product Features:

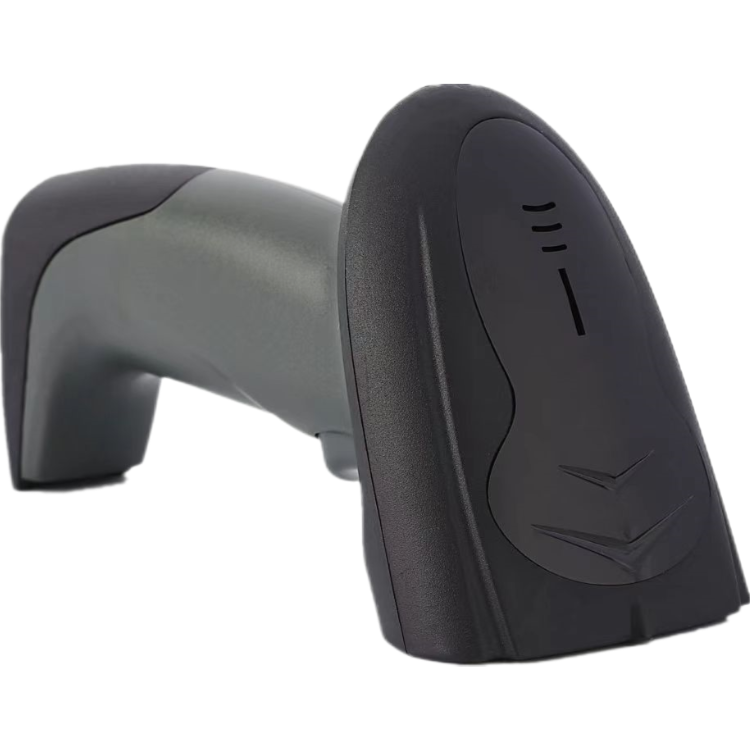

1D 2D Wired Handheld Barcode Scanner IBC-1200:
* Applying CMOS image technology, easy to scan.
* IP54 standard and withstand 3M drops.
* Multi Languages Keyboard Layout.
* Supports 1D/2D bar codes on paper/screen.
* Compatible with USB interface, plug and it working directly.
* Three scanning modes setting: Handheld, Continuous, Auto-Induction.
* Support commercial barcode, pharmacy barcode, logistical barcode, post barcode, folding barcode, small barcode, barcode covered by film and unclearly printed barcode, ect.

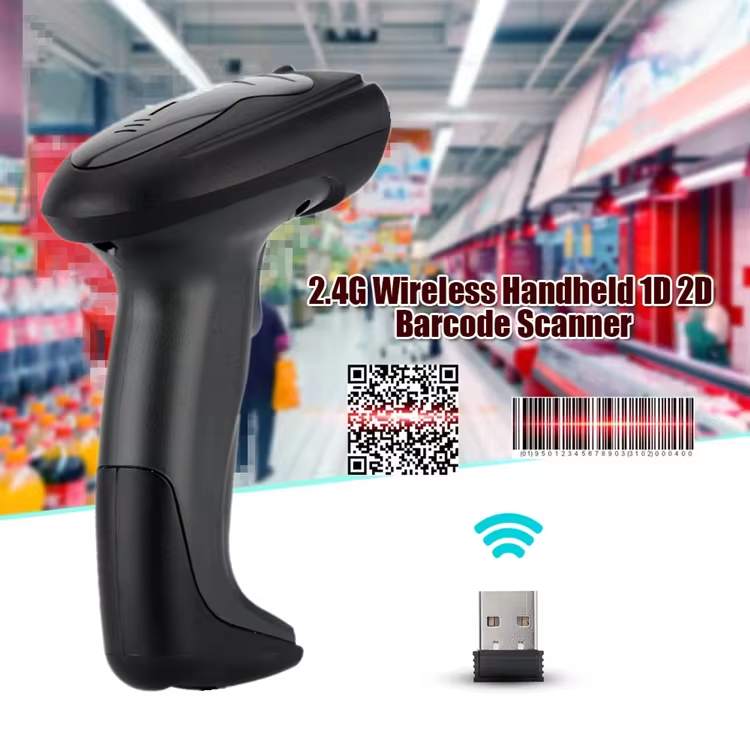

1D 2D Wireless Handheld Barcode Scanner IBC-1200R:

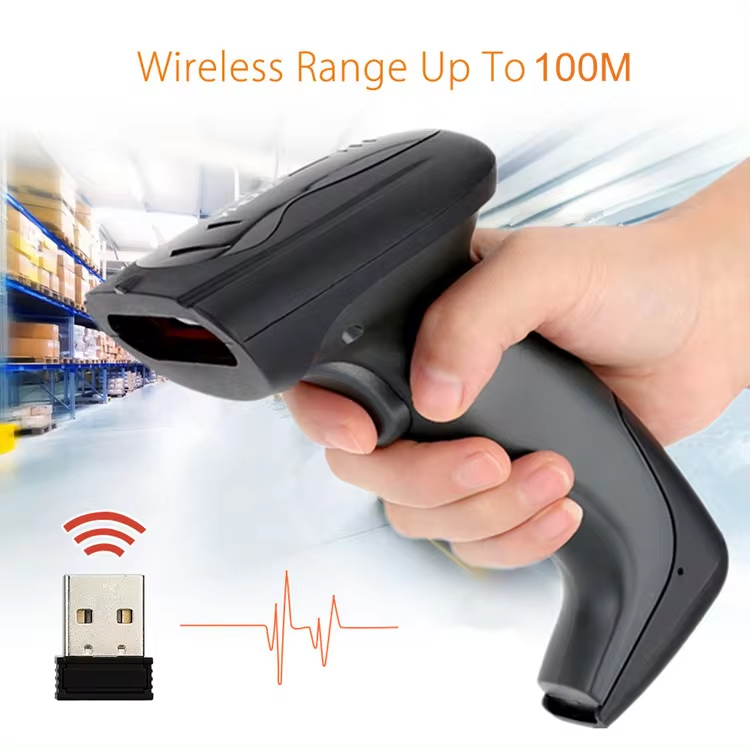

* Adopts 2.4G wireless & Wired two modes.
* Large capacity battery, 2600MAH Li-ion battery.
* Plug and play, not need install any procedure.
* Support Multinational keyboard languages
* Supports Handheld/Continuous/Auto-Induction, 3modes for option.
* With advanced CMOS sensor, Global shutter exposure, easily decode most of 1D 2D QR barcodes on labels, paper and screen more accurate.
* Work with laptop, desktop, PC and POS, and compatible with Windows XP/7/8/10, Mac OS, Linux, Android system.
* Industrial grade barcode scanner,The head of the scanner, the handle and the base are protected by rubber, Antiknock, full quakeproof design, withstand 3m drops.
* Application fields: Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.
Product Specification:
1D 2D Wired Handheld Barcode Scanner IBC-1200:
| Product name | 2D Wired Handheld Industrial Barcode Scanner |
| Model | IBC-1200 |
| Performance Parameters | |
| Sensor | CMOS |
| Trigger mode | Handheld, Continuous, Auto-Induction |
| Hull material | ABS+Rubber |
| Promotion pattern | Buzzer and LED indicator |
| Resolution Ratio | 640*480 |
| Optical Source | 620nm Visible red light diode |
| Decoding speed | 500 scans/sec |
| Resolution | 4mil |
| Scanning angle | ±360°±65°±60° (Left and right, front and back, rotation) |
| Decoding capacity | 1D: UPC-A, UPC-E, Code 39, Code 39, Code 128, Code 128, EAN128, EAN-8, EAN-13, Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Industrial 2 of 5, Chinese 2 of 5, Inteleaved2/5, Interleaved2of5 and China postal service code, etc. |
| 2D: PDF417, QR, Aztec, DataMatrix, Maxicode, MicroPDF417, etc. | |
| System Capacity | For Linux/ Android/ Windows XP/Vista/7/8/10/ Windows Server 2003/2008/2010 |
| Depth of Field | Code39 4mil(2cm-8cm) |
| Code39 8mil(3cm-15cm) | |
| EAN13 13mil(6cm-29cm) | |
| DM 15mil(2cm-14cm) | |
| QR 15MIL(2cm-30cm) | |
| PDF417 15mil(4cm-30cm) | |
| Voltage | 5V DC |
| Temperature | Storage: -40°C ~ 60°C Working: -20℃ to 50℃ |
| Relative Humidity | 0 ~ 95% |
| Drop test | 3m fall to concrete |
| Certificate | CE, FCC, RoHS, IP54 |
1D 2D Wireless Handheld Barcode Scanner IBC-1200R:
| Product name | 2D Wireless Handheld Industrial Barcode Scanner |
| Model | IBC-1200R |
| Transmission mode | 2.4G Wireless/ Wired |
| Decode Capability | 1D：UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5, Coda bar, MSI Plessey, RSS, etc. 2D: QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc. |
| Sensor | 640*480 CMOS |
| Global shutter exposure | |
| Light aimer | 617nm LED |
| Resolution | 4mil |
| Decoding speed | 500scans/sec |
| Trigger Mode | Handheld, Continuous, Auto-Induction |
| Interface | USB, USB-COM |
| Distance | 100m/ 1.5m |
| Storage | 100, 000 barcodes |
| CPU | ARM 32-bit Cortex |
| Indication | Buzzer & LED |
| Anti-inference | 0-100000Lux Max |
| Illumination | 6500K LEDs |
| Material | ABS+Rubber |
| Printing Contract | ≥25% |
| Button life | 8000, 000 times |
| Battery | 3.7V-2600mAh |
| Working time | 7 to 10 days |
| Working current | 3.3Vx200mA |
| Standby current | 18uA-5mA |
| Scanning angle | 360°, 65°, 60° |
| Temperatur storage | -40°C ~ 60°C |
| Charging time | 3-5 hours |
| Relative Humidity | 0 ~ 95% |
| Temperatur working | -20℃ to 60℃ |
| Drop test | 3m (Industrial grade) |
Product Pictures:
