High-speed Code Scanning Barcode Reader QR Code Reader USB Wired Wireless Bluetooth Handheld Barcode Scanner 1D 2D Code Reader
Product Testing video:
Product Description:

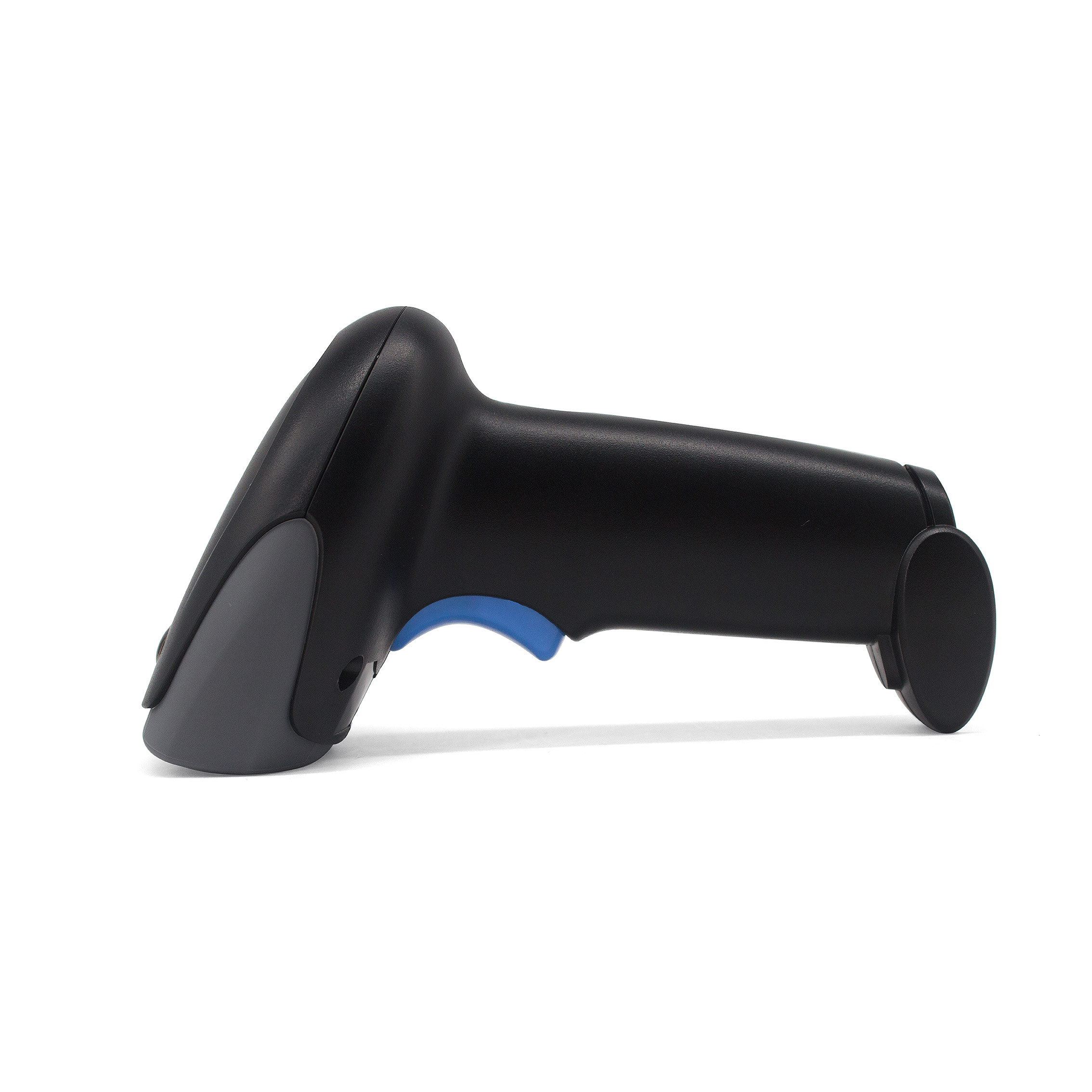

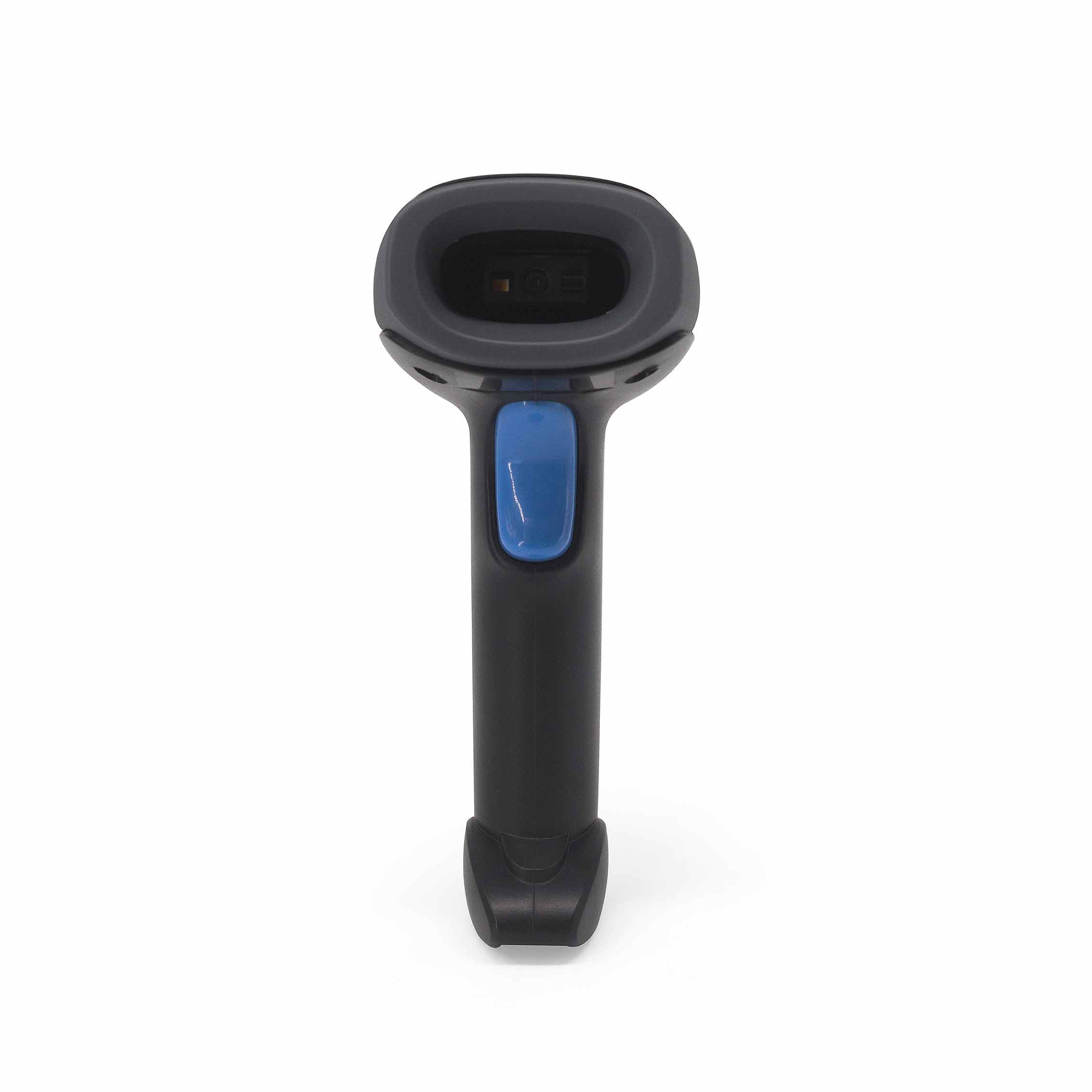

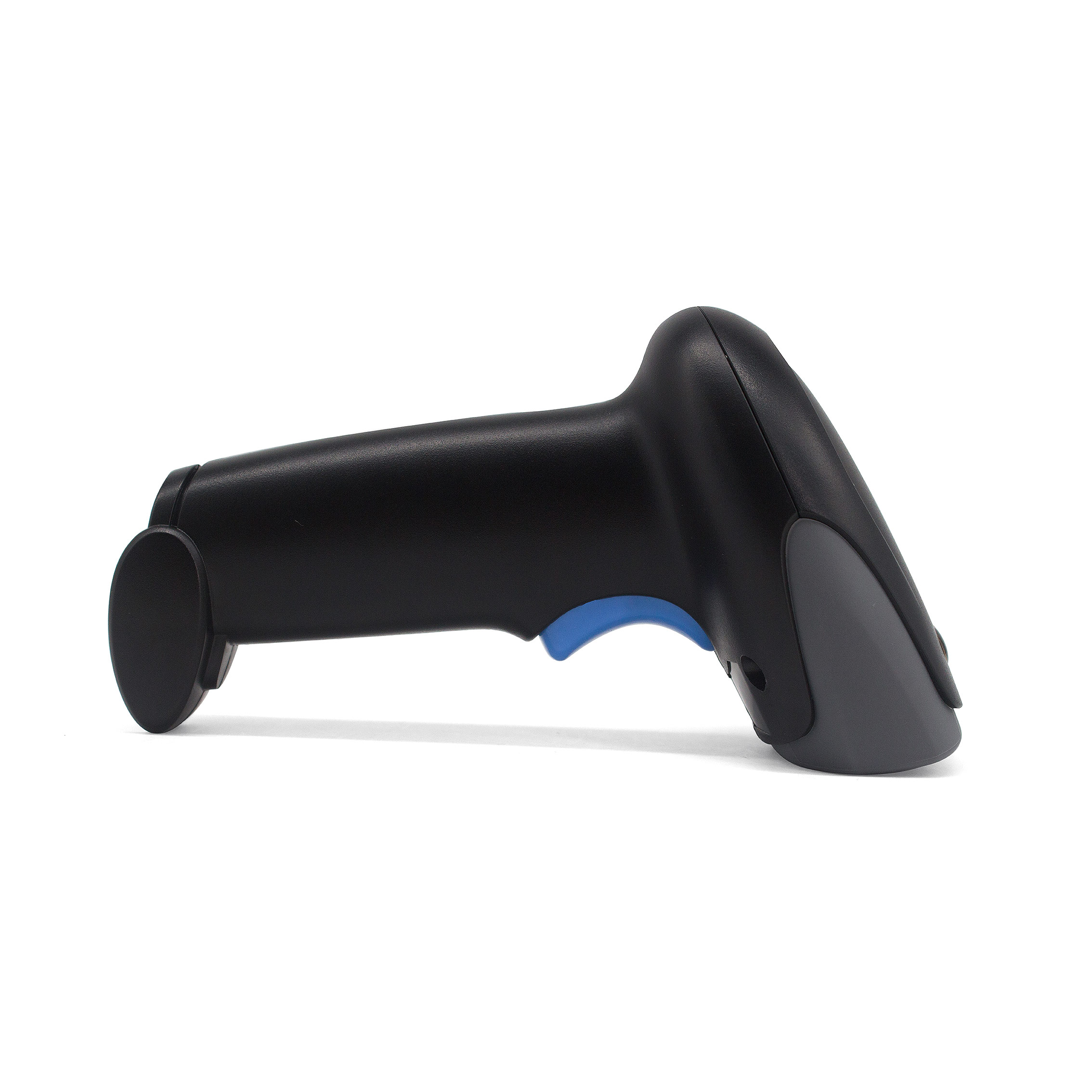

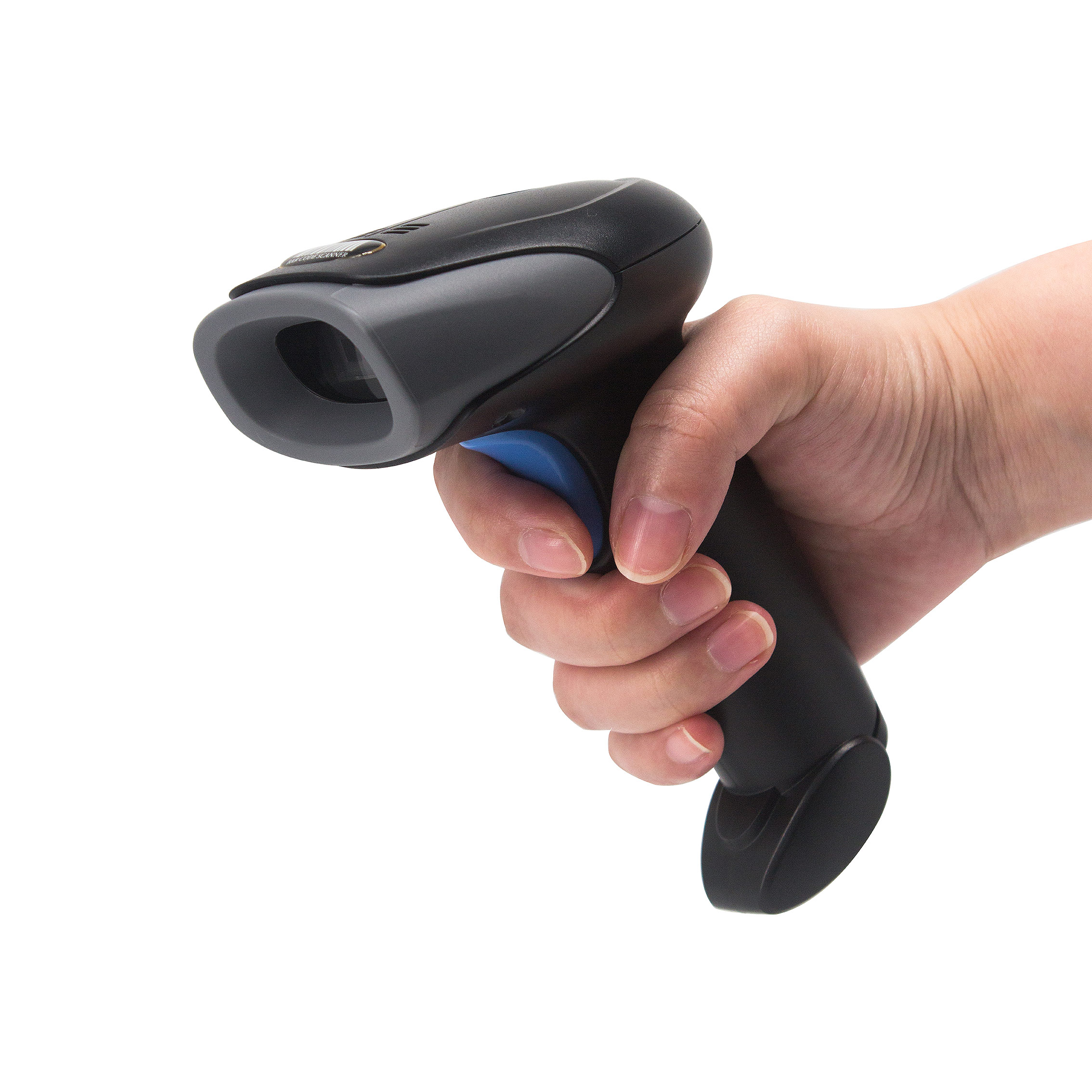

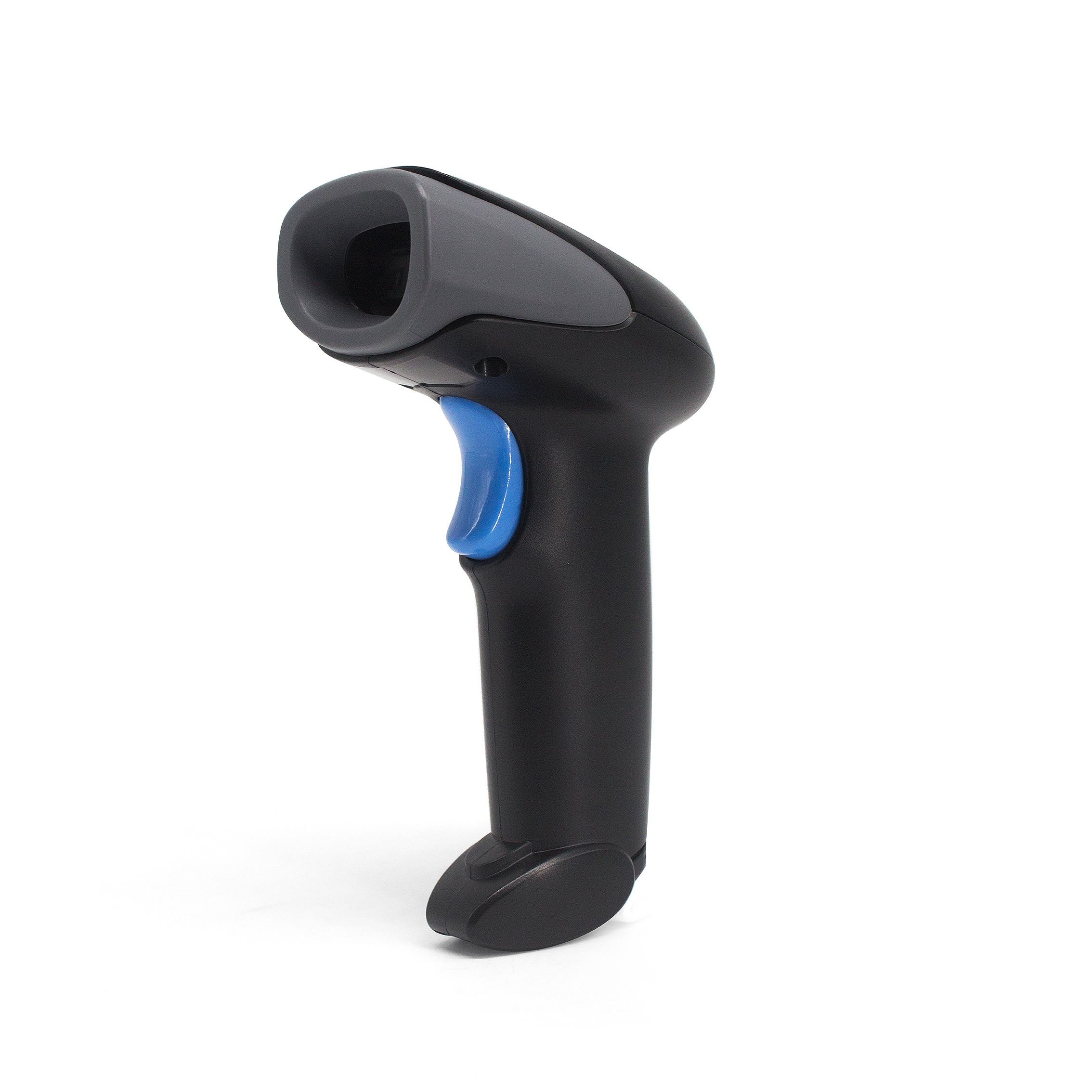

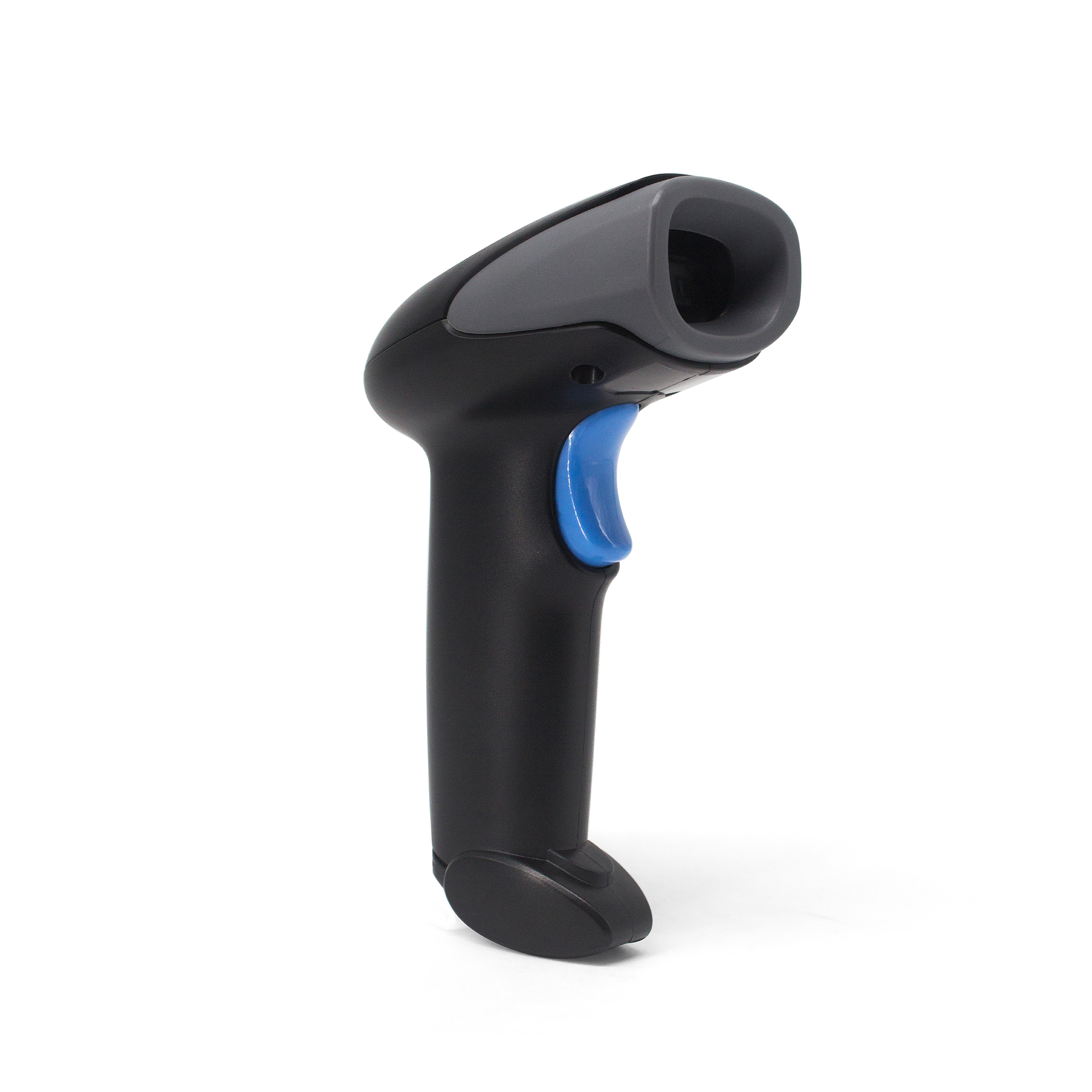

IBC-6900 series CMOS barcode scanner is universal handheld image 2D barcode scanner, using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Equipped with auxiliary lighting, can be used in different lighting environments, can also be used at night, the applicability is strong. Read barcodes in any direction at 360degrees, faster and more efficient.
Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage.
Product Features:
• High-speed decoding, responsive
• Versatile: Provides interfaces such as USB, USB-COM, etc.
• Bluetooth connectivity is supported and communication distances can be up to 10m.
• Support remote online upgrade
• Built-in storage function, support inventory mode
• The reading distance can be up to 20cm highand the information in the barcode can be read quickly.

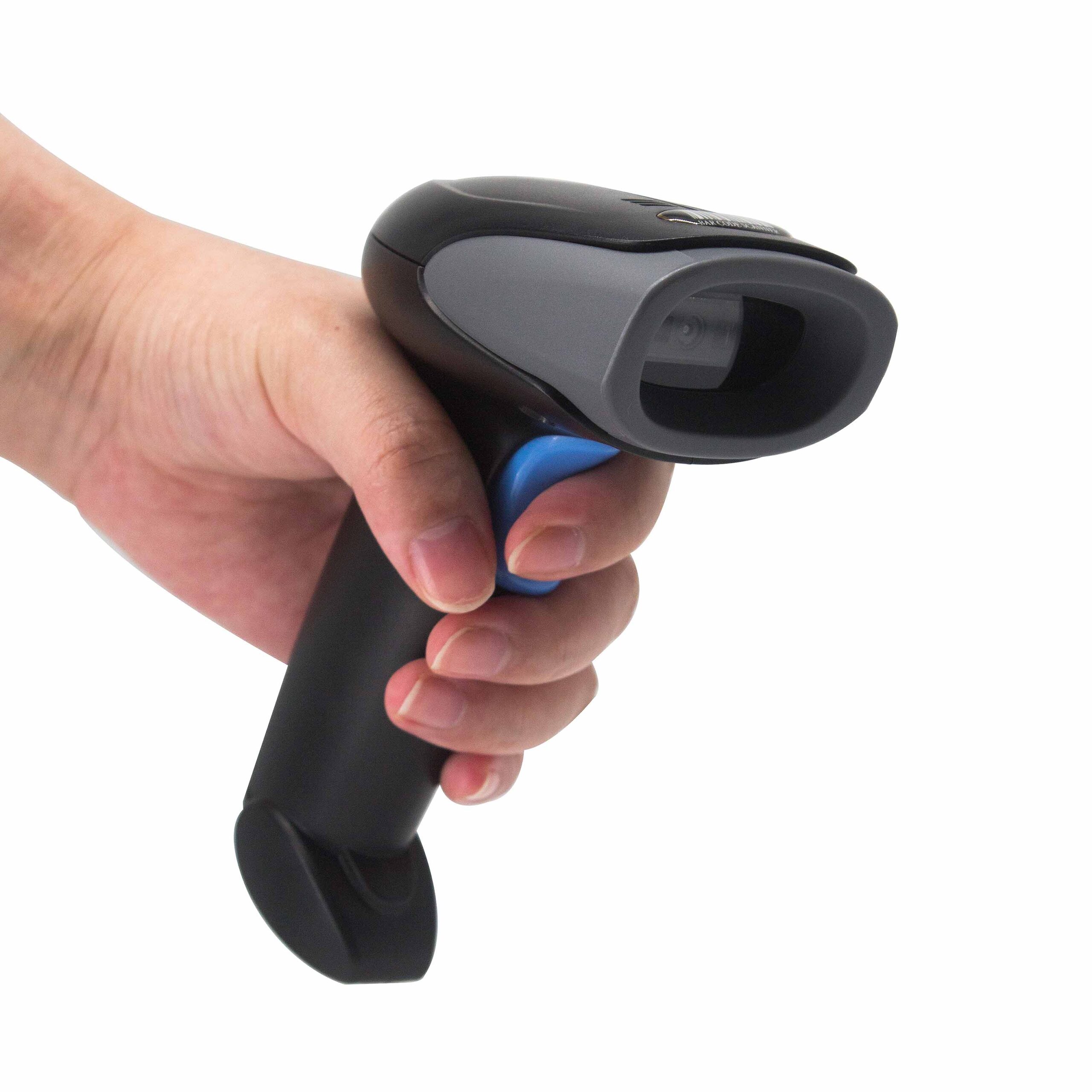

• Compact, lightweight, ergonomically designed and comfortable to feel.
• Excellent durability: Dust-resistant and water-resistant IP54, while withstanding 1.5-meter drops to the cement floor, ensuring reliable operational performance in the event of liquid splashes, drops and collisions in everyday use.
• Safe and reliable design: CE Electrical Safety, EMC Electromagnetic Compatibility, RoHS, CLASS 1 Laser Safety Level, Light Safety, etc.
Product Specification:

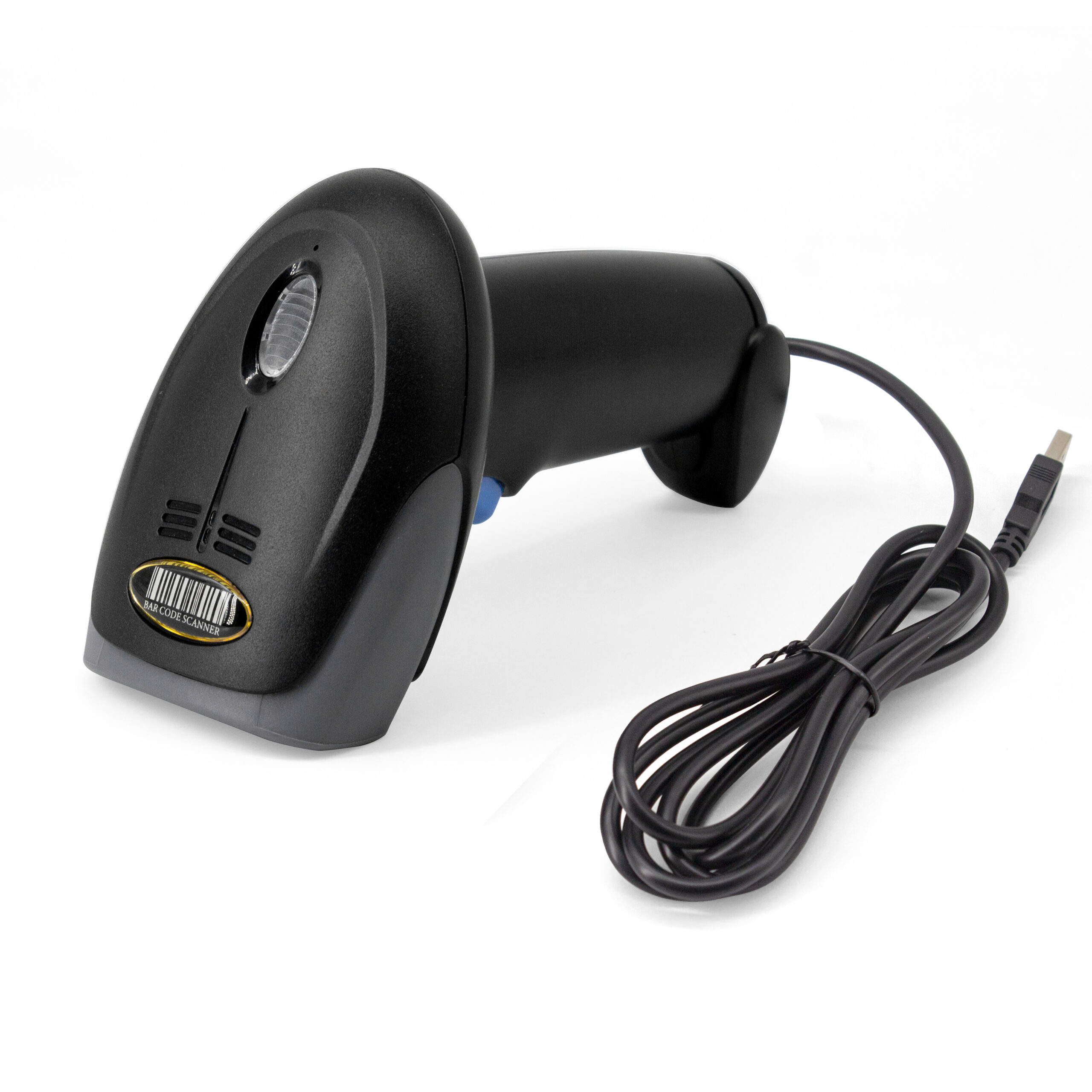

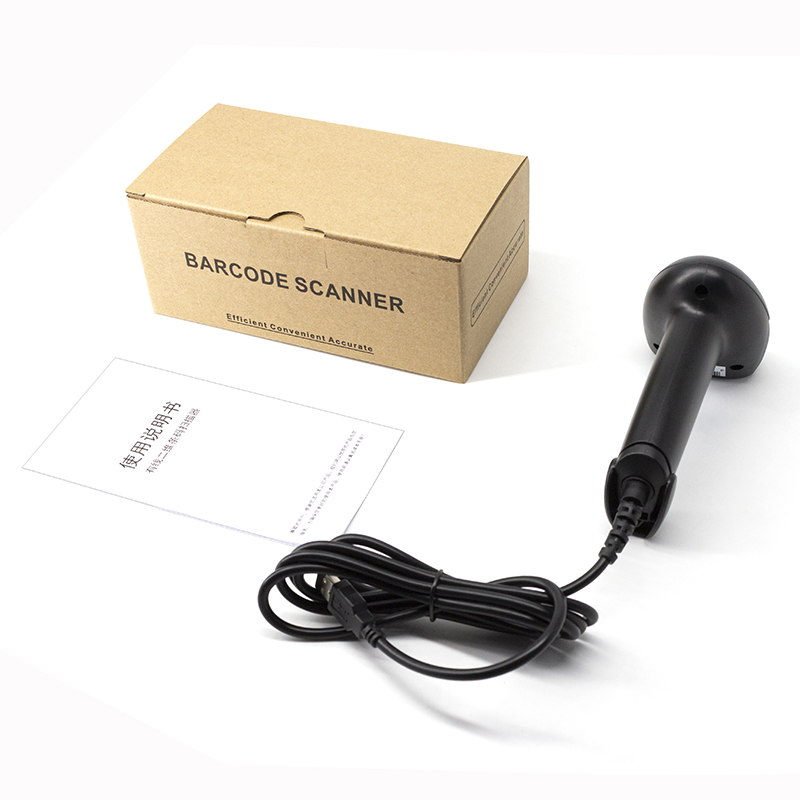

1D 2D Wired Handheld Barcode Scanner IBC-6900:
| Parameters Sheet | |
| Model No. | IBC-6900 |
| Product Name | 1D 2D Wired Handheld Barcode Scanner |
| Physical parameters | |
| Scan mode | Push-button trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port/RS232 serial port (optional). |

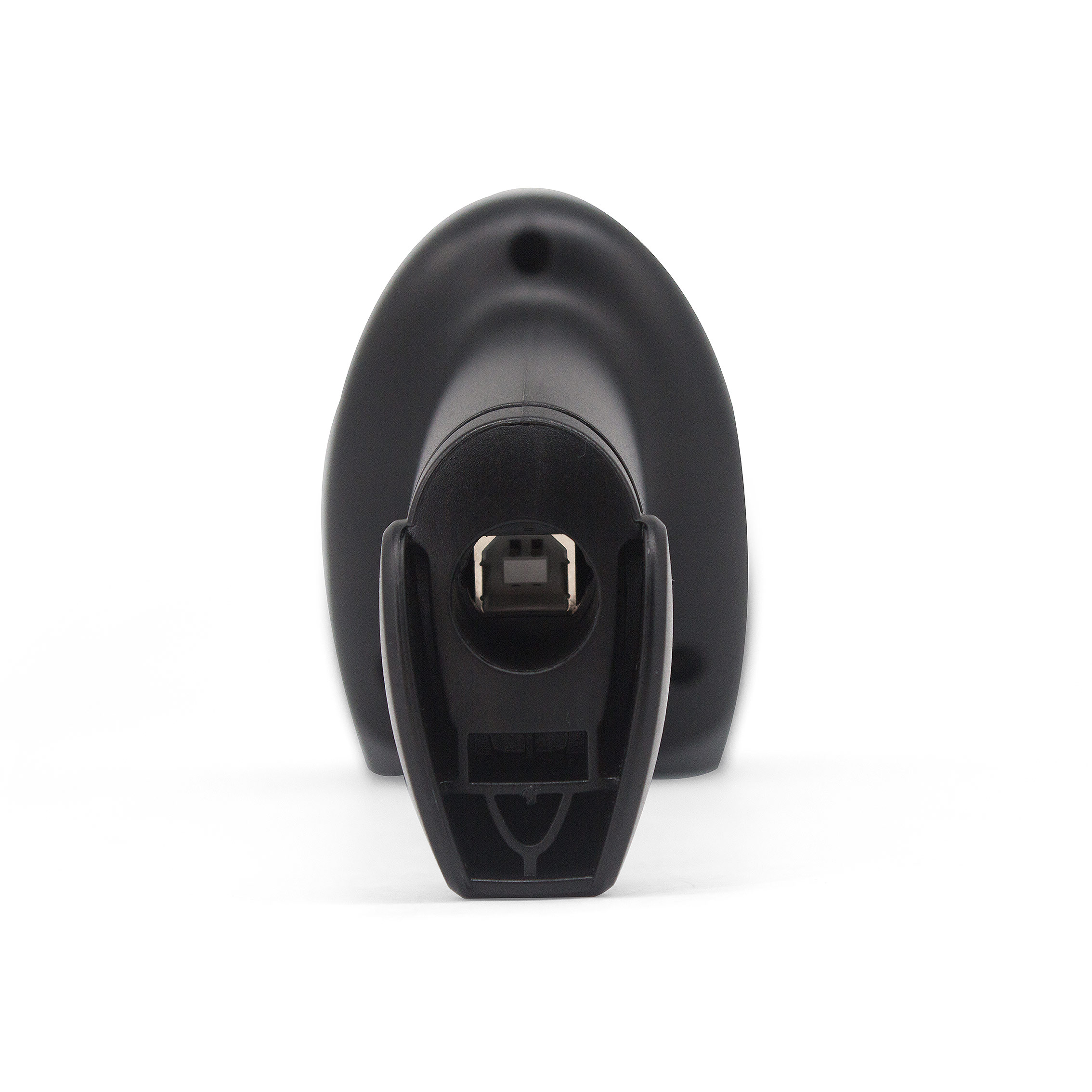

| Interface type | USB TYPE-B |
| Prompt way | Buzzer, LED light |
| How it’s set up | Manually scan the setting code one after the other |
| Housing material | ABS+PC |
| Cable standards | Straight line 1.6m |
| Exterior dimensions | 165mm×67mm×97mm (product); 195mm×105mm×80mm (outer packing) |
| Weight | 180g (net); 252g (including packaging accessories). |
| Performance parameters | |
| Sensors | 500,000 global CMOS |
| Resolution | 800*600 |
| Light source | White LED |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 frames/sec |
| Field of view | 48° (H) x 30° (V) |
| Print contrast | 15% minimum |
| Decode the kind | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, CodaBar, MSI-Plessey, GS1 Databar(RSS), etc |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, support mobile phone screen reading | |
| Minimum resolution | 1D code 3MIL; QR code 5MIL |
| Depth of field | QR (7mil): 30~110mm |
| QR payment code (mobile code): 40~500mm | |
| Data Matrix (10mil): 20- 150mm | |
| PDF 417 (6.7mil): 20- 150mm | |
| EAN- 13 (13.3mil): 30~300mm | |
| Code 39 (8.3mil): 40~235mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Operating: 350 mAh; Standby: 130 mAh |
| Environmental parameters | |
| Temperature | -10°C~50°C(working); -40°C~+60°C (storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand a 1.5m drop in the air |

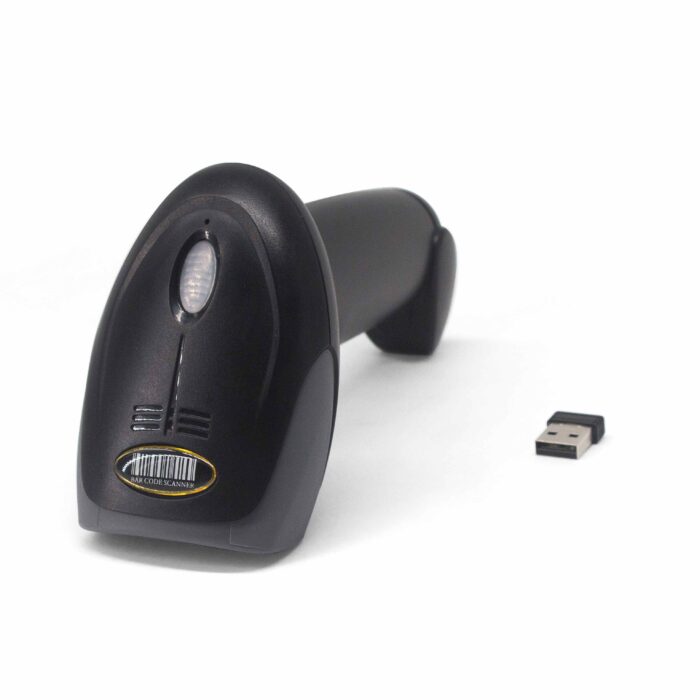

1D 2D Wireless Handheld Barcode Scanner IBC-6900R:
| Parameters Sheet | |
| Model No. | IBC-6900R |
| Product Name | 1D 2D Wireless 2.4G Handheld Barcode Scanner |
| Physical parameters | |
| Scan mode | Push-button trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment). |
| Prompt way | Buzzer, LED light |
| How it’s set up | Manually scan the setting code one after the other |
| Housing material | ABS+PC |
| Cable standards | USB straight line 1m |
| Exterior dimensions | 165mm×67mm×97mm (product); 195mm×105mm×80mm (outer packing) |
| Weight | 163g (net); 272g (including packaging accessories). |
| Performance parameters | |
| Internal storage | 500K |
| Sensors | 500,000 CMOS globally |
| Resolution | 800*600 |
| Light source | White LED |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 frames/sec |
| Field of view | 48° (H) x 30° (V) |
| Print contrast | 15% minimum |
| Decode the kind | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, CodaBar, MSI-Plessey, GS1 Databar(RSS), etc |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, support mobile phone screen reading | |
| Minimum resolution | 1D code 3mil; QR code 5mil |
| Depth of field | QR (7mil): 30~110mm |
| QR payment code (mobile code): 40~500mm | |
| Data Matrix (10mil): 20- 150mm | |
| PDF 417 (6.7mil): 20- 150mm | |
| EAN- 13 (13.3mil): 30~300mm | |
| Code 39 (8.3mil): 40~235mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Operating: 350 mAh; Standby: 130 mAh |
| Battery | 2000mAh lithium-ion battery |
| Charging time | 4 hours |
| Battery life | 30 days (standby), 6-7 hours (operating: scanning every 5 seconds) |
| Environmental parameters | |
| Temperature | -10°C~50°C(working); -40°C~+60°C (storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand a 1.5m drop in the air |
1D 2D Wireless Bluetooth Handheld Barcode Scanner IBC-6900RB:
| Parameters Sheet | |
| Model No. | IBC-6900RB |
| Product Name | 1D 2D Wireless Bluetooth Handheld Barcode Scanner |
| Physical parameters | |
| Scan mode | Push-button trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment); Bluetooth: 0-20m (open environment). |
| Prompt way | Buzzer, LED light |
| How it’s set up | Manually scan the setting code one after the other |
| Housing material | ABS+PC |
| Cable standards | USB straight line 1m |
| Exterior dimensions | 165mm×67mm×97mm (product); 195mm×105mm×80mm (outer packing) |
| Weight | 163g (net); 272g (including packaging accessories). |
| Performance parameters | |
| Internal storage | 500K |
| Sensors | 500,000 CMOS globally |
| Resolution | 800*600 |
| Light source | White LED |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 frames/sec |
| Field of view | 48° (H) x 30° (V) |
| Print contrast | 15% minimum |
| Decode the kind | 1D: EAN- 13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, CodaBar, MSI-Plessey, GS1 Databar(RSS), etc |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc, support mobile phone screen reading | |
| Minimum resolution | 1D code 3mil; QR code 5mil |
| Depth of field | QR (7mil): 30~110mm |
| QR payment code (mobile code): 40~500mm | |
| Data Matrix (10mil): 20- 150mm | |
| PDF 417 (6.7mil): 20- 150mm | |
| EAN- 13 (13.3mil): 30~300mm | |
| Code 39 (8.3mil): 40~235mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Operating: 350 mAh; Standby: 130 mAh |
| Battery | 2000mAh lithium-ion battery |
| Charging time | 4 hours |
| Battery life | 30 days (standby), 6-7 hours (operating: scanning every 5 seconds) |
| Environmental parameters | |
| Temperature | -10°C~50°C(working); -40°C~+60°C (storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescent) |
| Seismic resistance | It can withstand a 1.5m drop in the air |
