High Speed 1280*800 CMOS Handheld Wired USB QR Code Reader 1D 2D Barcode Scanner

High Speed 1280*800 CMOS Handheld Wired USB QR Code Reader 1D 2D Barcode Scanner

We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!

*Get A Free Quote With No Obligation

High Speed 1280*800 CMOS Handheld Wired USB QR Code Reader 1D 2D Barcode Scanner

Testing Video:

Product Description:

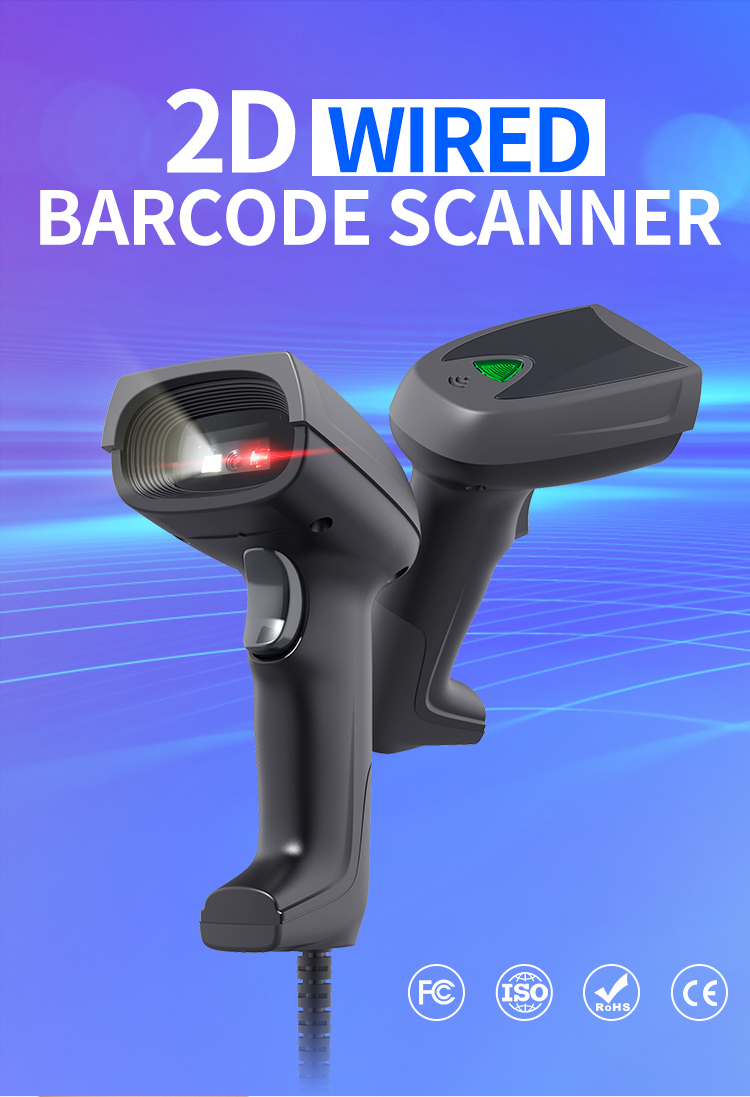

IBC-2400S, it is high performance handheld wired 1D 2D QR Code Barcode Reader. Approaching the accuracy of industrial bar code reading, it is intelligent, fast and highly sensitive with high precision scanning head, fast scanning speed, accurate, bright light / dim both dark/light and micro-remnant codes can be identified. The barcode scanner USB can be plugged into computers, cash registers, and POS machines and can be used. No need to install drivers and software. No network required, easy to operate.

Product Features:

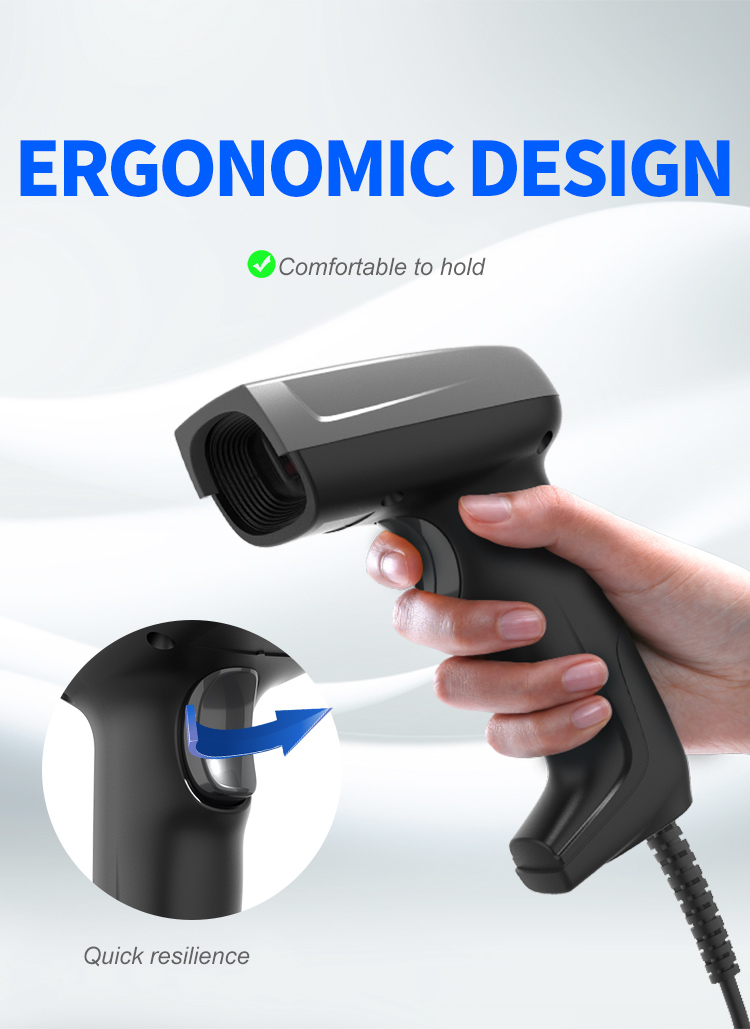

• Anti-thread break handle

• Strong reading ability. Quickly read one-dimensional/two-dimensional codes and product code screen codes

• Image scanning + white light fill light. Using high-performance CMOS imaging chip and super bright fill light; Red focus light allows you to scan codes easily and quickly even when the light is low.

• Easily scan various abnormal barcodes. Wide red light decoding algorithm; Accurately read one-dimensional/two-dimensional codes and various abnormal codes Incomplete code, twisted code, defaced code, wrinkled code, Reflective code, Fuzzy code and Color codeIrregular code

• Plug and play

• Compatible with multiple systems; Supported systems: Windows/IOS/Android/Linux

Product Specification:

Technical Parameter
Model IBC-2400S
Item Wired 2D Barcode Scanner
Physical Parameter
Material ABS+PC
Power Supply DC 5V ±5%
Current 1.4W (Working) ; 0.85W (Standby) ; 2.3W (Max)
Weight 146.0g±5g (Without Cable)

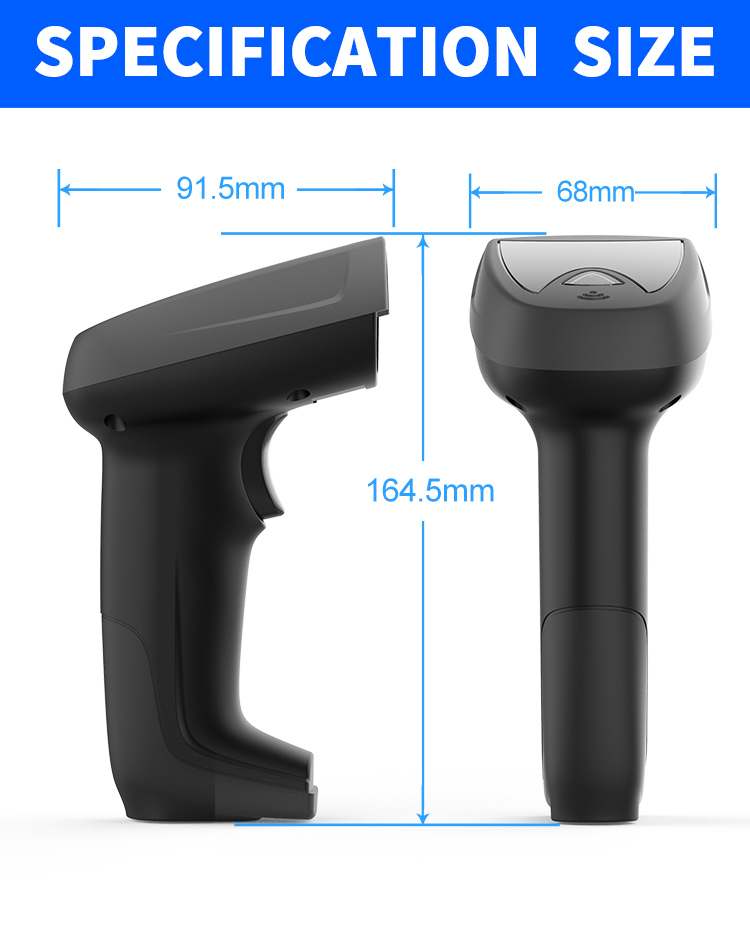

Size L*W*H  :  164.5 * 91.5 * 68.0 (Unit  :  mm)
Color Black / Grey
Button Lifespan >100, 000 times
Performance Parameter
Interface USB (RS232 can be customized)
Systerm Supported Linux, Android, Windows XP、7、8、10, MAC
Language Supported English,  Finnish, France,  German, Hungarian, Italy, Japanese,  Spanish, Russian, Polish, Czech, Portuguese, Portuguese(Brazil), Greek, Swedish, Turkish F,  Turkish Q,  Dutch,  Belgian,  Danish, Norwegian, Thai, Ukrainian, Romanian, Slovak (Support International Keyboard Languages)

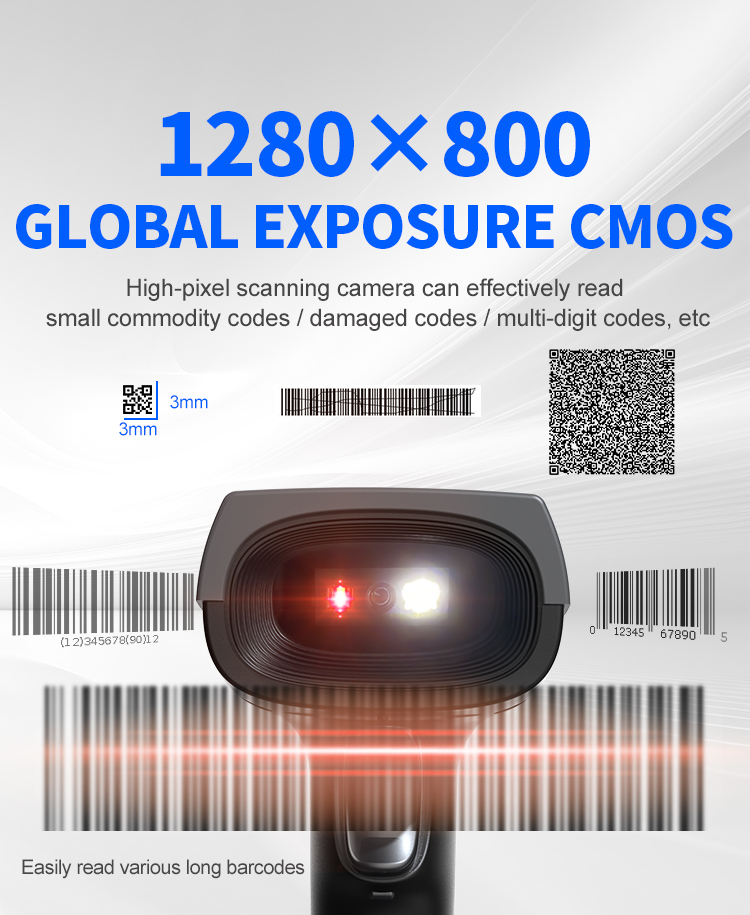

Sensor CMOS  1280×800
Light Source Red LED Lighting
Professor 32-bit ARM MCU
Motion Tolerance Code128:   80cm/sec
QR:   85cm/sec
Resolution ≥3mil
Error Rate 1/5, 000, 000
Reading Mode Image
Trigger Mode Manual Trigger,  Continuous Scanning,  Automatic Scanning
Promote Mode Buzzer+Indicate Light(LED)
Print Contrast ≥25%

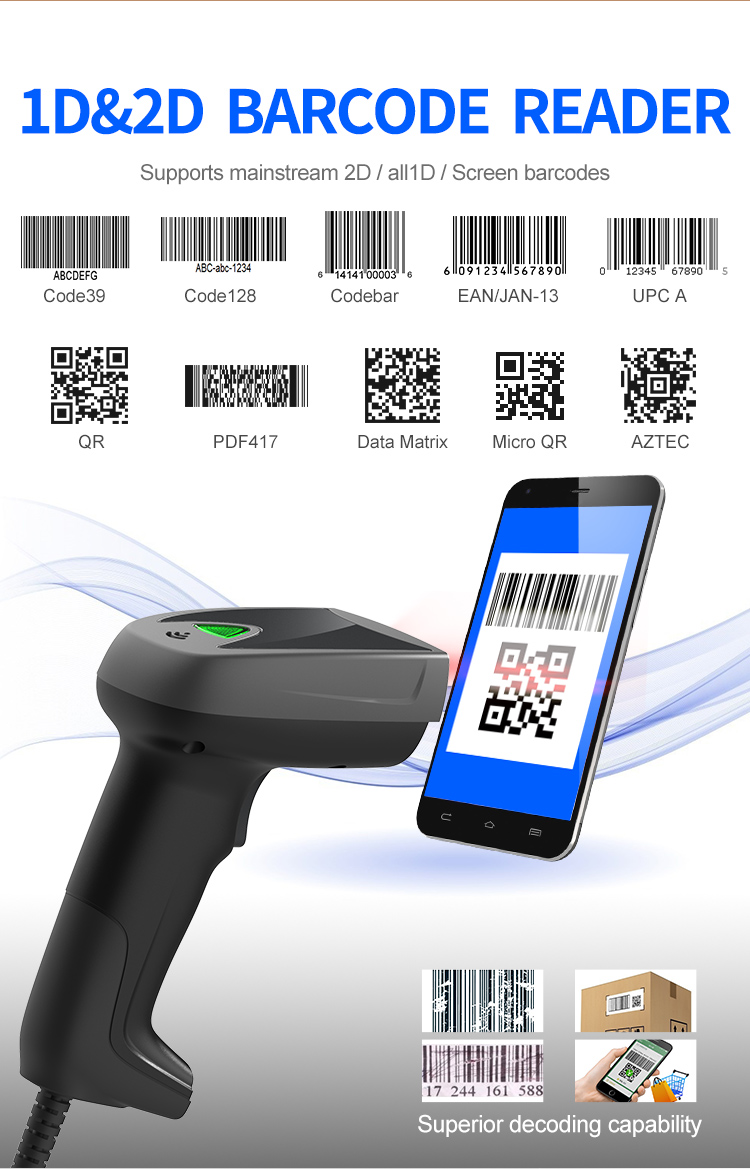

Decoding Capability 1D ● Interleaved 2 of 5  ● Standard 2 of 5 ● Matri 2 of 5        ● ITF-14 ● Code39-Regular      ● Code39-FullASCII
● Code93-Regular ● Code93-FullASCII ● Code128   ● Code11 ● UPCE0/E1 ● EAN/GS1-128 ● Codabar ● MSI
● EAN/JAN-13 ● UPC-A ● JAN/EAN-8 ● Plessey ● GS1 Databar ● Code 32
2D ● Data Matrix ● QR Code ● PDF417 ● HanXin Code ● Aztec ● Micro QR ● Micro PDF417 ● Maxi code
Scanning Angel Roll360°,  Pitch45°,  Yew45°
Depth of Field QR 7.50mil (15bit)  :  5cm – 10cm
QR 10.83mil (16bit)  :  4cm – 16cm
Code39 5.83mil (15bit)  :   6cm – 16cm
Environment Parameter
IP Grade IP52
Operate Temp. 0 to 50℃ / 32 to 122℉
Storage Temp. 0 to 50℃ / 32 to 122℉
Operate Humidity 20% to 85% (No Condensation)
Storage Humidity 20% to 85% (No Condensation)
ESD Protection 15KV  air discharge
Ambient Light 0→100000Lux

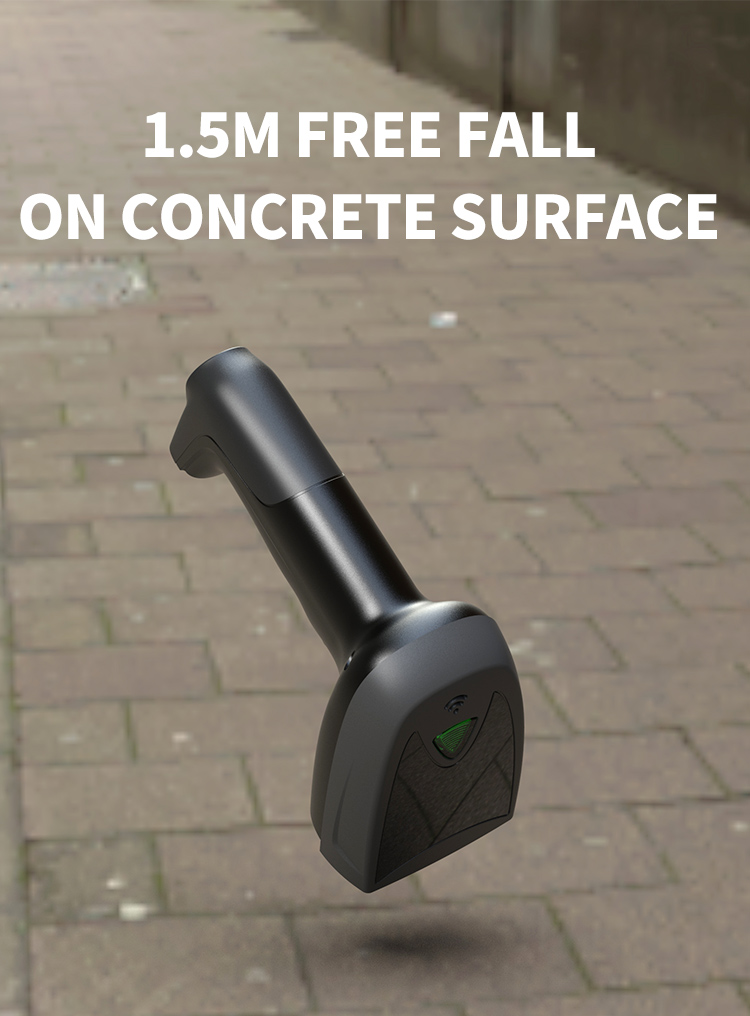

Shock Resistance Withstands multiple times 1.5m drops to concrete

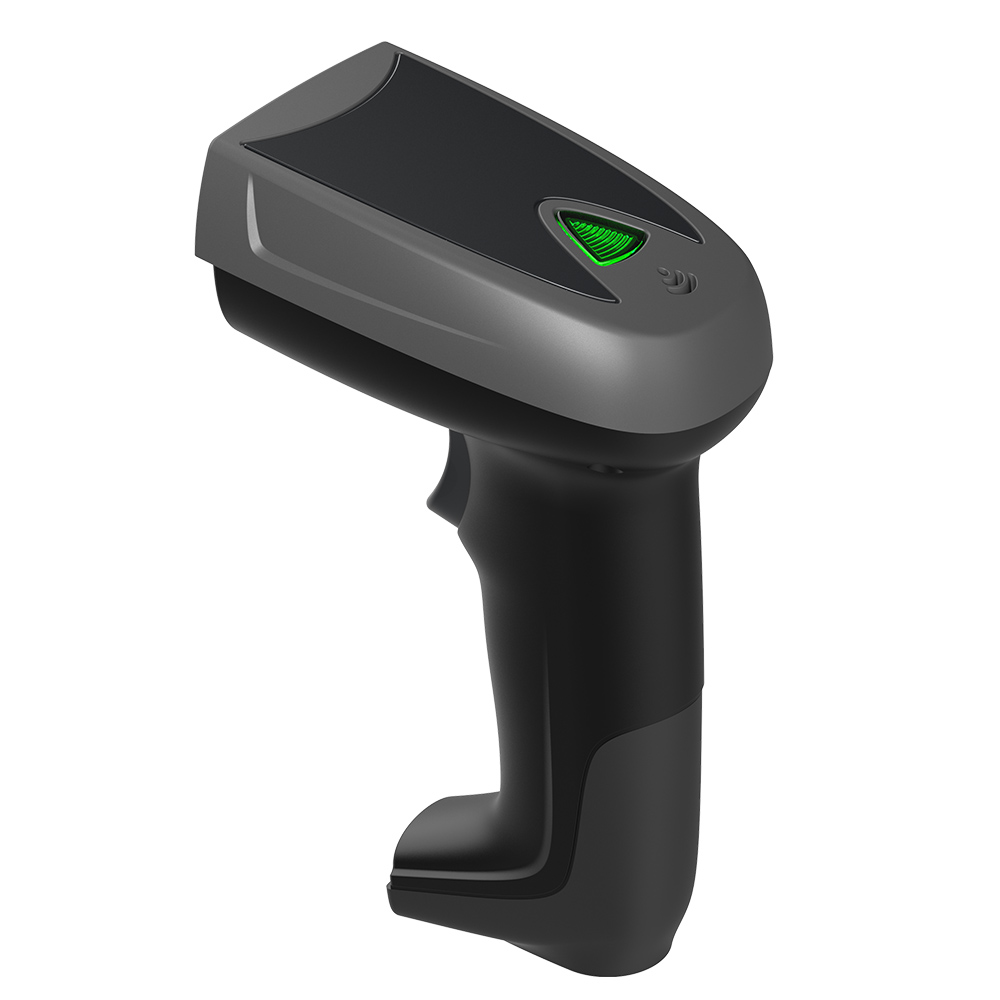

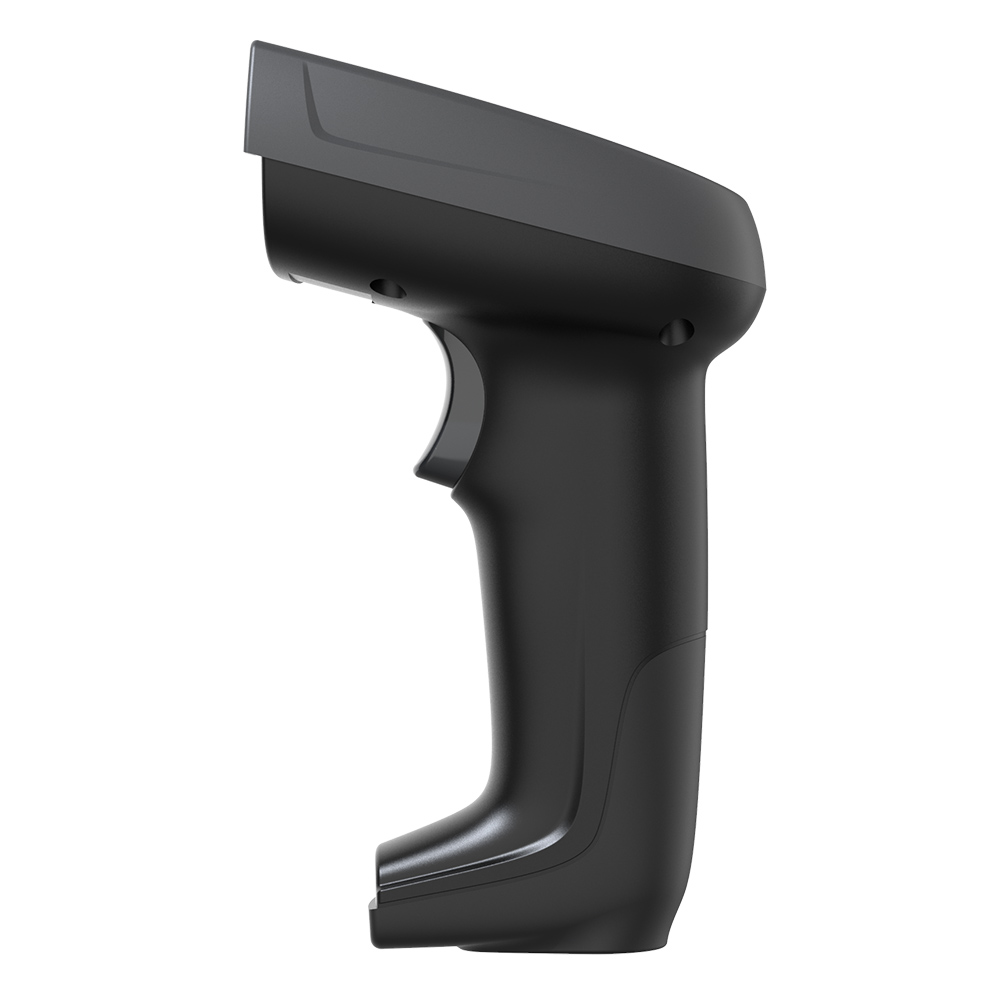

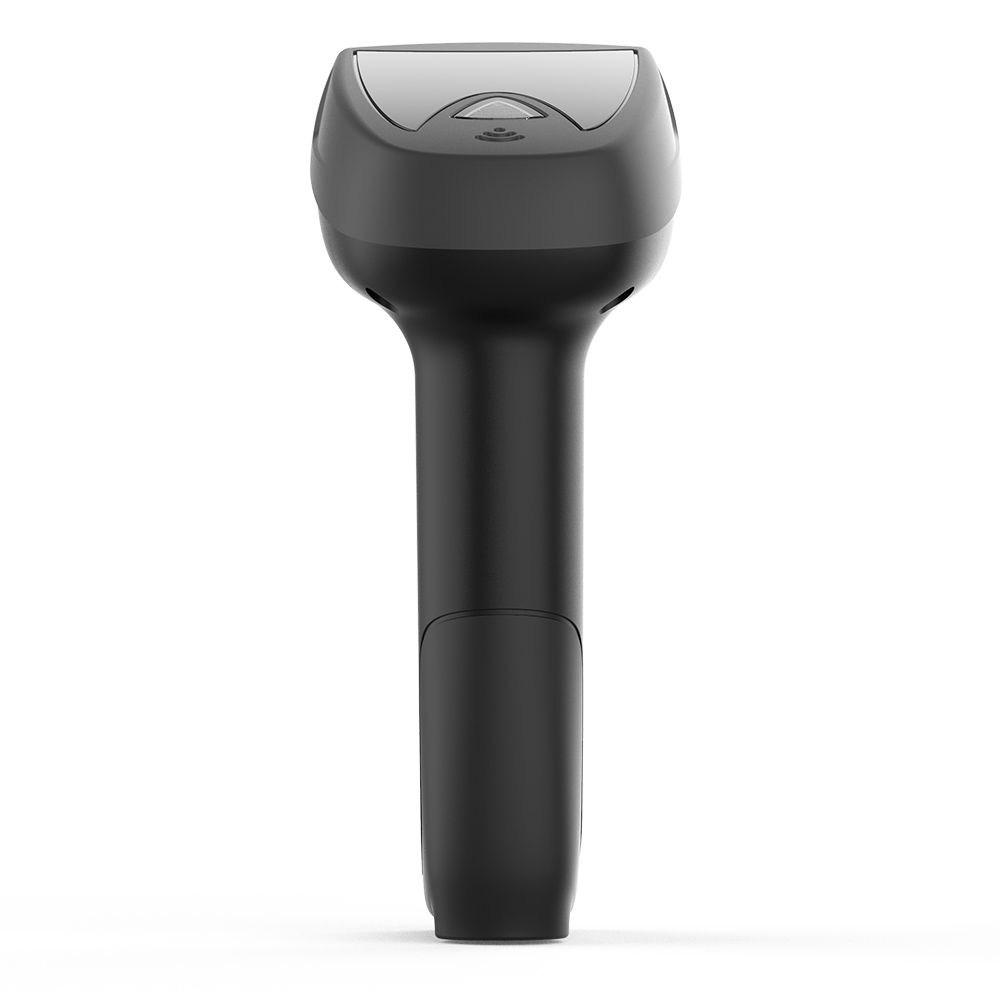

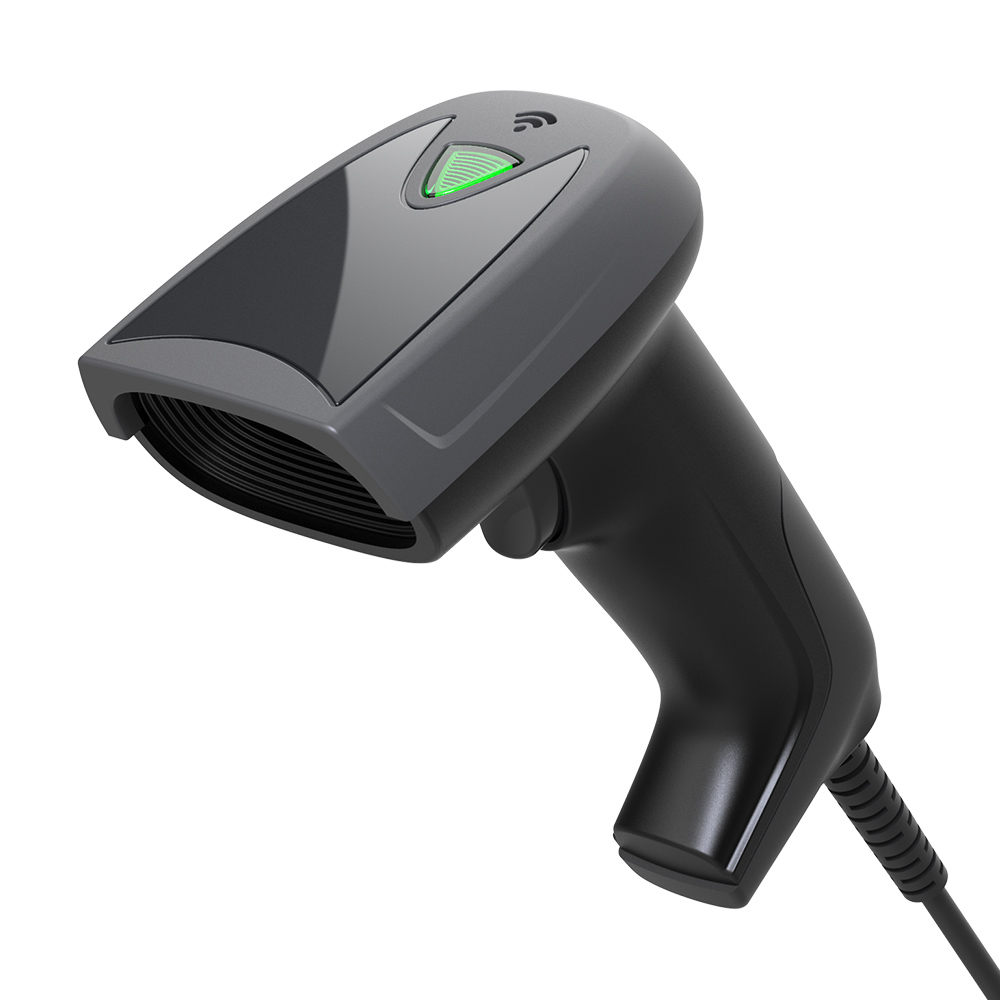

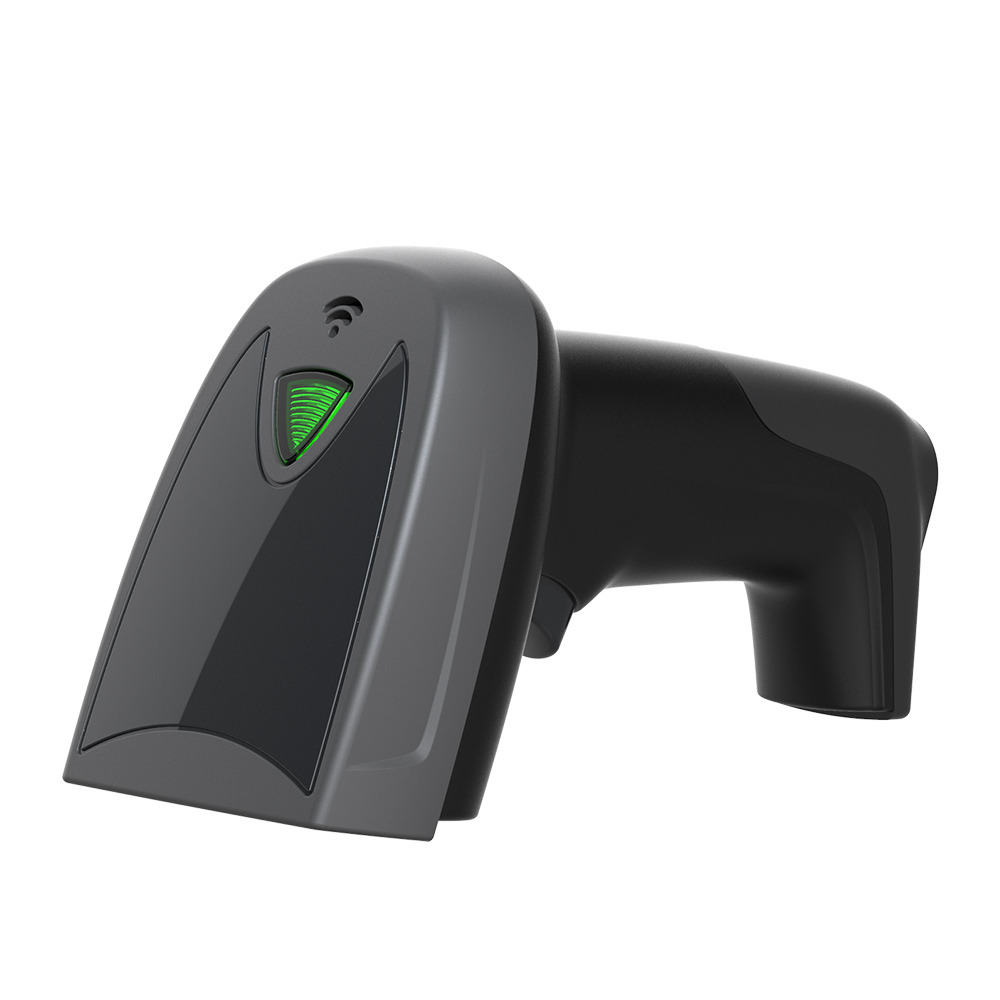

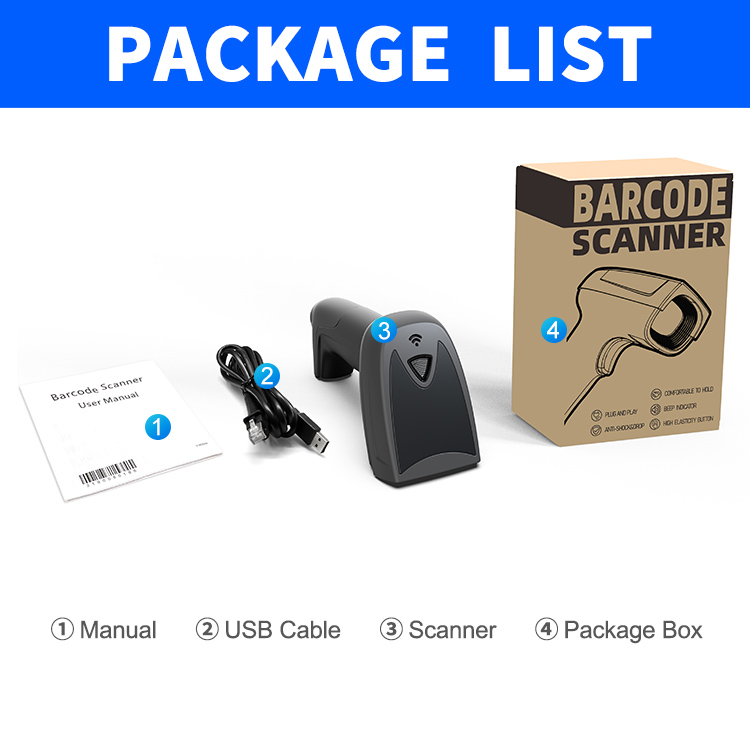

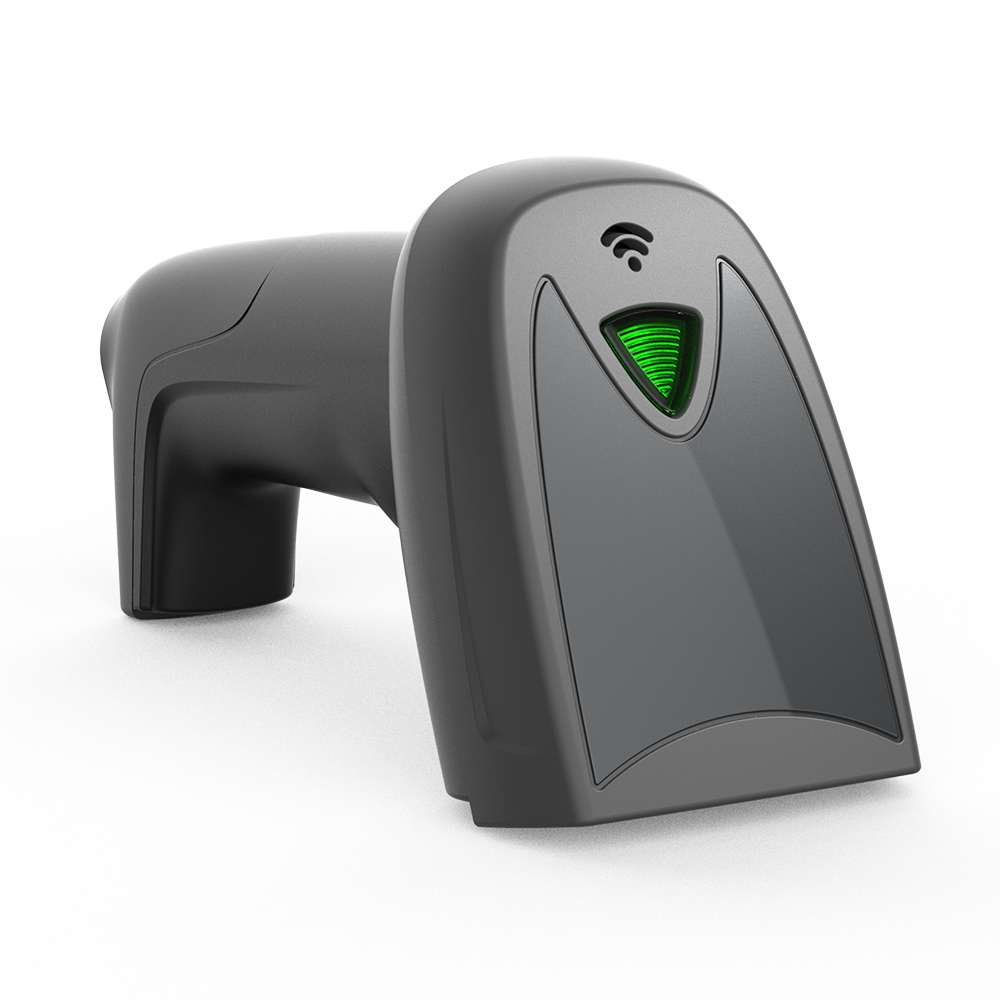

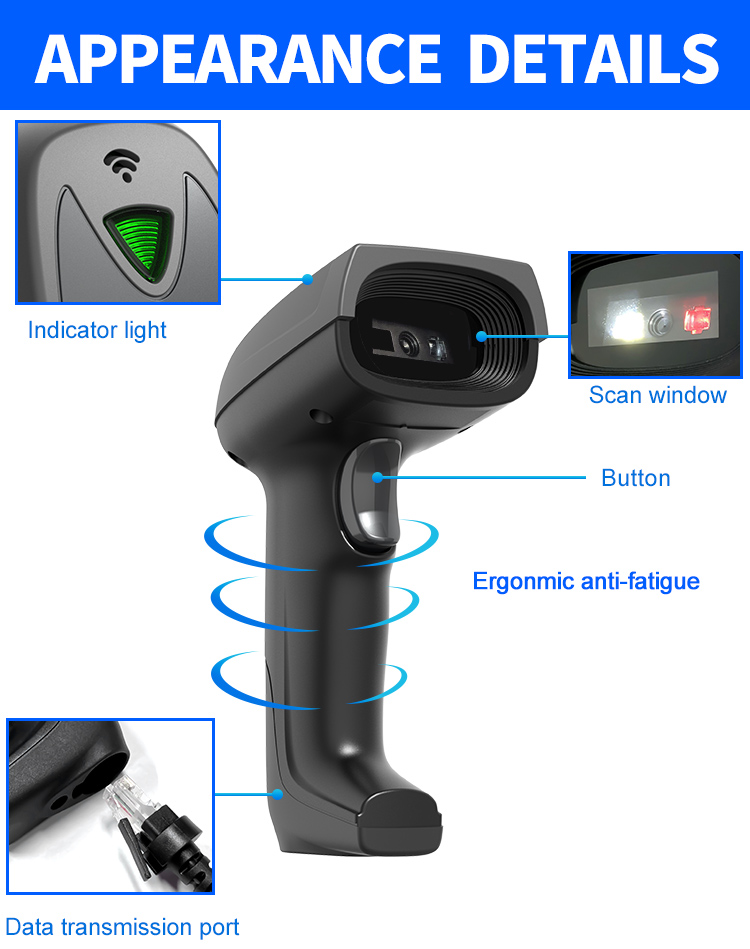

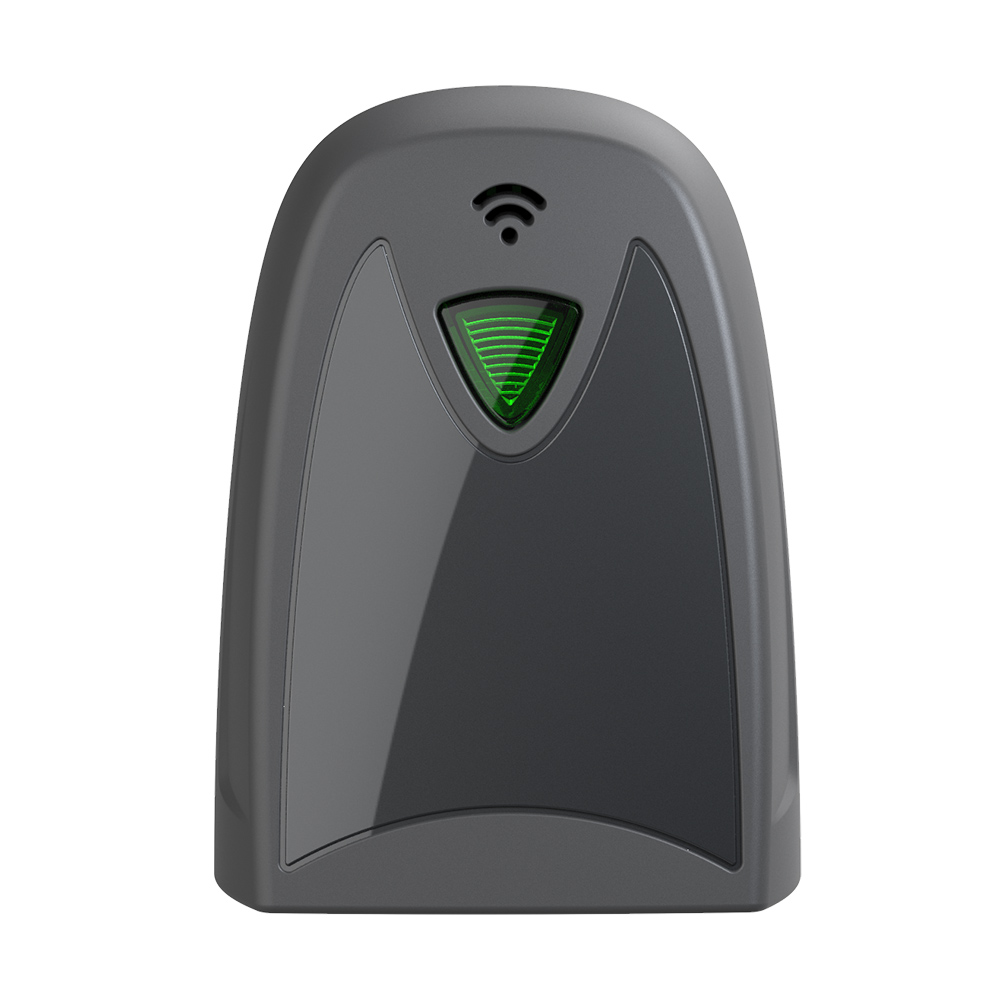

Product Pictures:
