High Quality CMOS Auto Detective Wired Omnidirectional Desktop Barcode Scanner Hands Free 1D 2D QR Code Reader for Supermarket

High Quality CMOS Auto Detective Wired Omnidirectional Desktop Barcode Scanner Hands Free 1D 2D QR Code Reader for Supermarket

We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!

*Get A Free Quote With No Obligation

High Quality CMOS Auto Detective Wired Omnidirectional Desktop Barcode Scanner Hands Free 1D 2D QR Code Reader for Supermarket

Product Test Video:

Product Description:

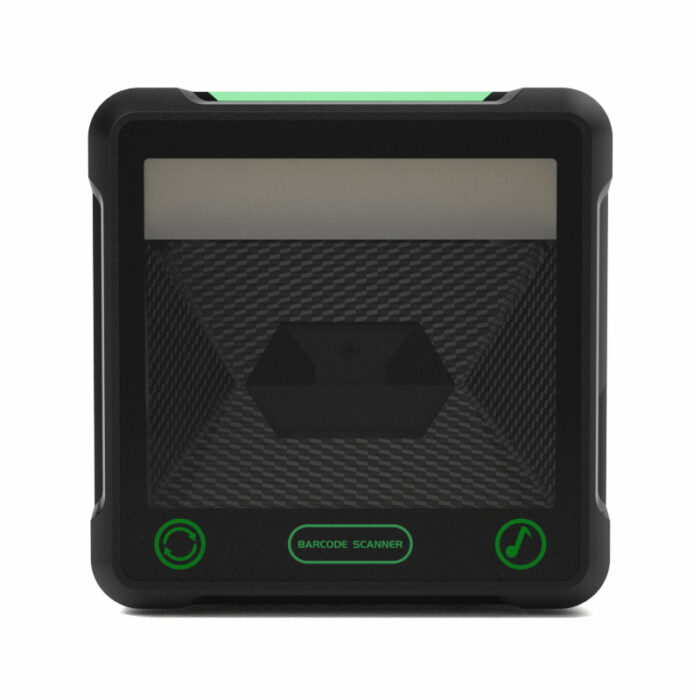

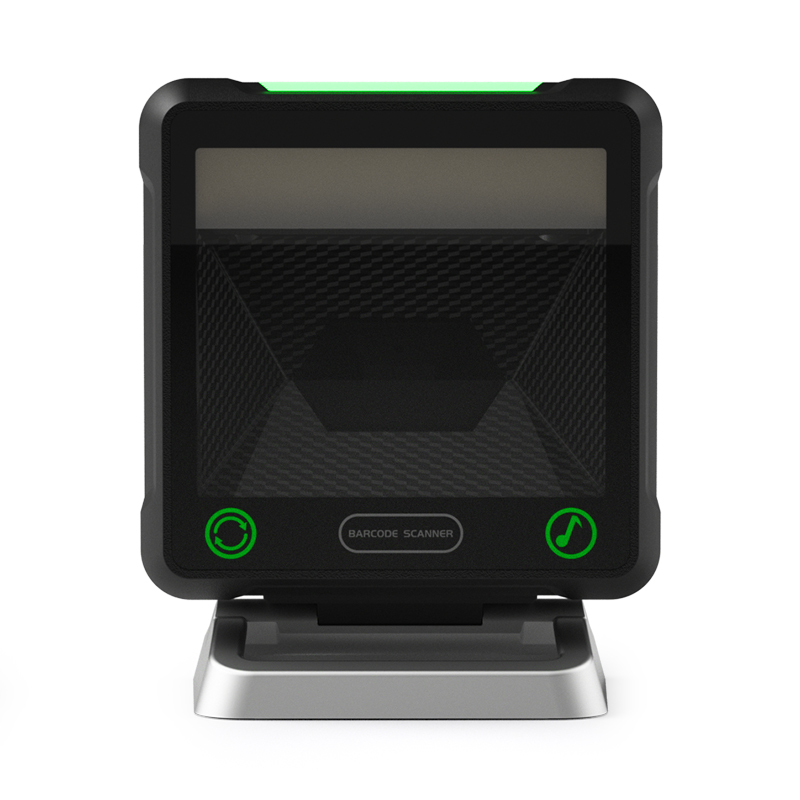

IBC-9810 is CMOS 2d desktop barcode scanner with advanced digital imaging, which provides class-leading performance and reliability. This 2D barcode scanner is with Bright White LED for illuminating scanning surfaces. Support read all mainstream 1D&2D bar codes. Strong body with scratch-resistant material. Quickly read various LCD and OLED mobile phone screen codes and printed product codes. Using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage. It smoothly reads all bar codes, whether displayed on cell phones or printed. It is stable, adaptive illumination for user comfort. Solid-state electronics for silent operation and superior reliability. It support multi-language keyboard, support special characters. It is the best choice for Hypermarket to improve work efficiency.

Product Features:

• Equipped with the new 1,000,000 global exposure scan engine
• Larger scanning window for easier reading

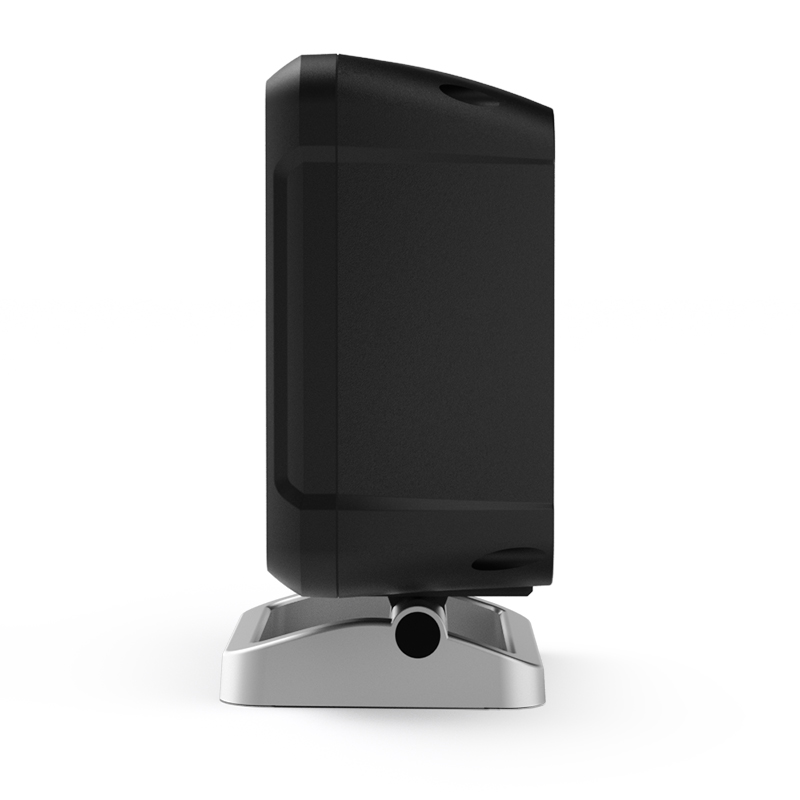

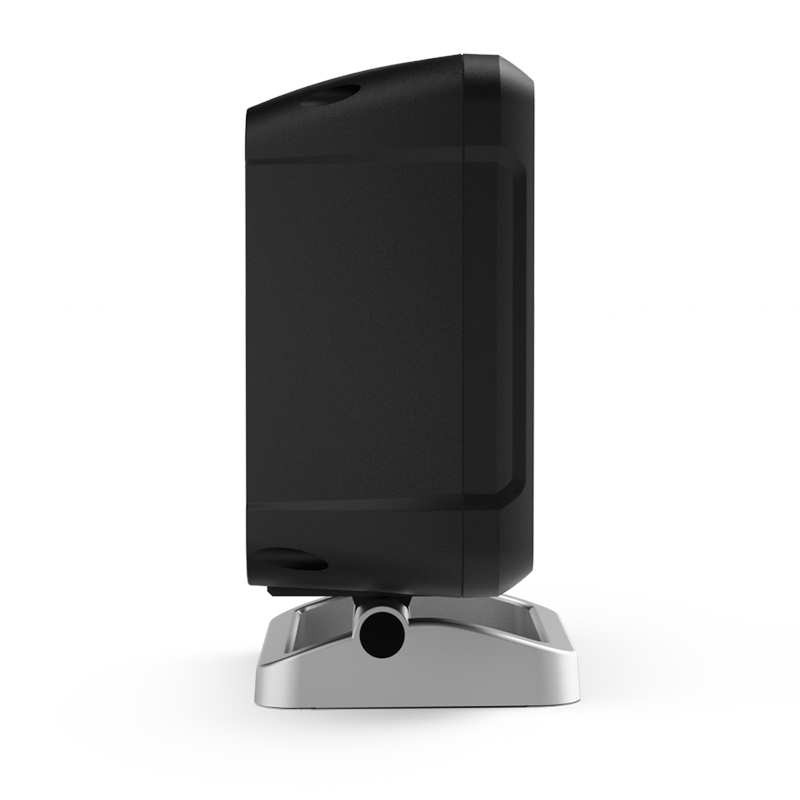

• Adjustable angle, flexible and easy to use
• Commonly used function buttons, easier to set up
• 5 different styles of prompt sound, soft and bright LED indicator
• Multiple interface, strong compatibility, support a variety of systems and cash registers

Product Specification:

Parameters Sheet
Model No. IBC-9810
Product Name 1D 2D Wired Desktop Barcode Scanner
Physical parameters
Scan mode Auto-sensing/continuous scanning
Communication interface USB-HID keyboard, USB-COM virtual serial port, RS232 serial port (optional).
Interface type USB TYPE-B
Prompt way Buzzer, LED light
How it’s set up Press the button to set it, and manually scan the setting code in turn
Housing material ABS+PC
Cable standards Straight line 1.5m
Exterior dimensions 155mm× 155mm× 82mm (product),
210mm× 160.5mm× 100mm (outer packing).
Weight Net weight 464.7g, gross weight 664.2g
Performance parameters
The type of scan CMOS global exposure
Resolution 1280*800
Light source 617nm red LED
Scan angle ±70°, ±54°, 360° (left and right, front and back, rotation).
Scan rate 120 times/second
Field of view 48° (H) x 30° (V)
Print contrast 20% minimum
Decode 1D: UPC-A, UPC-E0, UPC-E1, EAN-8, EAN13, Code128, GS1-128, Code39, Code32, Code93, Code11, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Standard 25, CodaBar, MSI-plessey, GS1 Databar
2D: QR Code, Data Matrix (DM), PDF417, Maxi Code, Aztec Code, ISSN, NEC-25, COMPOSITE, support mobile screen reading
Minimum resolution 4mil
Electrical parameters
Input voltage DC 5V±10%
Current Operating: 240 mA, Standby: 190 mA
Environmental parameters
Temperature 0°C-50°C(Working);-20°C~+70°C(Storage).
Humidity 5%-95% non-condensing
