High Performance USB Wired 1D 2D QR Code Reader Scanning Platform CMOS 800*600 Desktop Scanner Barcode Omnidirectional

High Performance USB Wired 1D 2D QR Code Reader Scanning Platform CMOS 800*600 Desktop Scanner Barcode Omnidirectional

We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!

*Get A Free Quote With No Obligation

High Performance USB Wired 1D 2D QR Code Reader Scanning Platform CMOS 800*600 Desktop Scanner Barcode Omnidirectional

Product Test Video:

Product Description:

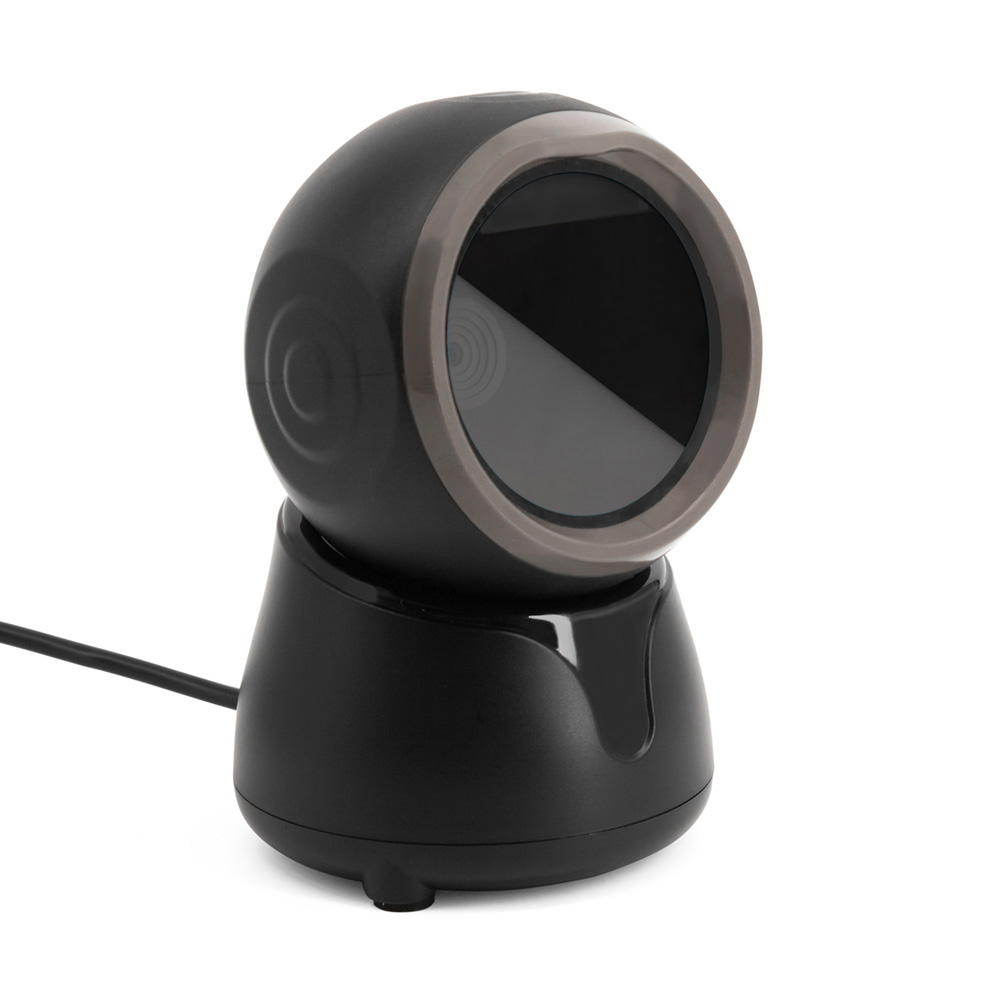

IBC-8230 is CMOS desktop barcode scanner. It is strong body with scratch-resistant material. Quickly read various LCD and OLED mobile phone screen codes and printed product codes. Using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage. with Powerful scanning function, it is Excellent at decoding colorful, distorted, poor printed, fuzzy barcodes. Auto-Sensing Scan, when the barcode is close, it will be automaticallyscanned by induction, without manual operation. Adjust the scanning window according to theneeds of the scanning scene. Compatible With Multiple operation system, USB interface is plug and play, no need to set upconvenient and fast. It is the best choice for you to improve your work efficiency. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.

Product Features:

• Equipped with the new 500,000 global exposure scan engine
• Larger scanning window for easier reading
• Adjustable angle, flexible and easy to use
• Frequently used function buttons, easier to set up
• 5 styles of prompt sound, soft and bright LED indicator
• Rich interface, strong compatibility, support a variety of systems and cash registers

Product Specification:

Parameters Sheet
Model No. IBC-8230
Product Name 1D 2D Wired Desktop Barcode Scanner
Physical parameters
Scan mode Auto-sensing/continuous scanning
Communication interface USB-HID keyboard, USB-COM virtual serial port, RS232 serial port
Interface type USB TYPE-B
Prompt mode Buzzer, LED light
How it is set up Press the key to set and manually scan the setting code in turn
Housing material ABS+PC
Cable standard Straight line 1.35m
Exterior dimensions 148mm×97mm×97mm (scanner); 170 mm×115 mm×1 15 mm (inner box)
Weight Net weight 326g; Gross weight 336g
Performance parameters
Scan type CMOS global exposure
Resolution 800*600
Light source 617nm red LED
Scan angle ± 60°, ±54°, 360° (left and right, front and back, turn).
Scan rate 120 fps
Field of view 48° (H) x 30° (V)
Printing contrast Minimum 20%.
Decoding kind 1D: EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite
2D: QR Code, Data Matrix (DM), PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, support mobile screen reading
Minimum resolution 4thousand
Electrical parameters
Input voltage DC 5V±10%
Current Working: 240 mAh; Standby: 190 mAh
Environment parameters
Temperature 0°C-50°C (working); -20°C~+70°C (storage).
Humidity 5%-95% non-condensing
