High performance Obrit Shape Desktop Omni-directional Hands-Free 1D 2D QR Code Platform Barcode Scanner
High performance Obrit Shape Desktop Omni-directional Hands-Free 1D 2D QR Code Platform Barcode Scanner
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
High performance Obrit Shape Desktop Omni-directional Hands-Free 1D 2D QR Code Platform Barcode Scanner
Product Description:

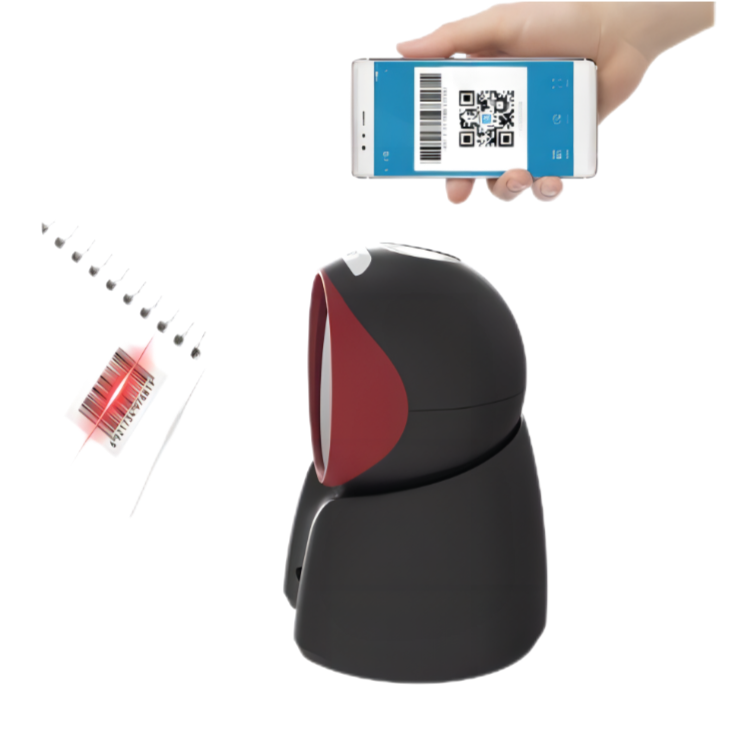

IBC-8180 is CMOS 2d desktop barcode scanner with advanced digital imaging, which provides class-leading performance and reliability. It is with double image sensors. It smoothly reads all bar codes, whether displayed on cell phones or printed. It is stable, adaptive illumination for user comfort. Solid-state electronics for silent operation and superior reliability. It support multi-language keyboard, support special characters. It is the best choice for Hypermarket to improve work efficiency.
Product Features:
• Screen decoding: can directly decode barcodes on mobile phones and computer screens
• Paper decoding: uses fast decoding algorithm to accurately decode various barcodes at high speed
• Decoding capability: can scan both mobile phones and paper (light does not flicker)
• Other functions: supports direct transmission of Chinese under Linux
Product Specification:
| Product Name: Platform Barcode Reader |
| Model Name: IBC-8180 |
| Physical Characteristics |
| Dimensions: 109.4mm x 153.3mm x 101.8mm |
| Weight: 297.5g |
| Voltage: 5V |
| Starting Current: 430mA |
| Stand-by Current: 240mA |
| Work Current: 430mA |
| Performance Characteristics |
| Image (Pixels) : Main camera: 640 pixels (H) x 480 pixels (V); Secondary camera: 640 pixels (H) x 480 pixels (V) |
| Light Source: Red color LED |
| Field of View: Main camera: 39° (H) X29° (V); Secondary camera: 56° (H) X44° (V) |
| Roll / Pitch / Yaw: 360°, ±65° , ±65° |
| Print Contrast: 20% minimum reflective difference |
| Interfaces Supported : USB/ USB COM |
| Resolution: ≥4mil |
| Symbology Decode Capability |
| 1D: Coda bar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5 ，Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post. 2D: Code block A, Code block F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN. Default code system: Codabar, Code39, Interleaved2of5, NEC2of5, Code93, Code128, GS1-128, UPC-A, UPC-E0, EAN/JAN-13, EAN/JAN-8, GS1-DataBar, PDF417, QR, DM, Aztec. |
| User Environment |
| Operating Temperature: -20°C to 60°C |
| Storage Temperature: -30°C to 70°C |
| Humidity: 5% to 95% relative hum idity,non-condensing |
| Shock Specifications: Designed to withstand 1.2m (5’) drops |
| Ambient Light Immunity: 0-100,000 Lux. |
| Decode Ranges |
| Main camera: Code39 (5mil) : 0-7cm |
| Main camera: Code39 (13mil) : 0-16cm |
| Main camera: UPC-A (13mil) : 1-16cm |
| Secondary camera: Alipay payment code (QR 3*3) : 3-20cm |
| Secondary camera: WeChat payment code (QR 3*3) : 3-18cm |
| Performance may be impacted by bar code quality and environmental conditions |
