High Performance Desktop Barcode Reader 1D 2D Omnidirectional CMOS Bar code Scanner For Supermarket
Product Testing Video:
Product Description:

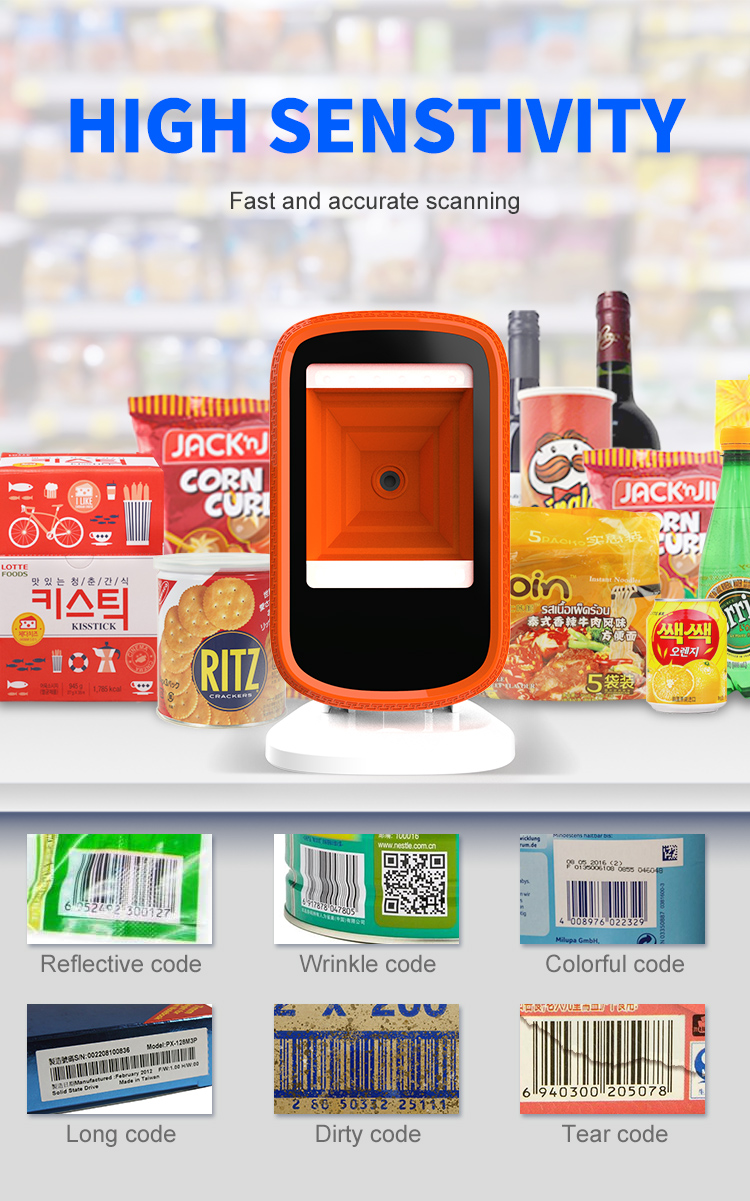

IBC-9210 is CMOS 2d desktop barcode scanner with advanced CMOS image recognition technology. It is Handsfree Barcode Scanner for busy retail environments, hands-free modeimproves personnel productivity. It is suitable for supermarket, retail, warehouse, library, hospital, etc. The mainstream 1D/2D/Screen code on the market can be quickly identified. It can scan colorful, distorted, poor printed, fuzzy barcodes. It is the best choice for you to improve your work efficiency. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.
Product Features:
• Sensitive Auto Sensing
• Excellent decoding ability with new decoding chip for various of 1D & 2D barcode
• Directly Connect With PC and USB Cable
• Support paper, film, commodity code, mobile phone payment code and high precision bar code..
Product Specification:
| Model | IBC-9210 | |
| Item | Wired 2D Image Desktop barcode scanner | |
| Physical Parameter | ||
| Material | ABS+PC | |
| Power Supply | DC 5V ±5% | |
| Power Consumption | 105mA（standby）；175mA（working）；230mA（maximum）【average current】 | |
| Power Dissipation | 0.53W（standby）；0.88W（working）；1.15W（maximum）【average power dissipation 】 | |
| Weight | 214.0g±5g（With cable） | |

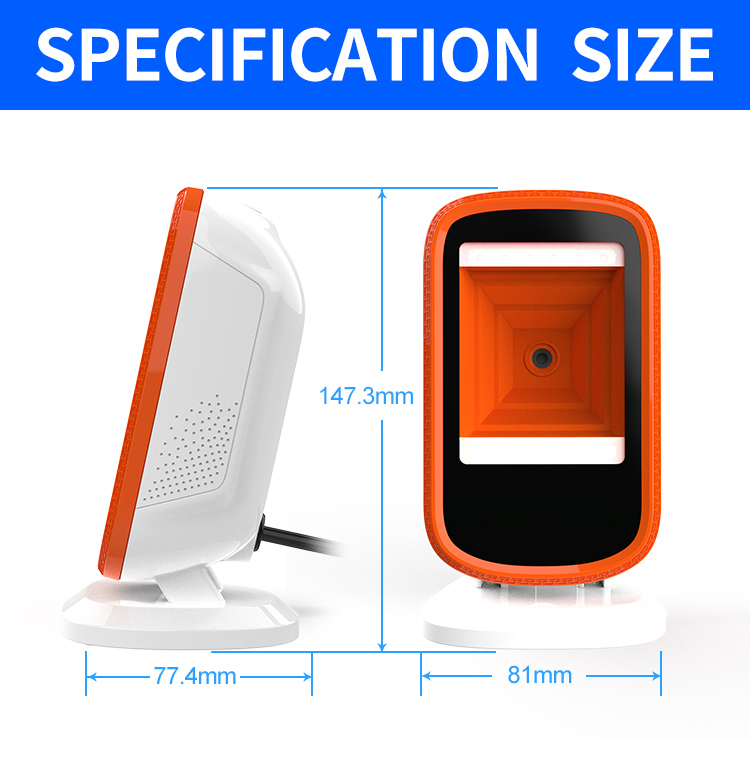

| Size | L*W*H：147.3 * 81.0 * 77.4（unit：mm） | |
| Color | White & Orange | |
| Performance Parameter | ||
| Interface | USB | |

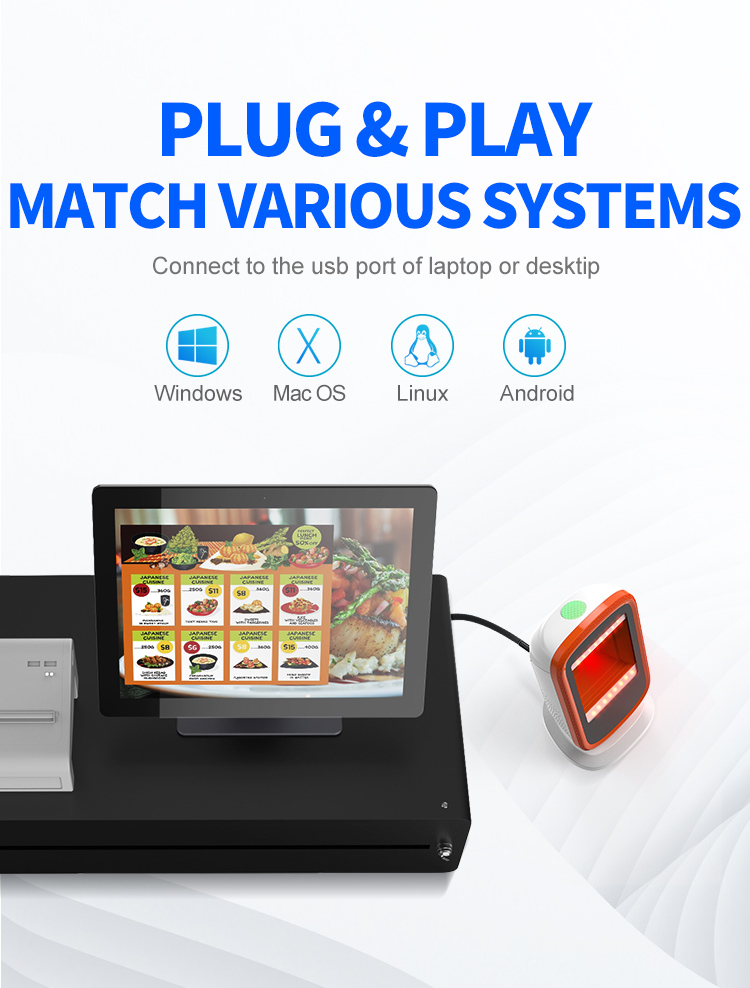

| System Supported | Linux，Android，Windows XP、7、8、10，MAC | |
| Language Supported | English,Belgian,Finnish,French ,German,Italian ,Swedish,Danish,Norwegian, Spanish, Portuguese, Turkish Q, Turkish F, Japanese, Russian, Czech, Thai, Ukrainian, Brazilian, Greek, Hungarian, Dutch,Polish ,Romanian, Slovak 【support multi-languauge】 | |
| Sensor | CMOS sensor 480 * 640 | |
| Light Source | red LED | |
| Professor | 32-bit ARM MCU + DSP | |
| Motion tolerance | 85cm/sec 【10mil QRcode as sample】 | |
| Resolution | Code39 4mil | |
| Bit error rate | 1/5000000 | |
| Reading Mode | Image | |
| Trigger Mode | Self-induction mode | |
| Button Switch | Green Light Default open code system |
|
| Blue Light Default open code system |
||
| Prompt Mode | Buzzer, Indicator Light（LED） | |
| Scanning Angel | Roll360°， Pitch45°，Yew45° | |
| View Angle | 32°（level） * 30°（vertical） | |
| Invoice function | Support | |
| Print Contrast | ≥30% | |

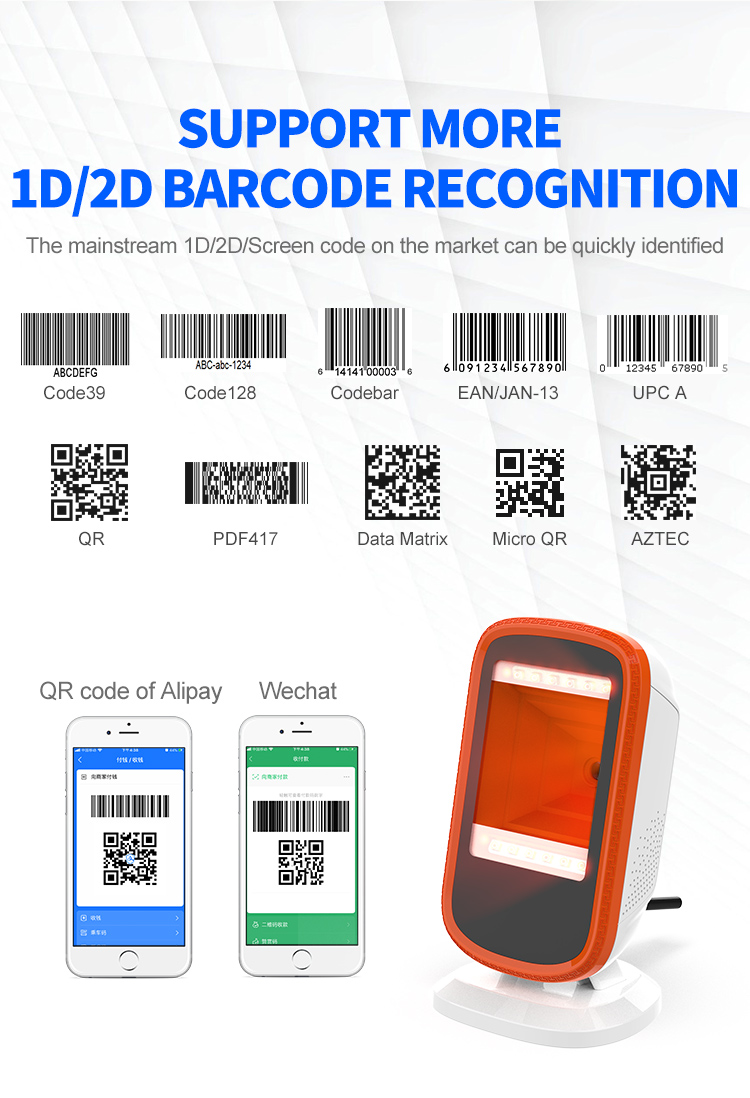

| Decoding Capability | 1D | ●Interleaved 2 of 5 ●ITF-6 ●ITF-14 ●ISB-128 ●Code 11 ●UCC/EAN-128 ●GS1 Databar ●Industrial 2 of 5 ●Code 128 ●EAN-13 ●EAN-8 ●Code 39 ●UPC-A ●UPC-E ●Codabar ●Standard 2 of 5 ●Plessey ●MSI-Plessey ●Code 93 ●GS1 composite code ●Matrix 2 of 5 ●Code 32 |
| 2D | ●PDF417 ●Data Matrix ●QR Code ●HanXin ●AZTEC ●Maxicode ●Micro QR ●Micro PDF417 | |
| Scanning Depth | Code39 7.50mil（15 bytes）： 2cm – 7cm Code39 10.83mil（16 bytes）： 4cm – 8cm Data Matrix 12.50mil（8 bytes）： 0cm – 6cm Code QR 10.83mil（8 bytes）： 0cm – 8cm |
|
| Environment Parameter | ||
| IP Grade | IP52 | |
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | |
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | |
| Operating Humidity | 20% to 85%（No Condensation） | |
| Storage Humidity | 20% to 85%（No Condensation） | |
| ESD Protection | 15KVair discharge | |
| Shock Resistance | Withstands multiple times 1.2m drops to concrete | |
| Environmental Illumination | 0~100000LUX | |

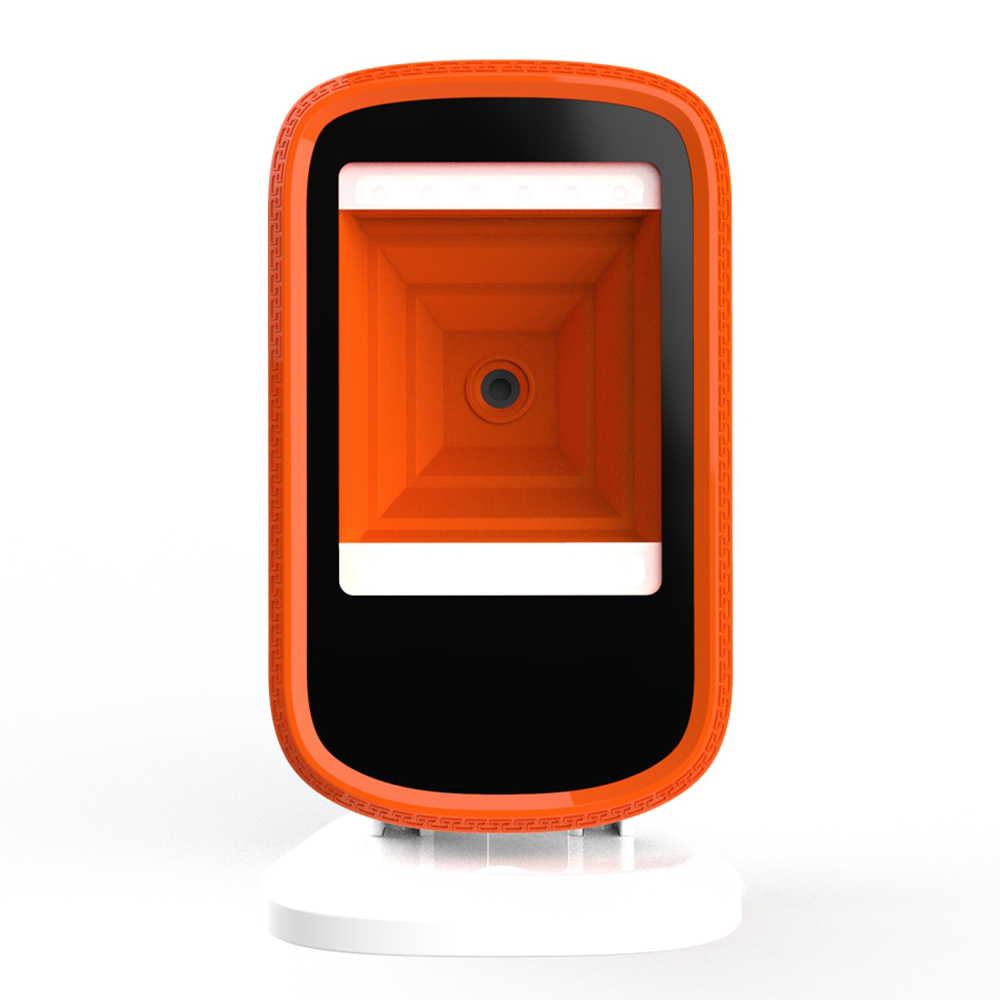

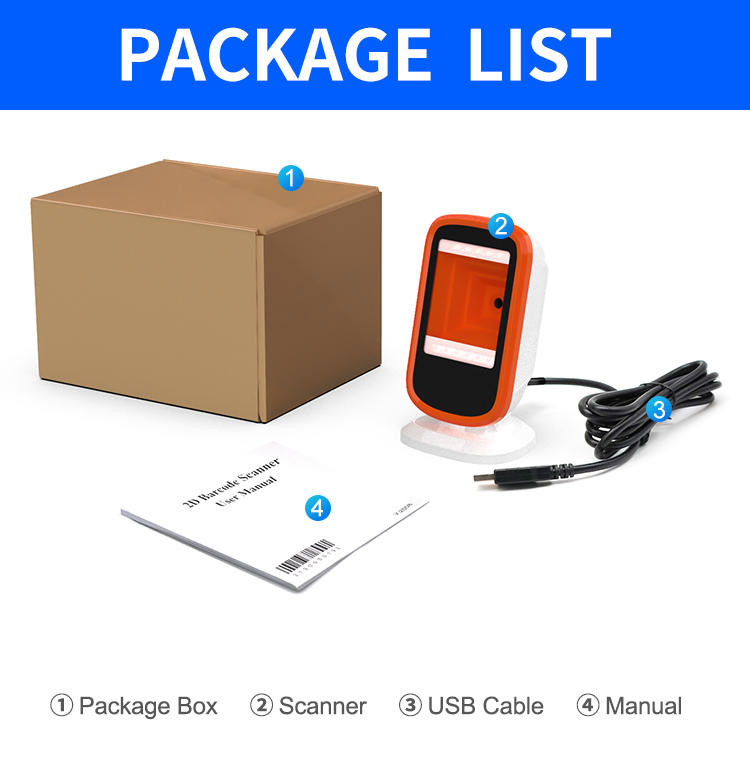

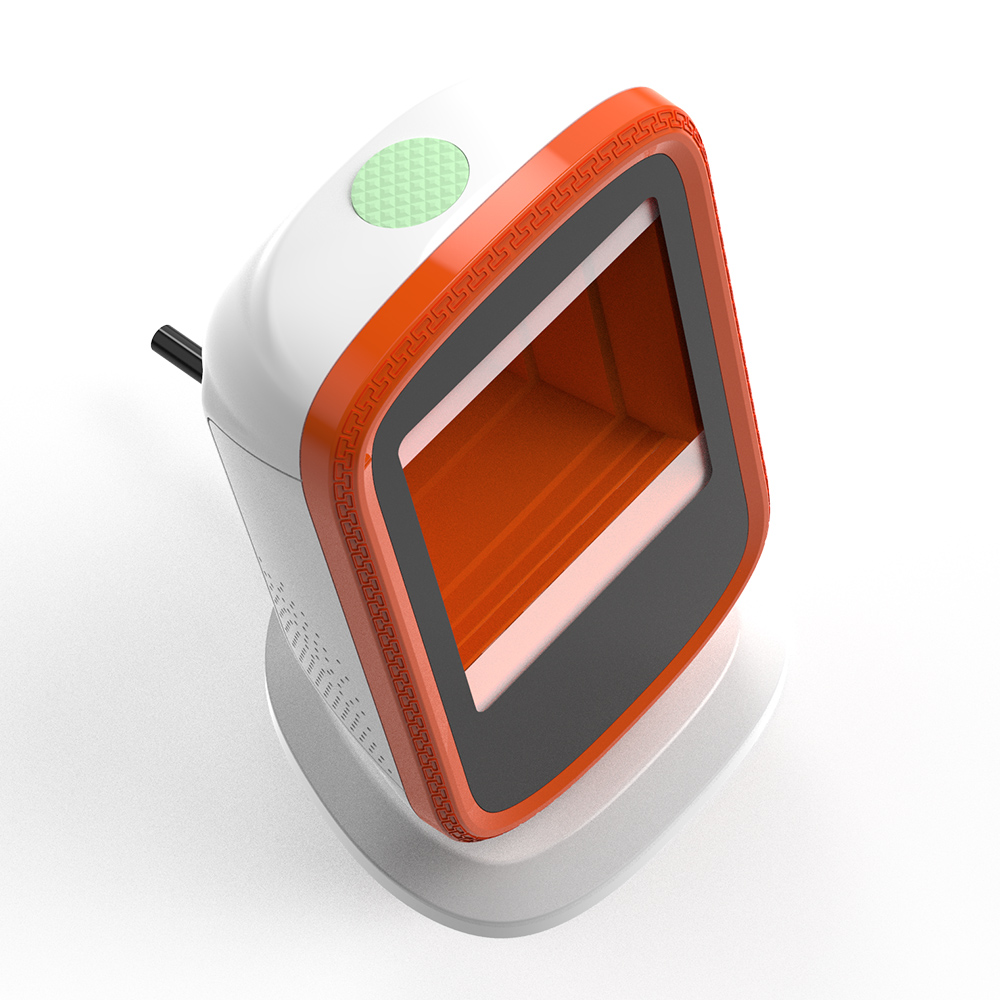

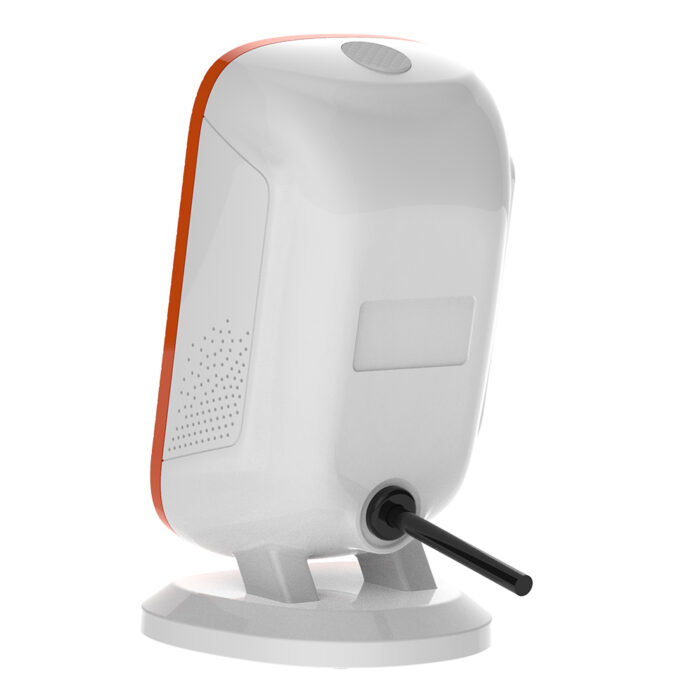

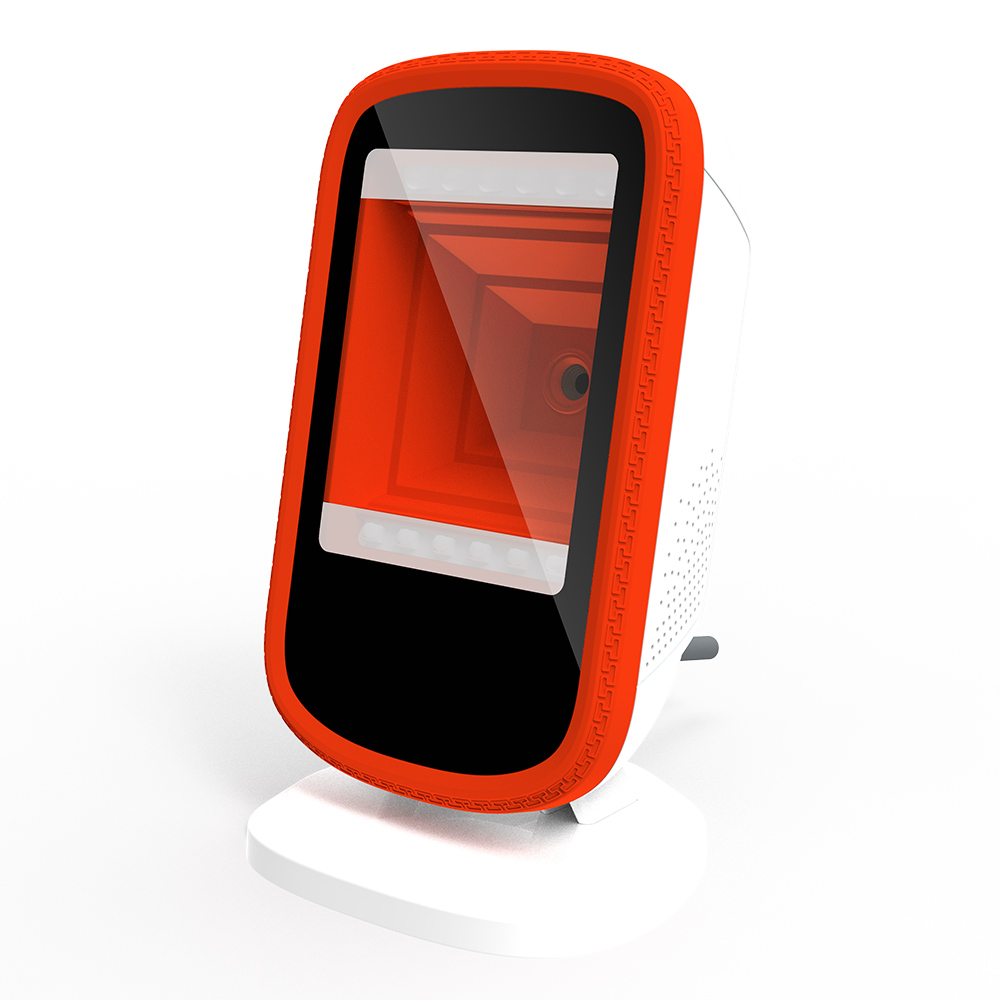

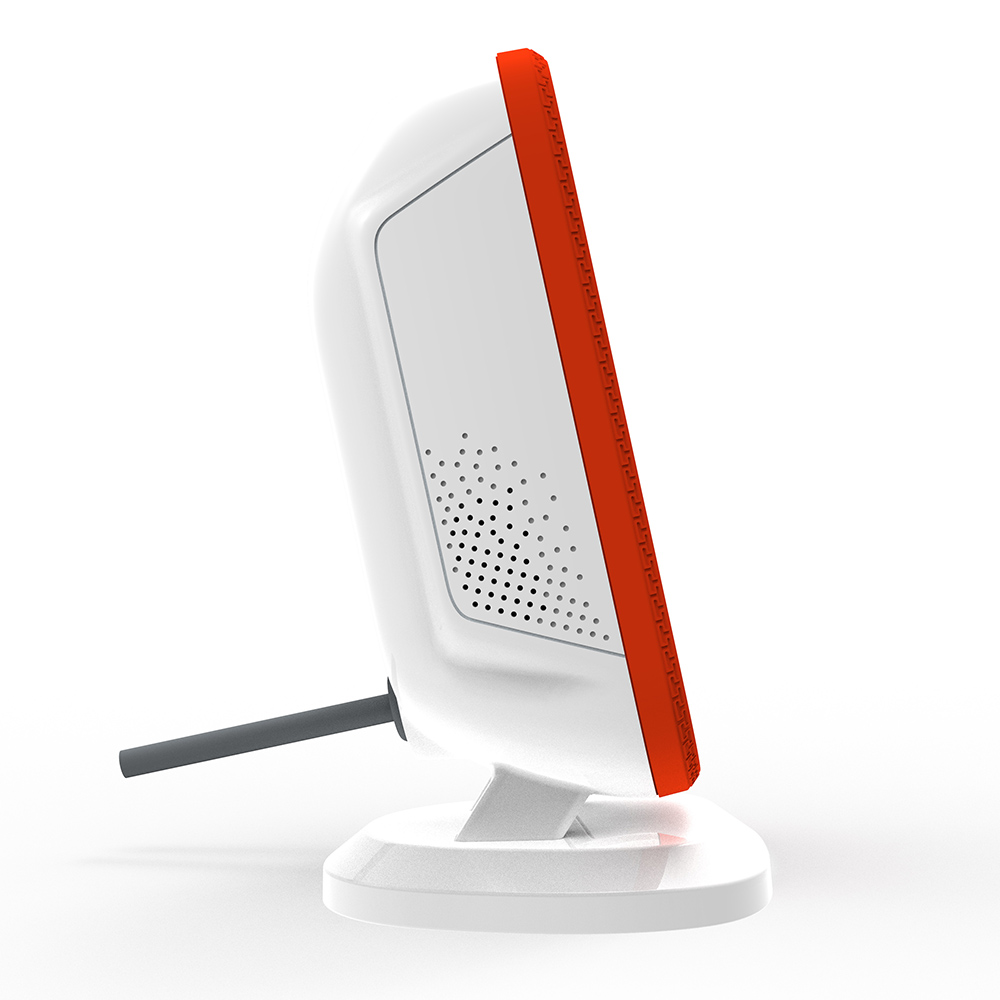

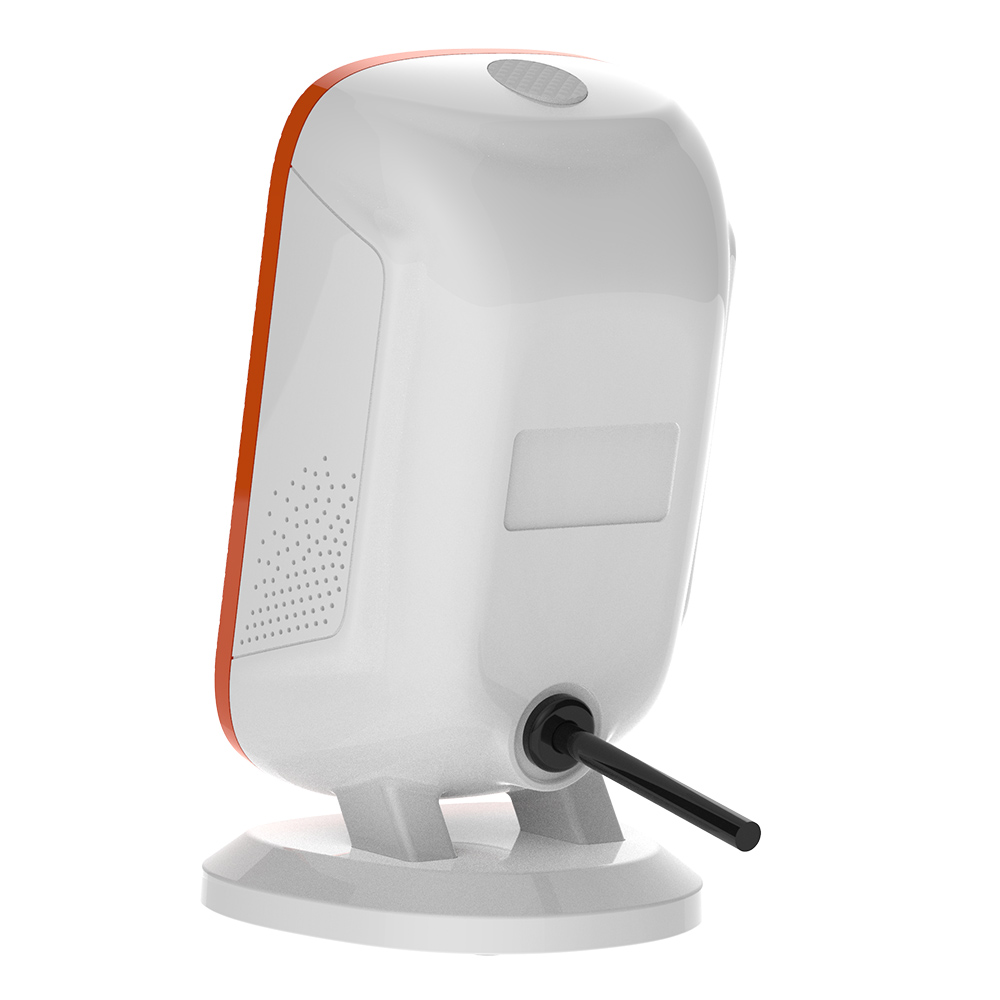

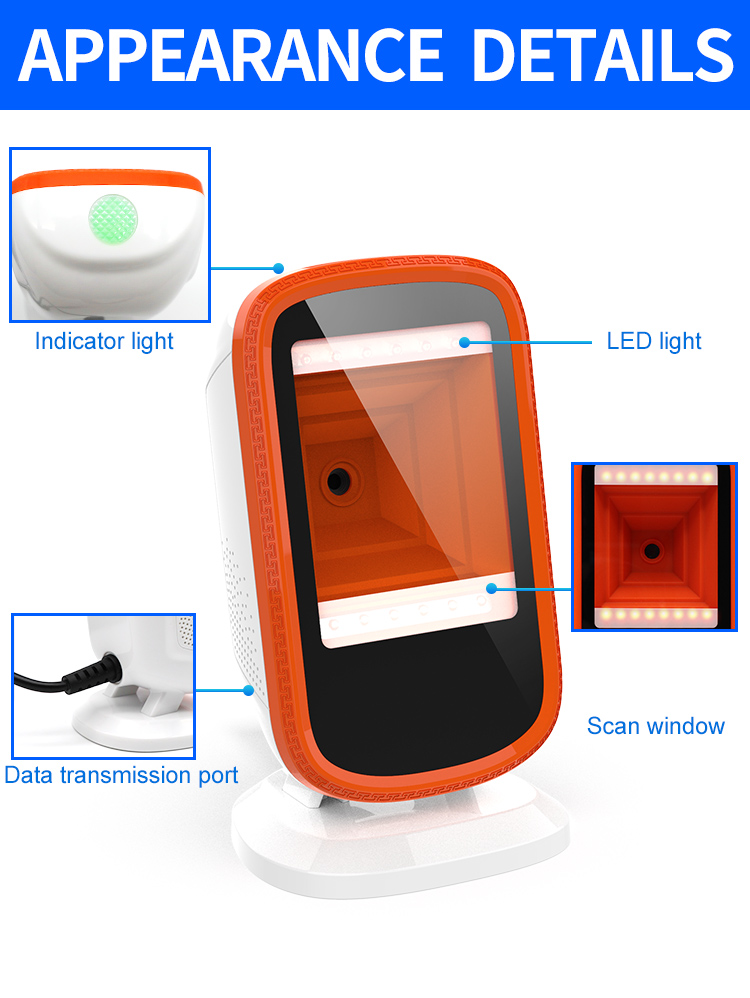

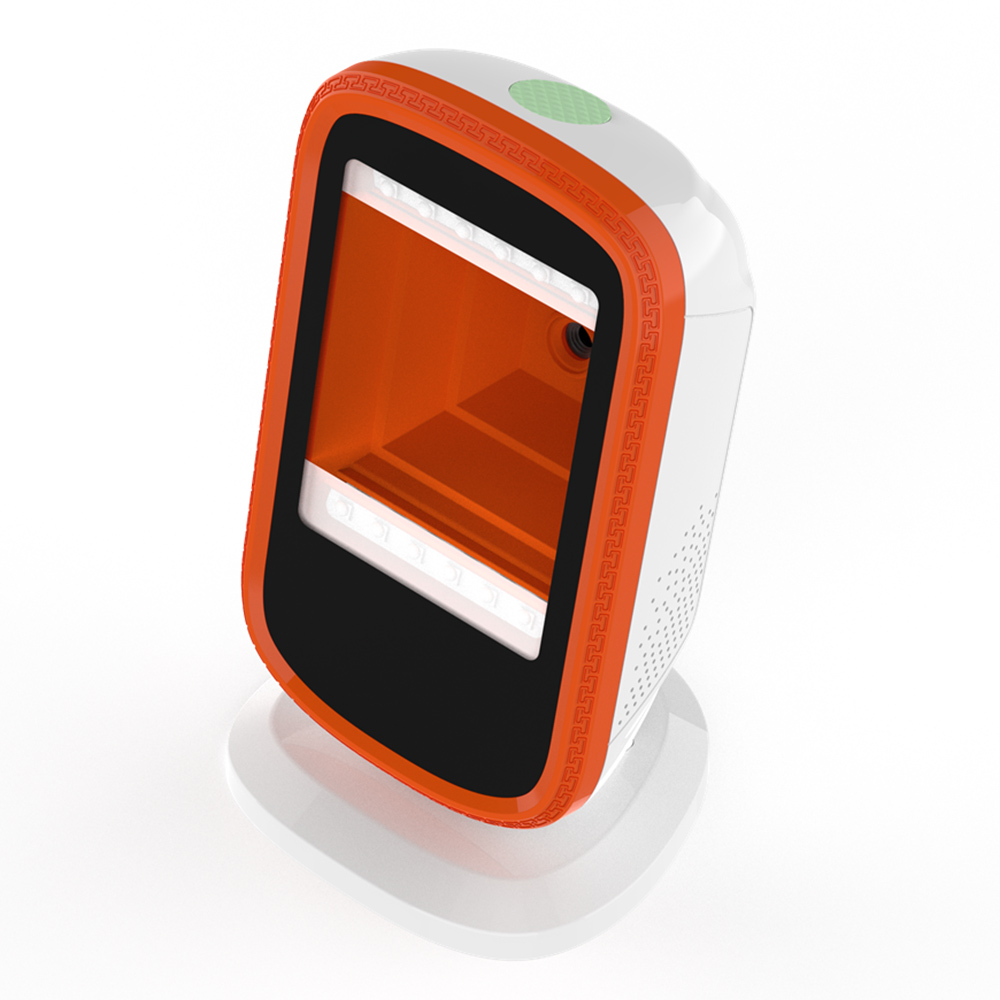

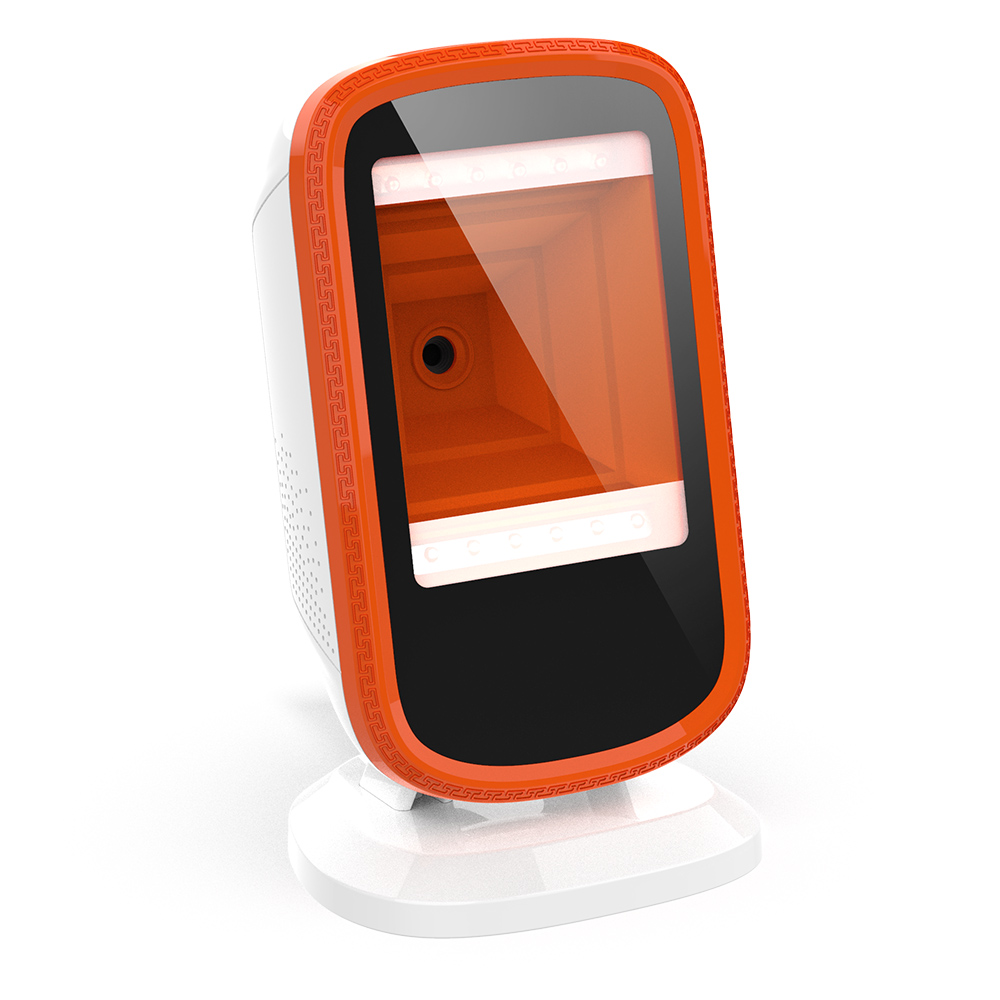

Product Pictures:
