Product Description:

IBC-9220 is CMOS 2d desktop barcode scanner with advanced CMOS image recognition technology. It is Handsfree Barcode Scanner for busy retail environments, hands-free modeimproves personnel productivity. With STRONG DECODING ABILITY, it can read most of barcode, included incomplete fuzzy code, damaged code, distortion code, colorful code etc. Always on, no need to wake up. It is the best choice for Hypermarket to improve work efficiency.

Product Features:

• Always on, no need to wake up

• Excellent decoding ability with new decoding chip for various of 1D & 2D barcode

• Directly Connect With PC and USB Cable

• Support paper, film, commodity code, mobile phone payment code and high precision bar code

Product Specification:

Model IBC-9220
Item Omnidirectional Platform 1D 2D Barcode Scanner
Physical Parameter
Material ABS+PC
Power Supply DC 5V 2A
Power Consumption 1.60W (working); 0.80W (standby); 2.34W (maxium)
Weight 294.0g±5g (without cable)

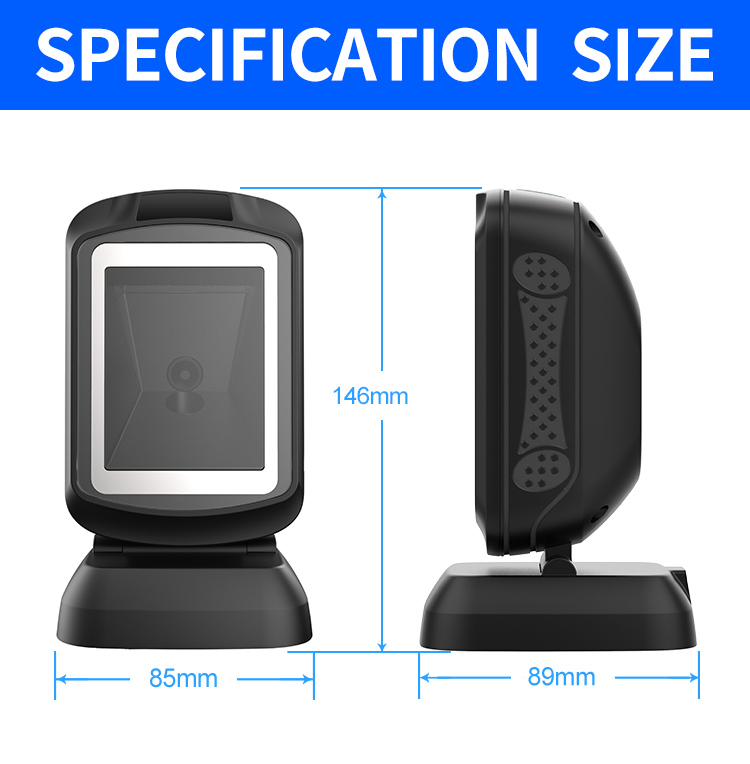

Size L * W * H: 146.99 * 85.27 * 89.97 (unit: mm)
Color Black
Performance Parameter
Interface USB;  (RS232 can be customized)
System Supported Linux, Android, Windows XP、7、8、10, MAC
Language Supported American; French; German; Hungarian; Italian; Italy142; Japanese; Spanish; Finnish; Russian; Irish; Polish; Dutch; Arabic; Czech; Portuguese  (Portugal); Portuguese  ( Brazil); Greek; Swedish; Turkish F; Turkish Q
[Support virtual keyboard]
Sensor CMOS sensor 1600 * 900
Light source Red light LED
Processor 32-bit ARM MCU + DSP
Motion Tolerance 3.24m/sec
Resolution Code39 4mil
Error Rate 1/5000000
Reading Mode Image
Trigger Mode Imaging Sensor
Prompt Mode Buzzer, Indicator Light (LED)
Image code Support
Invoice Function Support
Button Can cut and scan code mode  (mode 1: 1D; 2D can scan; Mode 2: only scan 1D)
Print Constrast ≥25%
Decoding Capability 1D Interleaved 2 of 5, Standard 2 of 5, Matri 2 of 5, RSS-14, Code39, Code39-FullASCII, Code93-Regular, Code93-FullASCII, Code128, Code11, UPCE0/E1, EAN/GSL/UCC-128Auto, Codabar, JAN/EAN-8, EAN/JAN-13, UPC-A
2D MICRO QR,  Data Matrix, QR , AZTEC, PDF417
Scanning Angle Roll360°, Pitch45°, Yew45°
Scanning Depth 5mil   code39: 1 cm –  12 cm;  13mil  UPC-A: 2 cm –  30 cm
20mil  code39: 1 cm –  30 cm;  6.7mil PDF417: 1 cm –   6 cm
10mil  Data Matrix: 1 cm –  9 cm;  15mil  Data Matrix: 1 cm –  20 cm
Payment 1D: 0 cm – 42 cm;  Payment 2D:  0 cm – 42 cm
Environment Parameter
IP Grade IP52
Operating Temp. 0 to 50℃ / 32 to 122℉
Storage Temp. 0 to 50℃ / 32 to 122℉
Operating Humidity 20% to 85% (No condensationc)
Storage Humidity 20% to 85% (No condensation)
ESD Protection 15KV
Shock Resistance Withstands multiple times 1.5m drops to concrete

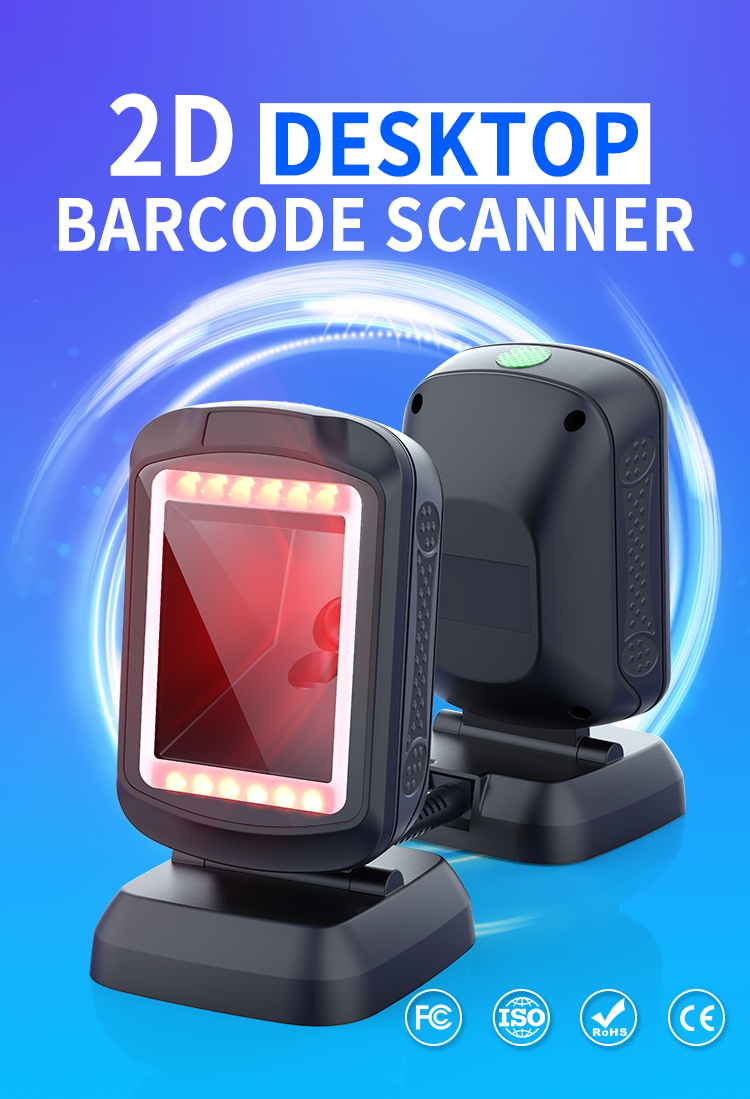

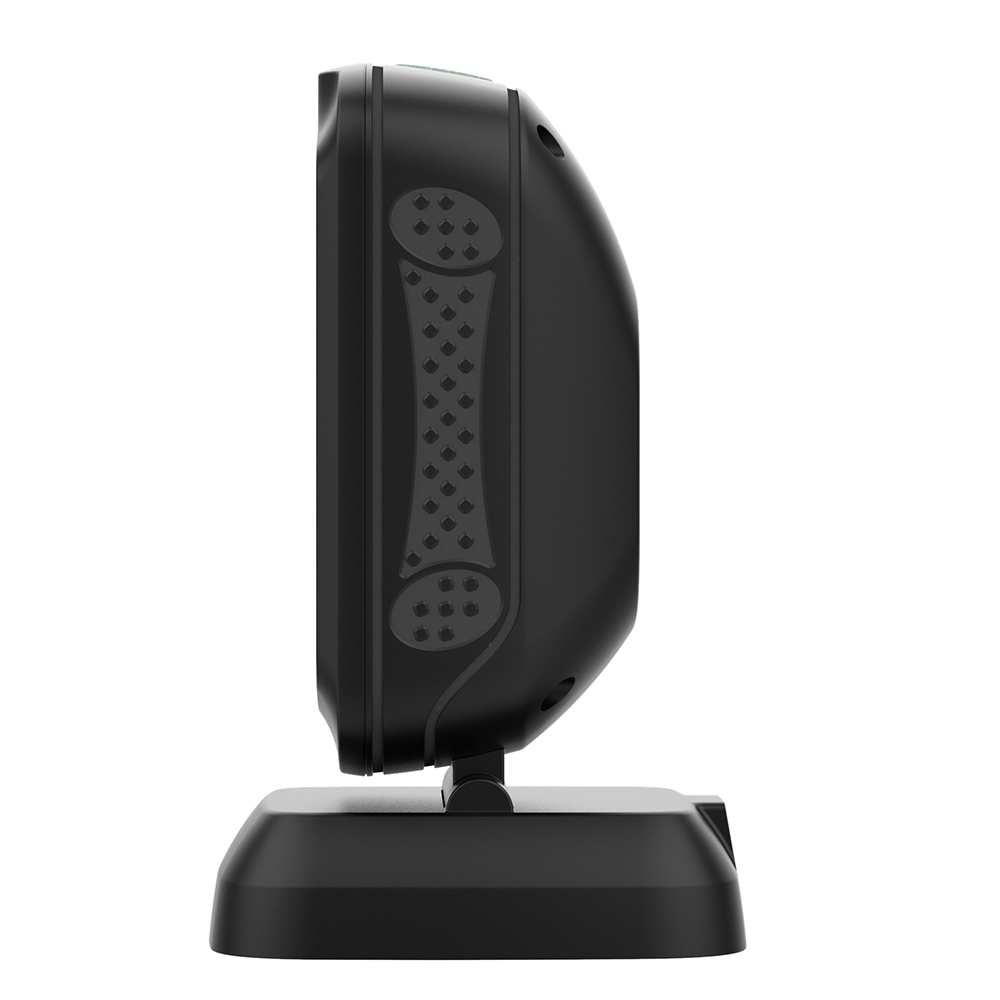

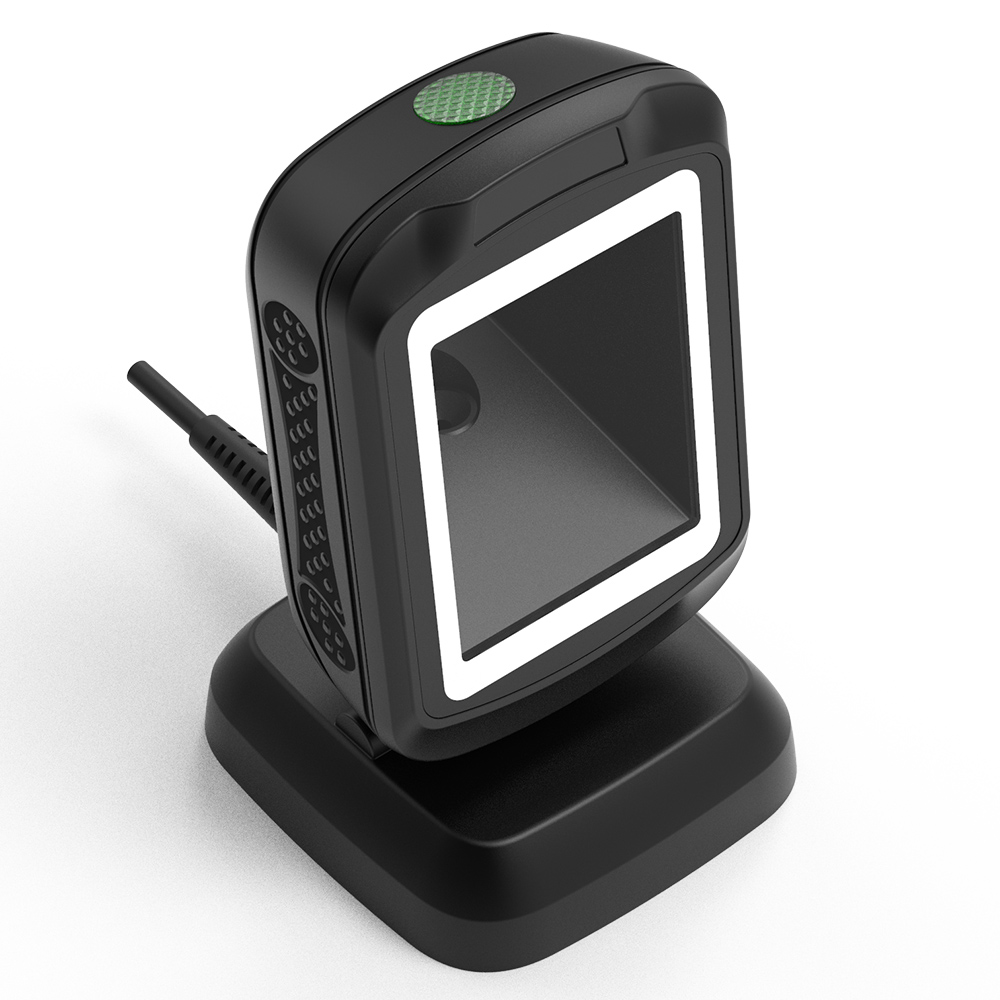

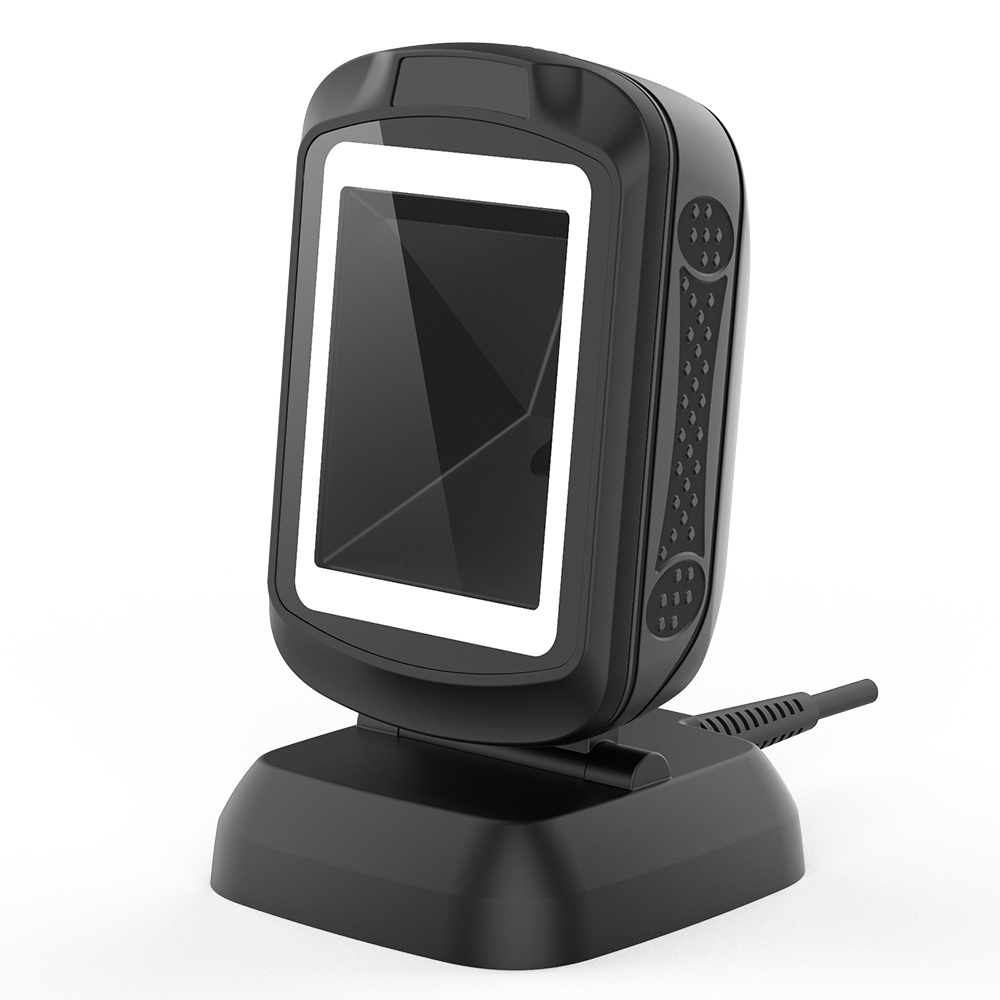

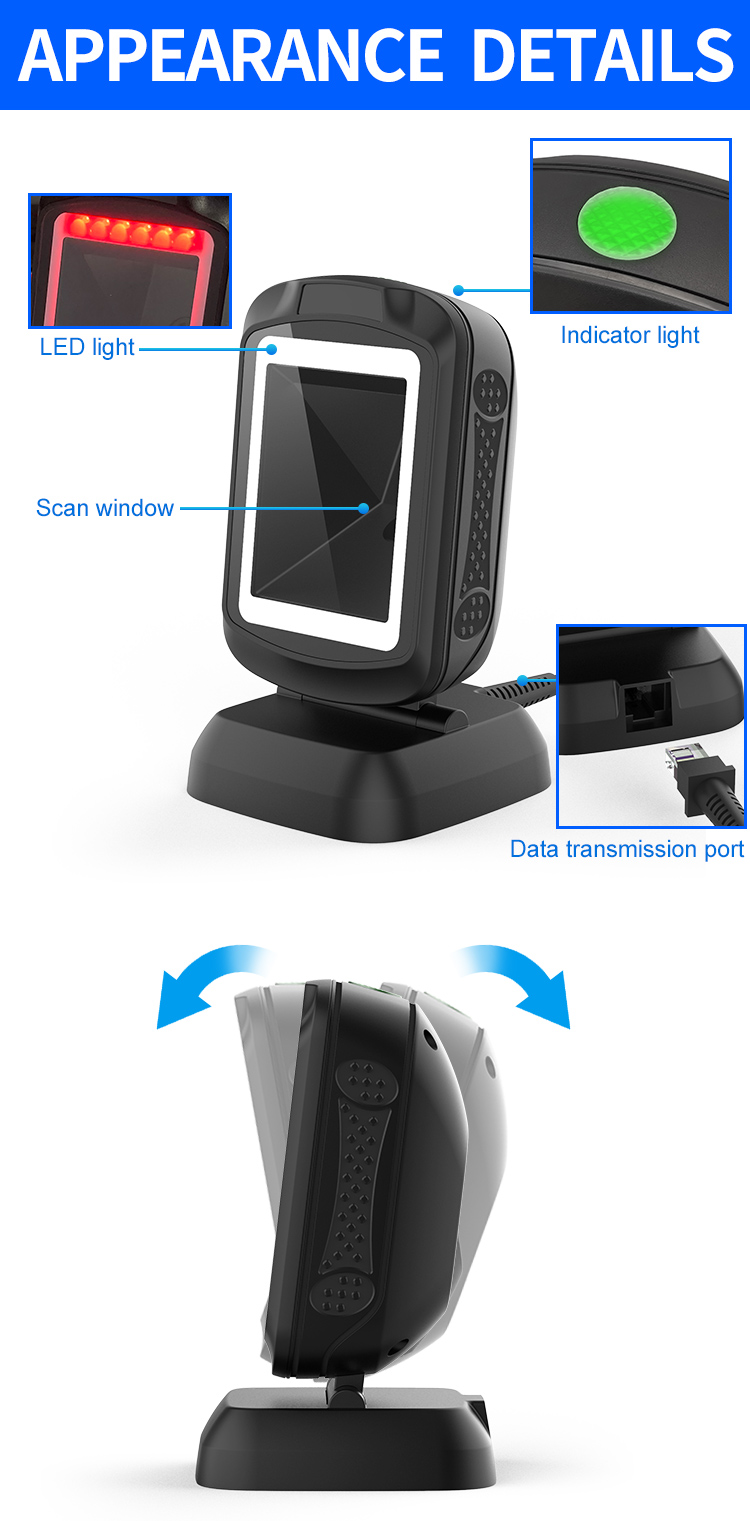

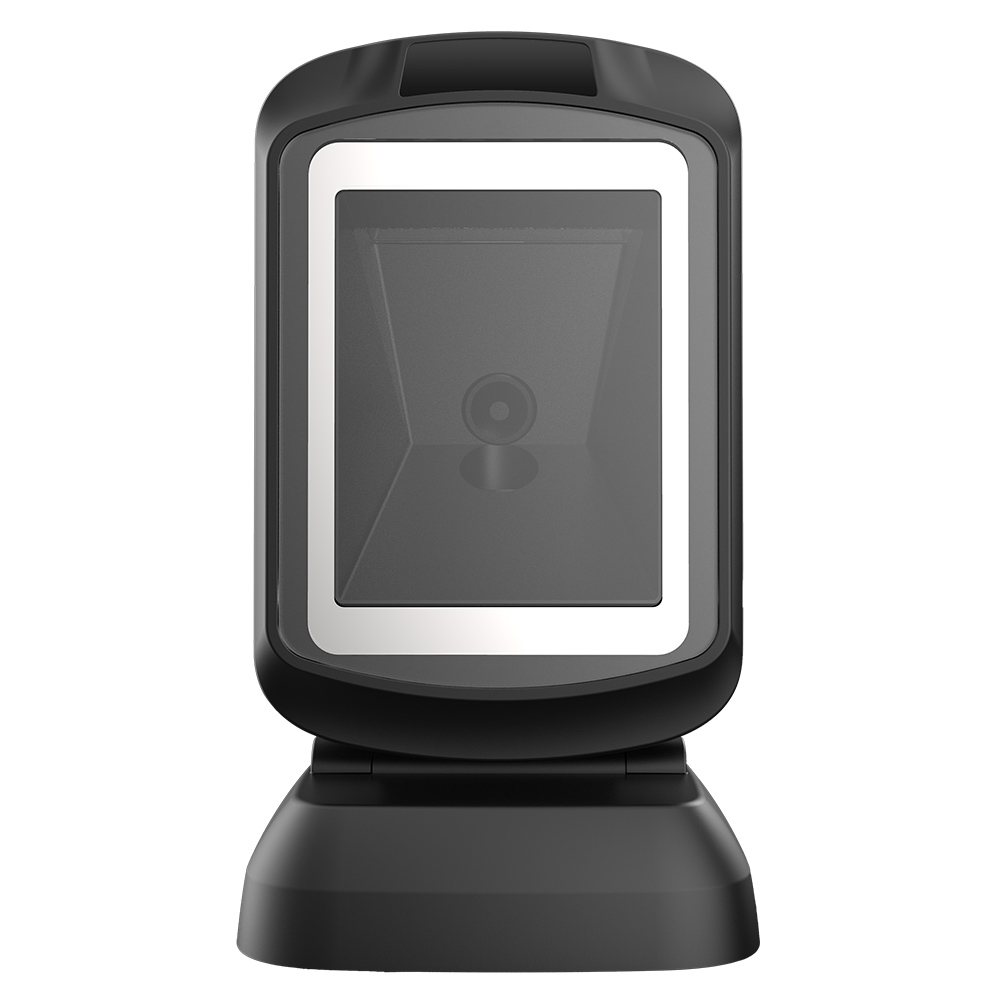

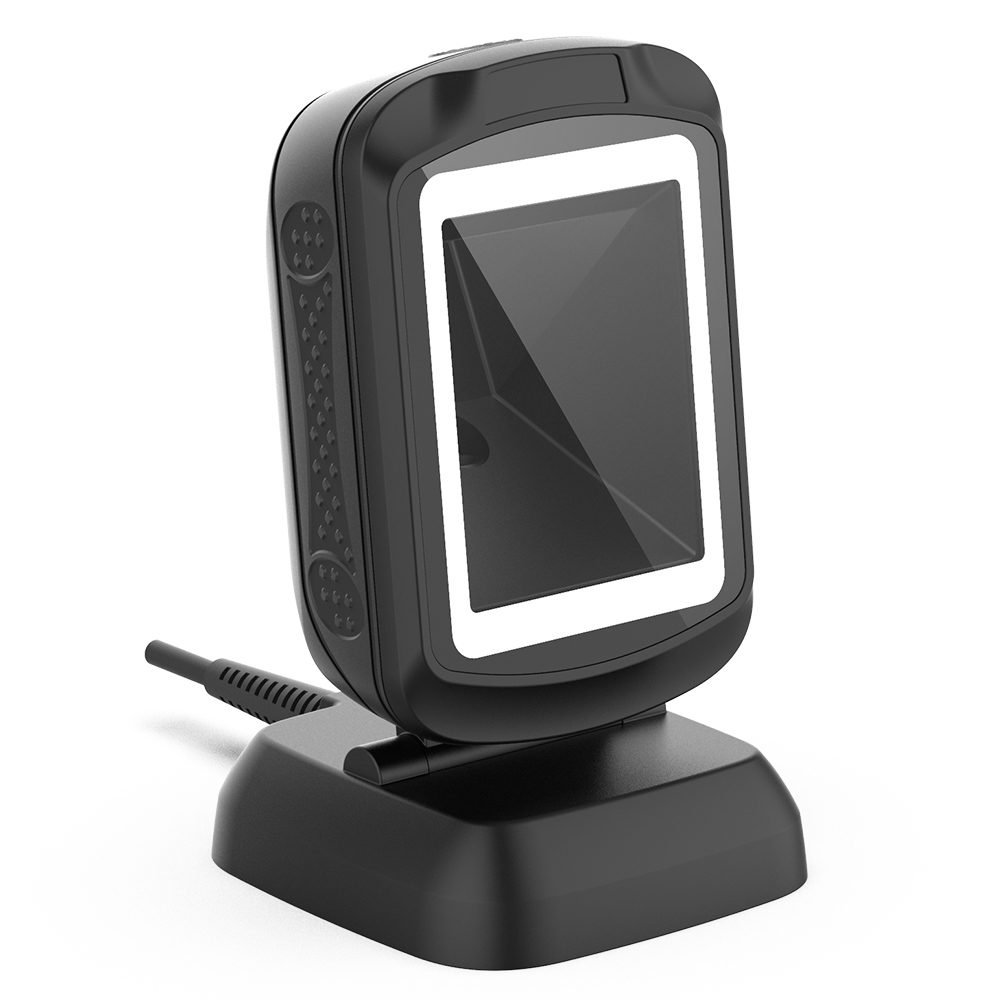

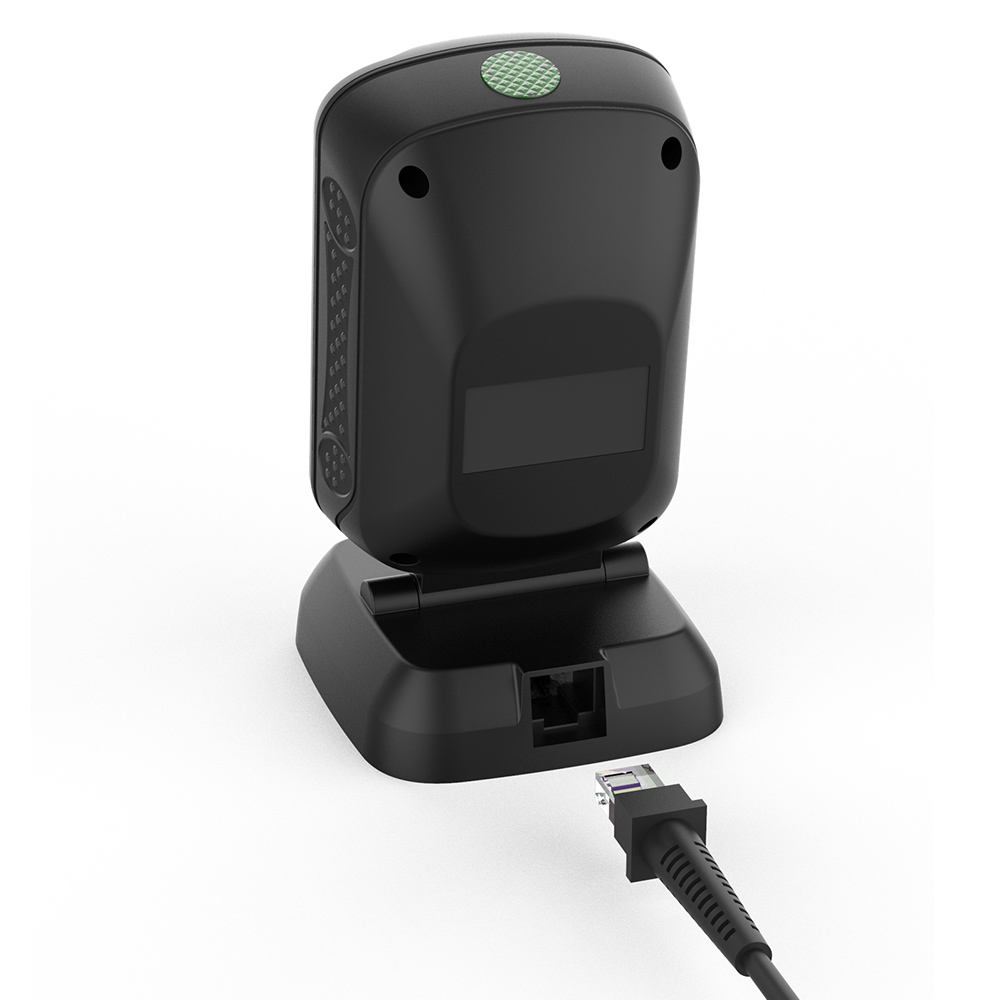

Product Pictures:
