High Performance Barcode Reader 1D 2D QR Code Reader USB Wired Wireless Handheld Barcode Scanner
High Performance Barcode Reader 1D 2D QR Code Reader USB Wired Wireless Handheld Barcode Scanner
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
High Performance Barcode Reader 1D 2D QR Code Reader USB Wired Wireless Handheld Barcode Scanner
Product Description:
IBC-7400 series CMOS barcode scanner is universal handheld image 2D barcode scanner, using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Equipped with auxiliary lighting, can be used in different lighting environments, can also be used at night, the applicability is strong. Read barcodes in any direction at 360degrees, faster and more efficient. Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage.
Product Features:
• Ergonomic, snappy, and stylish, easy to hold.
• 300,000 pixels, minimum resolution: 4 mils.
• Supports free switch between handheld & auto-detection mode.
• Accurate identification of universal 1D&2D barcode.
• Extraordinary DM, Datamatrix, Maxicode decoding ability.
• Works with all operating systems, Microsoft Windows/Linux/Android/iOS/MacOS.
Product Specification:

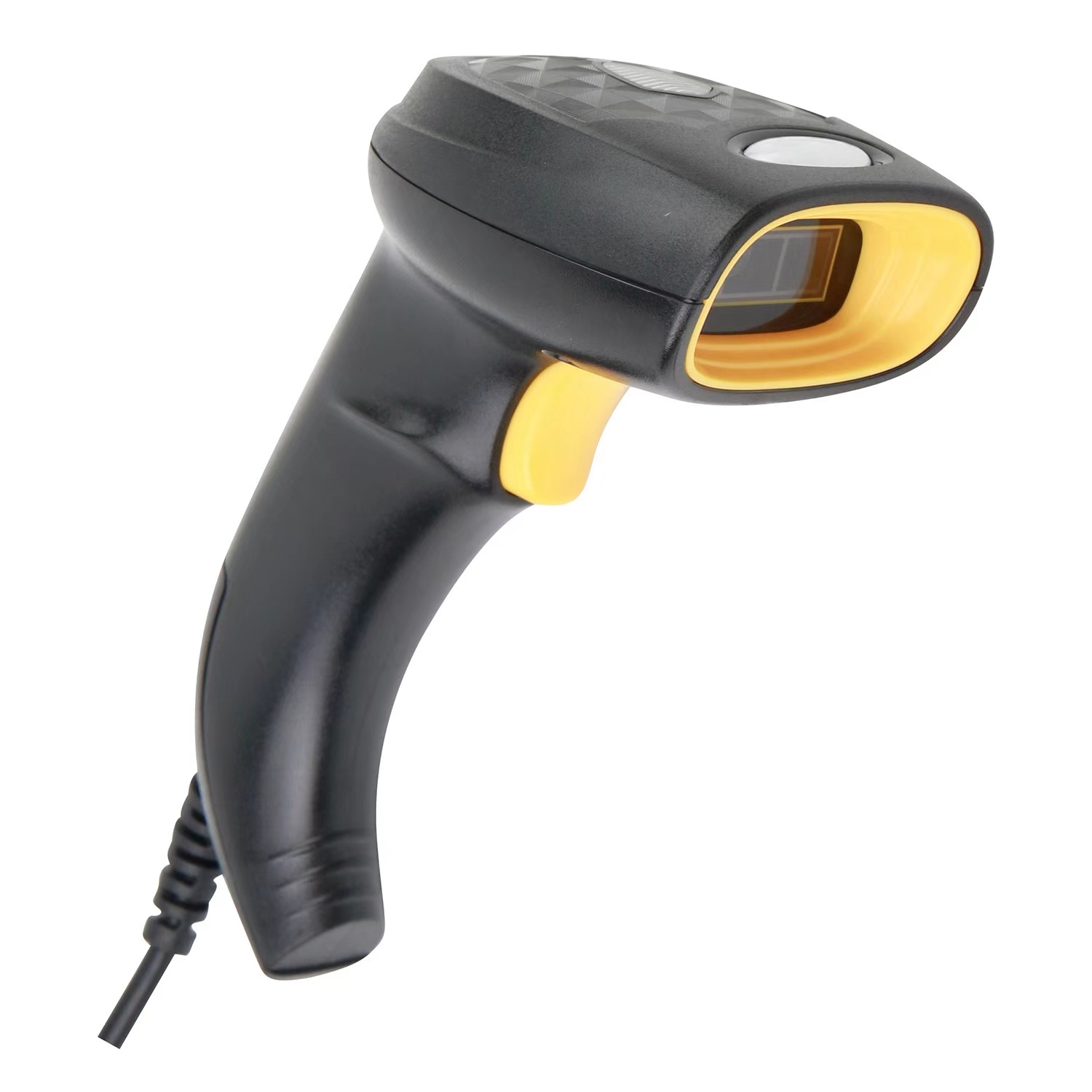

1D 2D Wired Handheld Barcode Scanner IBC-7400:
| Model No. | IBC-7400 |
| Product Name | 1D 2D Wired Handheld Barcode Scanner |
| Light Source | LED White light |
| Image sensor | 640*480 pixels |
| Resolution(maximum) | 0.102mm / 4mils |
| Print contrast ratio(minimum) | ≥20% |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
| 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code | |
| Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | |
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） |
| Typical depth of Field | Precision Barcode Depth of Field |
| 3.34mil CODE 128 10mm—60mm | |
| 5mil CODE128 5mm—90mm | |
| 3.34mil EAN-13 10mm—55mm | |
| 5mil EAN-13 5mm—85mm | |
| 13.34mil EAN-13 20mm—190mm | |
| 5mil PDF417 5mm—75mm | |
| 10mil PDF417 5mm—190mm | |
| 15mil PDF417 10mm—200mm | |
| 10mil DM 5mm—100mm | |
| 20mil DM 5mm—210mm | |
| (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | |
| Physical characteristics | |
| Color available | Black |
| Dimensions（L*W*H） | 65*91*157mm |
| Weight | 178g |
| Cable | 1.6m |
| Electrical Parameter | |
| Current | Working current（Standard): < 270 mA Standby current（Standard): < 35 mA |
| Input Voltage | 5 VDC (+/- 10%)/500mA |
| Environmental Parameter | |
| ESD protection(Air discharge) | 8 kV |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Particulate and water sealing | IP52 |
| Temperature | Operation: -20 to 40 °C |
| Storage/Transport: -40 to 70 °C | |
| Humidity(non-condensing) | 5 – 95% |
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux |
| Interfaces | |
| Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs |

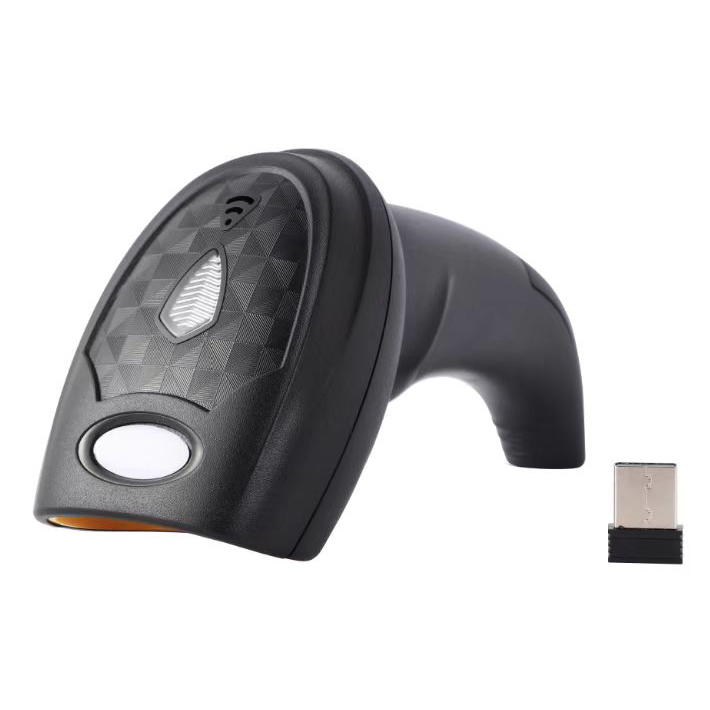

1D 2D Wireless Handheld Barcode Scanner IBC-7400R:
| Model No. | IBC-7400R |
| Product Name | 1D 2D Wireless Handheld Barcode Scanner |
| Performance Parameter | |
| Light Source | LED White light |
| Image sensor | 640*480 pixels |
| Resolution(maximum) | 0.102mm / 4mils |
| Print contrast ratio(minimum) | ≥20% |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
| Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
| 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code | |
| Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | |
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） |
| Typical depth of Field | Precision Barcode Depth of Field |
| 3.34mil CODE 128 10mm—60mm | |
| 5mil CODE128 5mm—90mm | |
| 3.34mil EAN-13 10mm—55mm | |
| 5mil EAN-13 5mm—85mm | |
| 13.34mil EAN-13 20mm—190mm | |
| 5mil PDF417 5mm—75mm | |
| 10mil PDF417 5mm—190mm | |
| 15mil PDF417 10mm—200mm | |
| 10mil DM 5mm—100mm | |
| 20mil DM 5mm—210mm | |
| (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) | |
| Physical characteristics | |
| Color available | Black |
| Dimensions（L*W*H） | 65*91*157mm |
| Weight | 164g |
| Cable | 1.6m |
| Electrical Parameter | |
| Current | Working current（Standard): < 270 mA Standby current（Standard): < 35 mA |
| Input Voltage | 5 VDC (+/- 10%)/500mA |
| Environmental Parameter | |
| ESD protection(Air discharge) | 8 kV |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Particulate and water sealing | IP52 |
| Temperature | Operation: -20 to 40 °C; Storage/Transport: -40 to 70 °C |
| Humidity(non-condensing) | 5 – 95% |
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux |
| Cordless Parameter | |
| 2.4 Transmission distance | Open space 80~100 meters |
| Communication mode | Wireless real-time transmission/wired transmission/storage mode |
| Battery capacity | 2000mAh |
| Continuous working time | ＞12H |
| Charging time | 4-5H |
