High Efficient Desktop Barcode Scanner Platform CMOS Wired Omnidirectional Hands-free 1D 2D QR Code Reader for Hypermarket
Product Description:

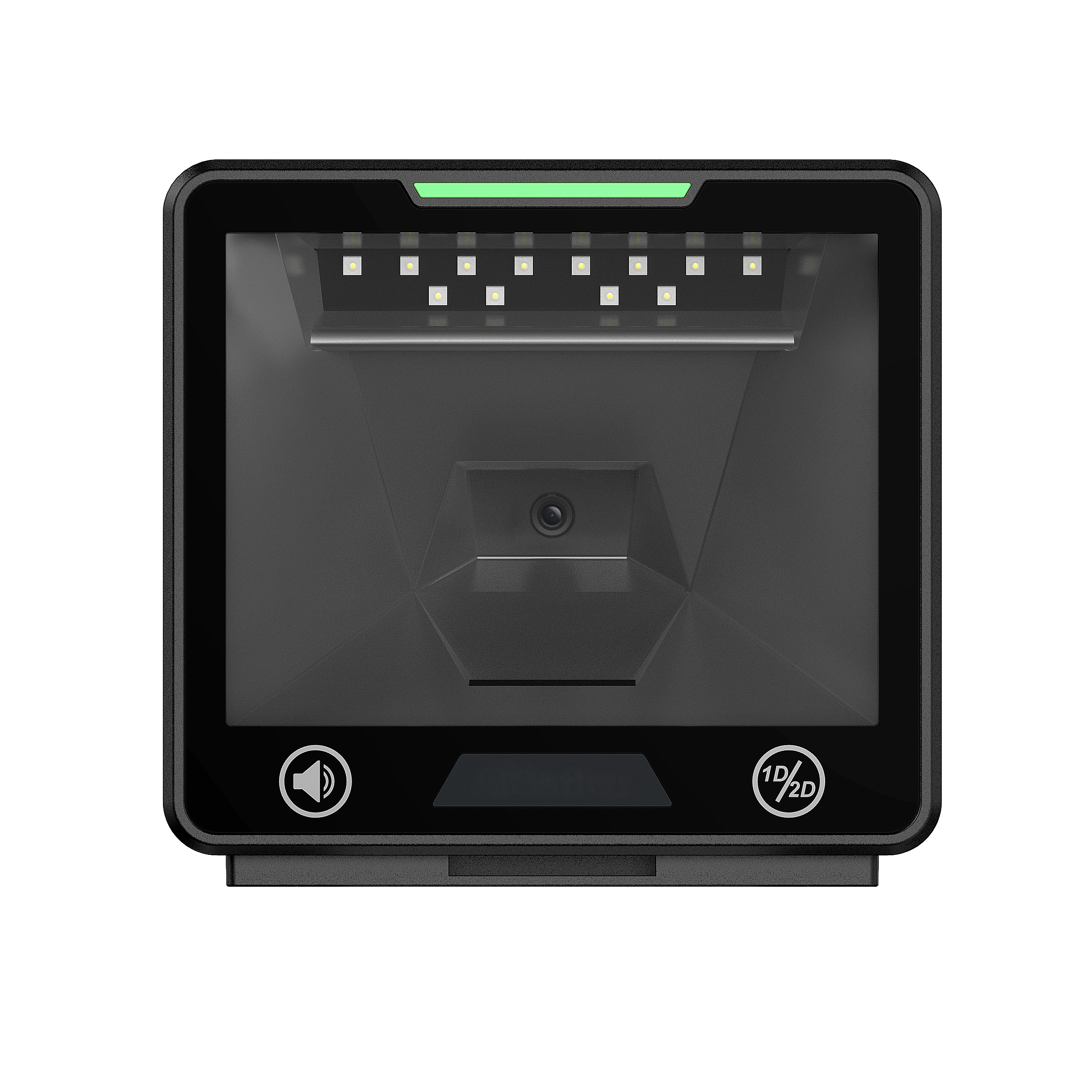

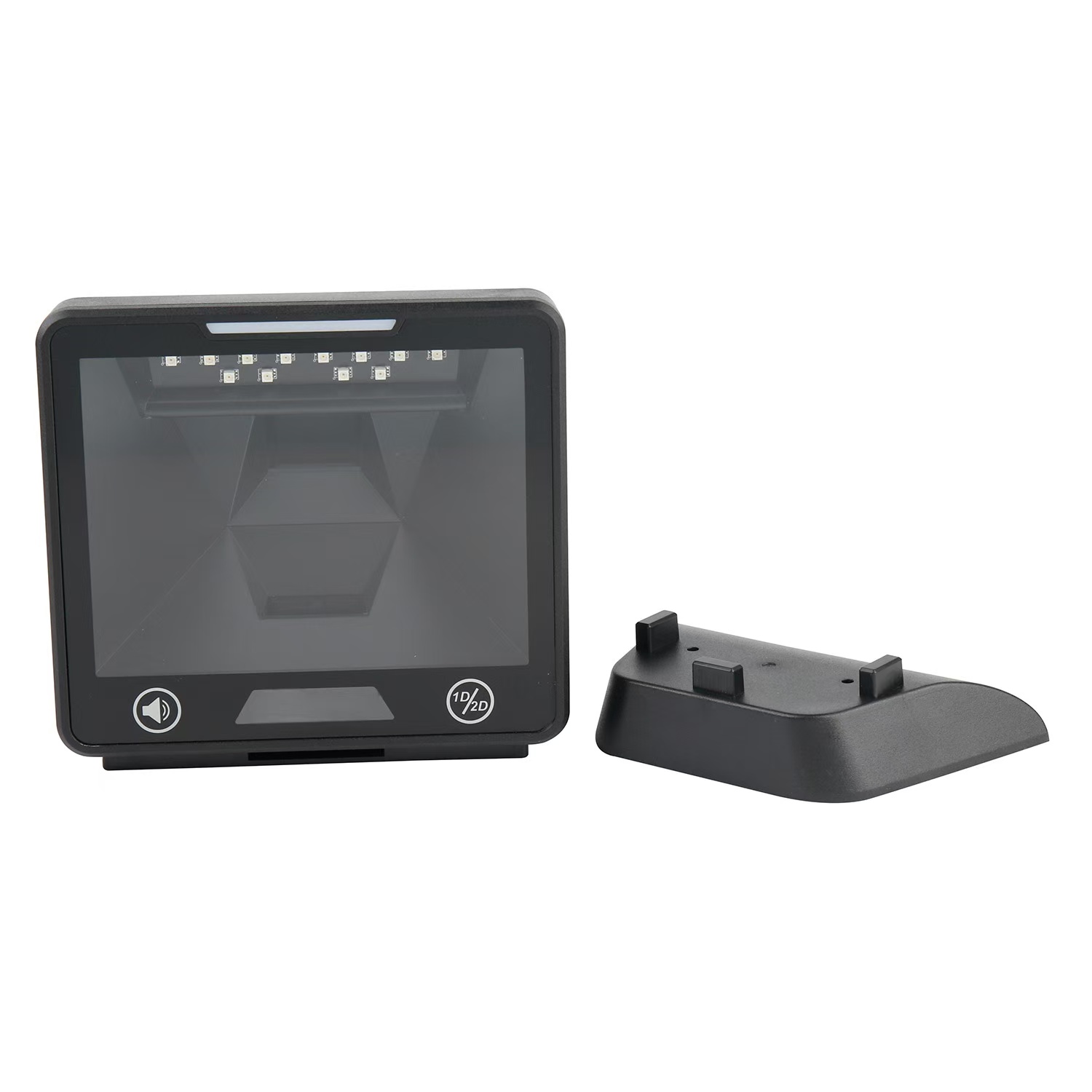

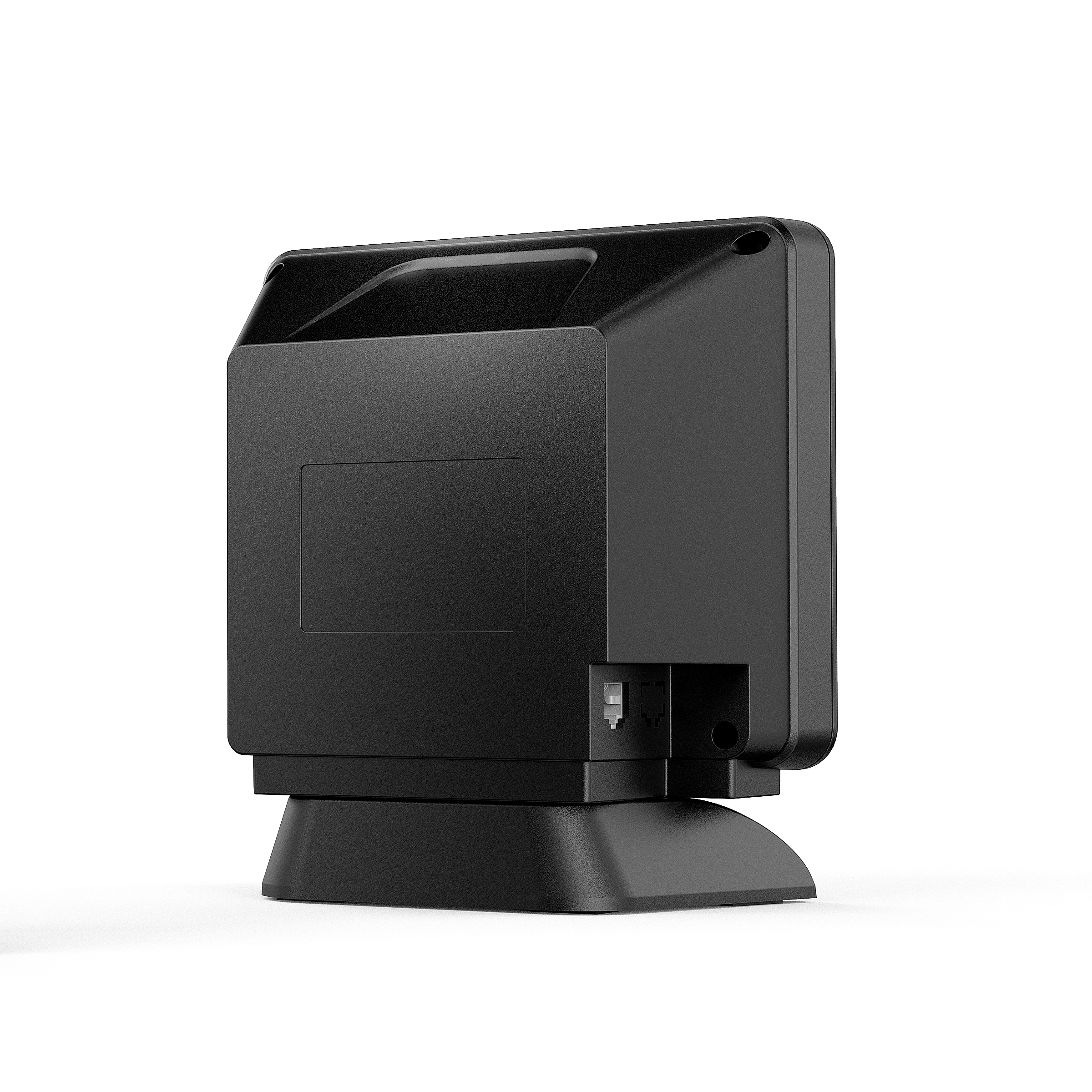

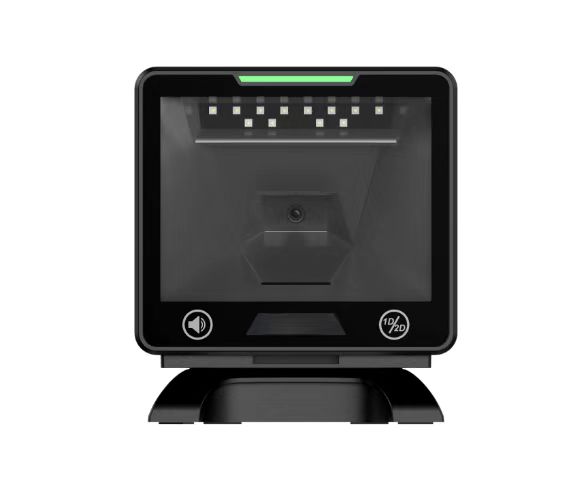

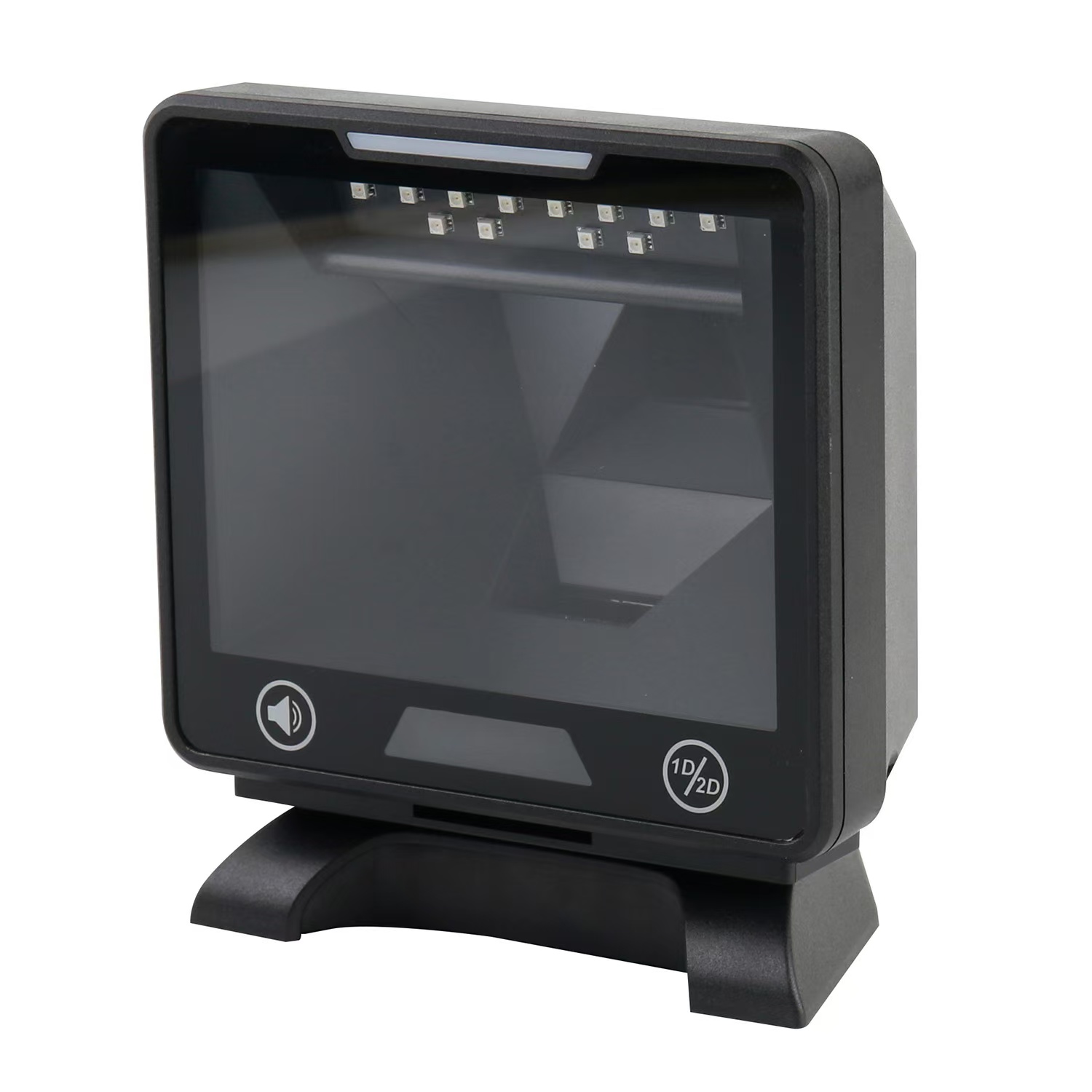

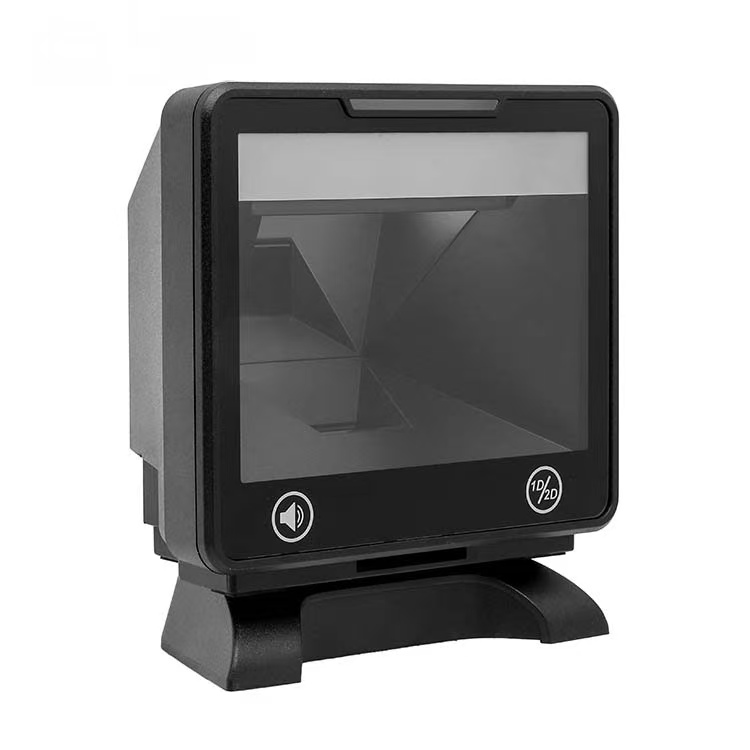

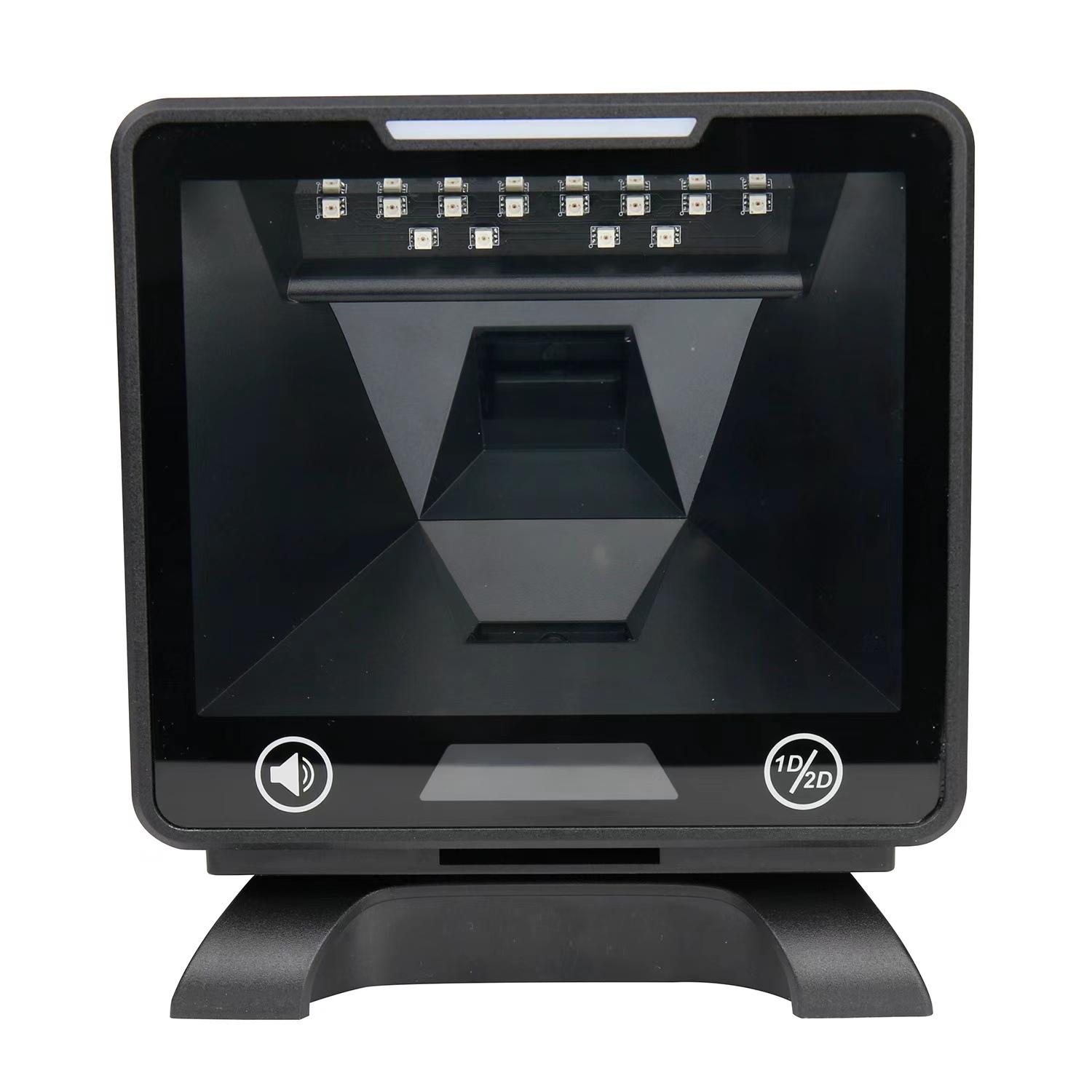

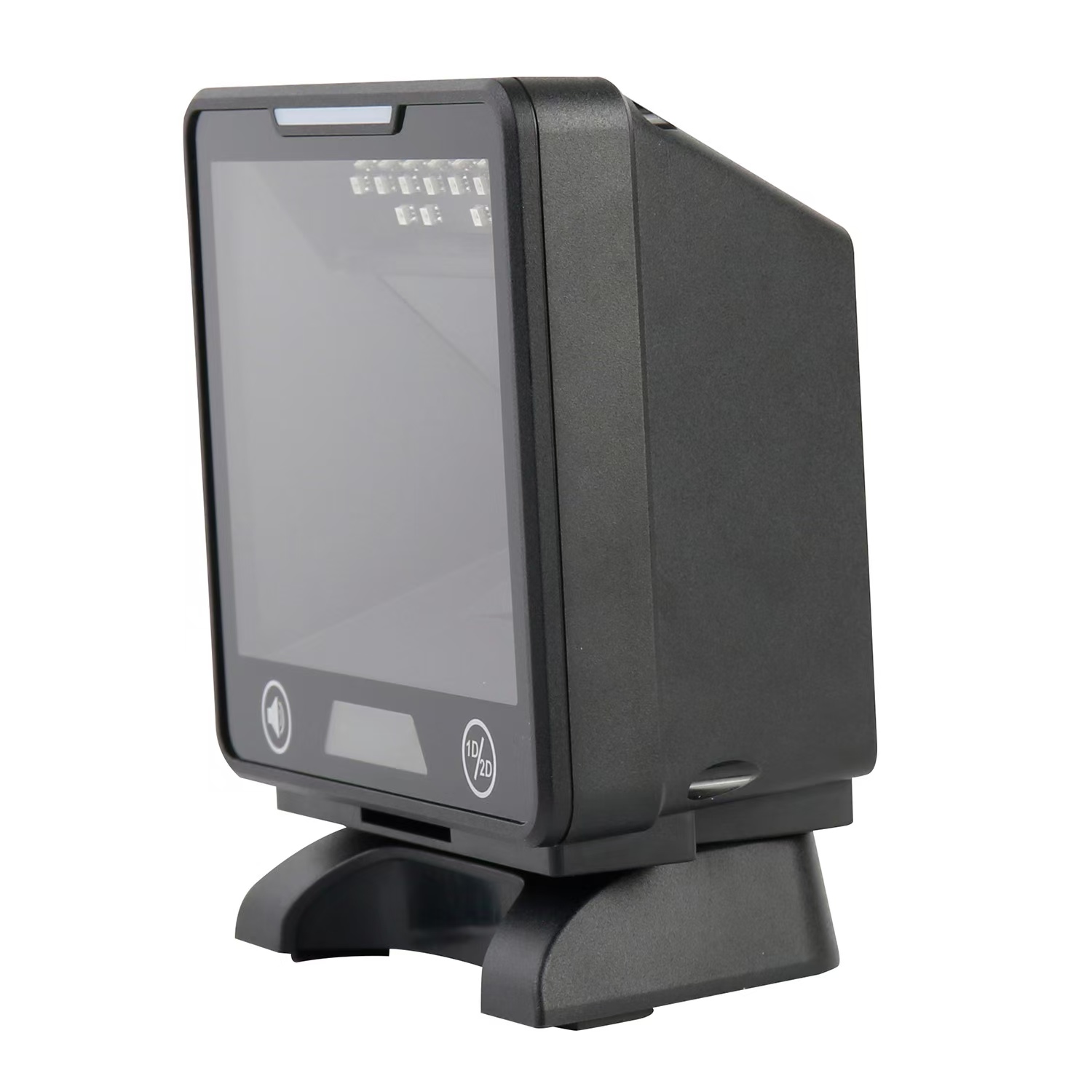

IBC-9830 is 2D desktop CMOS barcode scanner with stylish appearance and exquisite workmanship. Equipped with AiGather’s patented advanced decoding algorithm, combined with a new decoding chip and a megapixel camera, as well as a 2M/S motion tolerance and a large reading window, it can easily handle various high-speed scanning operations, support different application scenarios, it also has excellent performance capabilities. The embedded shell design can be easily connected to the cashier counter. The clear scanning prompt sound and LED indication enable it to have accurate prompts even in noisy environments.
Product Features:
• Equipped with the new 1.3 Million pixels Global Shutter
• Larger scanning window for easier reading
• Adjustable angle, flexible and easy to use
• Commonly used function buttons, easier to set up
• 5 different styles of prompt sound, soft and bright LED indicator
• Multiple interface, strong compatibility, support a variety of systems and cash registers
Product Specification:
Model No. | IBC-9830 |
Product Name | 1D 2D Wired Desktop Barcode Scanner |
Performance Parameter | |
Light Source | LED Red light (Osram from Germany) |
CPU | 1.2G Dual-core |
Image sensor | 1280*1024, 1.3 Million pixels Global Shutter |
Resolution(maximum) | 0.102mm / 4mils |
Print contrast ratio(minimum) | ≥20% |
Motion tolerance | 2M/sec |
Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±65° |
Decoding Capability | 1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code | |
Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | |
Reading Indicators | LED light&Buzzer(adjustable tone and volume) |
Typical depth of Field (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
5mil CODE128 : 0mm—90mm |
5mil EAN-13 : 0mm—90mm | |
13.34mil EAN-13 : 0mm—280mm | |
10mil QR : 0mm—110mm | |
10mil PDF417 : 0mm—260mm | |
20mil QR : 0mm—200mm | |
20mil DM : 5mm—110mm | |
Electrical Parameter | |
Current | Working current(Standard): < 430 mA Standby current(Standard): < 220 mA |
Input Voltage | 5 VDC (+/- 10%) |
Environmental Parameter | |
ESD protection | Touch 8 kV; Air 15kV |
Temperature | Operation: -10 to 50 °C |
Storage/Transport: -20 to 65 °C | |
Humidity(non-condensing) | 5 – 95% |
Ambient light | 0 -100,000 lux |
Interfaces | |
Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
