High Cost-effective Barcode Reader Laser Wired 1D Bar Code Scanner Wireless Barcode Scanner Handheld
Product Description:
IBC-630 series barcode scanner is good performance on reading 1D bar codes. It represents high-durability and faster customer checkouts, with an unbeatable first read scan success rate. It’s highly functional and is a great business companion. Its good ergonomic design, make feel very comfortable in the hand, advanced decode technology make this barcode reader capable of reading all standard 1d barcodes fast and accurate.It is an affordable handheld Laser scanner that allows the user to easily target the desired bar code and provide complete data transmission by just triggering a button. This Laser scanner fits in various environments starting from small warehouses, offices, and retail shops.
Product Features:
1D wired barcode reader IBC-630:
* No driver, plug and play.
* Factory direct sale, cheap price and stable scanning.
* Supporting the RS232,PS2 and USB interface.
* Fast and accurate in reading 1D codes.
* Support multiple languages; Error rate less 1/5 million.
* Comfortable button, service life of button up to 5million times.
* Made of durable ABS material, wear resistant and drop-proof.
1D wireless barcode reader IBC-630R:
* 2.4G Wireless & Wired Mode.
* With mini USB receiver, plug and play.
* Supports Handheld/Continuous Mode.
* Excellent scanning performance, high-speed and accurate.
* Each scanner can store 2000 bar-codes and easily transferred to computer.
* Dopt a highly integrated design, high quality shell, have IP54 protection grade.
Product Specification:
1D wired barcode reader IBC-630:
| Product Name | 1D Wired Laser Barcode Scanner |
| Model Number | IBC-630 |
| Technical parameter | |
| Light source | 650 (visible laser) |
| Scan model | single line Bi-directional |
| Scan speed | 300 scans/sec |
| Resolution | 4mil |
| Width of scan | 5-30cm |
| Depth of scan | 2-50cm |
| Scan angles | Roll30° , Pitch75° , Yaw65° |

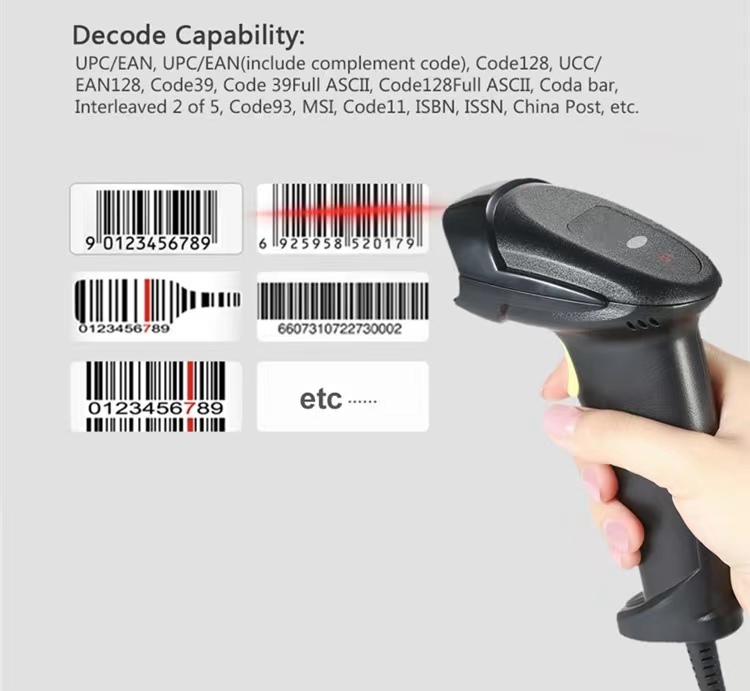

| Decode capacity | Code39 , Code 39 Full ASCII , Code128 Full, ASCII , Codabar , Interleaved 2 of 5, Code93, MSI, Code11, ISBN, ISSN, china post code , UPC/ EAN , UPC/ EAN (include complement code) , Code128, UCC/ EAN128, etc |
| Interface | RS232,USB,PS2 |
| Print contrast | 30% minimum |
| Bit error rate | 1/5 million |
| Prompt | Buzzer, Indicator light |

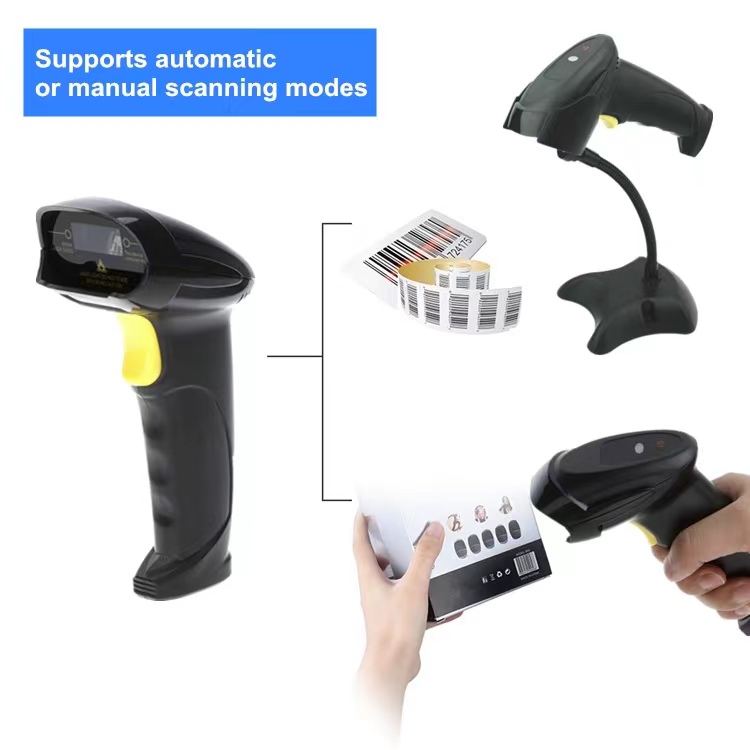

| Scan model | Handheld / Continuous scanning |
| Weight | 0.25kg |
| Material | ABS+PC |
| Cable standard | Straight: 1.8m |
| Electrical parameter | |
| Power supply | DC 5V±5% |
| Current | Working: 50mA Standby: 30mA |
| Laser security | Accord with national level1 laser security standards |
| Environment parameter | |
| Temperature | Working: 0℃-50℃ / 32°to 122° F Storage : 0℃-50℃ / 32°to 122° F |
| Humidity | Operating and Storage humidity 20%-85% (non-condensing) |
| ESD protection | 15KV air discharge |
| Anti-knock | 1.5m free fall on concrete surface |

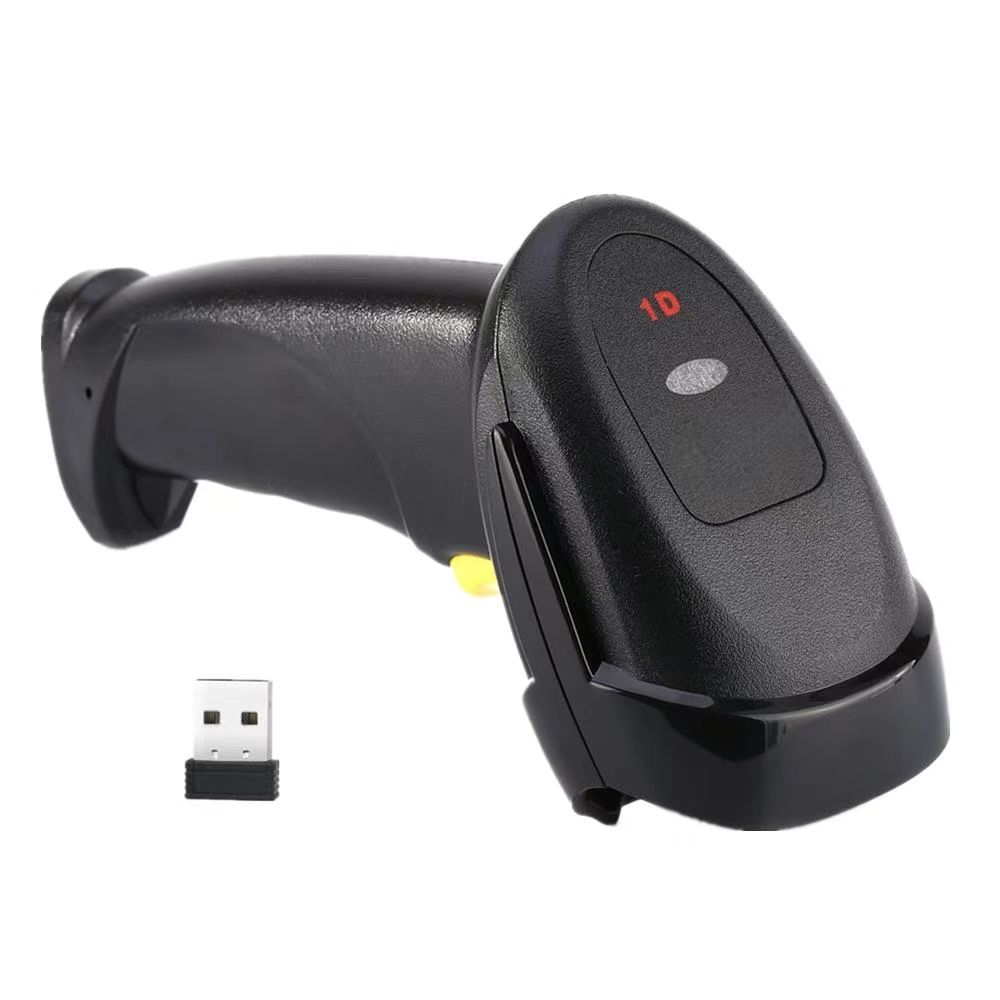

1D wireless barcode reader IBC-630R:
| Product Name | 1D Laser Wireless Barcode Scanner |
| Model Number | IBC-630R |
| Performance Parameters | |
| Processor | 32-bit MCU |
| Light Source Type | Visible laser 650mm. |
| Safely level | National laser safety standard class 1 |
| Transmission | 2.4G Wireless and USB Wired |
| Distance | ≤100m |
| Resolution | 4mil |
| Storage | 2000 barcodes |
| Battery | 800mah |
| Working time | 7 to 10 days |
| Scanning width | 5cm-30cm |
| Promotion pattern | Buzzer and LED indicator |
| Scan speed | 300 scan/sec |
| Trigger mode | Handheld, Continuous |
| Scan angles | Roll35 °; Pitch 75 °; Yaw 65 ° |
| Hull material | ABS+PC |
| Printing Contrast Ratio | ≥ 30% |
| Decoding capacity | Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code, EAN 128Full ASCII, Codabar, Code93, Discrete 2 of 5, EAN, UPC, ISSN, ISBN, Code25, Codabar, Inteleaved 2/5, Interleaved2of5 and China postal service code, etc. |
| Environmental Parameters | |
| Power supply mode | DC 5V |
| Working current | 50ma (Operation); 30ma (standby); 100ma (max) |
| Operating Temperature | 0°C to 50°C / 32 to 122° F |
| Storage Temperature | -20°C to 70°C / -4 to 158° F |
| Operating humidity | 20-95% (no condensation) |
| Antistatic ability | 15KV Air discharge |
| Drop test | 1.5m |

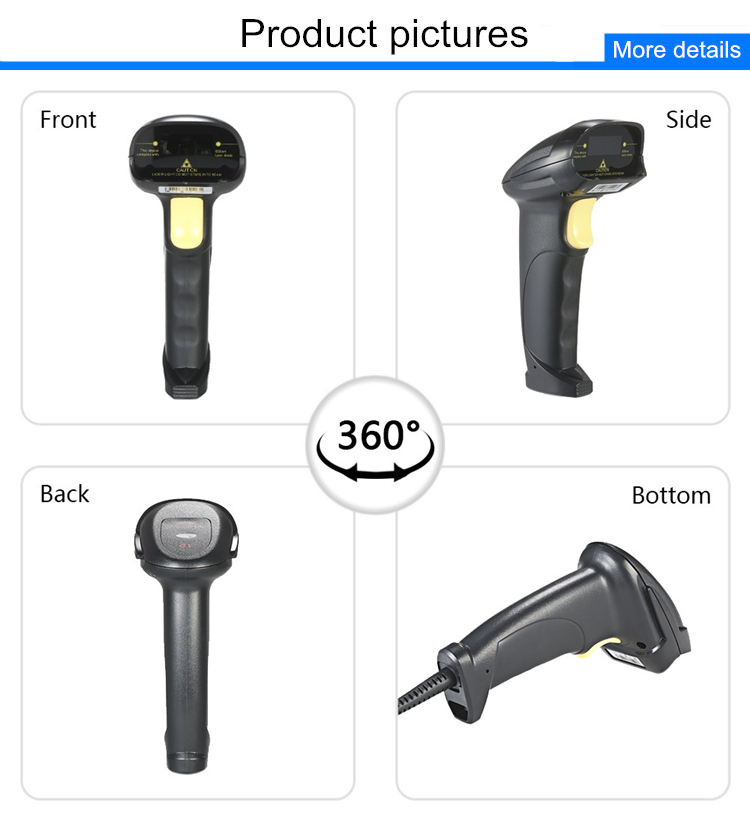

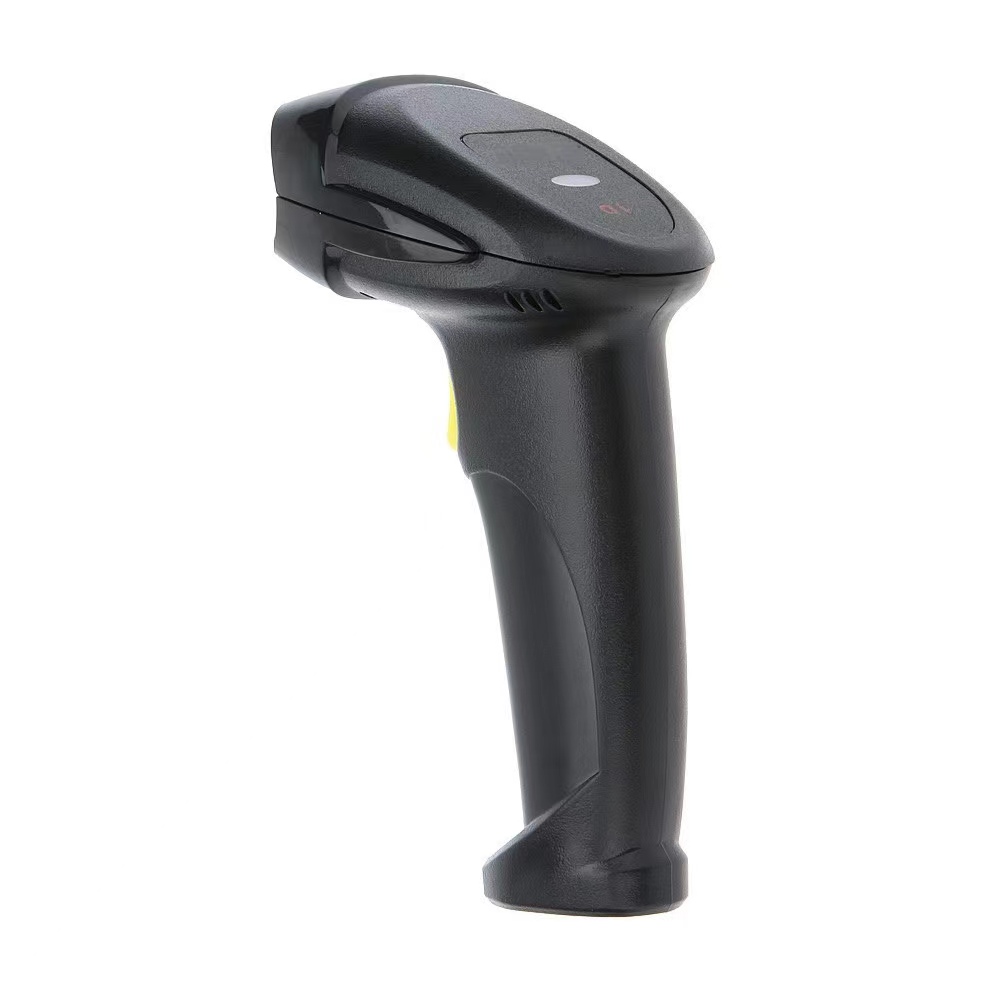

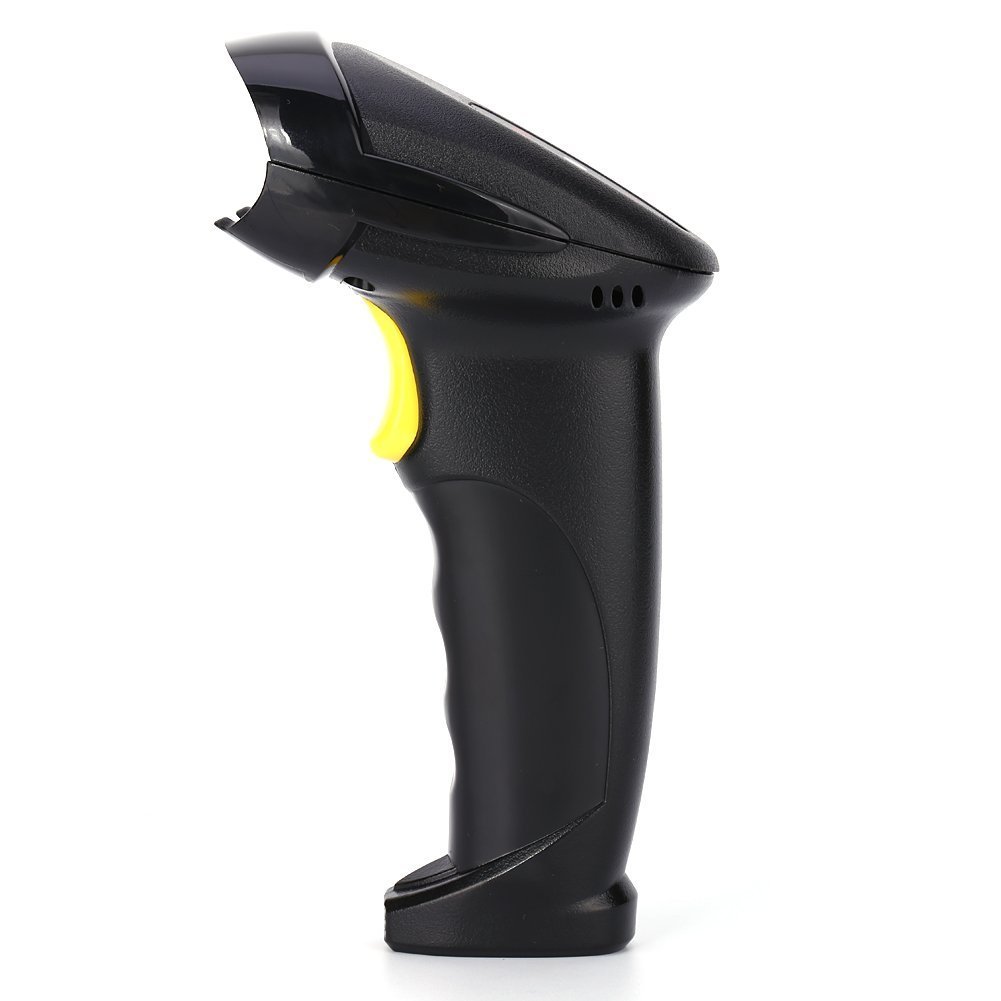

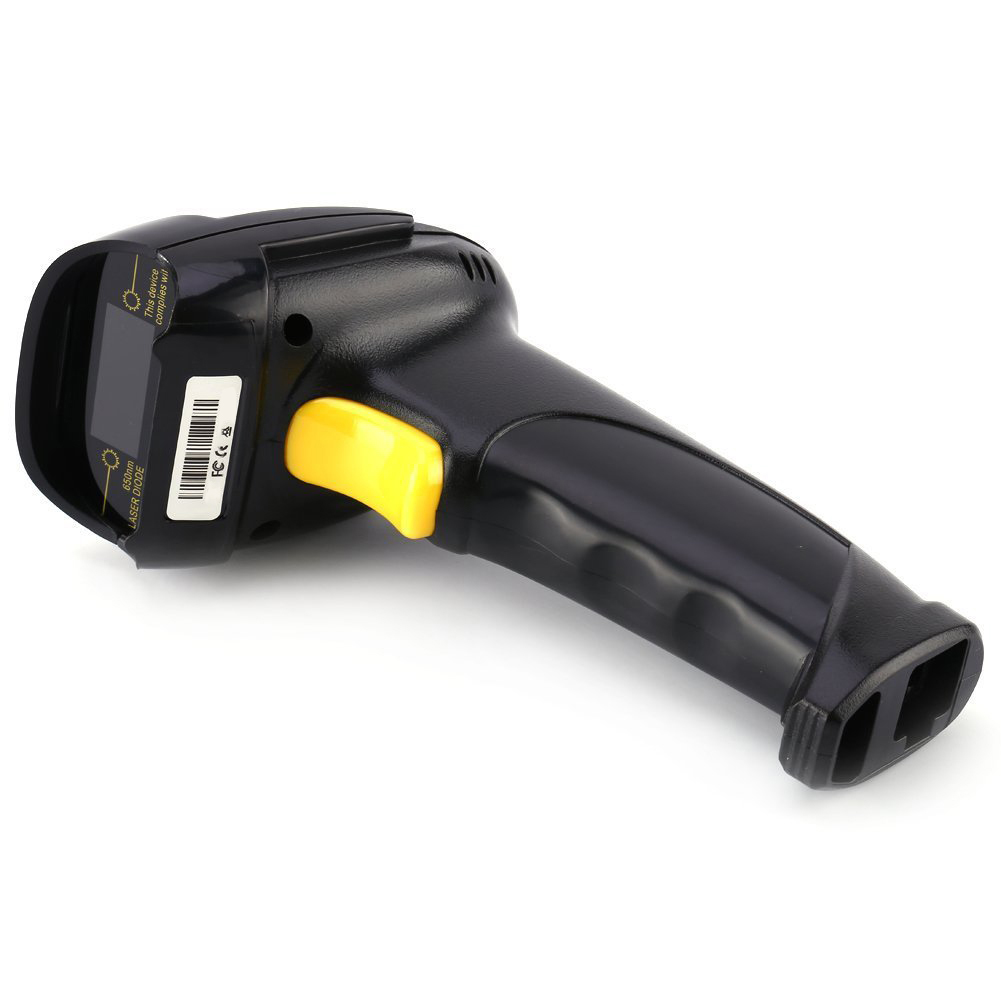

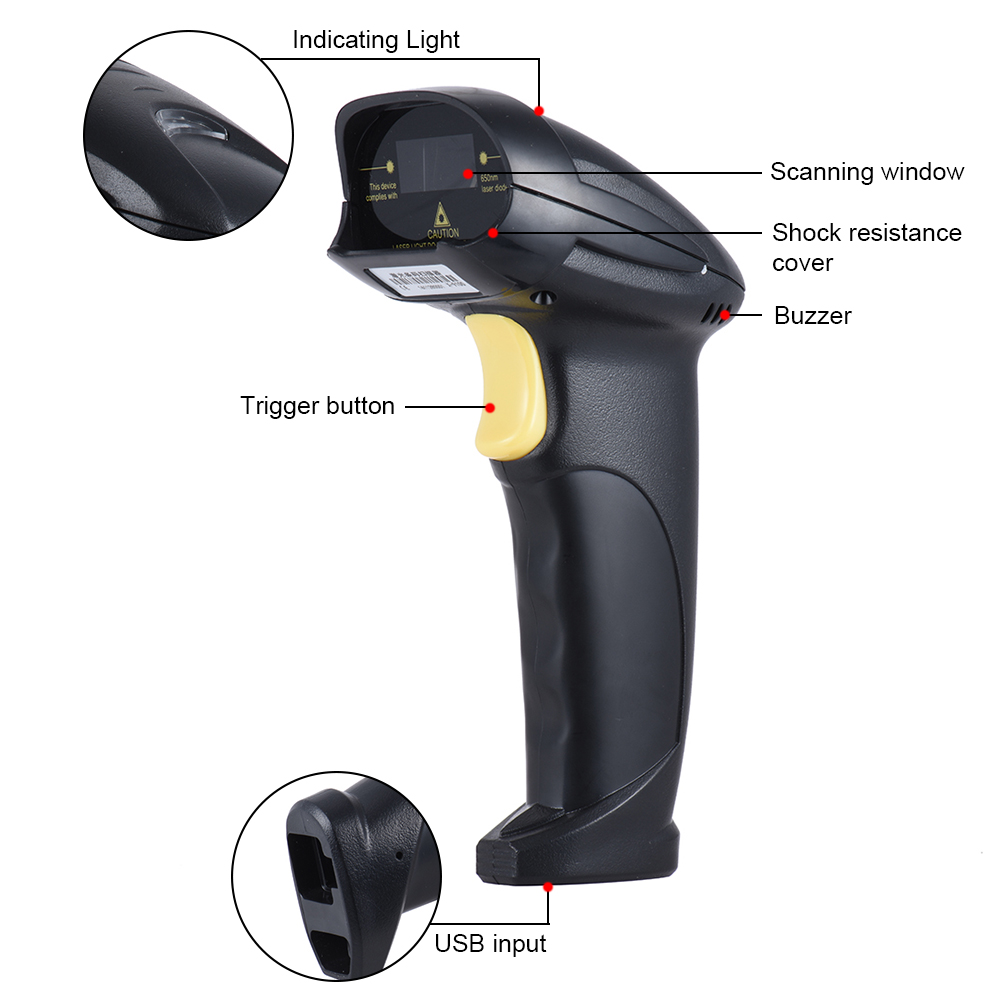

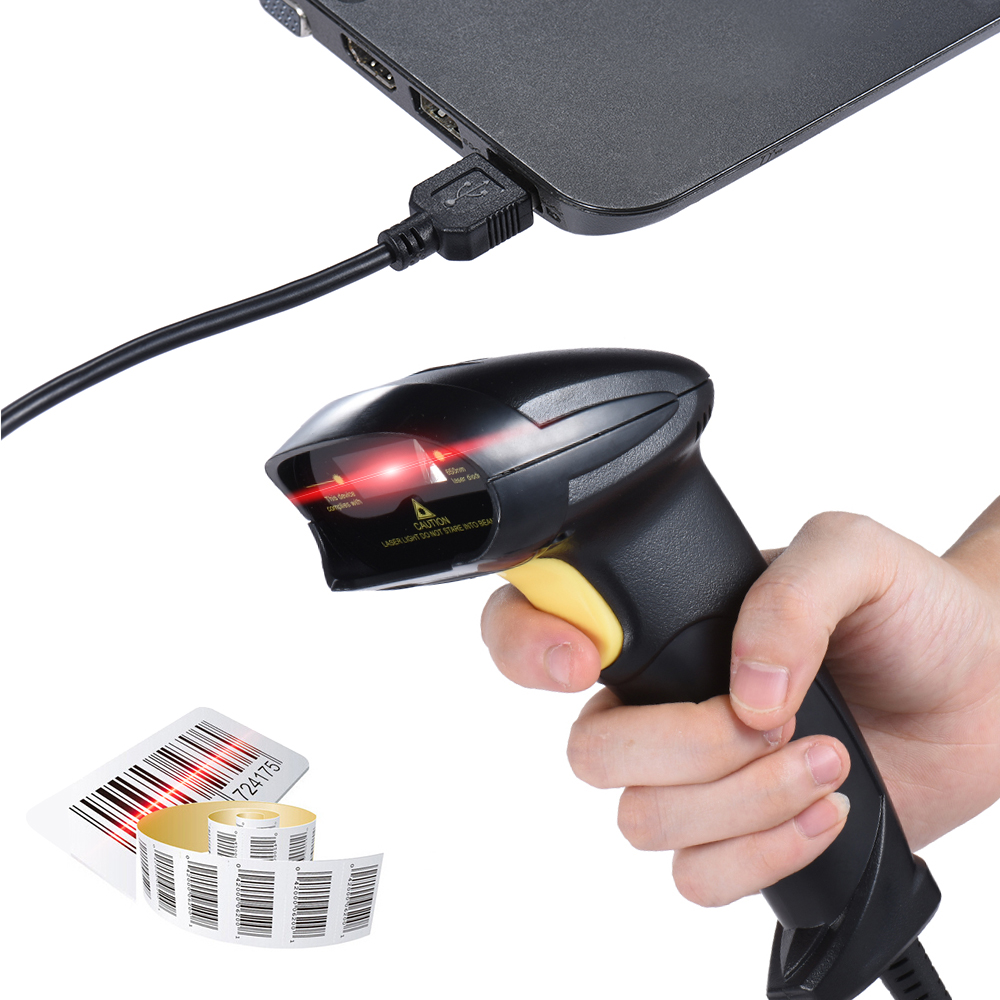

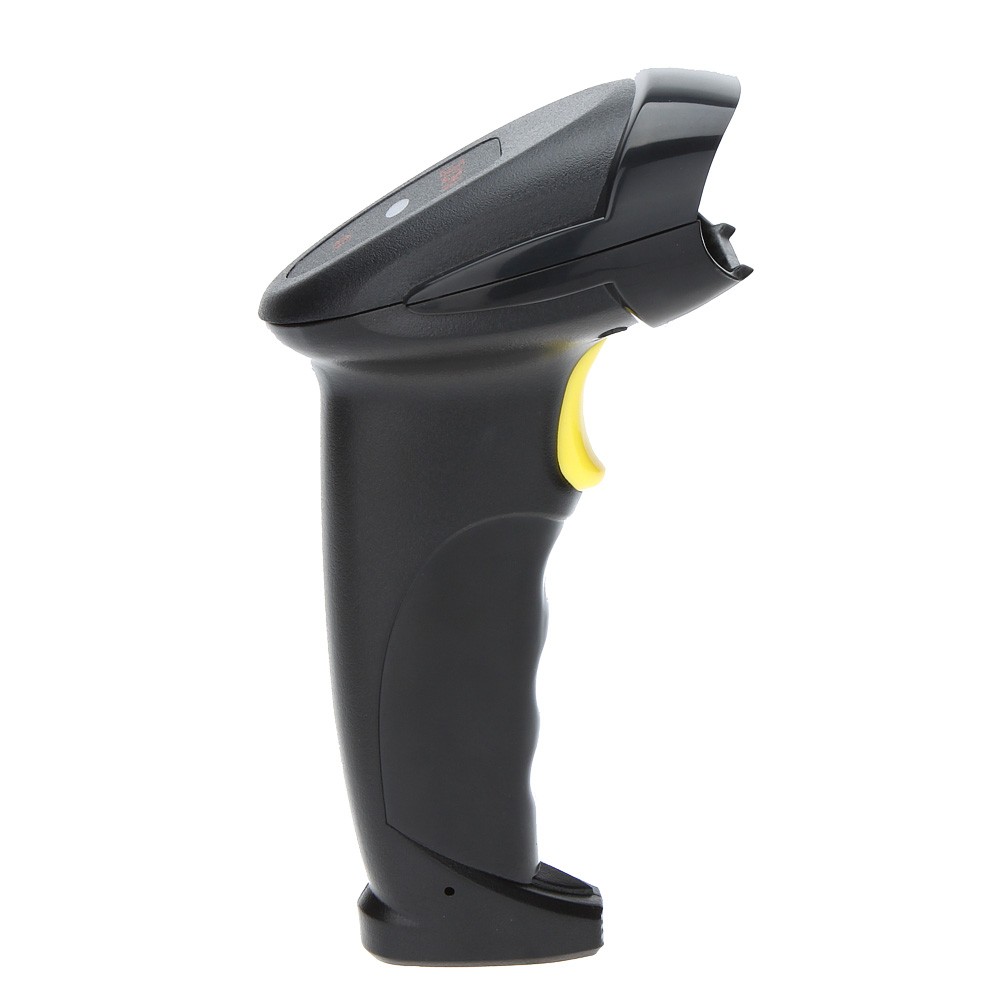

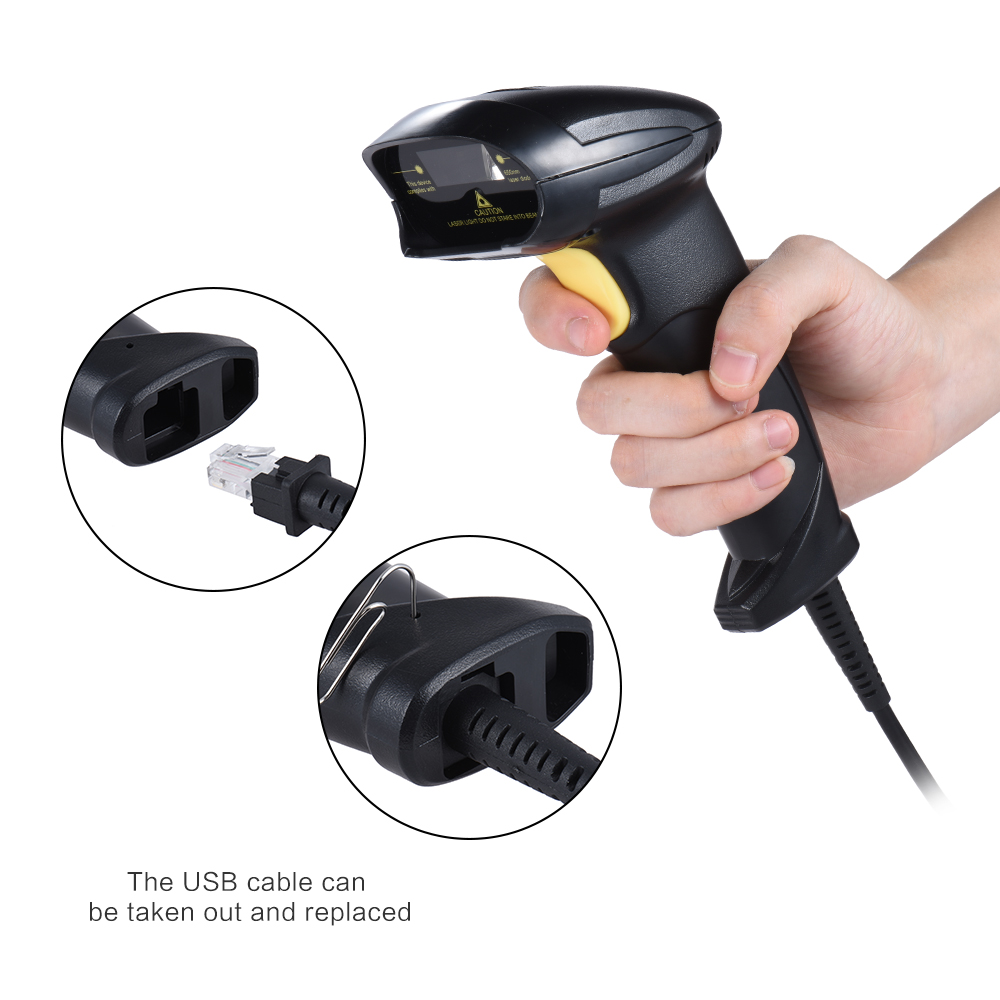

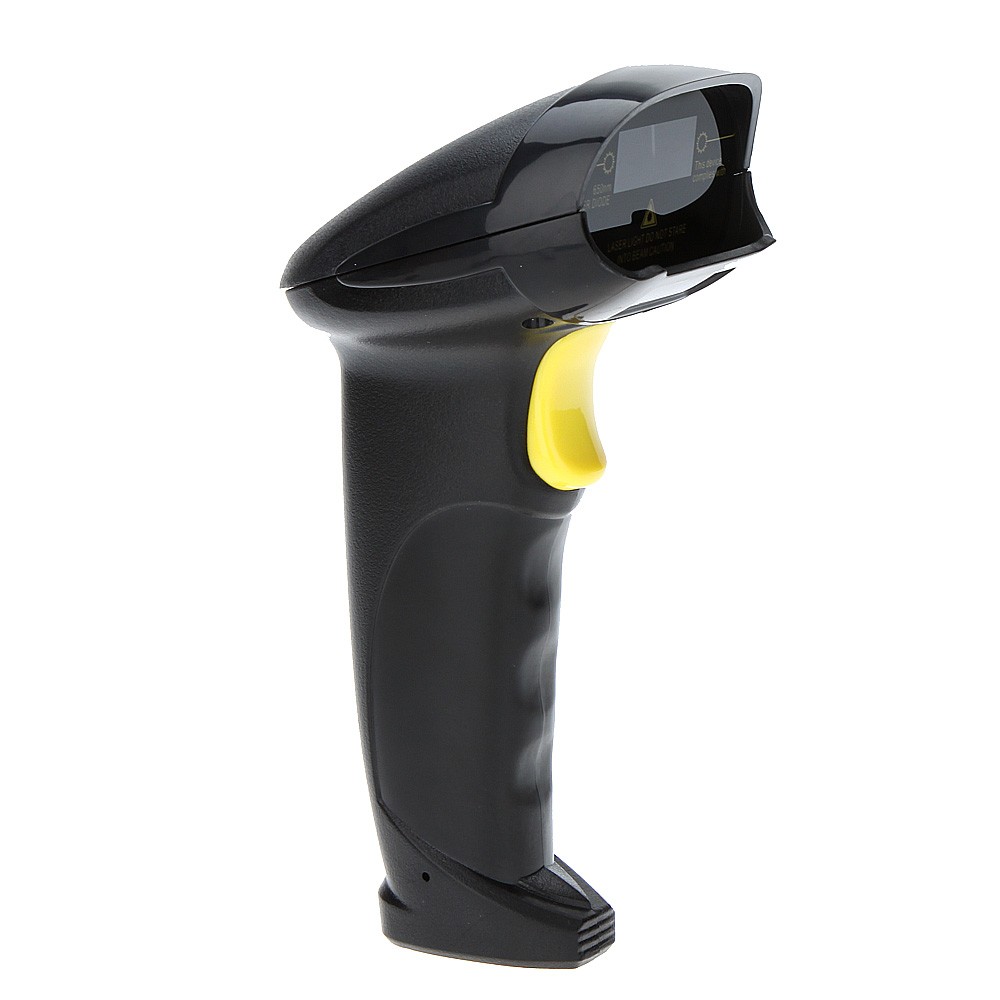

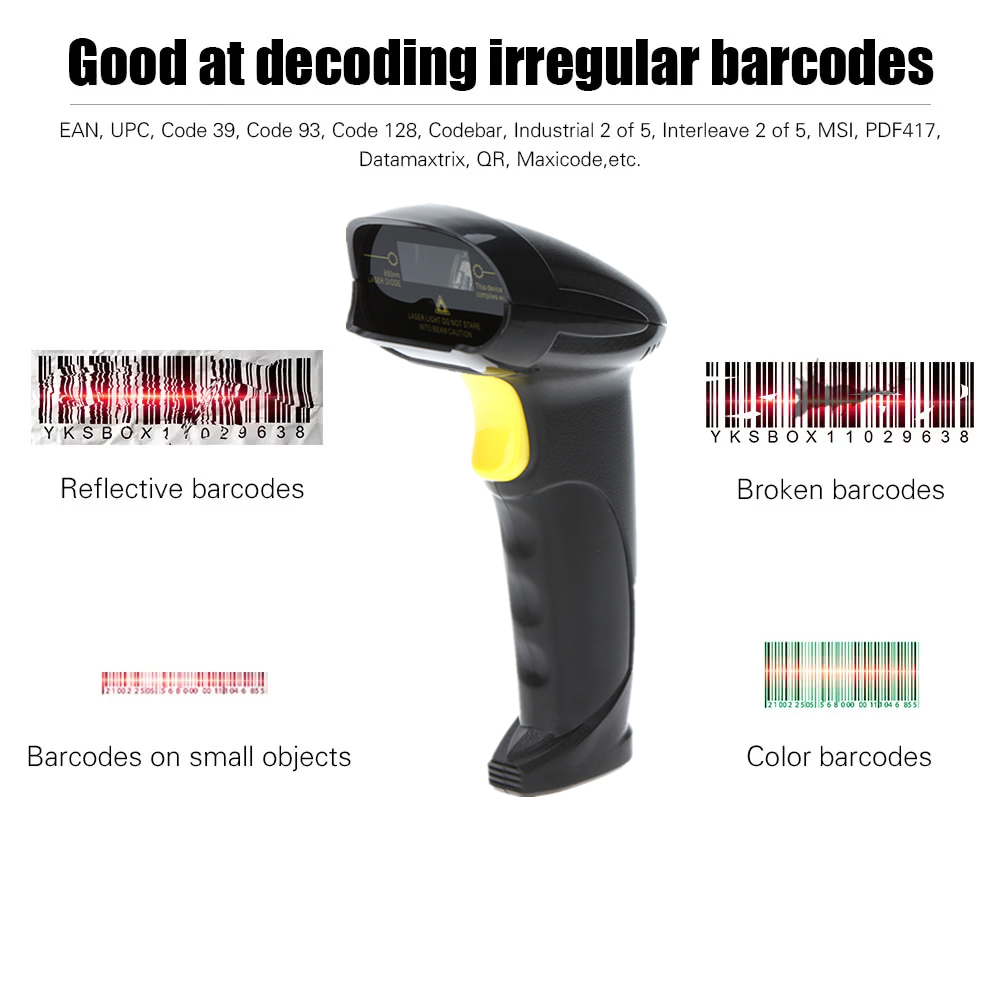

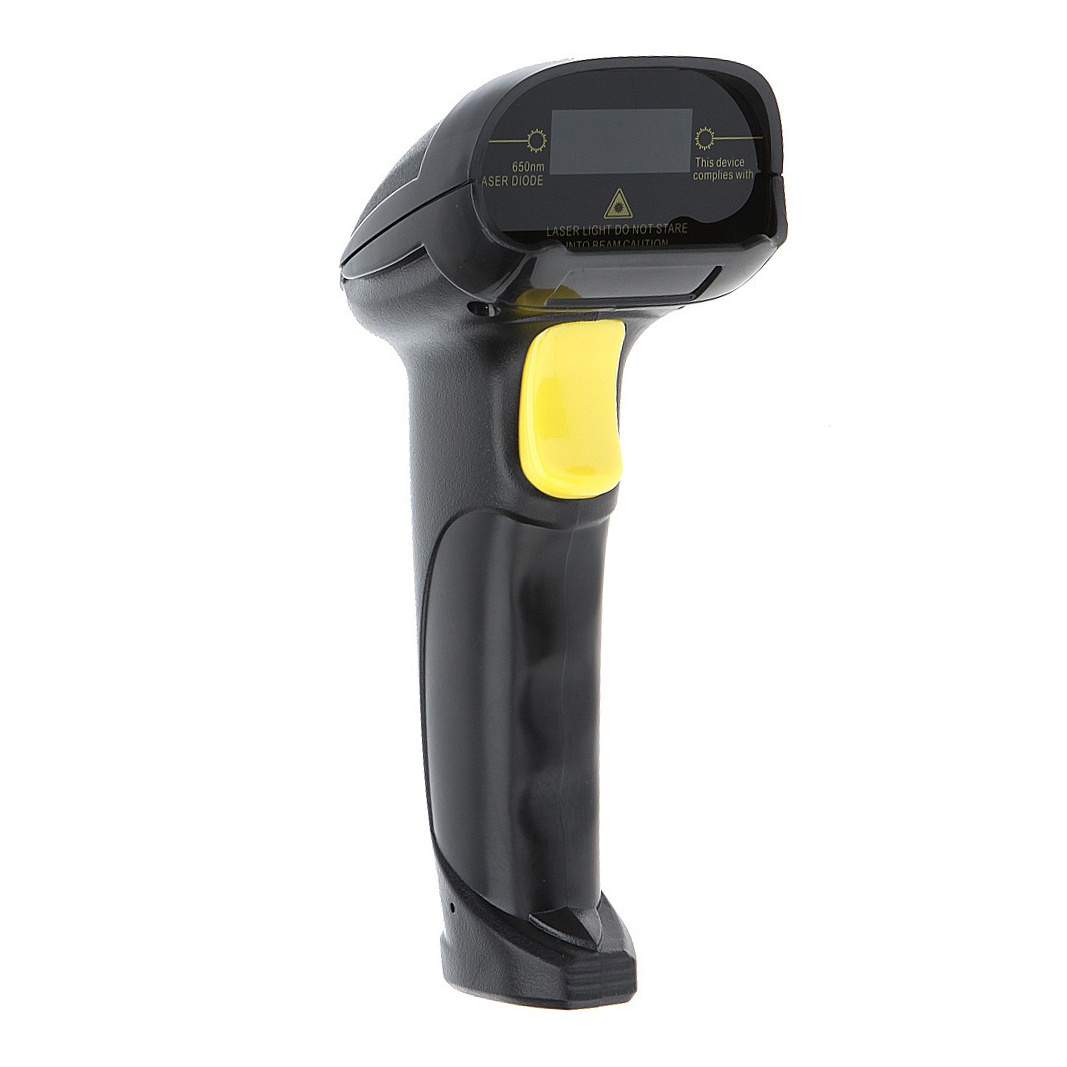

Product Pictures:
