Hands-Free Fast Scanning 1D 2D QR Code Reader Platform Desktop Barcode Scanner For Hypermarket

Product Description:

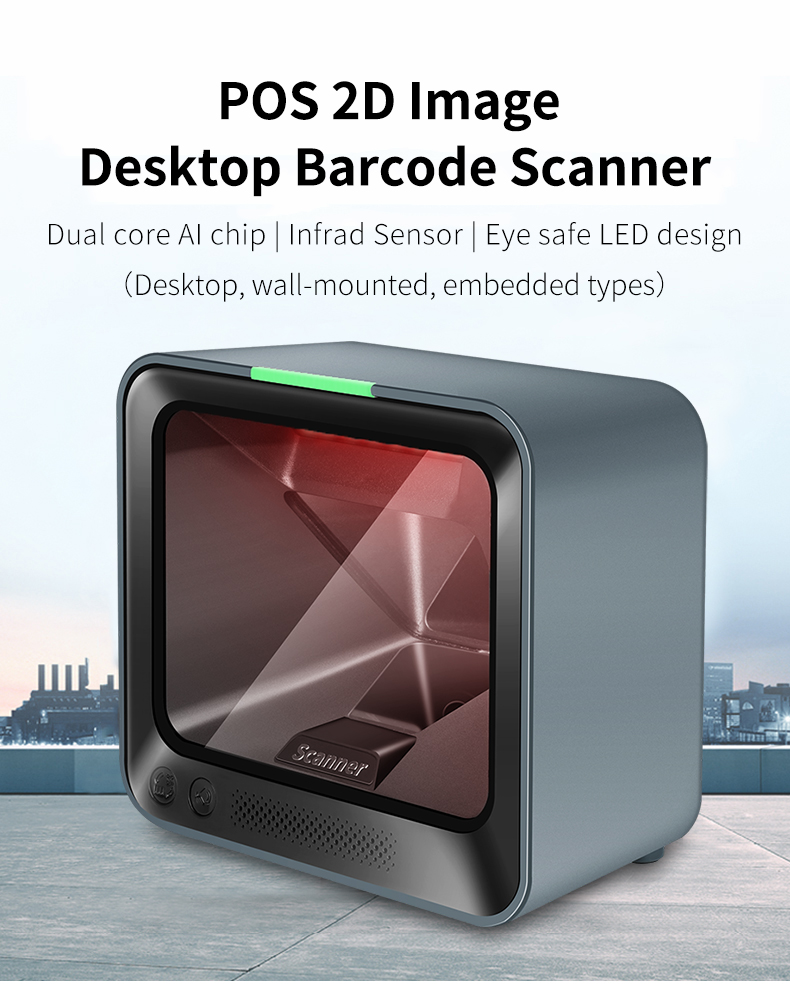

IBC-9960W is CMOS 2d desktop barcode scanner with advanced digital imaging, which provides class-leading performance and reliability. It smoothly reads all bar codes, whether displayed on cell phones or printed. It is stable, adaptive illumination for user comfort. Solid-state electronics for silent operation and superior reliability. It support multi-language keyboard, support special characters. It is the best choice for Hypermarket to improve work efficiency.

Product Features:

• Advanced algorithm
• Excellent quick capture capability
• Eye-safe Illumination
• Megapixel
• Online upgrade
• Square big scan zone

Product Specification:

Product Name 2D Desktop Barcode Scanner
Model IBC-9960W
Performance
Image Sensor CMOS  1280*800
Light Source Red LED +  LED
Scan Angle Skew±70°  Pitch±60°  Roll 360°

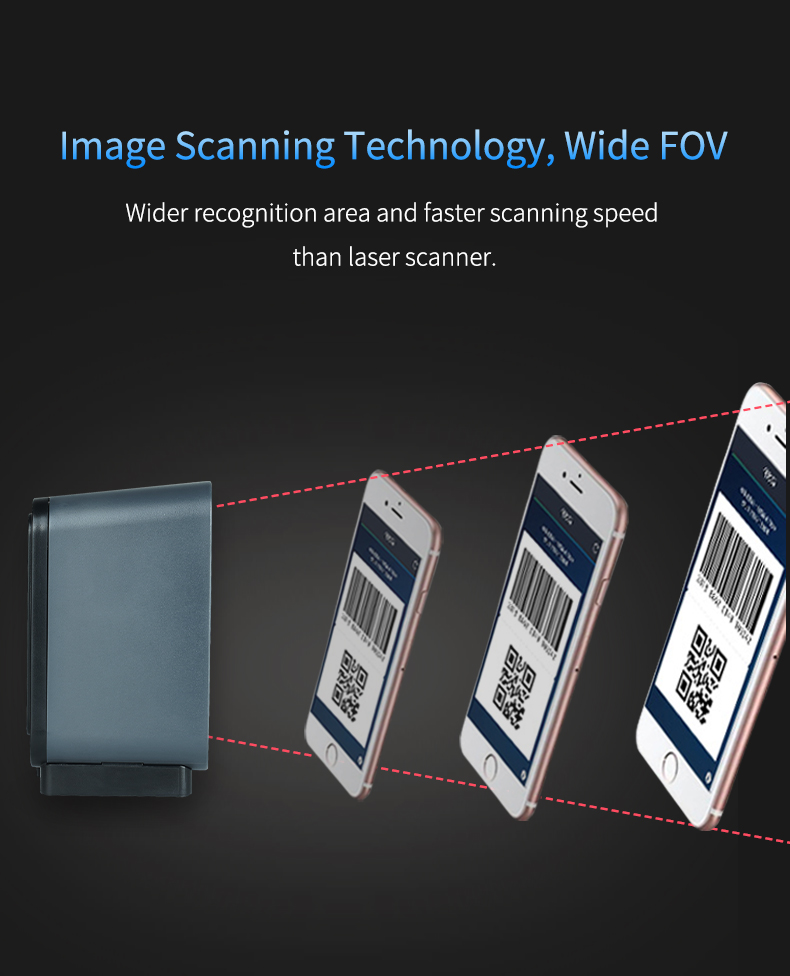

FOV D=44.6°  H=36.4°  V=27.8°
Resolution ≥5mil
Minimum Print Contrast ≥20%
Decode Capacity
1D Codabar, Code 11, Code 128, Code 39, Code 32, Code 93, EAN-8, EAN-13, ISBN, ISSN, UPC-A, UPC-E, GS1 DataBar, ISBT128, NEC 2 of 5, MSI Plessey, GS1 128, Industrial 2 of 5, Telepen, Interleaved 2 of 5, Matrix 2 of 5, Hong Kong 2 of 5, Postal Code, Trioptic, Straight 2 of 5 IATA
2D QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, HANXIN, Aztec Code, Maxi code
Typical Decode Range
Code39 (5mil) 0 mm~40 mm
Barcode Size: 25mm*10mm
EAN-13 (13mil) 5 mm~270 mm
Barcode Size: 31mm*17mm
QR (15mil) 0 mm~200 mm
Barcode Size: 8mm*8mm
Physical characteristics
Interface USB / RS232
Operating Voltage 5 VDC±5%
Operating Current (typical) 450mA (5 VDC)
Operating Current (Max) 480mA (5 VDC)
Standby Current 220mA (5 VDC)
Power Consumption 2250mW
Dimension (not with stand) 145 (W)×77 (D)×136 (H)mm
Dimension (with stand) 145 (W)×84.5 (D)×147 (H)mm
Color Gray-blue
Net weight 415g (not with stand) / 520g (include stand)
Country Keyboards 30 country keyboard

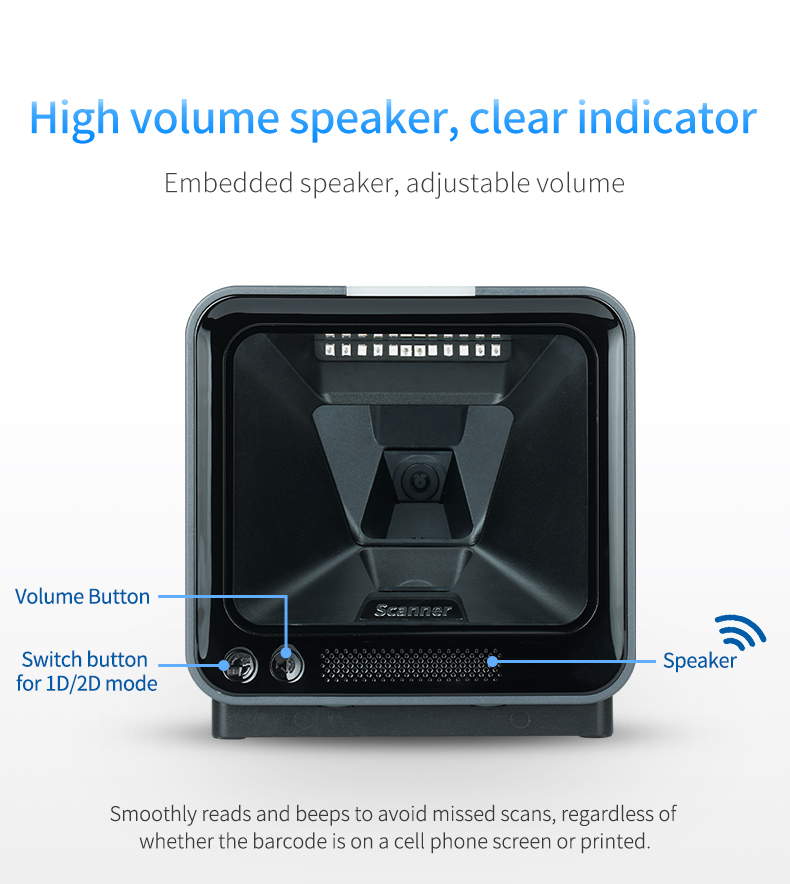

Indication LED indicator, Beeper
Environmental
Operating Temperature -10℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃
Humidity 5% ~ 95% (Non-condensing)
Drop Can withstand multiple drops from a height of 1m onto a concrete floor.

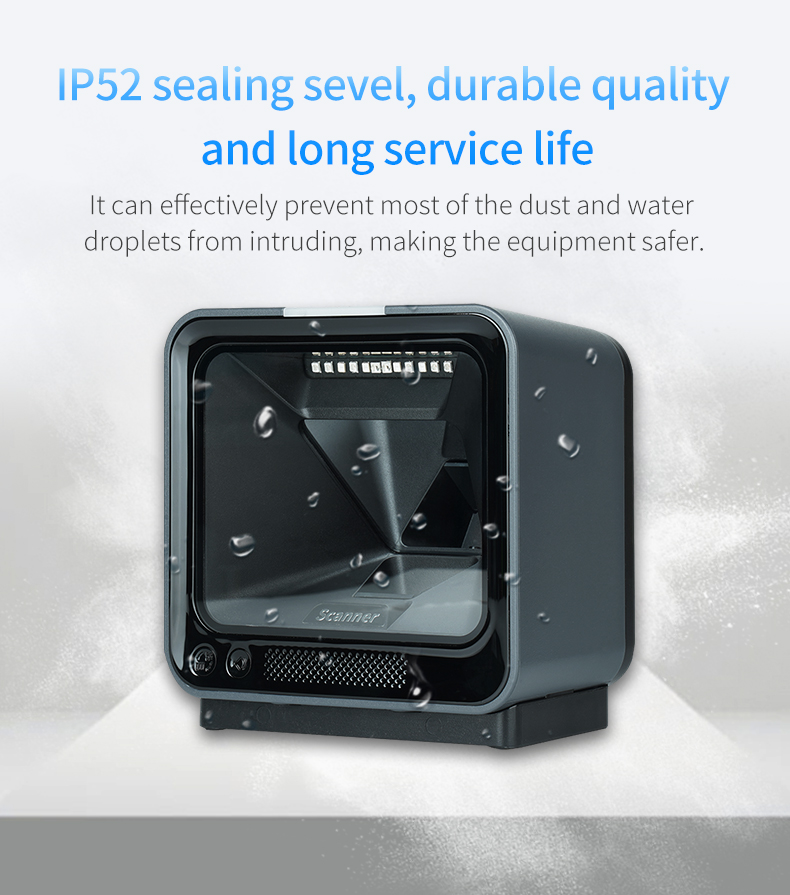

IP Level IP52
ESD EN61000-4-2，±6KV direct charge，±15KV air charge
Ambient Light 0~100,000LUX
LED Safety IEC 62471

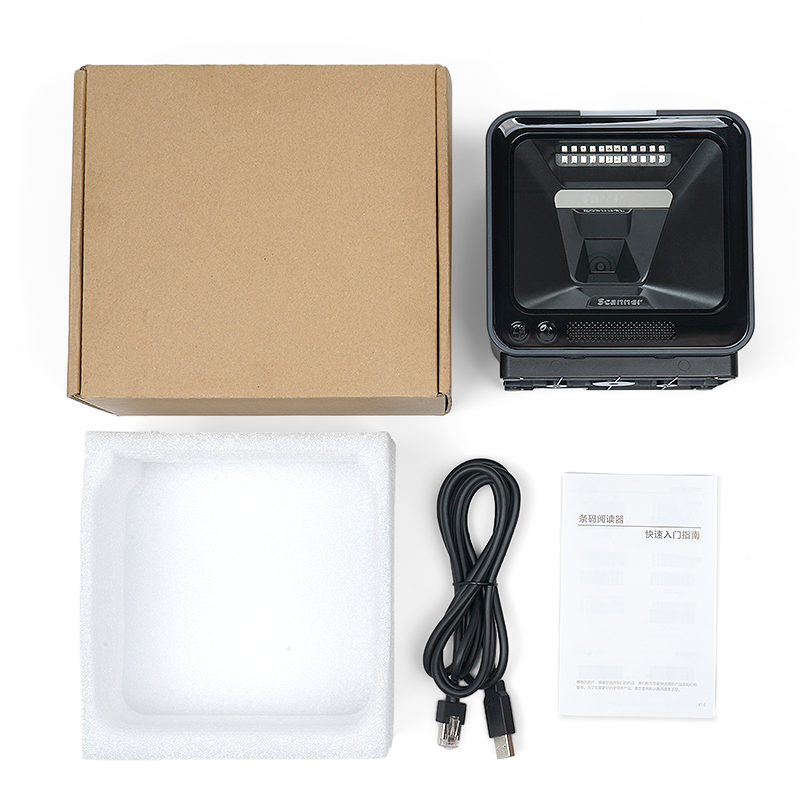

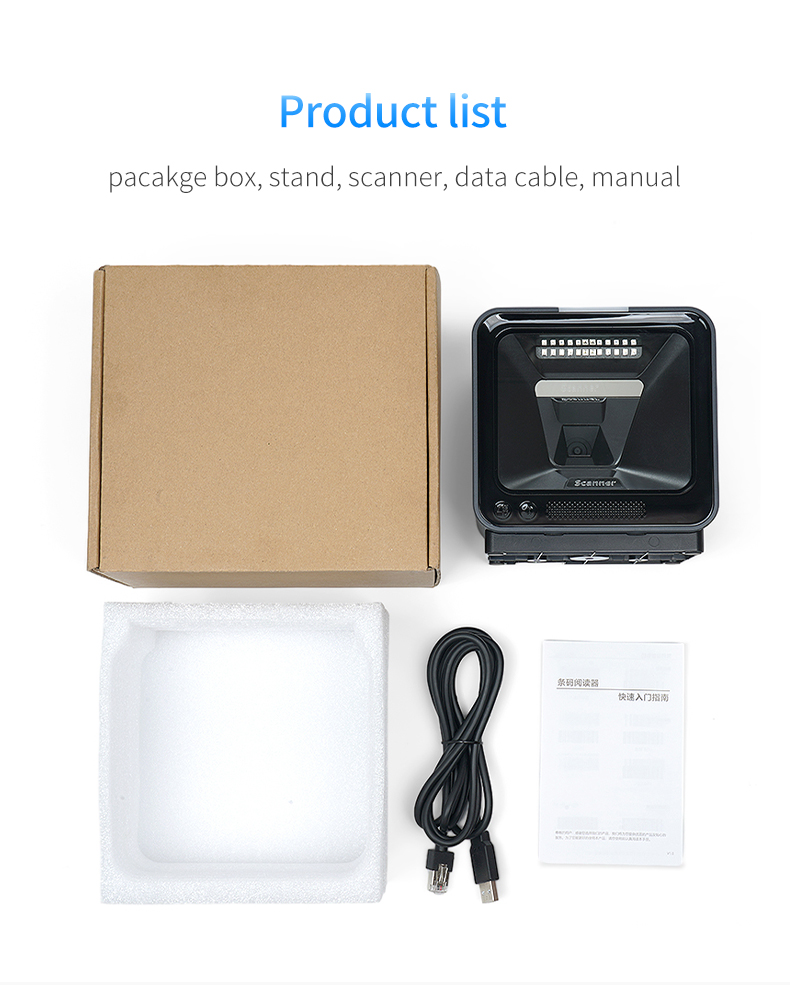

Accessories
USB Cable For data transmission, power supply.
RS232 Cable For data transmission, power supply.

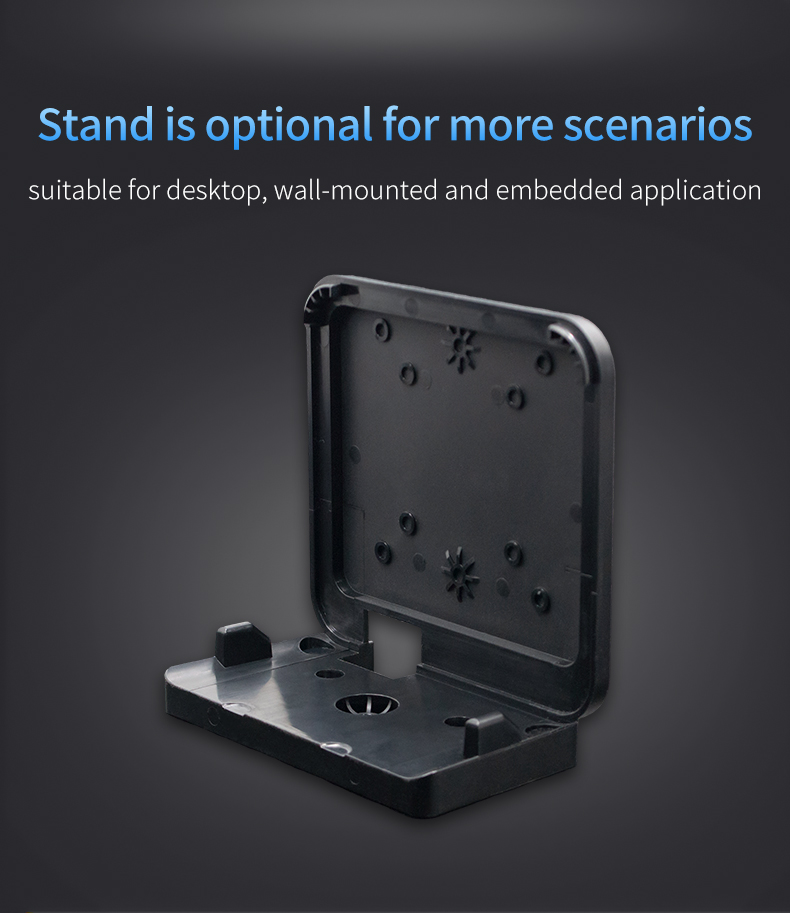

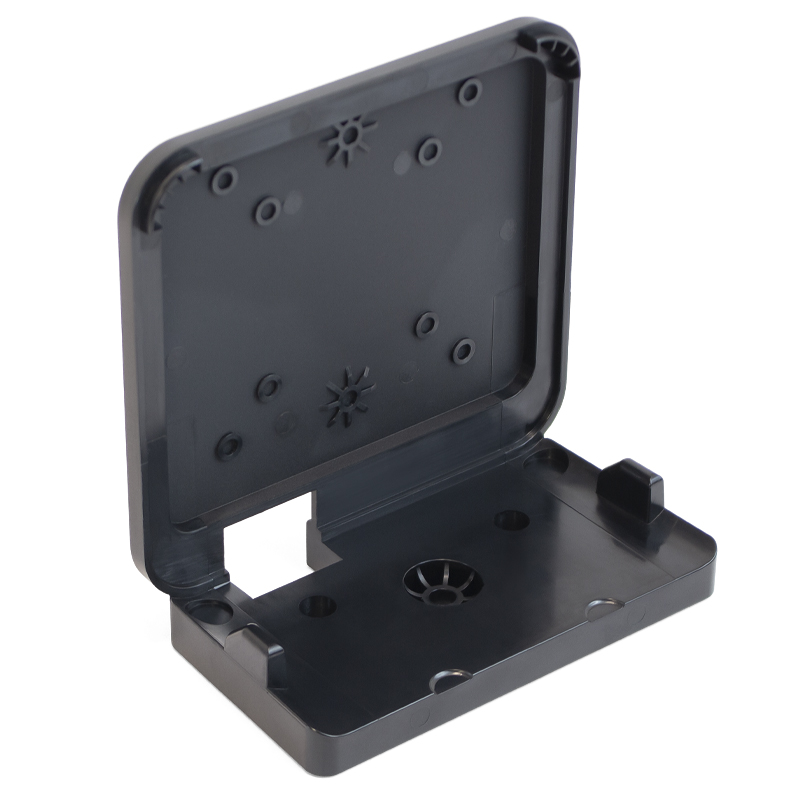

Stand Flexible installation

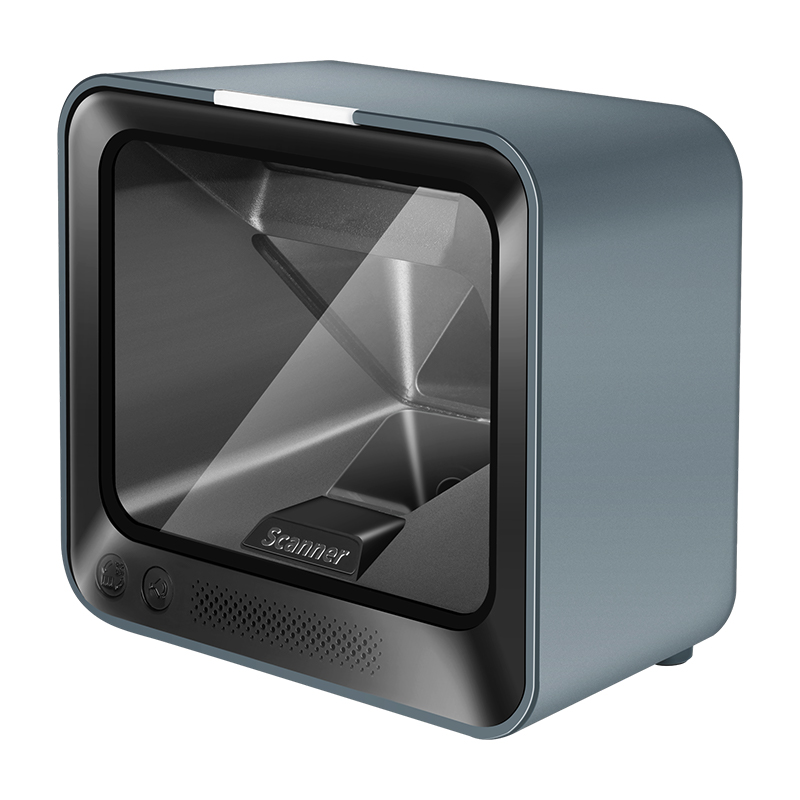

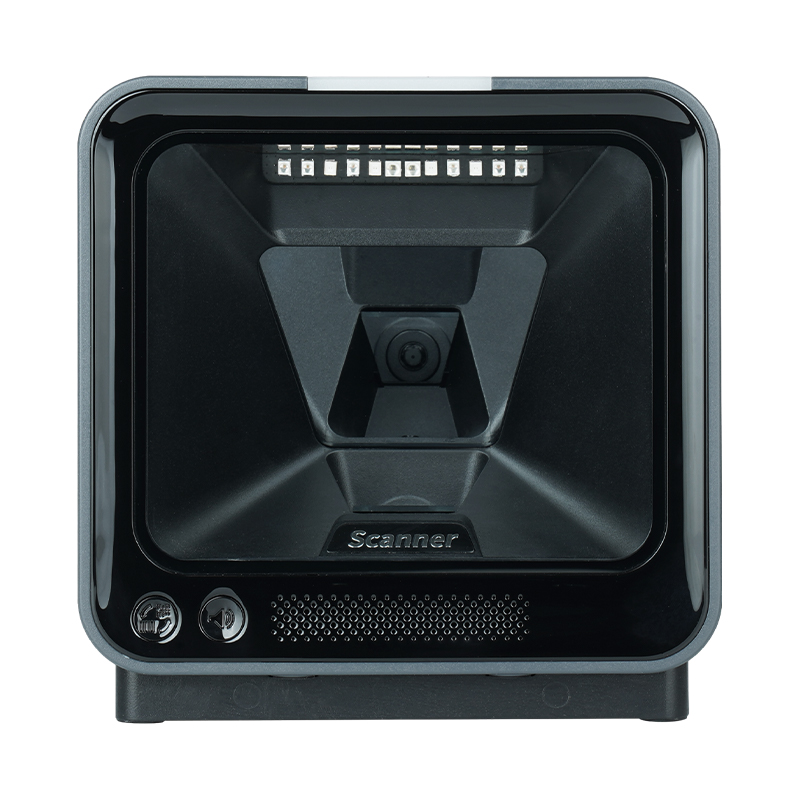

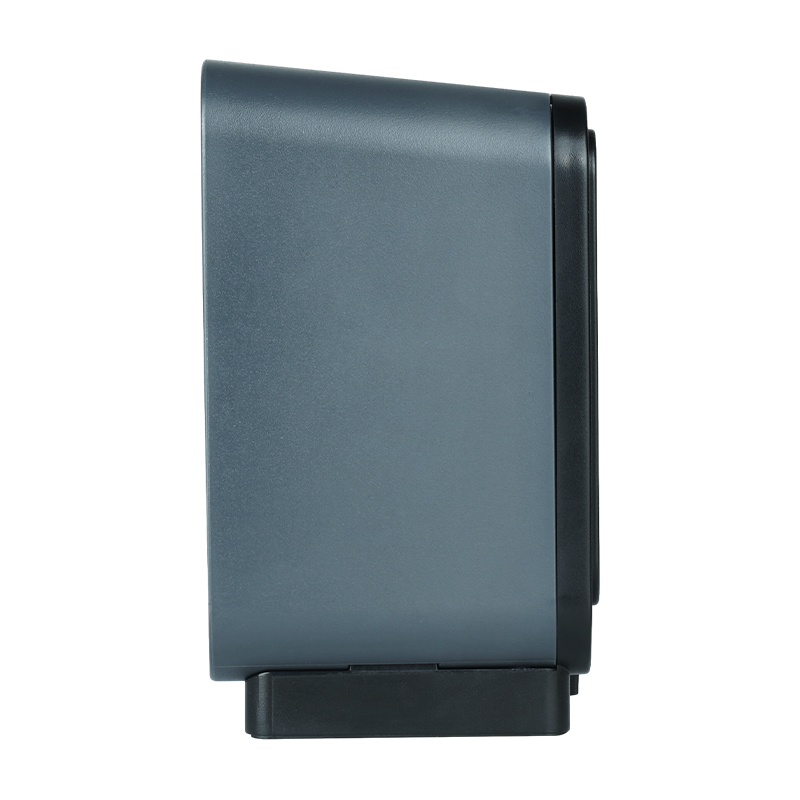

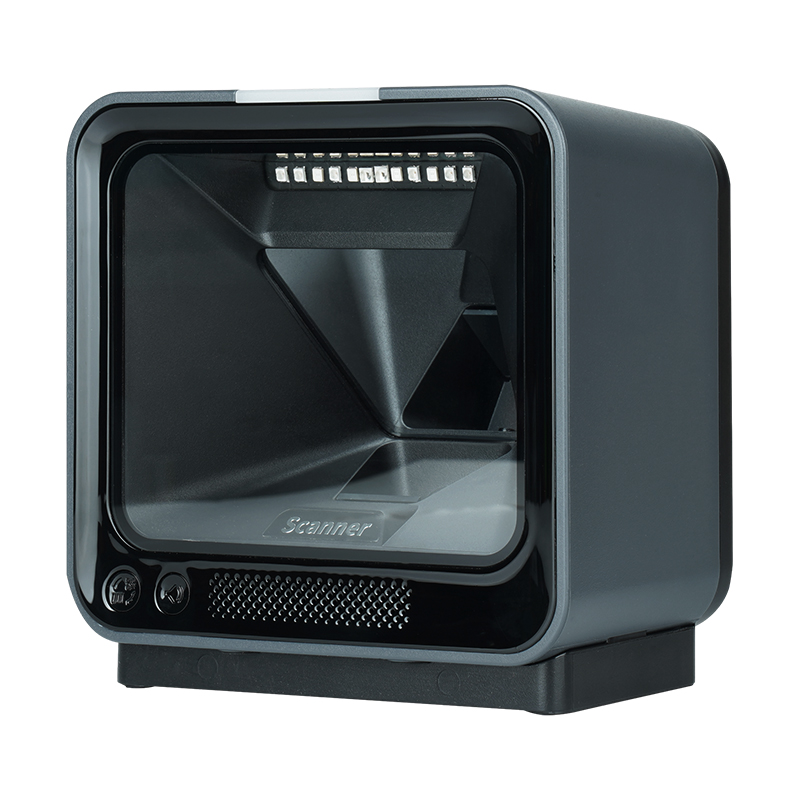

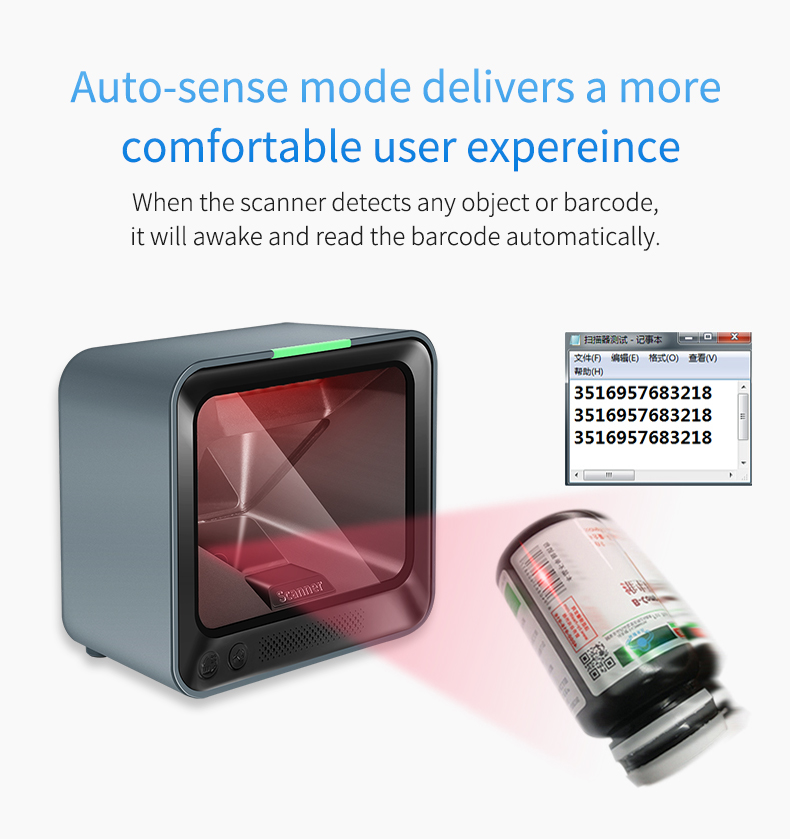

Product Pictures:
