Handheld USB Wired & Wireless CMOS Image 2D QR Code Reader 1D Barcode Scanner For Retail Store

Handheld USB Wired & Wireless CMOS Image 2D QR Code Reader 1D Barcode Scanner For Retail Store

We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!

*Get A Free Quote With No Obligation

Handheld USB Wired & Wireless CMOS Image 2D QR Code Reader 1D Barcode Scanner For Retail Store

Product Description:

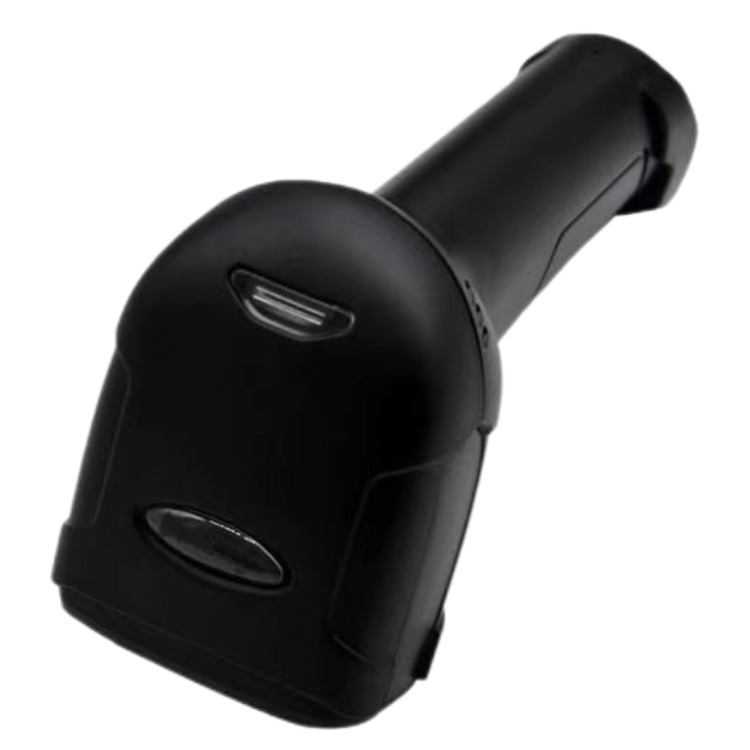

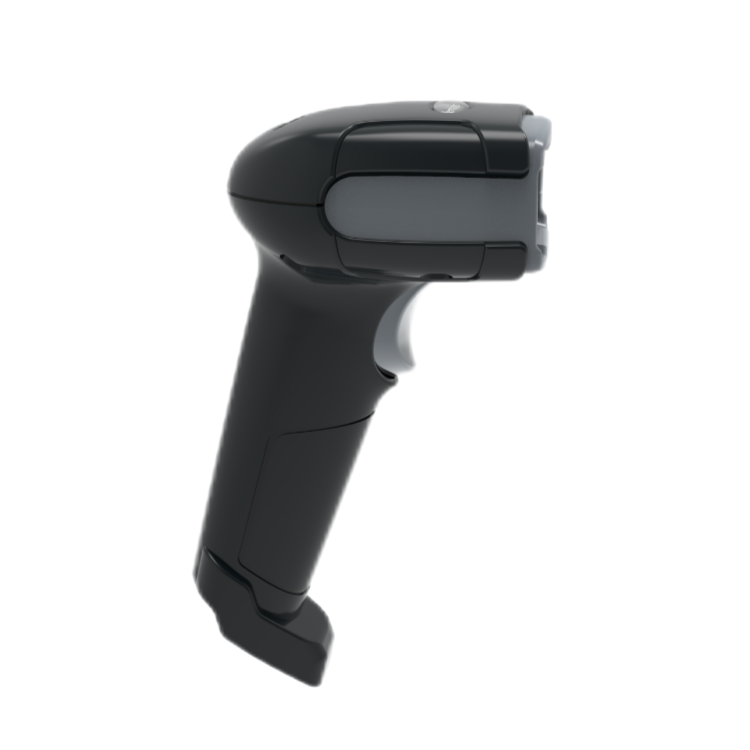

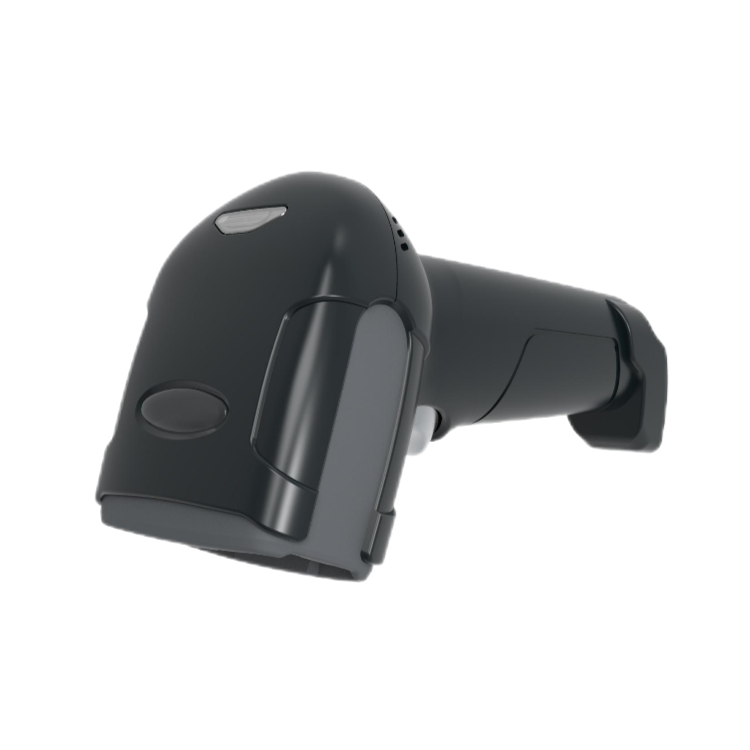

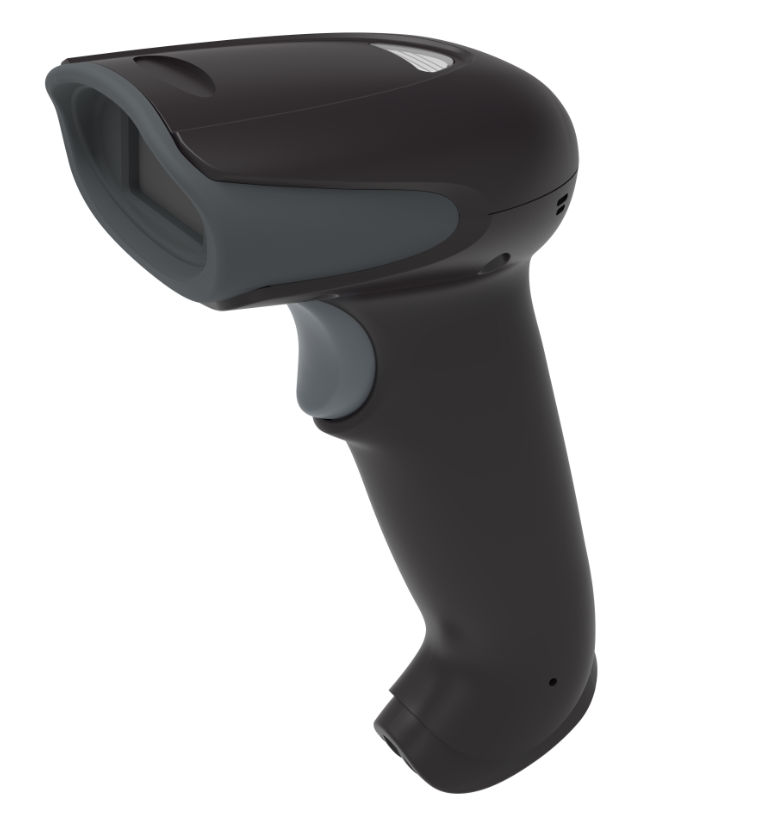

IBC-2700R, it is handheld wired and wireless 2D QR Code Reader.  It can scan various 1D and 2D codes. It supports mobile payment goods scanning. This handheld barcode scanner can be easy to operated, plug and play. It is with excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, etc; it is more convenient to scan the QR code to check out.

Product Features:

● Wireless distance: long-distance wireless communication technology is used to achieve mobile scanning within a range of 100m (open space).
● Lithium-ion battery: high-density 2500mAh lithium-ion battery is used, and a full charge supports 5 hours of continuous work.
● Unique decoding technology: using the world’s top decoding algorithm, various one-dimensional and two-dimensional barcodes can be quickly and accurately interpreted.
● High-performance scanning technology: supports scanning of various high-density, damaged and deformed barcodes.

Product Specification:

Model No: IBC-2700R
Product Name: Handheld 1D 2D Wireless Barcode Scanner
Physical Characteristics
Dimensions: 160mm x 64mmx 97mm
Weight: 188g
Voltage: +4.2V±10% VDC
Starting Current: 220mA
Stand-by Current: 165mA
Work Current: 260mA
Performance Characteristics
Image (Pixels): 640 pixels (H) x 480 pixels (V)
Light Source: (Aimer) Red color LED; (lllumination) White color LED
Wireless signal: 2.4 -2.5 GHz bandwidth range
Roll / Pitch / Yaw: 65°(Yaw), 65°(Pitch), 360°(Roll)
Print Contrast: 20% minimum reflective difference
Interfaces Supported: 2.4G (bluetooth optional)
Battery Specification: 3.7/2500mAh
Charging Time: 3.5 hours
Communication Distance: 100m (open space)
Storage Capacity: 20,000 records (13 characters per record)
Symbology Decode Capability
1D: Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA,Matrix 2 of 5,Code 11, Code 128, GS1-128, UPC- A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post.
2D: Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data
Matrix, MaxiCode, Aztec, HANXIN.
User Environment
Humidity: 5% to 95% relative humidity,non-condensing
Shock Specifications: Designed to withstand 1.5m(5’) drops
Ambient Light Immunity: 0-100,000 Lux.
Decode Ranges
Code39 (5mil): 20mm-95mm
Code39 (13mil): 30mm-200mm
Alipay payment code (3*3cm): 60mm-490mm
Performance may be impacted by bar code quality and environmental conditions
