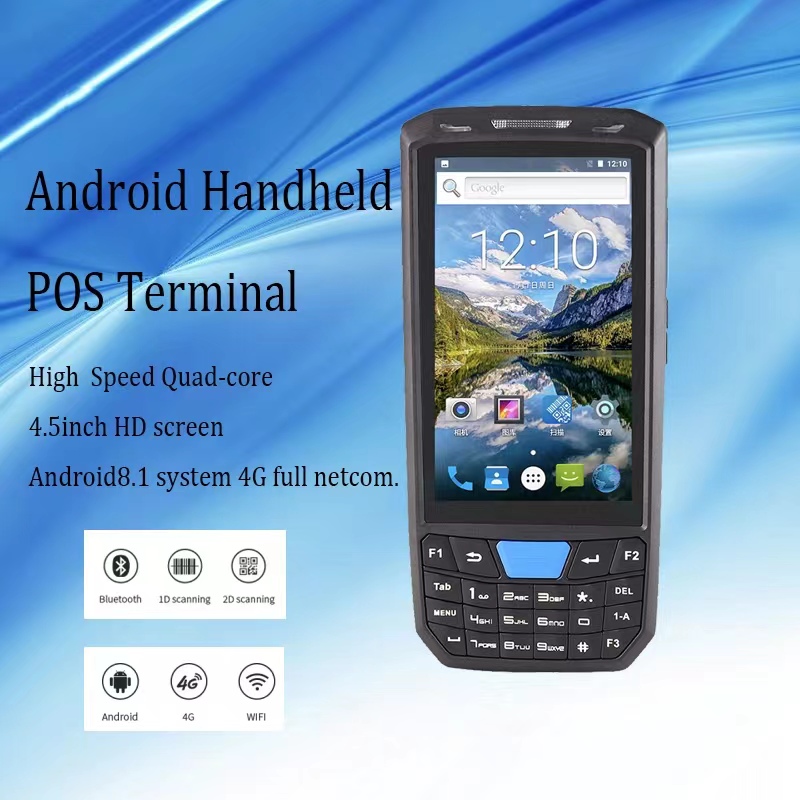

Handheld Mobile Computers Android PDA Scanner Portable Data collector Terminal POS

Product Description:

IBC-MT1, this Android pda devices use 4.5inch touch screen which resolution 480*854, it is lightweight ,multifunction android handheld computer with keyboard, suitable for manufacturing factories, warehouse, store back room etc. Improve users productivity and efficiency to a new level, the 4G technology makes work easier, more convenient and more efficient. It is an ideal Pda android barcode scanner your warehouse, logistic, picking and checking, inventory management etc.

Product Features:

• Powerful decoding scan module

• 4.5 inch HD screen, high speed and performance Quad core

• Android 8.1 operating system

• RAM and ROM :2G+16G / 3G+32G

• High capacity battery 4200mAh

Product Specification:

Specification
Product Name Handheld Mobile Computer
Model IBC-MT1
Performance
Quad core
CPU Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor
RAM+ROM 2GB+16GB Supports up to 3GB+32GB
Expand memory Micro SD(TF) Supports up to 128GB
System Android 8.1/Android9.0
Data communication
WLAN Dual-band 2.4GHz / 5GHz,
Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol
WWAN 2G:GSM(850/900/1800/1900MHz)
3G:WCDMA(850/900/1900/2100MHz)
4G:FDD: B1/B3/B4/B7/B8/B12/B20; TDD: B38/B39/B40/B41
Bluetooth Support Bluetooth 5.0+BLE
Transmission distance 5-10 meters
GNSS Support GPS, Galileo, Glonass, Beidou
Physical parameter
Dimensions 166mm×77.5mm×22mm
Weight <500g
Display 4.5 inch IPS color display with resolution 480*854
TP Support multi-touch
Battery capacity rechargeable polymer battery (3.8V 4200mah) removable
Standby time >350 hours
Charging time <4H, using standard power adapter and data cable
Expansion Card slot Micro SIM card x 1 , TF card × 1
Communication interface Type-C USB x 1, OTG,POGO Pin x 1
Audio Speaker (mono), Microphone, Receiver
Keypad Support touch screen soft keypad and physical keypad
Sensor Gravity Sensor,Vibration motor
Language/input method
Input English, Pinyin, Five strokes, Handwriting input, Support soft keypad
Language Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,  etc.
Data collection
Barcode scanning (Optional)
1D Scanning engine Mindeo 966  ,Honeywell N4313
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.
Postal Codes:USPS Planet, USPS Postnet, China Post, Korea Post, Australian Postal, Japan Postal, Dutch Postal (KIX), Royal Mail, Canadian Customs,etc..
2D Scanning engine E483 ,Honeywell N5703 N6703 6602
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, HanXi,etc.
Camera(Standard)
Rear camera 8MP HD camera, Support auto focus, Flash, Anti-shake, Macro shooting
NFC (Optional)
Frequency 13.56MHz
Protocol Support ISO14443A/B, 15693 agreement
Distance 2cm-5cm
User environment
Operating temperature -20℃ – 55℃
Storage temperature -40℃ – 70℃
Environment humidity 5%RH–95%RH(no condensation)
Drop specification 6 sides Supports 1.5 meters drops on the marble within the operating temperature
Rolling test 0.5m rolling for 6 sides, can still work steadily
Protection level IP66
Accessories
Standard Adapter, Data cable, Protective film, Instruction manual

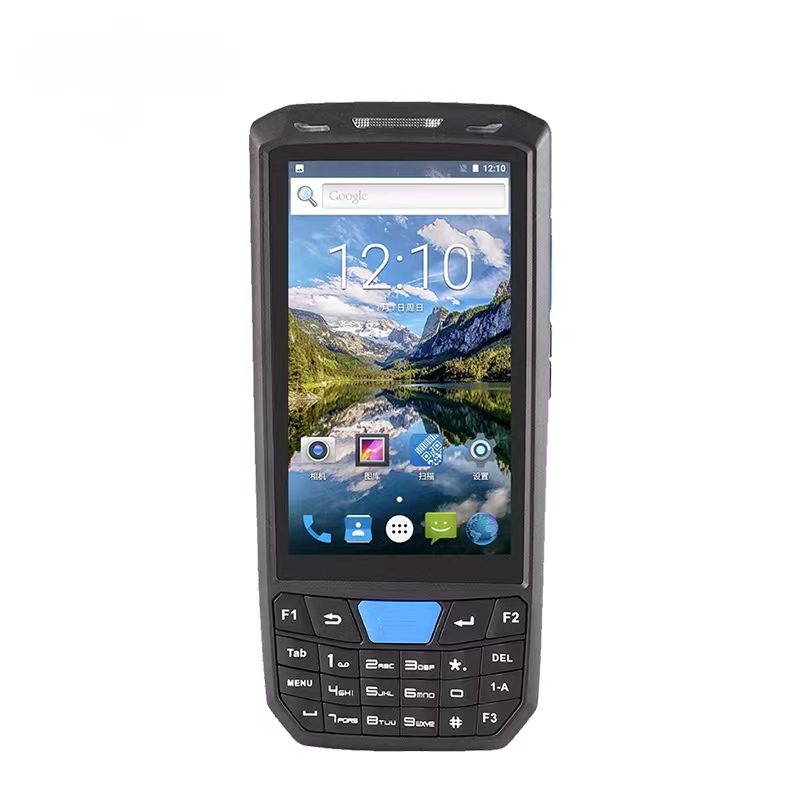

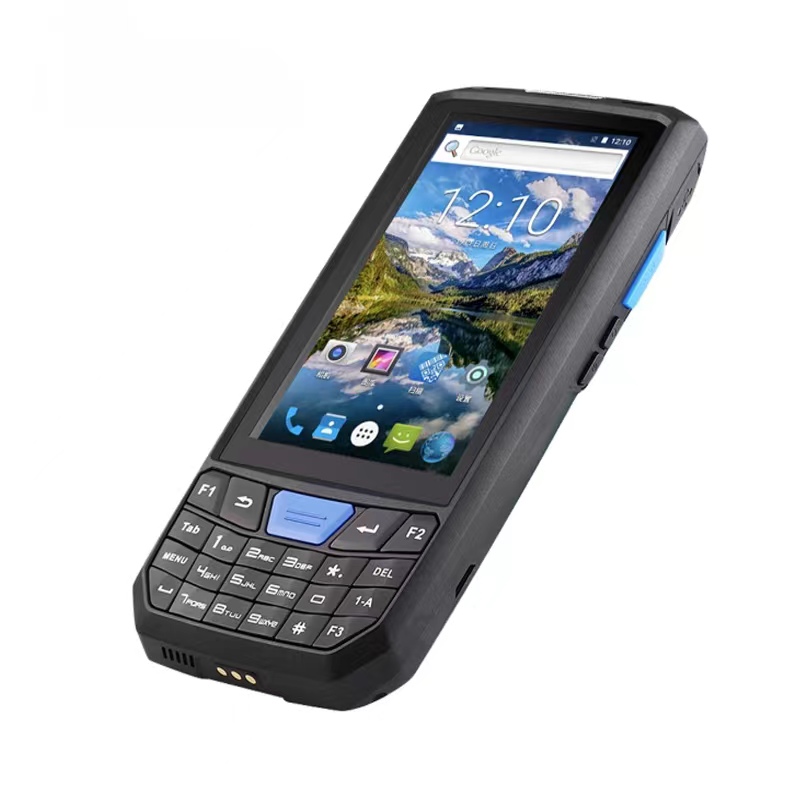

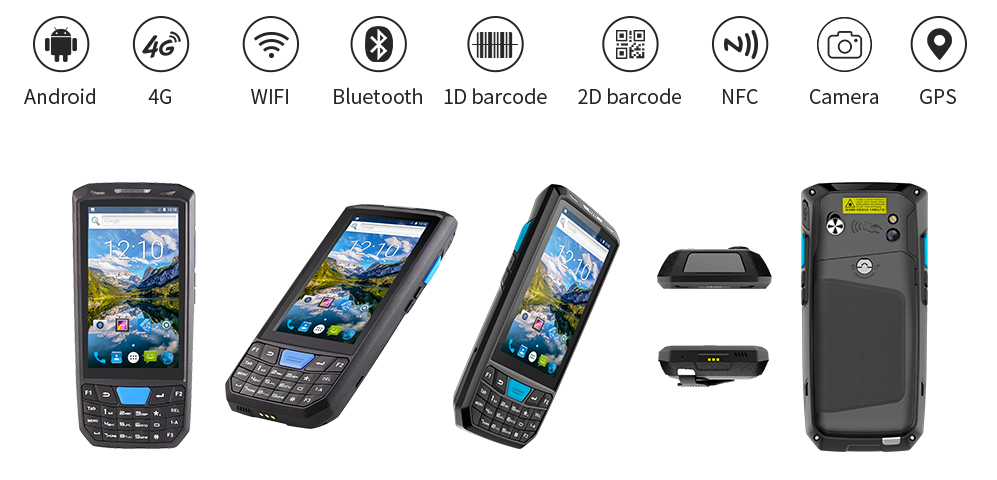

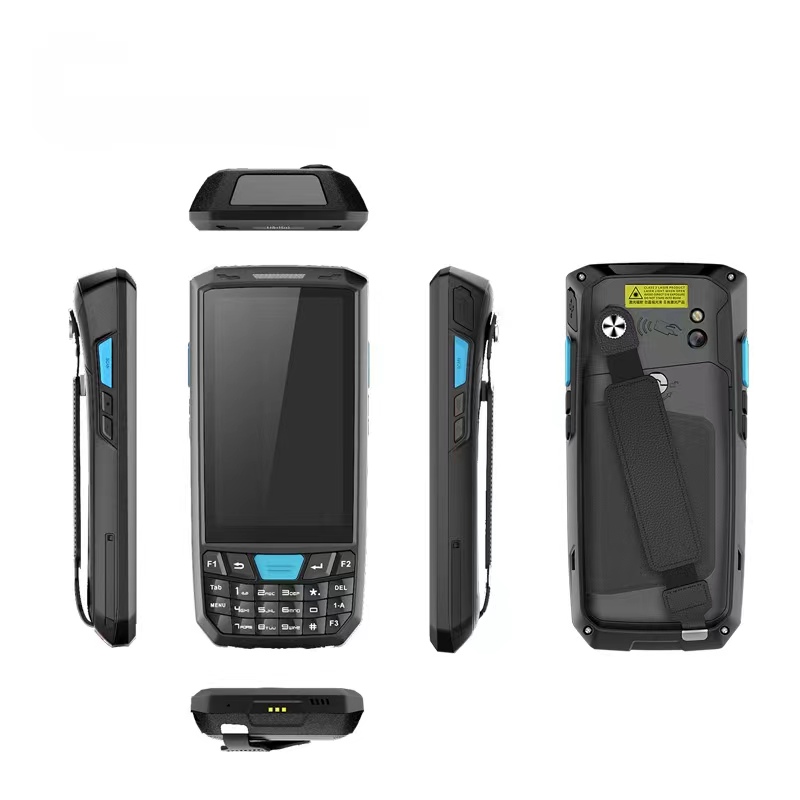

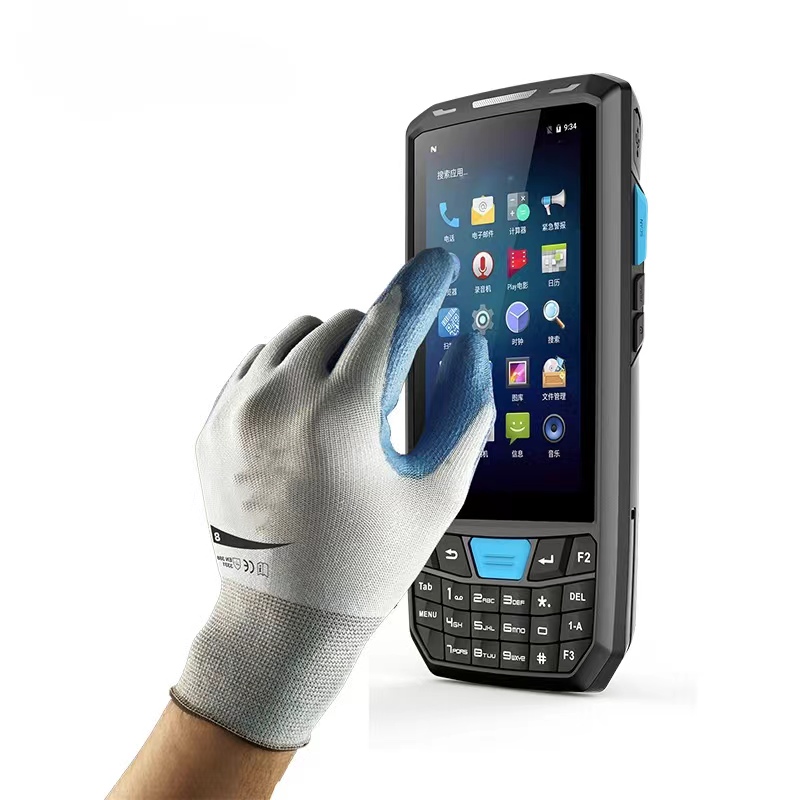

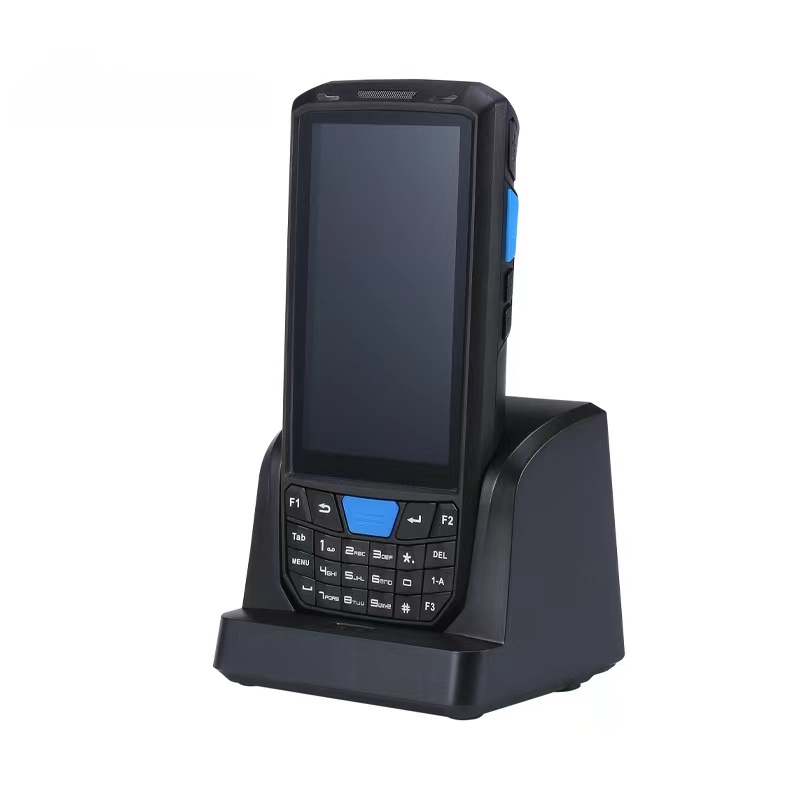

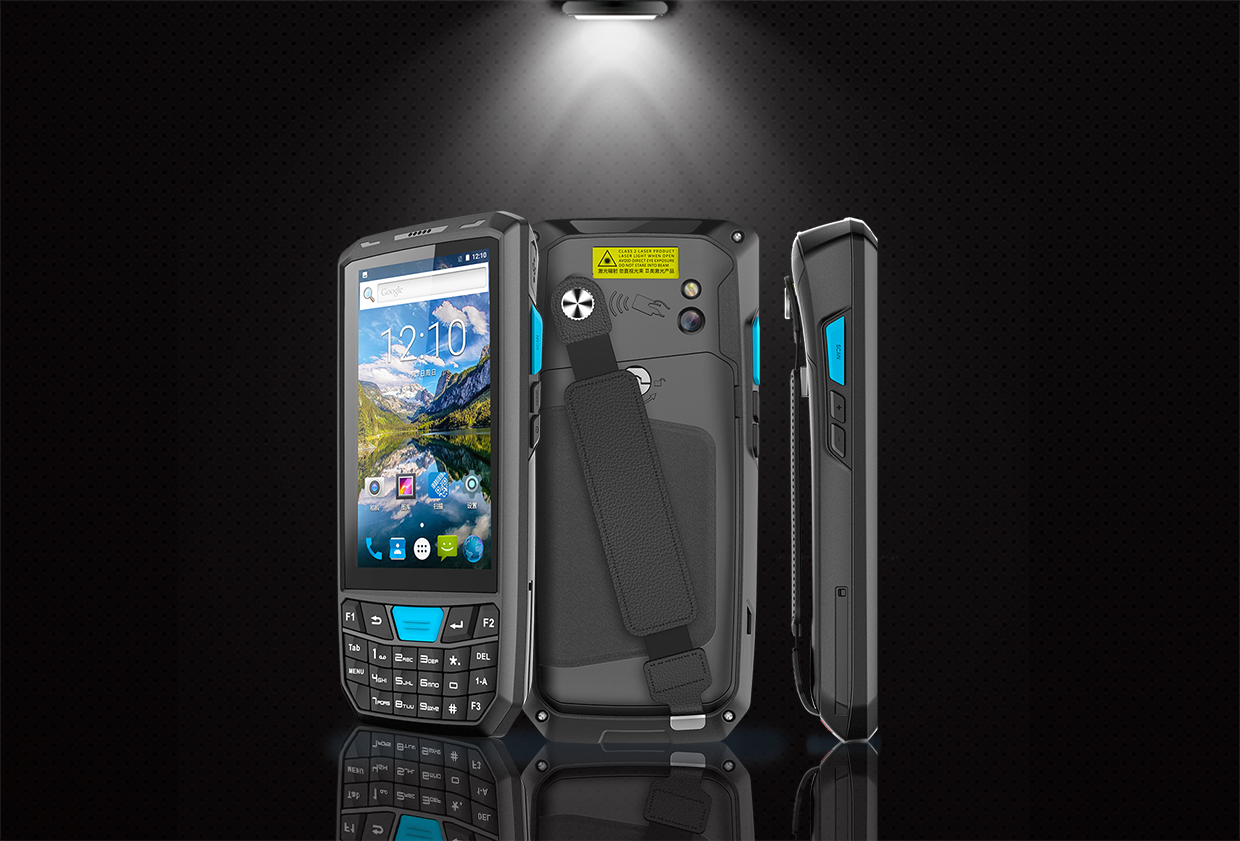

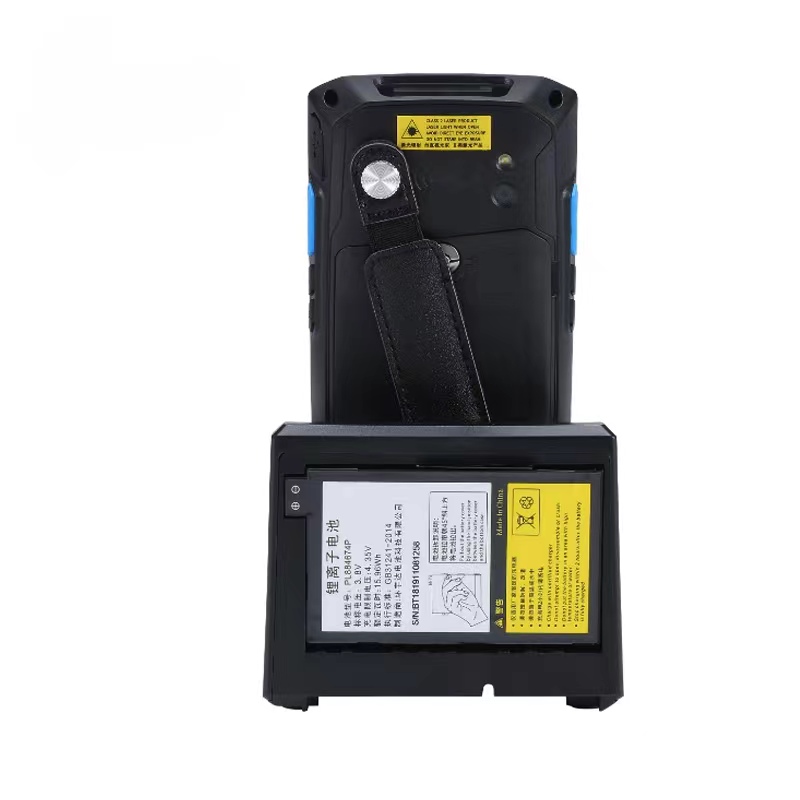

Product Picture:
