Handheld Barcode Scanner 1D 2D QR Code Reader For Retail Store

Product Testing Video:

Product Description:

IBC-1500N, it is good ergonomic design.  It is with excellent scanning sensitivity and decoding capability. Strong Decode for Damaged Incomplete Barcode, fuzzy barcode, Twsited Wrinkledbarcode, Reflective barcode, Colorful and Long Barcode etc. It supports mobile payment goods scanning. This handheld barcode scanner can be used for Store, Restaurant, Pharmacy, Clothing, Supermarket, etc.

Product Features:

• Quick scan, even with poor or damaged barcodes

• Fast Accurate Reading Speed

• Light weight, Ergonomically and durable design

• Easy to operate, plug and play

• Excellent Error-Correcting Performance

Product Specification:

Parameters Sheet
Model No. IBC-1500N
Product Name 2D Wired Barcode Scanner
Physical Parameter
Material ABS+PC
Power Supply DC 5V ±5%
Power Consumption 952mW(working),512mW(standby),1105mW(maximum)
Weight 121g±5g(Without cable)
Size L*W*H：170 * 70 * 88(unit:mm)
Color Grayish white;Black
Performance Parameter
Interface USB,(RS232 can be customized)
System Supported Linux,Android,Windows XP、7、8、10,MAC
Language Supported US English; Belgium; Finland; France; Germany; Italy; Sweden; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey F; Turkey Q; Japan;etc.
(Support International language)
Sensor Pixel CMOS sensor 640*480
Light Source Red LED(Aiming)+White LED(lighting)
Processor 32-bit ARM MCU + BGA
Motion tolerance Code128： 35cm/sec
QR： 45cm/sec
Resolution 4mil
Bit Error Rate 1/5000000
Reading Mode Image
Trigger Mode Manual;Continuous scanning; Auto-sensing
Prompt Mode Buzzer, Indicator Light(LED)
Print Contrast 25%
Decoding
Capability		 1D ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●UPCE0 ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11
2D ◎PDF417      ◎Data Matrix      ◎QR Code         ◎HanXin
◎AZTEC       ◎Maxicode         ◎Micro QR        ◎Micro PDF417
Scanning Angle Roll360°,Pitch45°,Yew45°
Scanning Depth Code39 10mil：6cm  –  25cm
QR 10mil：4cm  –  25cm
Environment Parameter
IP Grade IP54
Operating Temp. 0 to 50℃ / 32 to 122℉
Storage Temp. 0 to 50℃ / 32 to 122℉
Operating Humidity 20% to 85%(No Condensation)
Storage Humidity 20% to 85%(No Condensation)
ESD Protection 15KV air discharge
Shock Resistance Withstands multiple times 1.5m drops to concrete

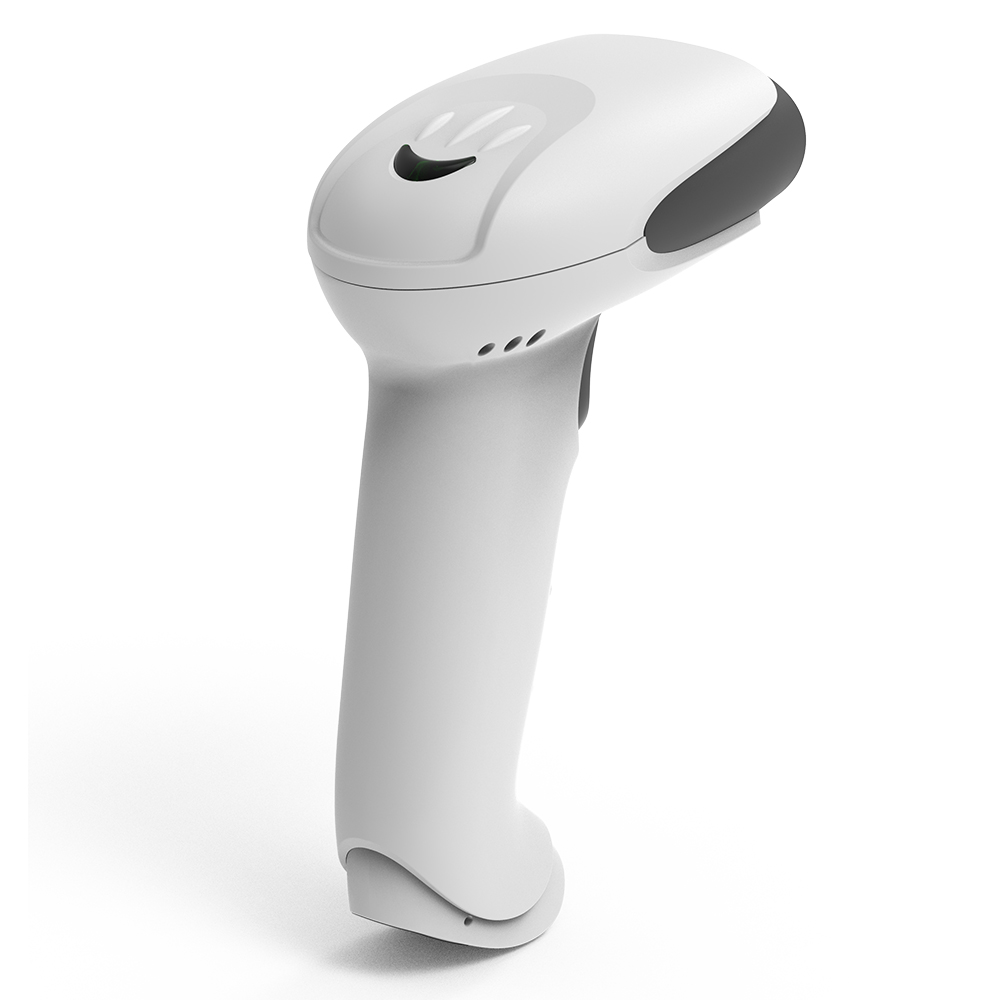

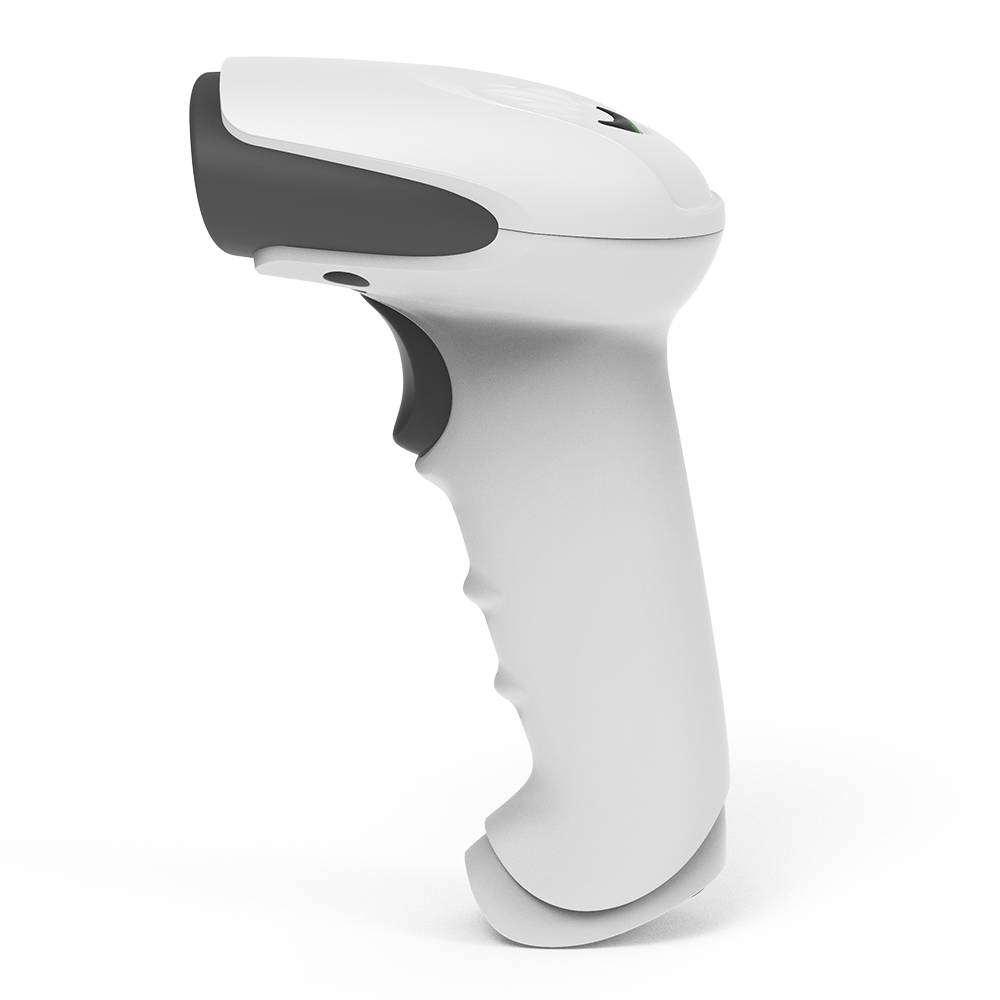

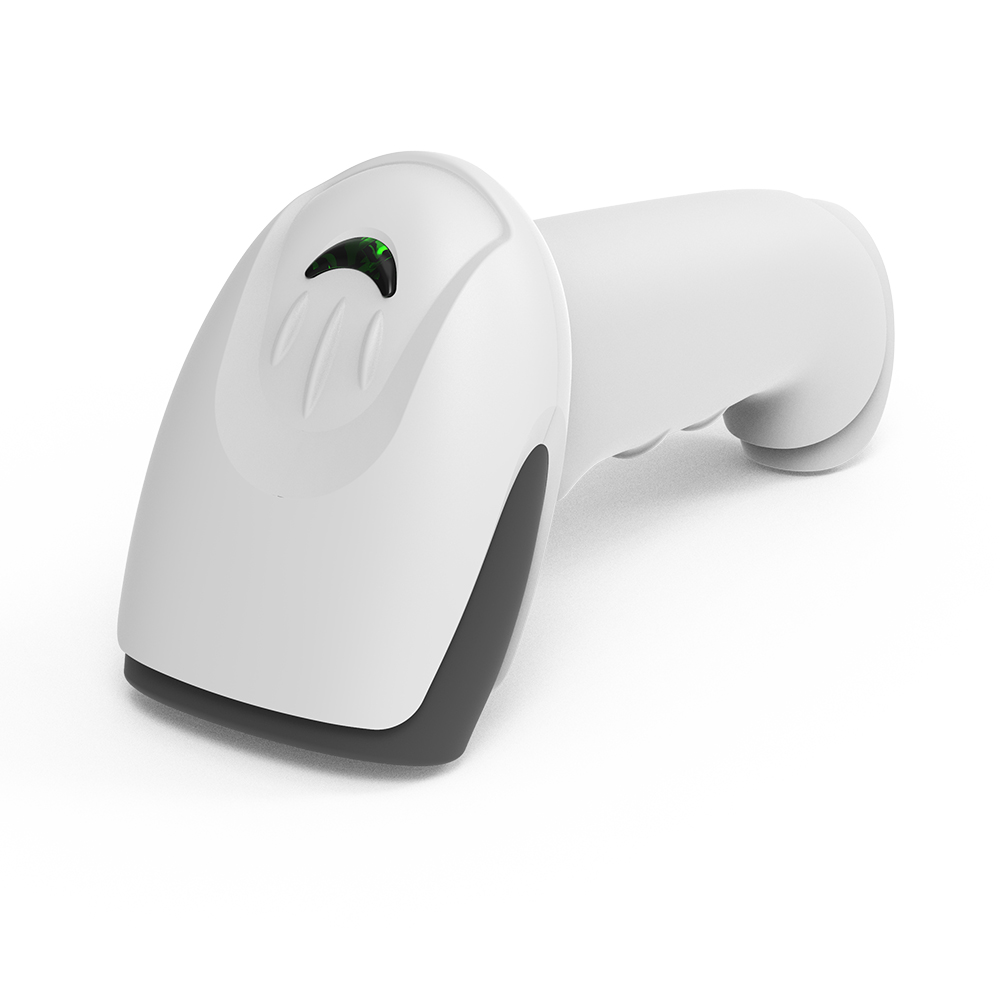

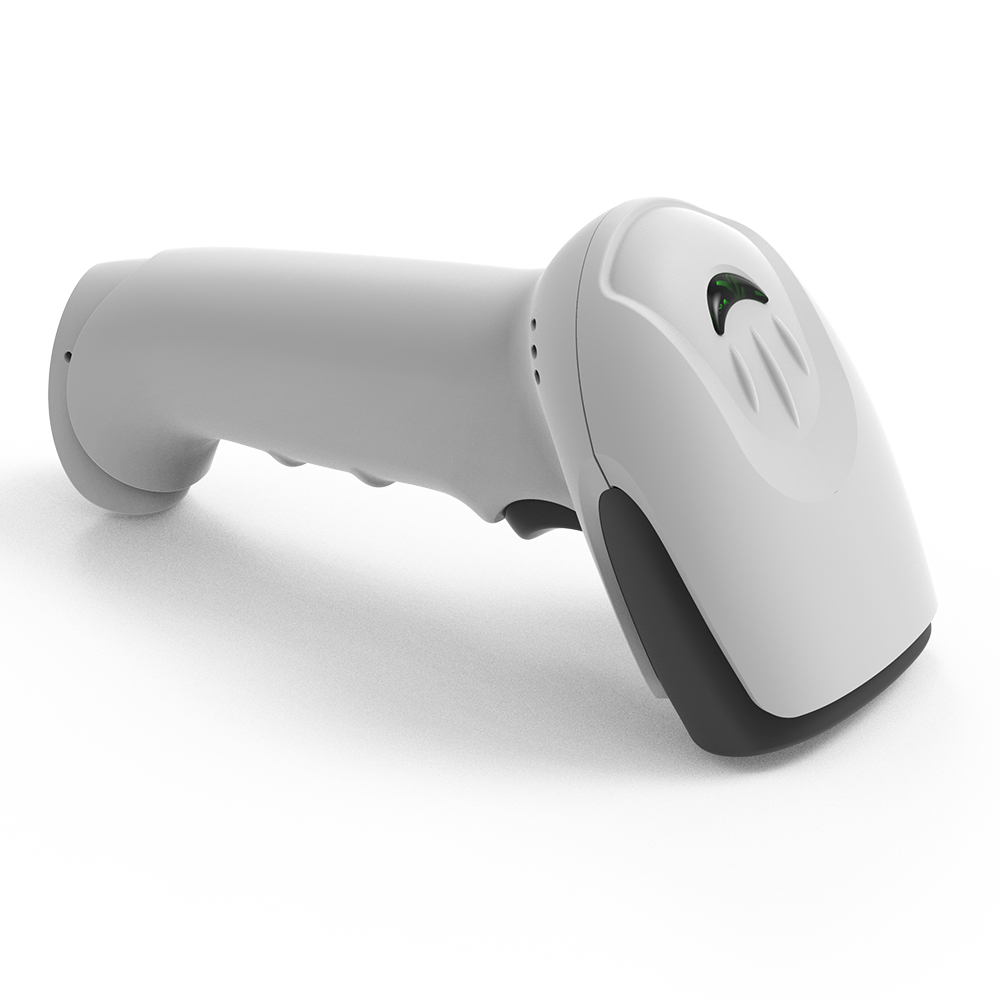

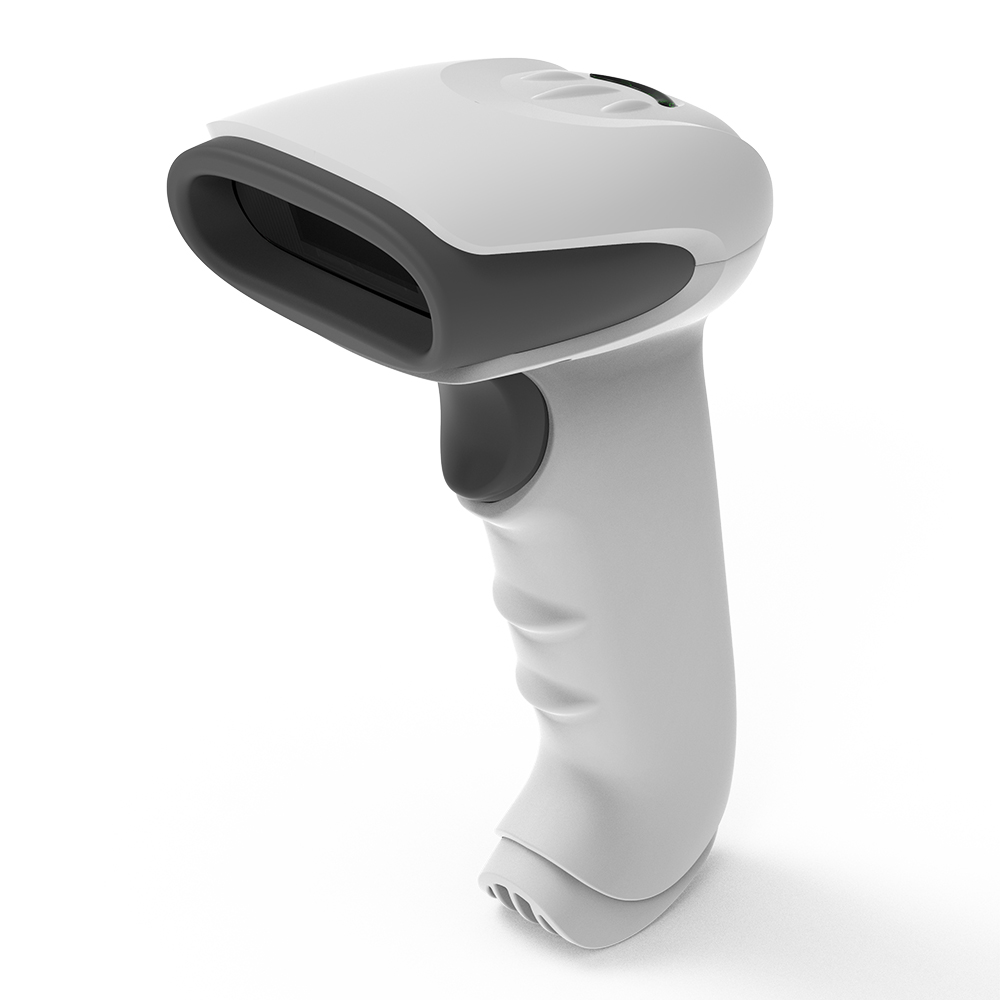

Product Pictures:
