Fast speed Scanning Barcode Reader QR Code Reader USB Wired Bluetooth Wireless Handheld Barcode Scanner 1D 2D
Fast speed Scanning Barcode Reader QR Code Reader USB Wired Bluetooth Wireless Handheld Barcode Scanner 1D 2D
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
Fast speed Scanning Barcode Reader QR Code Reader USB Wired Bluetooth Wireless Handheld Barcode Scanner 1D 2D
Product Description:
IBC-DS20 series CMOS barcode scanner is universal handheld image 2D barcode scanner, using international advanced image transmission technology, with two-way communication instant error correction feedback, complete a variety of commonly used one-dimensional code and two-dimensional code reading. Equipped with auxiliary lighting, can be used in different lighting environments, can also be used at night, the applicability is strong. Read barcodes in any direction at 360degrees, faster and more efficient.
Supports the reading of paper barcodes, LCD display barcodes, mobile phone screen barcodes, anti-color barcodes, and non-standard barcodes such as print distortion and wrinkle breakage.
Product Features:
• High-speed decoding, responsive
• Versatile: Provides interfaces such as USB, USB-COM, etc.
• Bluetooth connectivity is supported and communication distances can be up to 10m.
• Support remote online upgrade
• Built-in storage function, support inventory mode
• OLED display
• Four-color LED indicator
• Equipped with vibration feedback prompts
• One-click pairing, one-click upload function
Product Specification:
1D 2D Wired Handheld Barcode Scanner IBC-DS20:
| Parameters Sheet | |
| Model No. | IBC-DS20 |
| Product Name | 1D 2D Wired Handheld Barcode Scanner |
| Physical parameters | |
| Scan mode | Key trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port/RS232 serial port (optional). |
| Interface type | USB TYPE-B |
| Prompt mode | Buzzer, LED light, vibration motor |
| How it is set up | Manually scan the setup codes one after the other |
| Housing material | ABS+PC |
| Cable standard | Straight line 1.6m |
| Exterior dimensions | 157mm×70mm×112mm(products);195mm×105 mm×80mm(packaging) |
| Weight | 132.8g (net weight); 260g (with packaging accessories). |
| Performance parameters | |
| Sensors | 300, 000 All StationsC MOS |
| Resolution | 640*480 |
| Light source | White LED |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 fps |
| Field of view | 48° (H) x 30° (V) |
| Printing contrast | Minimum 15%. |
| Decoding kind | 1D:EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, ITF- 14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey, etc |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc., support mobile screen reading | |
| Minimum resolution | 1D code 3MIL; QR code 5MIL |
| Depth of field | QR (15mil) : 30~210mm |
| QR payment code (mobile code): 80~550mm | |
| Data Matrix(10mil) : 30- 140mm | |
| PDF 417(6.7mil): 50- 120mm | |
| EAN-13 (13mil): 50~280mm | |
| Code 39 (8mil): 30- 190mm | |
| Code 128 (15mil): 80~320mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Working: 350 mAh; Standby: 130 mAh |
| Environment parameters | |
| Temperature | 0°C-50°C (working); -40°C~+60°C (storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5, 000 Lux (fluorescence) |
| Seismic resistance | It can withstand a drop in the air of 1.5m |
1D 2D Wireless Handheld Barcode Scanner IBC-DS20R:
| Parameters Sheet | |
| Model No. | IBC-DS20R |
| Product Name | 1D 2D Wireless 2.4G Handheld Barcode Scanner |
| Physical parameters | |
| Scan mode | Key trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment); Bluetooth: 0-2 0 m(open environment). |
| Prompt mode | Buzzer, LED light, vibration motor |
| How it is set up | Manually scan the setup codes one after the other |
| Housing material | ABS+PC |
| Cable standard | USB 1m |
| Exterior dimensions | 157mm×70mm×112mm(product);1 95mm×105mm×80mm(packaging) |
| Weight | 179.2g (net weight); 298g (including packaging accessories). |
| Performance parameters | |
| Sensors | 300,000 All StationsC MOS |
| Resolution | 640*480 |
| Light source | White LED |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 fps |
| Field of view | 48° (H) x 30° (V) |
| Printing contrast | Minimum 15%. |
| Decoding kind | 1D:EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, ITF- 14, ITF-6, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS), Code 39, Code 11, MSI-Plessey, etc |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc., support mobile screen reading | |
| Minimum resolution | 1D code 3MIL; QR code 5MIL |
| Depth of field | QR (15mil) : 30~210mm |
| QR payment code (mobile code): 80~550mm | |
| Data Matrix(10mil) : 30- 140mm | |
| PDF 417(6.7mil): 50- 120mm | |
| EAN-13 (13mil): 50~280mm | |
| Code 39 (8mil): 30- 190mm | |
| Code 128 (15mil): 80~320mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Working: 350 mAh; Standby: 130 mAh |
| Battery | 2000mAh lithium-ion battery |
| Charging time | 4 hours |
| Battery life | 10 days (standby), 24 hours (working: scan every 5 seconds). |
| Environment parameters | |
| Temperature | 0°C-50°C (working); -40°C~+60°C (storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescence) |
| Seismic resistance | It can withstand a drop in the air of 1.5m |

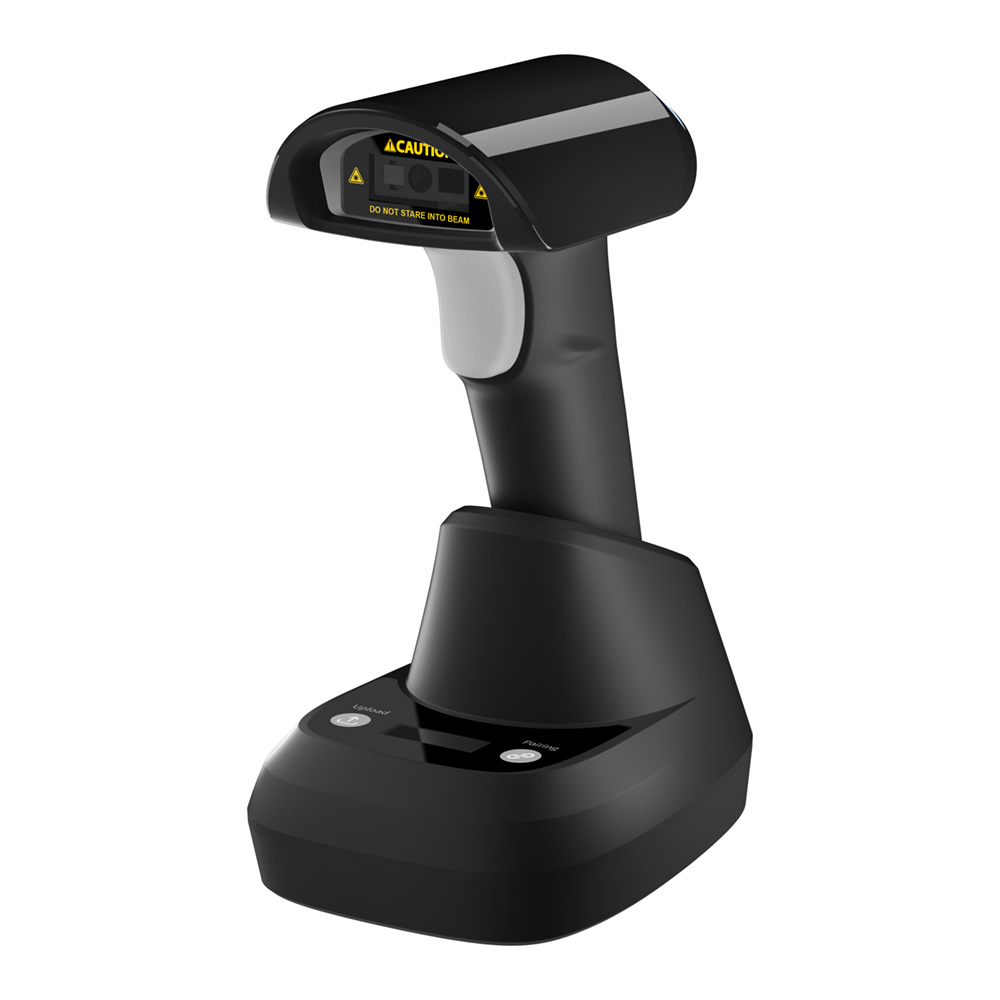

1D 2D Wireless Bluetooth Handheld Barcode Scanner With Charging Base IBC-DS20BT:
| Parameters Sheet | |
| Model No. | IBC-DS20BT |
| Product Name | 1D 2D Wireless Bluetooth Handheld Barcode Scanner With Charging Base |
| Physical parameters | |
| Scan mode | Key trigger/auto-sensing/continuous scanning |
| Communication interface | USB-HID keyboard/USB-COM virtual serial port |
| Wireless communication distance | Wireless 2.4G: 0-80m (open environment); Bluetooth: 0-2 0 m(open environment). |
| Prompt mode | Buzzer, LED light, vibration motor |
| How it is set up | Manually scan the setting code in turn and press the key to set |
| Housing material | ABS+PC |
| Cable standard | USB 1m |
| Exterior dimensions | 157mm×70mm×112mm(product);128 mm×81 mm×89mm(pedestal) |
| Weight | 179.2g (net weight). |
| Performance parameters | |
| Sensors | 300,000 All StationsC MOS |
| Resolution | 640*480 |
| Light source | White LED |
| Scan angle | ± 60°, ±60°, 360° (elevation, declination, rotation). |
| Scan rate | 120 fps |
| Field of view | 48° (H) x 30° (V) |
| Printing contrast | Minimum 15%. |
| Decoding kind | 1D:EAN- 13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar(RSS) , Code 39, Code 11, MSI-Plessey, etc |
| 2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc., support mobile screen reading | |
| Minimum resolution | 1D code 3MIL; QR code 5MIL |
| Depth of field | QR(20mil): 10~130mm |
| QR payment code (mobile code): 60~300mm | |
| Data Matrix (10mil): 20~100mm | |
| PDF 417 (7mil): 25~105mm | |
| EAN-13 (13mil): 30~175mm | |
| Code 39 (8mil): 25~145mm | |
| Code 128 (7mil): 25~110mm | |
| Electrical parameters | |
| Input voltage | DC 5V±10% |
| Current | Working: 350 mAh; Standby: 130 mAh |
| Battery | 2000mAh lithium-ion battery |
| Charging time | 4 hours |
| Battery life | 10 days (standby), 24 hours (working: scan every 5 seconds). |
| Environment parameters | |
| Temperature | 0°C-50°C (working); -40°C~+60°C (storage). |
| Humidity | 5%-95% non-condensing |
| Ambient brightness | Max.5,000 Lux (fluorescence) |
| Seismic resistance | It can withstand a drop in the air of 1.5m |
