Fast Speed Omnidirectional Desktop Barcode Scanner USB Wired 1D 2D Scanning QR Code Reader
Product Description:

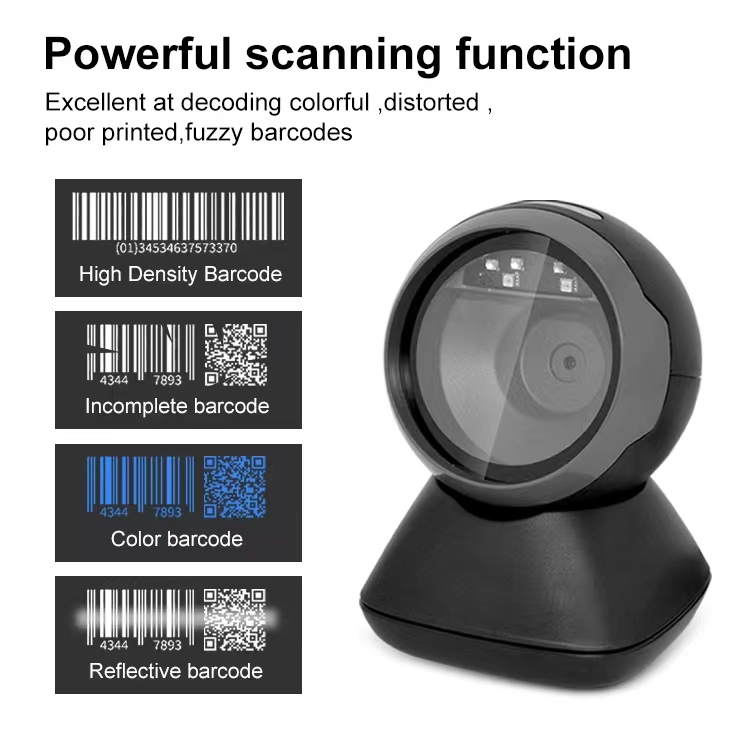

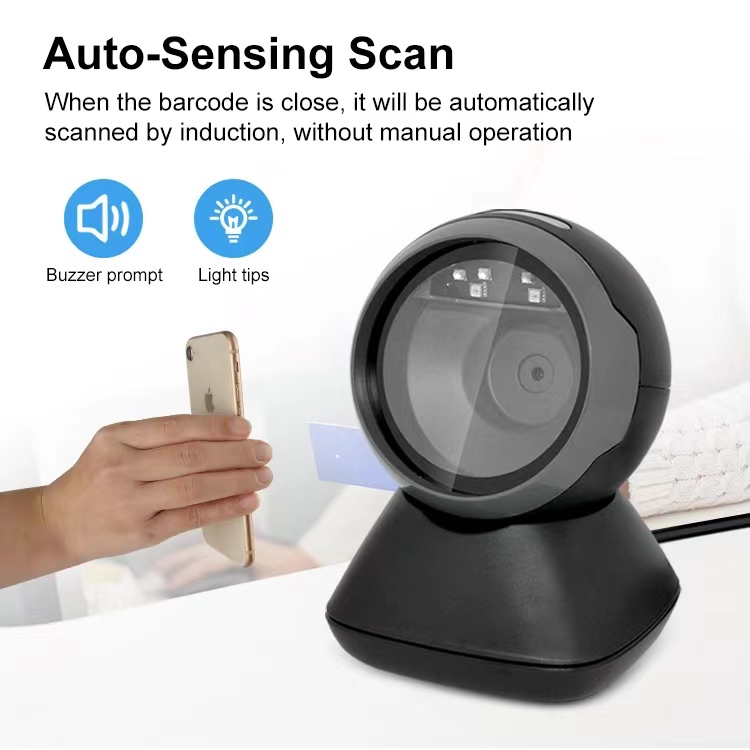

IBC-8140 CMOS desktop barcode scanner, with Powerful scanning function. Our desktop 2D barcode scanner can directly place on the desk, no need to hold the scanner, release your hands, improving your efficiency. It is Excellent at decoding colorful, distorted, poor printed, fuzzy barcodes. Auto-Sensing Scan, when the barcode is close, it will be automaticallyscanned by induction, without manual operation. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.
Product Features:

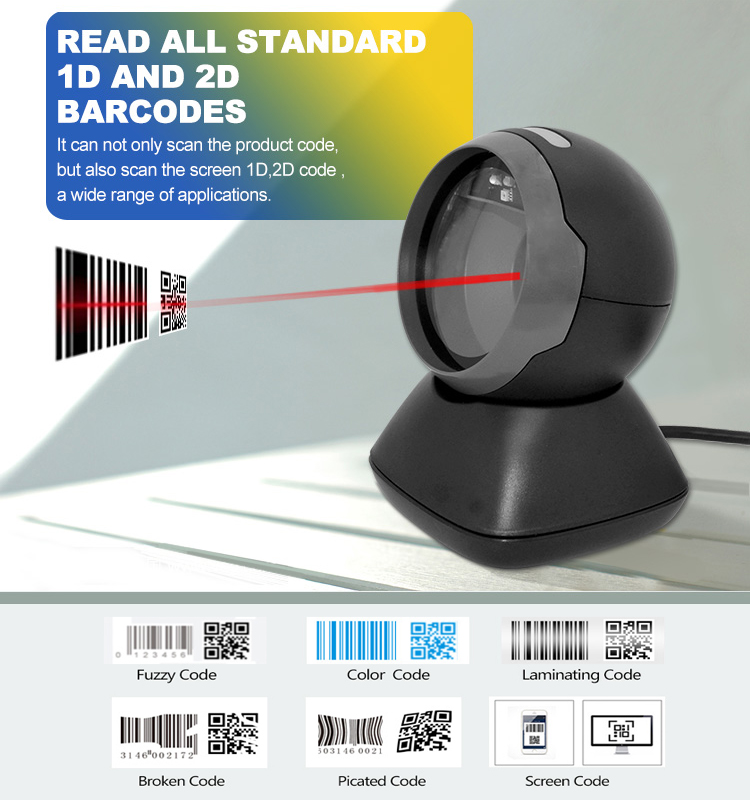

• Excellent decoding ability with new decoding chip for various of 1D & 2D barcode
• Scanning WeChat/Alipay barcodes with professional technology
• Decoding accuracy 4mil, able to read high-density QR codes.
Product Specification:
| Model | IBC-8140 |
| Item | Wired 2D Image Desktop barcode scanner |
| Light Source | Red LED (lighting) 650nm LED |
| Dedcode Capability | 1D: Codabar, Code93, Code93, NEC 2 of 5, Code32 Pharmceutical(PARAF), Code11, Interleaved 2 of 5, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code128, GS1-128, UPC-A, UPC-E, MSI, EAN/JAN-8, EAN/JAN-13, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (HongKong 2 of 5), Kroea Post |
| 2D: PDF417,QR Code, MicroPDF417, Australian Post, Canada Post, Japan Post, MaxiCode, Codablock, Aztec, Dutch Post, Data Matrix, etc. | |
| Sensor pixel | CMOS 640 pixels (horizontal) x 480 pixels (vertical) |
| Scan Speed | ≥4m |
| Depth of field | Code39(5mil) 0-7mm; QR(20mil)0-11mm; |
| Code39(13mil) 0-17mm | |

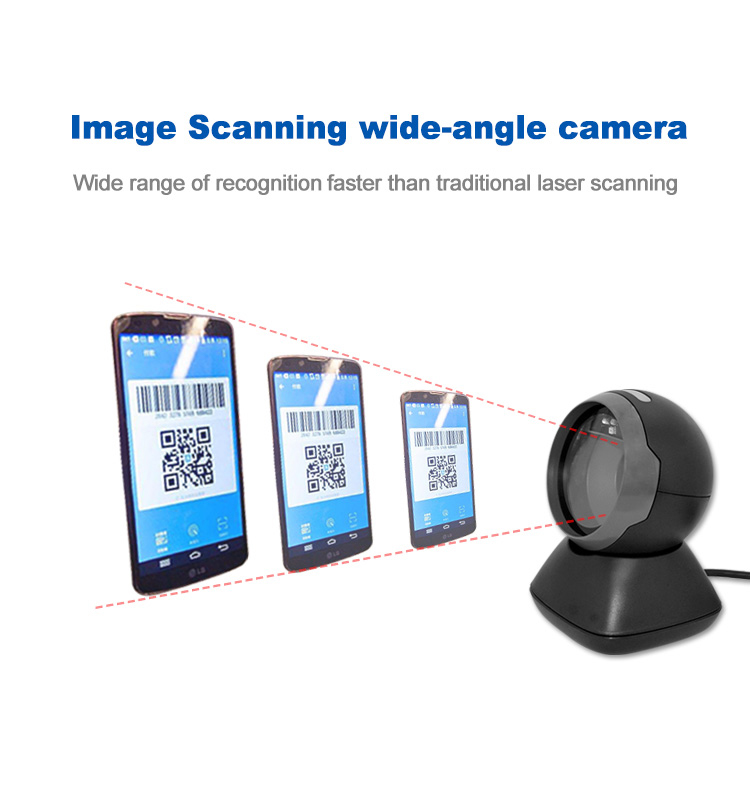

| Field of view | 39°(horizontal) x 29°(vertical) |

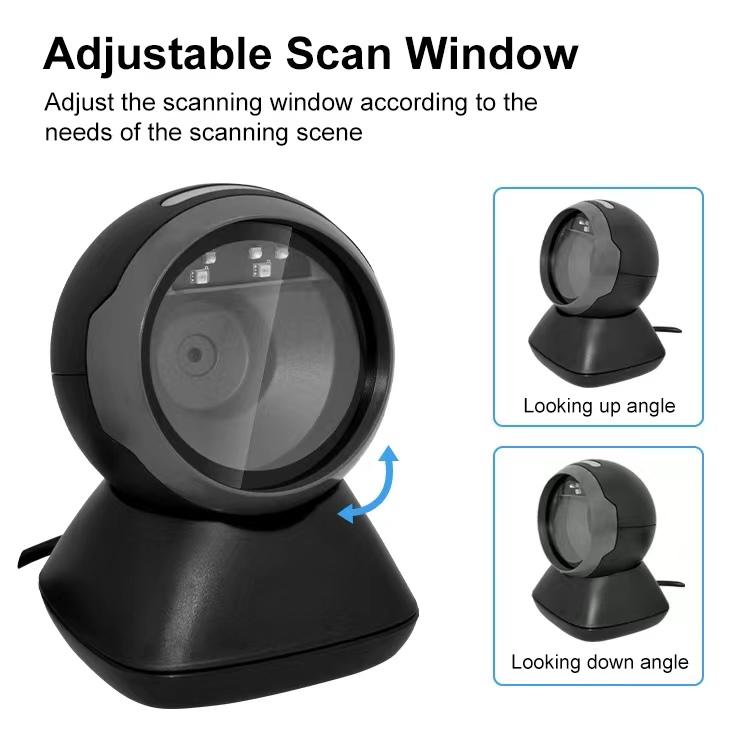

| Optical system | Deflection 360° Tilt ±65° Rotation ±65° |
| Contrast | 20% |
| Motion tolerance | >40cm/s |
| Interface | USB |
| Dimension | 137.4mm*99.8mm*96.5mm |
| Weight | 262.5g |
| Material | ABS+PC |
| Cable | 2M straight |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |
| Humidity | 5%~95%RH (Non-condensing) |
| Drop Resistance | Withstands multiple 1.2m drops to concrete |
| Voltage | 5±5%V |
| Current | 235mA |
| Working current | 315mA |
| Start-up current | 320mA |

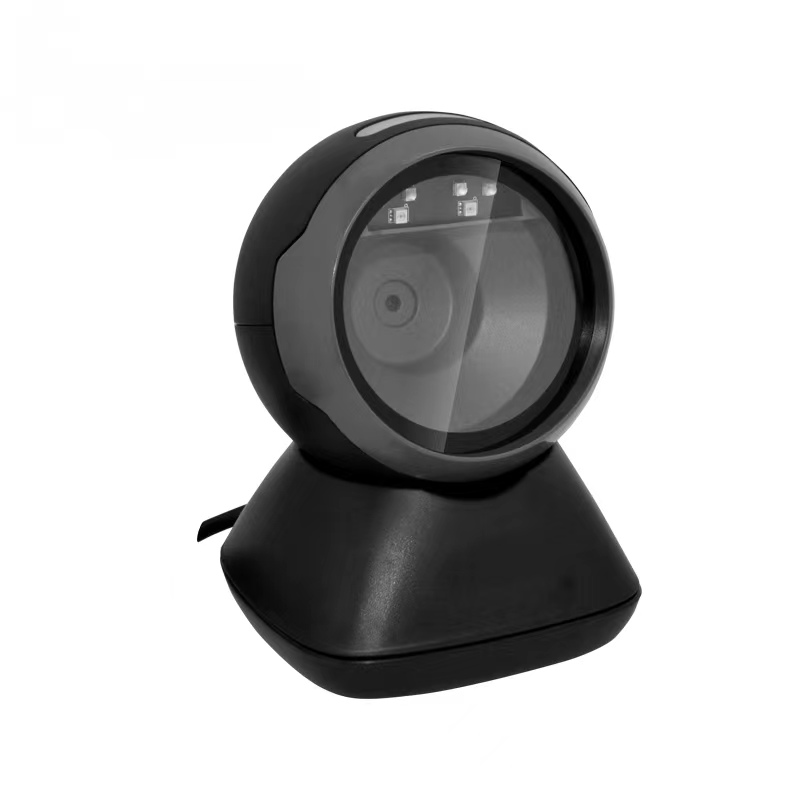

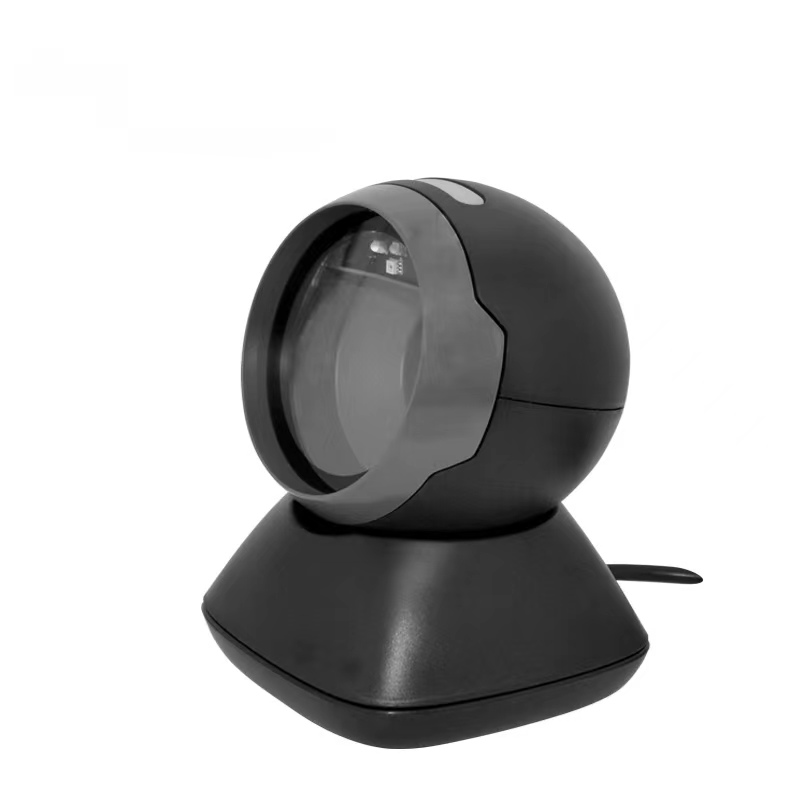

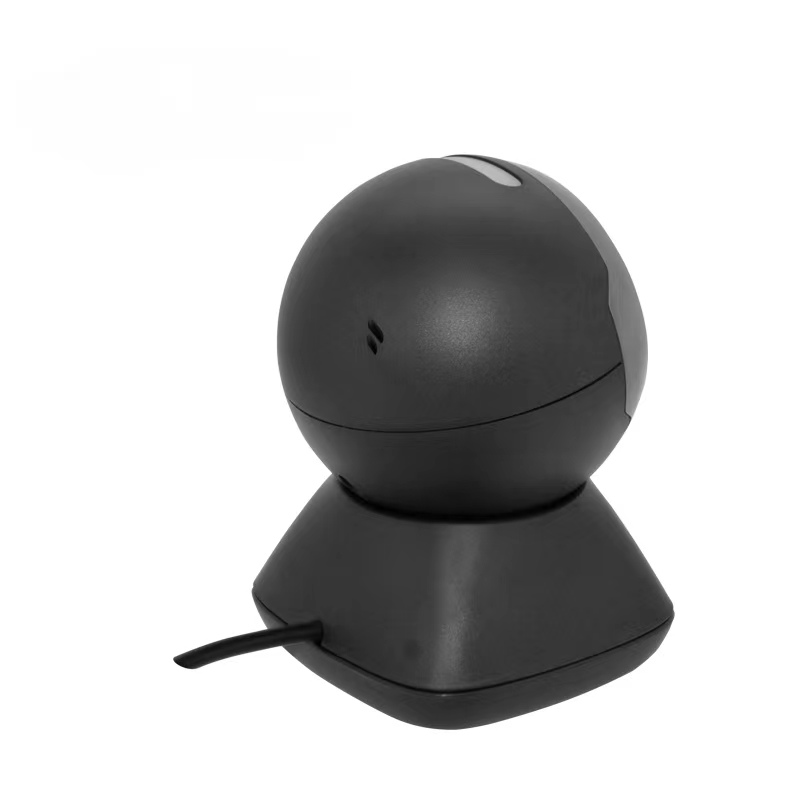

Product Pictures:
