Fast Scanning USB Wired 1D 2D Desktop Barcode Scanner QR Code Reader Platform Barcode Reader
Product Description:
IBC-9930 CMOS desktop barcode scanner, with Powerful scanning function. It is hand-Free design free your hand and improve the working efficiency. It is high performance and large scan window Presentation barcode scanner,it is most fix on top of check out counter or desktop. Our desktop 2D barcode scanner can directly place on the desk, no need to hold the scanner, release your hands, improving your efficiency. It is Excellent at decoding colorful, distorted, poor printed, fuzzy barcodes. Auto-Sensing Scan, when the barcode is close, it will be automaticallyscanned by induction, without manual operation. It is widely used in retail stores, supermarket, library, hospital, pharmacy and other industries.
Product Features:
* Compatible System – Windows, Mac OS, POS Cash Register, Linux.
* Desktop Hand-Free design free your hand and improve the working efficiency.
* Plug and play, no need for any driver or software. Easy installation with USB cable.
* Extra large scanning angle, identify screen code, incomplete code and fuzzy code easily.
* Super decoding ability, fast to scan both printed and mobile phone screen 1D/2D barcodes.
* Auto sense ,when the scanner reaches the barcode ,it will automatically decoding the barcode.
Product Specification:
| Product Name | 2D Desktop Barcode Scanner |
| Model | IBC-9240 |
| Scanner parameters: | |
| Optical resolution | 640*480 , 120 fps |
| Lighting source | red LED supplement |
| Scanning speed | 2200 times/s |
| Scanning angle | rotate Roll:0-360 degree, tilt pitch: ±65 degrees, deflect SKEW: ±65 degrees |
| Sweeping barcode type | paper, thin film medium one-dimensional; mobile phone, flat screen, etc. |
| Printing contrast | 20% |
| Resolution | 4mil |
| Error rate | ≤1/2,000,000 |
| Interface type | USB:HID Keyboard(default mode), USB virtual serial port |
| IP level | up to IP54 standard |
| Trigger Mode | Handheld,Continuous,Auto-Induction |
| Prompt mode | Buzzer, LED |
| Decoding Capability | 1D：Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Coda bar/NW7, All UPC/EAN/JAN code (EAN- 13,EAN-8, UPC-A, UPC-E, EAN- 128), Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code, IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412, etc. |
| 2D：QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc. | |
| Depth of field | 13mil UPC (20- 120mm) 5mil Code128 (20-60mm) 10mil Code128 (20- 100mm) 20mil QR (20- 140mm） |
| Electrical parameters | |
| Electric voltage | 5V DC |
| Working current | 390mA(Max.),220mA(Typical) |
| Optical safety certification | ICE42471 、IEC60950 |
| Electromagnetic compatibility | EN55022 、EN55024 |
| Mechanical parameters | |
| Size | 110mm*53mm*120mm |
| Cable length | 2m |
| Weight | 300g |
| Enviromental parameter | |
| Working temperature | -20℃~60℃ |
| Storage temperature | -40℃~85℃ |
| Working humidity | 0.05～95% |
| Drop test | 1.5m |

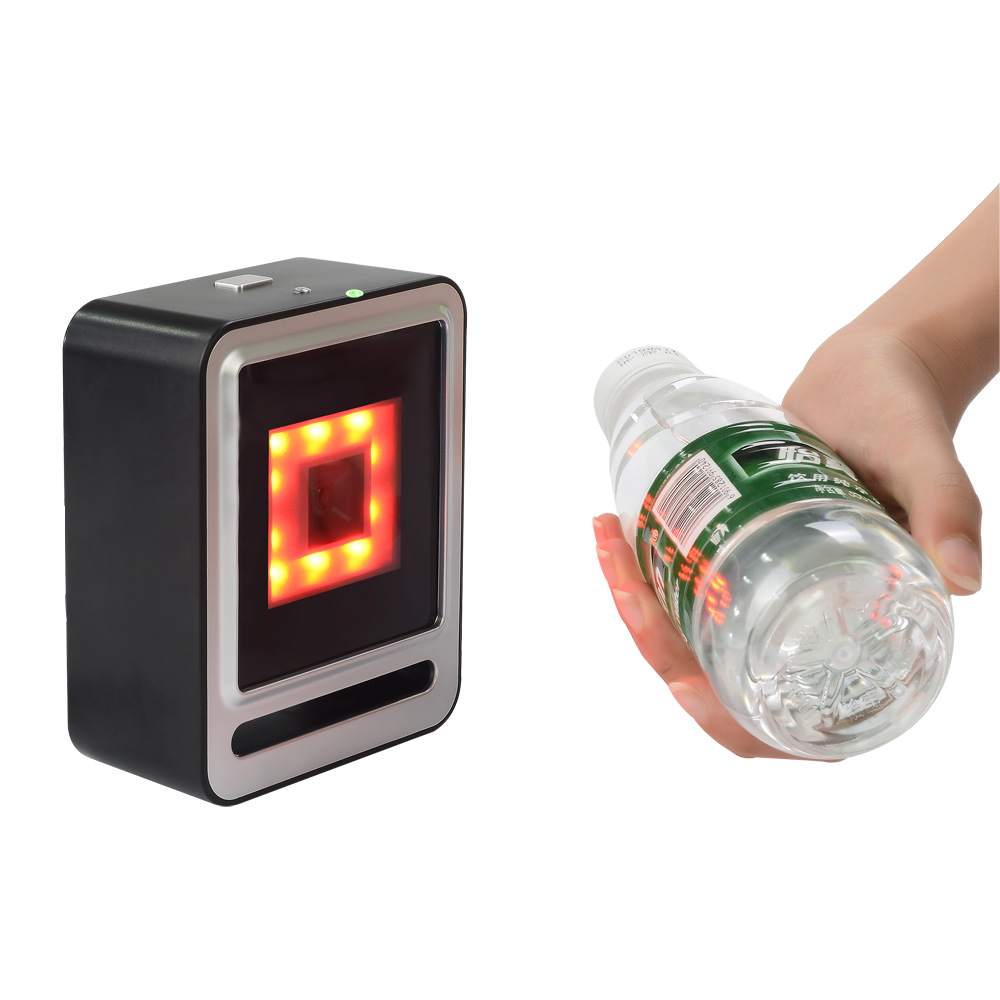

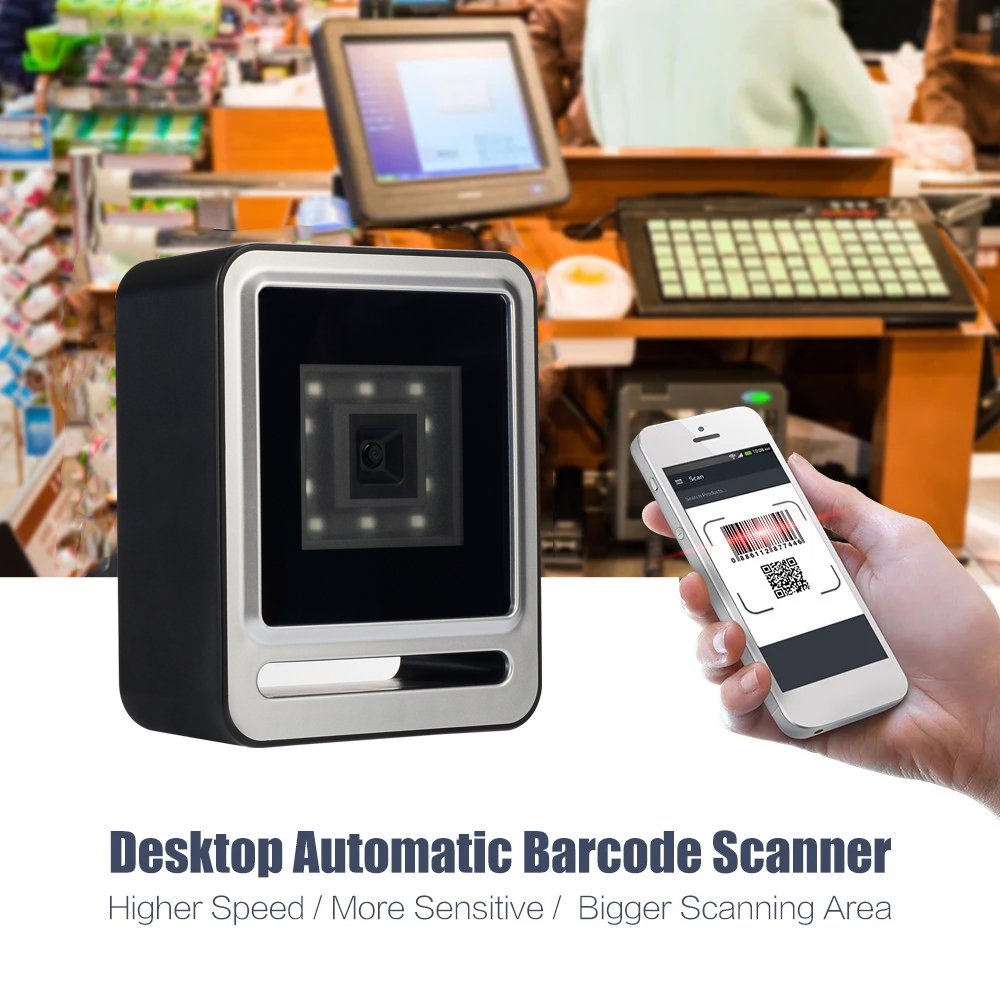

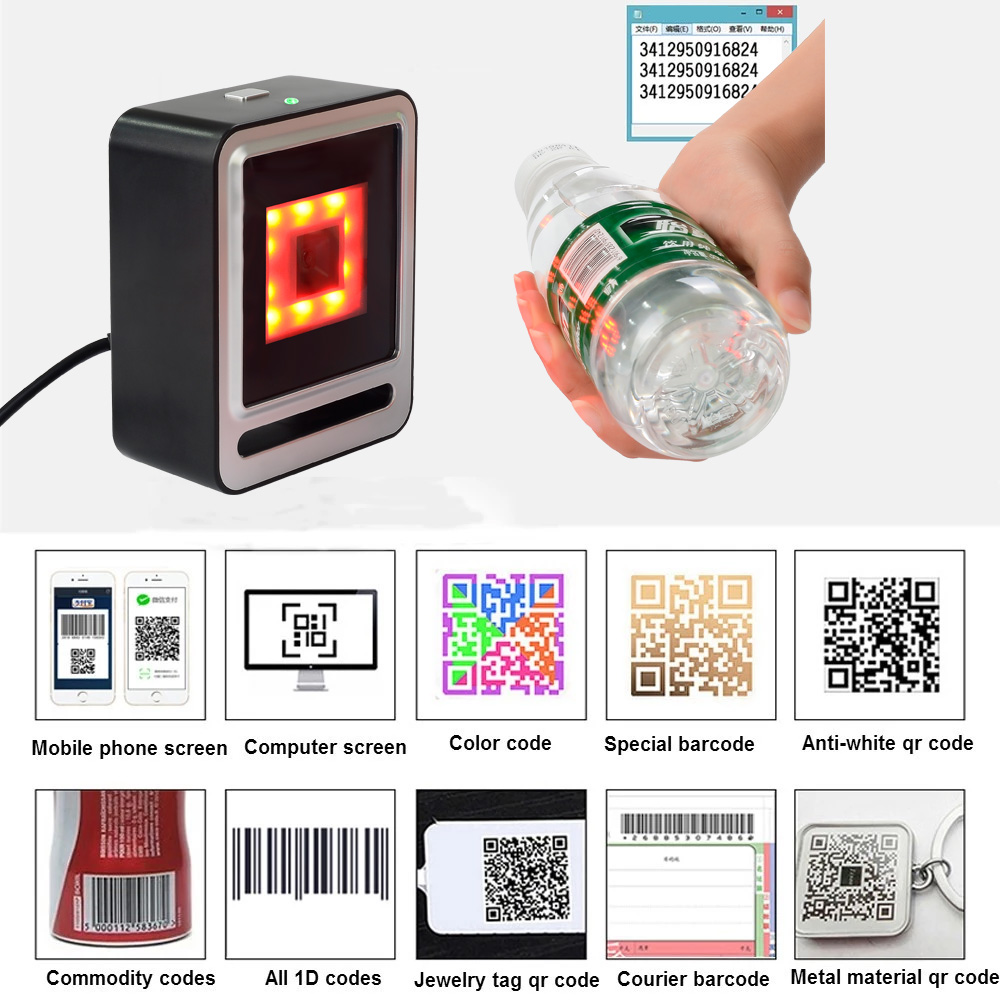

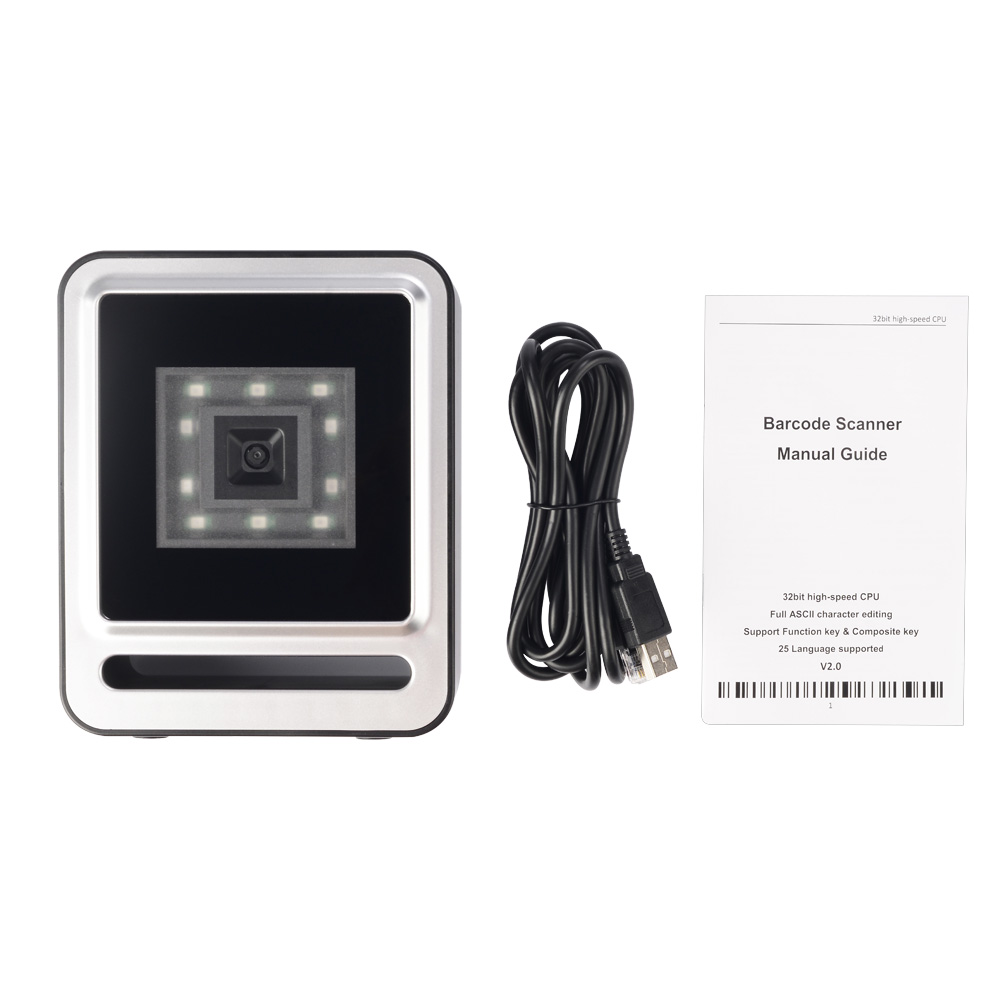

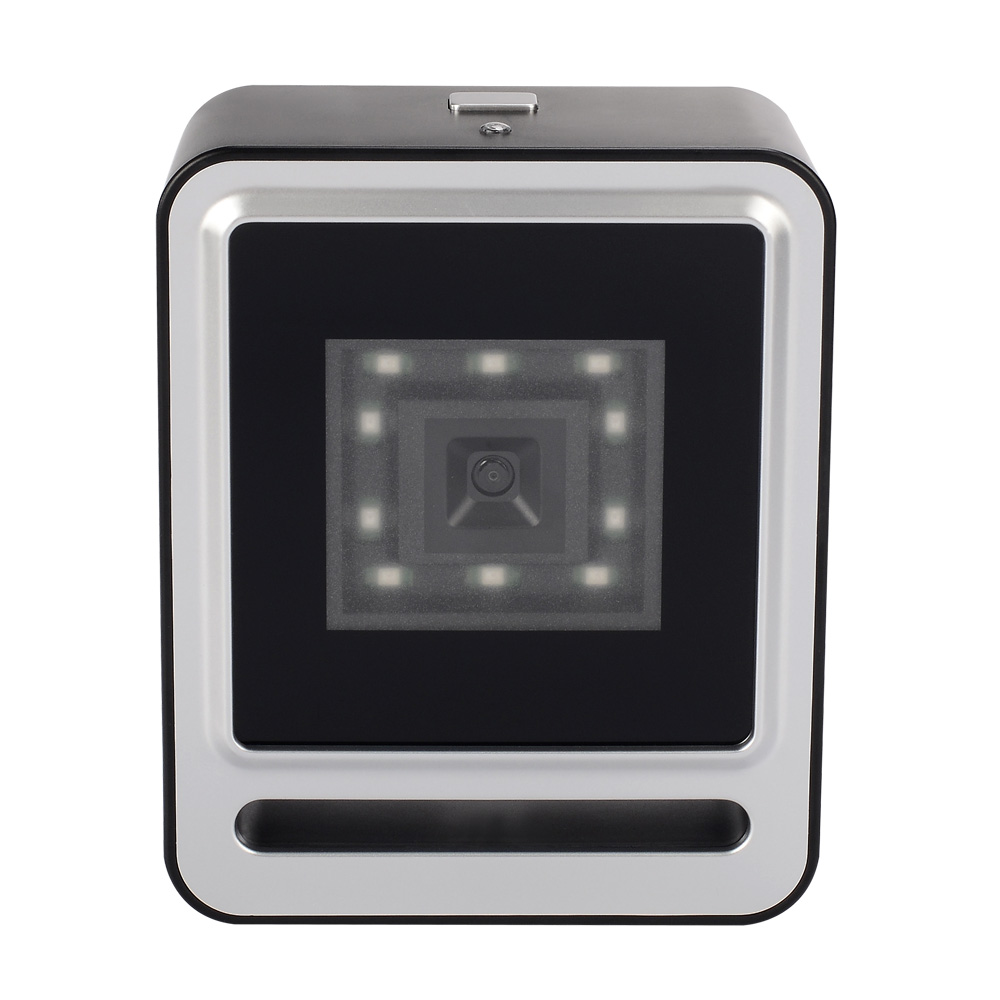

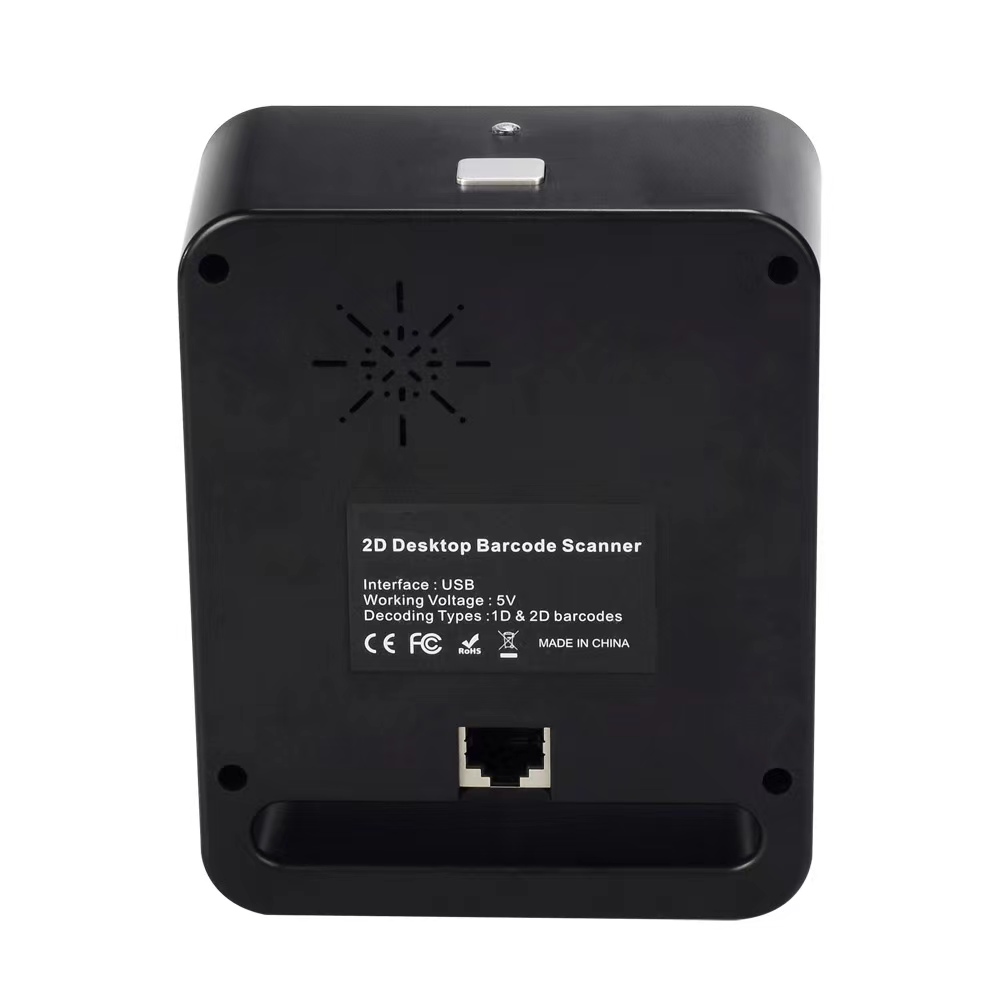

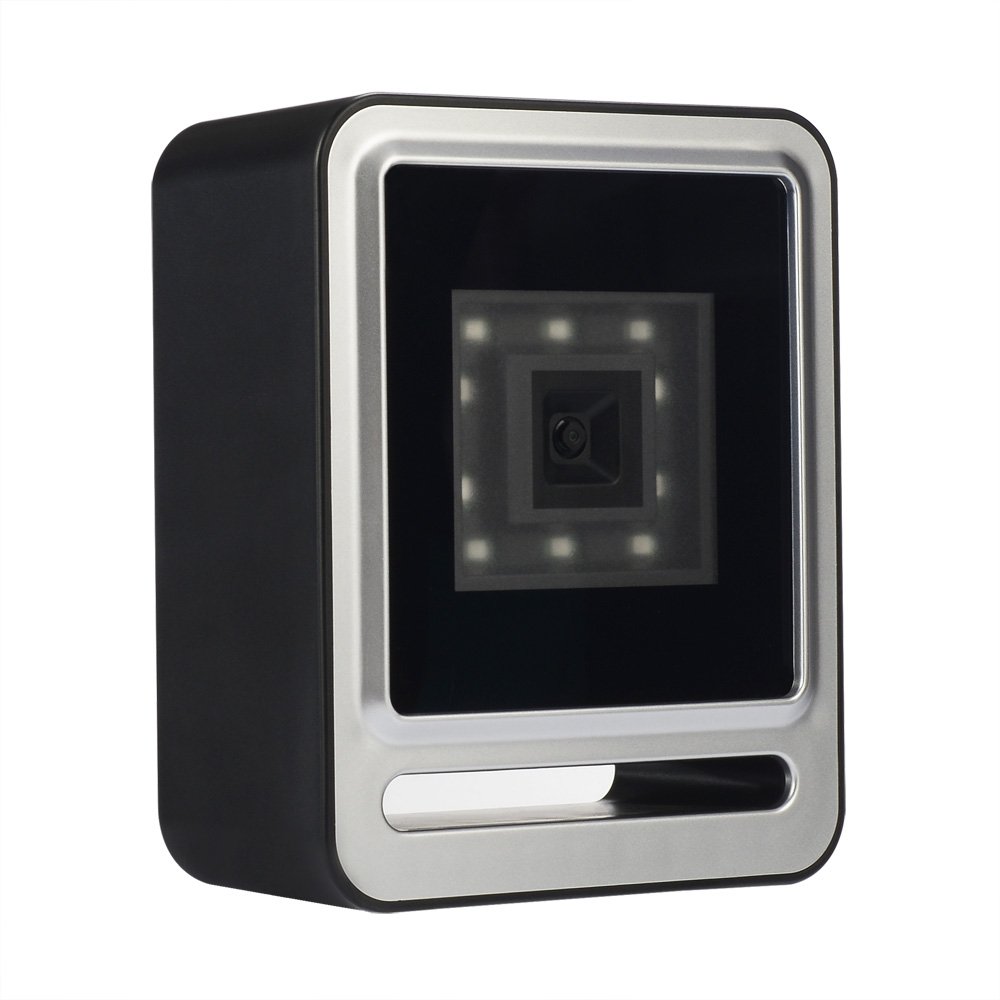

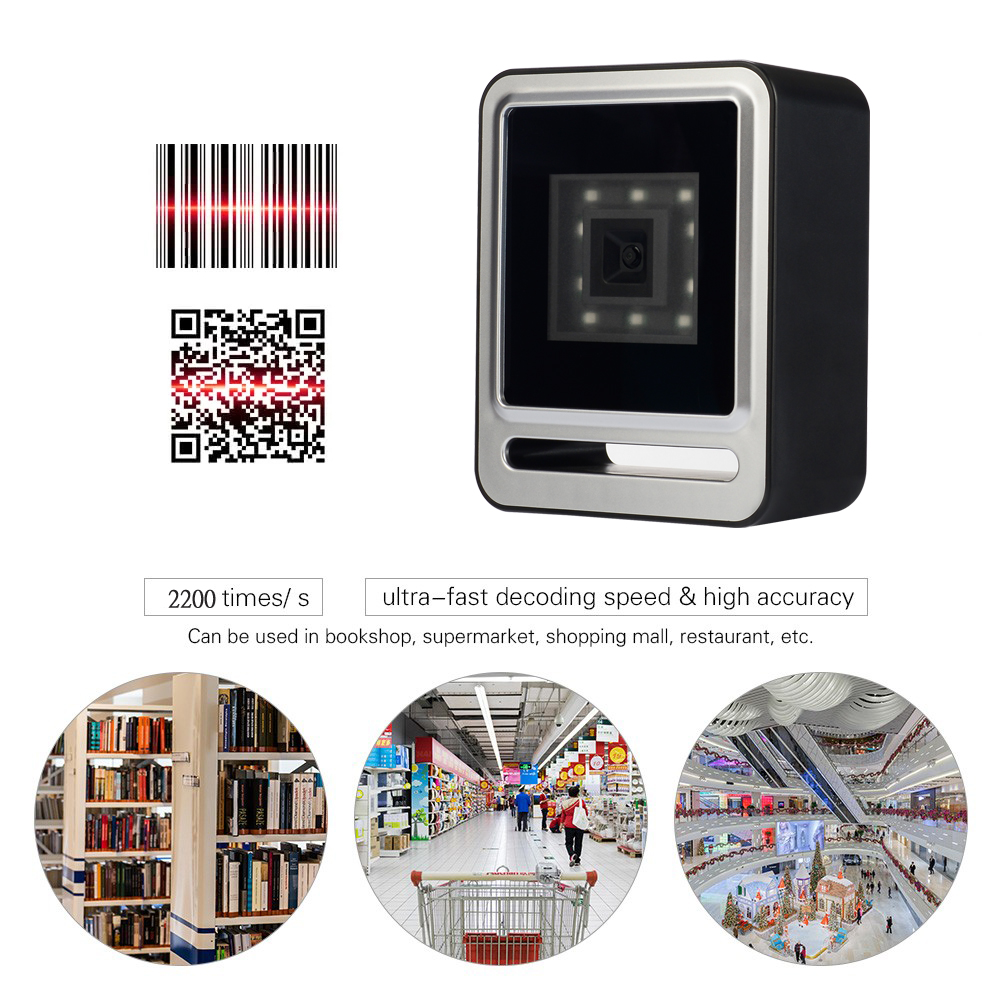

Product Pictures:
