Fast Scanning Handheld QR Code Reader 1D 2D Barcode Scanner Gun With USB Cable
Testing Video:
Product Description:
IBC-2400W, it is handheld 1D 2D QR Code Barcode Reader. It is intelligent, fast and highly sensitive with high precision scanning head, fast scanning speed, accurate, bright light / dim both dark/light and micro-remnant codes can be identified. The barcode scanner USB can be plugged into computers, cash registers, and POS machines and can be used. No need to install drivers and software. No network required, easy to operate.
Product Features:
• Strong reading ability. Quickly read one-dimensional/two-dimensional codes and product code screen codes
• Image scanning + white light fill light. Using high-performance CMOS imaging chip and super bright fill light; Red focus light allows you to scan codes easily and quickly even when the light is low.
• Easily scan various abnormal barcodes. Wide red light decoding algorithm; Accurately read one-dimensional/two-dimensional codes and various abnormal codes Incomplete code, twisted code, defaced code, wrinkled code, Reflective code, Fuzzy code and Color codeIrregular code
• Plug and play; Compatible with multiple systems; Supported systems: Windows/IOS/Android/Linux
Product Specification:
| Technical Parameter | ||
| Model | IBC-2400W | |
| Item | Wired 2D Barcode Scanner | |
| Physical Parameter | ||
| Material | ABS+PC | |
| Power Supply | DC 5V ±5% | |
| Electric Current | 200mA (working); 127mA (standby); 270mA (maximum)【average current】 | |
| Power Consumption | 1.00W (working); 0.63W (standby); 1.35W (maximum)【Average power consumption】 | |
| Weight | 145.0g±5g (Without cable) | |

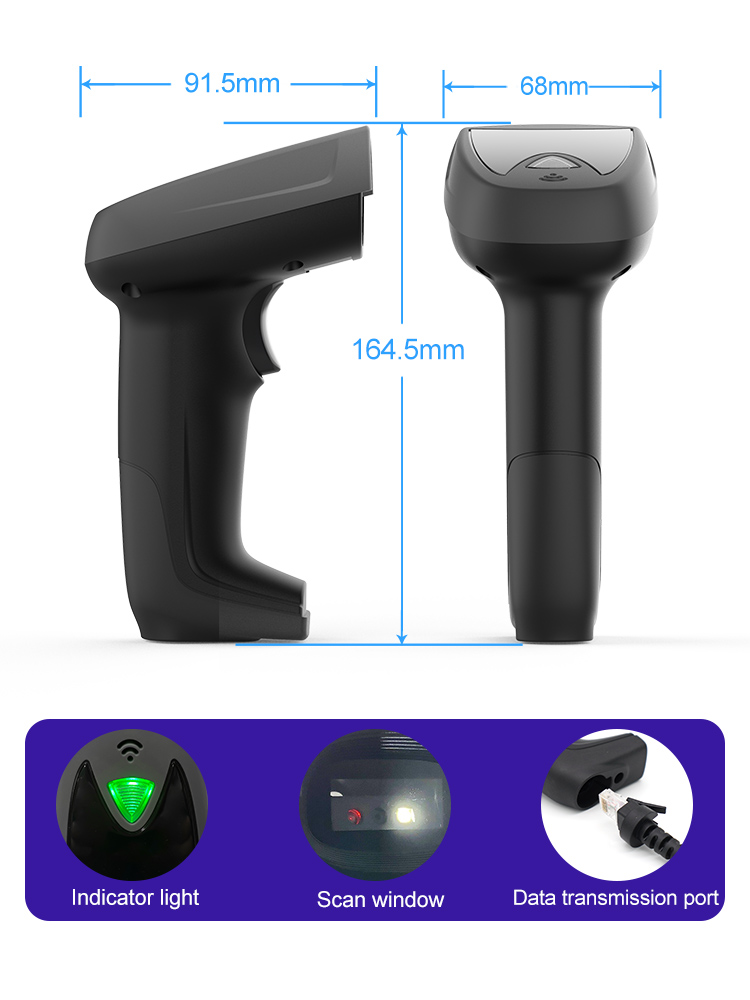

| Size | L*W*H: 164.5 * 91.5 * 68.0 (unit: mm) | |
| Color | Black | |
| Performance Parameter | ||
| Interface | USB | |
| System Supported | Linux, Android, Windows XP、7、8、10, MAC | |
| Language Supported | English; Belgian ; Finnish; French; German; Italian; Swedish; British; Danish; norwegian; Spanish ; Portuguese ; Turkish Q; Turkish F; Japanese ; Russian; Czech ; Thai; Ukrainian ; Brazilian ; Greek; Hungarian ; Dutch; Polish; Romanian; Slovak; (Virtual keyboard support) | |

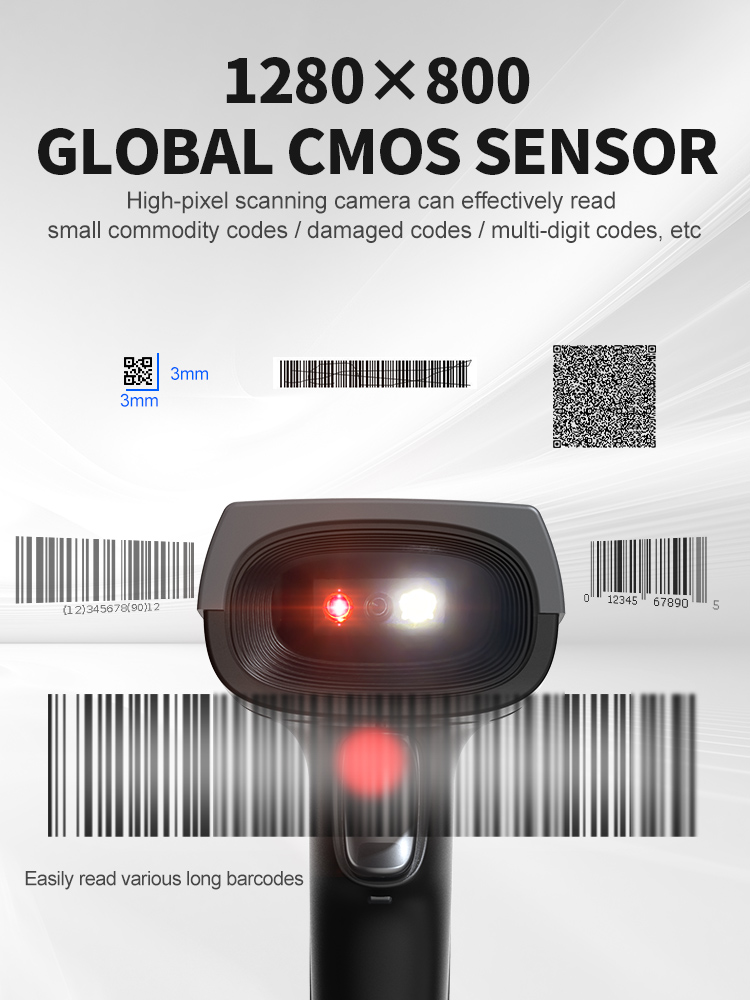

| Sensor | 1280*800 Global CMOS sensor | |
| Light Source | Red led aiming + white led lighting | |
| Processor | 32-bit ARM MCU + DSP | |
| Motion Tolerance | Code128: 75cm/sec QR: 80cm/sec |
|
| Resolution | ≥4mil | |
| Bit Error Rate | 1/5000000 | |
| Reading mode | Image | |
| Trigger Mode | Manual ; Continuous scanning; Auto-sensing | |
| Prompt Mode | Buzzer, Indicator Light (LED) | |
| Print Contrast | ≥25% | |
| Scanning Angle | Pitch±55°, Yew±55°, Roll 360° | |
| Decoding Capability |
1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code |
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode | |
| Scanning depth | QR 14.17mil 8bytles: 1cm – 20cm PDF417 7.5mil: 1cm – 9cm EAN13 10mil: 3cm – 30cm |
|
| Environment Parameter | ||
| IP Grade | IP52 | |
| Operating Temp. | 0 to 60℃ / 32 to 122℉ | |
| Storage Temp. | 0 to 60℃ / 32 to 122℉ | |
| Operating Humidity | 20% to 85% (No Condensation) | |
| Storage Humidity | 20% to 85% (No Condensation) | |
| ESD Protection | 15KV air discharge | |

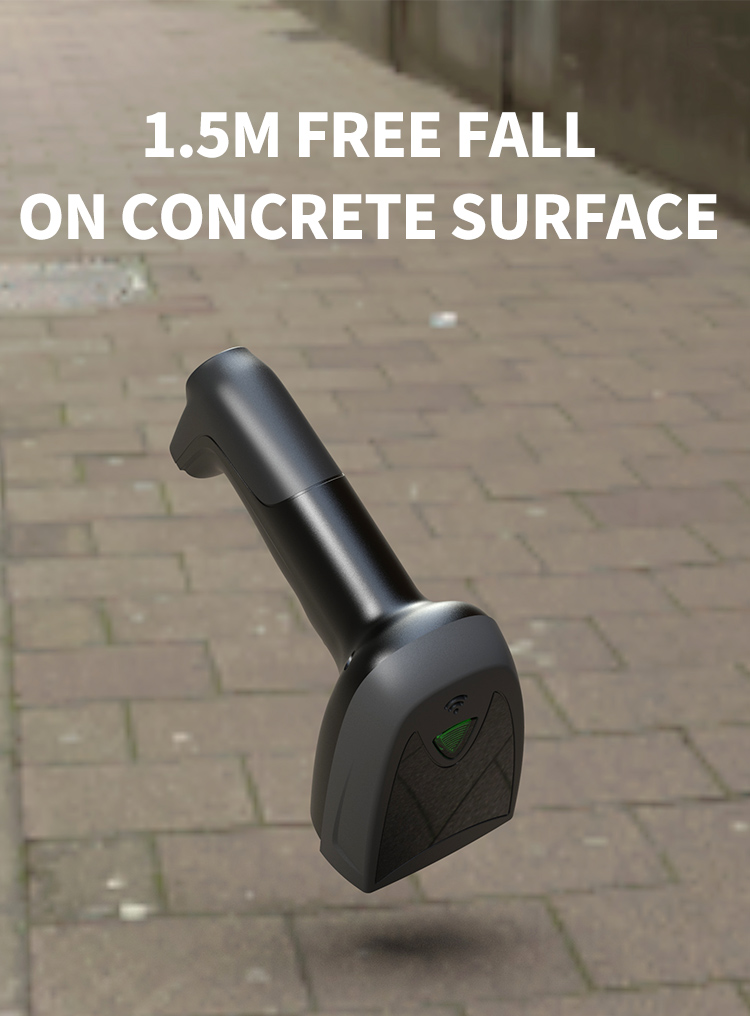

| Shock Resistance | Withstands multiple times 1.5m drops to concrete | |
| Environmental light | 0→100000Lux | |

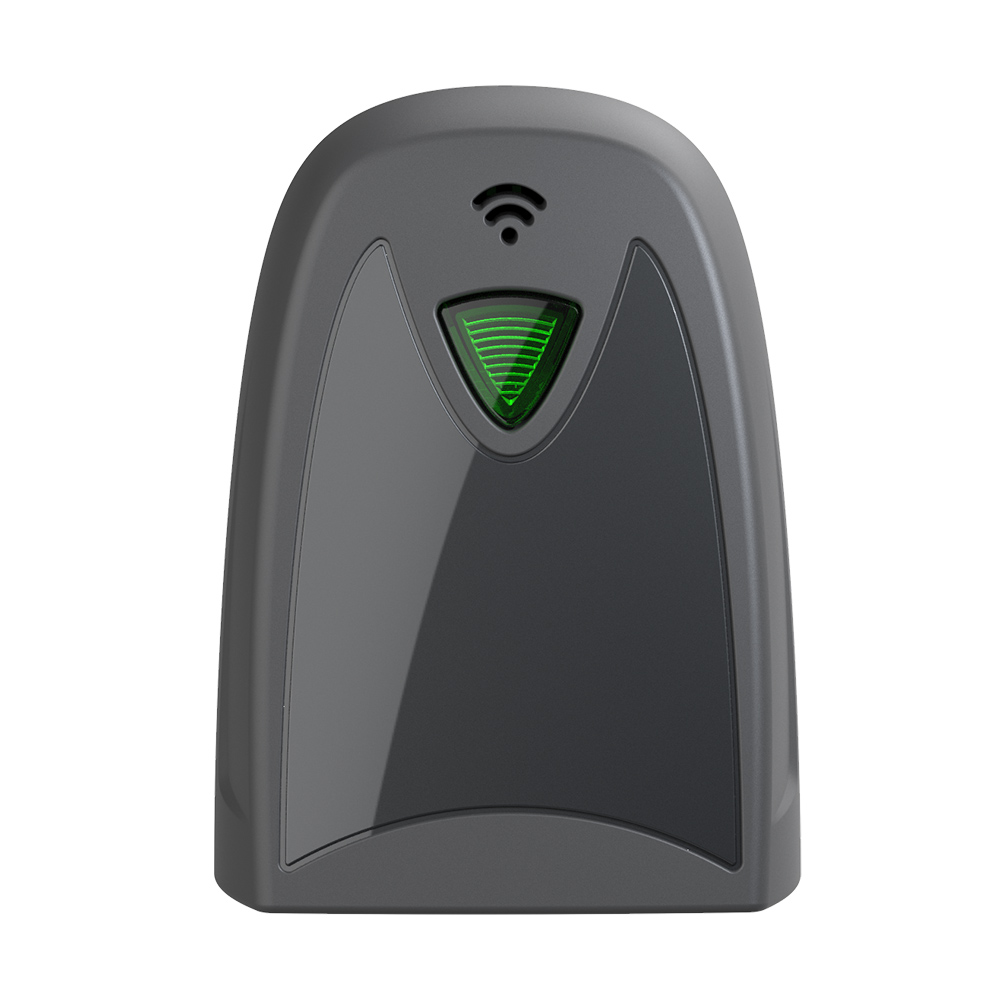

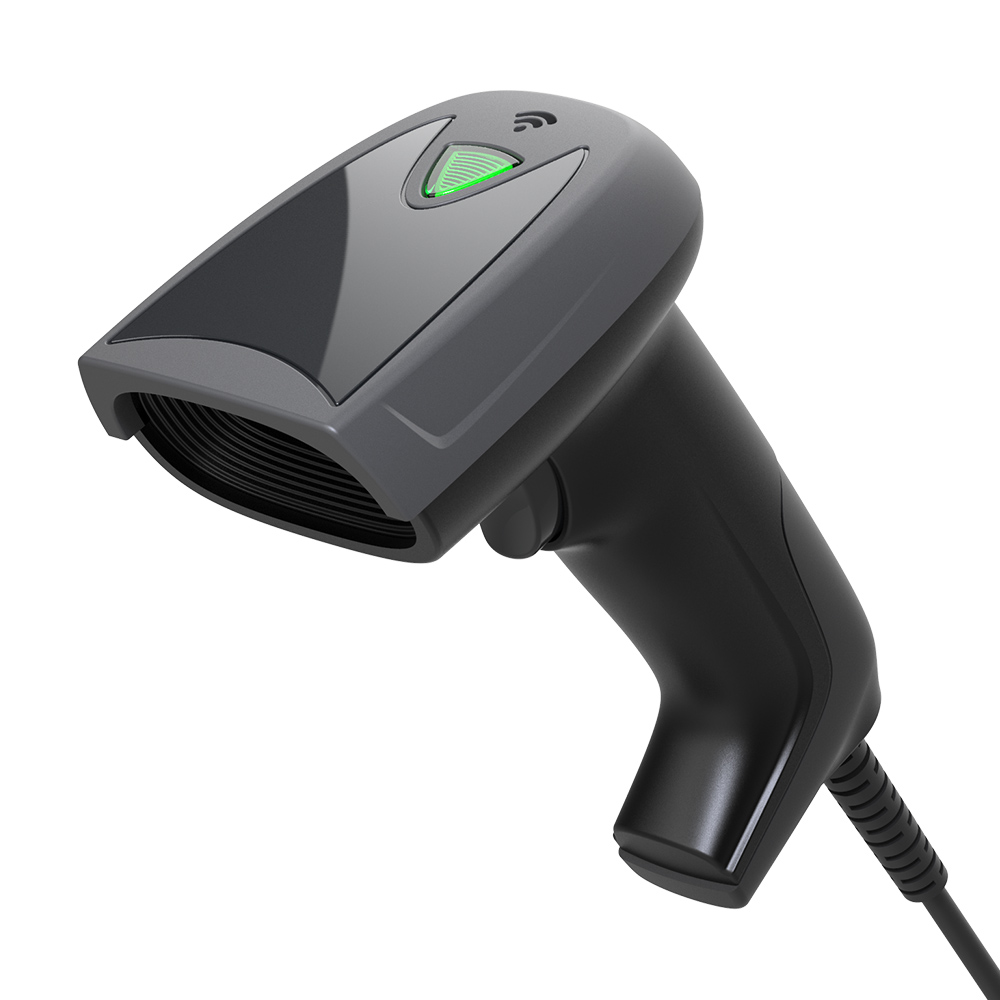

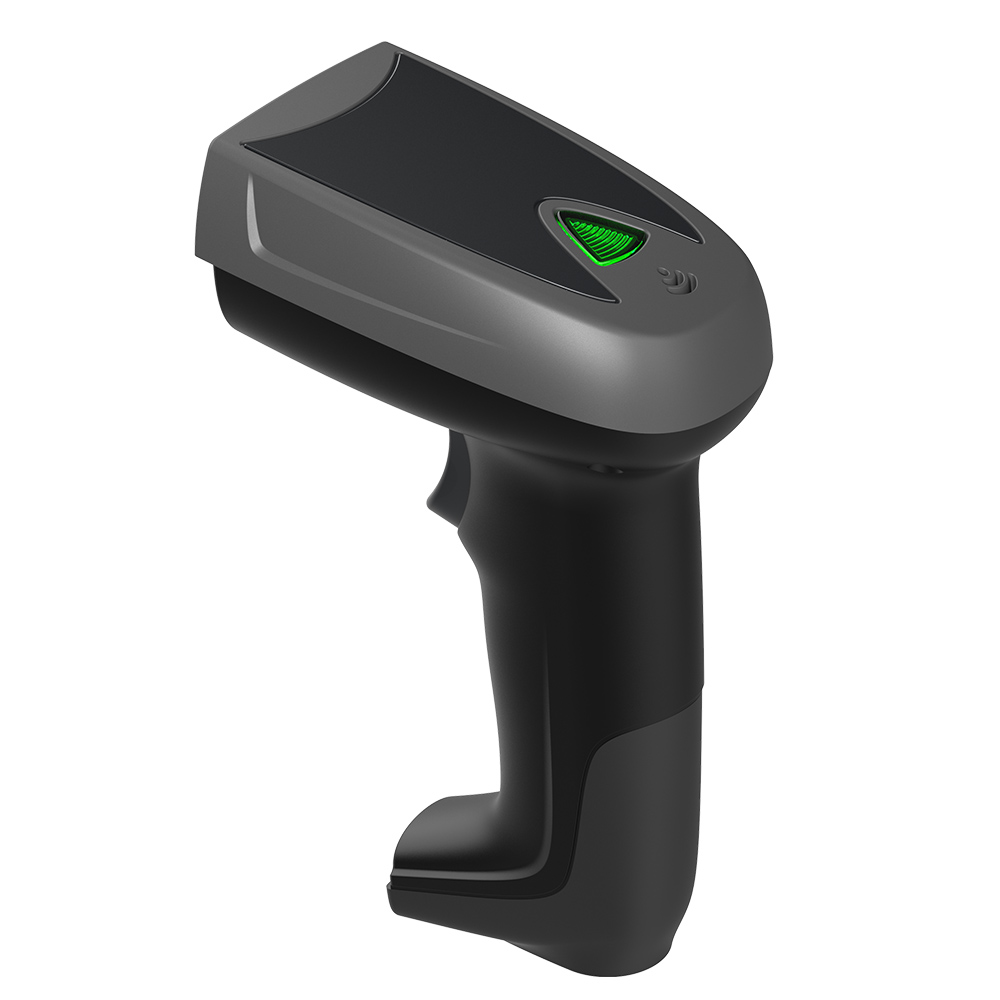

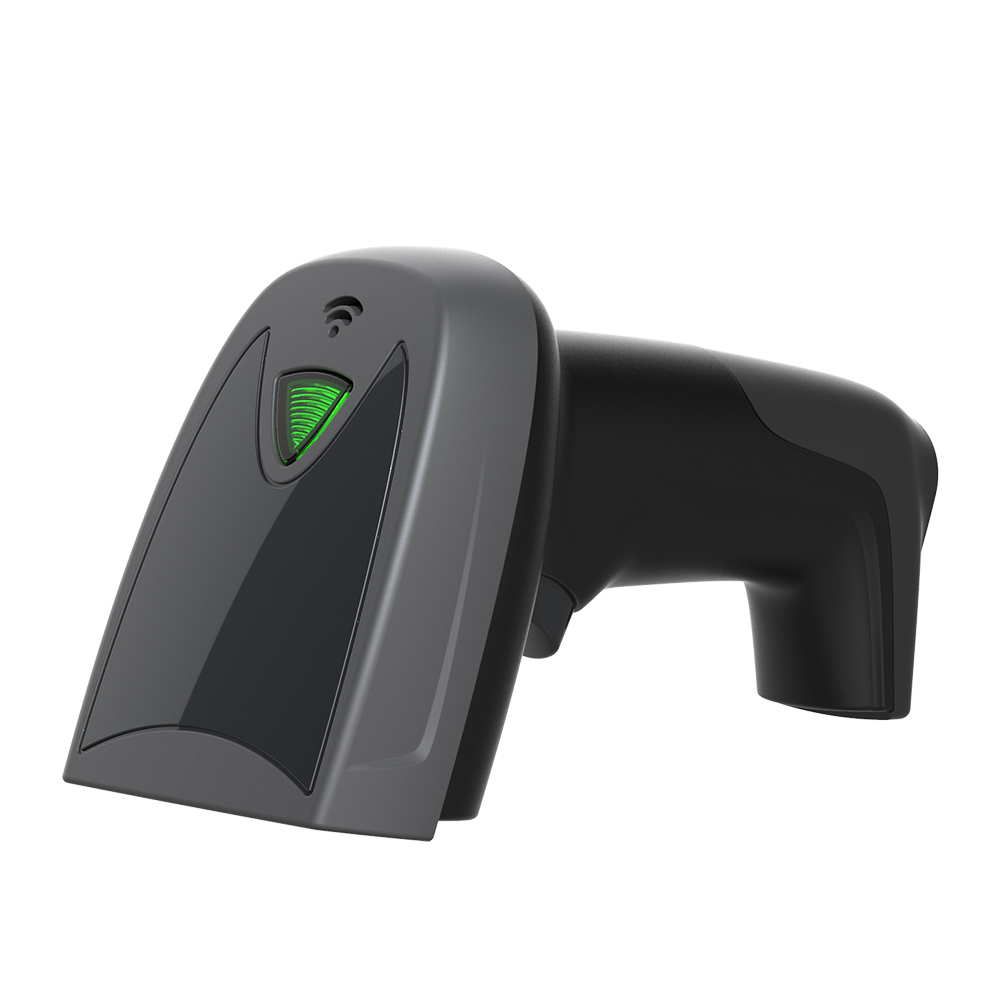

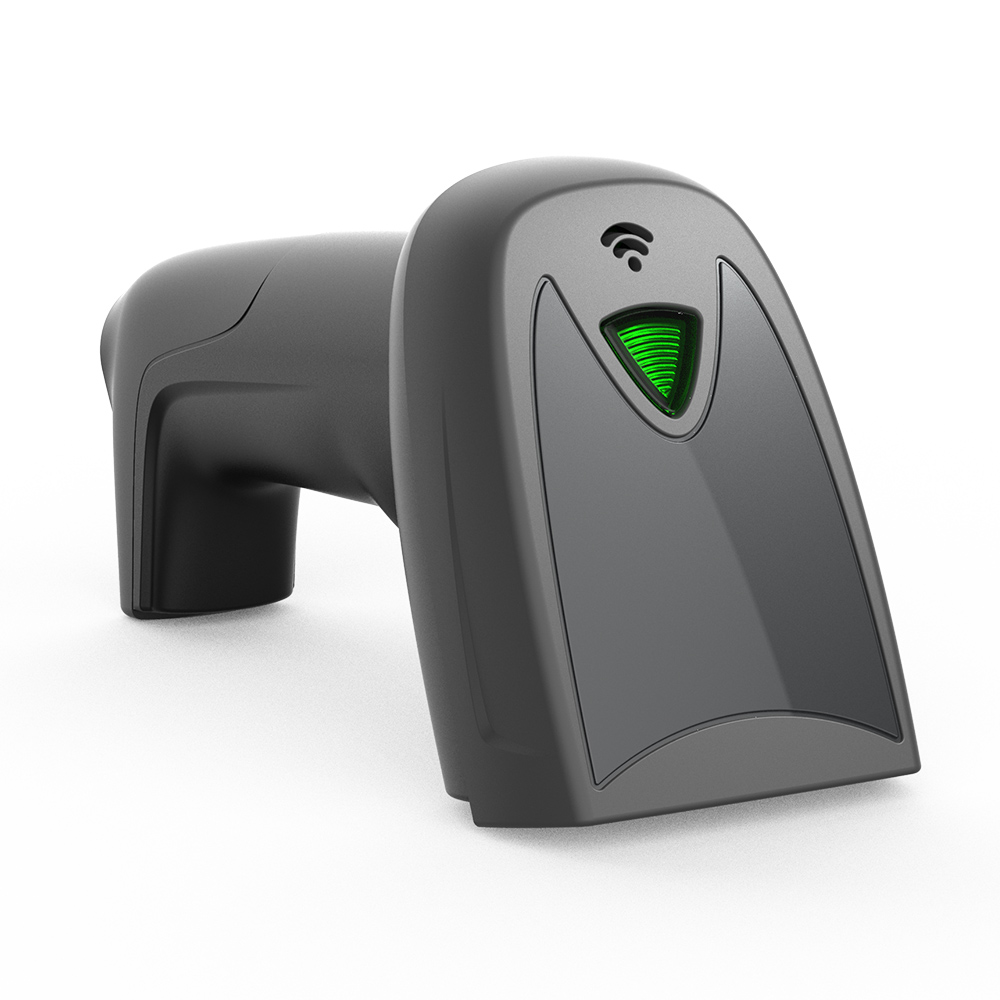

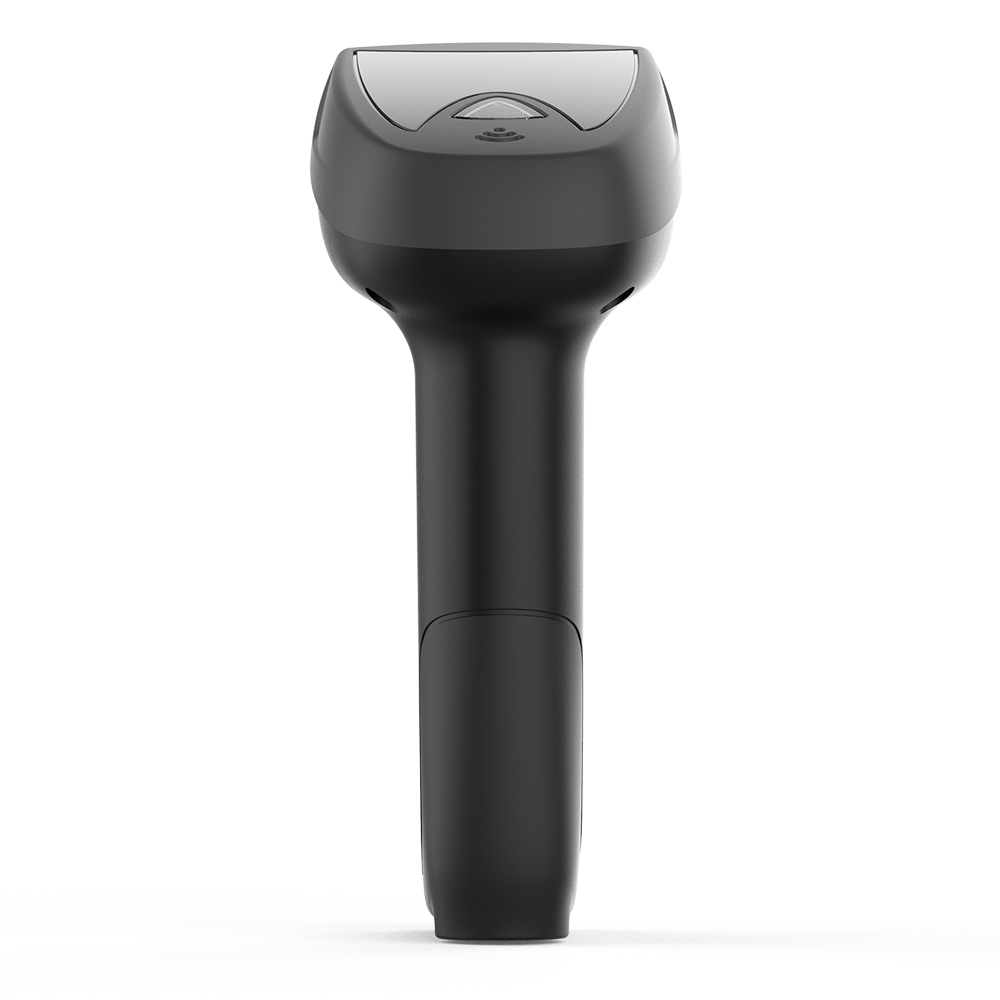

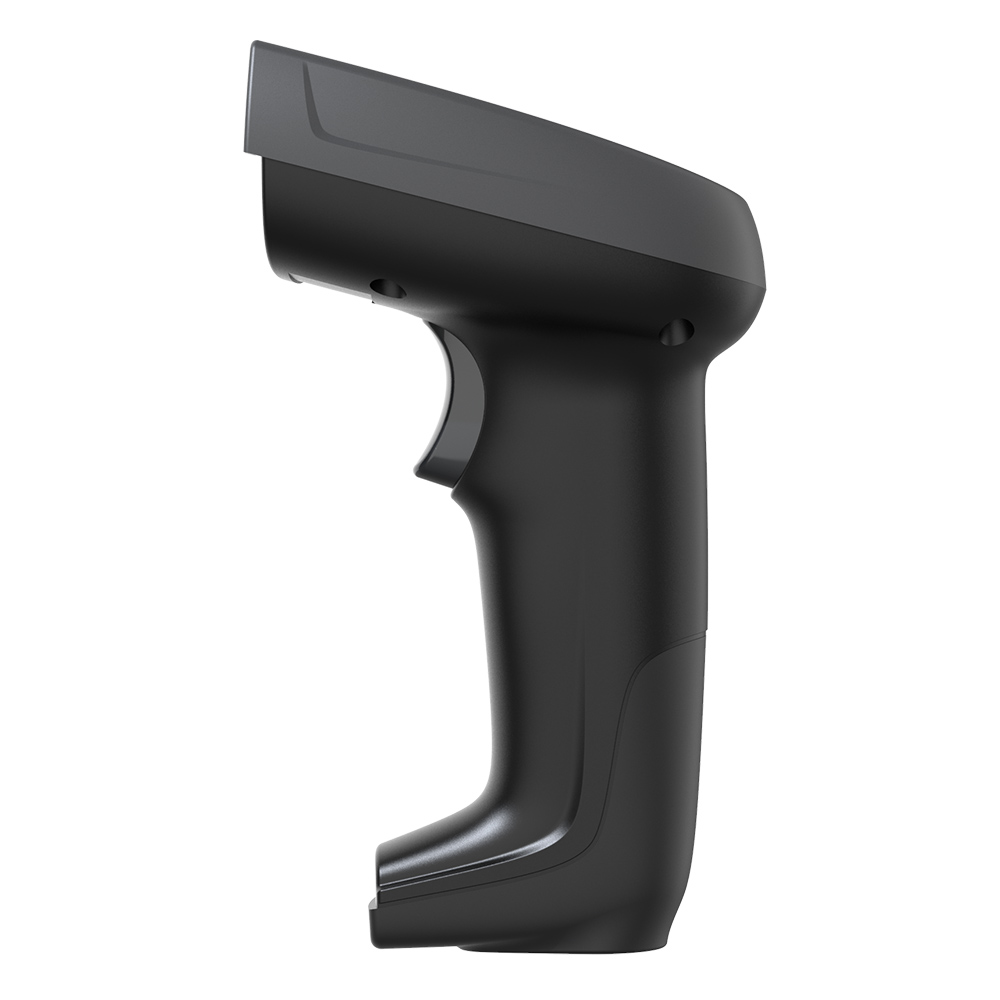

Product Pictures:
