Fast Scanning Desktop Omni-directional Hands-Free 1D 2D QR Code Platform Barcode Scanner
Fast Scanning Desktop Omni-directional Hands-Free 1D 2D QR Code Platform Barcode Scanner
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
Fast Scanning Desktop Omni-directional Hands-Free 1D 2D QR Code Platform Barcode Scanner
Product Description:

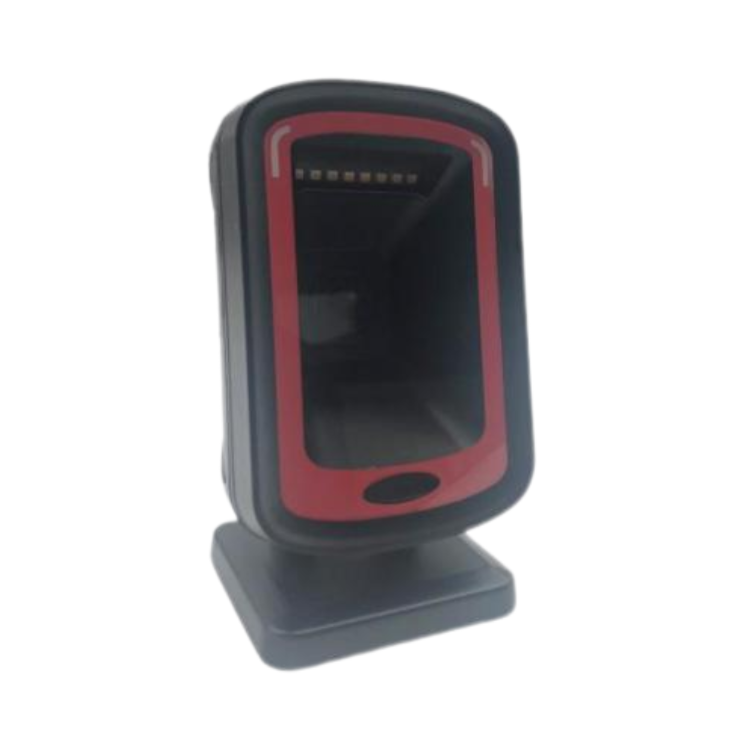

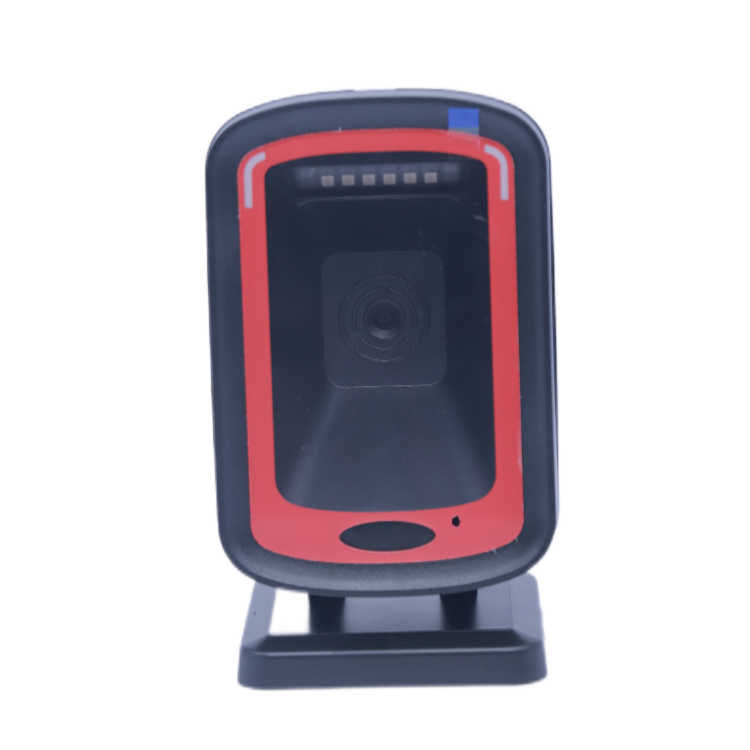

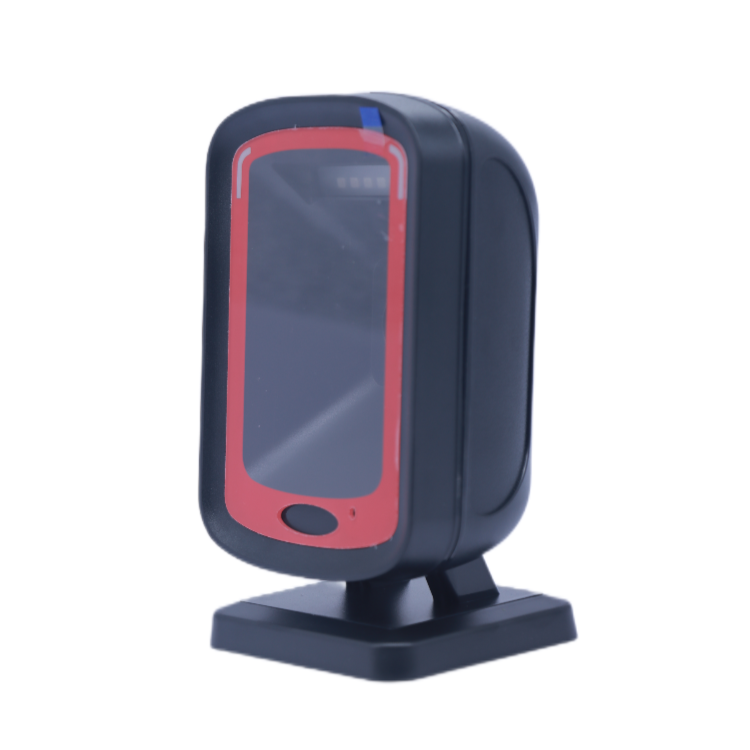

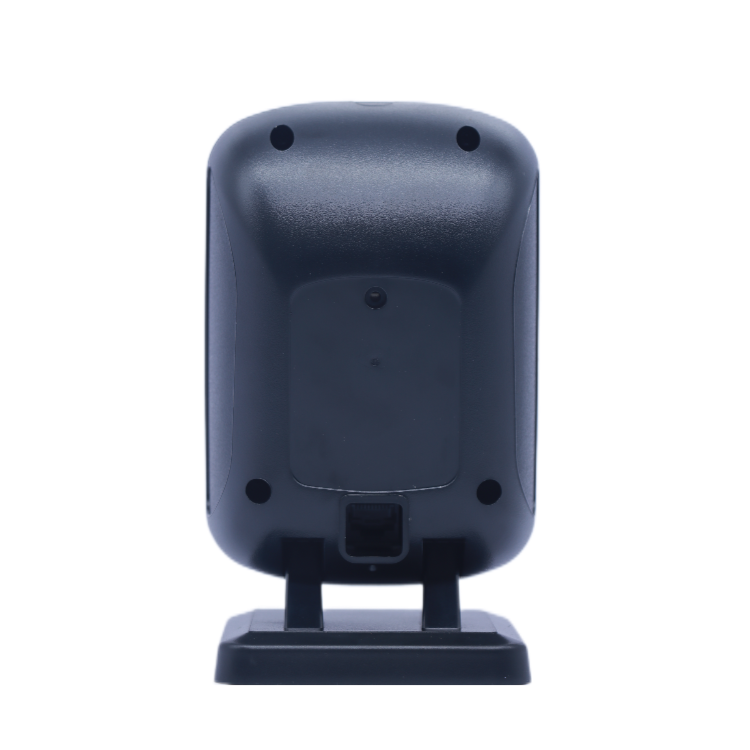

IBC-9250 is CMOS 2d desktop barcode scanner with advanced digital imaging, which provides class-leading performance and reliability. It smoothly reads all bar codes, whether displayed on cell phones or printed. It is stable, adaptive illumination for user comfort. Solid-state electronics for silent operation and superior reliability. It support multi-language keyboard, support special characters. It is the best choice for Hypermarket to improve work efficiency.
Product Features:
•Screen decoding: can directly decode barcodes on mobile phones and computer screens
•Paper decoding: uses fast decoding algorithm to accurately decode various barcodes at high speed
•Decoding capability: can scan both mobile phones and paper (light does not flicker)
•Other functions: supports direct transmission of Chinese under Linux
Product Specification:
| Product Name: Platform Barcode Reader |
| Model Name: IBC-9250 |
| Physical Characteristics |
| Dimensions: 65.2mm x 96mm x 162.5mm |
| Weight: 306.5g |
| Voltage: 5V±5% |
| Starting Current: 240mA |
| Stand-by Current: 190mA |
| Work Current: 210mA |
| Performance Characteristics |
| Image (Pixels) : 640 pixels (H) x 480 pixels (V) |
| Light Source: Red color LED |
| Field of View: 39° (H) X29° (V) |
| Roll / Pitch / Yaw: 360°, ±65° , ±65° |
| Print Contrast: 20% minimum reflective difference |
| Interfaces Supported : USB |
| Movement Speed : 0.4m/s |
| Symbology Decode Capability |
| 1D: Coda bar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA ，Matrix 2 of 5 ，Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post. 2D: Code block A, Code block F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN. |
| User Environment |
| Operating Temperature: -20°C to 60°C |
| Storage Temperature: -30°C to 70°C |
| Humidity: 5% to 95% relative hum idity,non-condensing |
| Shock Specifications: Designed to withstand 1.2m (5’) drops |
| Ambient Light Immunity: 0-100,000 Lux. |
| Decode Ranges |
| Code39 (5mil) : 2-8cm |
| Code39 (13mil) : 4.5-22cm |
| UPC-A (13mil) : 4-15cm |
| Alipay payment code (QR 3*3) : 1-45cm |
| Performance may be impacted by bar code quality and environmental conditions |
