Fast Scanning 1D 2D Bar Code USB Wired CMOS QR Code Reader Handheld Barcode Scanner
Product Description:
IBC-1400, it is handheld wired 2D QR Code Reader. It can scan various 1D and 2D codes. It supports mobile payment goods scanning. This handheld barcode scanner can be easy to operated, plug and play. It is with excellent code scanning performance, widely adaptable to various application scenarios, including supermarkets, convenience stores, hospitals, pharmacies, shoe and clothing stores, tobacco stores, express logistics, warehouse inventory, etc; it is more convenient to scan the QR code to check out.
Product Features:

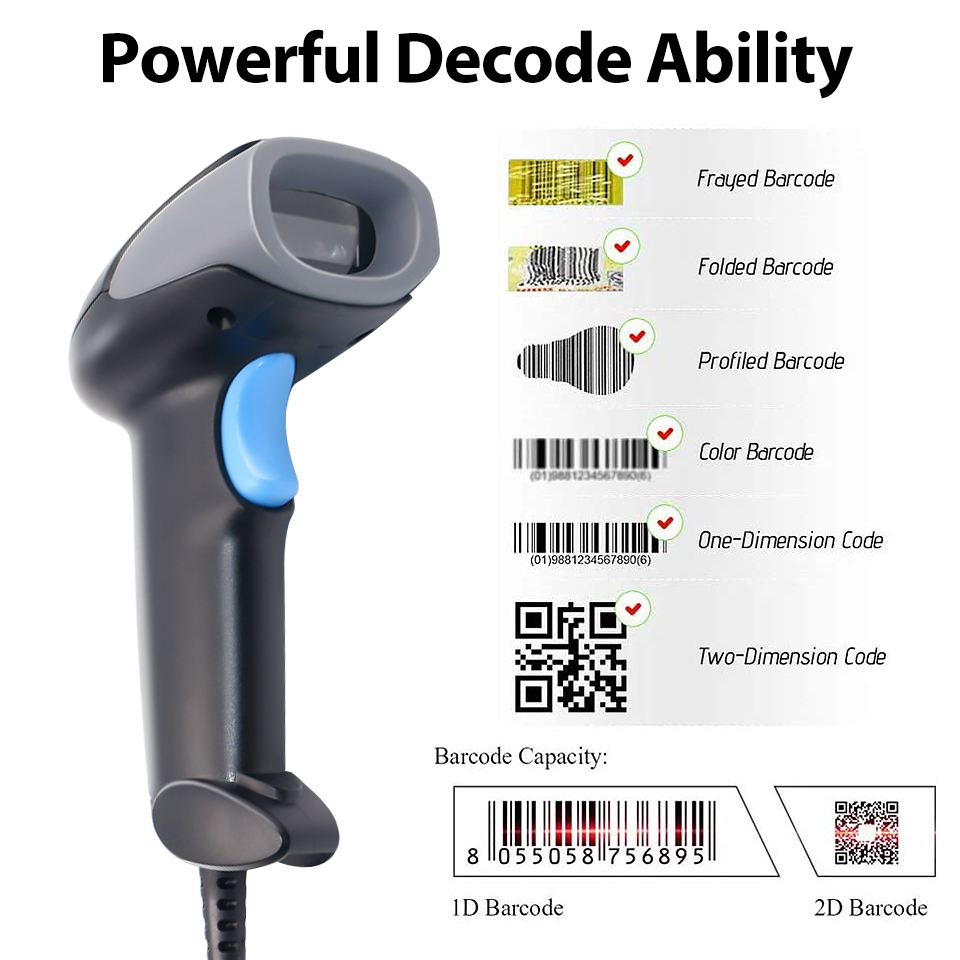

● Strong Decoding Ability, VARIATY OF BARCODE DECODING.
● Much more smoothly to read the screen barcode either 1D and 2D. Support Alipay and Wechat.

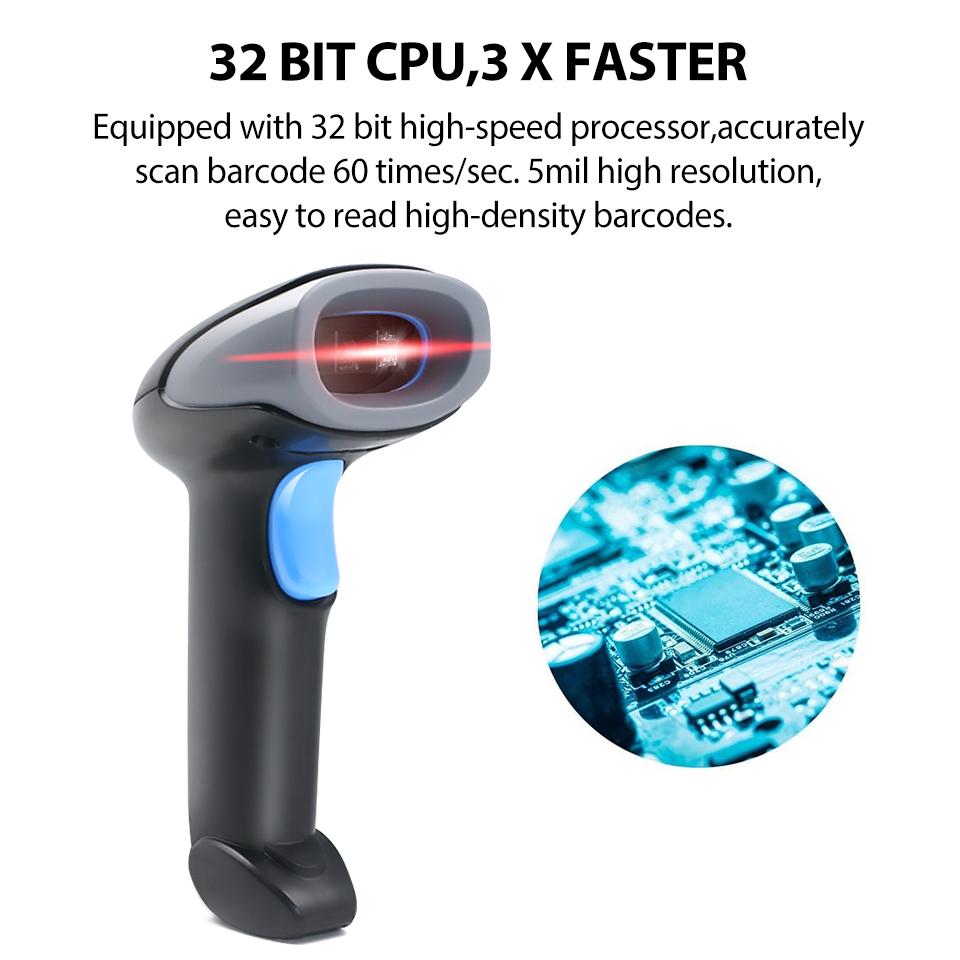

● Ultra fast decoding system.
● Widely used in the areas of retail, hospital, logistics, and manufacture.
Product Specification:
| Product Name | 2D Bar Code Scanner |
| Model | IBC-1400 |
| Performance | |
| Image Sensor | CMOS 640*480 |
| Illumination LED | White LED |
| Aimer | Red LED |
| Symbologies | 1D: Airline 2 of 5, Codaba, Codablock A, Code 128, Code 11, Code 32, Code 39, Code93, EAN/UPC, EAN-8, Convert EAN-8 to EAN-13, EAN-13, Full SACII Code39, GS1DataBar Expanded, GS1DataBar Limited, GS1DataBar Omnidirectional, HongKong 2 of 5 (China post), Interleaved 2 of 5, RSS-14, RSS-LIMITED, RSS-EXPANDED, Straight 2 of 5 Industrial, Telepen, Trioptic Code, UPC-A, UPC-E, UPCE, Codablock F, Pharmacode, MSI, Matrix 2 of 5 2D: Composite, Data Matrix Code, HANXIN, Maxicode, MicroPDF417, Micro QR code, PDF417, QR Code, Aztec Code, DOT_CODE |
| Min Decode Resolution | Code 39 5mil |
| Decode Range | 6.6mil code39: 4cm~8cm |
| UPC-13 mil: 3cm~22cm | |
| 20 mil code39: 7cm~33cm | |
| 20 mil QR Code: 3cm~18cm | |
| Minimum Print Contrast | ≥25% |
| Scan Angle | Roll ±360°，Pitch ±60°，Skew ±70° |
| FOV | Horizontal 40° , Vertical 34° |
| Electronical | |
| Interface | USB port (free drive), USB virtual serial port (installation driver) |
| Dimension(mm) | 165mm* 86mm*66mm |
| Voltage | 5V |
| Max Power | 73mA/0.365W |
| Current@5 VDC | Operating: 57mA/0.288W |
| Standby: 37mA/0.185W | |
| Environmental | |
| Operating: | -20-55℃ |
| Storage: | -20-60℃ |
| Humidity | 5-95% Non-condensing |
| Embient Light | 0-70000LUX |
| Accessories: | |
| USB | RS-232 Cable and Power Supply |

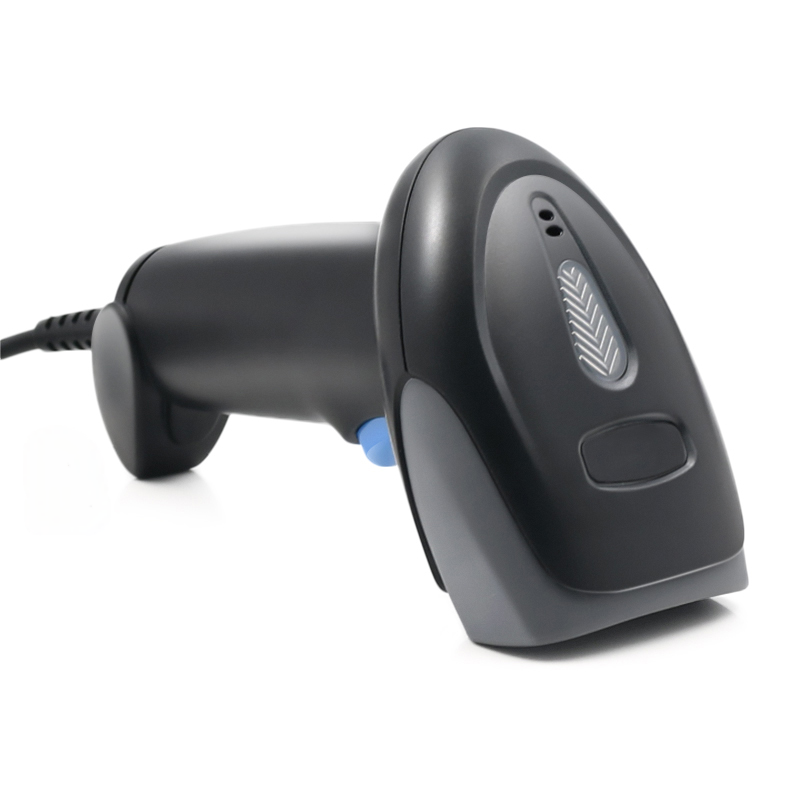

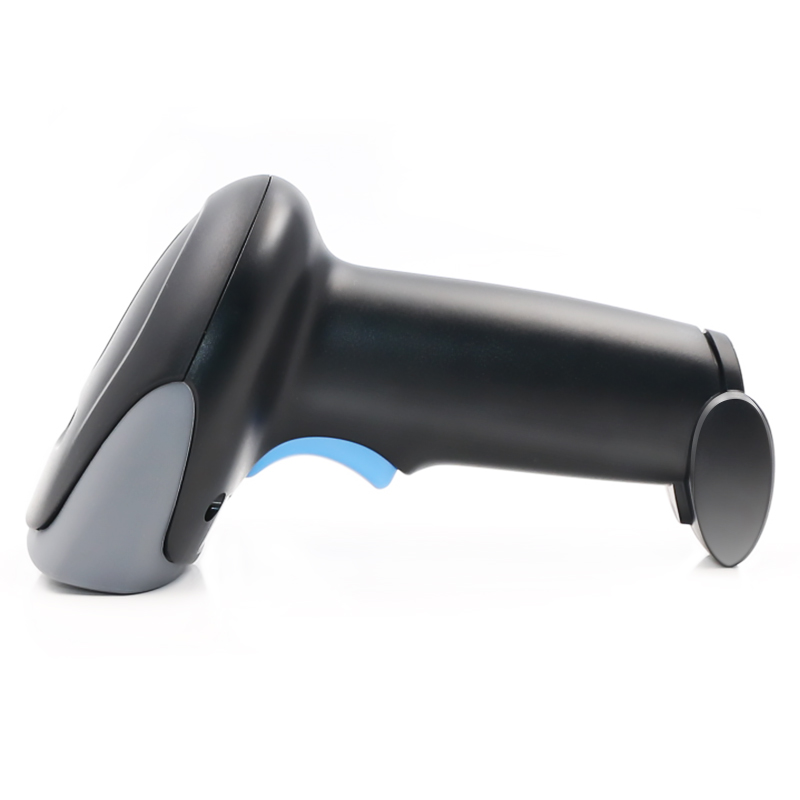

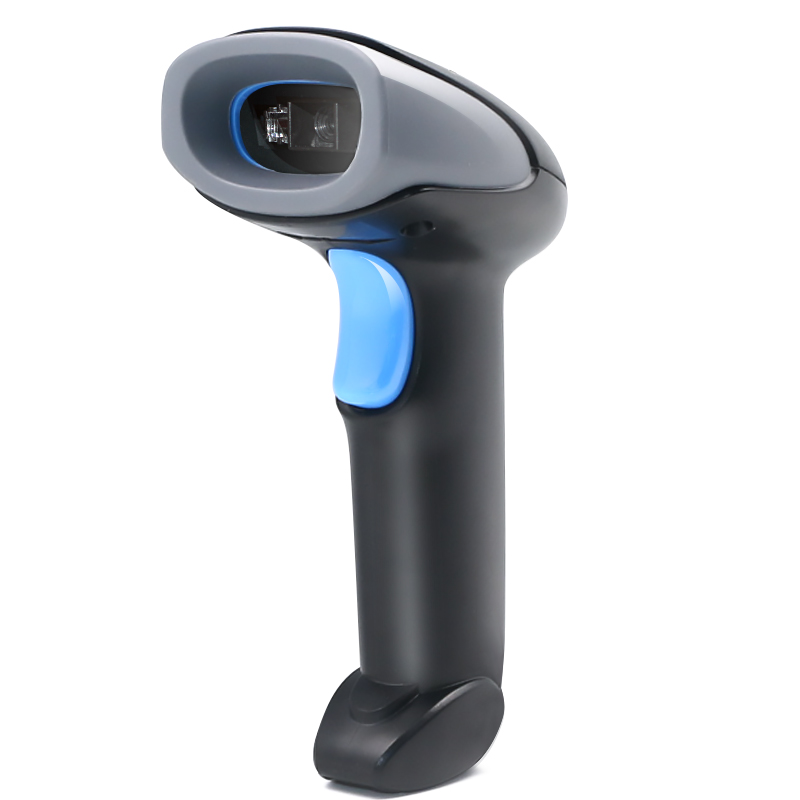

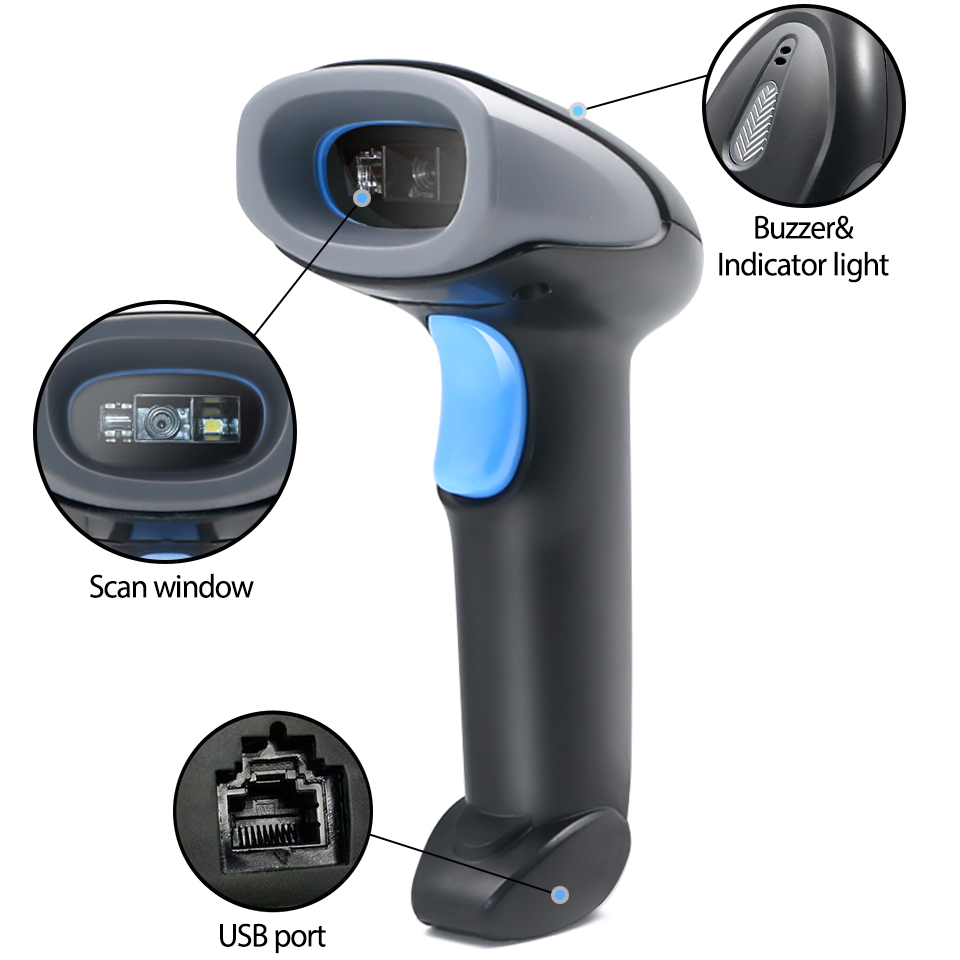

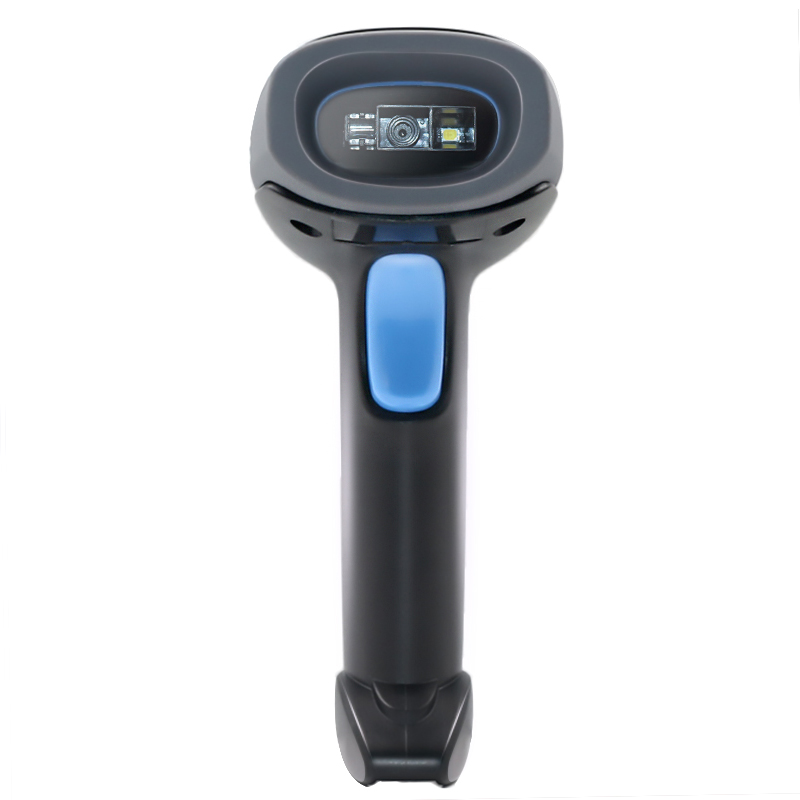

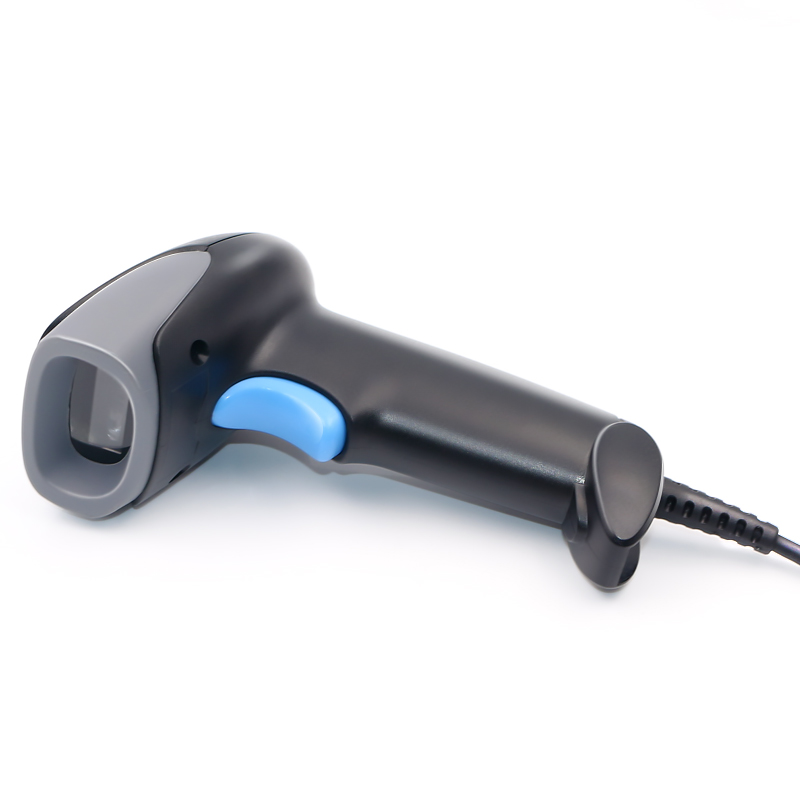

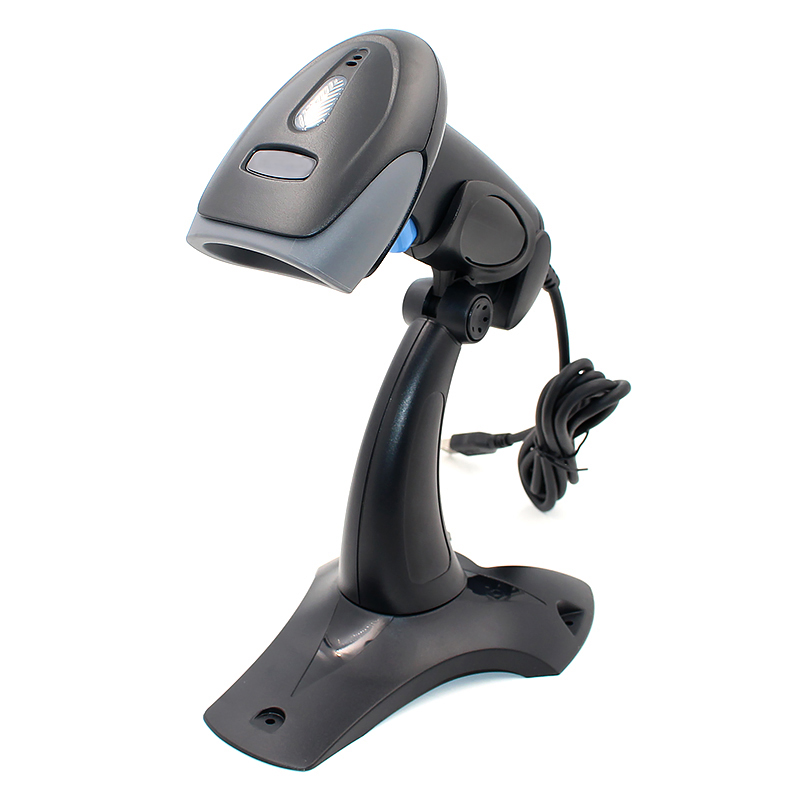

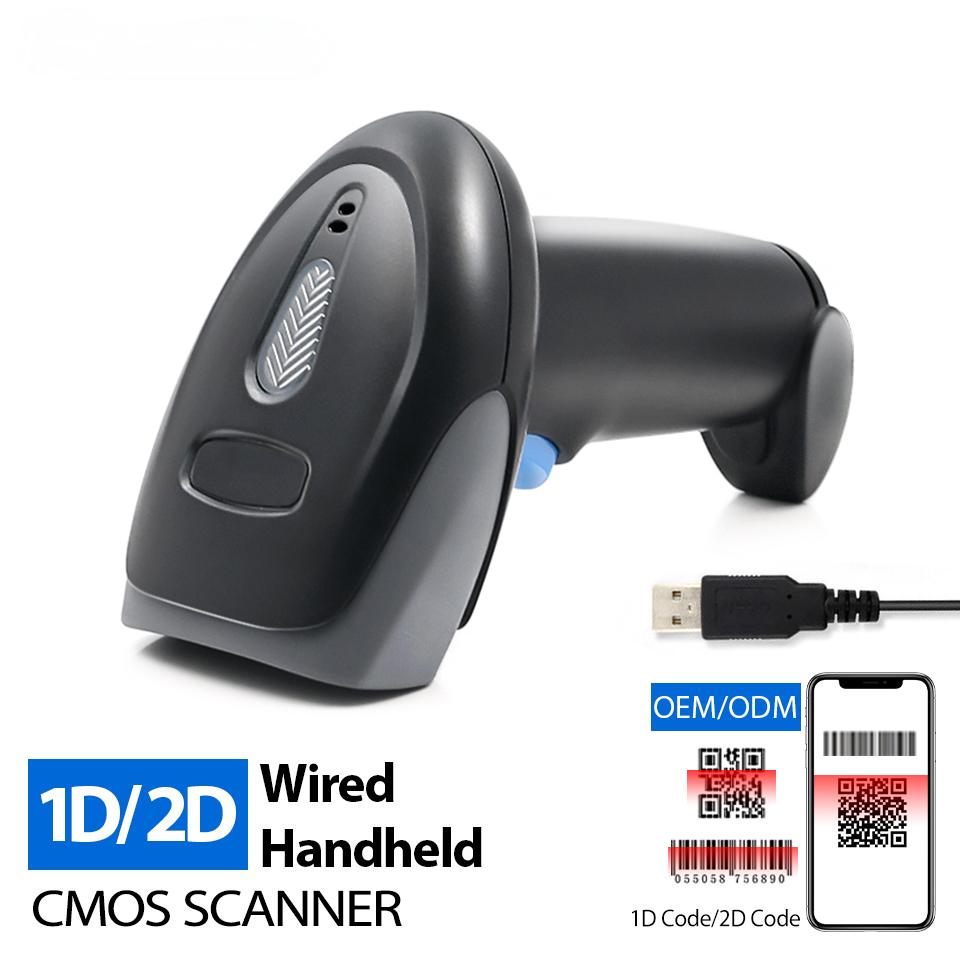

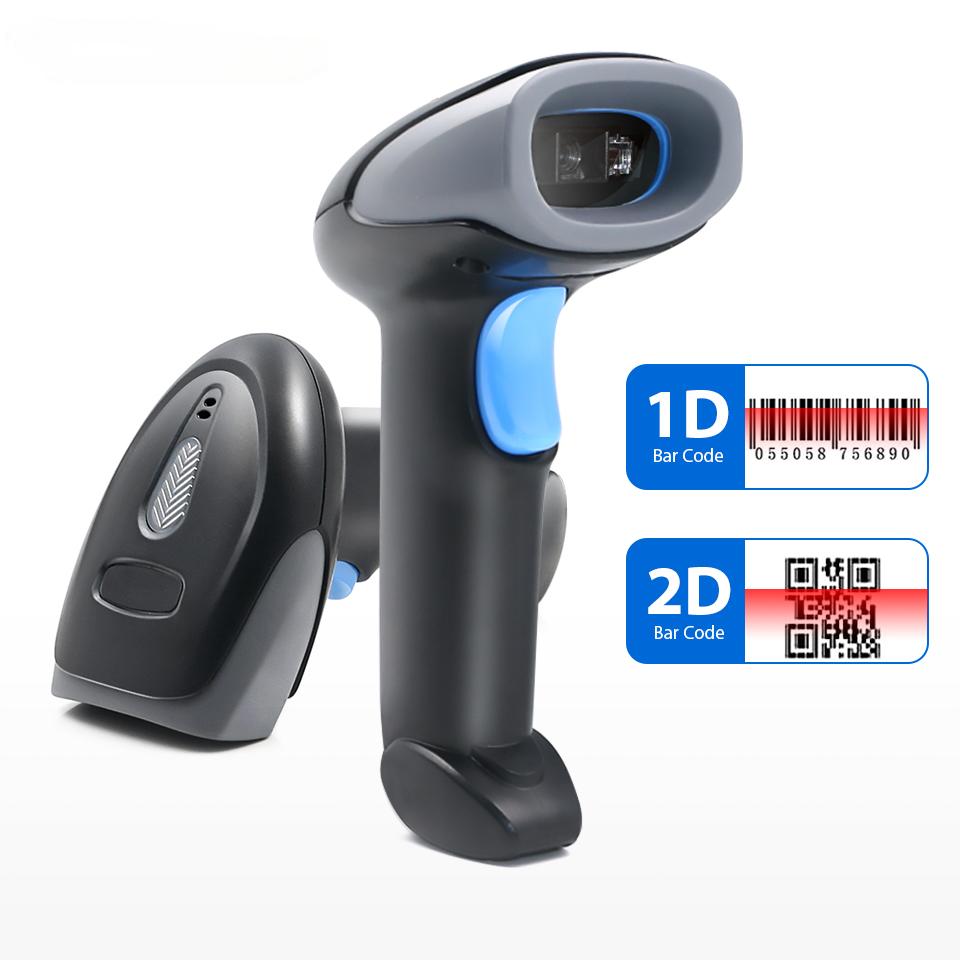

Product Pictures:
