Fast scanning 1D 2D Bar Code Reader QR Code Reader USB Wired Wireless Bluetooth Handheld Barcode Scanner
Product Description:
IBC-DS40H series CMOS barcode scanner is new appearance with fashion design. It is equipped with the advanced decoding algorithm, easy to read 1d and 2d codes. It supports many keyboard languages, no need driver, compatible with major operating systems.
Product Features:
• Layered design, decorated with local highlights, creating a new aesthetic experience;
• New button design with high rebound switch components, the handle perfectly fits different sized palms;
• Equipped with advanced decoding algorithm, easy to read barcode, qr code, DM, PDF417, etc;
• Support multiple keyboard languages, no driver required, just plug and play, compatible with mainstream operating systems;
• Professional electrostatic protection and anti-interference design, can be used normally in complex electromagnetic environment;
• Large-capacity battery, can continue reading more than 80,000 codes;
• 2.4G wireless transmission, automatic frequency hopping and anti-interference, the effective transmission
distance in open space can reach 100 meters;

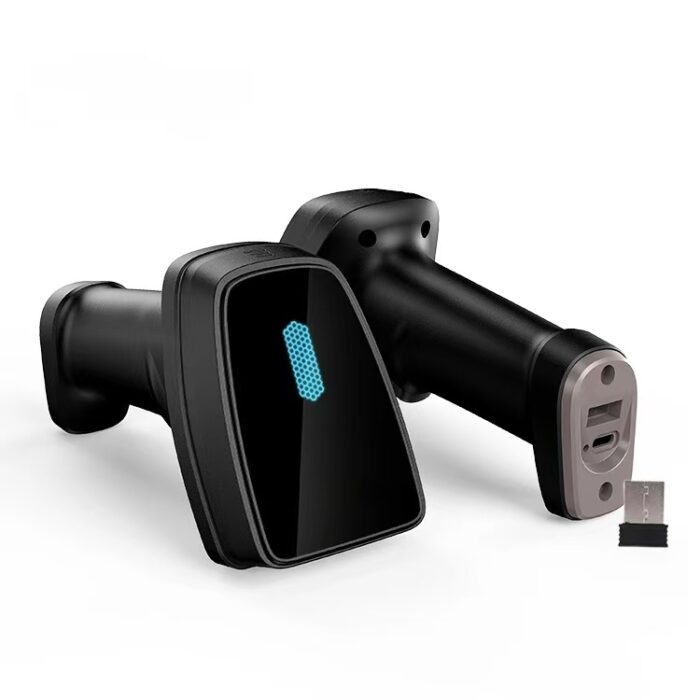

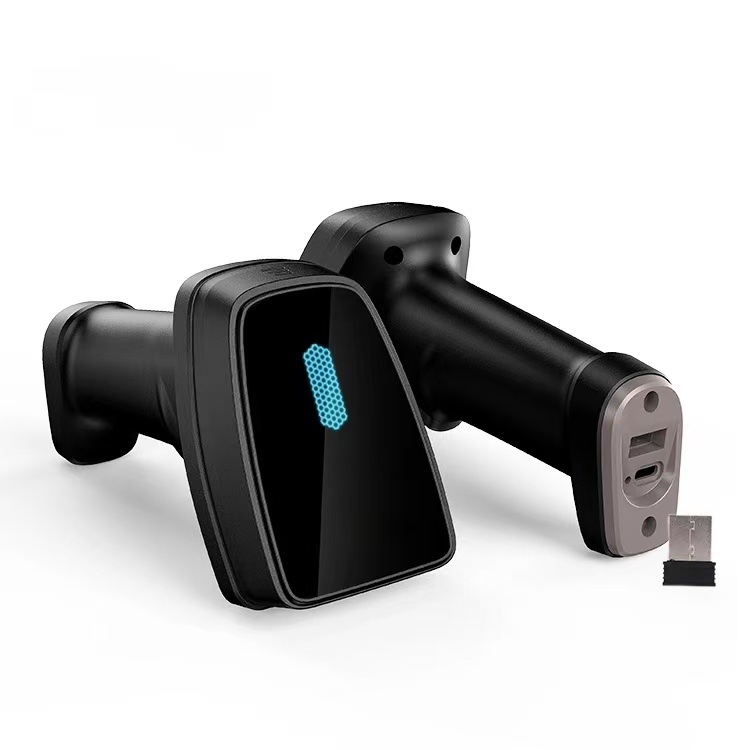

• The rear end is designed with a USB receiver storage compartment, which can effectively prevent loss.
Product Specification:
1D 2D Wired Handheld Barcode Scanner IBC-DS40H:
| Model No. | IBC-DS40H |
| Product Name | 1D 2D Wired Handheld Barcode Scanner |
| Light Source | LED White light |
| Aiming Light | Green Dot |
| Image Sensor | 1280*800 pixels |
| CPU | 1.2G Dual core |
| Resolution(maximum) | 4mils |
| Minimum Print Contrast | 20% Reflection Difference |
| Image Field of View | Horizontal: 50°; Vertical: 38° |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
| Decoding Capability | 1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
| 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code | |
| Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | |
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） |
| Typical depth of Field (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
3.34mil CODE 39 : 60mm—160mm |
| 3.34mil EAN-13 : 90mm—150mm | |
| 5mil CODE39 : 70mm—240mm | |
| 5mil EAN-13 : 70mm—230mm | |
| 13mil UPC-A : 40mm—450mm | |
| 5mil PDF417 : 65mm—210mm | |
| 5mil QR : 75mm—140mm | |
| 10mil QR : 45mm—290mm | |
| 10mil DM : 30mm—260mm | |
| 20mil QR : 20mm—480mm | |
| 20mil QR : 20mm—480mm | |
| Electrical Parameter | |
| Current | Working current(Standard): < 280 mA ; Standby current(Standard): < 130 mA |
| Input Voltage | 5 VDC (+/- 10%)/500mA |
| Environmental Parameter | |
| ESD protection(Air discharge) | 8 kV |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Temperature | Working: -10 to 50 °C |
| Storage/Transport: -20 to 65 °C | |
| Humidity(non-condensing) | 5 – 95% |
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux |
| Product Size | 169*67.5*85.5mm |
| Interfaces | RS-232; USB HID; USB COM; HID POS available as per customer’s needs |
| Transmission | Support multi-language transmission, compatible with major operating systems, support the editing of barcode data. |
1D 2D Wireless Handheld Barcode Scanner IBC-DS40HR:
| Model No. | IBC-DS40HR |
| Product Name | 1D 2D Wireless 2.4G Handheld Barcode Scanner |
| Performance Parameter | |
| Light Source | LED White light |
| Aiming Light | Green Dot |
| Image Sensor | 640*480 pixels |
| Resolution(maximum) | 4mils |
| Minimum Print Contrast | 20% Reflection Difference |
| Image Field of View | Horizontal: 46.6°; Vertical: 38.2° |
| Reading Angle | Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60° |
| Decoding Capability | 1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. |
| 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code | |
| Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. | |
| Reading Indicators | LED light&Buzzer(adjustable tone and volume） |
| Typical depth of Field (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
3.34mil CODE 128 : 10mm—60mm |
| 5mil CODE128 : 5mm—90mm | |
| 3.34mil EAN-13 : 10mm—55mm | |
| 5mil EAN-13 : 5mm—85mm | |
| 13.34mil EAN-13 : 20mm—190mm | |
| 5mil PDF417 : 5mm—75mm | |
| 10mil PDF417 : 5mm—190mm | |
| 15mil PDF417 : 10mm—200mm | |
| 10mil DM : 5mm—100mm | |
| 20mil DM : 5mm—210mm | |
| Electrical Parameter | |
| Current | Working current(Standard): < 280 mA ; Standby current(Standard): < 130 mA |
| Input Voltage | 5 VDC (+/- 10%)/500mA |
| Environmental Parameter | |
| ESD protection(Air discharge) | 8 kV |
| Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
| Temperature | Working: 0 to 40 °C |
| Storage/Transport: -40 to 70 °C | |
| Humidity(non-condensing) | 5 – 95% |
| Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 86,000 lux |
| Cordless Parameter | |
| Transmission distance | 100m for 2.4G (in open space) |
| Communication mode | Wireless real-time transmission/wired transmission/storage mode |
| Battery capacity | 2000mAh |
| Continuous working time | ＞12H |
| Charging time | 4-5H |
