Fast Decoding Automatic Handheld Wireless 2.4G Bluetooth 2D QR Code Reader Barcode Scanner
Fast Decoding Automatic Handheld Wireless 2.4G Bluetooth 2D QR Code Reader Barcode Scanner
- Most Competitive Price
We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!
- Customized solutions
- Precision manufacturing.
- Affordable excellence, guaranteed.
- Quality products, worldwide delivery.
*Get A Free Quote With No Obligation
- One-Stop Services,Contact Us For Free Samples
- We Provide Global Delivery By Air/Sea/Train Shipping From Door To Door Or To Designated Port.
- 20+ Years Experienced Team To Offer Suitable Packaging Proposal
Fast Decoding Automatic Handheld Wireless 2.4G Bluetooth 2D QR Code Reader Barcode Scanner
Product Testing Video:
Product Description:
IBC-4100BT, is usb wired + cordless 2.4G + bluetooth barcode scanner for retail and commercial as well as warehouse inventory application. It can read barcdoes from product labels, cards, tickets and phone quickly, whatever 1d or 2d barcodes. This Bluetooth qr barcode scanner allows for absolutely freedom when operating. It is user friendly, easy to deploy, cost effective.
Product Features:
• Long-distance wireless fast transmission
• Identifying multiple code systems and easily scan various abnormal barcodes
• Excellent Decoding Ability
• Large capacity battery, long battery life
• 2 kinds of wireless solution :2.4Ghz and Bluetooth

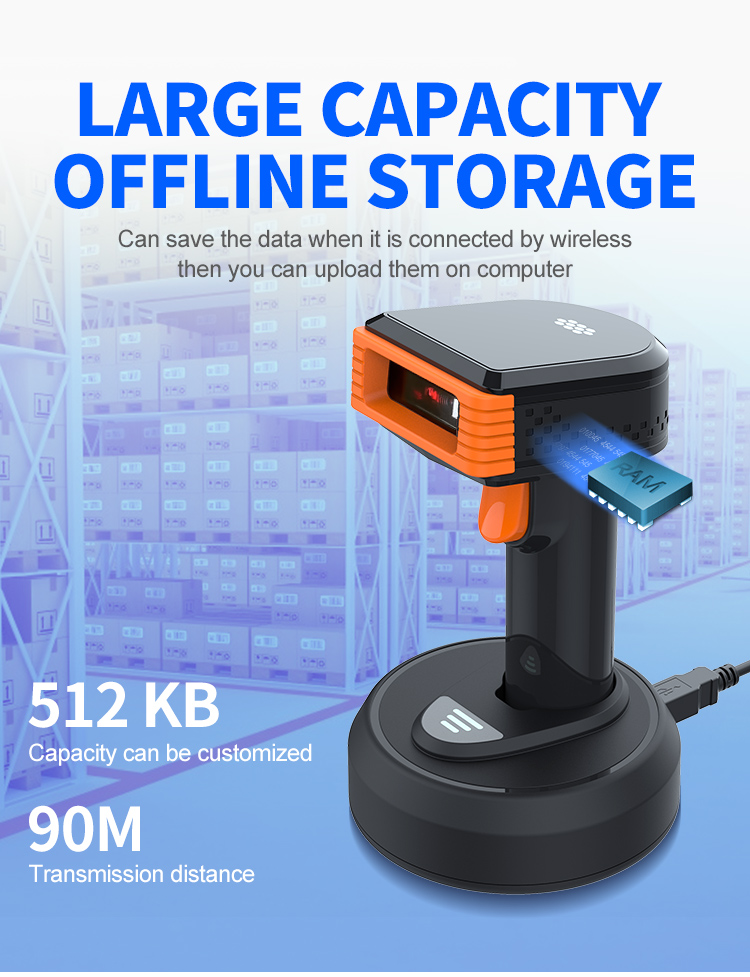

• Instant upload mode & Storage mode
• Compatible with multiple systems, Windows/IOS/Android/Linux, etc
Product Specification:
| Technical Parameter | ||
| Model | IBC-4100BT | |
| Item | 1D 2D Wireless 2.4G + Bluetooth Handheld Barcode Scanner | |
| Specifications | ||
| Material | ABS+PC | |

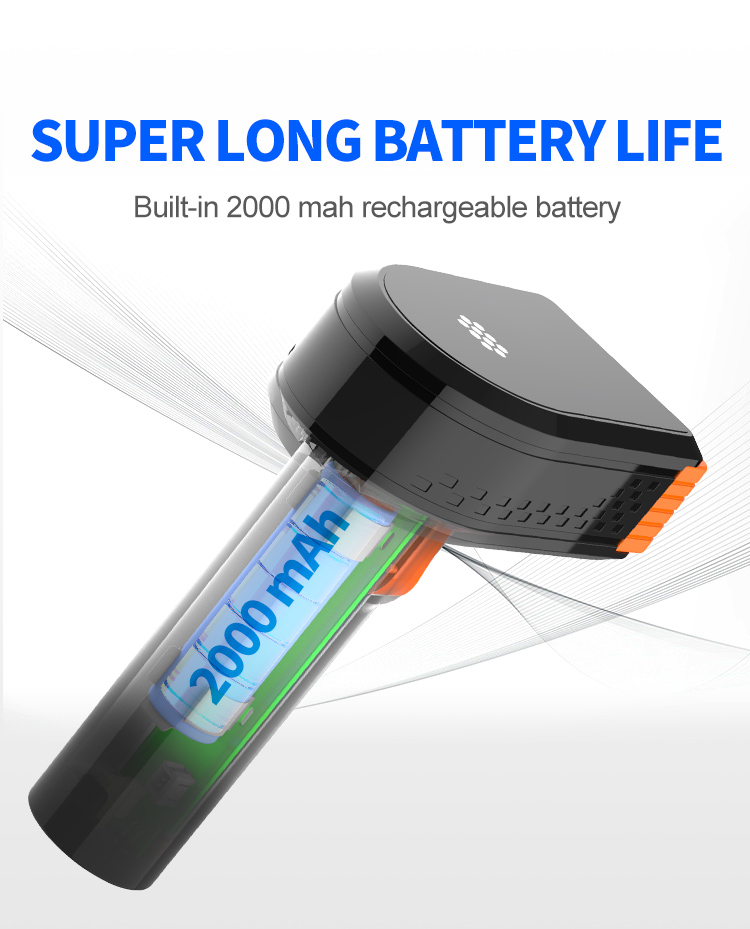

| Power Supply | DC 5V ±5% ; Built-in 3.7V 2000mA Lithium Battery | |
| Current | 165mA (working); 80mA (standby); 260mA (peak) | |
| Weight | 175g (scanner) + 109g (base) ±5g (exclude cable) | |

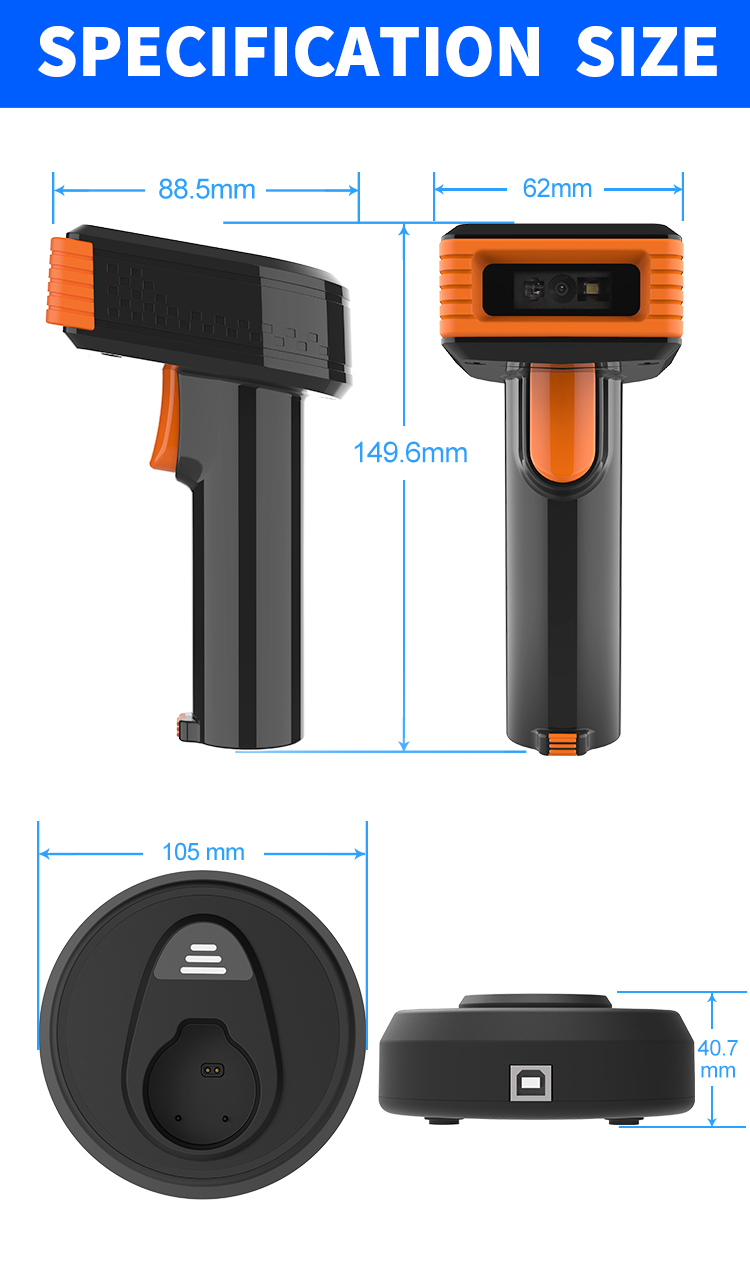

| Dimension (scanner) | L *W *H: 149.6 * 62.0 * 88.5mm | |
| Dimension (base) | 105.8D * 40.7H mm | |
| Color | Black body, Orange button | |
| Button life | ＞100000 times | |
| Performance Parameters | ||
| Interface | USB ; Wireless 2.4G transmission＋4.2 Bluetooth | |
| OS | Linux, Android, Windows XP、7、8、10, MAC | |
| Language Keyboard | English (US); Portugal; English (UK); Germnay; Portugal (Brazil); French; Russian; Spanish; Argentina (Latin America); Spanish (Mexico) 【Support multi-country keyboard】 |
|
| Sensor | CMOS 640×480 | |
| Light Source | Red LED for Aiming + White LED for lighting | |
| Move tolerance | Code128: 15cm/sec QR: 25cm/sec |
|
| Reading Mode | Image | |
| Resolution | ≥4mil | |
| Transmission Distance | 2.4G≤100m (no obstacle) Bluetooth 10m | |
| Error Rate | 1/5 Million | |
| Trigger Mode | Manual Trigger; Continuous scanning; Auto-sensing scanning | |
| Prompt Method | Buzzer & LED | |
| Print Contrast | 25% | |
| Time for charging | appr.8h | |
| working time | appr.40h | |
| Reading Angle | Pitch±55°, Yaw±55°, Rotation 360° | |
| Reading Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code |
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417 | |
| Depth of Scan | QR 9.17 mil (7 bytes): 6cm – 10cm Data Matrix 9.17mil (7 bytes): 7cm – 10cm code93 5.83mil (14 bytes): 7cm – 10cm |
|
| Environmental Parameters | ||
| IP Grade | IP42 | |
| Working Temp. | 0 to 60℃ / 32 to 122℉ | |
| Storage Temp. | 0 to 60℃ / 32 to 122℉ | |
| Working Humidity | 20% to 85% (No Condensation) | |
| Storage Humidity | 20% to 85% (No Condensation) | |
| ESD Protection | 15KV Air discharge | |
| Drop resistance | Withstands multiple times 1.2m drops to concrete | |
| Illumination | 0→100000Lux | |

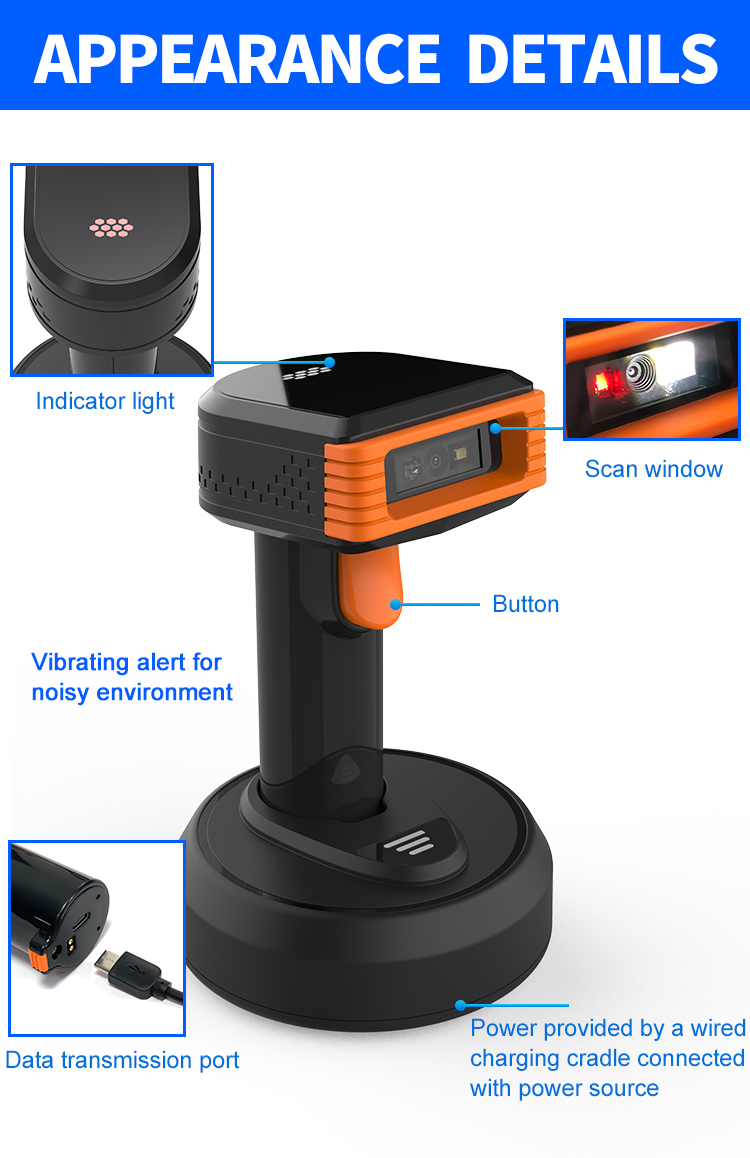

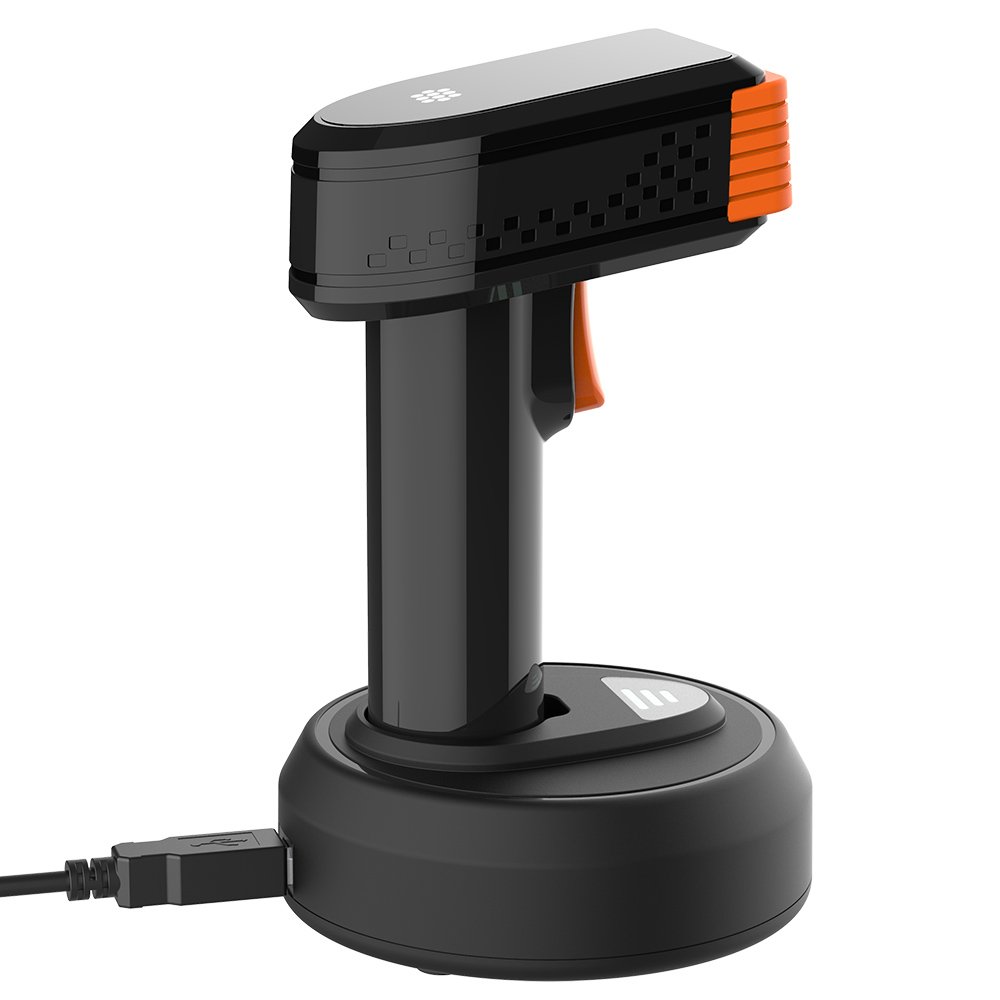

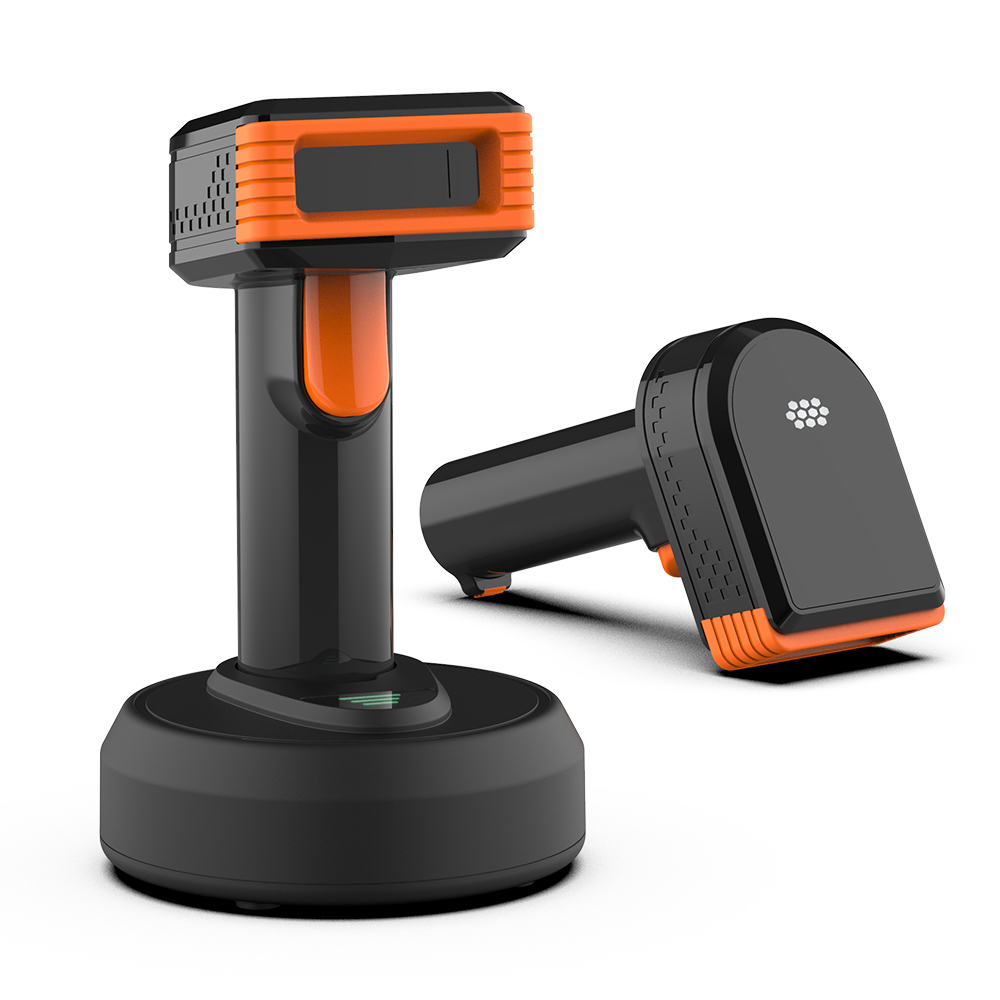

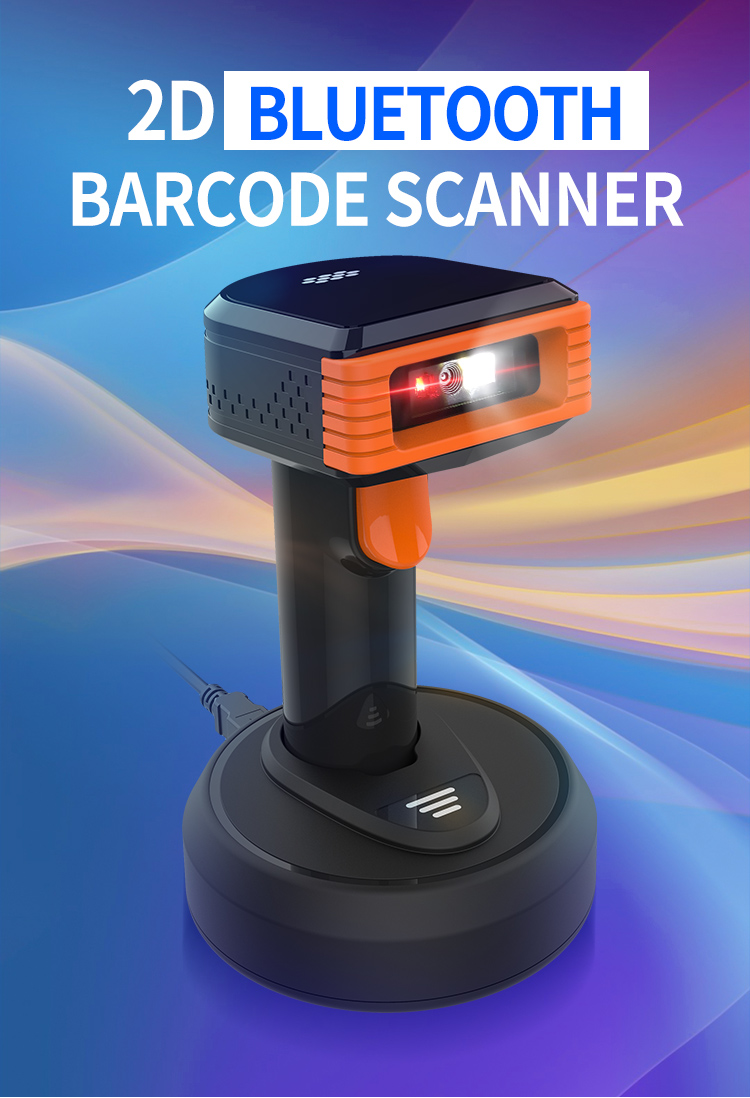

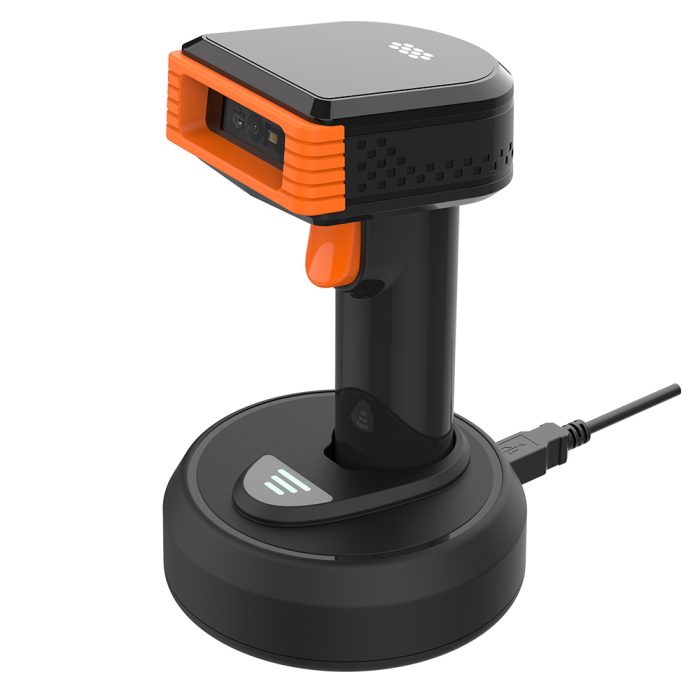

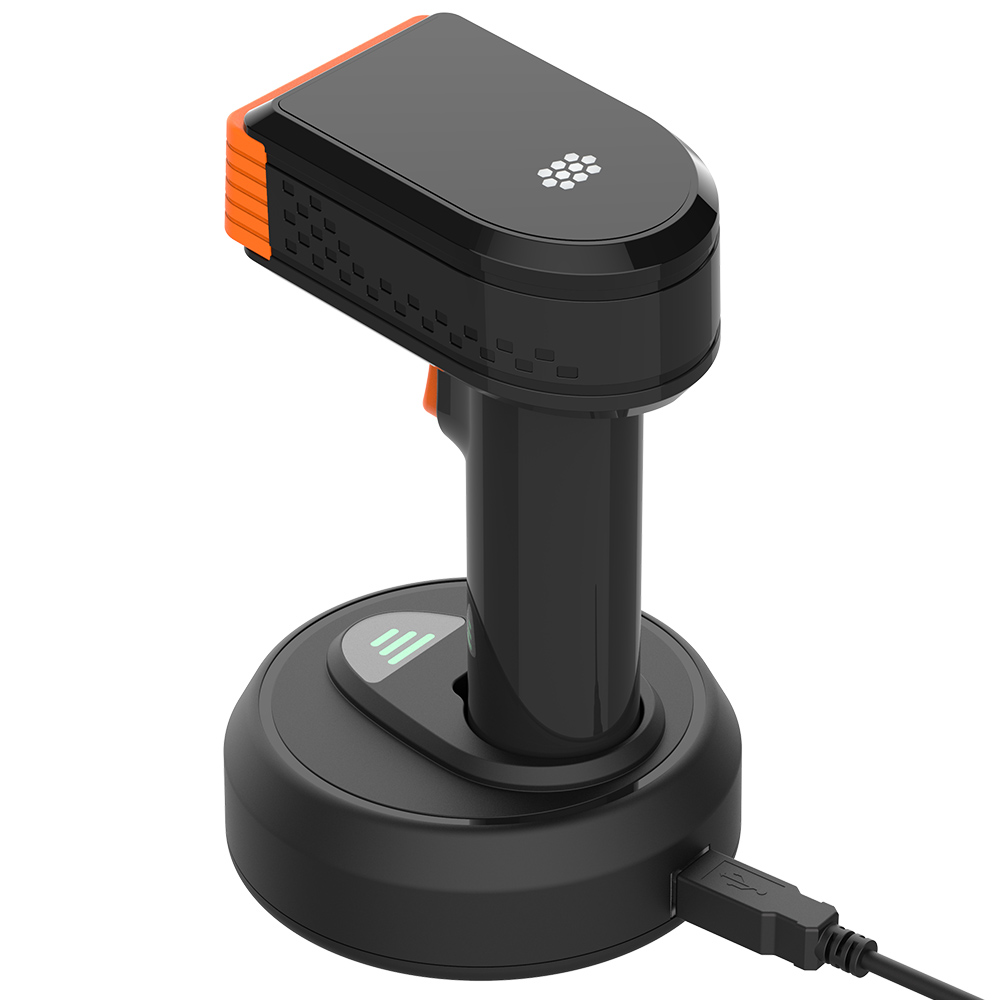

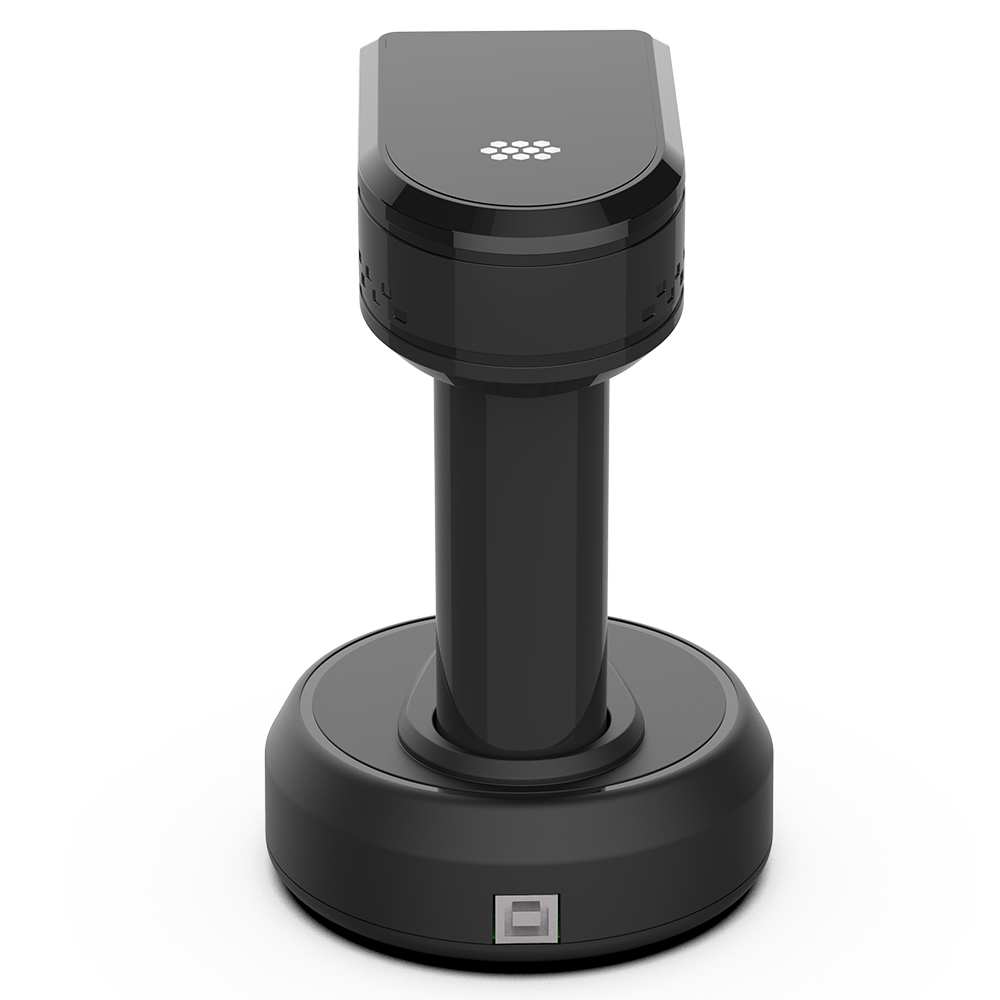

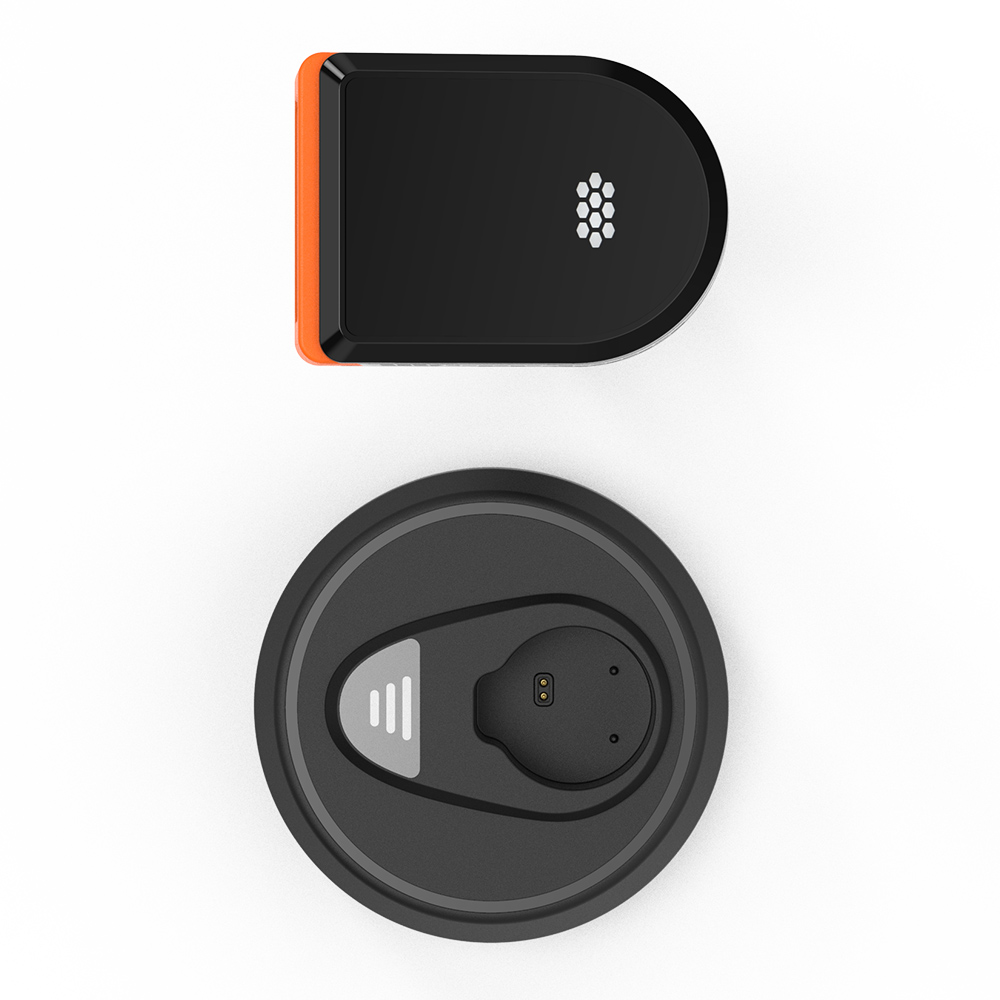

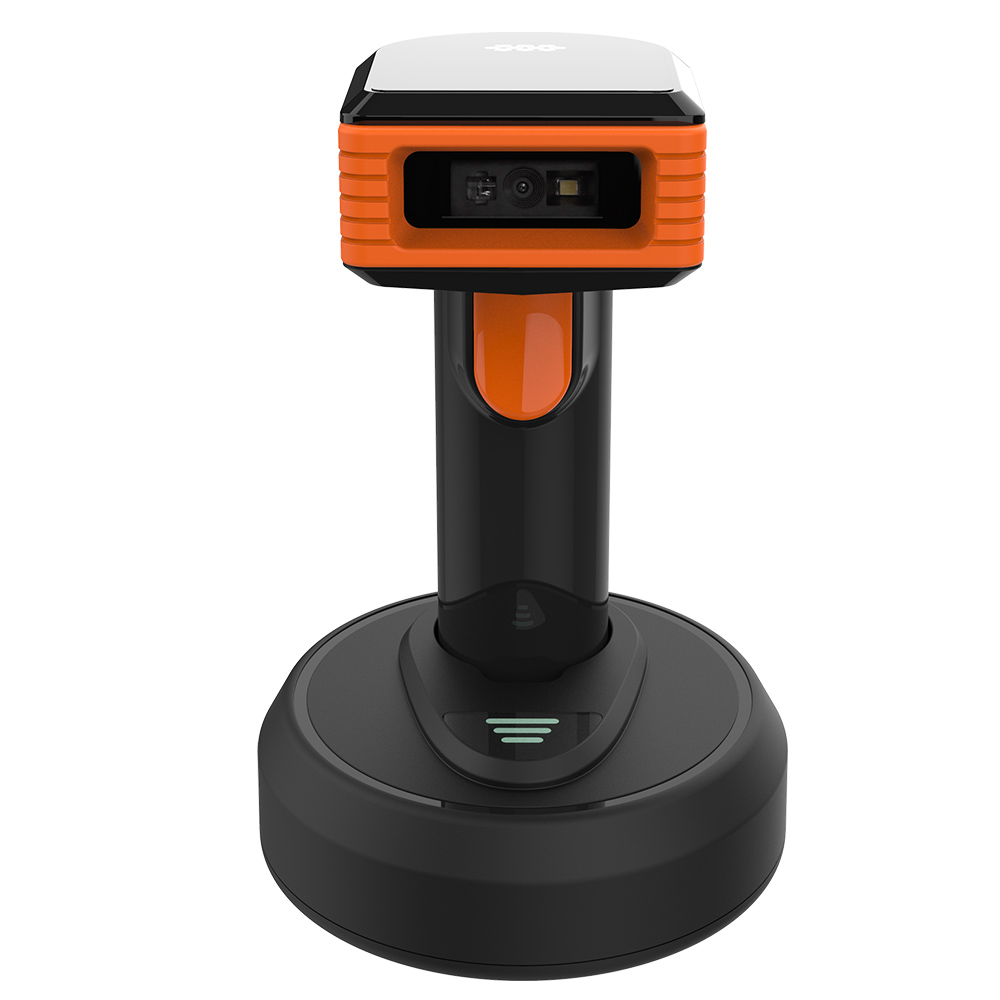

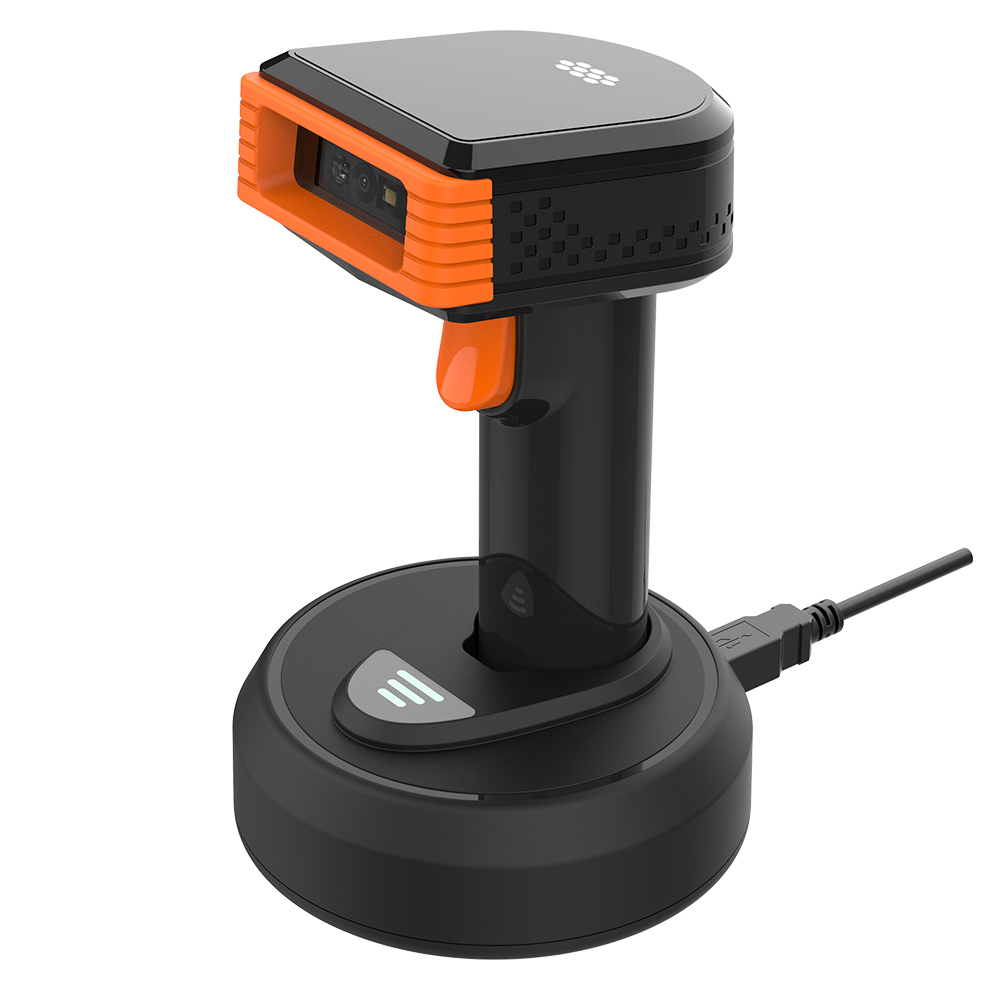

Product Pictures:
