Fashionable USB 4mil Desktop Platform Barcode Reader CMOS Image 1D 2D Omni-directional Bar code Scanner
Product Description:

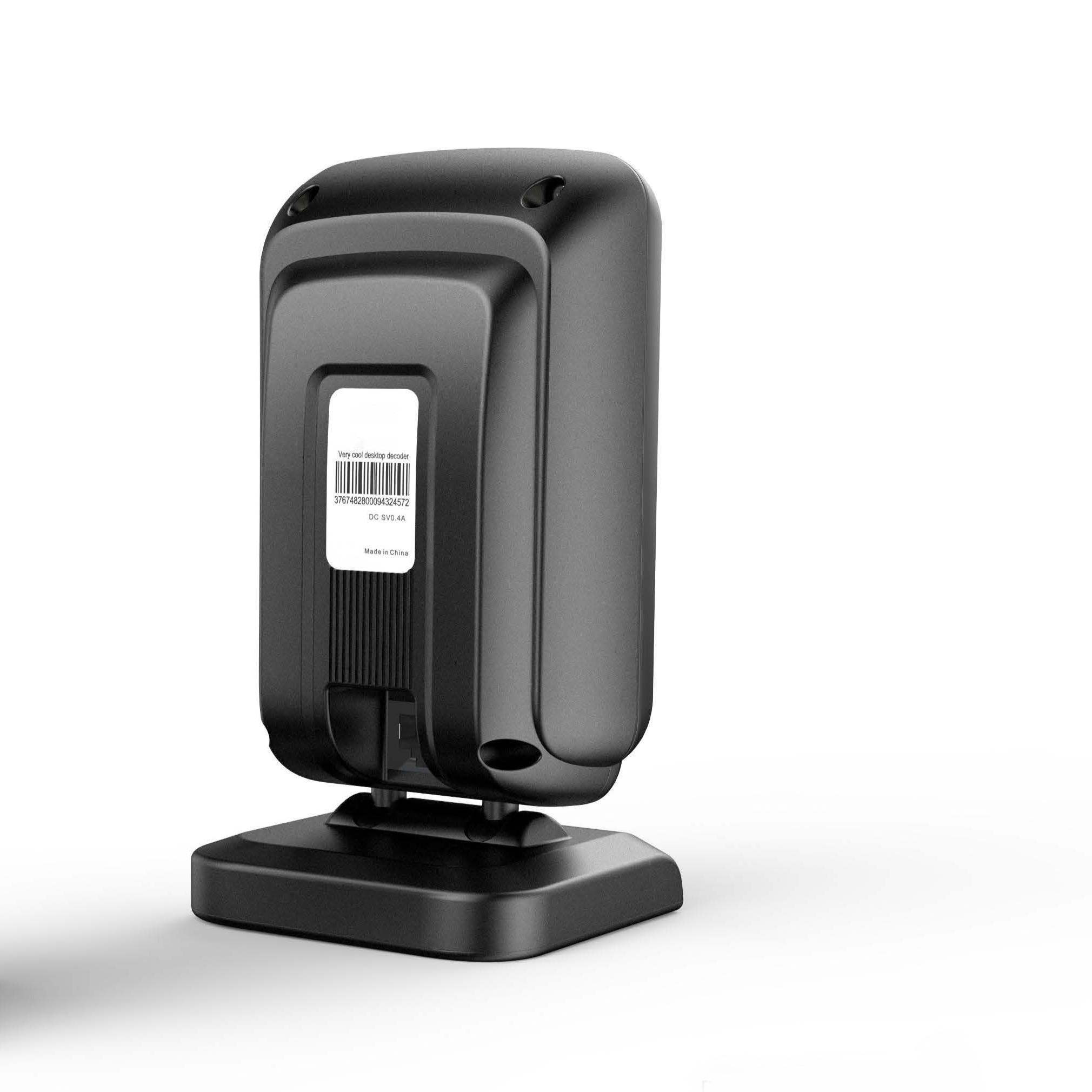

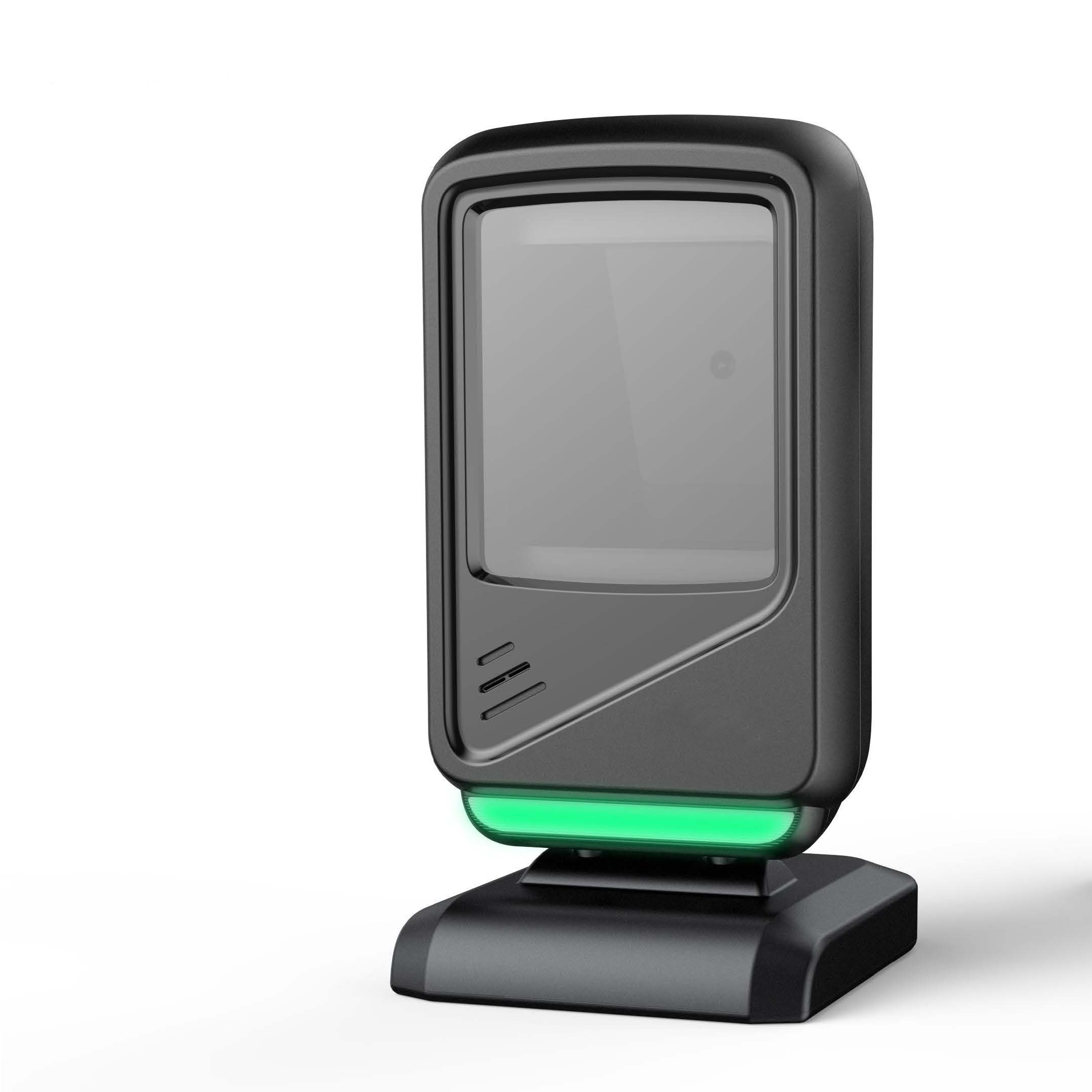

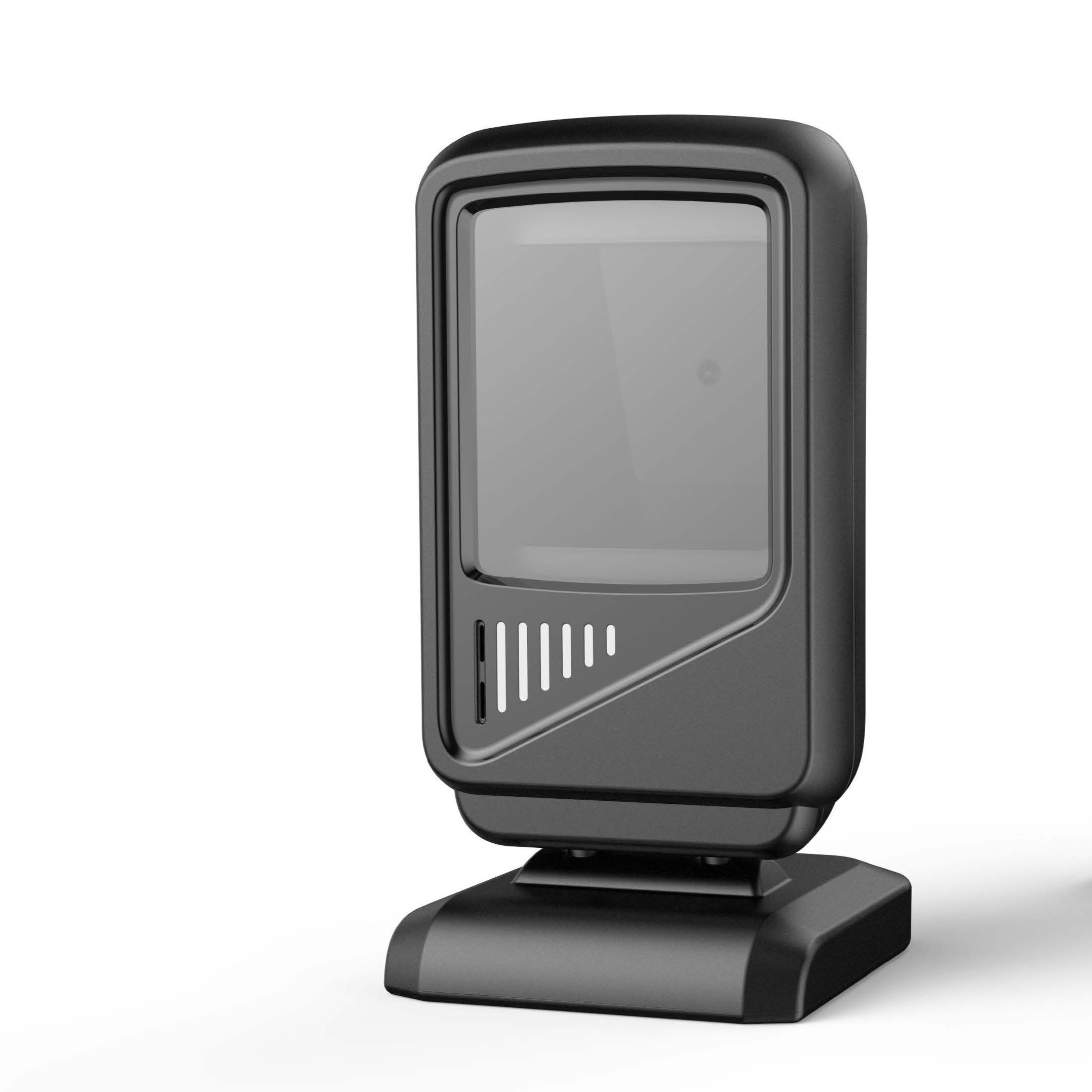

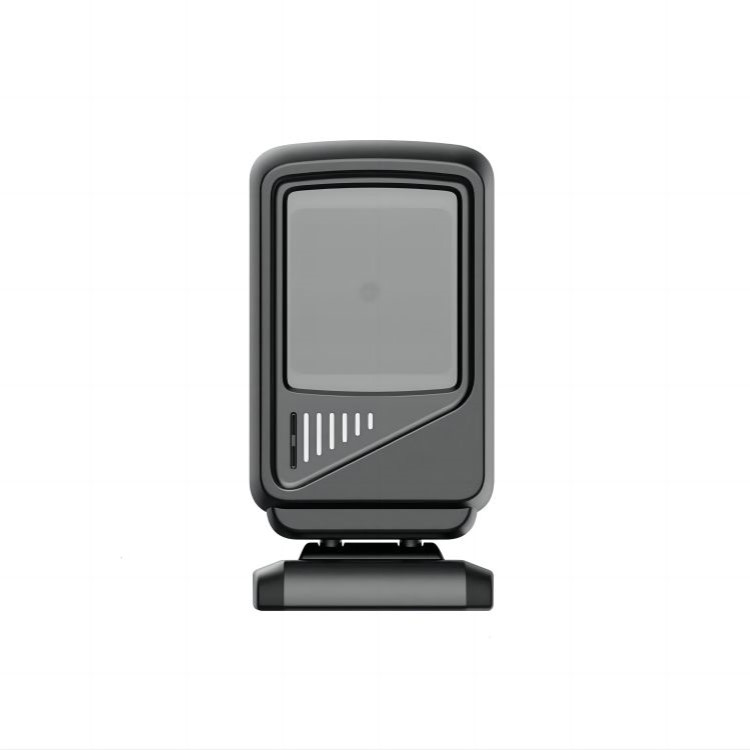

IBC-9130 is fashionable appearance design; small and light-weight; high performance scanning; can easily rotate free from a large angle. It is CMOS 2d desktop barcode scanner with advanced CMOS image recognition technology. It is Handsfree Barcode Scanner for busy retail environments, hands-free modeimproves personnel productivity. With STRONG DECODING ABILITY, it can read most of barcode, included incomplete fuzzy code, damaged code, distortion code, colorful code etc. Always on, no need to wake up. It is the best choice for Hypermarket to improve work efficiency.
Product Features:
● Support universal 1D/2D barcodes
● Full ergonomic scanning angle
● Thickened ABS material
● High speed decoding
● Multiple interfaces for quick replacement
● Multiple Configuration Options
● All functions can be configured trough one barcode
Product Advatnages:
● Easily rotate freely from a large angle:
User can adjust the scanning angle according to their usage habits
● Strong 1D&2D Barcodes Decoding Ability:
1D barcode scanner support scan most of 1D barcodes, such as EAN, UPC, Code 39, Code 128, UCC/ EAN 128, Coda bar, Interleaved 2 of 5, ITF-6, ITF- 14, ISBN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5 and all 2D barcoes
● Fashionable design Small and light weight:
User can freely grab the scanner and scan the barcode of item further away from the counter
● Ultra fast decoding system:
The most advanced decoding algorithm is adopted, which can quickly decode various types of barcodes and quickly transmit them to various terminal devices
● Multiple Configuration Options:
This wireless barcode scanner support instant upload and storage mode two types upload modes, hide front and back characters, add prefix or suffix, set sleep time, set sound and vibration, etc useful function . You can set these functions according to your needs .
Product Specification:
Model | IBC-9230 |
Item | Omnidirectional Platform 1D 2D Barcode Scanner |
Performance Characteristics | High perfommance imaging CMoS (752 x640) |
Print Contrast | 20% minium reflective difference |
Fill Light | Red LED |
Minimum Resolution | 4mil(Code39 , PCS 0 .9) |
Reading Range | 13mil EAN13 more than 15cm |
Scan Rate | 600 times/S |
Support System | Windows/ Linux/Android/IOS |
Processor/Memory | ARM 32 /16M Flash |
Interface | USB HID Keyboard/USB COM/ RS232 |
Support OS | Microsoft Windows XP/7 .0/8 .0/ 10, Mobile6/Wince, Android, IOS. (without driver) |
Scan Mode | Trig Mode; Continue Mode; Auto Sensor Mode |
Wire length | 1 .5m |
Physical Characteristics | |

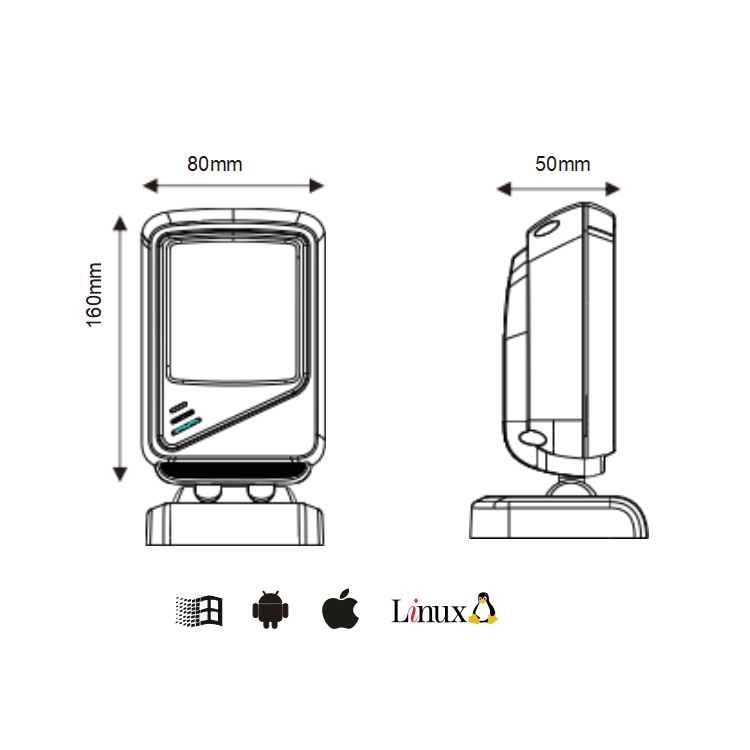

Dimensions | L*W* H( 160mm*80mm*50mm) |
Weight | 271g |
Color | Black |
Indication | Beep, LED |
Voltage | Input DC 5V |
Operating Current | Standby Current:20mA; Working Current:230mA |
Supported Symbologies | 1D: UPC-A, UPC-E, EAN-8, EAN- 13, ISSN, ISB, Code 128, GS1- 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, IATA, code32, Codabar, NW-7, Plessey, MSI Plessey, RSS, China Post. 2D: QR code, Data Matrix, PDF417, Aztec code, Maxi Code and all 2D barcodes. |
User Environment | |
Drop Specifications | 2 meters fall into concrete for several times |
Environmental Sealing | IP42 |
Operating Temperature | – 10 °C to 50 . ° C |
Storage Temperature | – 10 °C to 50 . ° C |
Humidity | 5% to 95% relative humidity, non-condensing |
Ambient Litht Immunity | 0~80000 lux |
ESD Protection | Functional after 15KV discharge |
Accessories | |
Cables | USB HID/ PS2/ RS232 |
Others | Manual, Usb receiver |
