Desktop Barcode Reader Fast Scanning CMOS Big Scanning Window Hands-Free 1D 2D QR Code Platform Barcode Scanner

Desktop Barcode Reader Fast Scanning CMOS Big Scanning Window Hands-Free 1D 2D QR Code Platform Barcode Scanner

We can custom logo ,label,box,etc as your requirements totally,just contact me for accurate price!

*Get A Free Quote With No Obligation

Desktop Barcode Reader Fast Scanning CMOS Big Scanning Window Hands-Free 1D 2D QR Code Platform Barcode Scanner

Product Description:

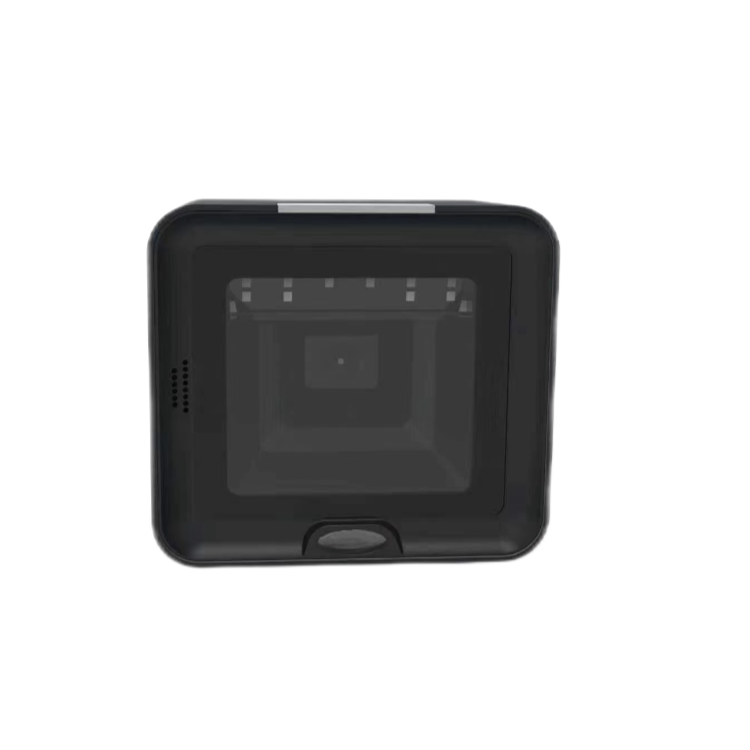

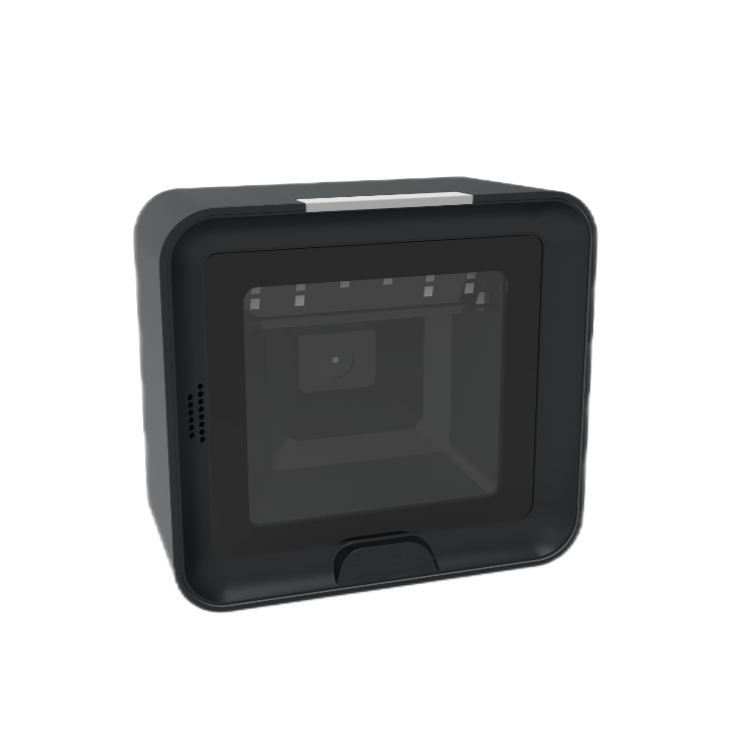

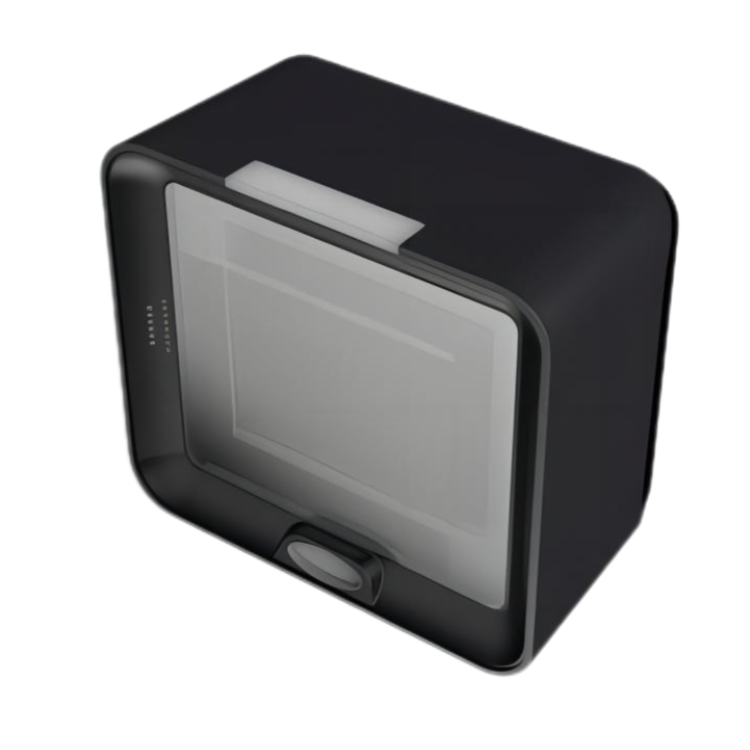

IBC-9950 is CMOS 2d desktop barcode scanner with advanced digital imaging, which provides class-leading performance and reliability. It smoothly reads all bar codes, whether displayed on cell phones or printed. It is stable, adaptive illumination for user comfort. Solid-state electronics for silent operation and superior reliability. It support multi-language keyboard, support special characters. It is the best choice for Hypermarket to improve work efficiency.

Product Features:

•Screen decoding: can directly decode barcodes on mobile phones and computer screens
•Paper decoding: uses fast decoding algorithm to accurately decode various barcodes at high speed
•Decoding capability: can scan both mobile phones and paper (light does not flicker)
•Other functions: supports direct transmission of Chinese under Linux

Product Specification:

Product Name:  Platform Barcode Reader
Model:  IBC-9950
Physical Characteristics
Dimensions:   137mm x 152mm x84mm
Weight:   414.5g
Voltage:   5V
Starting Current:   440mA
Work Current:  185mA
Stand-by Current: 440mA
Performance Characteristics
Image (Pixels): 1280 pixels (H)x 1024 pixels (V)
Light Source: Warm Yellow LED
Field of View:   60°(H) , 45°(V)
Roll / Pitch / Yaw: 360°,  ±65°  ,  ±65°
Print Contrast: 20% minimum reflective difference
Interfaces Supported: USB
Motion Tolerances: 2.5m/s
Symbology Decode Capability
1D:   Codabar, Code 39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 93, Straight 2 of 5 Industial, Straight 2 of 5 IATA,Matrix 2 of 5,Code 11, Code 128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, China Post (Hong Kong 2 of 5), Korea Post.
2D:   Codeblock A, Codeblock F, PDF417, Micro PDF417, GS1 Composite Codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN.
User Environment
Operating Temperature:   -20°C to 60°C
Storage Temperature:   -30°C to 70°C
Humidity: 5% to 95% relative hum idity,non-condensing
Shock Specifications:   8 G r.m.s., from 10 to 500 Hz, 2 hours per axis, 3 axes (Can withstand 70cm tipover test)
Ambient Light Immunity: 0-100,000 Lux.
Decode Ranges
Code39 (4mil): 0mm-70mm; Code39 (5mil): 0mm-100mm; Code39 (13mil): 0mm-270mm;
Code128 (13mil): 0mm-300mm; Code128 (20mil): 0mm-350mm;
QR (15mil): 0mm-140mm; QR (30mil): 0mm-260mm
Performance may be impacted by bar code quality and environmental conditions
