Desktop 4mil 1280 * 800 CMOS 1D 2D Omni-Directional Bar Code Scanner Barcode Reader for Supermarket

Testing Video:

Product Description:

IBC-9920 is CMOS 2d desktop barcode scanner with advanced digital imaging, which provides class-leading performance and reliability. It smoothly reads all bar codes, whether displayed on cell phones or printed. It is stable, adaptive illumination for user comfort. Solid-state electronics for silent operation and superior reliability. Megapixel camera supports 4mil high precision bar code; coated code, fold code, damage code. It support multi-language keyboard, support special characters. Wide screen design, Large area scanning window, multiple scanning orientations,easy to scan barcodes of various sizes. 3.82M/S movement tolerance, goods after no pause, reduce the waiting time in line. It is the best choice to improve work efficiency, widely used in Hypermarket, large supermarkets, restaurant, chain stores, and grocery stores, etc.

Product Features:

• 3.82M/S movement tolerance

• Advanced decode algorithm combined with high-quality hardware

• Easily capture 1D, 2D QR code on paper and screen

• Wide screen design, Large area scanning window, multiple scanning orientations,easy to scan barcodes of various sizes

• Free your hands at your POS, increase working efficiency

• Support paper, film, commodity code, mobile phone payment code and high precision bar code.

Product Specification:

Model IBC-9920
Item Omnidirectional 2d barcode scanning platform
Physical Parameter
Material ABS+PC
Power Supply DC 5V 500mA±5%
electric current 230mA (working); 200mA (standby); 250mA (maxium)
Weight 480.0g±5g (without cable)

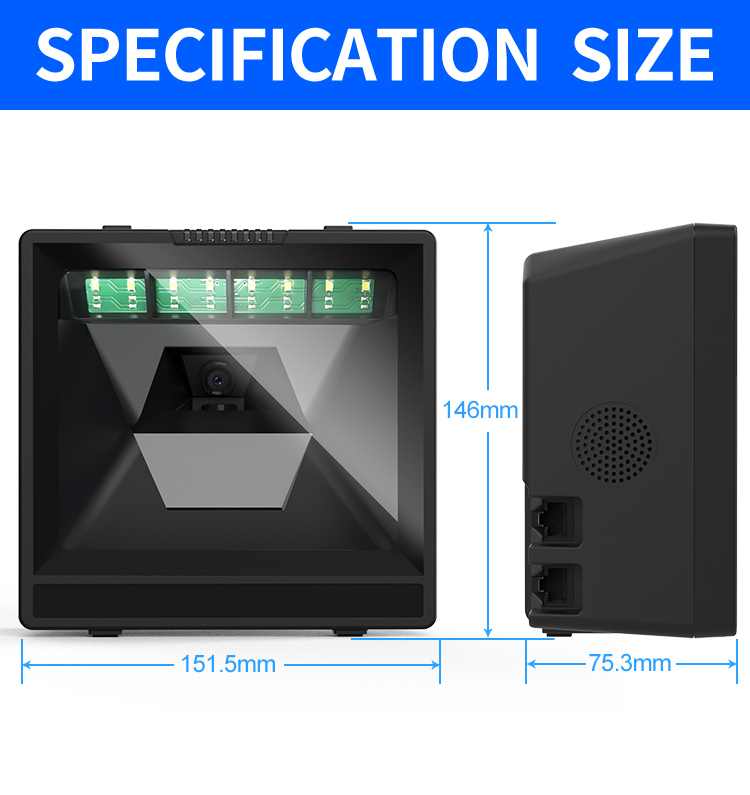

Size L*W*H: 151.5 * 146 * 75.3 (unit: mm)
Color Black
Performance Parameter

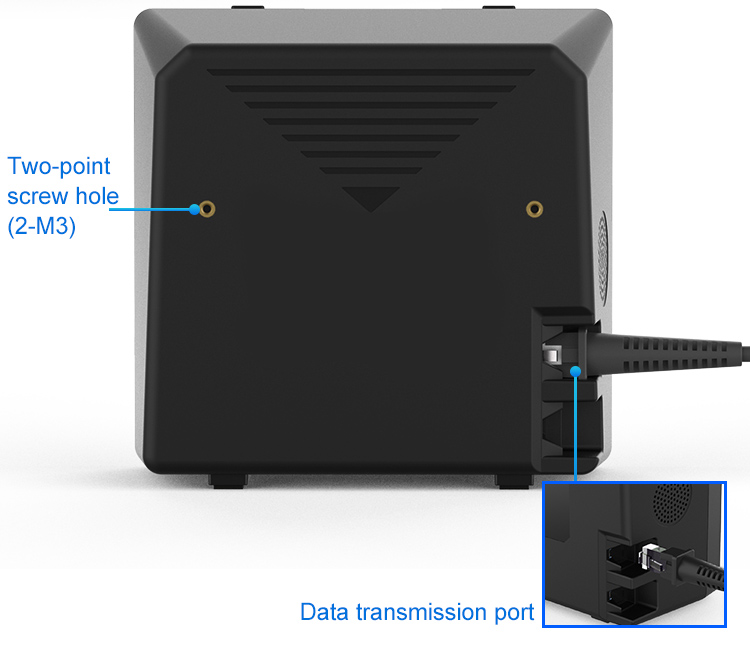

Interface USB; USB COM; RS232; TTL232

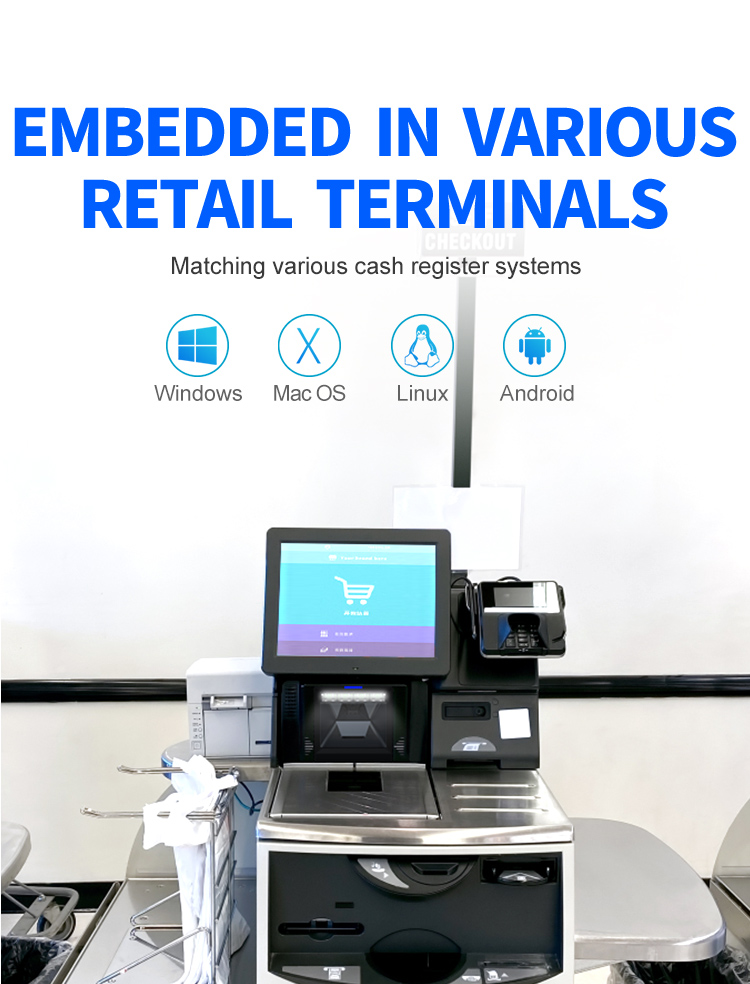

System Supported Linux, Android, Windows, MAC
Language Supported English; German; French; Italian; Russian; Finnish; norwegian; Spanish;
Czech; Polish; Portuguese; Türkiye Q; Türkiye F; Greek; Swedish; irish (support multiple languages)
Sensor Global sensors 1280 * 800
Light source white LED
Processor 32-bit ARM MCU + DSP
Decoding speed 500 times/s
Resolution 1D: 4mil; 2D: 6mil
Error Rate 1/5000000
Reading Mode Image
Trigger Mode Imaging Sensor

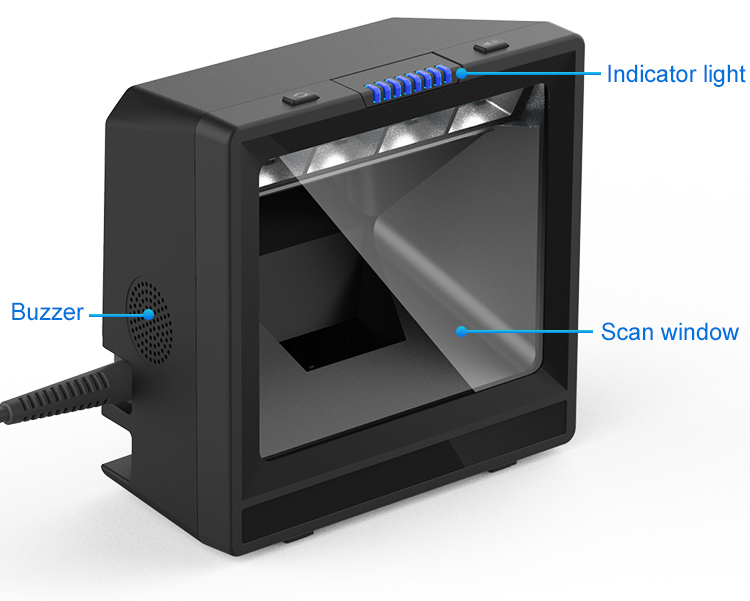

Prompt Mode Buzzer, Indicator Light (LED)
Image code Support
Invoice Function Support

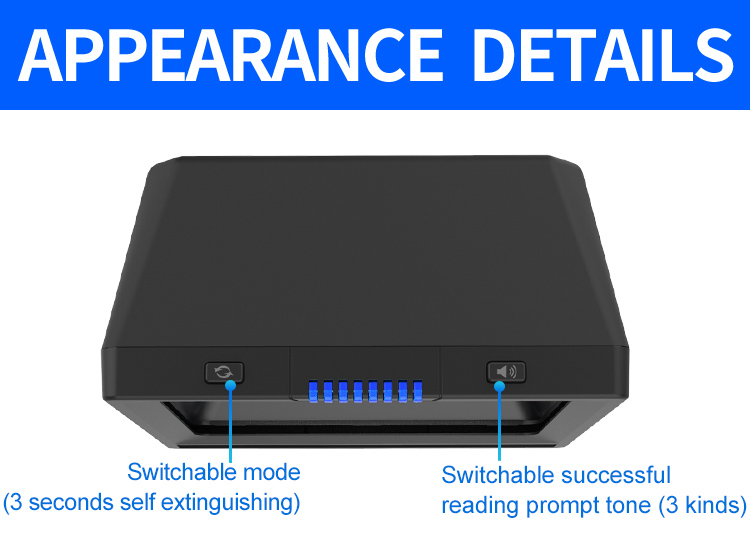

Button Switchable mode (3 seconds self extinguishing);
Switchable successful reading prompt tone (three kinds)
Print Constrast ≥25%
Decoding Capability 1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 , Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, Code11, MSI-Plessey, UK-Plessey, Pharmacode One-Track, Telepen, Trioptic code, Brazilian bank code, GS1 Databar, GS1 Compsite code, GS-128, Code32
2D QR Code; Mirco QR; Data MartrixPDF 417; Mirco PDF 417; Aztec; Maxicode; Hanxin; Grid Matrix; DOT code
Post Office Australian; Royal Mail (RM4CSS); Intelligent Mail Bar; Japanese Post ; KIX Post ; Planet code ; USPS Postnet; China post
Scanning Angle Roll360°, Pitch50°, Yew50°
Scanning Depth EAN-13 (13bit): 10mm — 250mm; Code 39 5mil (5bit): 10mm — 90mm
Code 128 5mil (5bit): 10mm — 80mm; QR (18bit): 10mm — 400mm
Alipay payment code (18bit): 10mm — 400mm
Environment Parameter
IP Grade IP52
Operating Temp. -20 to 60℃
Storage Temp. -40 to 70℃
Operating Humidity 5% to 95% (No condensationc)
Storage Humidity 5% to 95% (No condensationc)
ESD Protection 15KV air discharge; 10KV contact discharge
Shock Resistance Withstands multiple times 1.2m drops to concrete

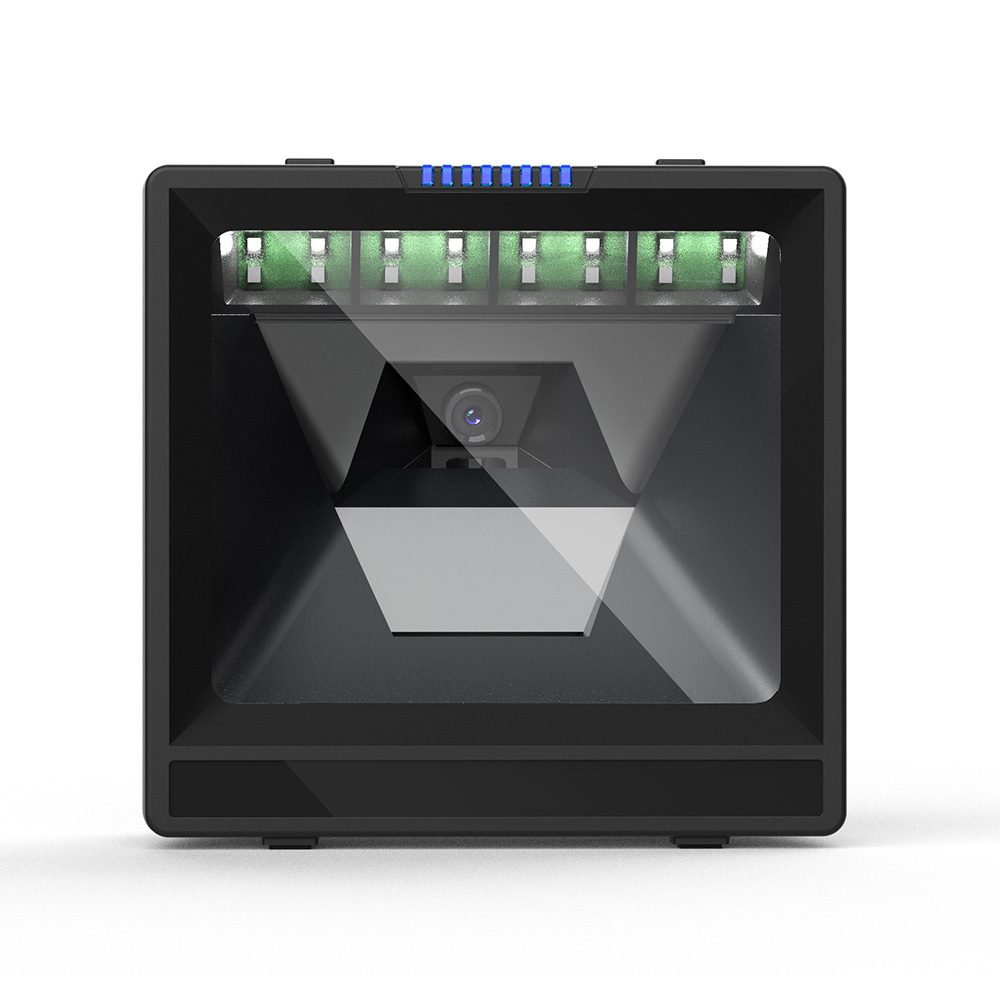

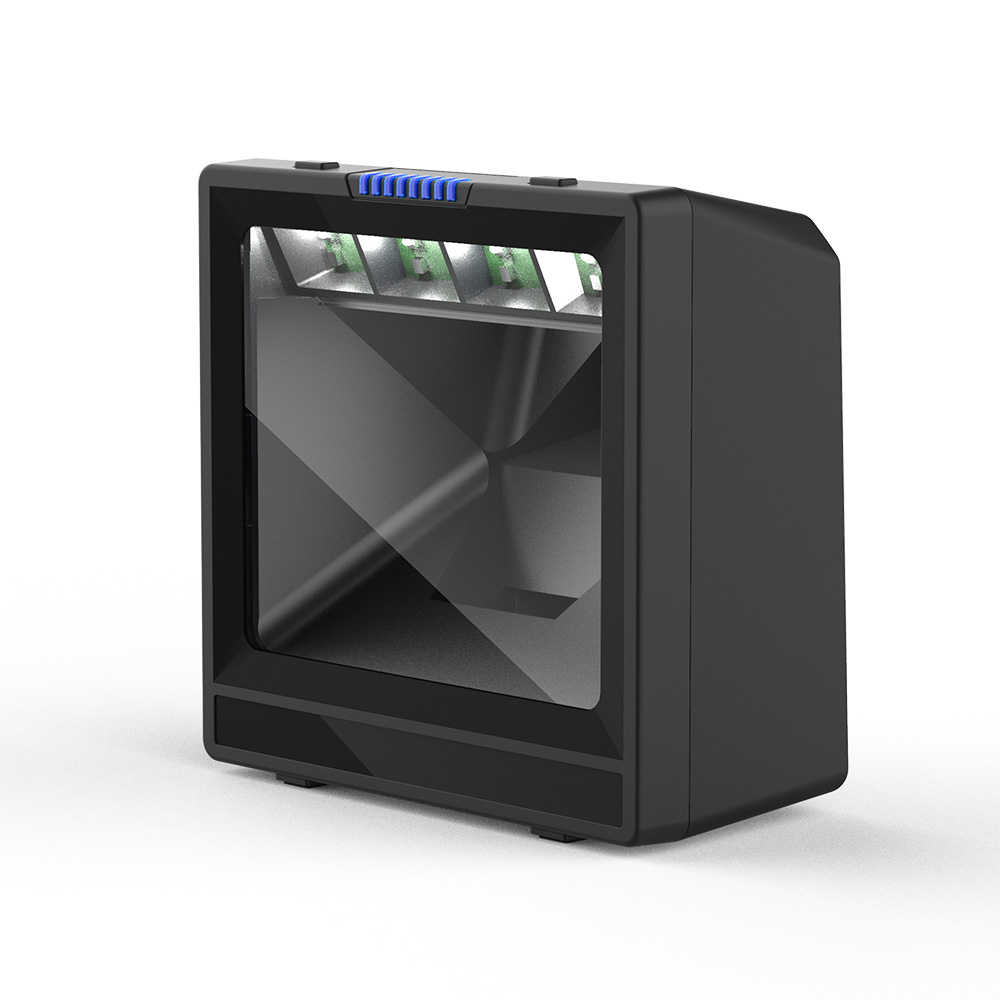

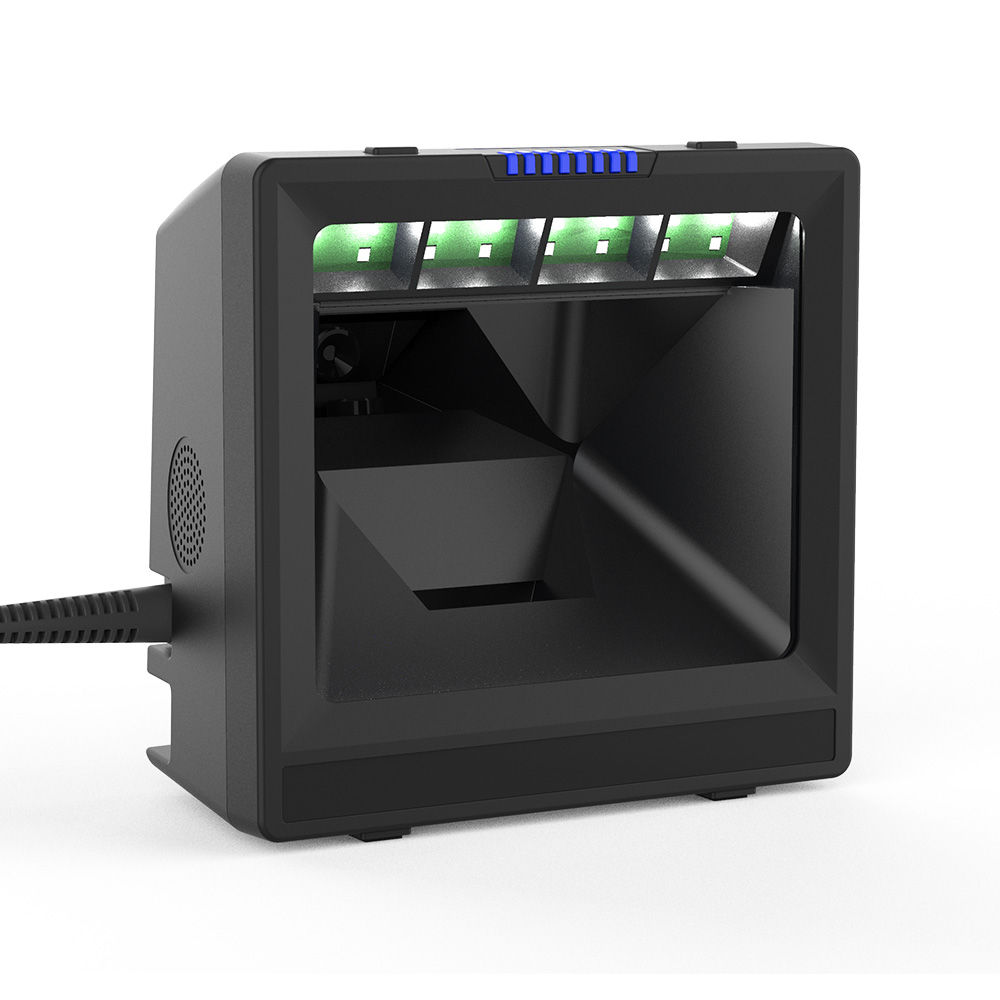

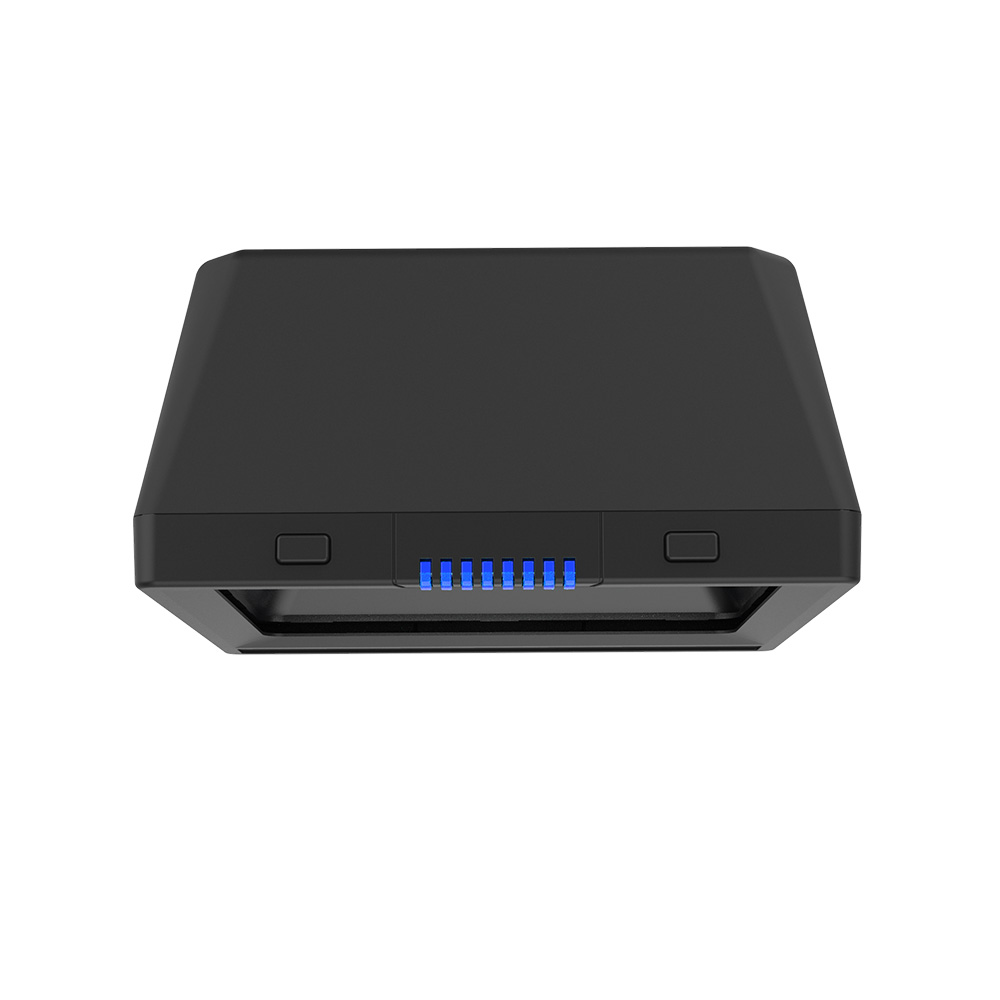

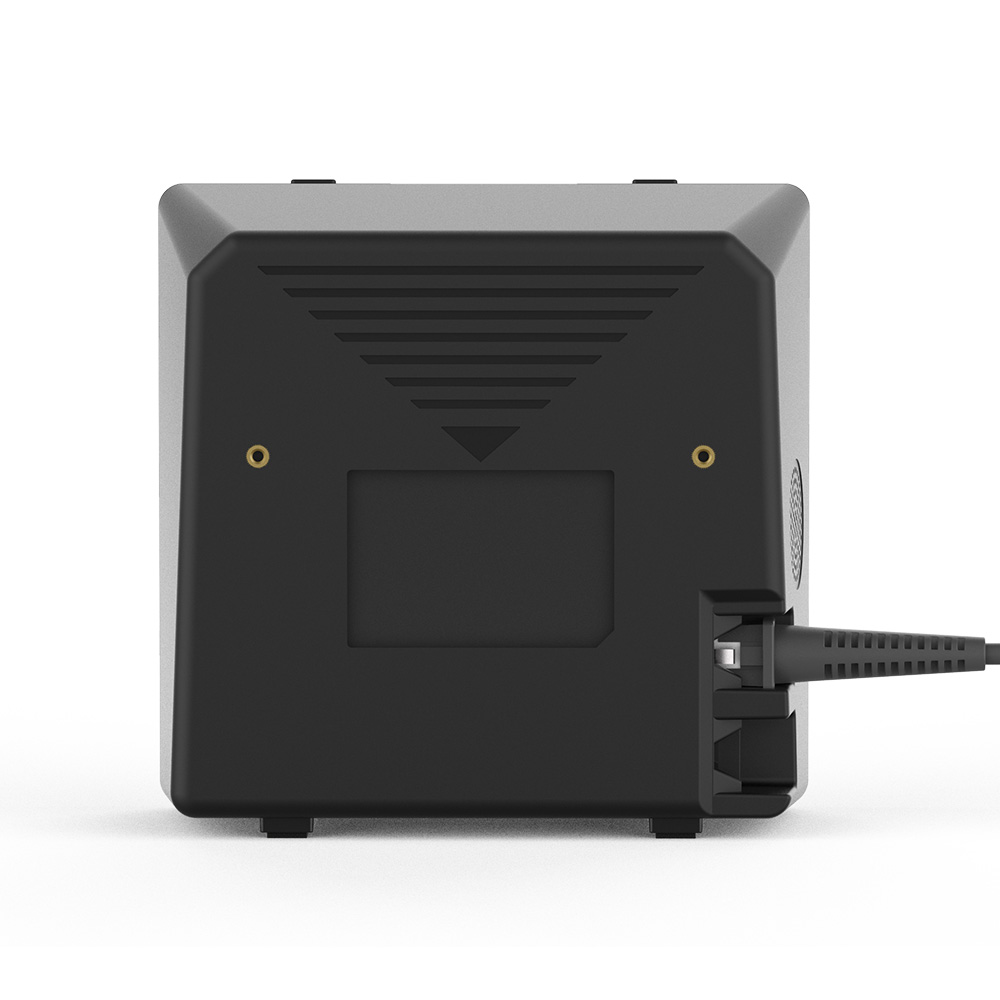

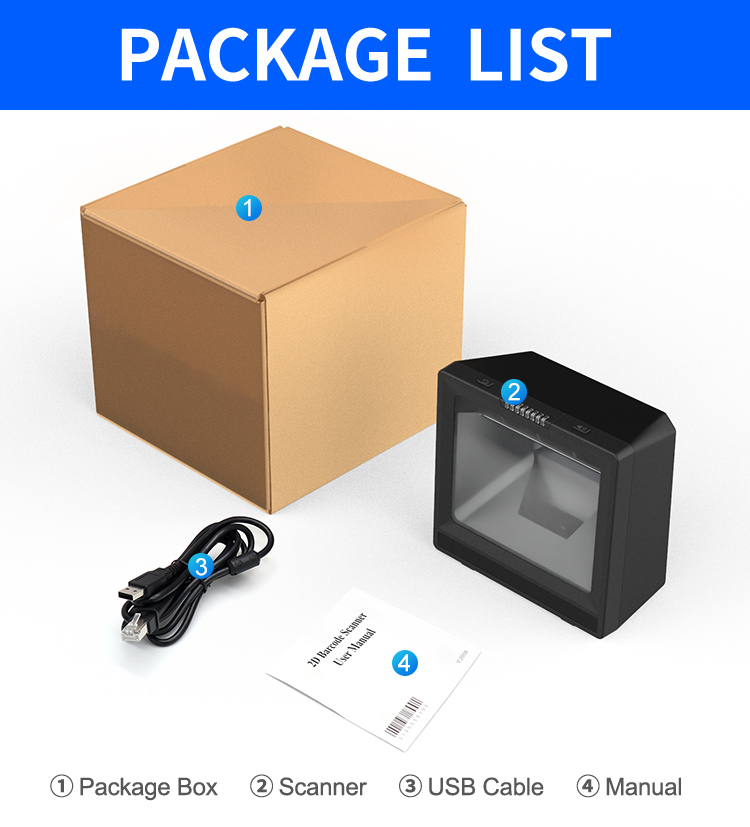

Product Pictures:
